McIntosh MAC7200
w/ 200 Watts/Channel, 14 Inputs & High-Performance AM/FM Tuner
With 200 Watts per channel, 14 inputs and a high-performance AM/FM tuner, the MAC7200 Receiver is a music lover’s dream. McIntosh has been making tuners since the 1950s and they are one of the hallmarks of McIntosh, with the groundbreaking MR78 FM Tuner from 1972 considered an all-time classic in the audio industry. The built-in AM/FM tuner in the MAC7200 comes from that same illustrious line of McIntosh tuners and will pick up your favorite radio stations with unparalleled clarity and a realism that is free from noise and distortion. Its advanced signal quality monitor can display the multipath and noise levels of the incoming RF signal to help fine-tune antenna placement for optimal reception. Dedicated PRESET and TUNING knobs enable easy radio operation. The FM tuner includes Radio Data System (RDS) support, allowing it to display optional information sent by radio stations such as the station’s name and call letters as well as the name of the artist and song being played. It features 20 presets for each radio band as well as a remote AM antenna.
The 14 inputs are comprised of both analog and digital input types. For analog, there is 1 balanced and 5 unbalanced inputs plus 1 Moving Coil and 1 Moving Magnet input to connect turntables. For digital, there are 2 coaxial and 2 optical inputs, 1 USB and 1 proprietary MCT input (for use with our MCT500 SACD/CD Transport). All inputs can be given custom names for user-friendly system control and configuration. The digital inputs are contained in our DA1 Digital Audio Module; the DA1 can be replaced by future modules to easily keep the MAC7200 up to date with the latest digital audio technologies. At the heart of the DA1 is a powerful 8-channel, 32-bit Digital-to-Analog Converter (DAC) used in Quad Balanced mode. PCM signals up to 32-bit/384kHz can be played via the USB input, allowing for playback of high-resolution audio up to DSD256 and DXD 384kHz levels. The coax and optical inputs support up to 24-bit/192kHz files.

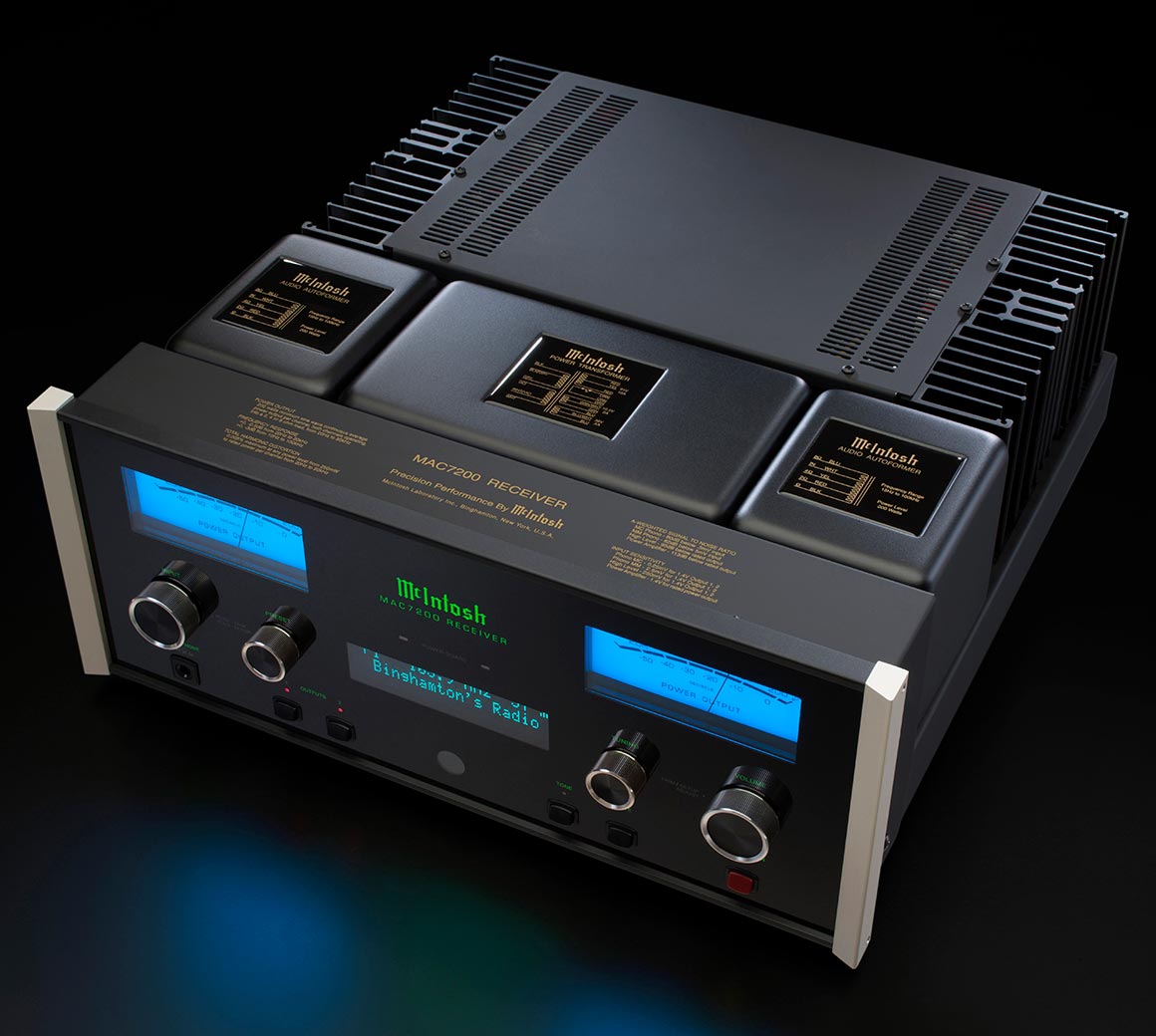

McIntosh's striking Monogrammed Heatsinks are included and they not only make a visual statement, but they are also very efficient at dissipating heat – which is why they warrant bearing the McIntosh “Mc” logo. They are connected to advanced high current output transistors that eliminate warm-up time so the MAC7200 is ready to go from the moment you turn it on. Other McIntosh technologies found in the MAC7200 include our Autoformer to deliver the full 200 Watts to each of your speakers regardless of their impedance, Power Guard, Sentry Monitor, Home Theater PassThru, bass and treble tone controls, High Drive headphone amplifier with Headphone Crossfeed Director (HXD), and gold-plated speaker binding posts.

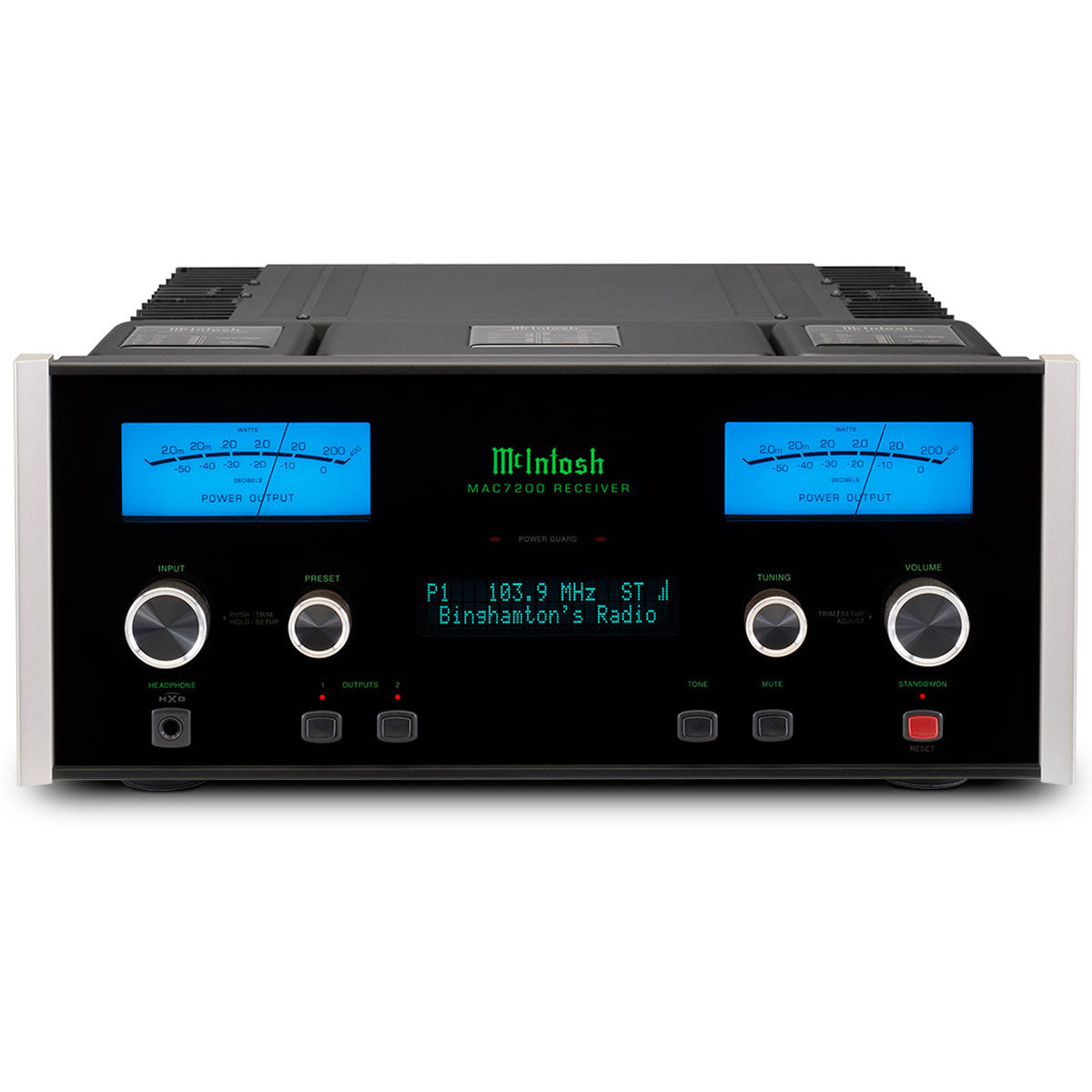

The entire unit is wrapped in the timeless McIntosh appearance with blue watt meters, a black glass front panel with aluminum end caps, control knobs, and an illuminated logo.
- Power Output: 200 Watts per channel. McIntosh Autoformers ensure all speakers receive the full 200 Watts regardless if they are 2, 4 or 8 Ohm impedance.
- Total Harmonic Distortion: 0.005% maximum from 20Hz to 20kHz
- Tone Controls: Bass and Treble
- Headphone Amplifier: 1/4” High Drive with Headphone Crossfeed Director (HXD). Powers all headphones from 20 to 600 Ohms.
- Analog Inputs: 5 Unbalanced, 1 Balanced, 1 Moving Coil, 1 Moving Magnet
- Digital Inputs: 2 Coax, 2 Optical, 1 USB, 1 MCT (used with McIntosh MCT series SACD/CD Transports) All are housed in DA1 Digital Audio Module.
- Tuner Section: Features the same AM/FM performance as a stand alone McIntosh tuner. 20 presets available each for band. Includes remote AM antenna for the finest AM reception.
- Home Theater PassThru: Allows for seamless interfacing with a Home Theater system.
UPC | 842548106512 |
---|---|
Number of Channels | 2 |
Power Per Channel | 200 Watts |
THD Stereo | 0.005% |
Signal To Noise Ratio | Signal To Noise Ratio (Moving Coil): 80dB Signal To Noise Ratio (Moving Magnet): 82dB Signal To Noise Ratio (High Level): 95dB Signal To Noise Ratio (Power Amp input): 113dB |
Frequency Response | Frequency Response +0,-0.5dB 20Hz to 20kHz Frequency Response, +0, -3dB 10Hz to 100kHz |
Impedance | Speaker Impedance 2, 4, or 8 Ohms |
Total Audio Inputs | 8 |
Total Video Inputs | 6 |
Optical Digital Input | 2 |
Coaxial Digital Inputs | 2 |
Power Supply | 120V 50/60Hz, 4.4 amps |
Product Manual | Download |
Warranty | 3 year limited warranty |
