Item #RX500ABL

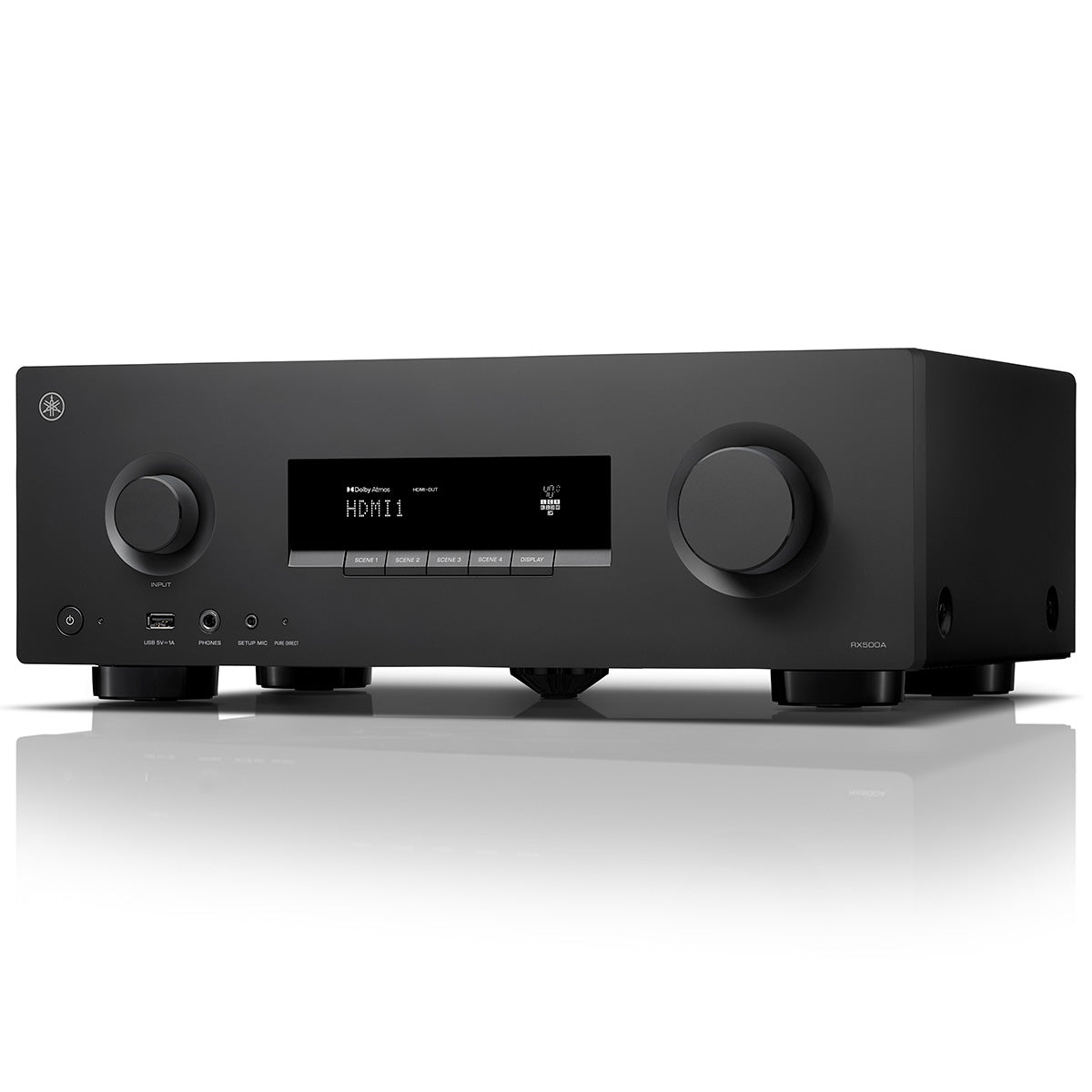

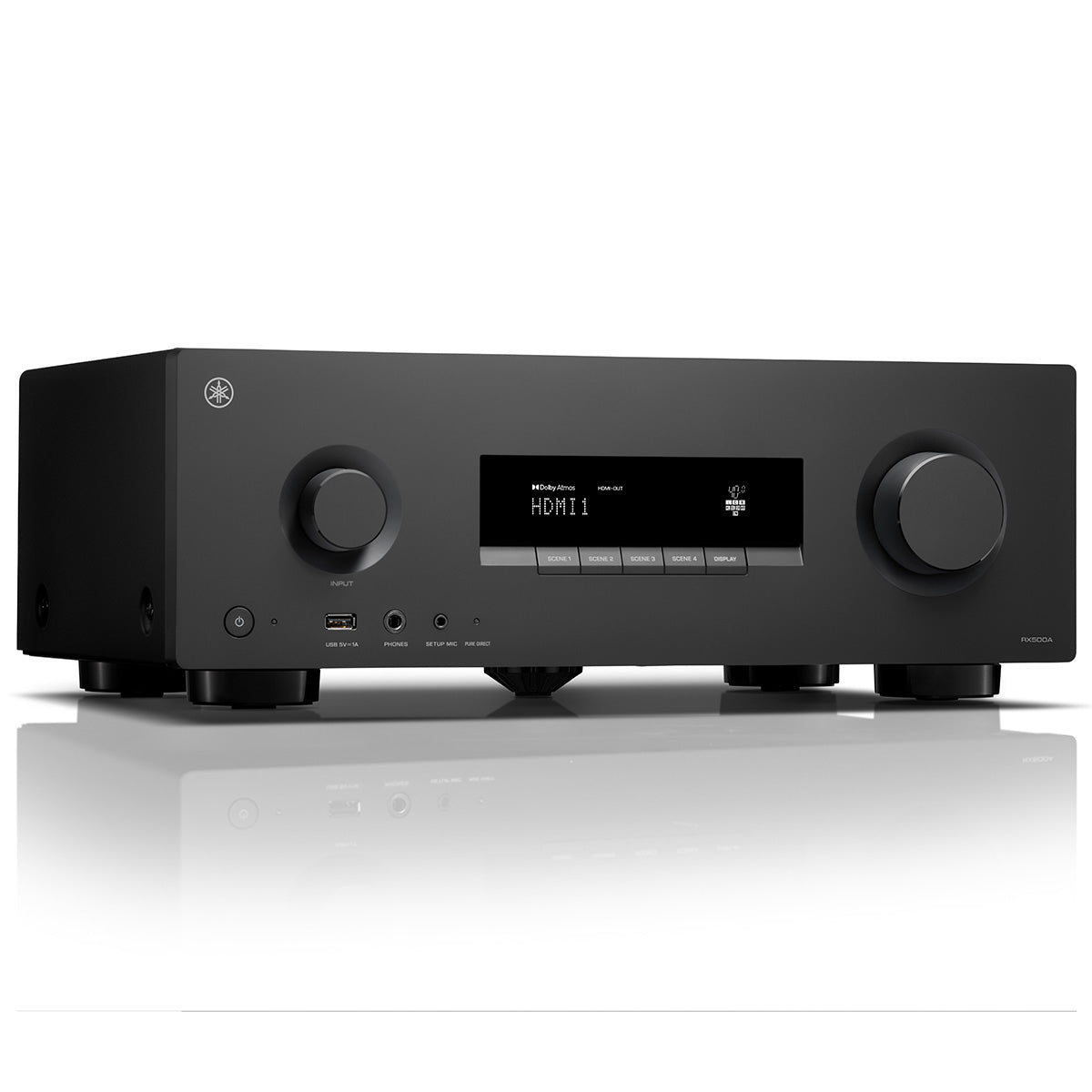

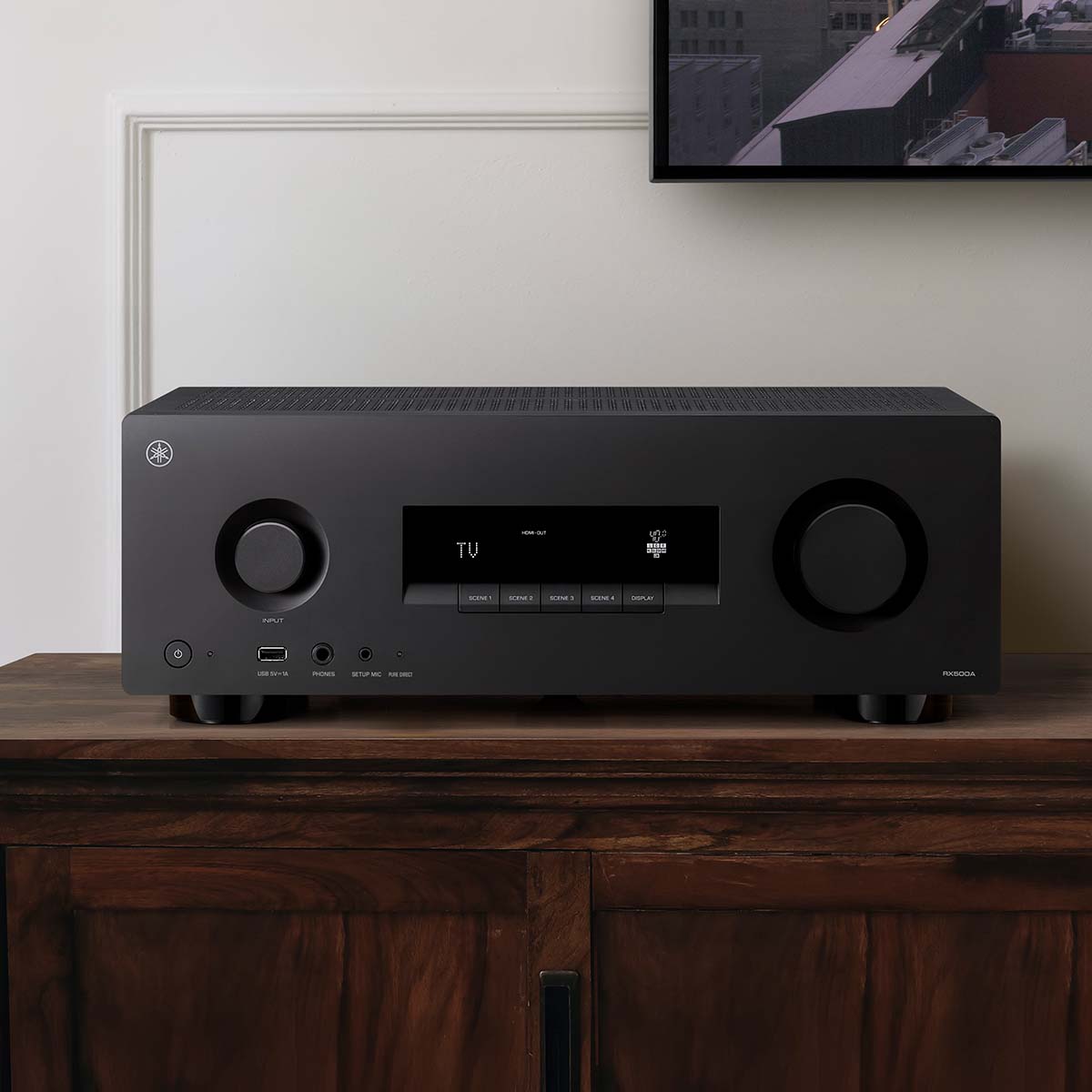

Yamaha RX500A

7.2-Channel AV Receiver
Item #RX500ABL

Yamaha RX500A

7.2-Channel AV Receiver
$599.95
More on the way! Order now to reserve risk free.

Overview

Elevate your home theater experience with the Yamaha RX500A, a 7.2-channel home theater AV receiver that brings movies, games and music to life with Dolby Atmos and DTS:X, supporting full 5.2.2-channel speaker layouts, as well as 7.2-channel surround with virtual height effects. Next-generation HDMI 2.1 connectivity (4-in/1-out) delivers smooth, high-resolution playback up to 4K/120 and 8K/60. It also supports advanced gaming features like ALLM and VRR, along with HDMI eARC and HDR formats including Dolby Vision, HDR10+, and HLG. Built-in automatic Room Correction optimizes sound specifically for your space, while robust Wi-Fi streaming options—including Spotify Connect, Google Cast, AirPlay 2, TIDAL Connect and Qobuz Connect—make enjoying high-quality music effortless. Bluetooth Multipoint lets you pair and switch between two devices seamlessly, and customizable Scene buttons provide instant access to your favorite sources and sound modes.
Watch our Comparison

Key Features

  • 7.2-ch surround sound with 5.1.2-ch flexibility
  • Dolby Atmos and DTS:X immersive audio
  • Next-gen video with 4K120/8K60 HDMI (4-in/1-out) and HDMI eARC
  • Advanced HDR support, including Dolby Vision and HDR10+
  • Room Correction automatically optimizes sound for your space
  • Wi-Fi streaming options—including Spotify Connect, Google Cast, AirPlay 2, TIDAL Connect and Qobuz Connect—plus Bluetooth Multipoint
  • Scene buttons for instant access to your favorite listening modes

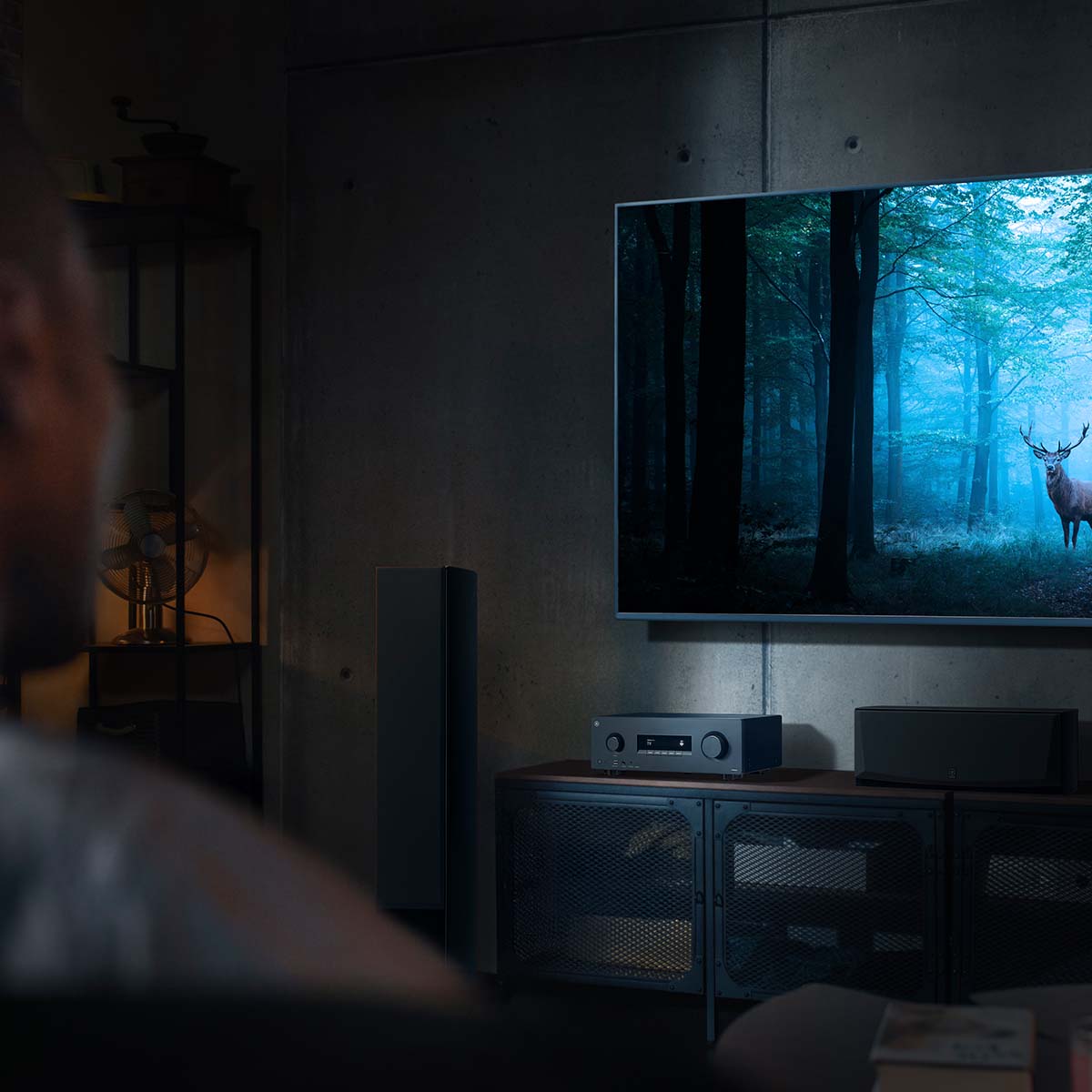

Step Into Lifelike Sonic Worlds

With 7.2-channel surround and Dolby Atmos, deeply dimensional, lifelike sound draws you into every moment of your favorite entertainment.

Stunning Visual Realism

With support for ultra-high definition 4K/120 and 8K/60 video, advanced Dolby Vision and HDR10+ dynamic range technologies, and next-gen gaming features like ALLM and VRR, the RX500A delivers extraordinary realism.

High Performance Streaming

Stream your favorite music, podcasts and audiobooks via Wi-Fi with Spotify Connect, Google Cast, AirPlay 2, TIDAL Connect or Qobuz Connect. Plus, built-in Bluetooth Multipoint lets you pair two device sources and instantly switch between them.

Easy Setup

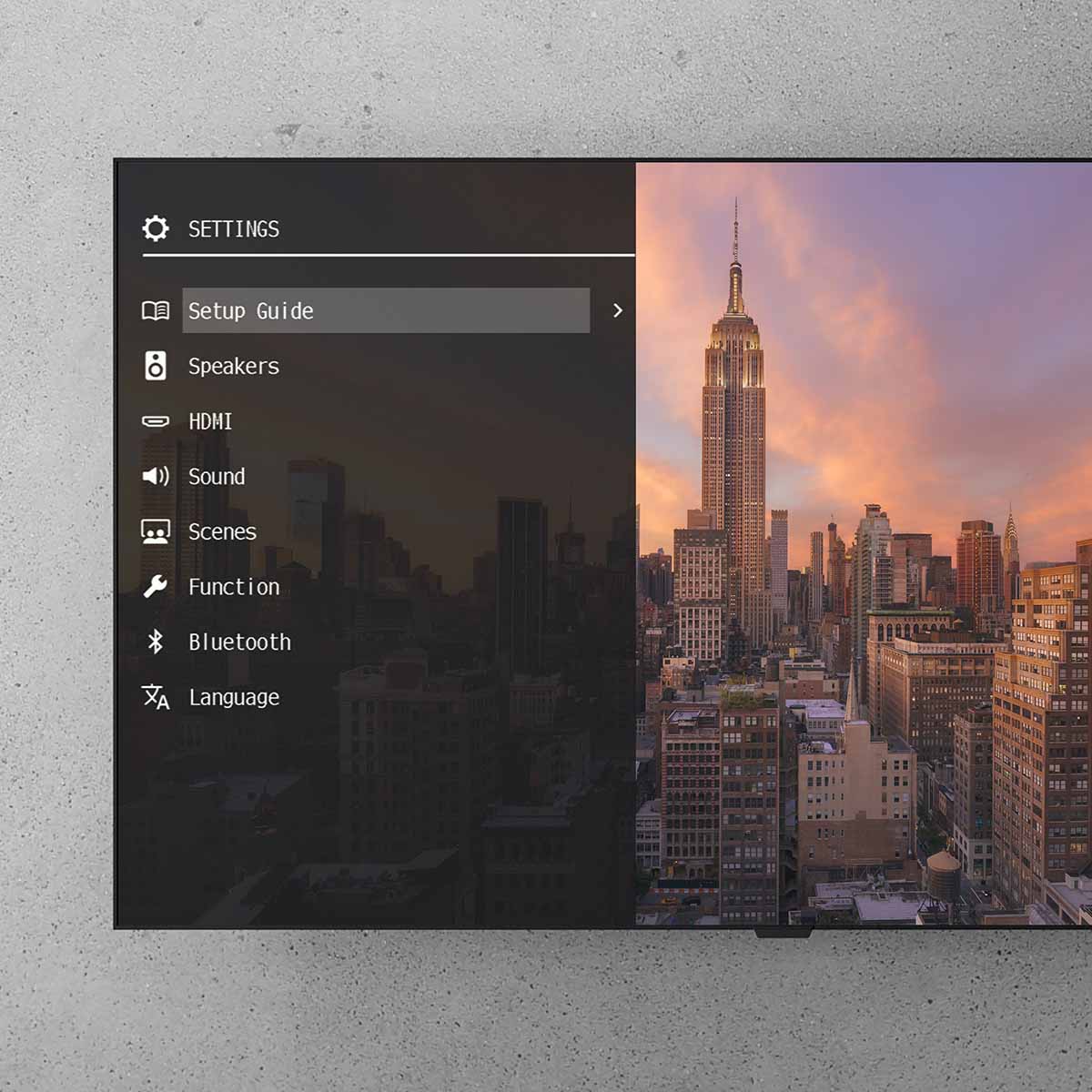

An intuitive Quick Guide walks you through every step of the setup process—from connecting speakers, your TV and external devices to selecting inputs. The on-screen Settings menu allows easy configuration of sound settings so you can get up and running with ease.

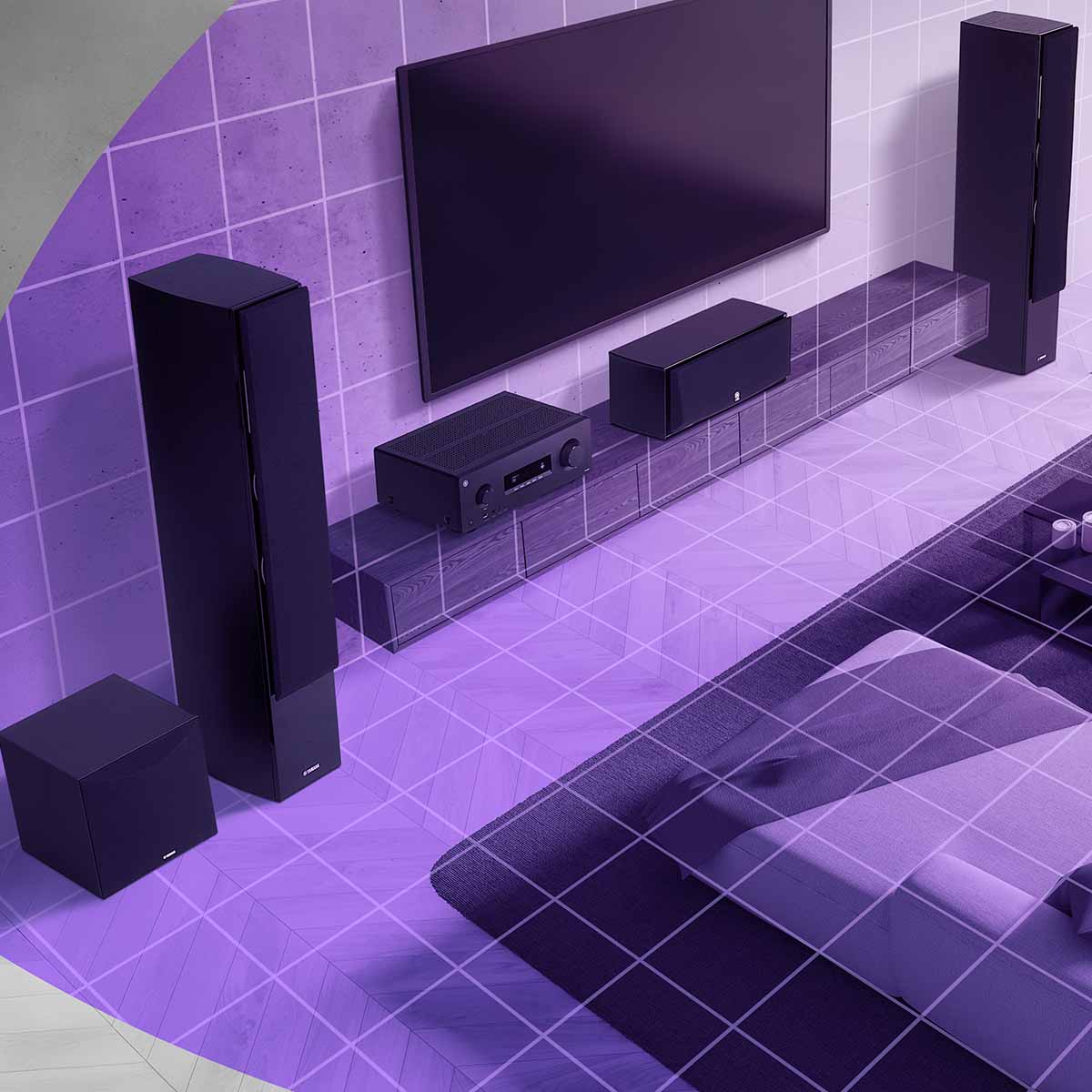

Room Correction—Perfect Sound in Any Room

An included setup microphone measures your room's acoustics and speaker characteristics, allowing the receiver to automatically optimize sound performance—so premium audio quality can be enjoyed at its best, regardless of room conditions or environment.

Flexible Dolby Atmos Speaker Layouts

Experience Dolby Atmos sound designed for flexible home theater setups. This AV receiver supports multiple speaker layouts—from traditional surround sound enhanced with virtual height effects to layouts with either in-ceiling or up-firing height speakers—so you can tailor immersive audio to your space.

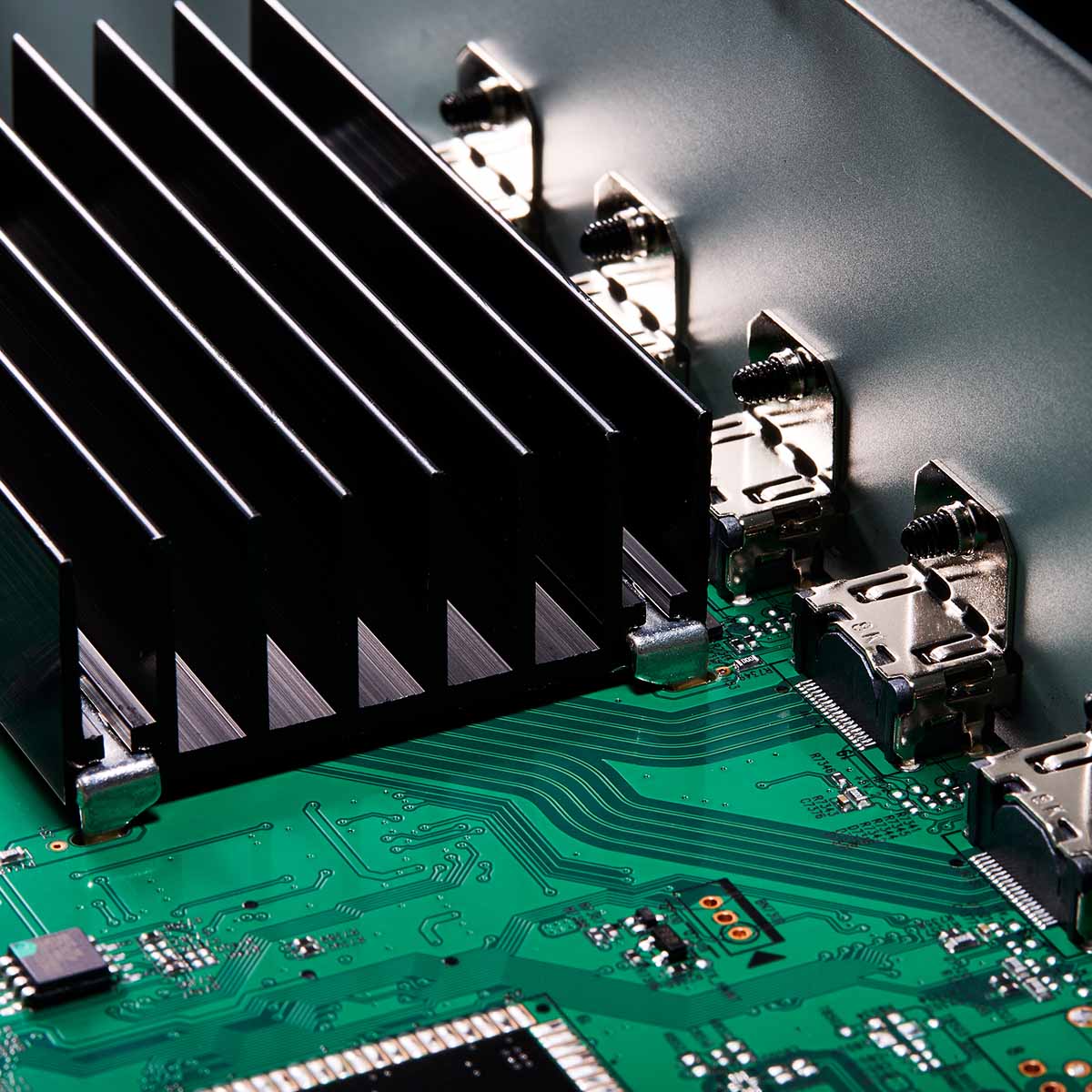

High-Performance HDMI Switching

Connect multiple HDMI devices—such as streaming players, game consoles, and Blu-ray Disc players—and switch between them seamlessly. Also, HDMI eARC delivers high-quality audio from your TV to the AV receiver over a single cable.

Sound to Match the Moment

Select from a range of Sound Modes designed for different content, listening situations and personal preferences. Pure Direct and Stereo modes are ideal for music purists, Movie mode delivers cinematic impact, and Night mode keeps sound balanced and unobtrusive after hours.

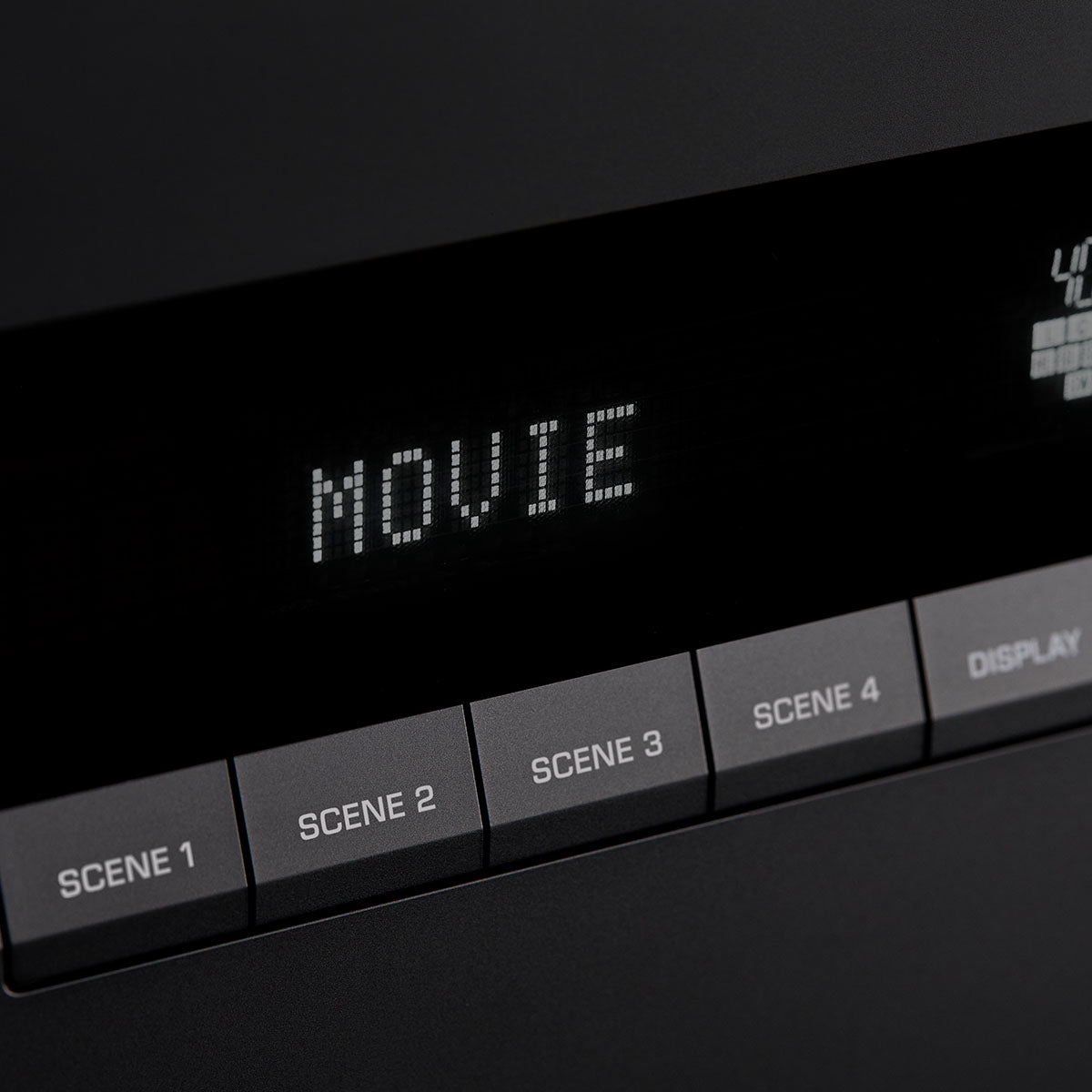

Instantly Set the Scene

Create up to four custom presets using the Scene buttons. Each Scene can be tailored to a specific input with the sound settings you desire, then recalled instantly from the front panel or remote to play your content exactly as you've set it.

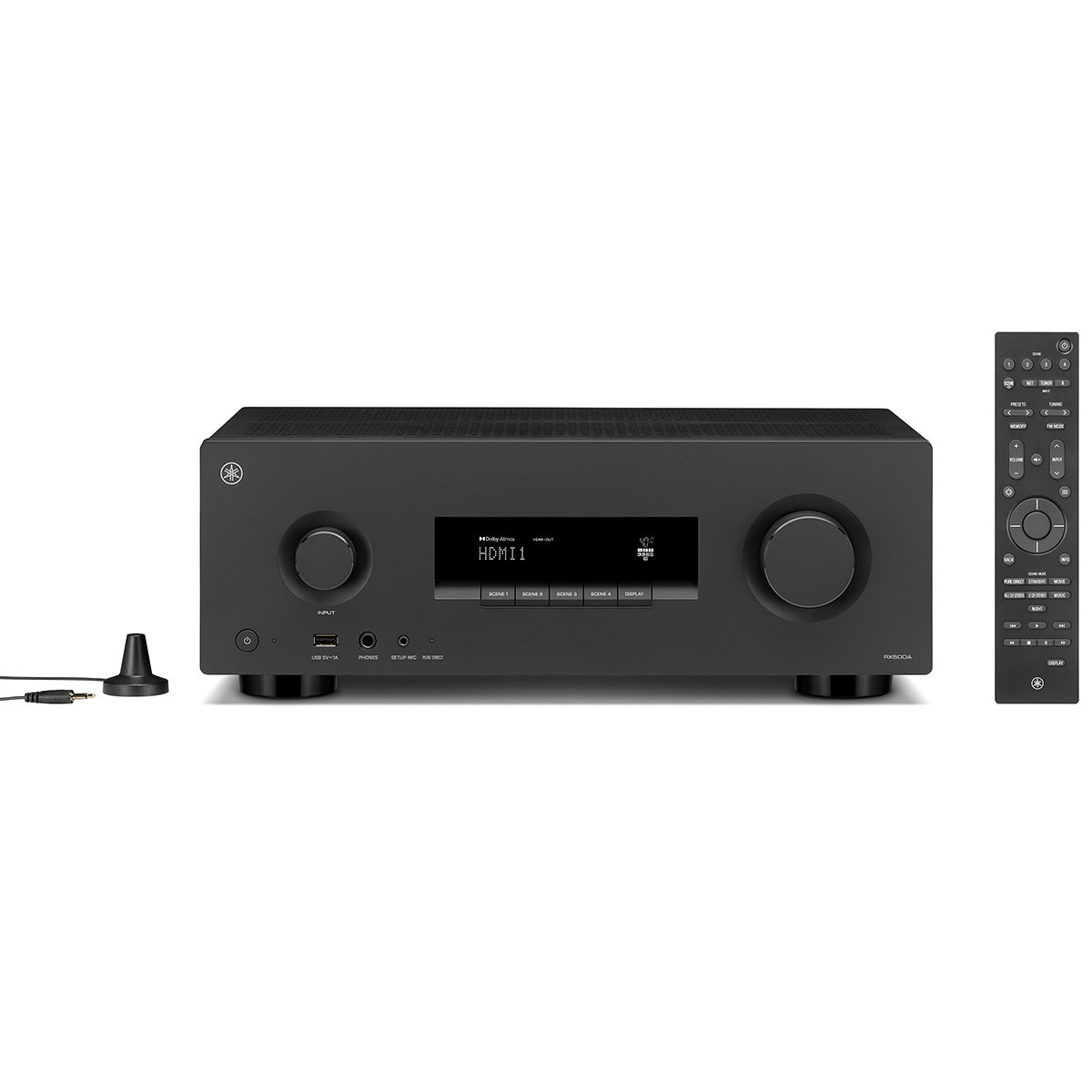

What's in the Box

  • RX500A 7.2-ch AV Receiver

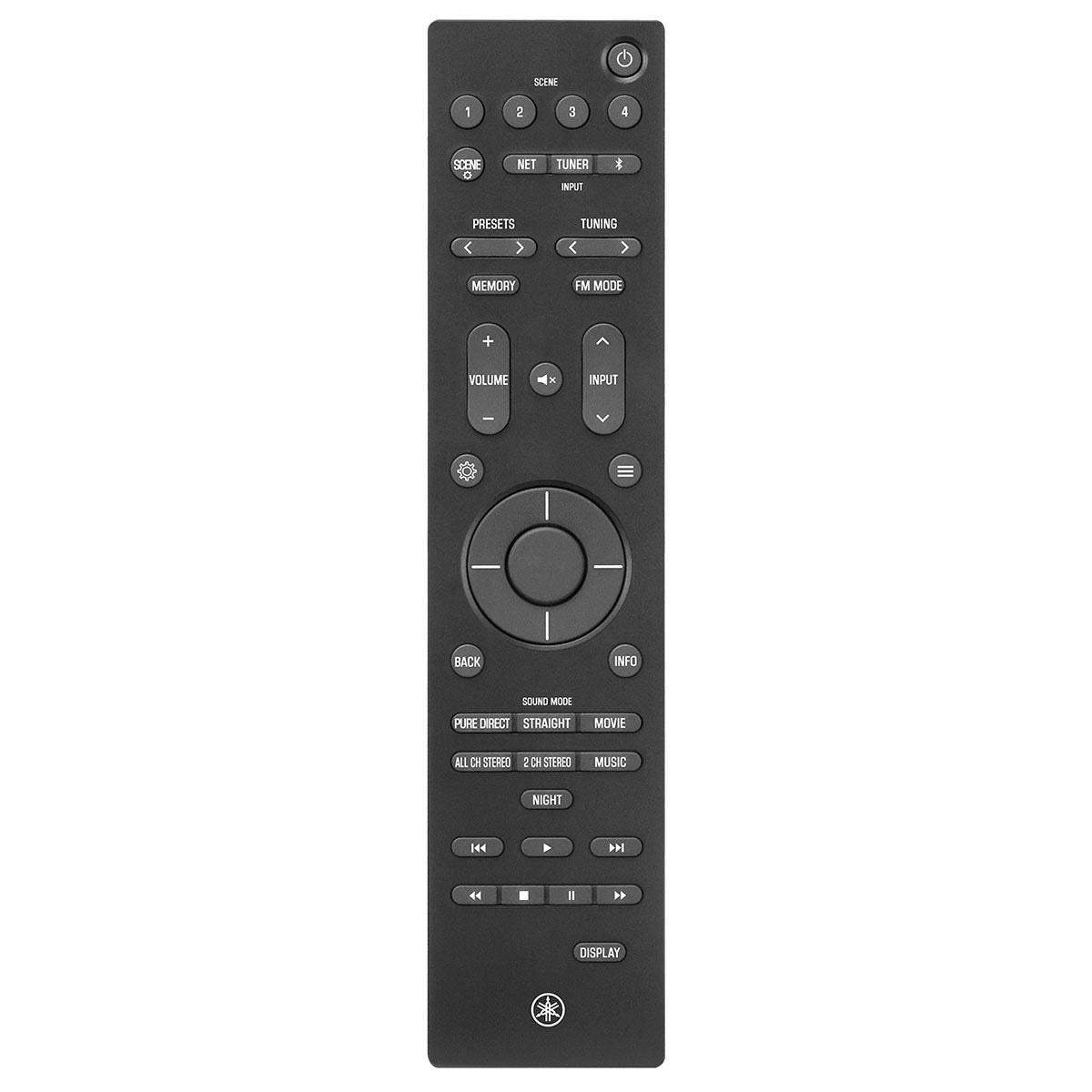

  • Remote Control
  • (2) AAA Batteries
  • FM Antenna
  • Setup Microphone
  • Cardboard Microphone Stand
  • Quick Guide
  • Safety Guide
Yamaha RX500A 7.2-Channel AV Receiver

Details & Specs

ModelRX500A
Amplification
Channels7.2
Decodable Channels7.1
Amp Channels7
Output Power70 W (8 ohms, 20 Hz–20 kHz, 0.09% THD, 2-ch driven), 145 W (6 ohms, 1 kHz, 10% THD, 1-ch driven)
Bi-amp CapableYes
Audio
Surround Sound Decoding FormatsDolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS-HD Master Audio, DTS-HD High Resolution, DTS Express, DTS, DTS-ES Matrix 6.1, DTS-ES Discrete 6.1, DTS 96/24, DTS:X
Surround Sound Post Decoding FormatsDolby Surround, DTS Neural:X
USB Decoding FormatsMP3, MPEG-4 AAC, WMA, WAV
HDMI Decoding FormatsPCM (8ch max)
Sound ModesPure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night
Zone BYes
Room CalibrationRoom Correction
Other FeaturesDialogue Level, Subwoofer Trim, Extra Bass, Lip Sync
HDMI
HDMI4 Inputs / 1 Output
HDMI FeaturesHDMI 2.1, 8K60Hz / 4K120Hz, eARC, ARC, VRR/ALLM/QMS, HDCP 2.3, CEC, Auto Lip Sync, Deep Color, x.v.Color, HD audio playback
High Dynamic Range SupportHDR (High Dynamic Range), HDR10+, Dolby Vision, Hybrid Log-Gamma

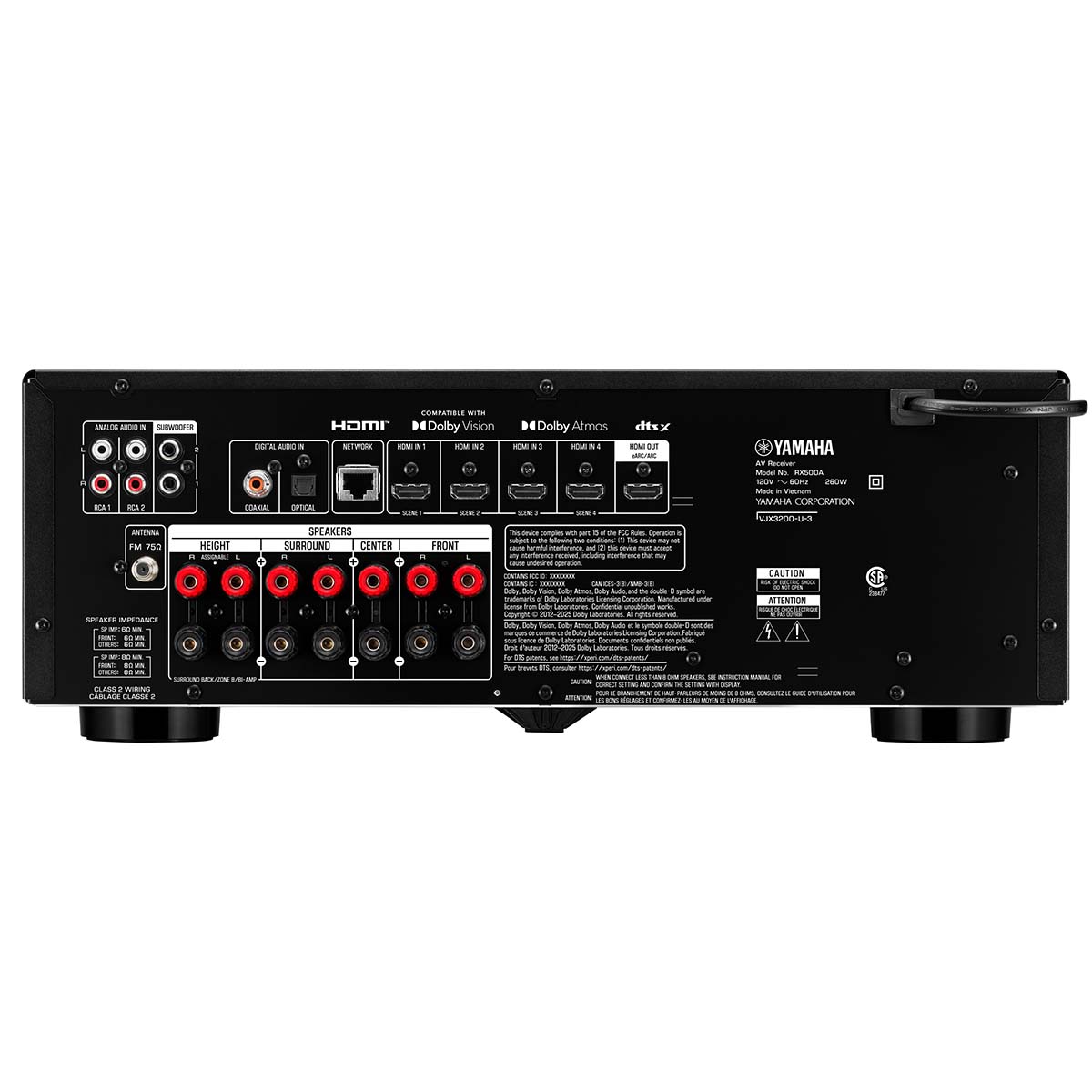

Connectivity
Speaker Output7 (binding post terminals)
Headphone Output1
Subwoofer Pre-outs2
HDMI4 Inputs / 1 Output
Analog RCA Inputs2
Optical Input1
Coaxial Input1
USB1 (Audio File Playback from a Mass Storage Device, Firmware Updates)
AM/FM TunerAM – No / FM – Yes
BluetoothYes (Ver. 5.3, Multipoint)
StreamingSpotify Connect, Qobuz Connect, TIDAL Connect, Google Cast, AirPlay 2, Net Radio, Podcasts
Wi-Fi / Ethernet PortYes / Yes
General
Power Consumption260 W
Standby Power Consumption≤0.3 W
Auto Power StandbyYes
Dimensions (Unit)17-1/8"W x 6-1/8"H x 12-1/2"D (434W x 157H x 319D mm)
Dimensions (Package)20-5/8"W x 9-1/8"H x 15-3/4"D (525W x 230H x 400D mm)
Weight (Unit)17.6 lbs. (8.0 kg)
Weight (Package)20.7 lbs. (9.4 kg)
Included AccessoriesRemote Control, Batteries, FM Antenna, Setup Microphone, Cardboard Microphone Stand, Quick Guide, Safety Guide
