Item #RX300ABL

Yamaha RX300A

5.2-Channel AV Receiver
Item #RX300ABL

Yamaha RX300A

5.2-Channel AV Receiver
$399.95
More on the way! Order now to reserve risk free.

Overview

Beyond the basics, the Yamaha RX300A 5.2-channel home theater AV receiver delivers standout performance and value with immersive Dolby Atmos and DTS Virtual:X sound, flexible 3.1.2-channel speaker layouts, and next-gen video support. Enjoy high-resolution, lag-free video with 4K/120 and 8K/60 HDMI (4-in/1-out) with ALLM and VRR, HDMI eARC, and advanced HDR formats including Dolby Vision and HDR10+. Automatic Room Correction optimizes sound for your space, while Bluetooth Multipoint enables seamless switching between two device sources. Scene buttons provide instant access to your favorite inputs and listening modes, making setup and everyday use effortless.

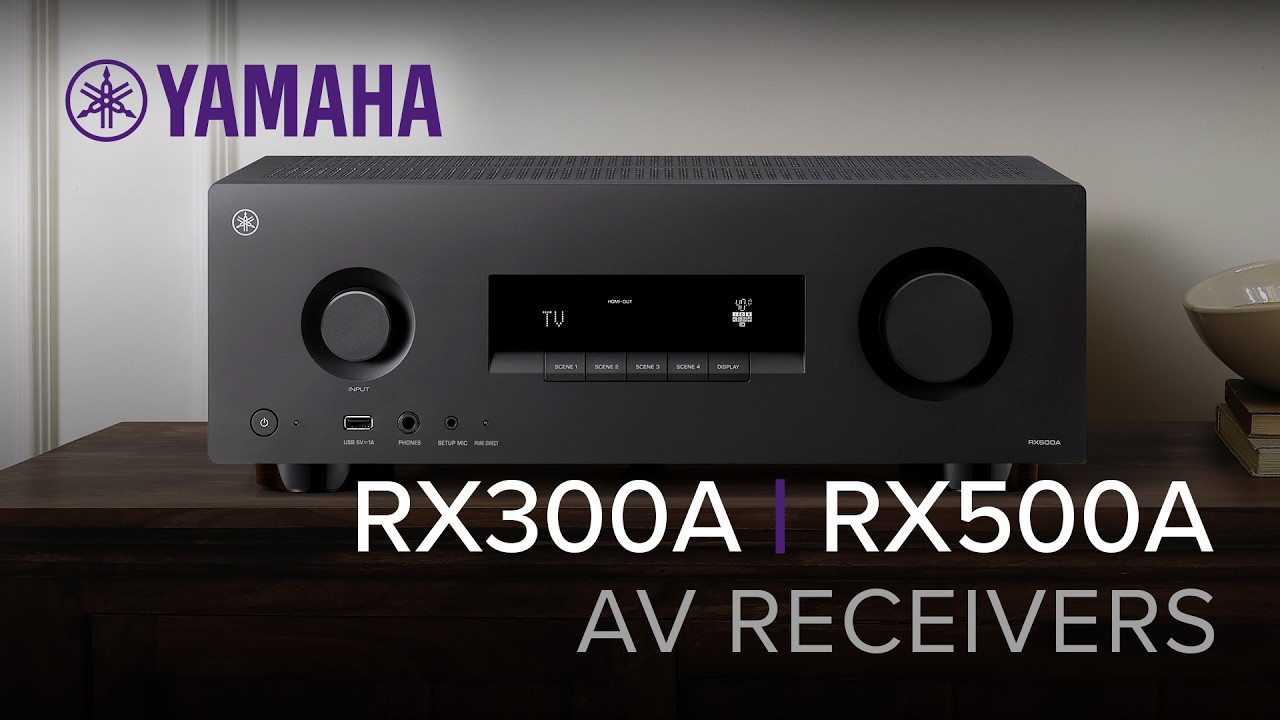

Watch our Comparison

Key Features

  • 5.2-ch surround sound with 3.1.2-ch flexibility
  • Dolby Atmos and DTS Virtual:X immersive audio
  • Next-gen video with 4K120/8K60 HDMI (4-in/1-out) and HDMI eARC
  • Advanced HDR support, including Dolby Vision and HDR10+
  • Room Correction automatically optimizes sound for your space
  • Bluetooth Multipoint for seamless switching between two device sources
  • Scene buttons for instant access to your favorite listening modes

Step Into Lifelike Sonic Worlds

With 5.2-channel surround and Dolby Atmos, deeply dimensional, lifelike sound draws you into every moment of your favorite entertainment.

Stunning Visual Realism

With support for ultra-high definition 4K/120 and 8K/60 video, advanced Dolby Vision and HDR10+ dynamic range technologies, and next-gen gaming features like ALLM and VRR, the RX300A delivers extraordinary realism.

Easy Streaming & Seamless Swapping

Stream all your favorite music, podcasts and audiobooks wirelessly. Built-in Bluetooth Multipoint lets you pair two devices and instantly switch between them—perfect for use with your smartphones, tablets and laptops.

Easy Setup

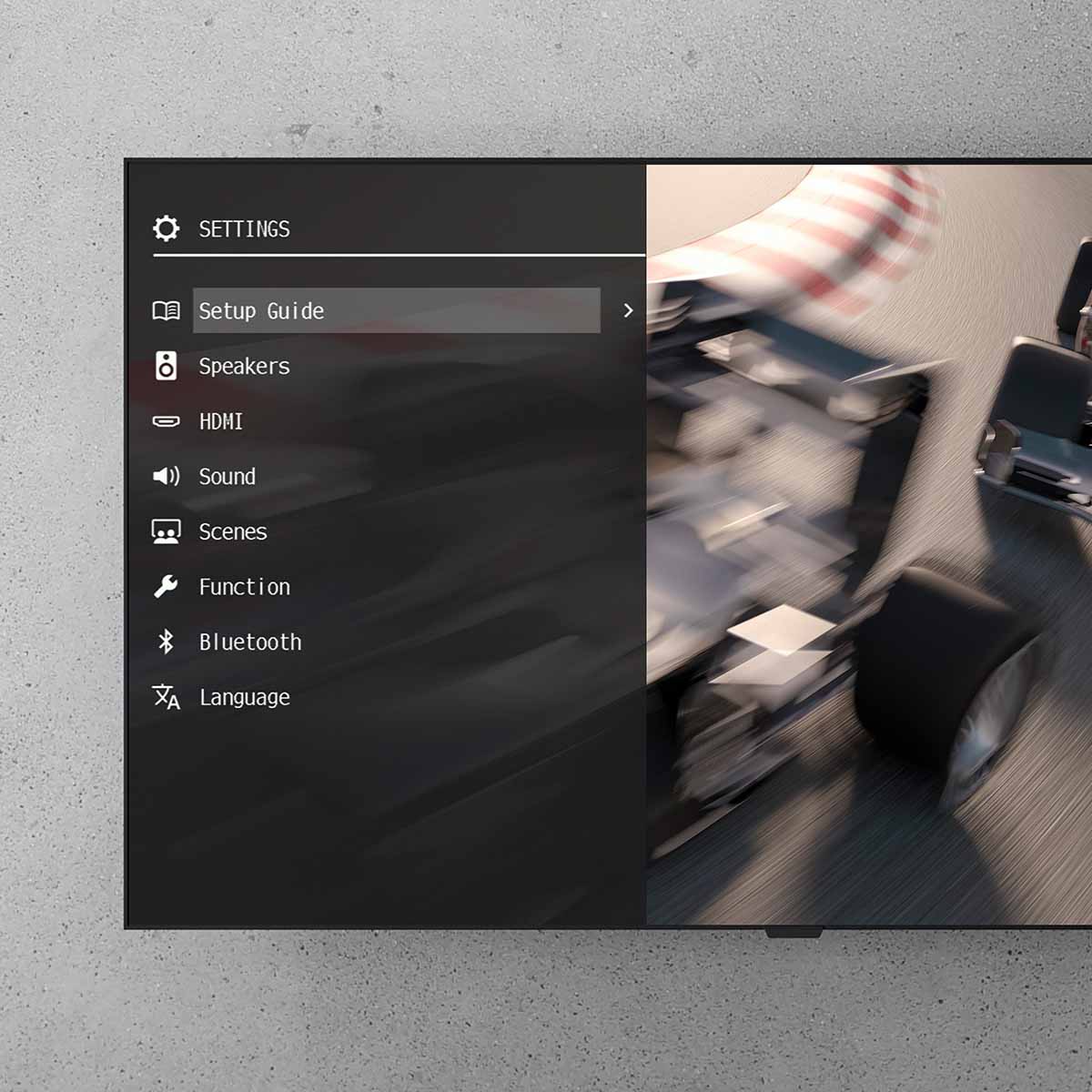

An intuitive Quick Guide walks you through every step of the setup process—from connecting speakers, your TV and external devices to selecting inputs. The on-screen Settings menu allows easy configuration of sound settings so you can get up and running with ease.

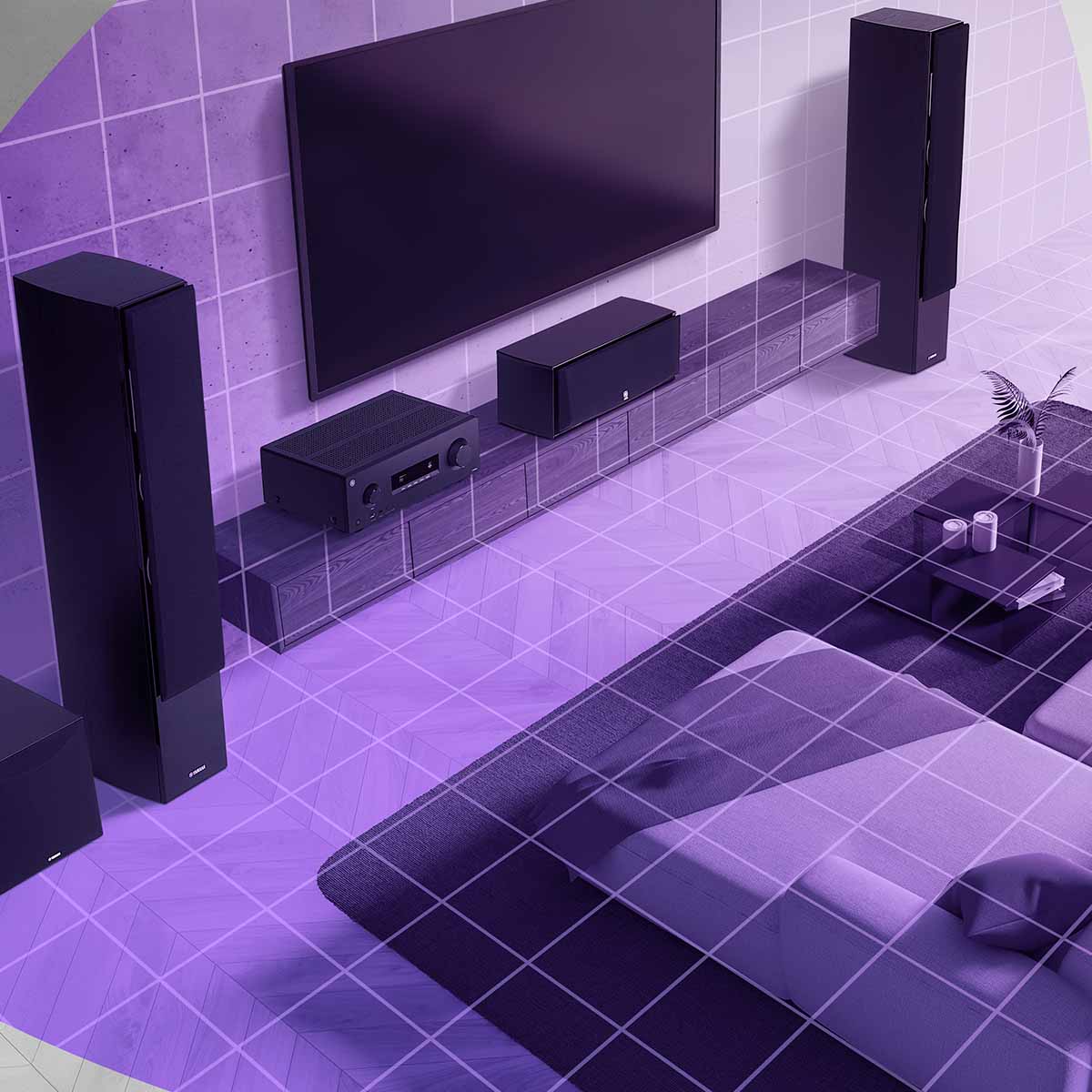

Room Correction—Perfect Sound in Any Room

An included setup microphone measures your room's acoustics and speaker characteristics, allowing the receiver to automatically optimize sound performance—so premium audio quality can be enjoyed at its best, regardless of room conditions or environment.

Flexible Dolby Atmos Speaker Layouts

Experience Dolby Atmos sound designed for flexible home theater setups. This AV receiver supports multiple speaker layouts—from traditional surround sound enhanced with virtual height effects to layouts with either in-ceiling or up-firing height speakers—so you can tailor immersive audio to your space.

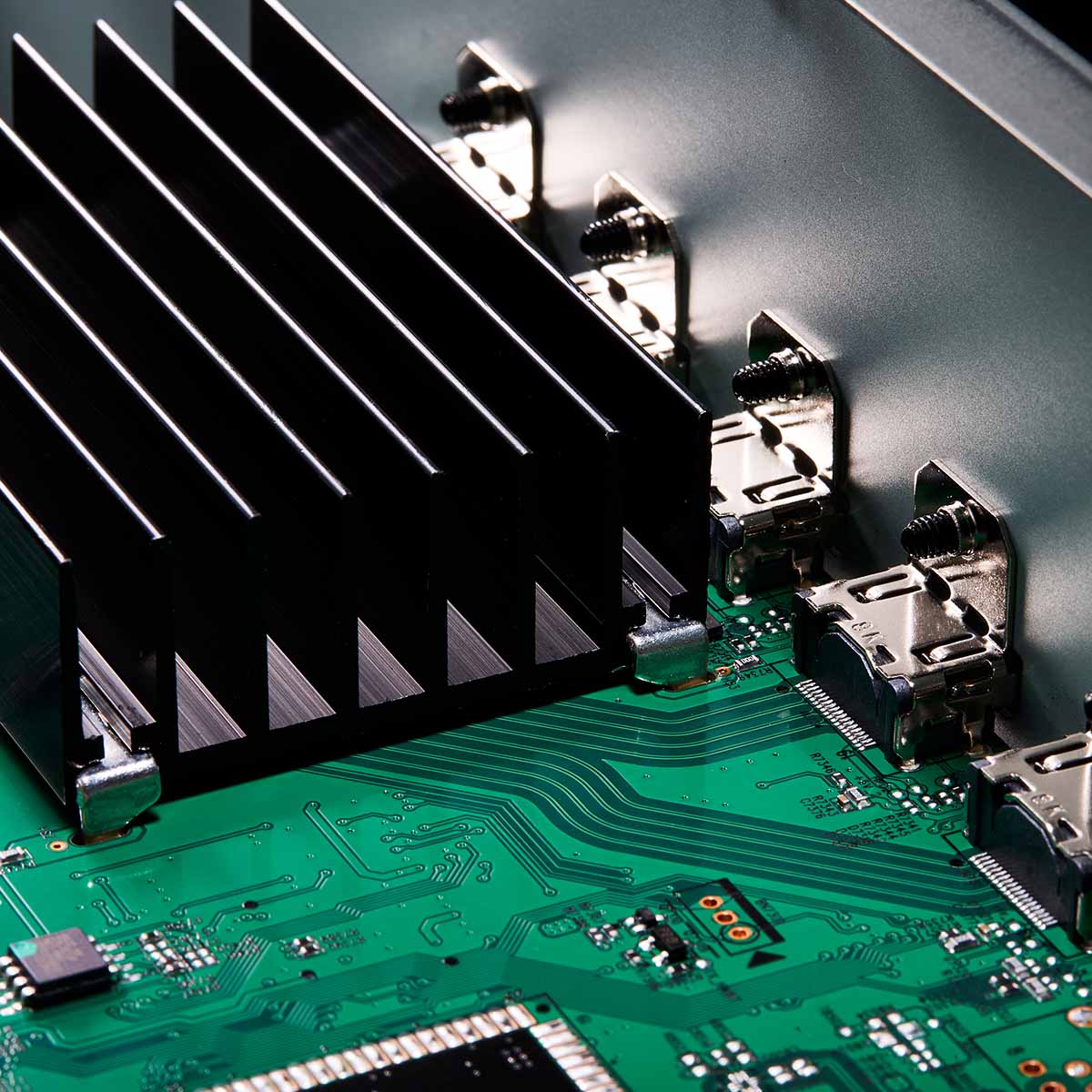

High-Performance HDMI Switching

Connect multiple HDMI devices—such as streaming players, game consoles, and Blu-ray Disc players—and switch between them seamlessly. Also, HDMI eARC delivers high-quality audio from your TV to the AV receiver over a single cable.

Sound to Match the Moment

Select from a range of Sound Modes designed for different content, listening situations and personal preferences. Pure Direct and Stereo modes are ideal for music purists, Movie mode delivers cinematic impact, and Night mode keeps sound balanced and unobtrusive after hours.

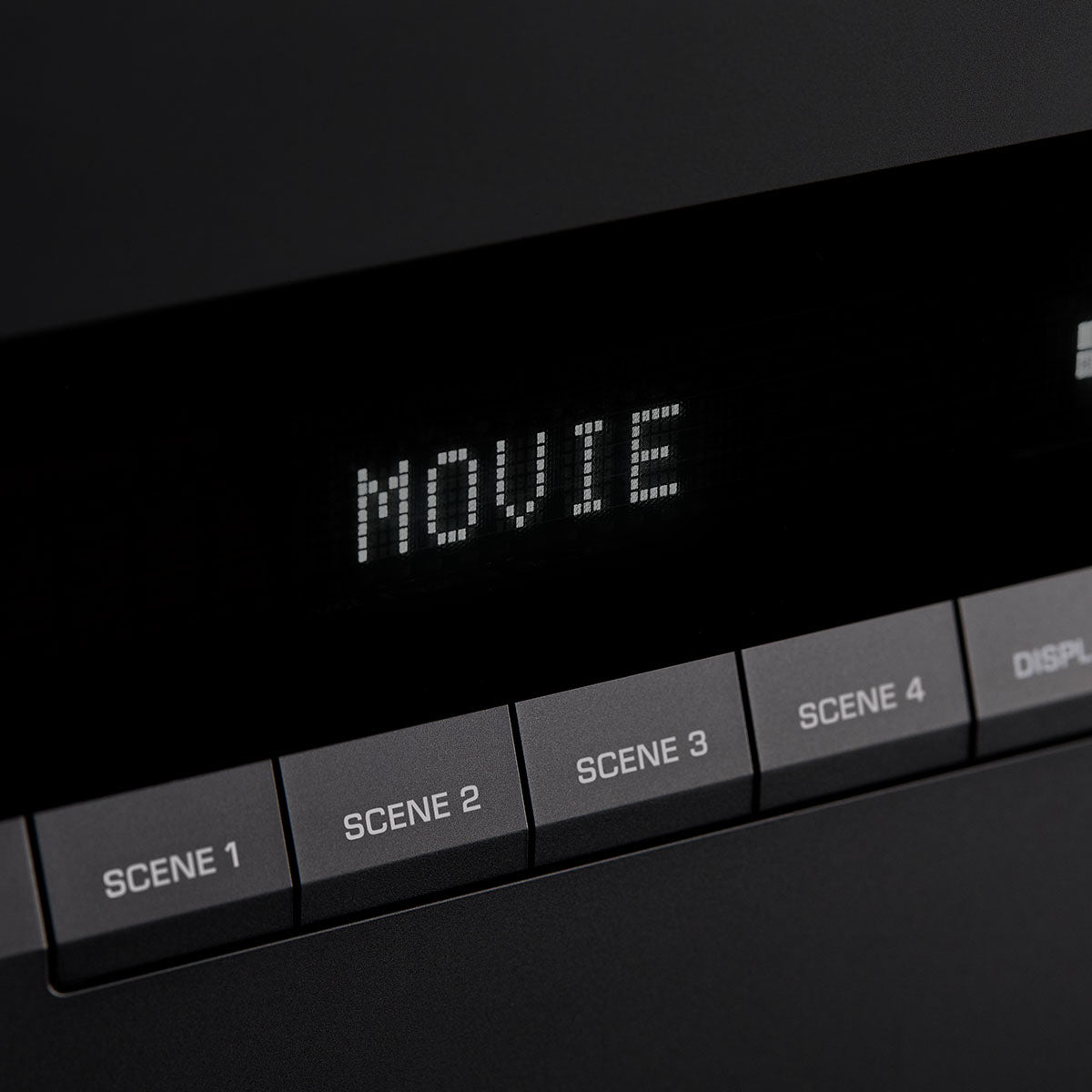

Instantly Set the Scene

Create up to four custom presets using the Scene buttons. Each Scene can be tailored to a specific input with the sound settings you desire, then recalled instantly from the front panel or remote to play your content exactly as you've set it.

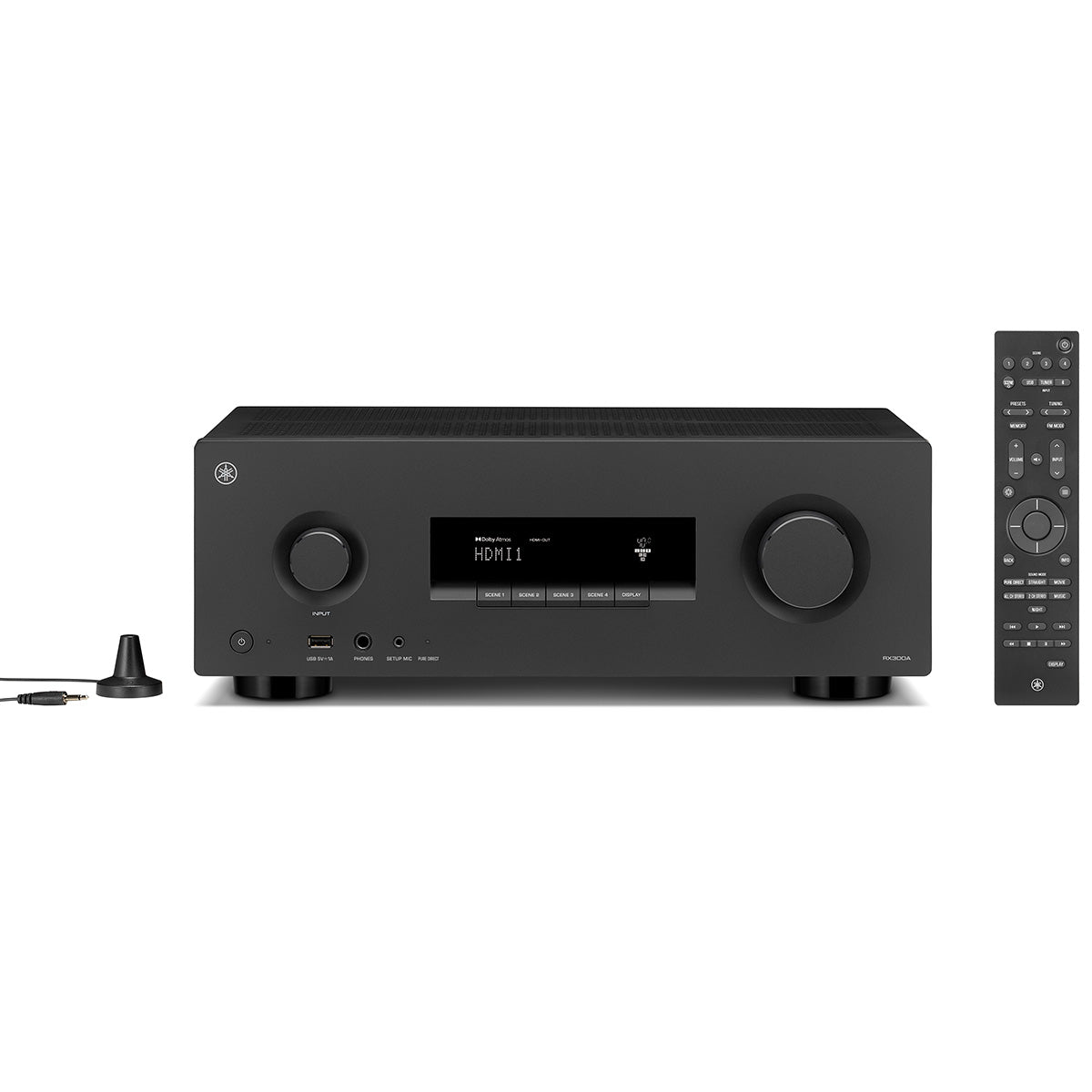

What's in the Box

  • RX300A 5.2-ch AV Receiver

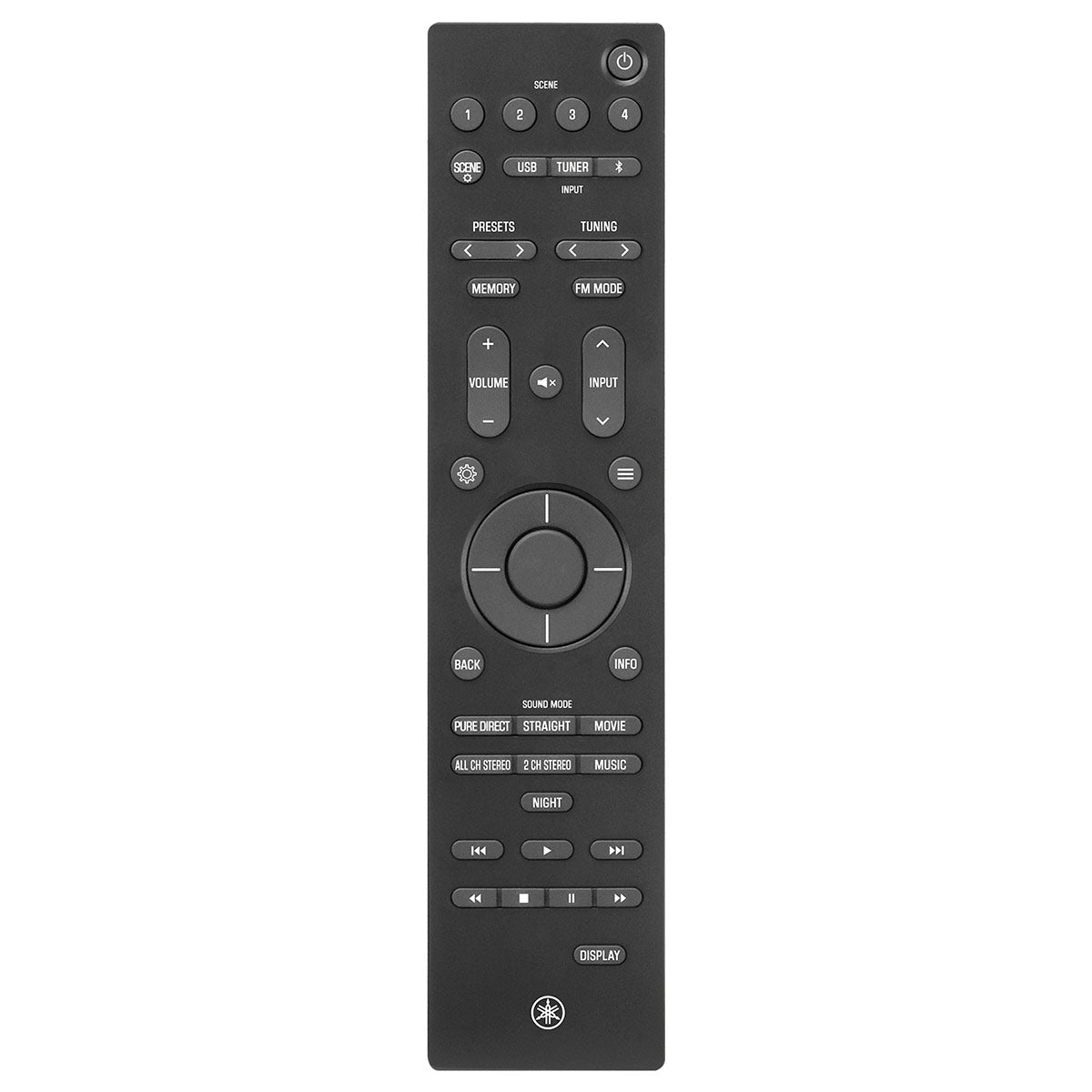

  • Remote Control
  • (2) AAA Batteries
  • FM Antenna
  • Setup Microphone
  • Cardboard Microphone Stand
  • Quick Guide
  • Safety Guide
Yamaha RX300A 5.2-Channel AV Receiver

Details & Specs

ModelRX300A
Amplification
Channels5.2
Decodable Channels5.1
Amp Channels5
Output Power70 W (8 ohms, 20 Hz–20 kHz, 0.09% THD, 2-ch driven), 145 W (6 ohms, 1 kHz, 10% THD, 1-ch driven)
Bi-amp CapableYes
Audio
Surround Sound Decoding FormatsDolby Atmos, Dolby TrueHD, Dolby Digital Plus, Dolby Digital, DTS
Surround Sound Post Decoding FormatsDolby Surround
USB Decoding FormatsMP3, MPEG-4 AAC, WMA, WAV
HDMI Decoding FormatsPCM (8ch max)
Sound ModesPure Direct, Straight, Movie, All Channel Stereo, 2 Channel Stereo, Music, Night
Zone BYes
Room CalibrationRoom Correction
Other FeaturesDialogue Level, Subwoofer Trim, Extra Bass, Lip Sync
HDMI
HDMI4 Inputs / 1 Output
HDMI FeaturesHDMI 2.1, 8K60Hz / 4K120Hz, eARC, ARC, VRR/ALLM/QMS, HDCP 2.3, CEC, Auto Lip Sync, Deep Color, x.v.Color, HD audio playback
High Dynamic Range SupportHDR (High Dynamic Range), HDR10+, Dolby Vision, Hybrid Log-Gamma

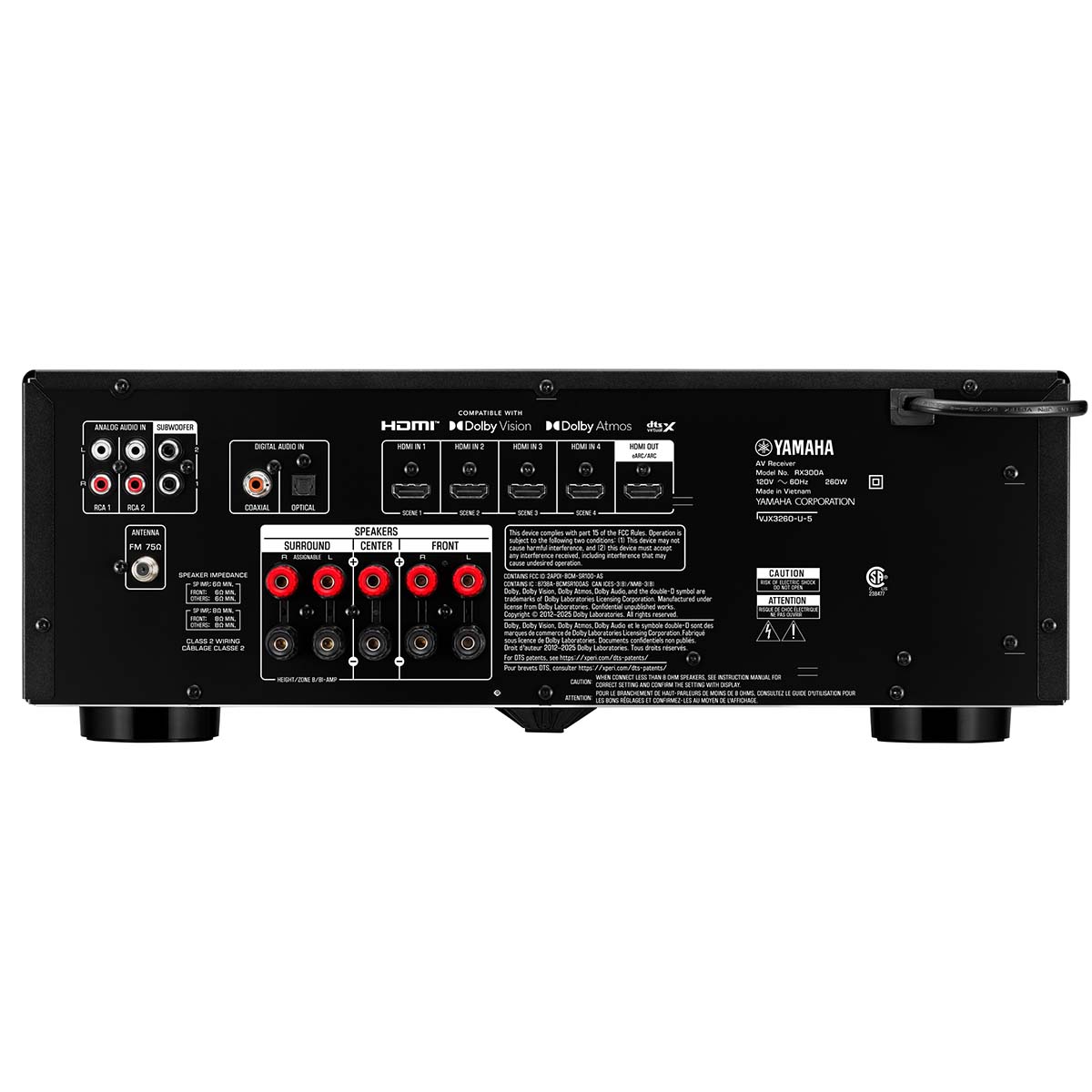

Connectivity
Speaker Output5 (binding post terminals)
Headphone Output1
Subwoofer Pre-outs2
HDMI4 Inputs / 1 Output
Analog RCA Inputs2
Optical Input1
Coaxial Input1
USB1 (Audio File Playback from a Mass Storage Device, Firmware Updates)
AM/FM TunerAM – No / FM – Yes
BluetoothYes (Ver. 5.3, Multipoint)
General
Power Consumption260 W
Standby Power Consumption≤0.3 W
Auto Power StandbyYes
Dimensions (Unit)17-1/8"W x 6-1/8"H x 12-1/2"D (434W x 157H x 319D mm)
Dimensions (Package)20-5/8"W x 9-1/8"H x 15-3/4"D (525W x 230H x 400D mm)
Weight (Unit)16.8 lbs. (7.6 kg)
Weight (Package)20.1 lbs. (9.1 kg)
Included AccessoriesRemote Control, Batteries, FM Antenna, Setup Microphone, Cardboard Microphone Stand, Quick Guide, Safety Guide
