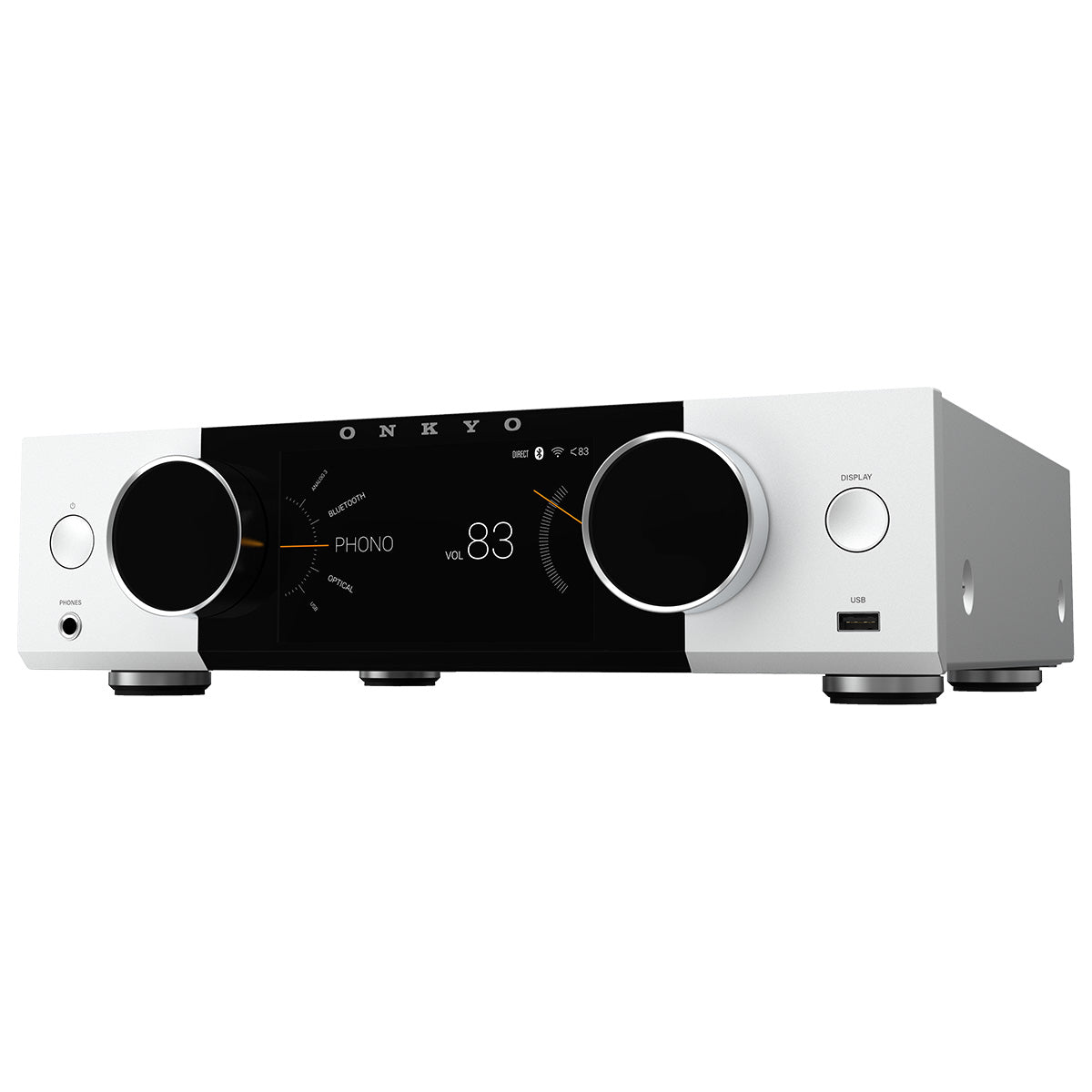

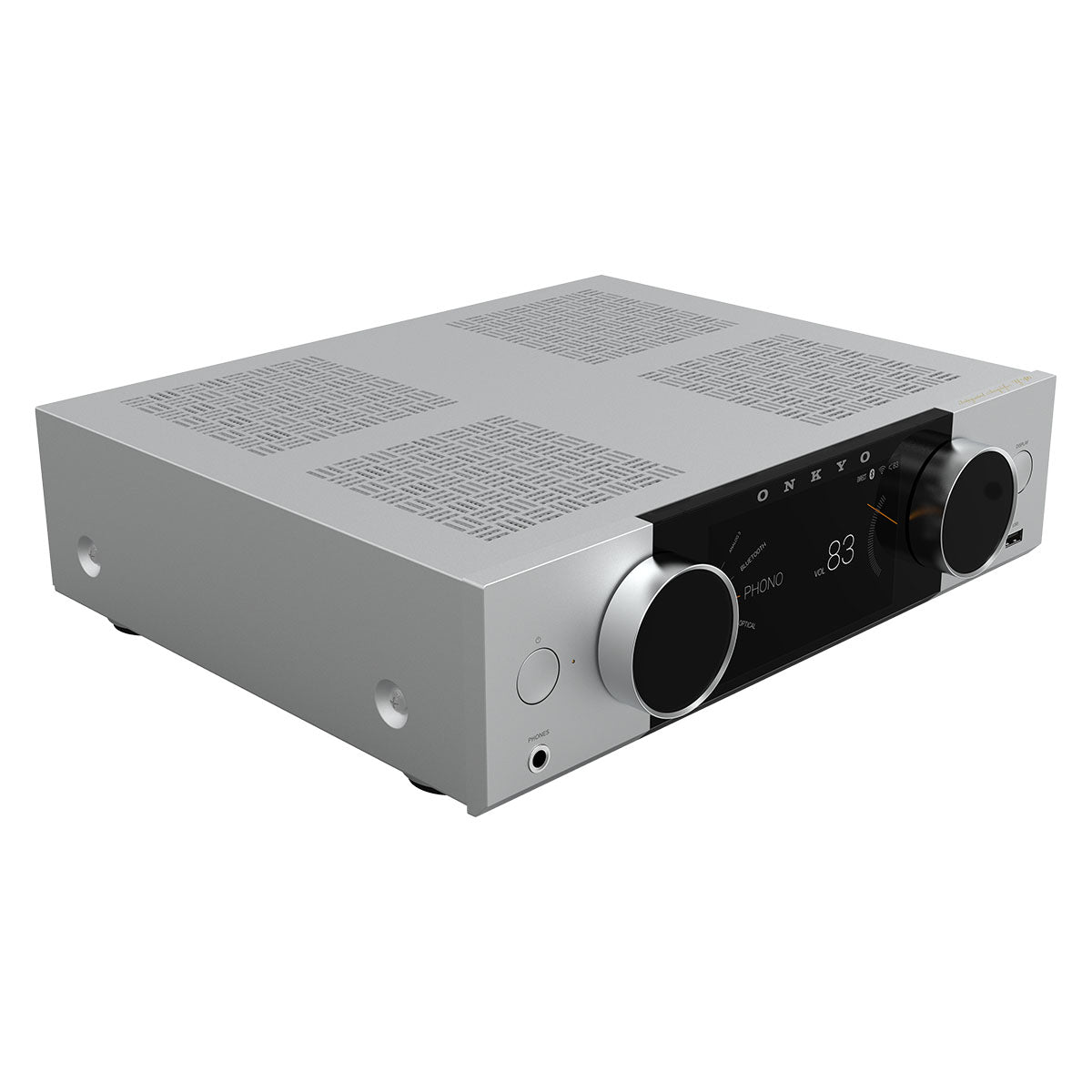

Onkyo Muse Y-40

Network Integrated Amplifier

Onkyo Muse Y-40

Network Integrated Amplifier
$999.99
Select Color:


Overview

The Onkyo Muse Y-40 Network Integrated Amplifier brings powerful Class D performance, refined sound, and modern streaming into a compact, elegant design. With 150W of power at 4 ohms, HDMI ARC, phono input, Wi-Fi streaming, Bluetooth, and a 5.46-inch color LCD, it is built to serve as the centerpiece of a versatile two-channel system.

High Power, Refined Sound

Featuring an Axign Class D amplifier with MOSFET outputs, the Y-40 delivers a commanding 150W (4 ohms) of power, capable of driving any speaker with authority. The Muse Series continues Onkyo’s long tradition of meticulous sound craftsmanship. With its powerful yet expansive soundstage, the Y-40 faithfully conveys the artist’s original intent without compromise.

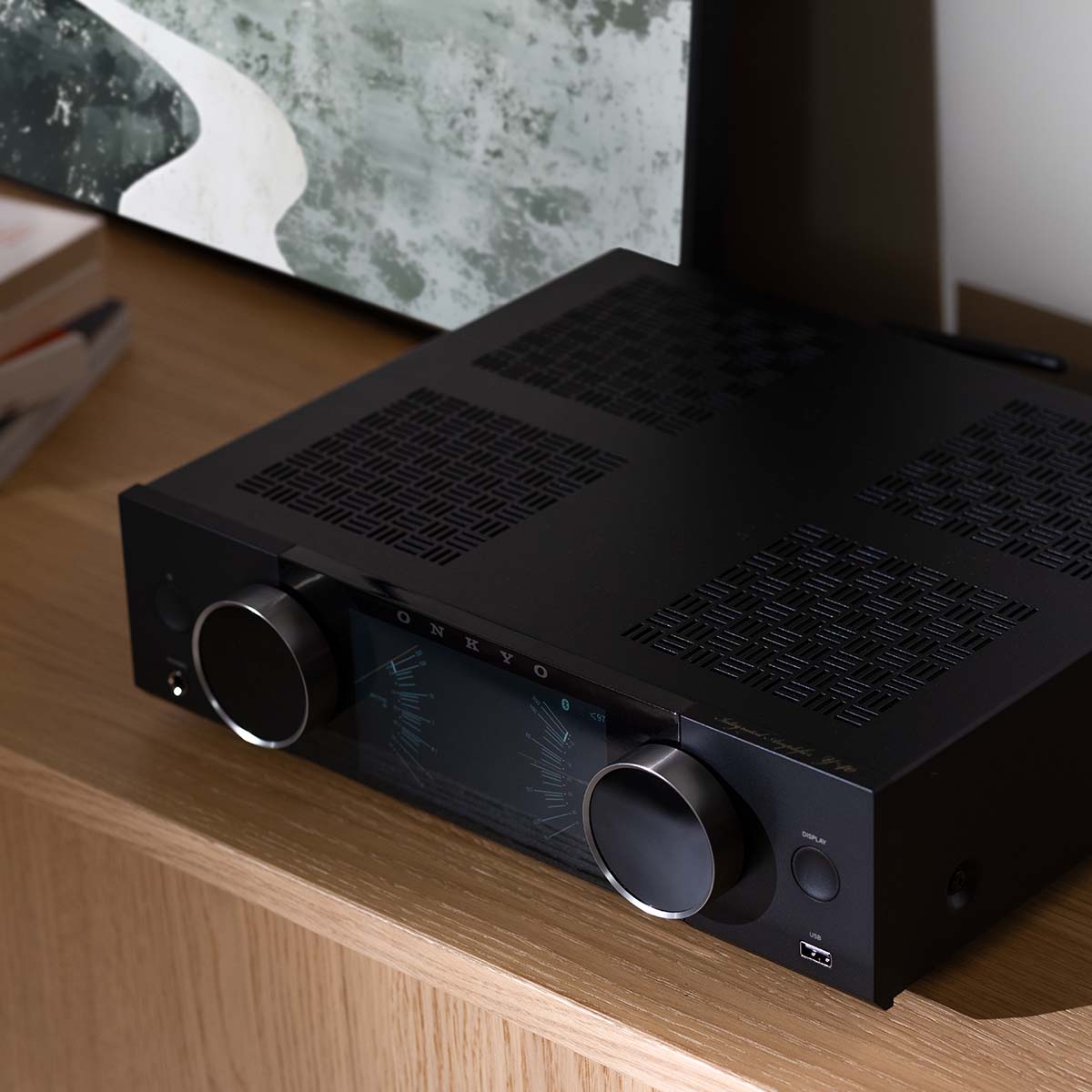

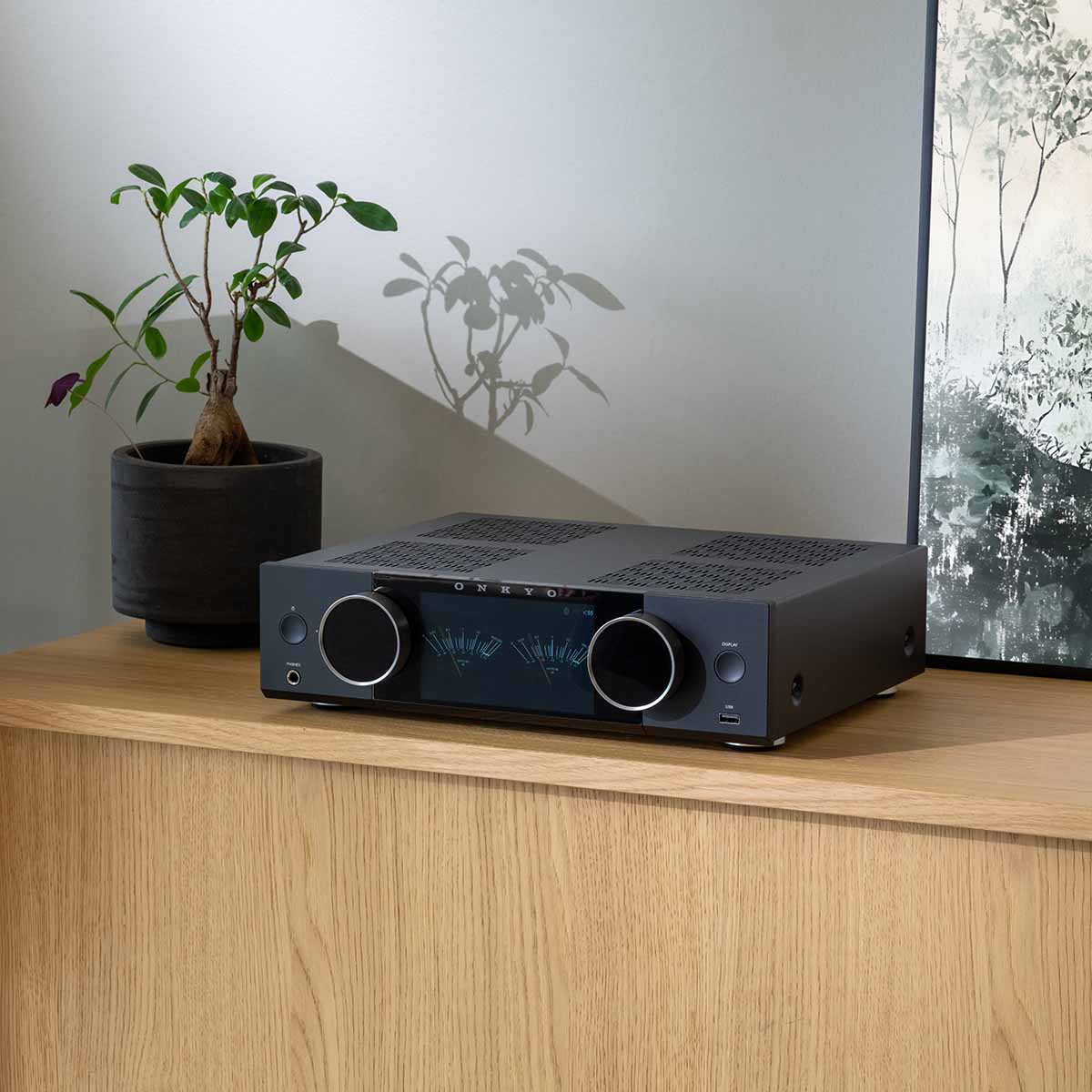

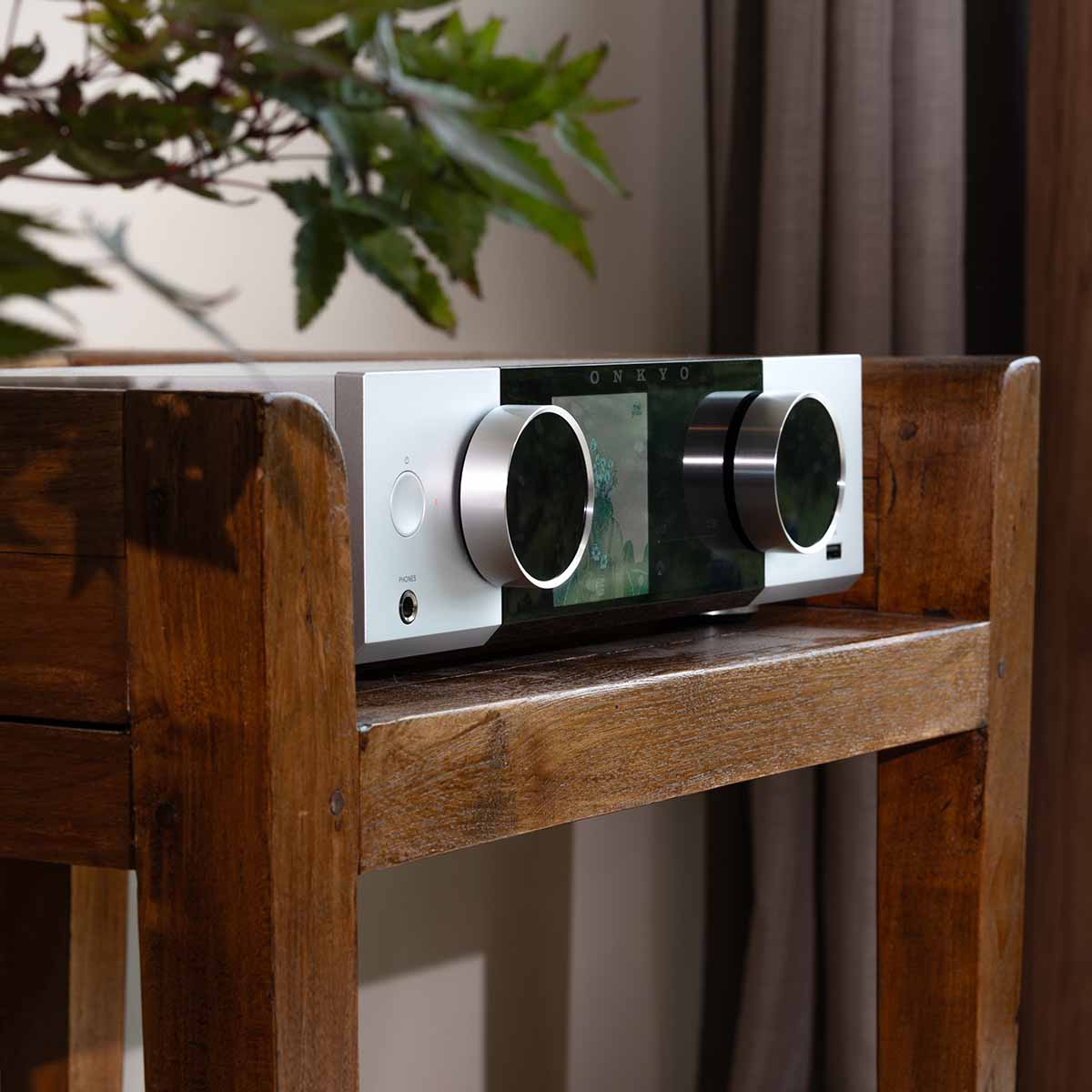

Compact Body and Smart U/I

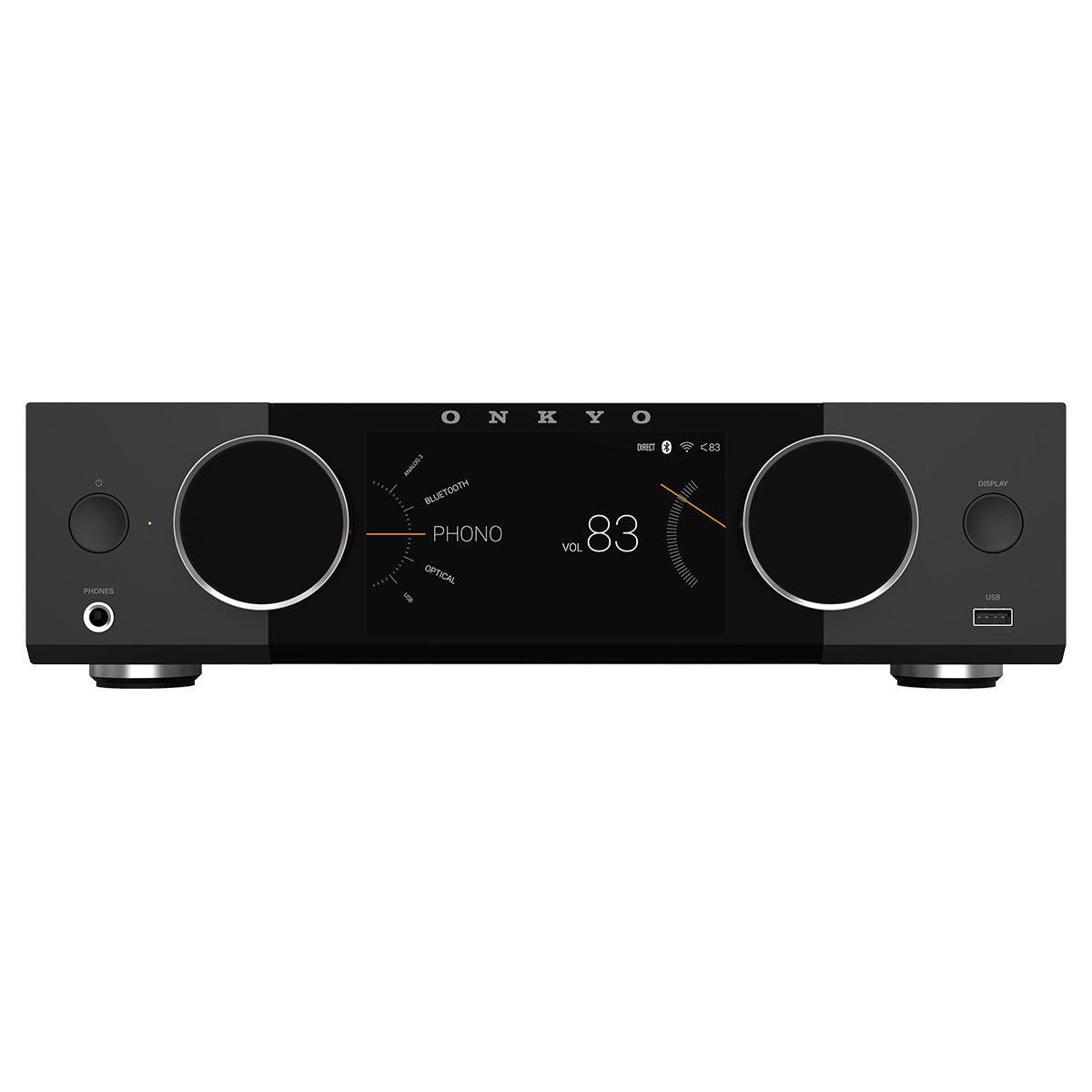

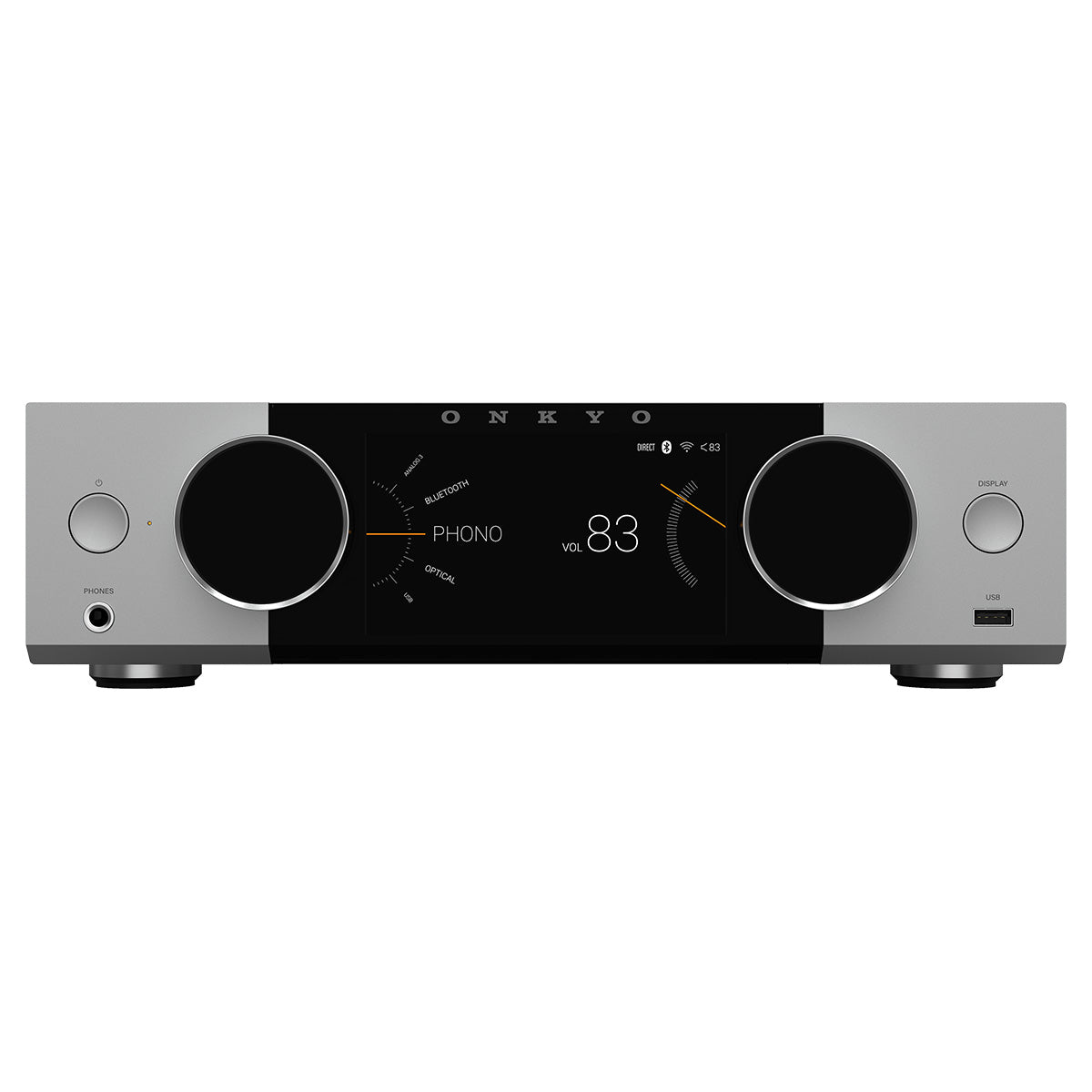

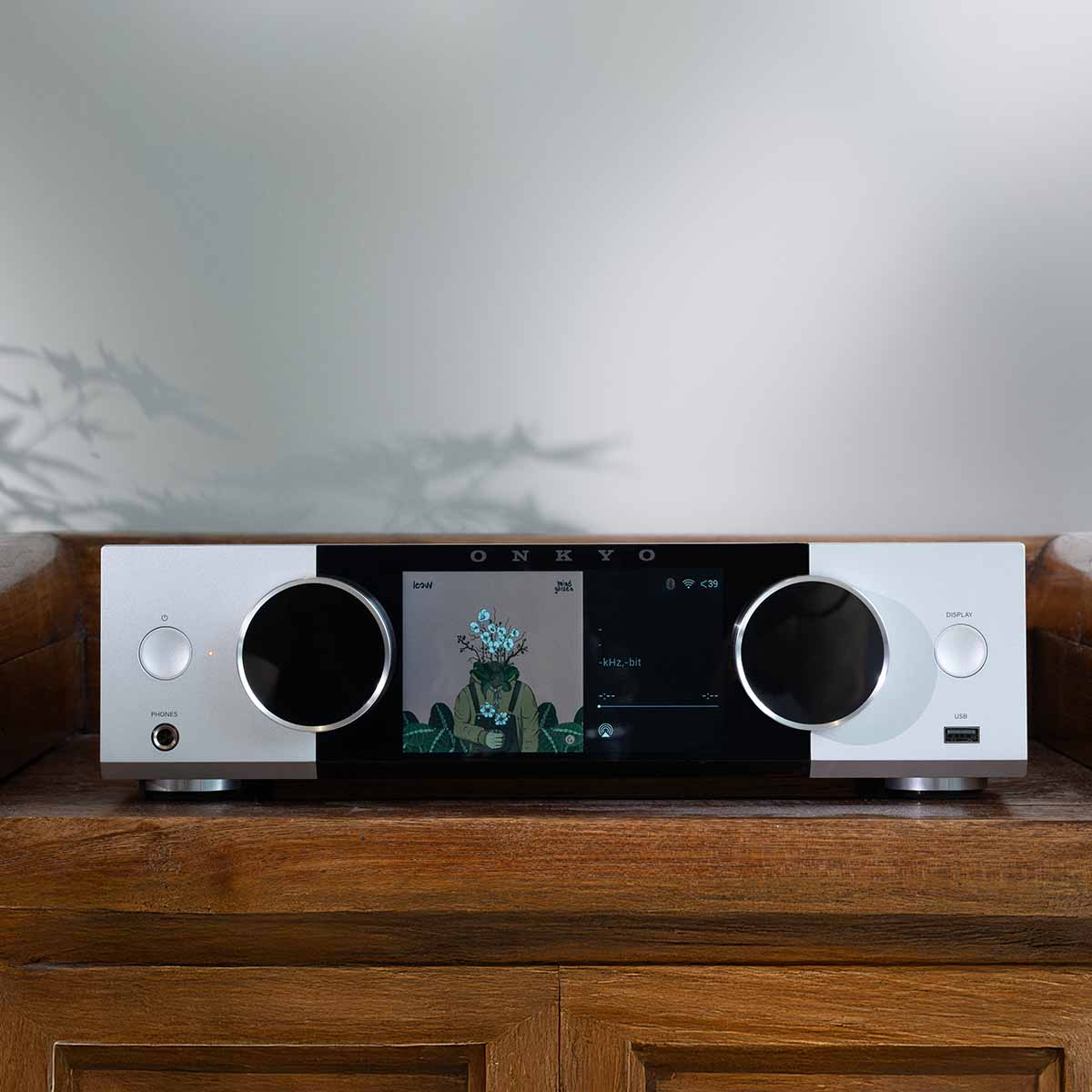

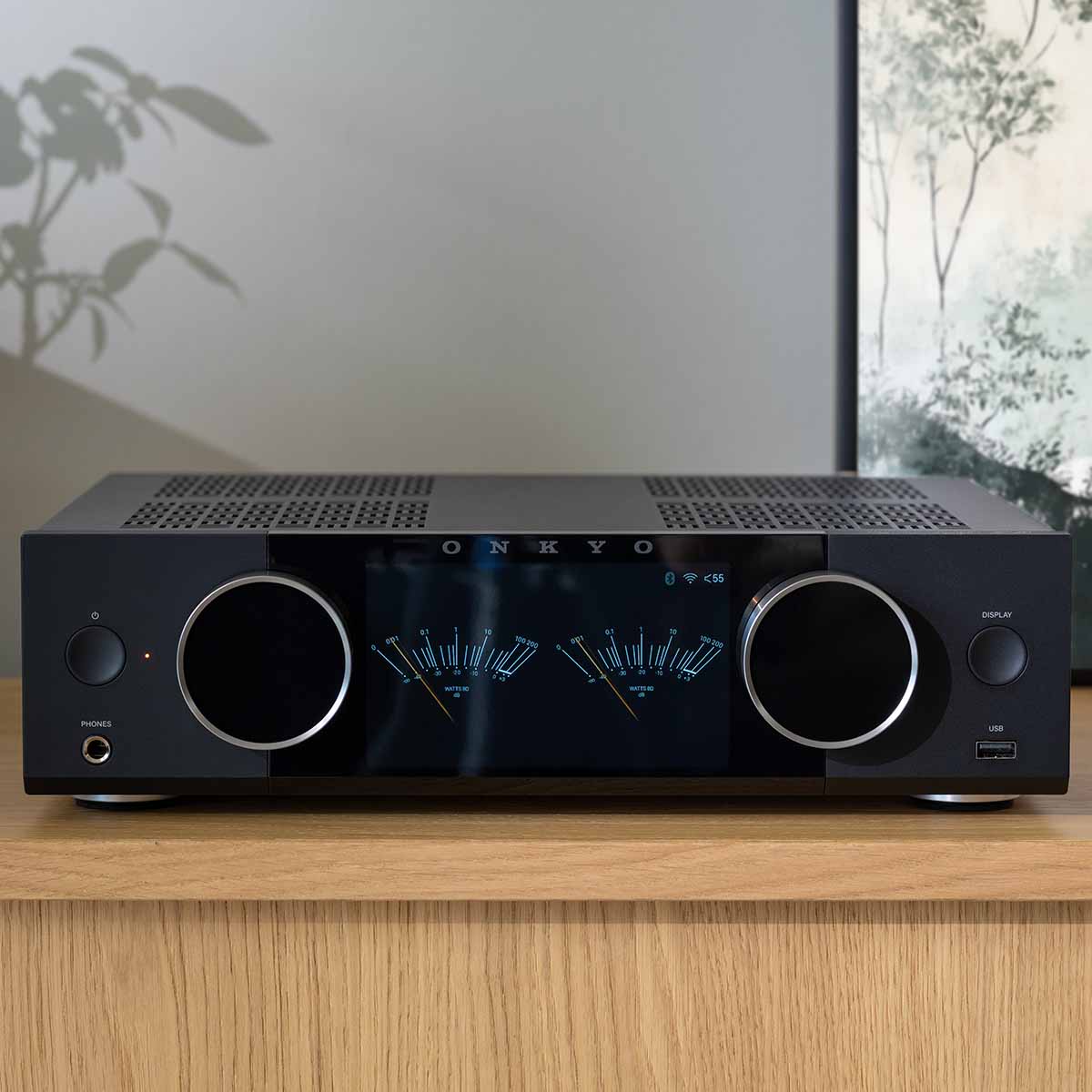

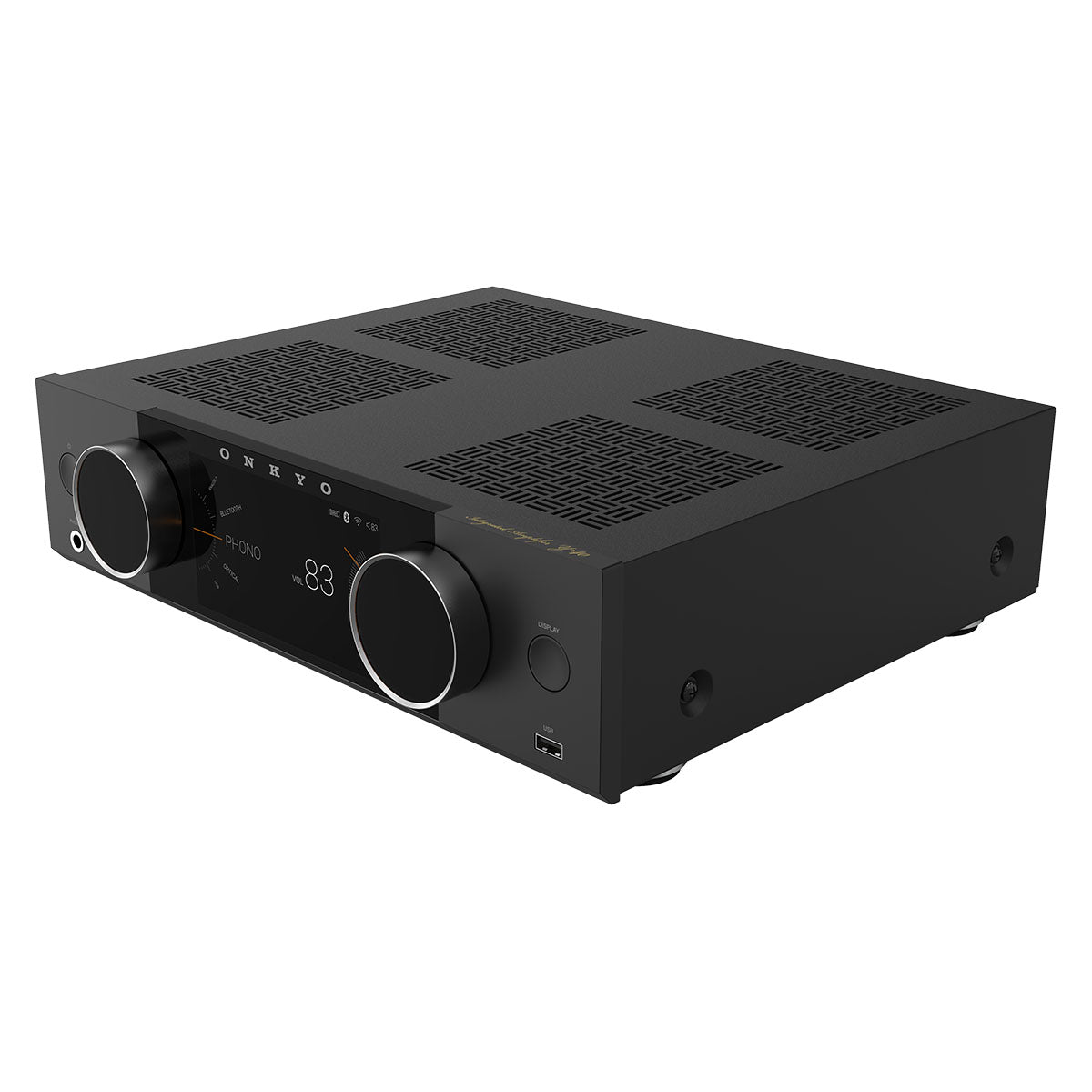

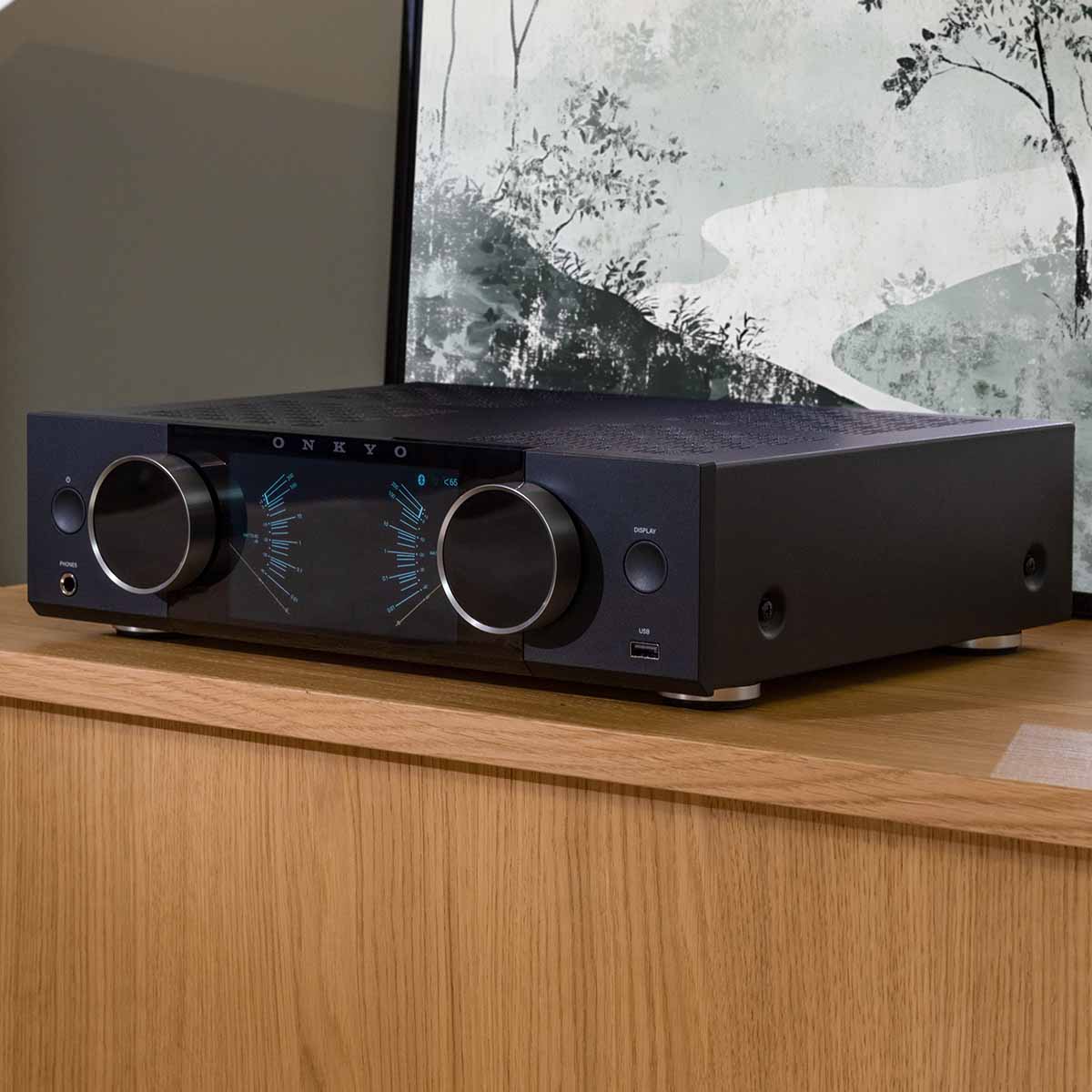

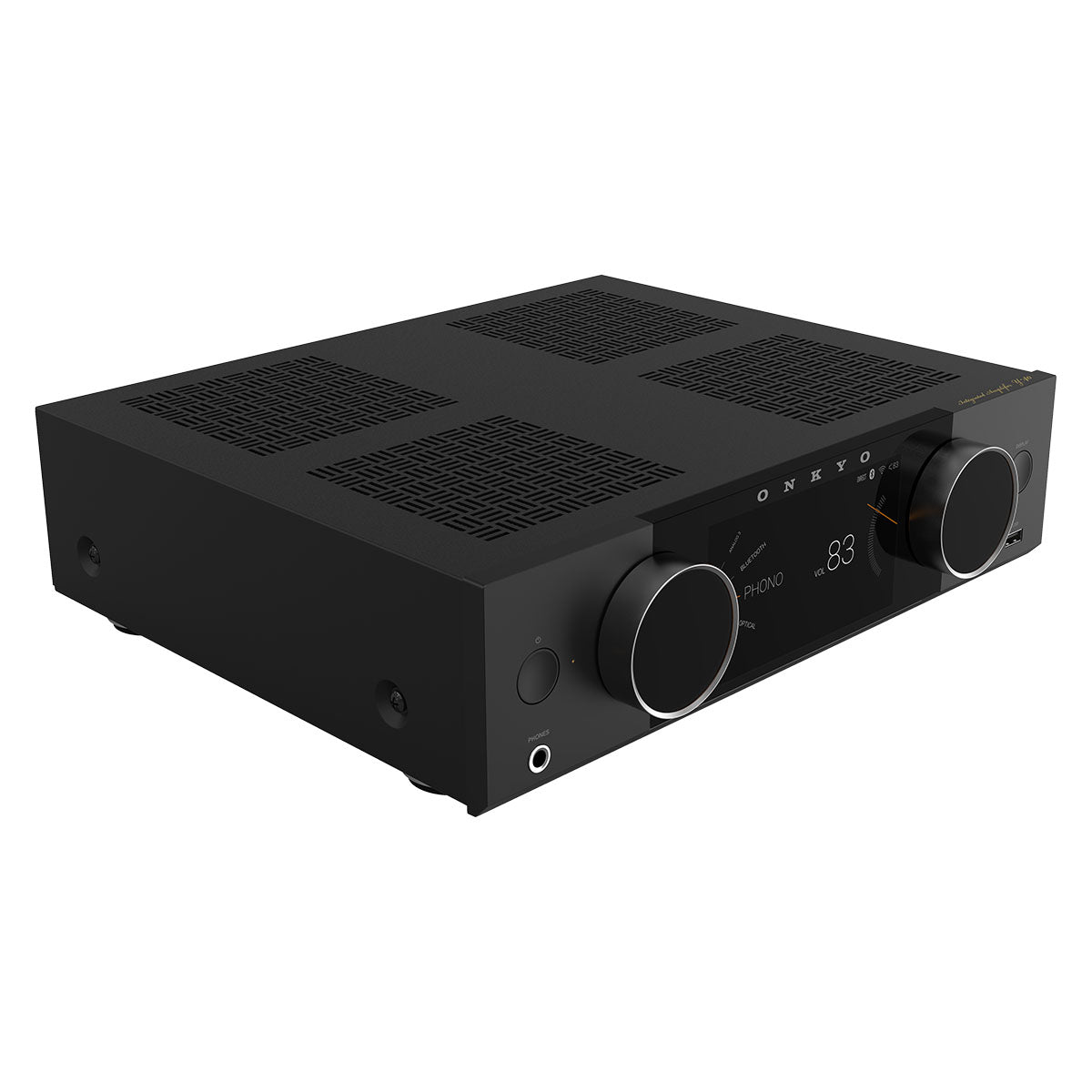

The compact form of the Muse Series integrates effortlessly into any space in your home. Its 5.46-inch color LCD offers a wealth of information, including details about the currently playing track and an analog-style VU meter. This display, combined with an intuitive interface, also simplifies adjusting the unit’s settings. The Muse Series works with the Onkyo Controller app, allowing you to power the unit on or off and manage settings just as you would with other Onkyo products.

Everything You Need for Epic Audio Experiences

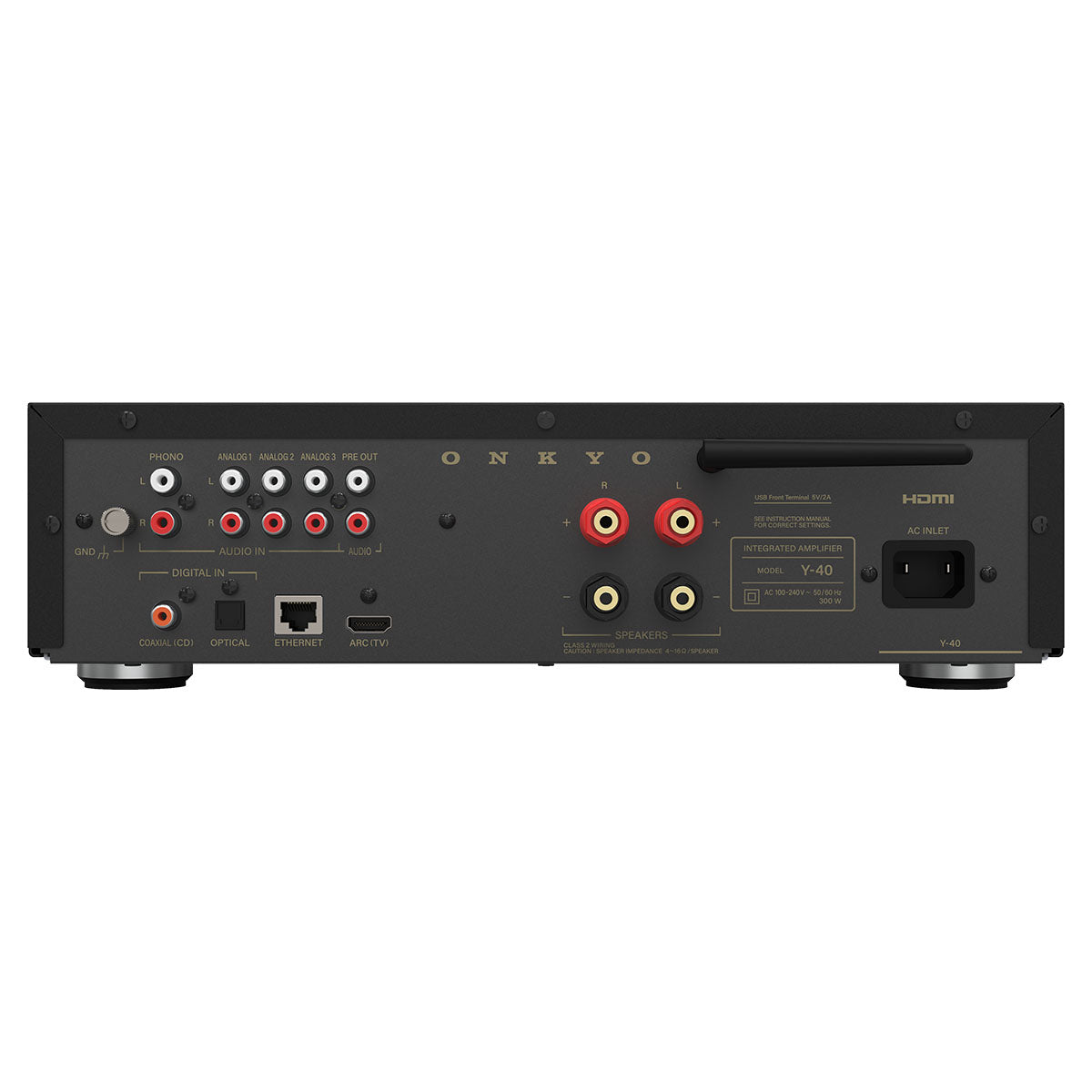

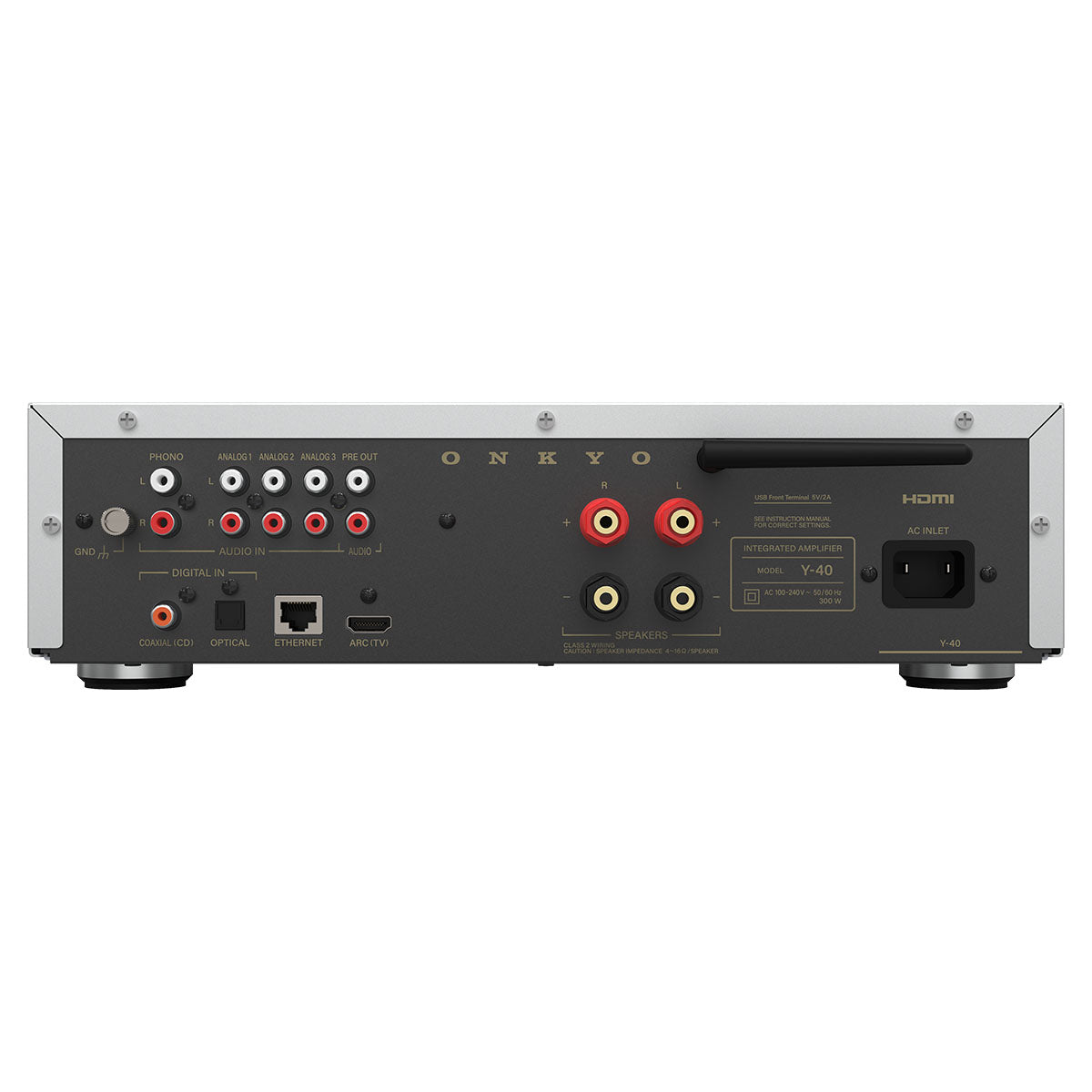

The Y-40 has almost all the inputs and outputs you need for an immersive audio experience. Three pairs of analog RCA analog inputs, COAX input, Phono input, HDMI ARC, and MM-compatible Phono input. It supports Ethernet and WiFi, enabling modern listening styles with streaming playback.

Supporting Your Modern Audio Experience

Your carefully curated playlists play well with the Onkyo Y-40 Network Integrated Amplifier. Seamlessly hardwire or cast your content from any of the following built-in platforms: Spotify Connect, TIDAL Connect, Qobuz Connect, AirPlay 2, and Google Cast.

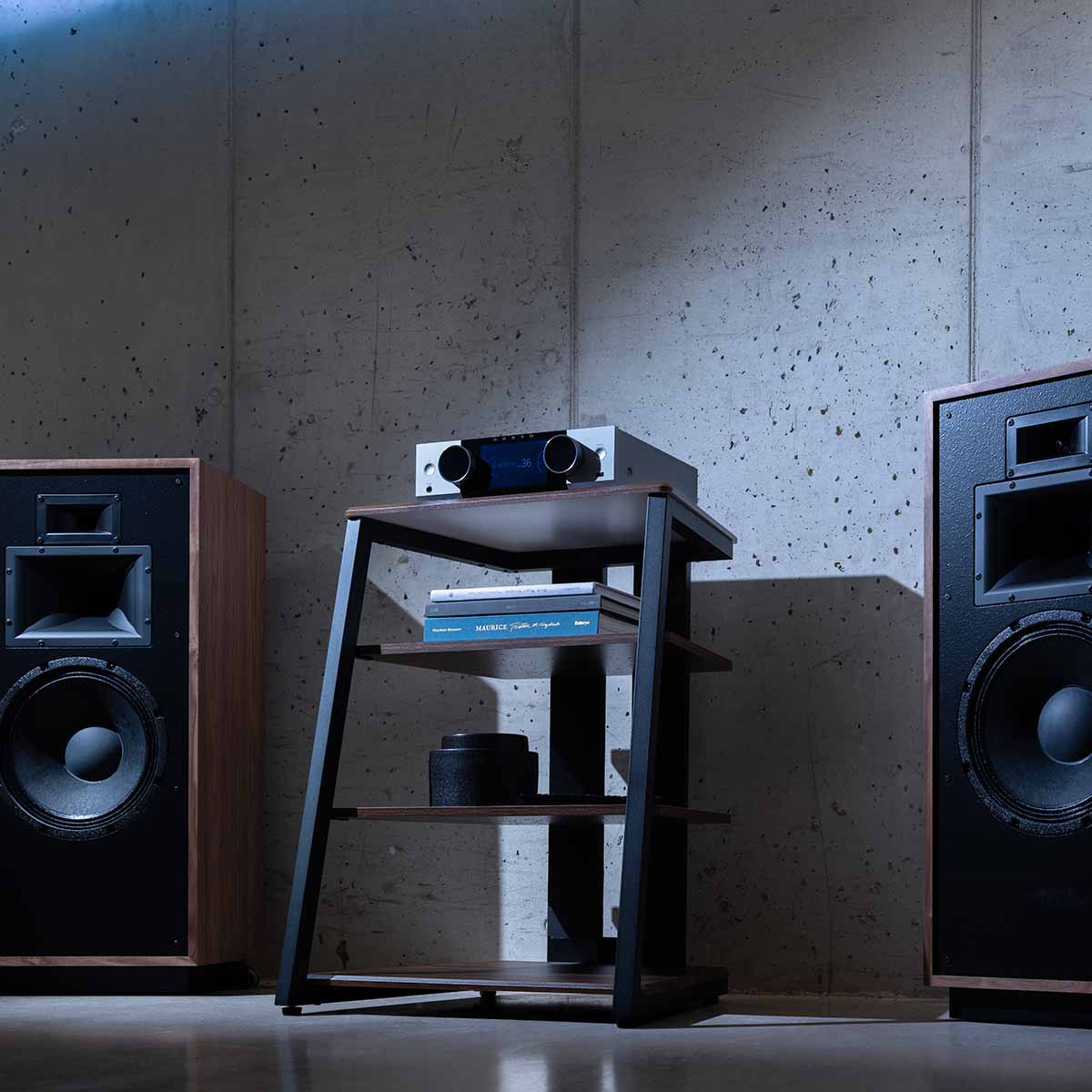

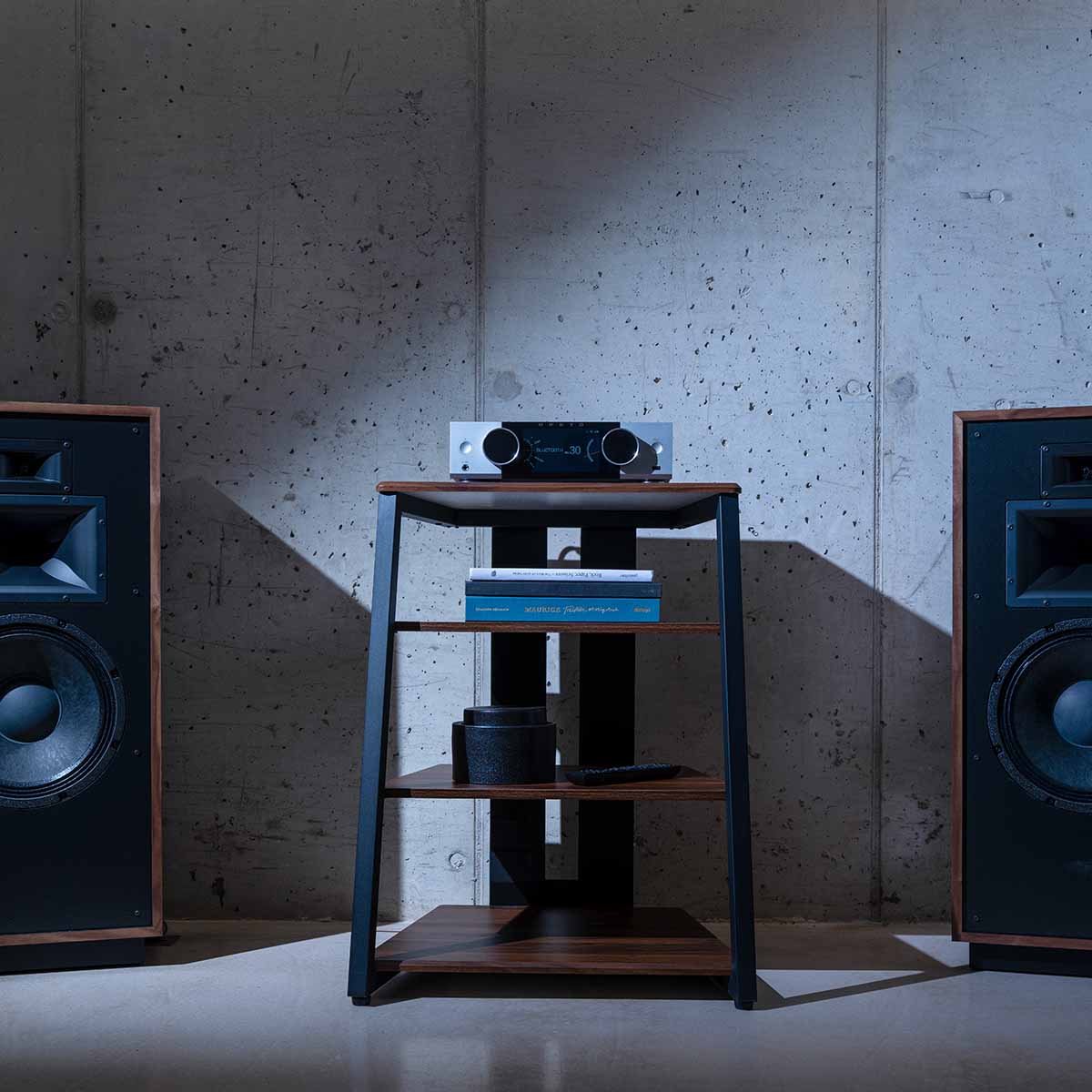

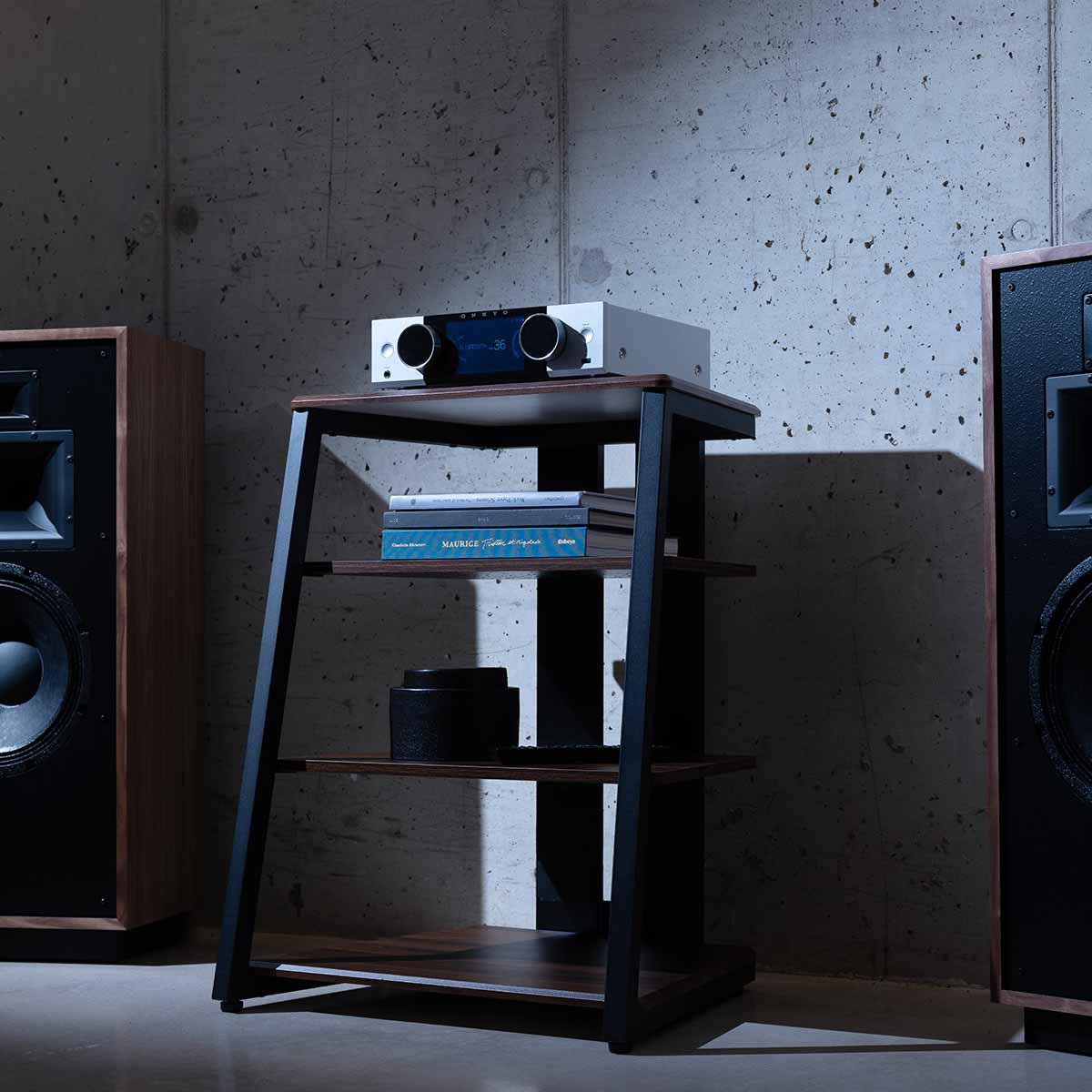

The Perfect Audio System for You

The Y-40 has an output power of 150W (4 ohm) / 75W (FTC, 8 ohm). Although it is a compact single integrated amplifier, it can powerfully drive a wide variety of speakers, from large floor standing speakers to small bookshelf speakers, to maximize their potential.

Details & Specs

ModelOnkyo Muse Y-40
Output Power75 W (FTC, 8Ω, 20 Hz–20 kHz, THD 0.08%, 2 Ch driven) / 150 W (4Ω, 1 kHz, THD 0.7%, 2 Ch driven)
Amplifier Channel2 Ch
Pre Amplifier Channel2 Ch
Amplifier TypeClass D
Frequency Response20 Hz–30 kHz (+1/-3 dB)
Tone Control (Bass / Treble)100 Hz ±10 dB / 10 kHz ±10 dB
Speaker Impedance4–16Ω
Analog Audio InputRCA (Unbalanced) x 3 Pair
Digital Audio InputHDMI ARC, COAX, Optical, USB-A (Storage playback)
Phono Input1 Pair (MM)
Audio Pre OutputRCA (Unbalanced) x 1 Pair
Headphone Output1/4" (6.3 mm) Jack
Network ConnectivityEthernet Terminal (10BASE-T/100BASE-TX)
BluetoothSBC, AAC

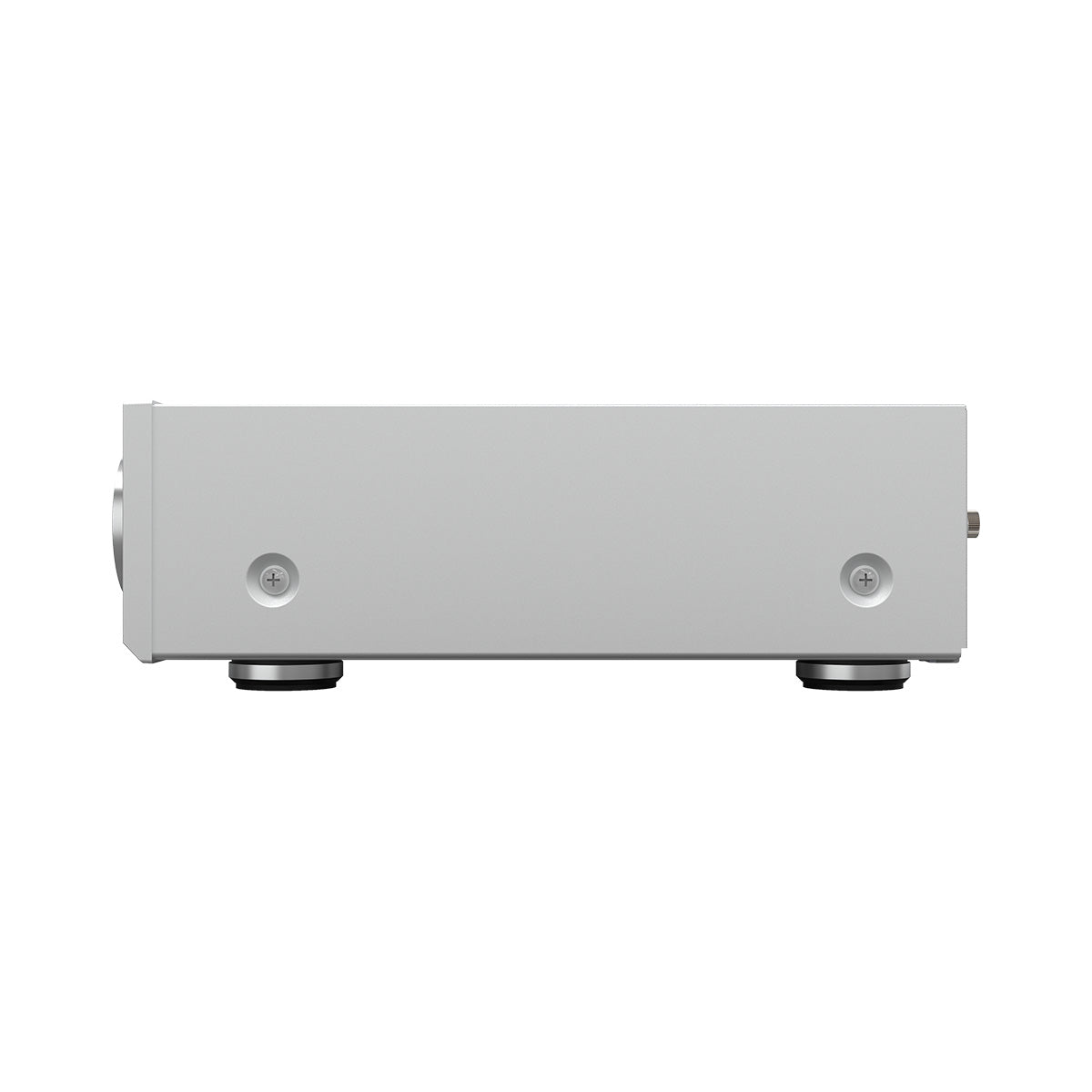

Product Dimensions (W x H x D)13.8" x 3.9" x 13.3" (350 mm x 99 mm x 337 mm)
Product Weight9.7 lbs (4.4 kg)
Package Dimensions (W x H x D)18.3" x 8.9" x 15.9" (465 mm x 225 mm x 405 mm)
Package Weight14.6 lbs (6.6 kg)
Power Consumption65 W, 1.8 W (idle), Less than 0.4 W (Standby)
