Item #ARCAVA35BLKAM

Arcam Radia AVA35

9-channel Class G Home Theater Receiver
Item #ARCAVA35BLKAM

Arcam Radia AVA35

9-channel Class G Home Theater Receiver
$6,999.95
Secure yours now — shipping July 2026.

Overview

Nine-channel Class G home theater receivers deliver 145 Watts per channel to power advanced sixteen channel processing. Featuring matrix channel assignment, Dirac Live room correction, and high resolution streaming, this premium unit secures stable control for a high performance sound system setup.

The Arcam Radia AVA35 is a nine (9) channel Class G home theater receiver built in Cambridge, United Kingdom. AVA35 uses Class G amplification to provide a steady 145 Watts into 8 Ohms with low crossover distortion. The receiver processes up to sixteen (16) channels for Dolby Atmos, DTS:X, IMAX Enhanced, and Auro 3D formats. This brings it ideal for detailed speaker layouts in home theater installations. Matrix channel assignment is included, allowing channels to be reassigned across all sixteen configurations to meet different system needs.

Dirac Live room correction is included to adjust the audio output to the room’s acoustics. The receiver uses the same high performance DAC found in flagship stereo systems, which supports maintaining accurate audio decoding. This processor works well as the main hub for home sound system installations or smart home setups.

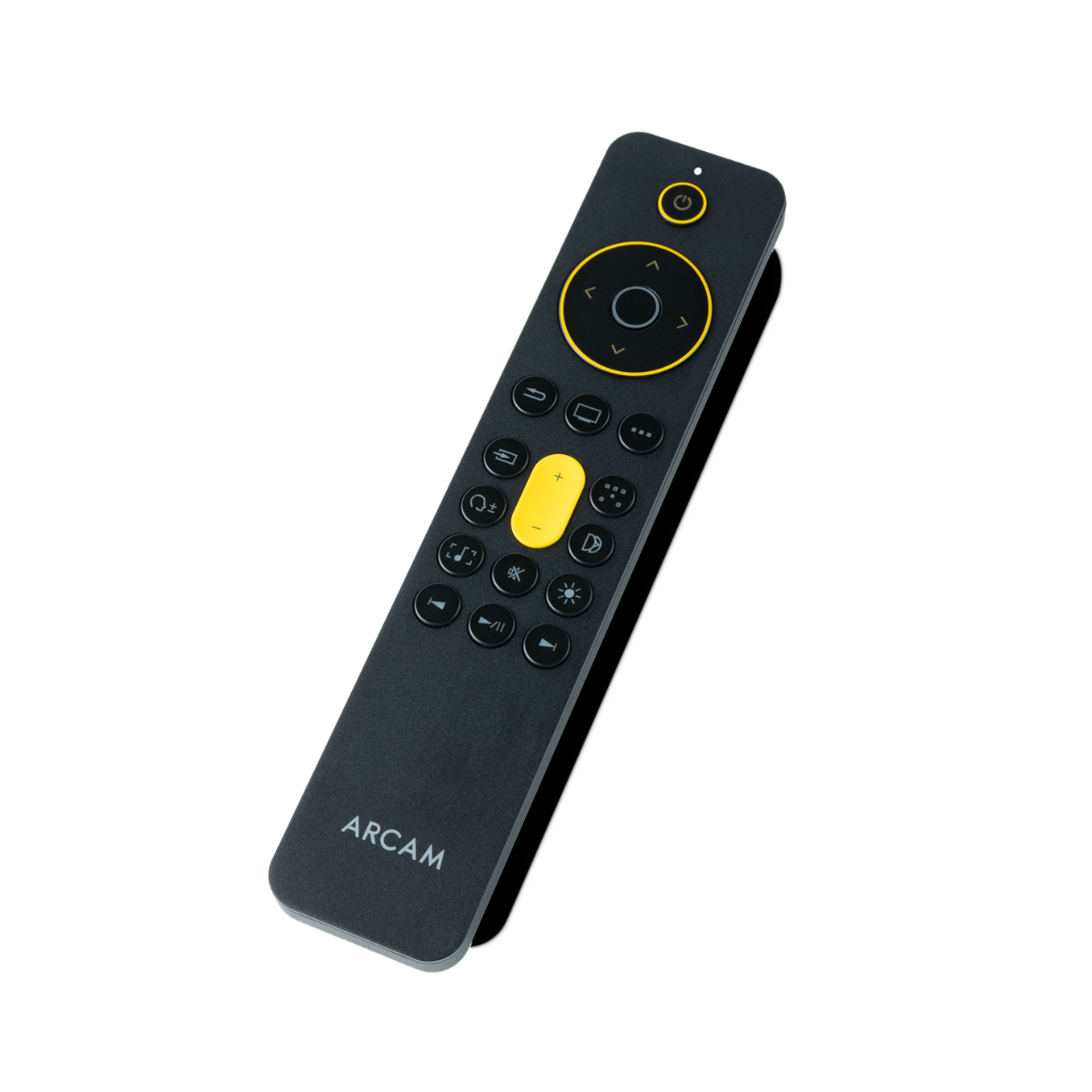

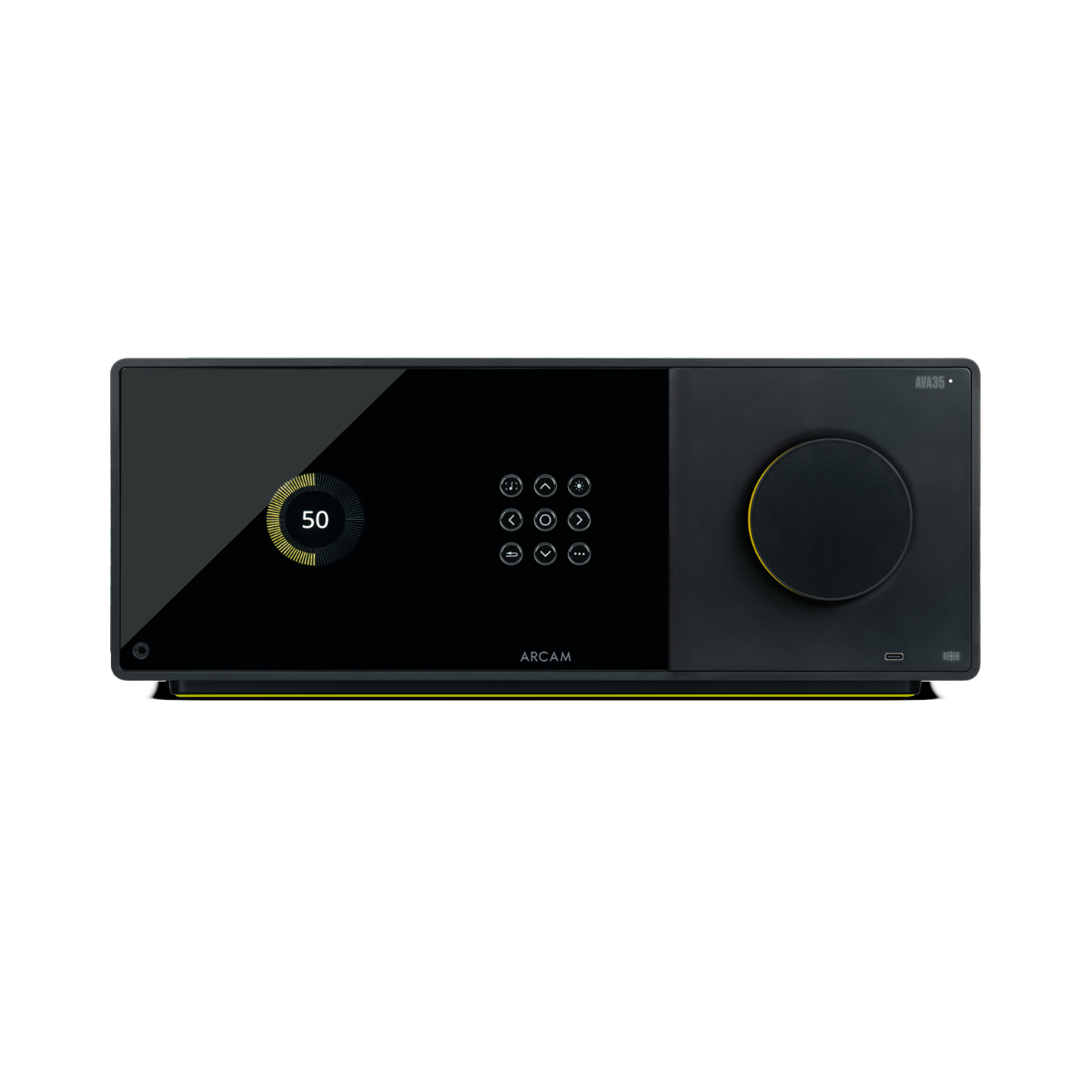

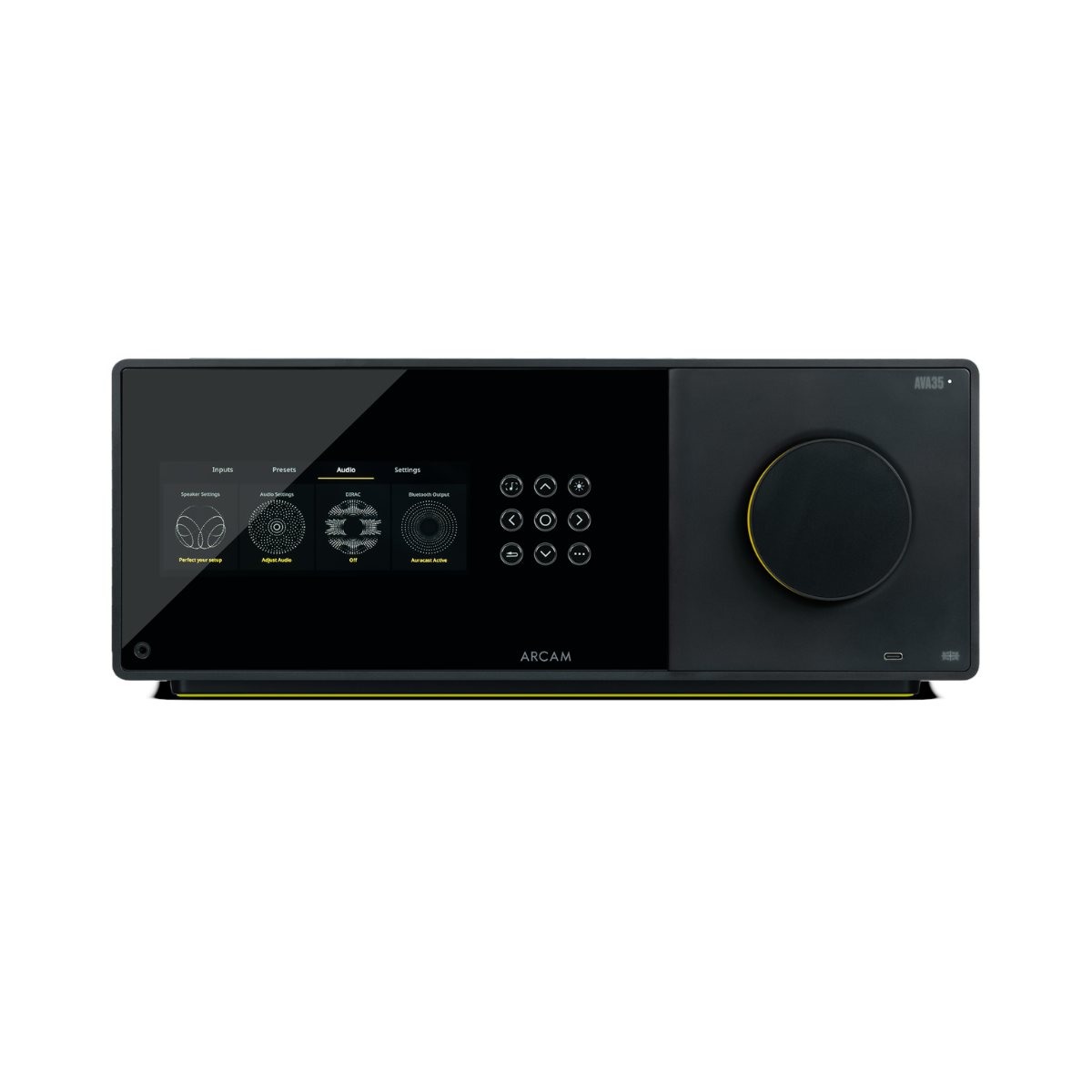

Wireless connection through the Arcam Radia App allows control of system settings, internet radio, and podcasts. The receiver supports streaming with Apple Airplay, Google Cast, Spotify Connect, Tidal Connect, and Qobuz Connect. On the front, a 6.5 inch color display shows status and track information that is easy to see from the main listening area. The included Bluetooth remote with Snapdragon Sound and Auracast provides full control of the receiver from anywhere in the room.

Details & Specs

Model Radia AVA35
▸ DECODING/ENCODING
Maximum Channel Count 16
Reassignable Channels All channels (Subwoofers into CH4/11-16 only)
Dolby Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
IMAX Enhanced Yes
Auro 3D Yes
MPEG H Yes
Frequency Response 20Hz—20kHz ± 0.05dB
▸ HDMI
Inputs/Outputs 7/2 (Zone 1), 1 (Zone 2)
HDMI/HDCP Versions 2.1a/2.3
Resolution support resolution/framerate Up to 8K/60Hz or 4K 120Hz
Supported Dynamic Range Profiles HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
Supported HDMI features Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1)
On Screen Display Yes
▸ STREAMING
Works with (apps) ARCAM Radia, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)
Works with (services) Apple Airplay, Google Cast
ARCAM Radia supported services (Global) Internet Radio, Podcasts, UPnP
Supported Hi-res media FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, DSD (up to 128), MP3, OGG, WMA
Supported Hi-res Bit depth 16,24
Supported samples rates (kHz) Up to 192 kHz
Gapless Playback Yes
Frequency response 20Hz—20kHz ± 0.05dB
▸ DIGITAL INPUTS
Number of inputs (Coaxial/Toslink) 2/2
Supported Sample Rates (kHz):Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
Supported Sample Rates (kHz):Optical (Toslink) 96, 88.2, 48, 44.1
Bit depths (bit): Coaxial and Optical (Toslink) 24, 16
Frequency response 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 100dB
▸ ANALOG INPUTS
Number of Inputs 3x RCA pairs
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 100dB
Frequency response 20Hz—20kHz ± 0.2dB
▸ PREAMPLIFIER OUTPUTS
Number of Outputs XLR/RCA 0/16
Single-ended (RCA) peak output level per channel 2V RMS
THD+N (20 Hz to 20 kHz) –100dB
▸ AMPLIFICATION
Amplifier Channels 9, Class G
▸ CONTINUES POWER OUTPUT (0.5% THD), PER CHANNEL
8Ω, 20Hz - 20kHz, 2 channels driven 145W
4Ω, 1kHz, 2 channels driven 200W
8Ω, 1kHz, 7/9 channels driven 110/95W
4Ω, 1kHz, 7/9 channels driven 130/110W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.004%
▸ WIRELESS SPECIFICATIONS
Bluetooth Profile 5.4; A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
▸ GENERAL
Mains voltage 100-120V/220-240V 50/60Hz
Power consumption 900W
Dimensions W x D (including speaker terminals) x H (including feet) 432 x 459.1 x 170mm
Weight (net) 22.7 kg
Weight (packed) 29.4 kg
