Item #ARCAVA15BLKAM

Arcam Radia AVA15

9-channel Class D Home Theater Receiver
Item #ARCAVA15BLKAM

Arcam Radia AVA15

9-channel Class D Home Theater Receiver
$4,499.95
Secure yours now — shipping July 2026.

Overview

Nine (9) channel Class D home theater receivers deliver 85 Watts per channel of precise amplification to manage immersive 7.1.2 or 5.1.4 speaker arrays. Featuring 8K HDMI 2.1a, Dirac Live room correction, and extensive high resolution streaming, this unit anchors any advanced sound system setup.

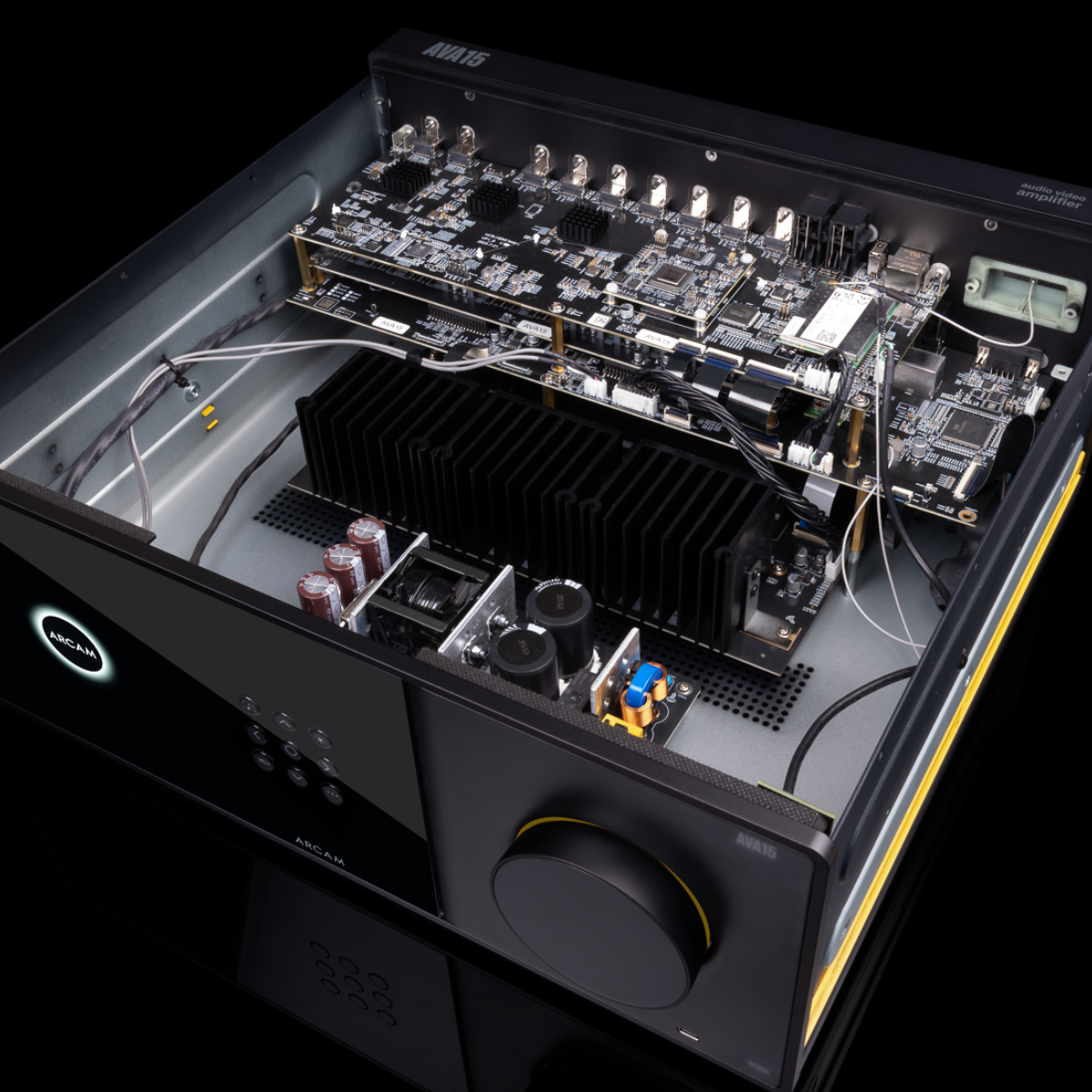

The Arcam Radia AVA15 is a nine (9) channel Class D home theater receiver built in Cambridge, United Kingdom. It supplies 85 Watts per channel into 8 Ohms or 150 Watts into 4 Ohms when two channels are active. With nine (9) powered channels and support for up to twelve (12) channels of decoding, it can handle speaker layouts like 7.1.2 or 5.1.4. The receiver allows flexible assignment of front, surround back, and height channels. Twelve RCA preamplifier outputs are included for adding more amplification if needed.

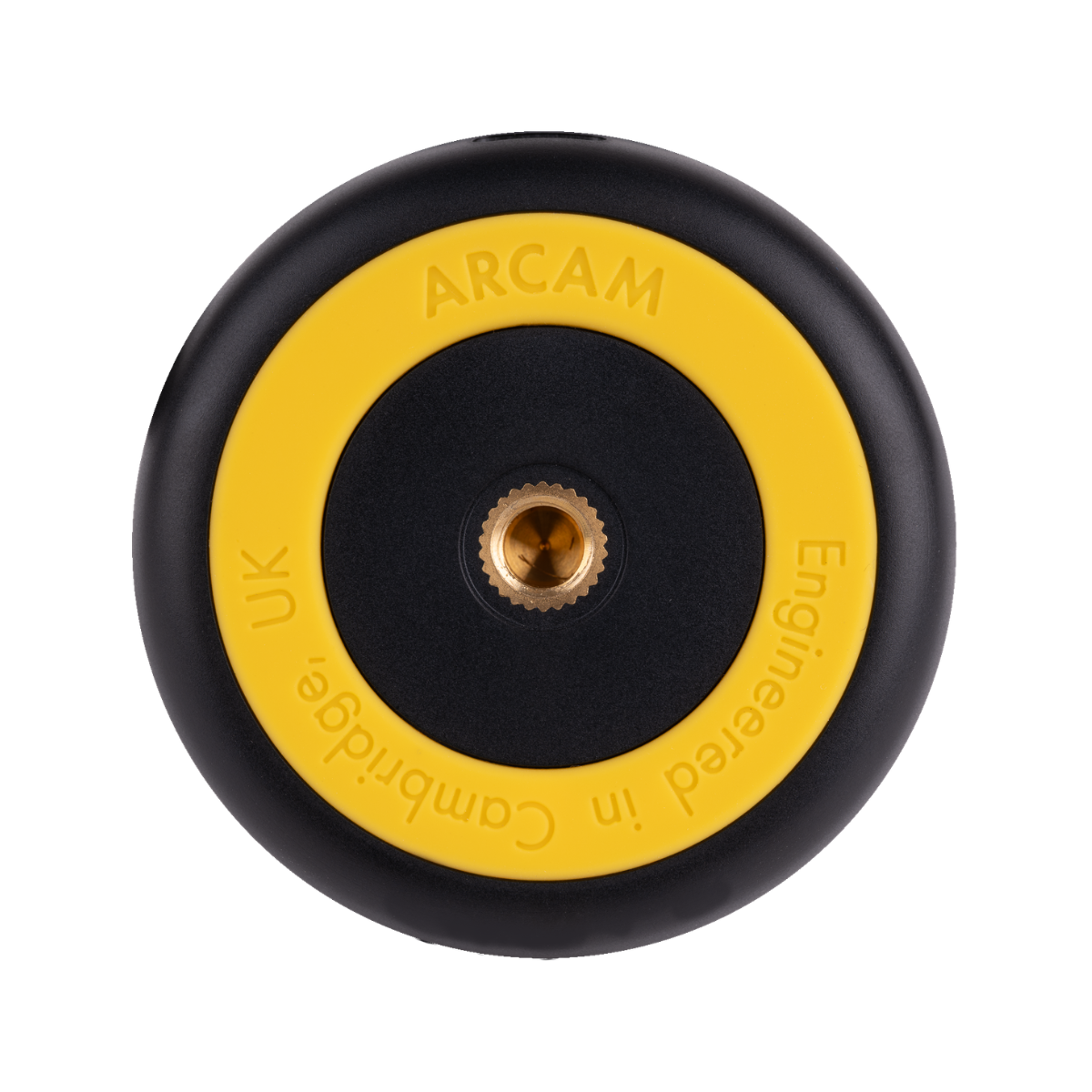

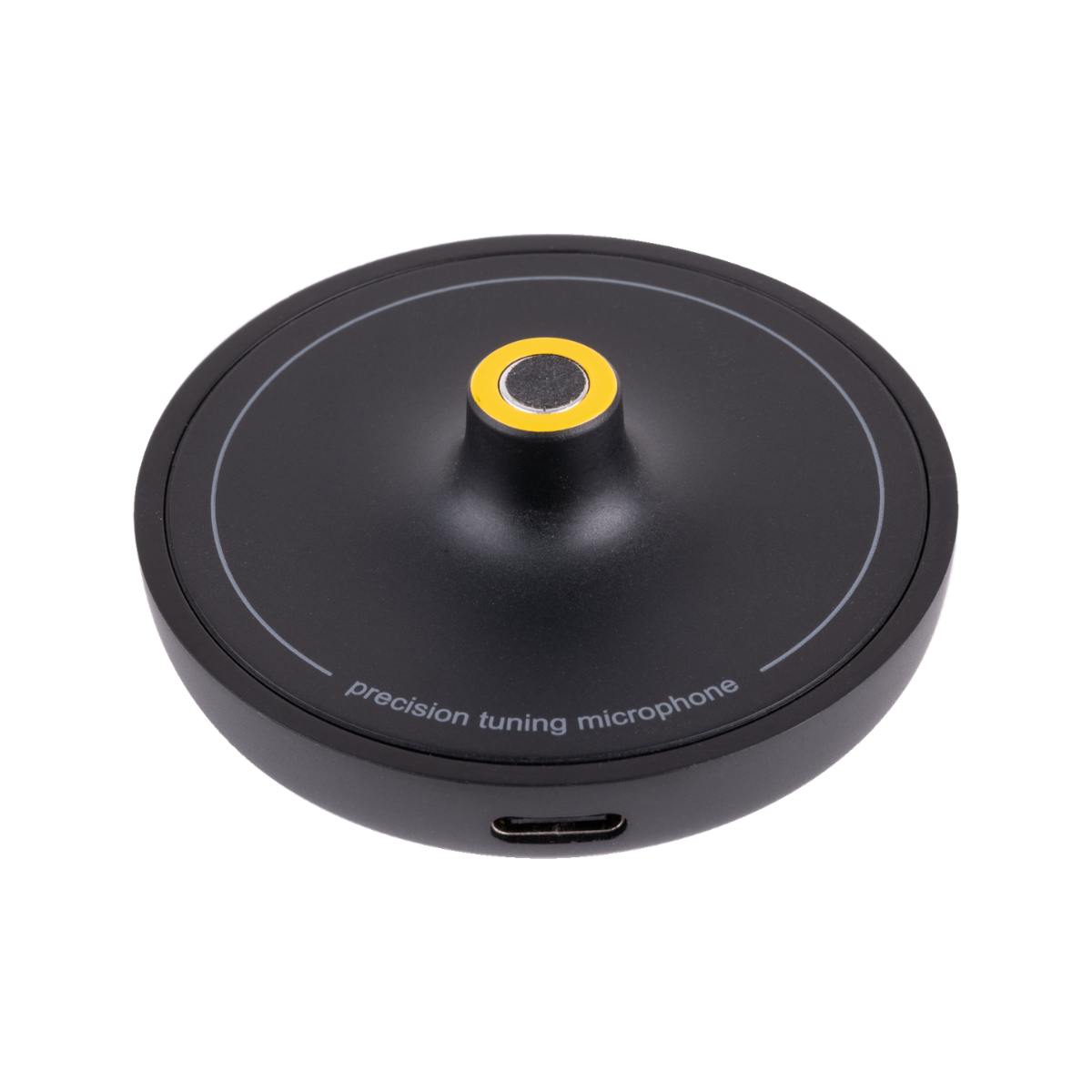

The receiver includes seven HDMI inputs and two HDMI outputs that support HDMI 2.1a and HDCP 2.3. It can pass video signals up to 8K at 60Hz or 4K at 120Hz. Features like Variable Refresh Rate, Auto Low Latency Mode, eARC, and support for Dolby Vision and HDR10+ are built in. Audio formats such as Dolby Atmos, Dolby TrueHD, DTS:X, and MPEG H are supported. Dirac Live room correction is included to help improve sound in different spaces.

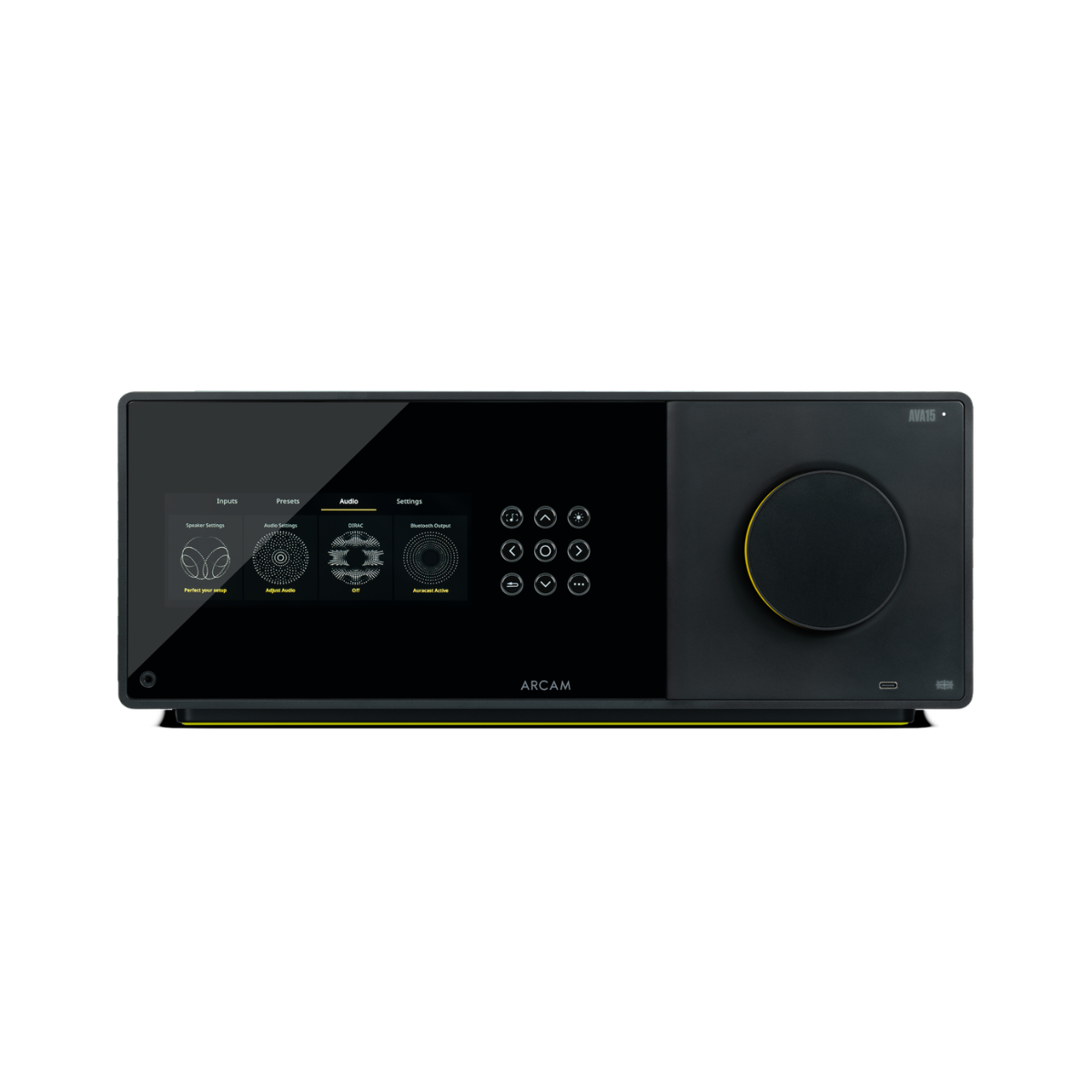

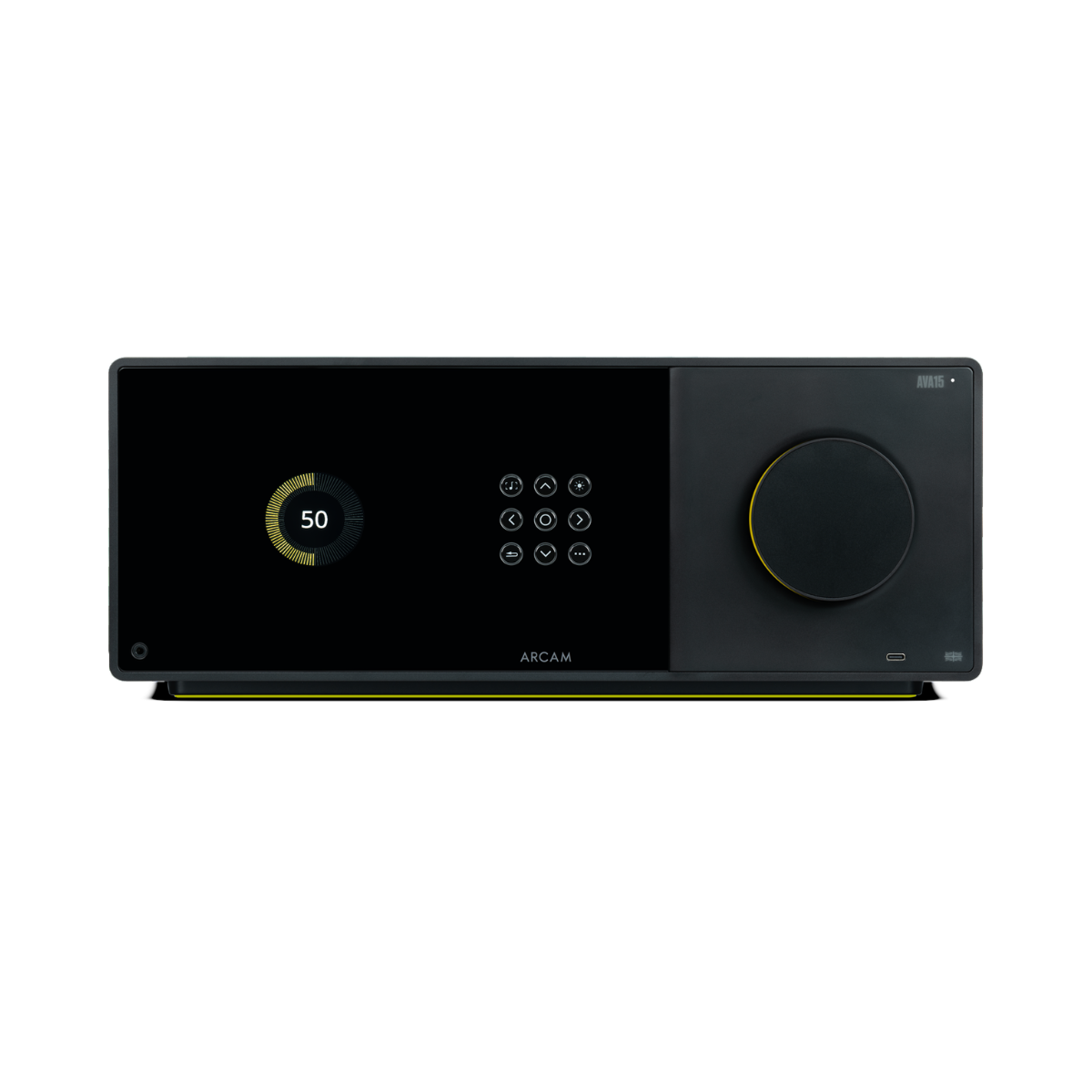

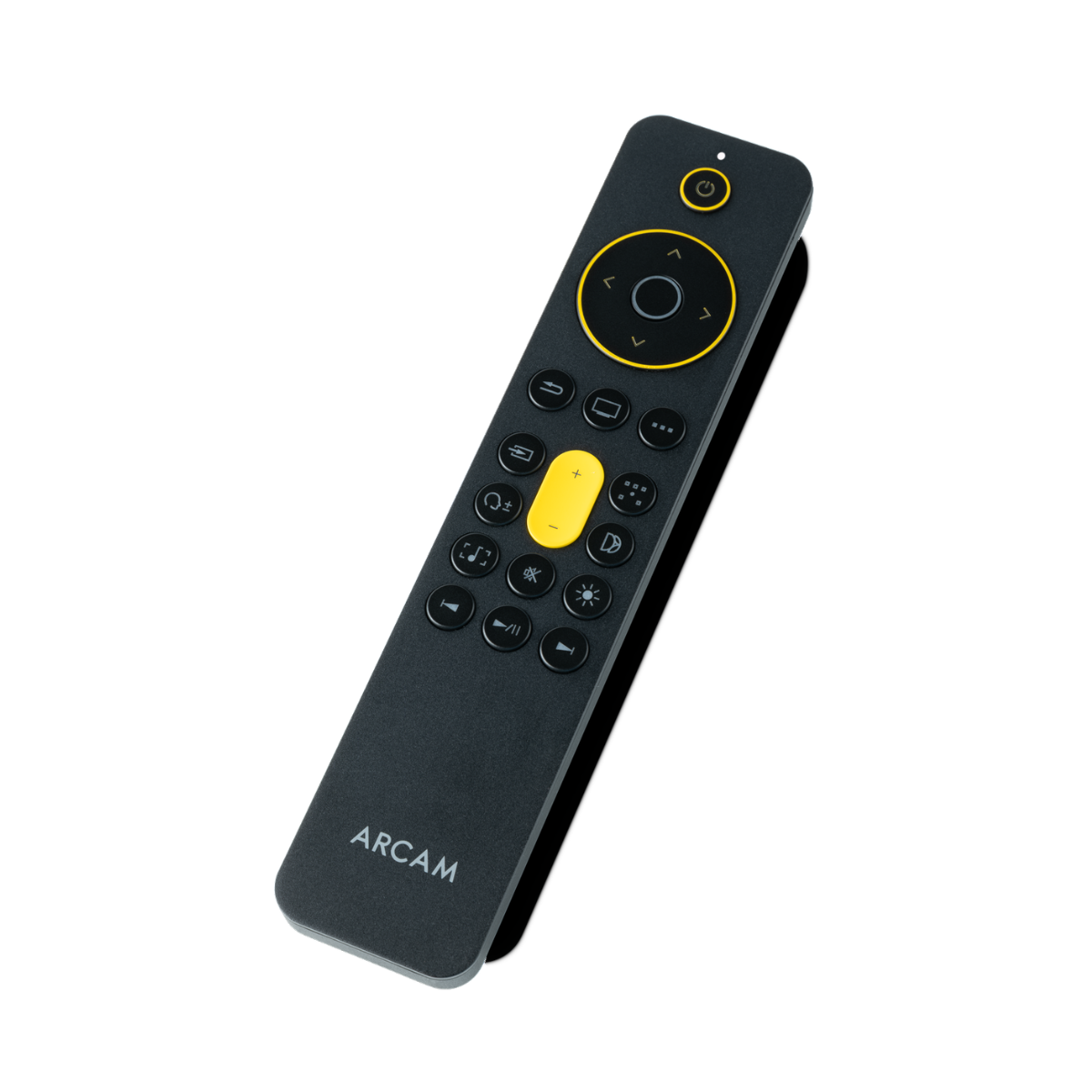

Streaming options include the Arcam Radia App, Apple Airplay, Google Cast, and direct connections to Spotify, Tidal, or Qobuz. The receiver can play high resolution audio files such as FLAC, WAV, and MQA up to 24 bit and 192 kHz. A 6.5 inch color display shows system status from across the room. The Bluetooth remote with Auracast and Snapdragon Sound makes it easy to control the receiver even when it is out of sight. At ten kilograms, the AVA15 is well suited for use as the main hub in a home theater or smart home system.

Details & Specs

Model Radia AVA15
▸ DECODING/ENCODING
Reassignable Channels Front, Surround Back, Height Channels
Dolby Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
IMAX Enhanced No
Auro 3D No
MPEG H Yes
▸ HDMI
Inputs/Outputs 7/2
HDMI/HDCP Versions 2.1a/2.3
Resolution support resolution/framerate Up to 8K/60Hz or 4K 120Hz
Supported Dynamic Range Profiles HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
Supported HDMI features Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1)
On Screen Display Yes
▸ STREAMING
Works with (apps) ARCAM Radia, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)
Works with (services) Apple Airplay, Google Cast
ARCAM Radia supported services (Global) Internet Radio, Podcasts, UPnP
Supported Hi-res media: FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
Supported Hi-res Bit depth 16,24
Supported samples rates (kHz) Up to 192 kHz
Gapless Playback Yes
Frequency response 20Hz—20kHz ± 0.05dB
▸ DIGITAL INPUTS
Number of inputs (Coaxial/Toslink) 2/2
Supported Sample Rates (kHz):Coaxial (RCA) 192, 176.4, 96, 88.2, 48, 44.1
Supported Sample Rates (kHz):Optical (Toslink) 96, 88.2, 48, 44.1
Bit depths (bit): Coaxial and Optical (Toslink) 24, 16
Frequency response 20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS) 100dB
▸ ANALOG INPUTS
Number of Inputs 3x RCA pairs
Signal/noise ratio (A-wtd, ref. 50W, 1V input) 100dB
Frequency response 20Hz—20kHz ± 0.2dB
▸ PREAMPLIFIER OUTPUTS
Number of Outputs XLR/RCA 0/12
Single-ended (RCA) peak output level per channel 2V RMS
THD+N (20 Hz to 20 kHz) –100dB
▸ AMPLIFICATION
Amplifier Channels 9, Class D
▸ CONTINUES POWER OUTPUT (0.5% THD), PER CHANNEL
8Ω, 20Hz - 20kHz, 2 channels driven 85W
4Ω, 1kHz, 2 channels driven 150W
8Ω, 1kHz, 7/9 channels driven 85/65W
4Ω, 1kHz, 7/9 channels driven 65/65W
Harmonic distortion, 80% power, 8Ω at 1kHz 0.003%
▸ WIRELESS SPECIFICATIONS
Bluetooth Profile 5.4; A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP,BAP, CAP
▸ GENERAL
Mains voltage 100-120V/220-240V 50/60Hz
Power consumption 900W
Dimensions W x D (including speaker terminals) x H (including feet) 432 x 391.7 x 170mm
Weight (net) 10 kg
Weight (packed) 15.7kg
