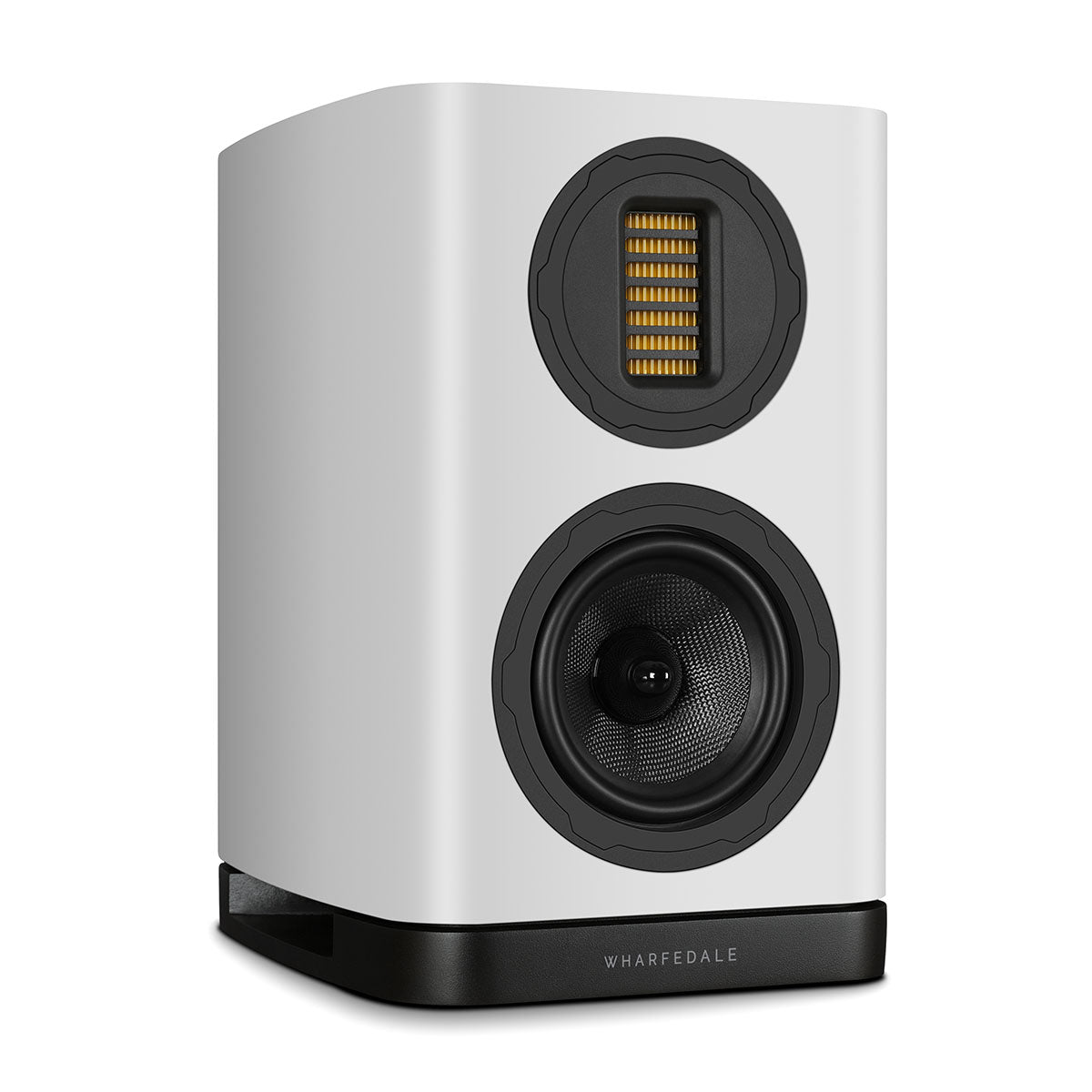

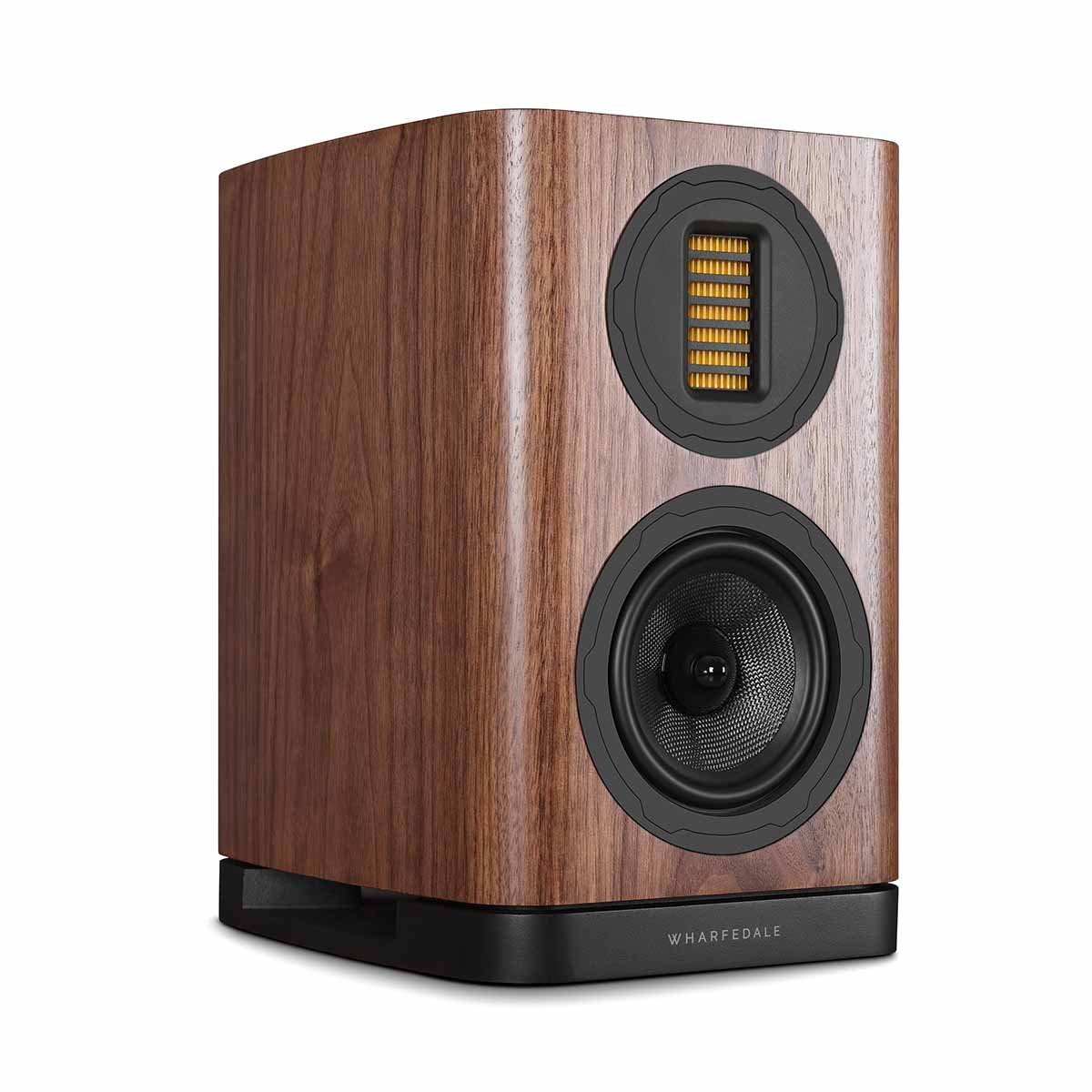

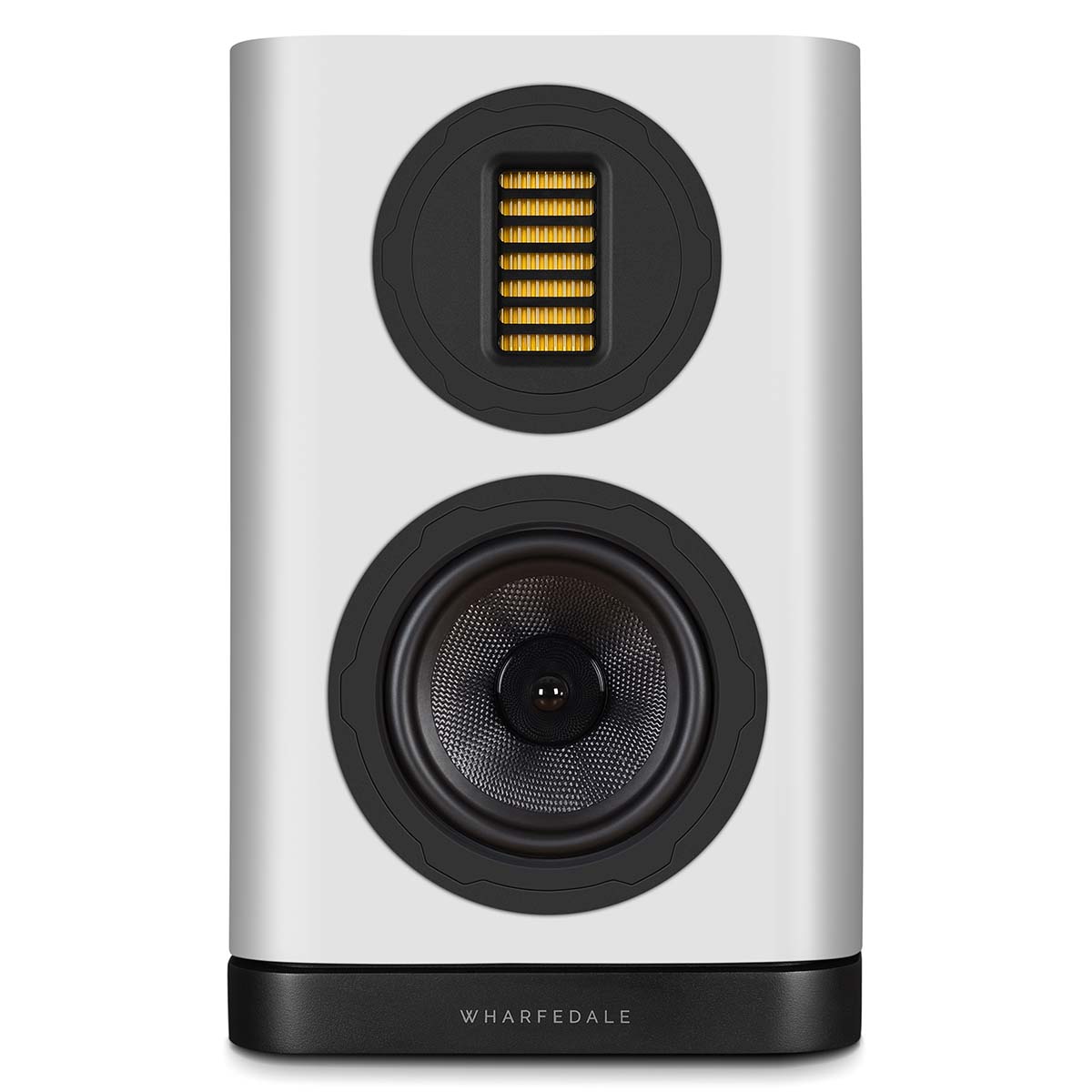

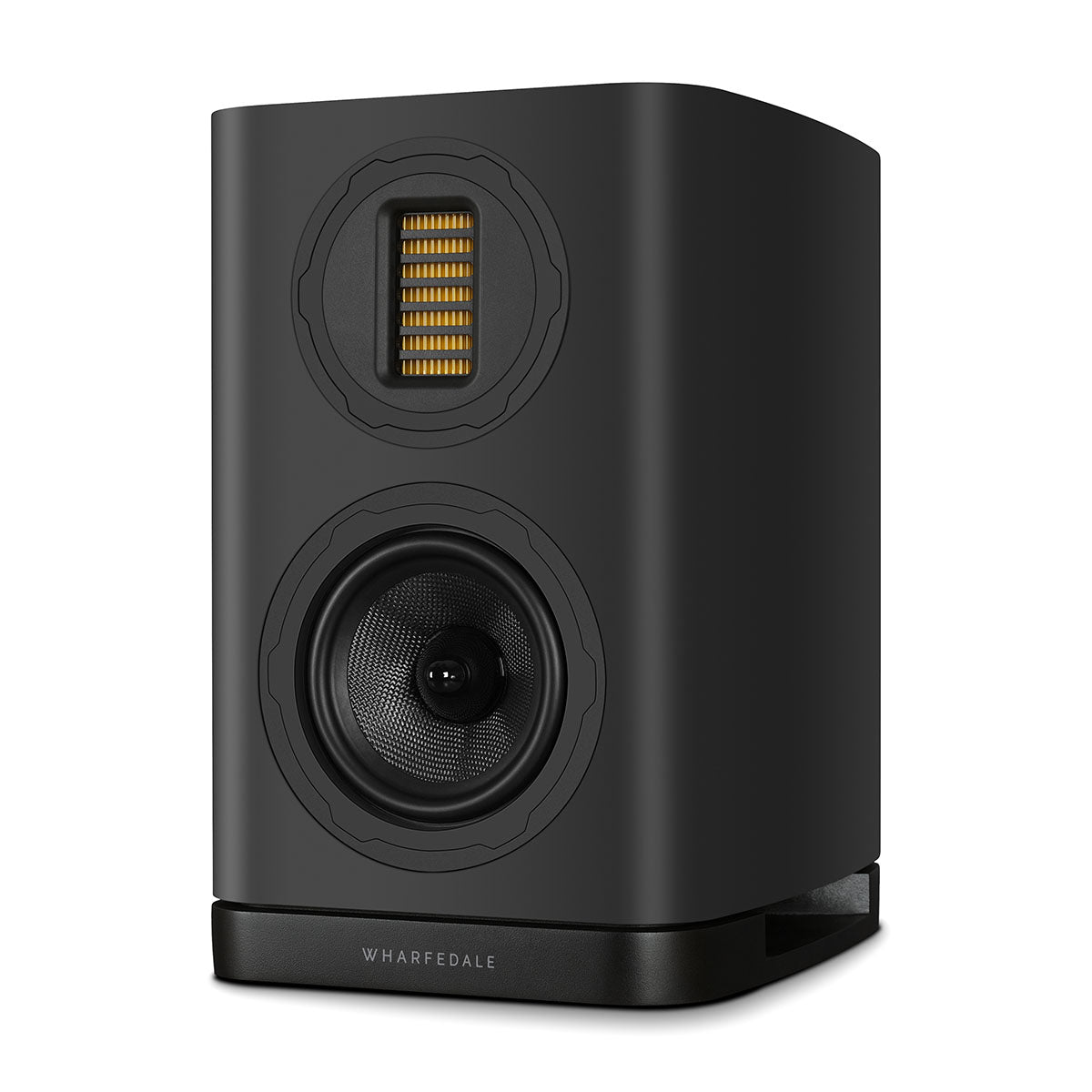

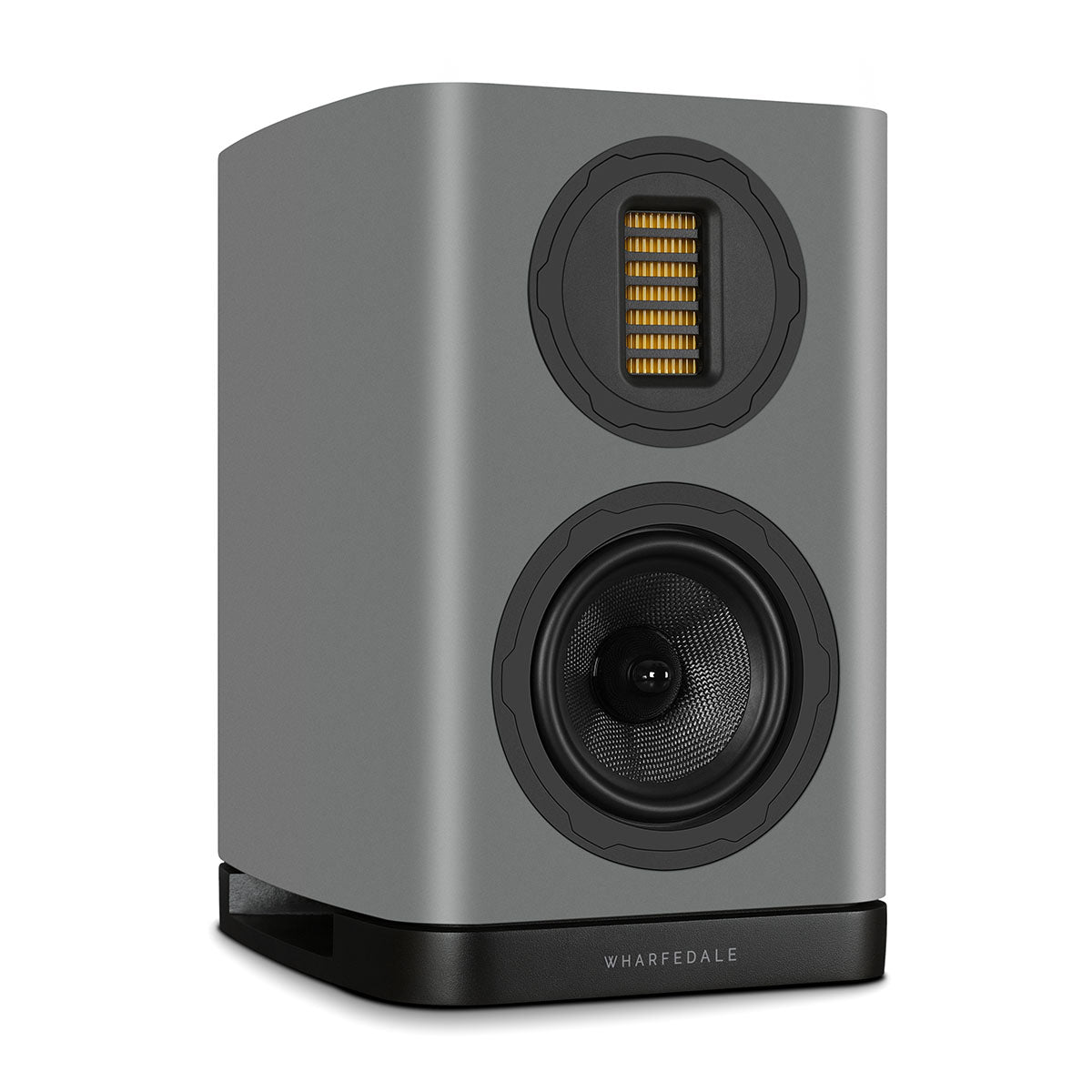

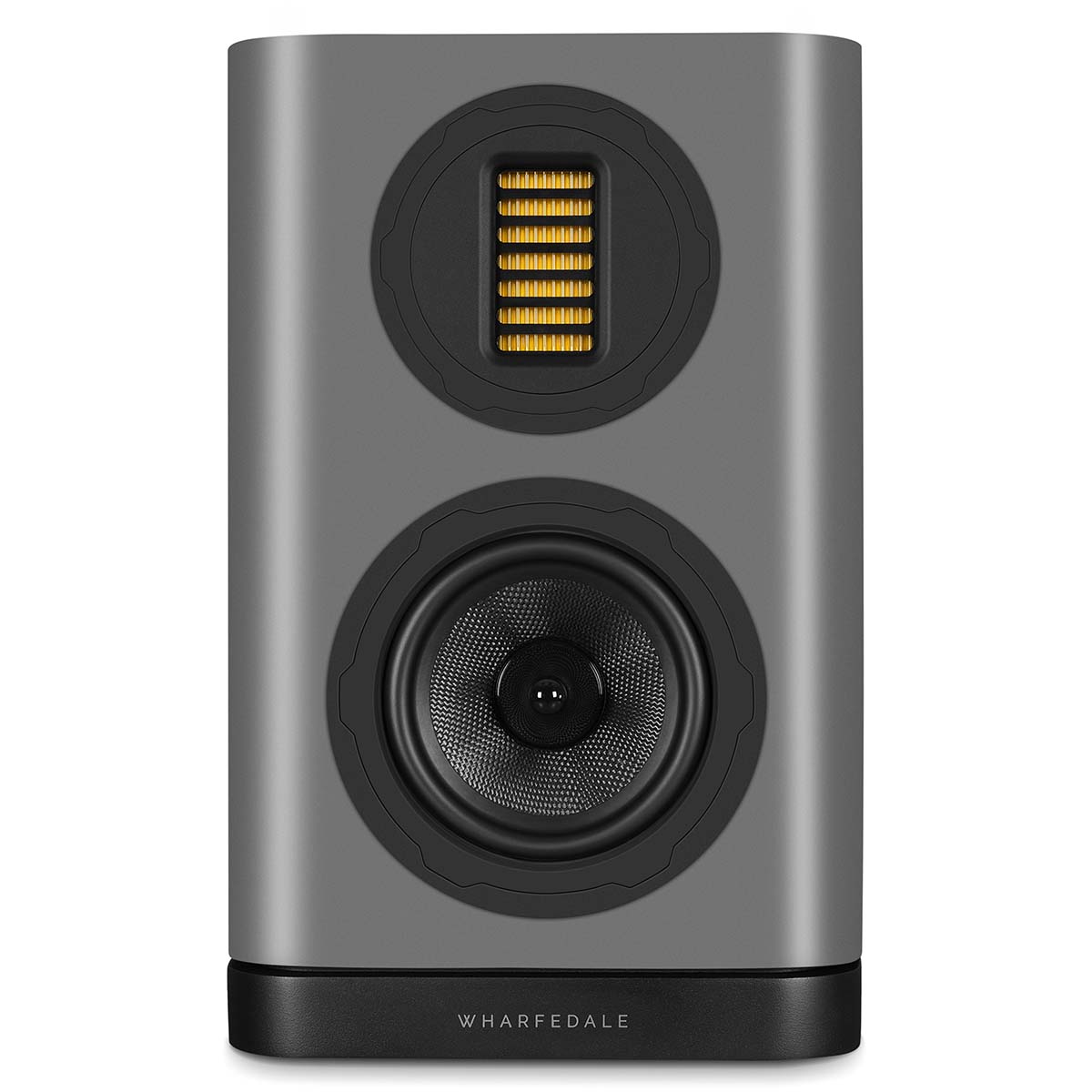

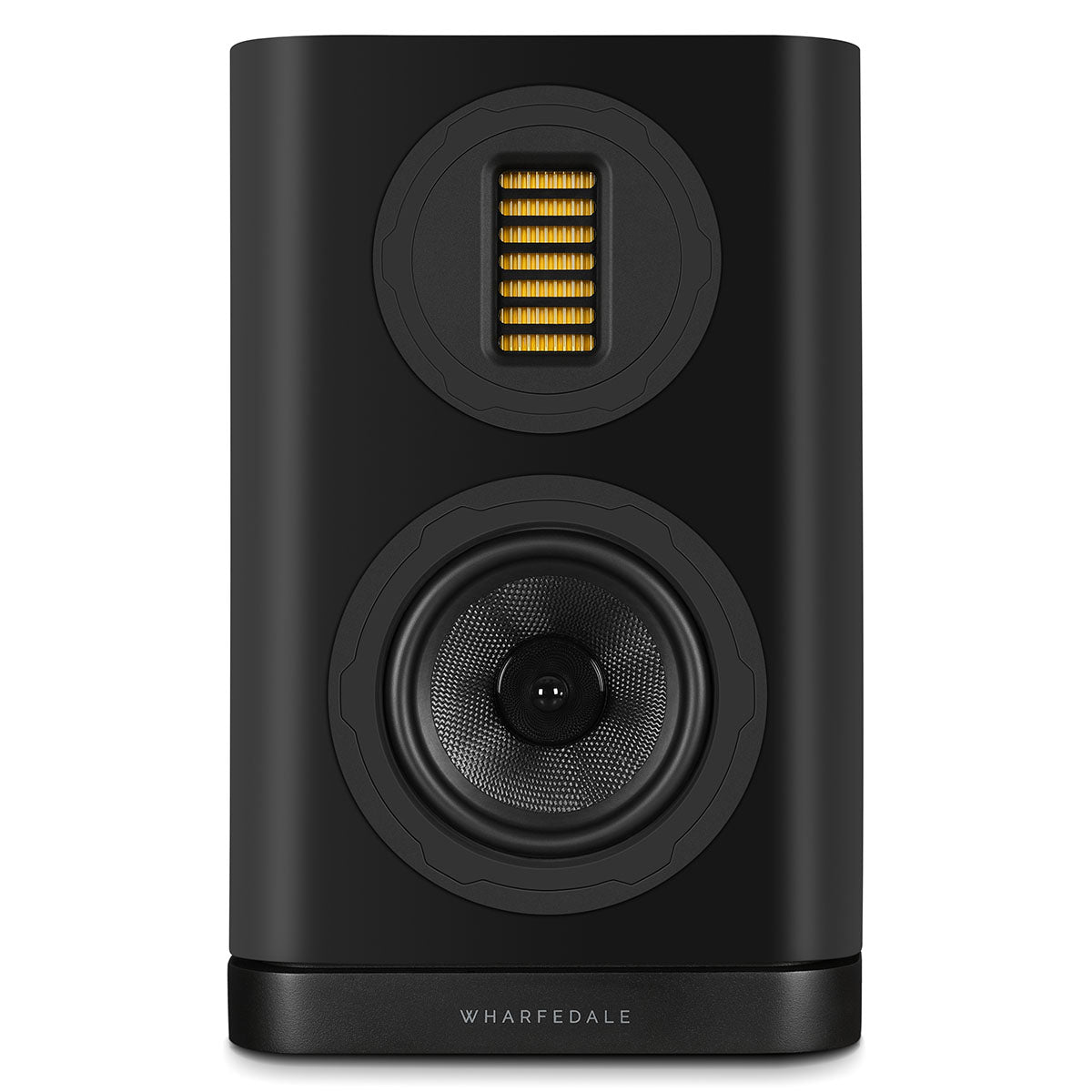

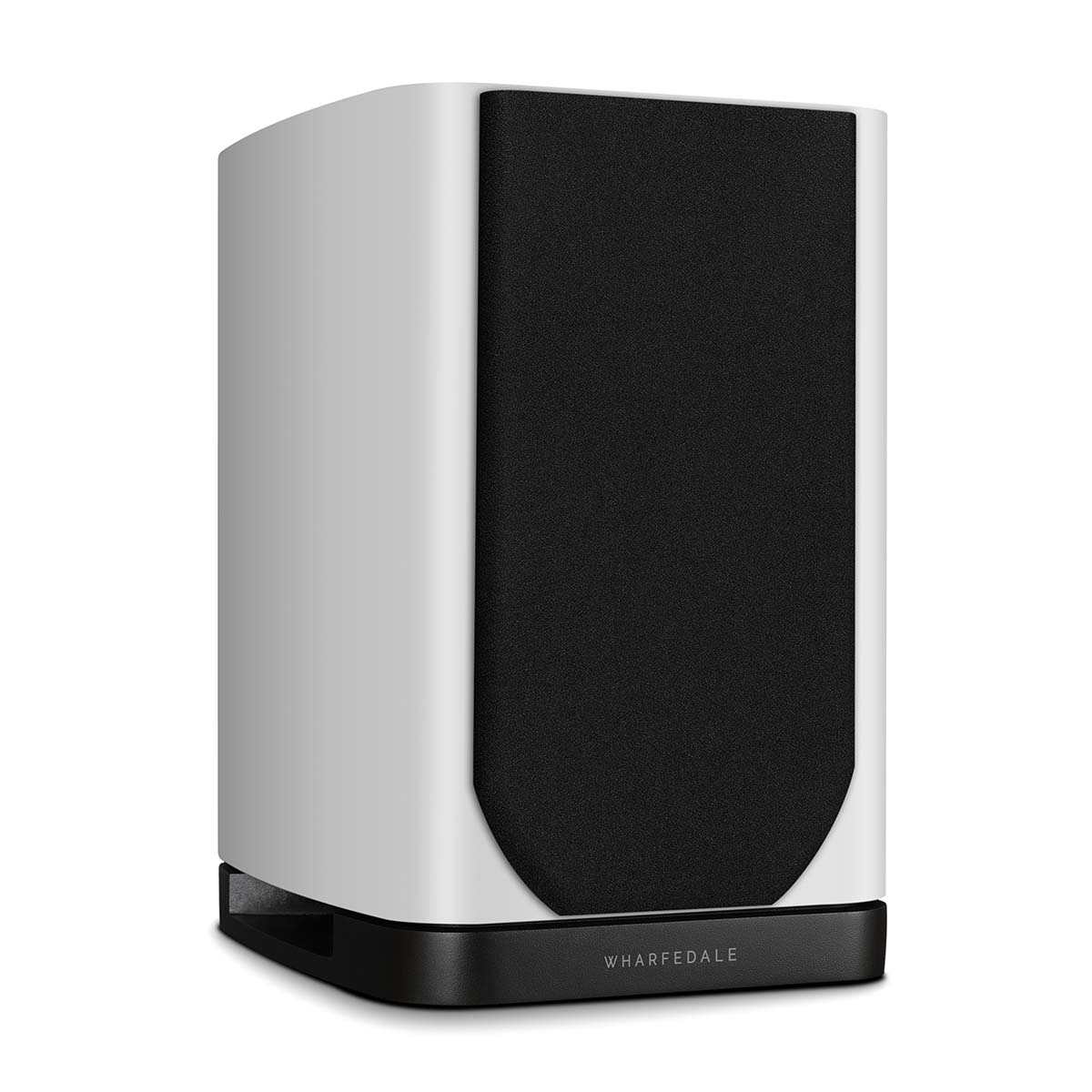

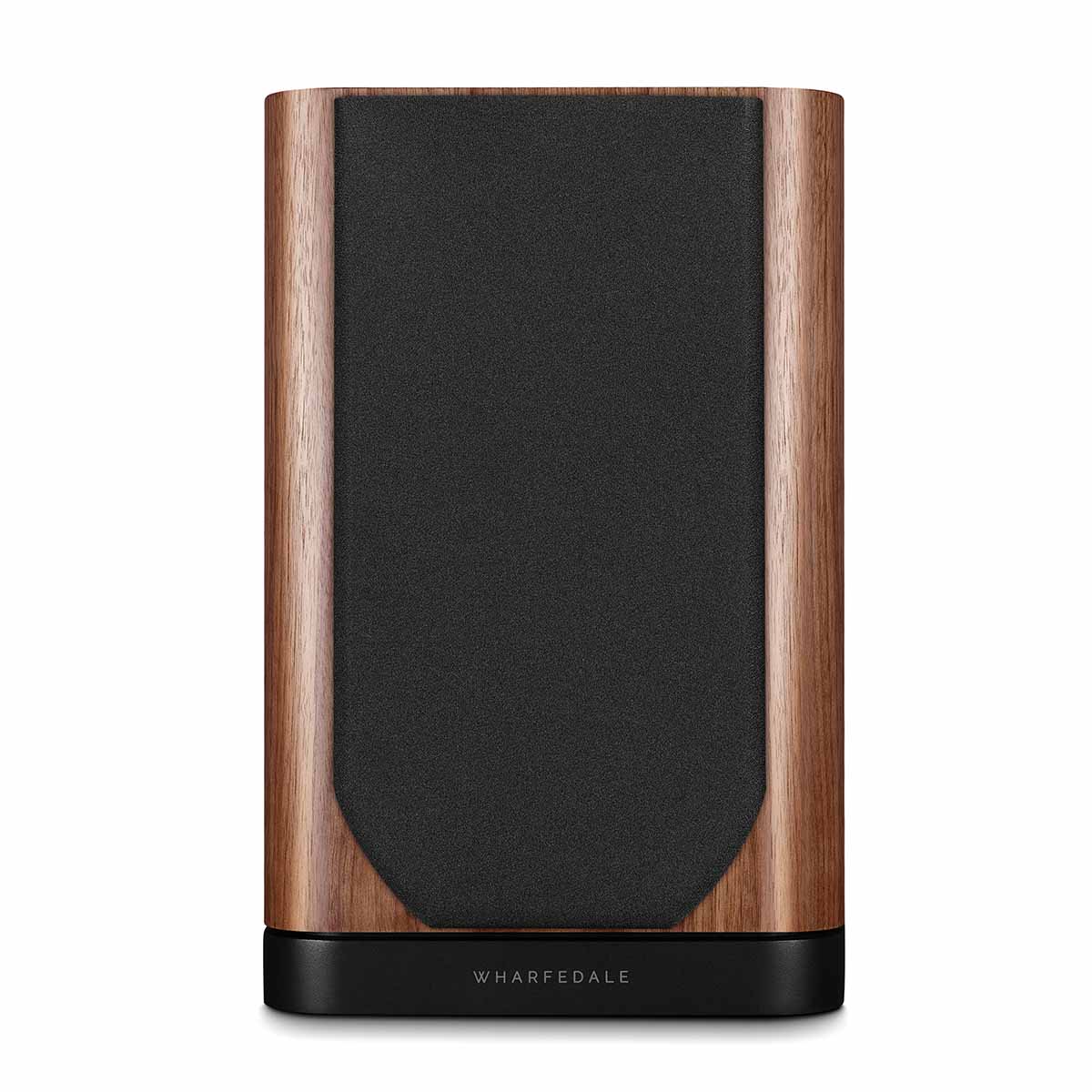

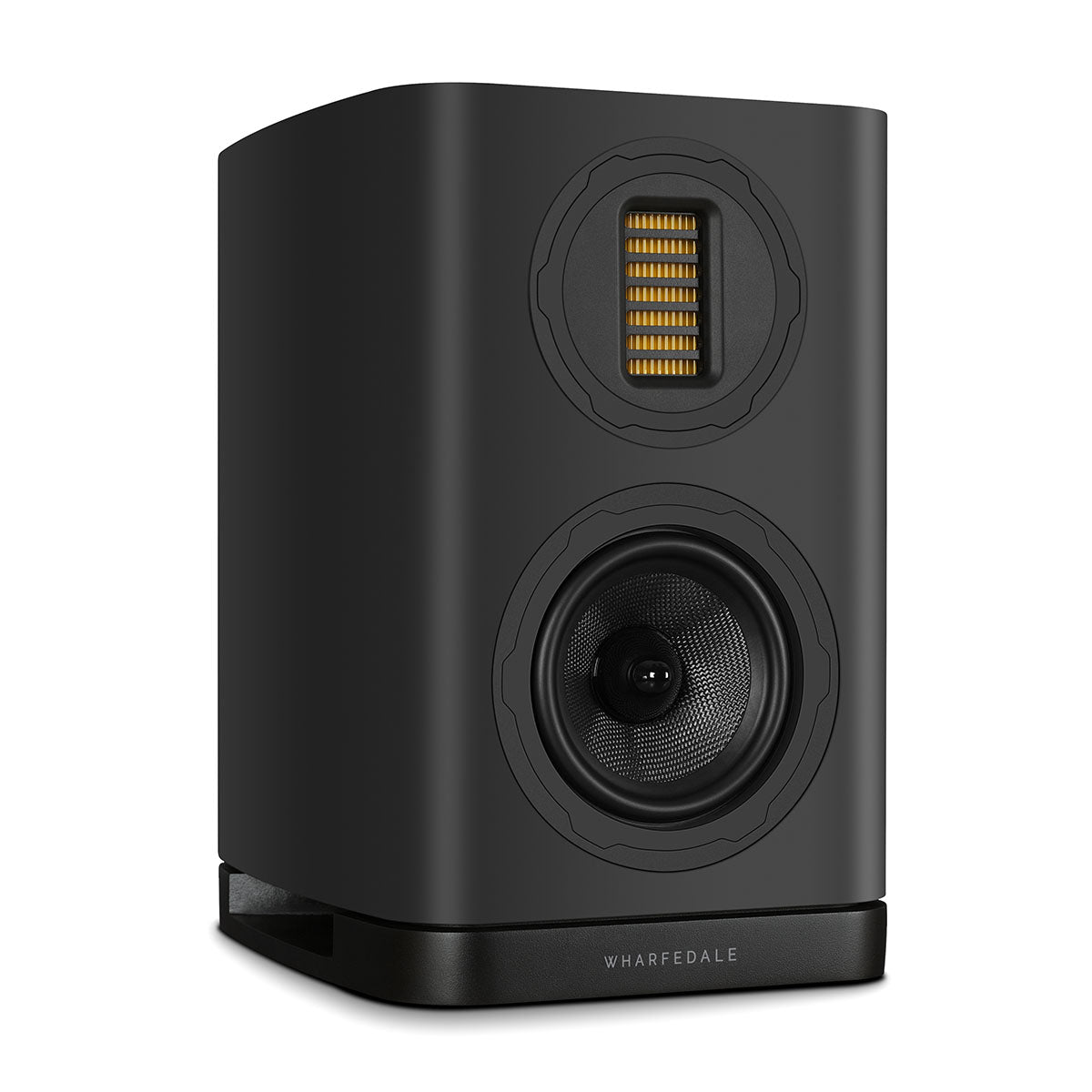

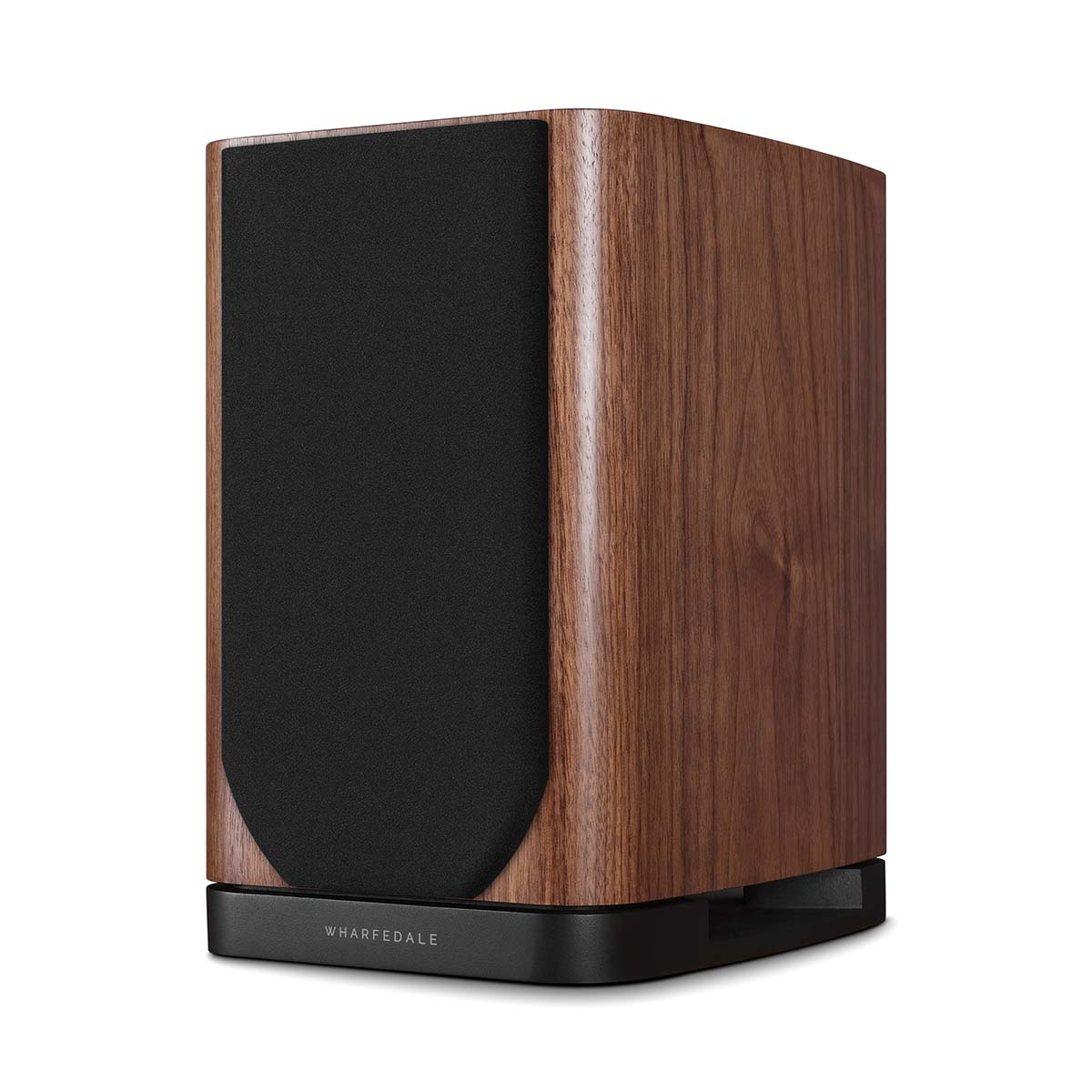

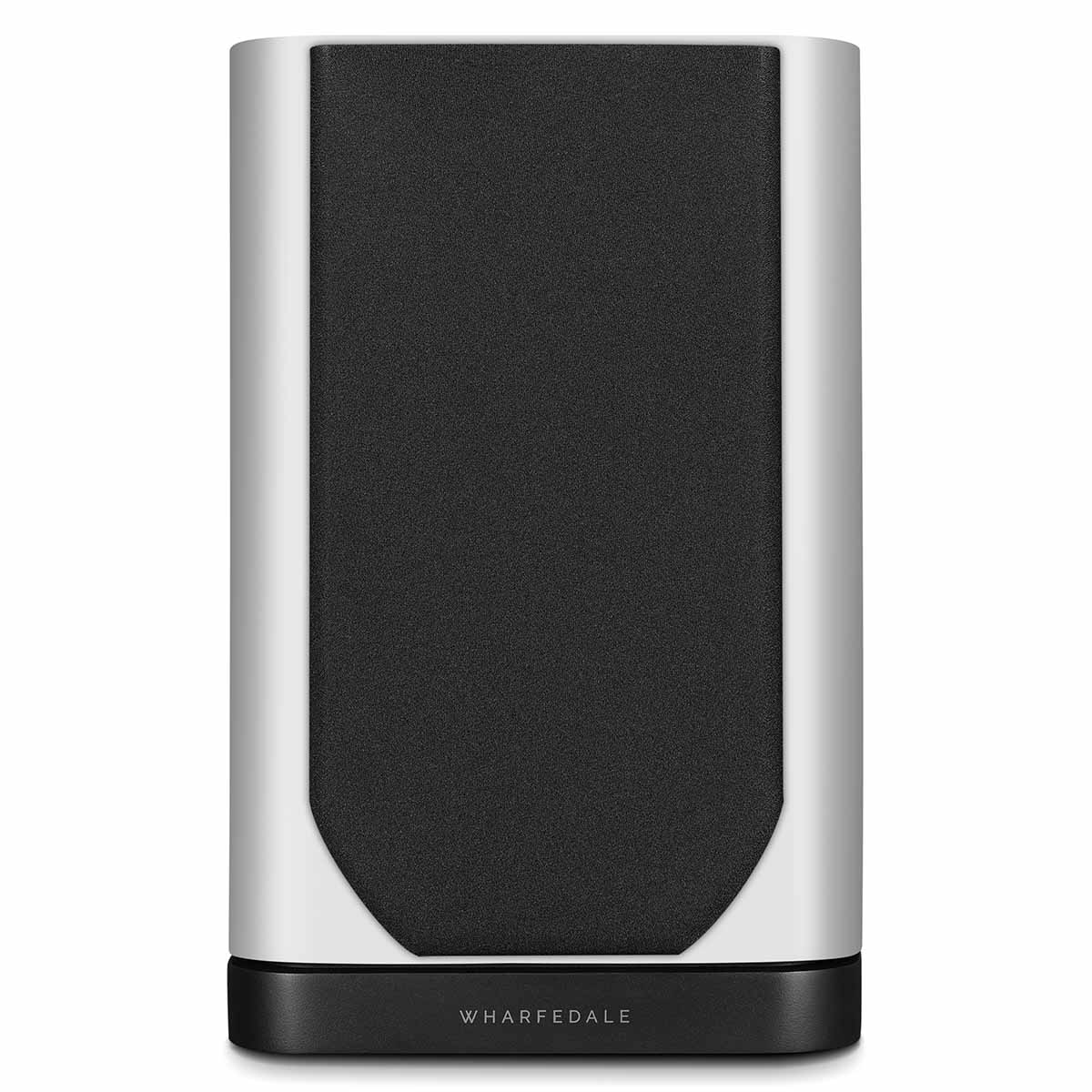

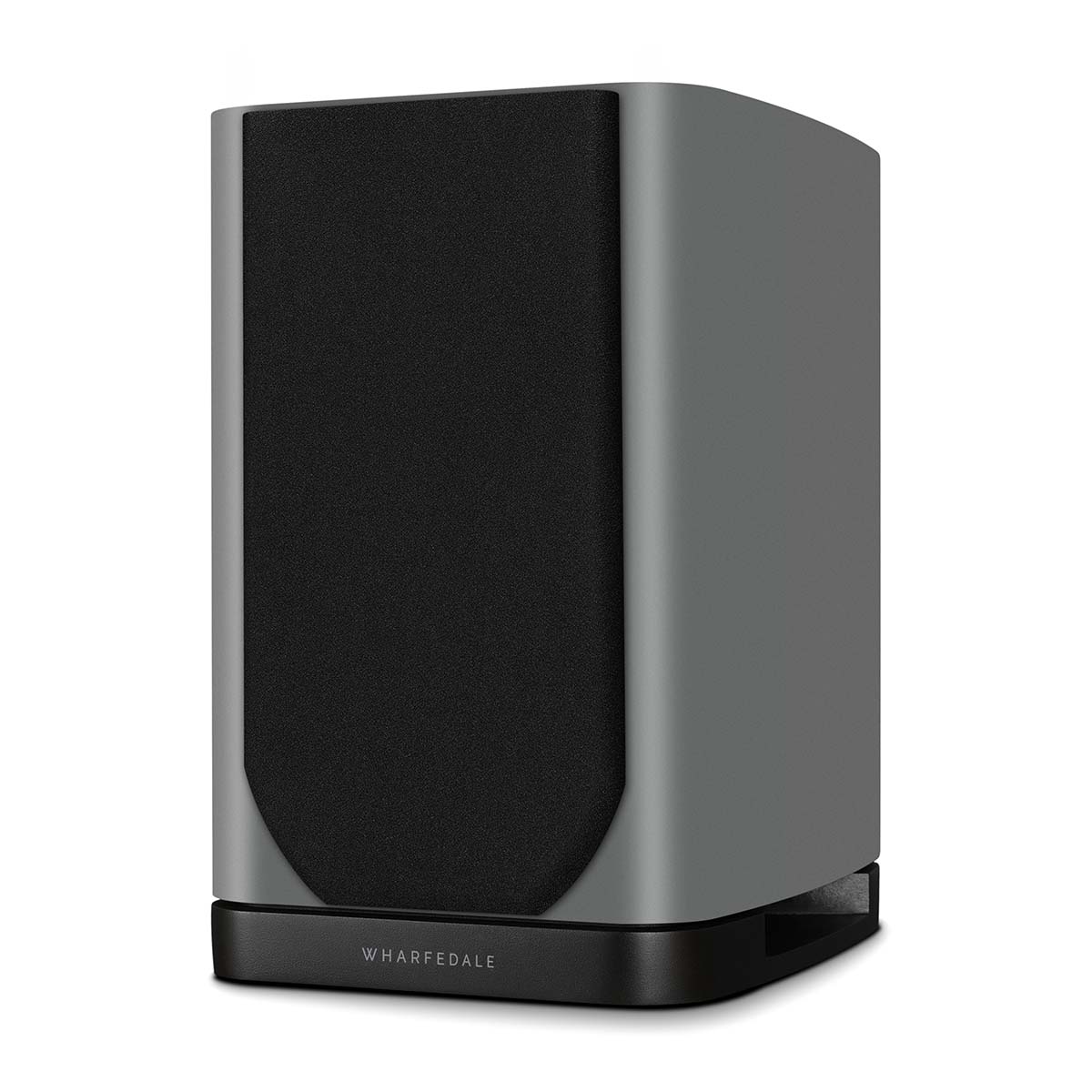

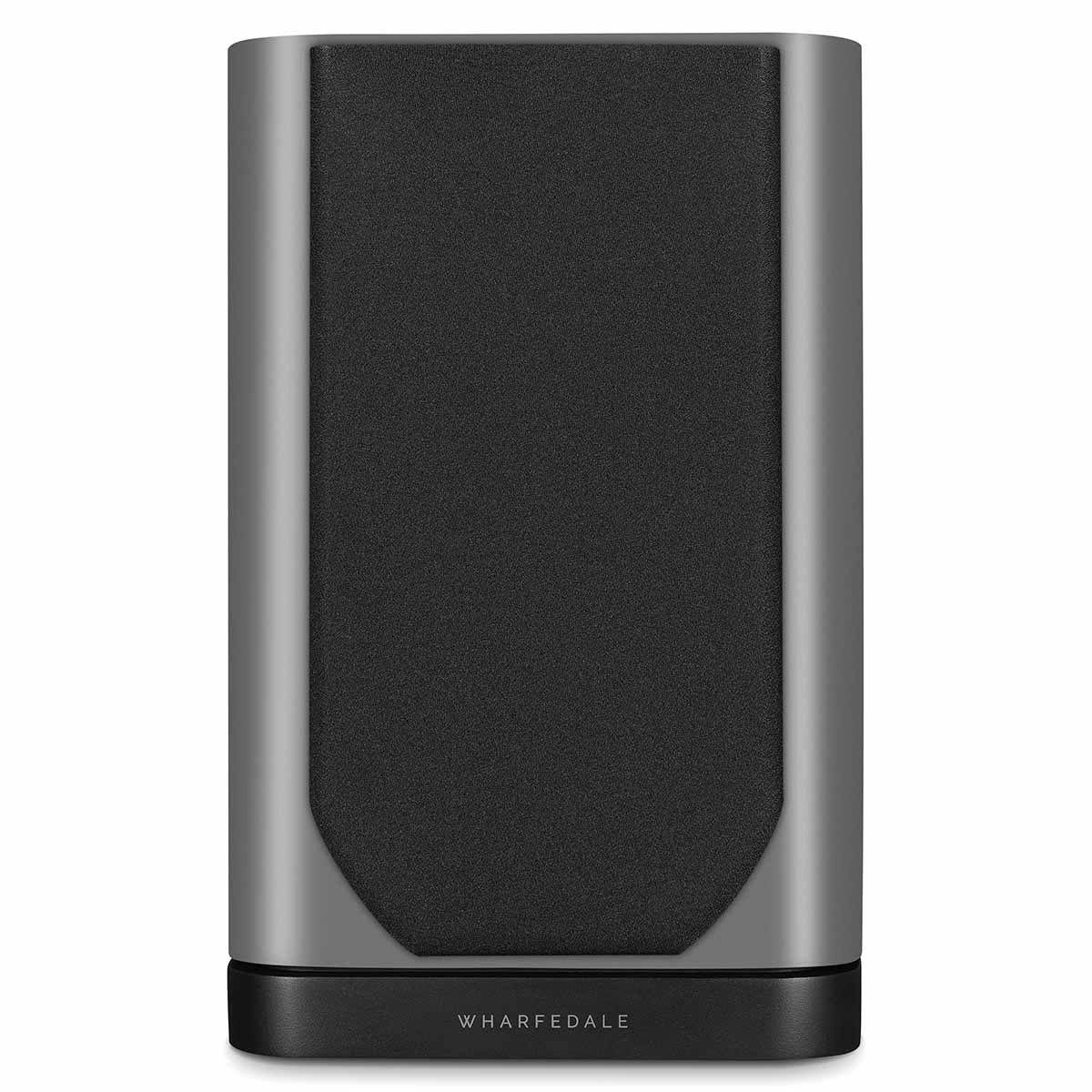

Wharfedale Evo 5.1

5-inch 2-way Bookshelf Speakers - PAIR

Wharfedale Evo 5.1

5-inch 2-way Bookshelf Speakers - PAIR
From $999.00
Select Color:

Select Stands


Overview

The EVO 5 Series represents a bold step forward for Wharfedale - taking everything that makes the EVO4 a showroom-staple and multi-award winning loudspeaker series but blending luxurious design updates with technical evolution further to enhance the appeal of a price-bracket-defying loudspeaker offering. Whether an audiophile seeking nuanced musical expression or a casual listener desiring clarity and depth, the EVO 5 speakers promise an immersive, high-fidelity experience that rivals far more expensive high-end audio offerings.

High Frequency Unit

The EVO series concept originated from the same thorough research and development processes that characterized Wharfedale’s flagship Elysian project. It was specifically designed to bridge the gap between affordability and high-end performance. A notable feature of this series is the EVO AMT (Air Motion Transformer) high-frequency unit.

A Distinctive Approach to High Frequencies

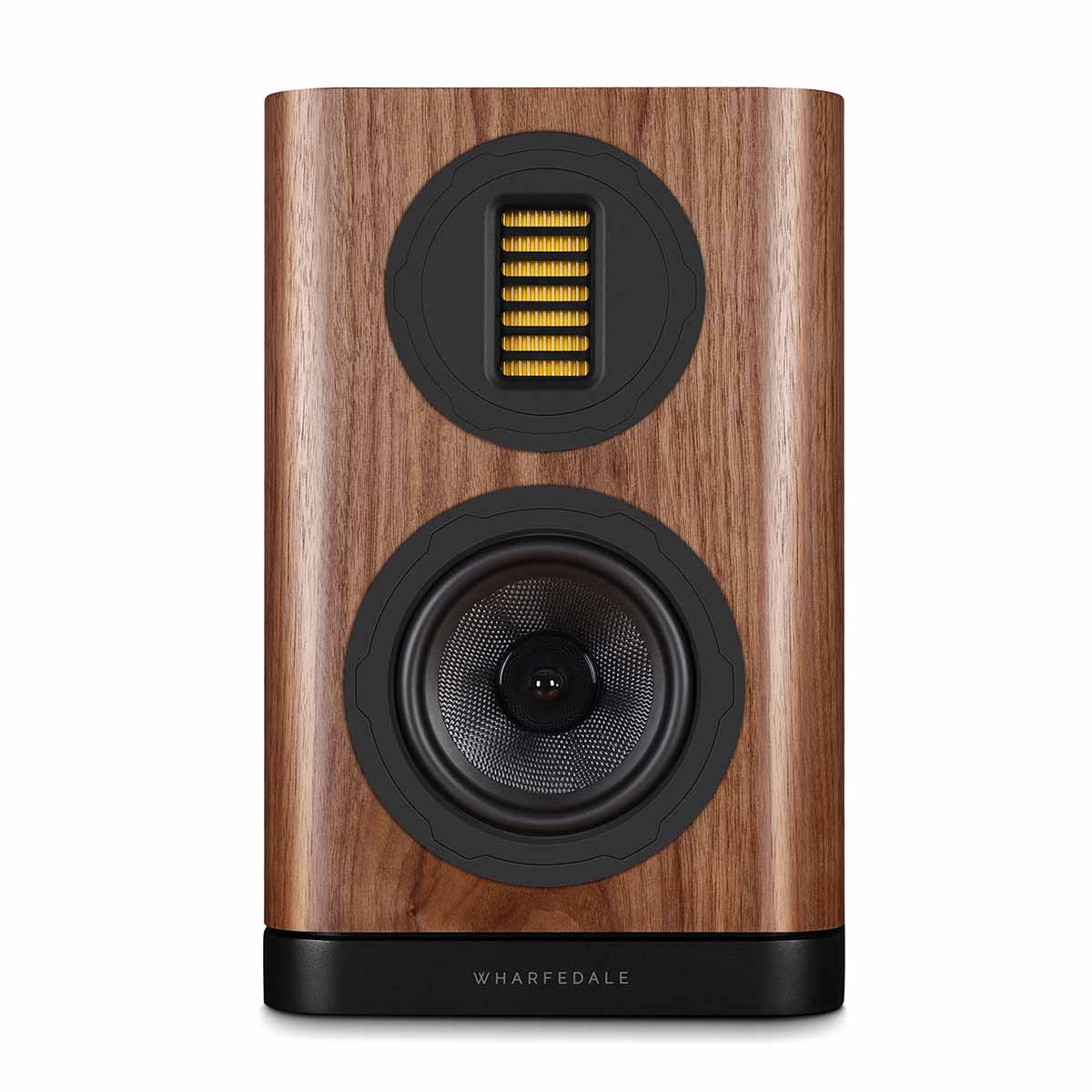

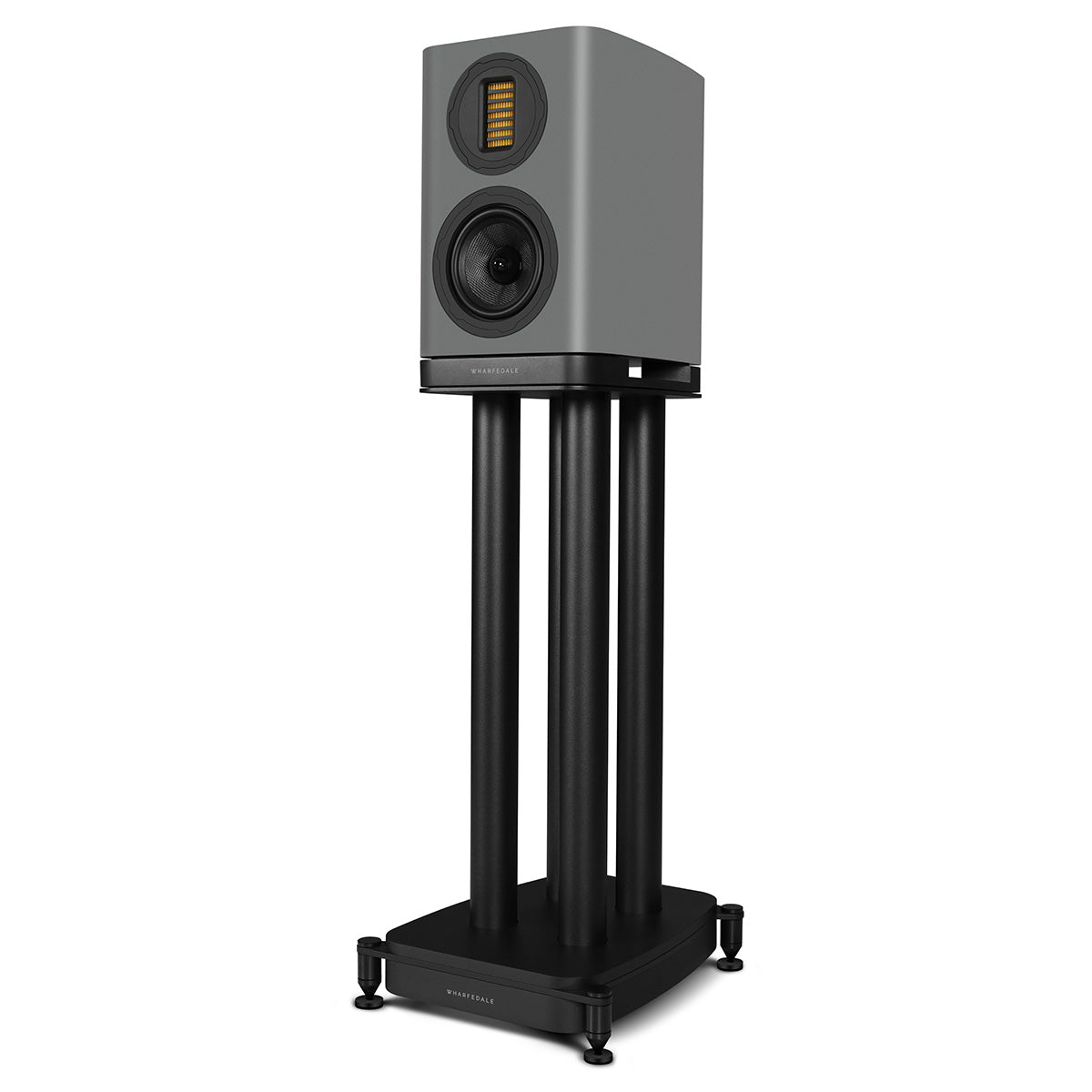

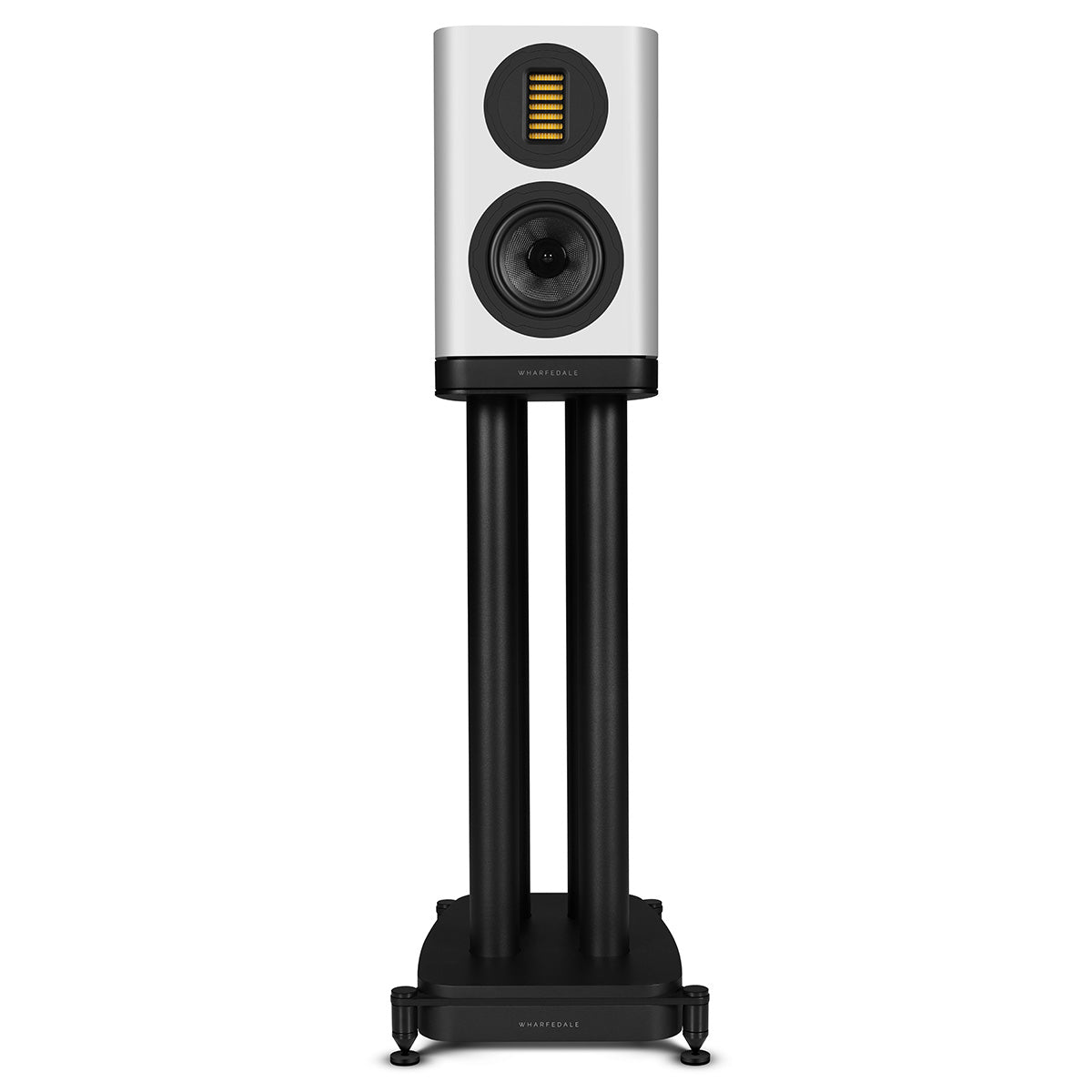

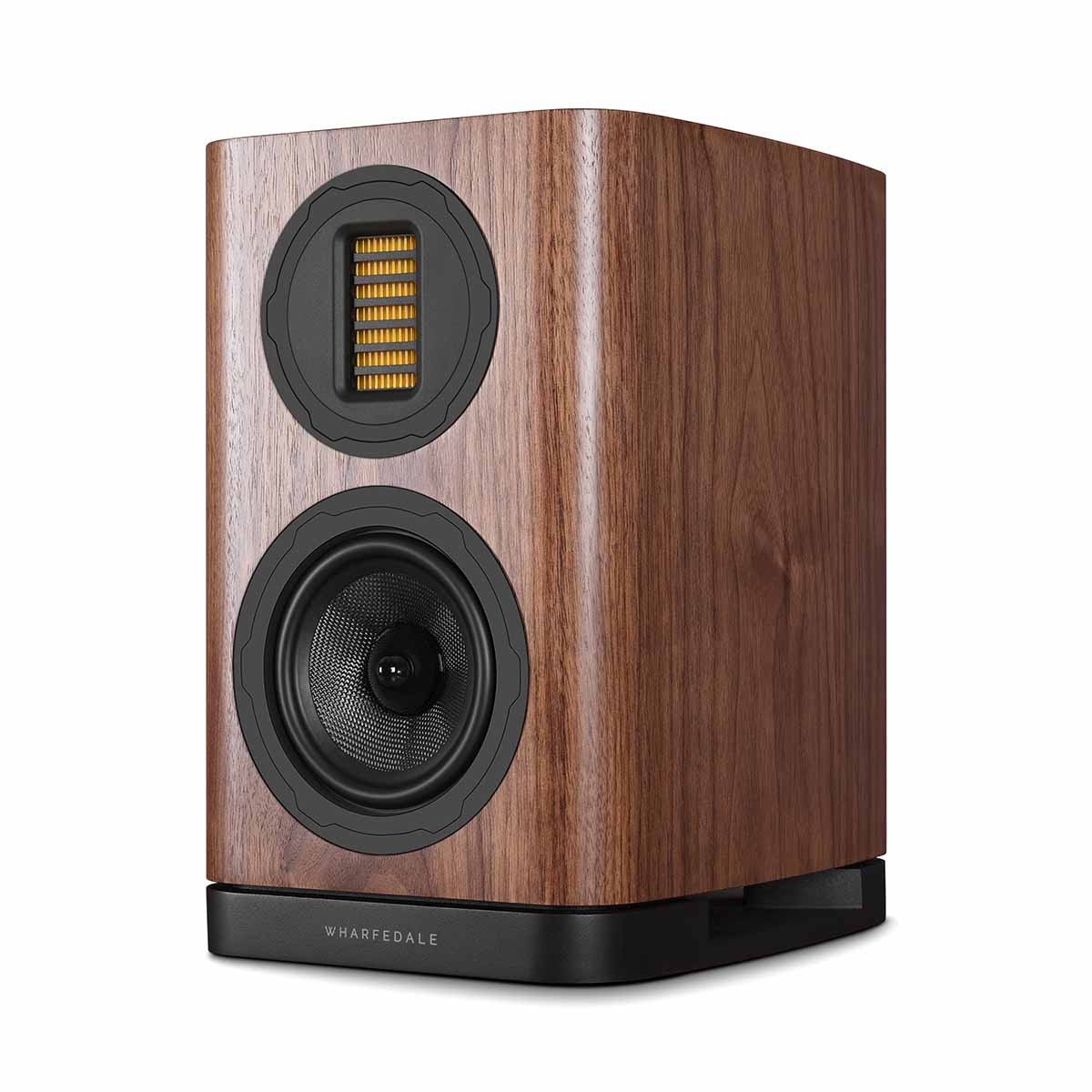

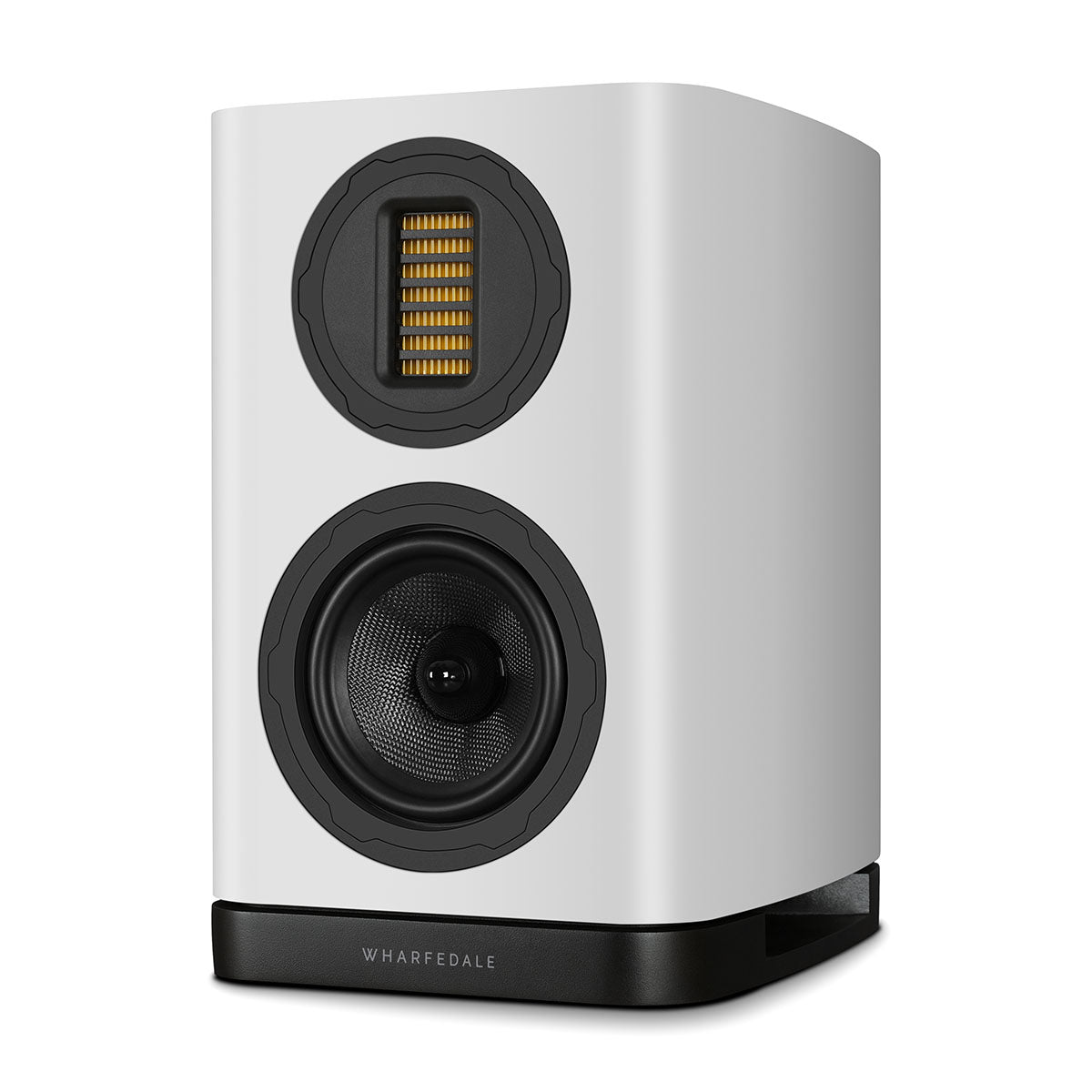

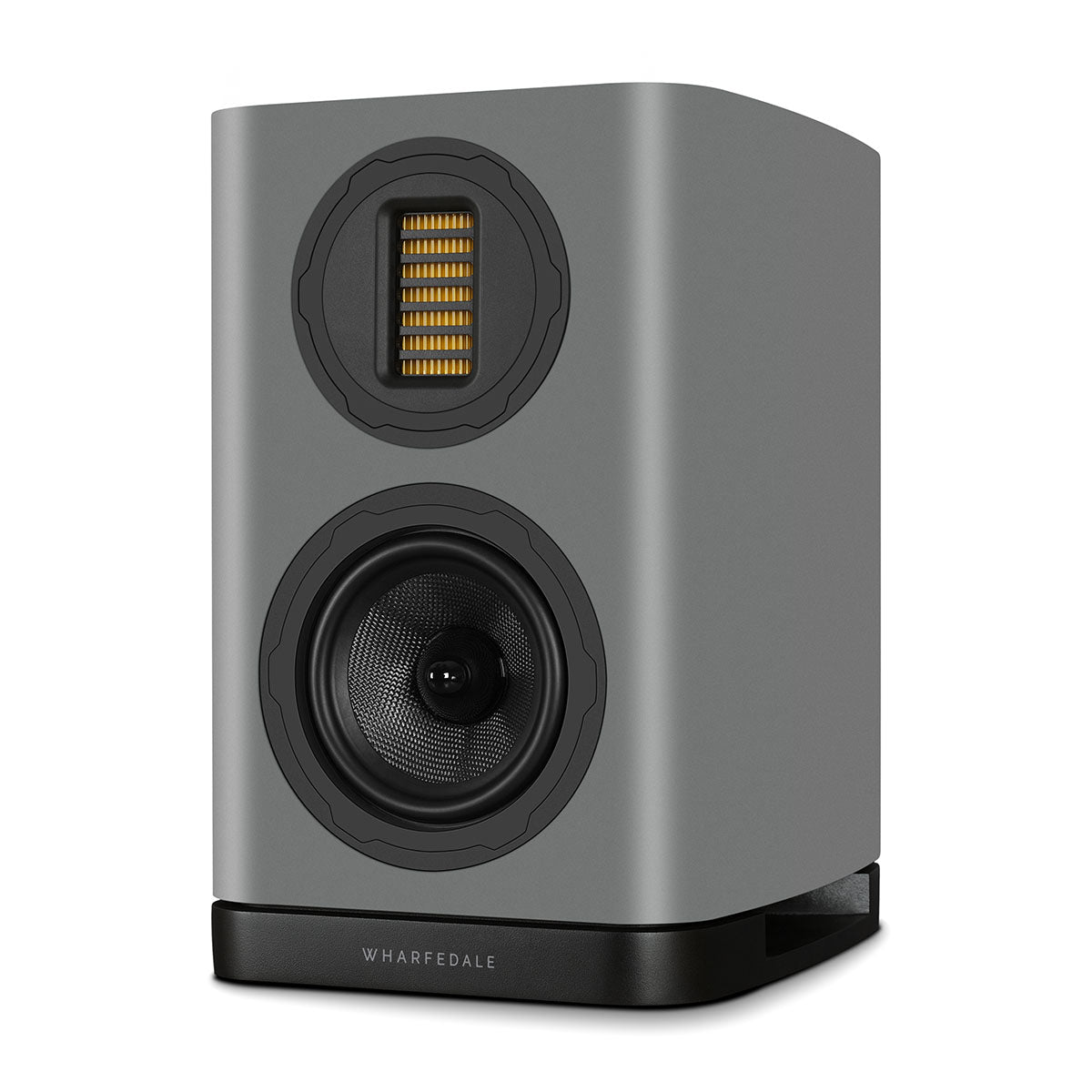

AMT Tweeter for Precision and Detail: In developing the new EVO 5 series, Wharfedale has further evolved the cutting-edge Air Motion Transformer (AMT). The AMT is a type of high-frequency driver used in speakers, known for its exceptional accuracy, speed, and low distortion compared to traditional dome treble units.

Instead of using a conventional dome or cone to push air forward, an AMT uses a pleated diaphragm made of an ultra-thin, lightweight material (often a polymer film). Strong magnets are positioned on either side of the diaphragm, creating a powerful magnetic field. When an audio signal is passed through the conductive traces, the diaphragm is energized, causing the pleats to contract and expand. As the pleats move, they "squeeze" and "expand" the air between them, pushing it out in a highly controlled and efficient manner. This method allows the AMT to move four times more air than a traditional dome tweeter of the same surface area, leading to lower distortion (since the diaphragm moves less than a typical dome or ribbon), faster transient response (due to the lightweight material and minimal movement), wider frequency range and better dispersion.

Absorption and Damping Enhancements

A new sound-absorbing material, Silentweave, has been added to the cavity behind the diaphragm to reduce sound wave reflection and sound coloration inside the speaker. This material, a combination of cotton and felt fiber, was specially developed for the EVO 5 series.

All EVO 5 drive units benefit from a new acoustic damping frame called ResoFrame, made from elastomer and visible as a cog-like shape within the driver’s front panel. In the case of the AMT, an additional elastomer damping gasket between the diaphragm and the front plate further reduces mechanical resonances and smooths the response, especially in the important lower treble band.

These internal acoustic enhancements minimize unwanted sound coloration, ensuring a purer, more natural sonic signature. This smoother treble response delivers a listening experience that is crisp, controlled, and devoid of harshness.

Lower-Midrange and Bass Refinements for Unparalleled Vocal Reproduction

Enhanced Midrange: A new technique, labeled Resoseal, sees a thin mass ring of elastomer applied to the rear of the cone where it meets the surround. This further optimizes midrange frequency response, allowing vocals to sound richer, more natural, and more emotionally engaging. This subtle yet critical enhancement ensures a refined and immersive listening experience.

Reengineered Cabinetry for Superior Resonance Control

Each model in the EVO 5 series now features an optimally increased internal cabinet volume. The expanded cabinet volume contributes to deeper bass extension and improved overall sound dispersion, creating a more immersive and expansive audio field.

The inclusion of a hybrid plinth, which combines metal and wood elements of the cabinet’s details, enhances structural integrity and reduces unwanted vibrations. This innovative base ensures that sound remains clean and uncolored, free from external resonance artifacts.

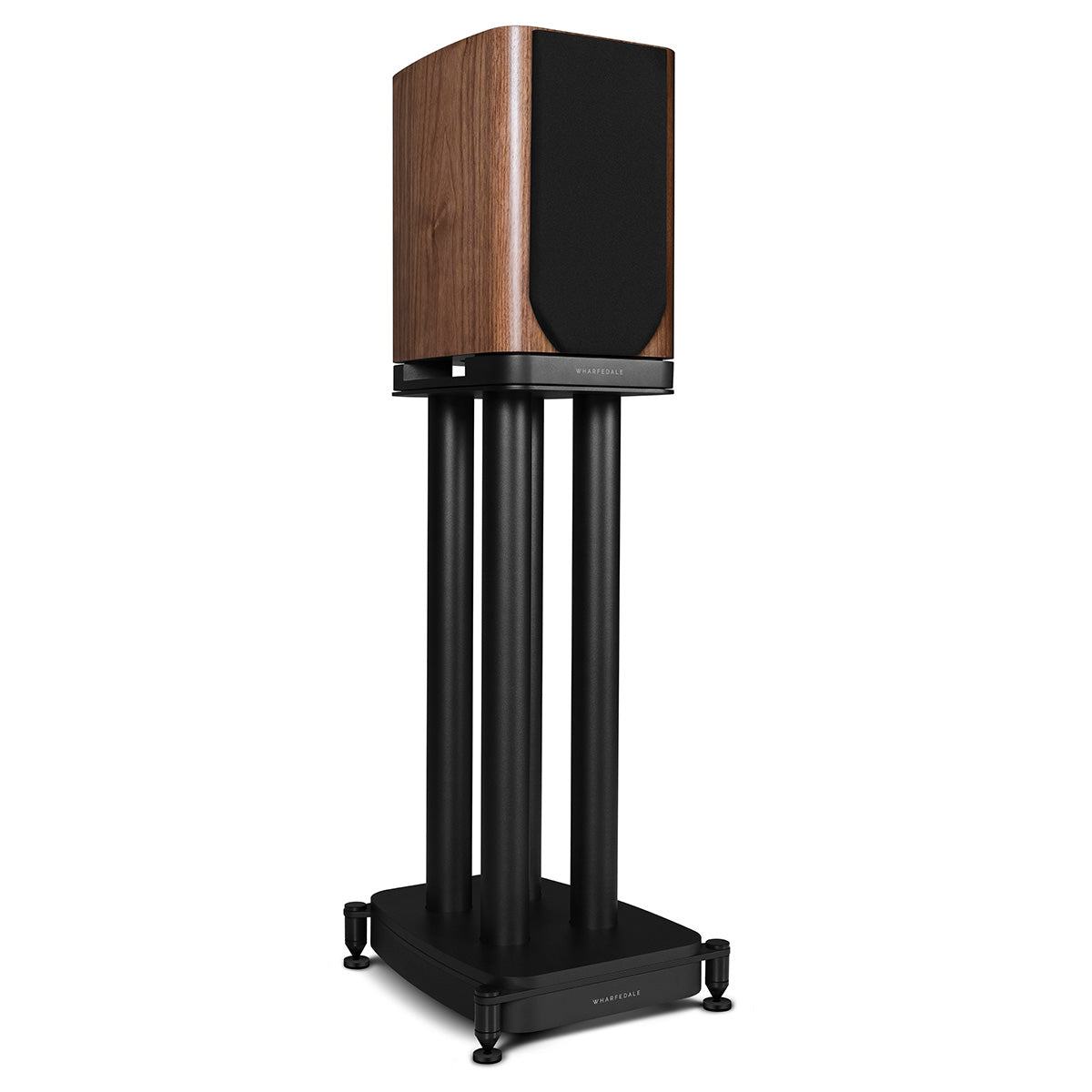

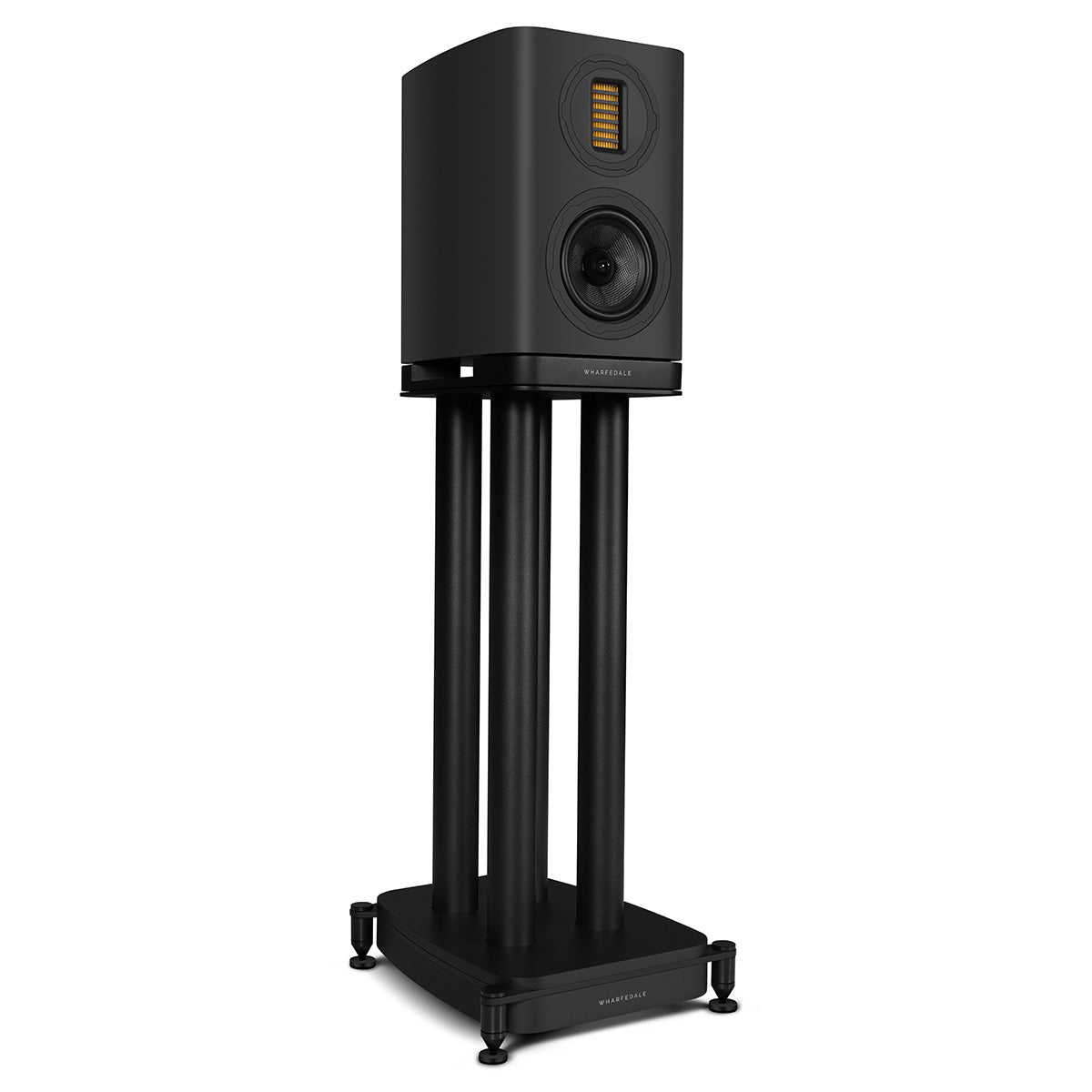

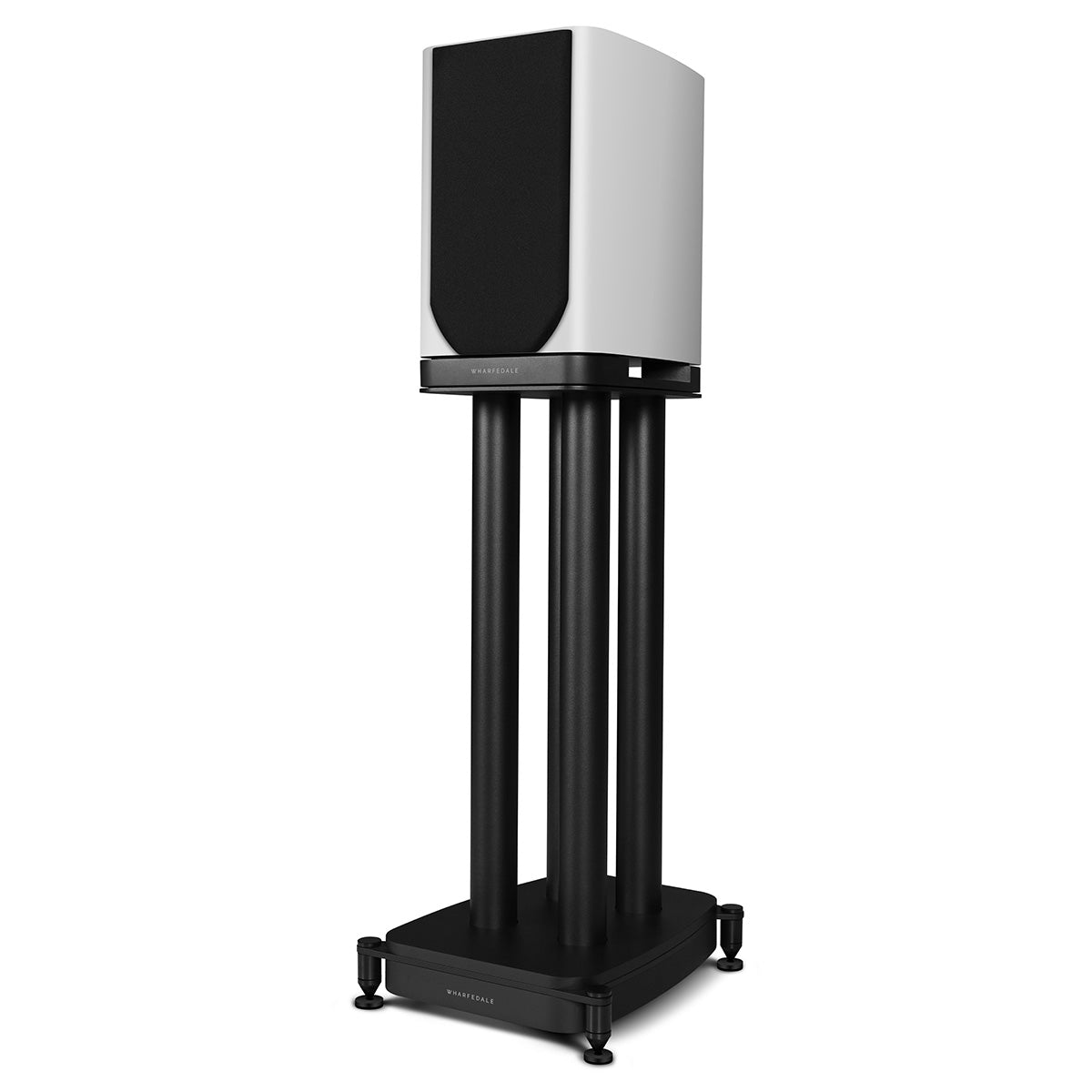

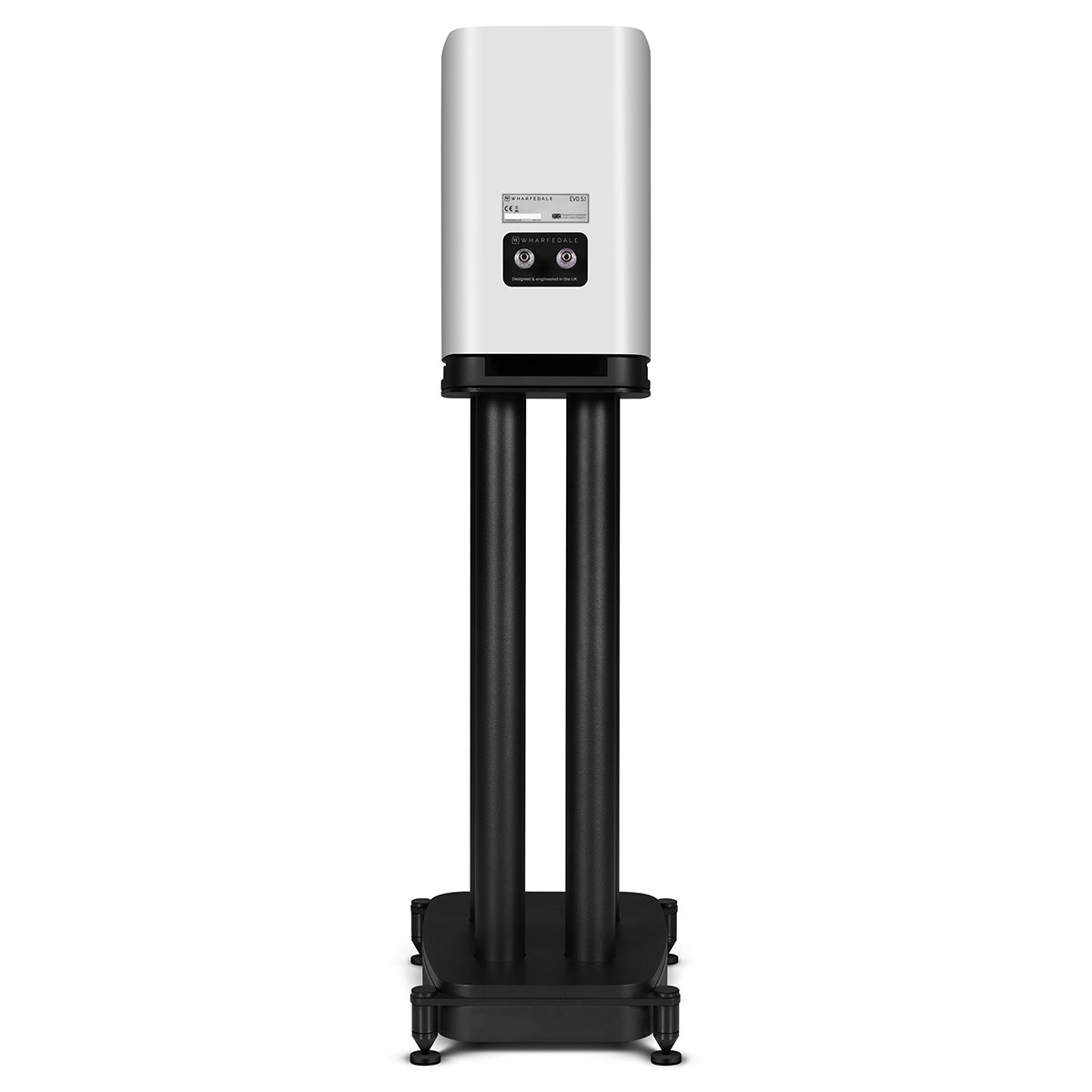

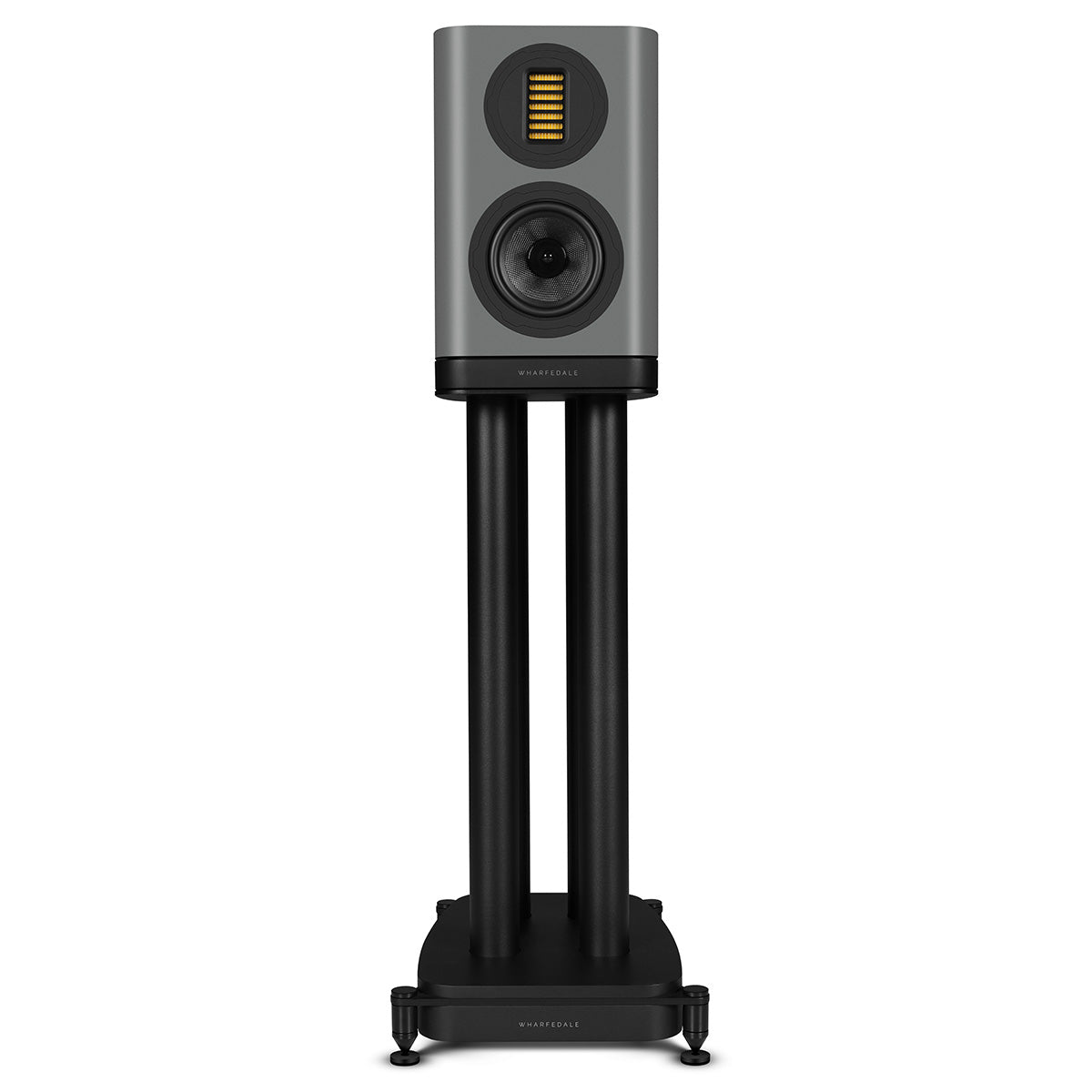

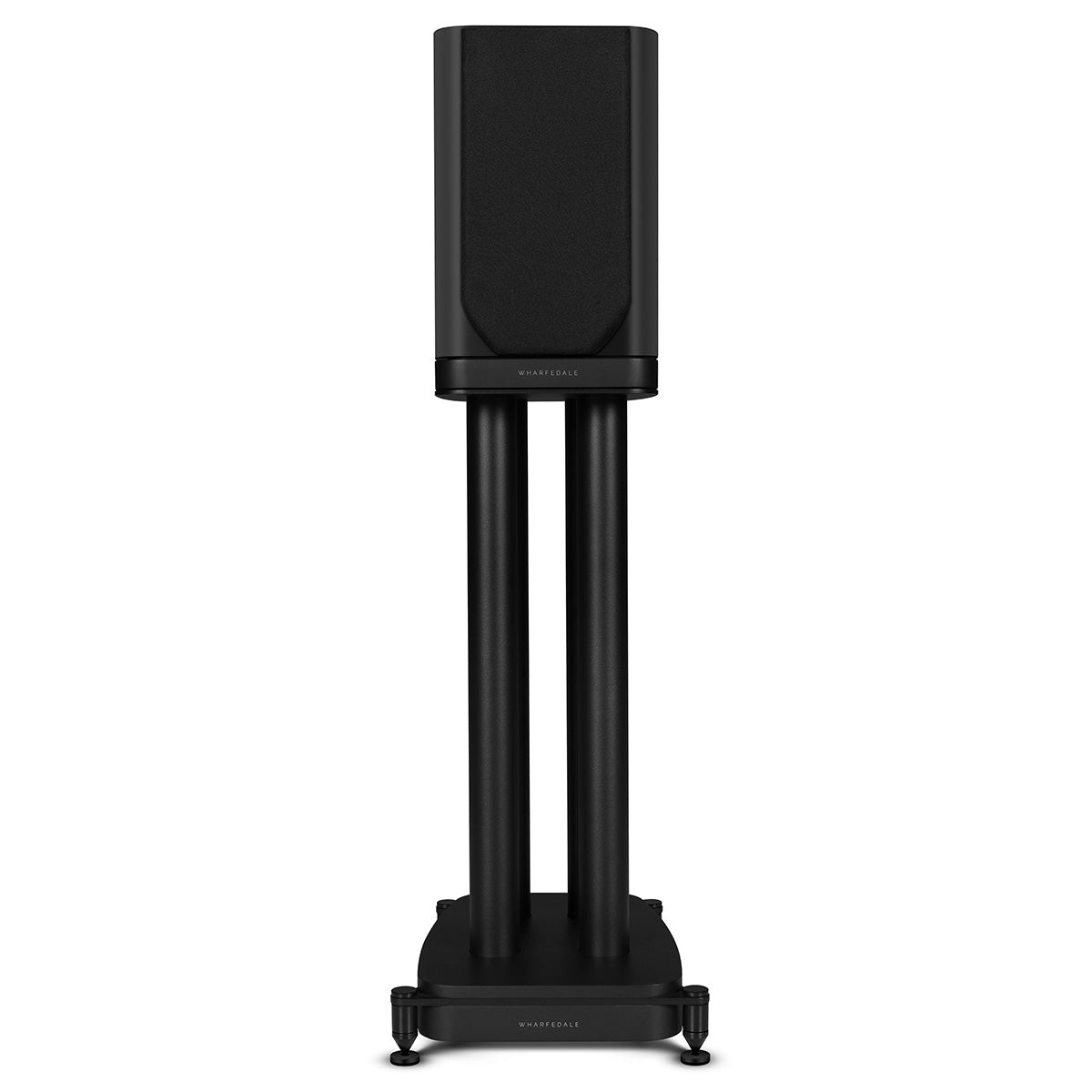

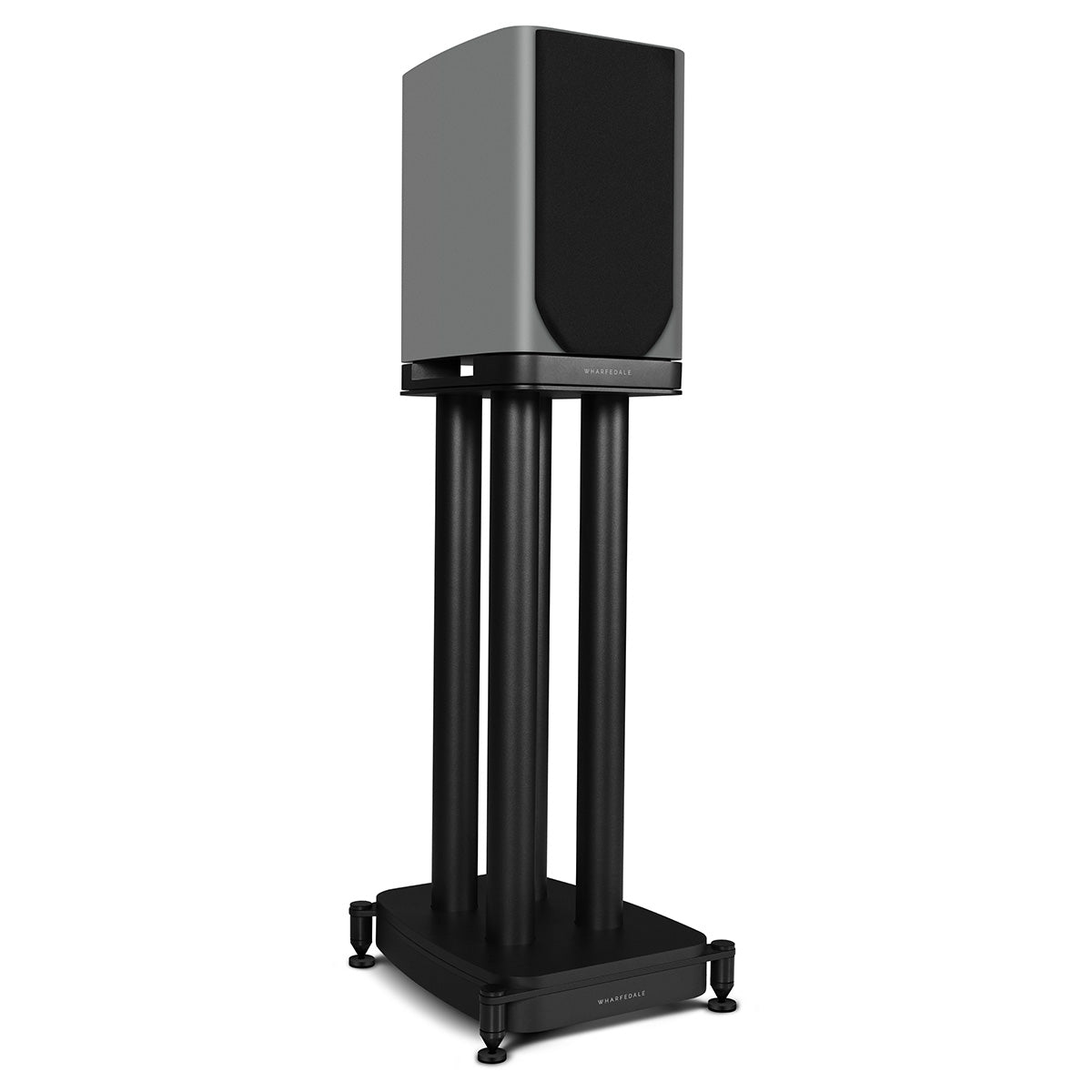

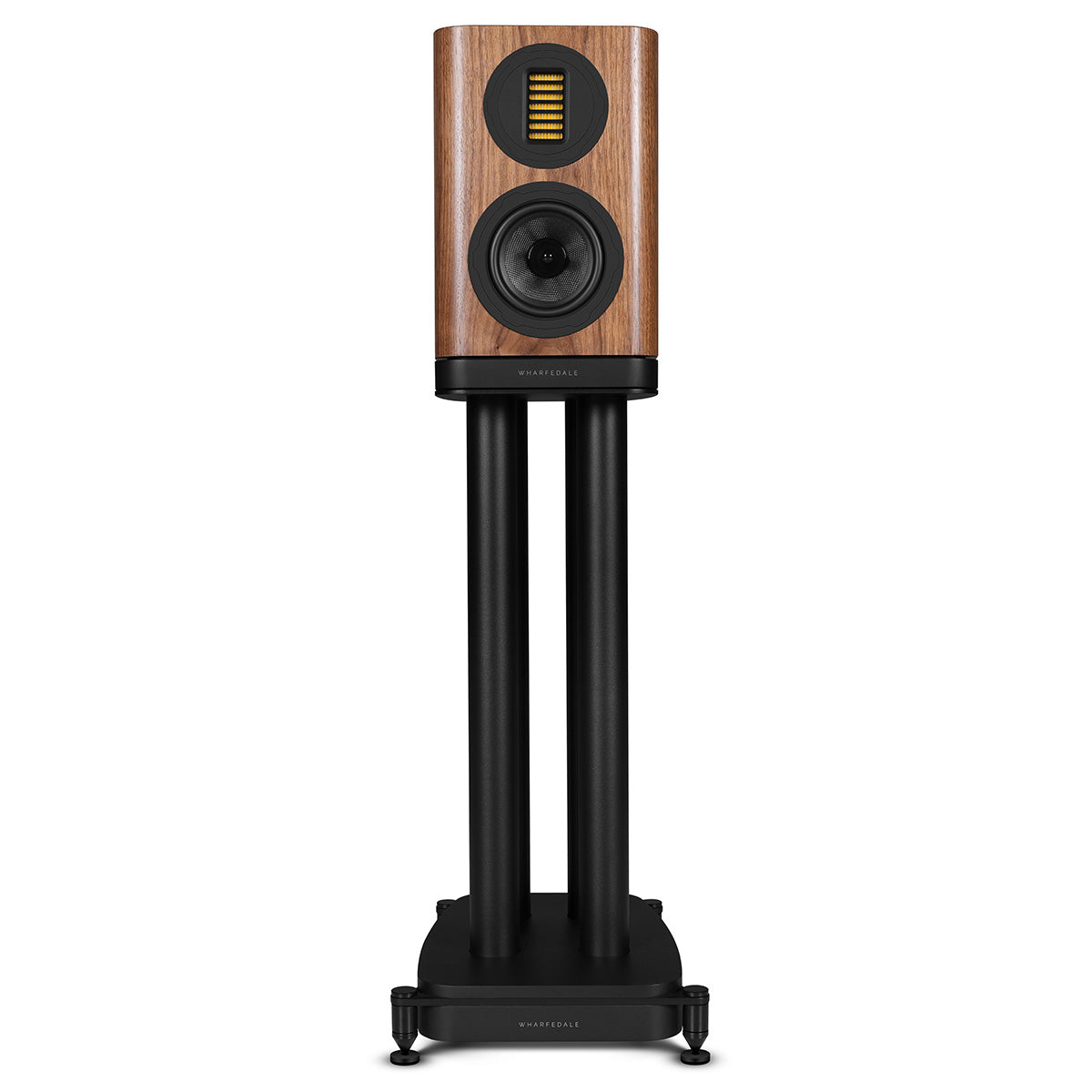

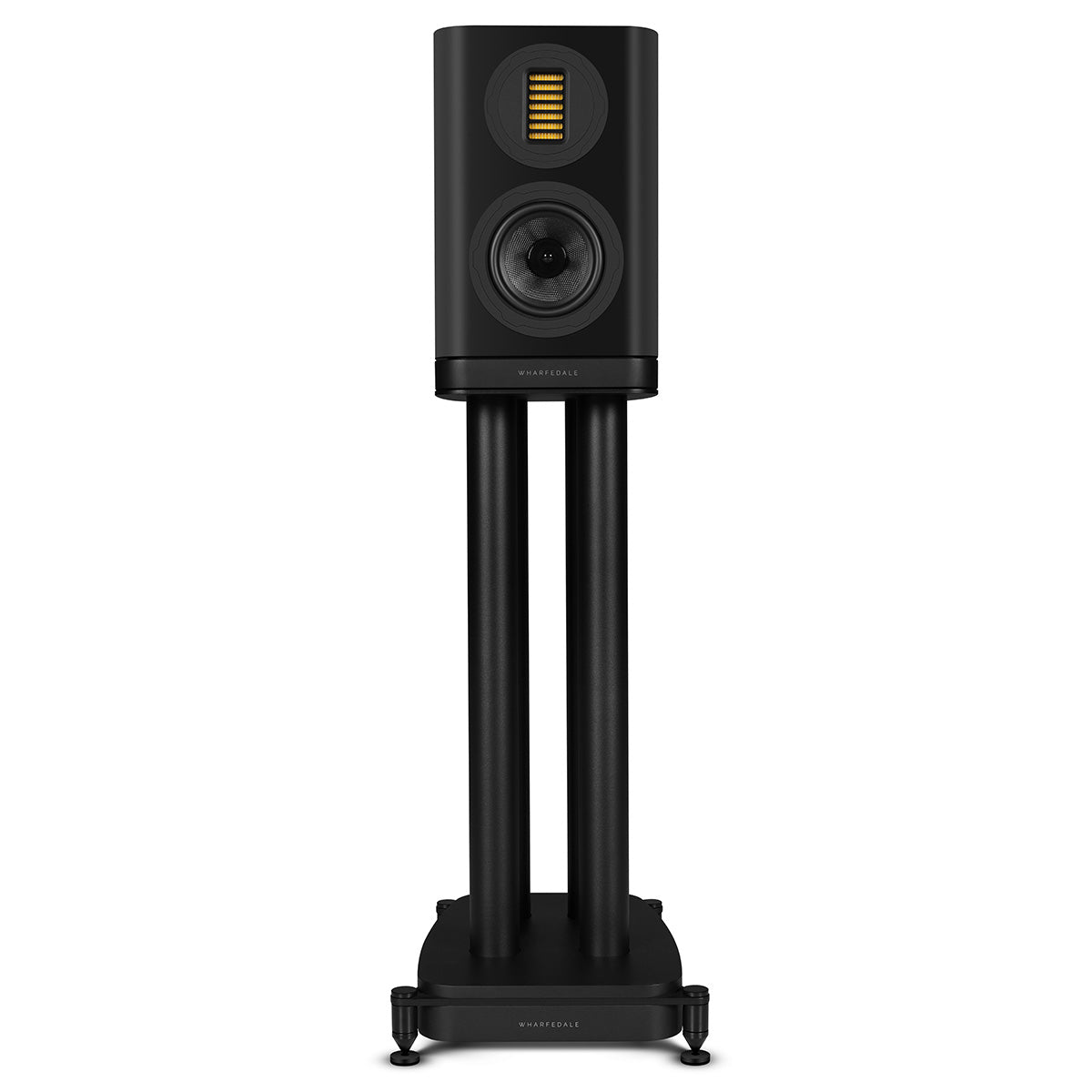

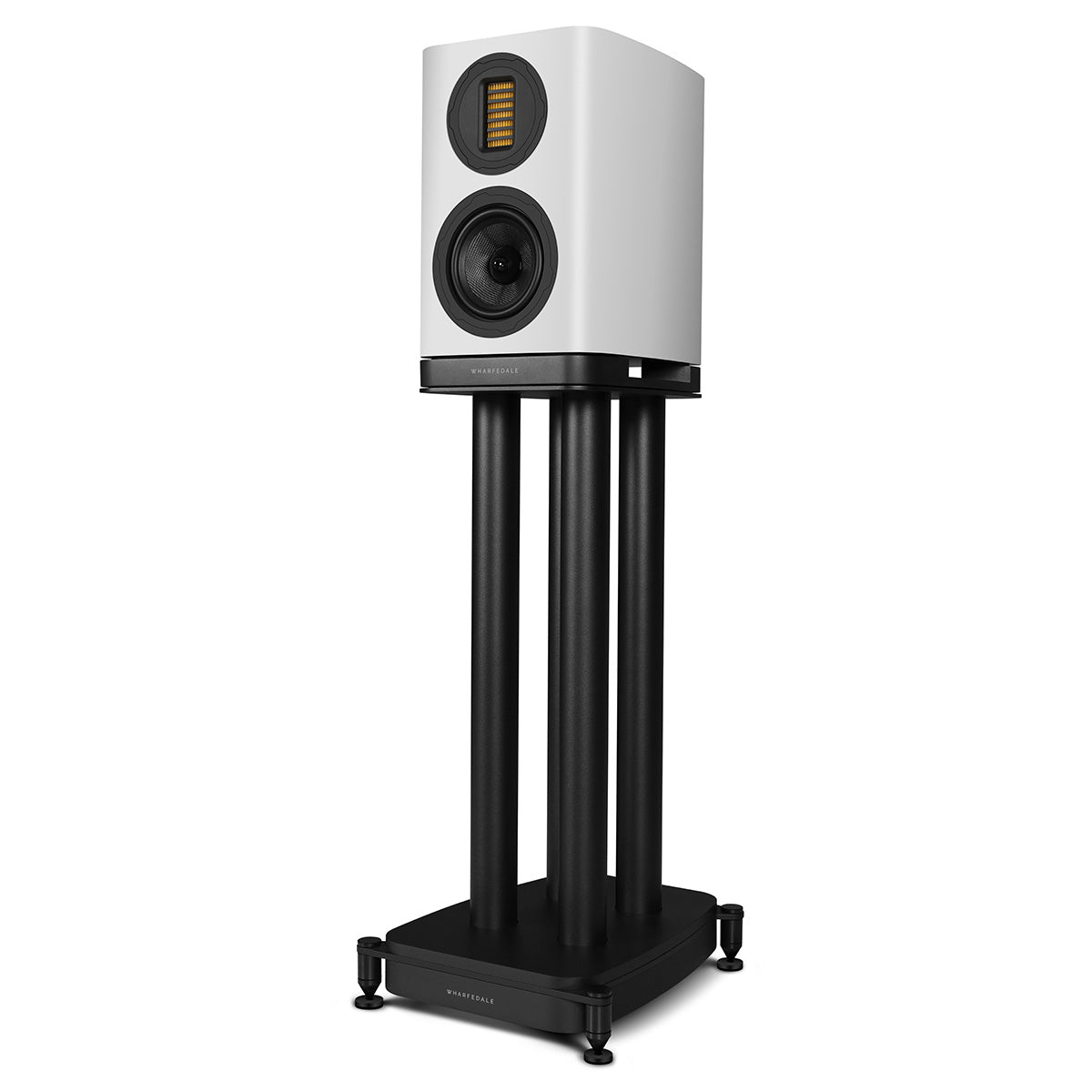

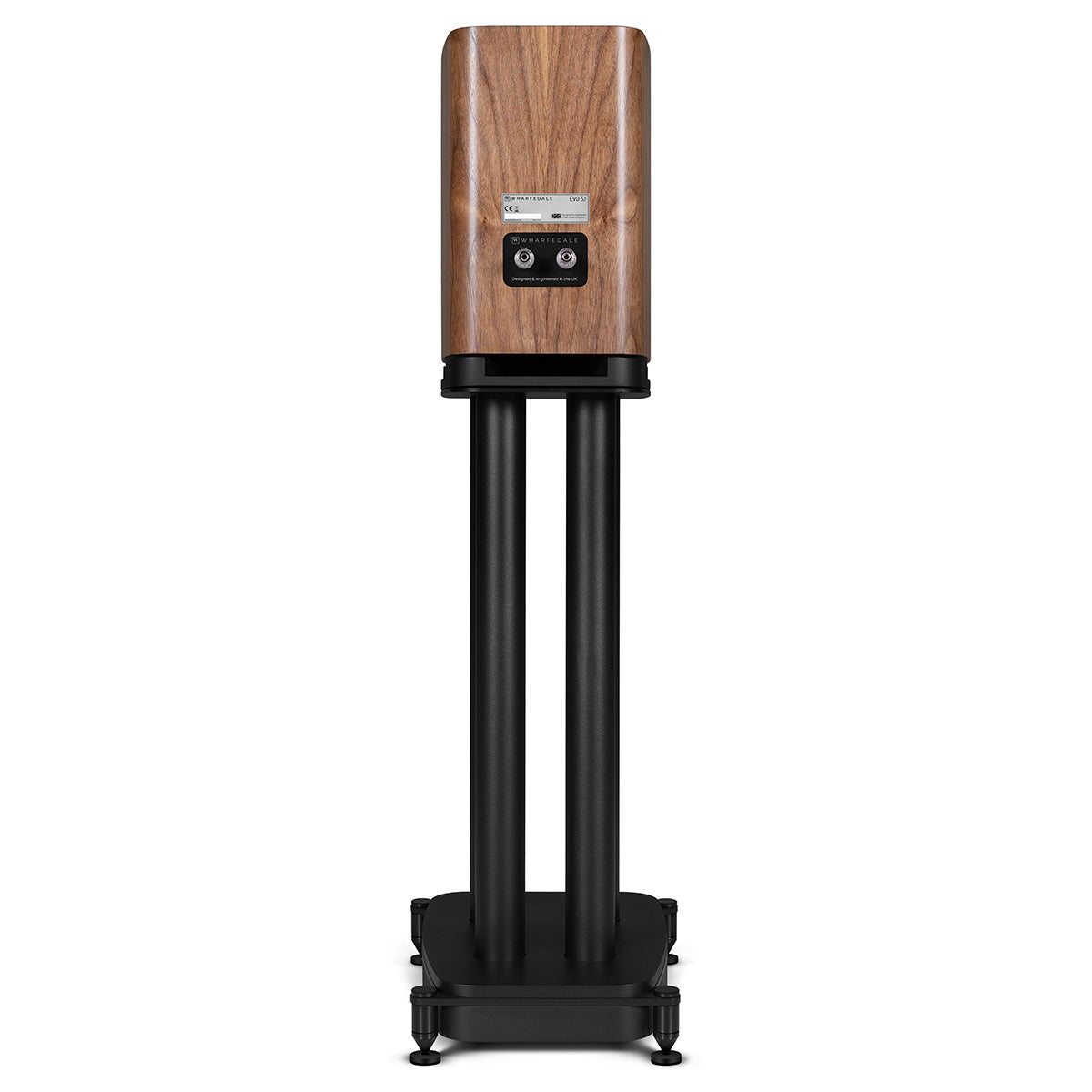

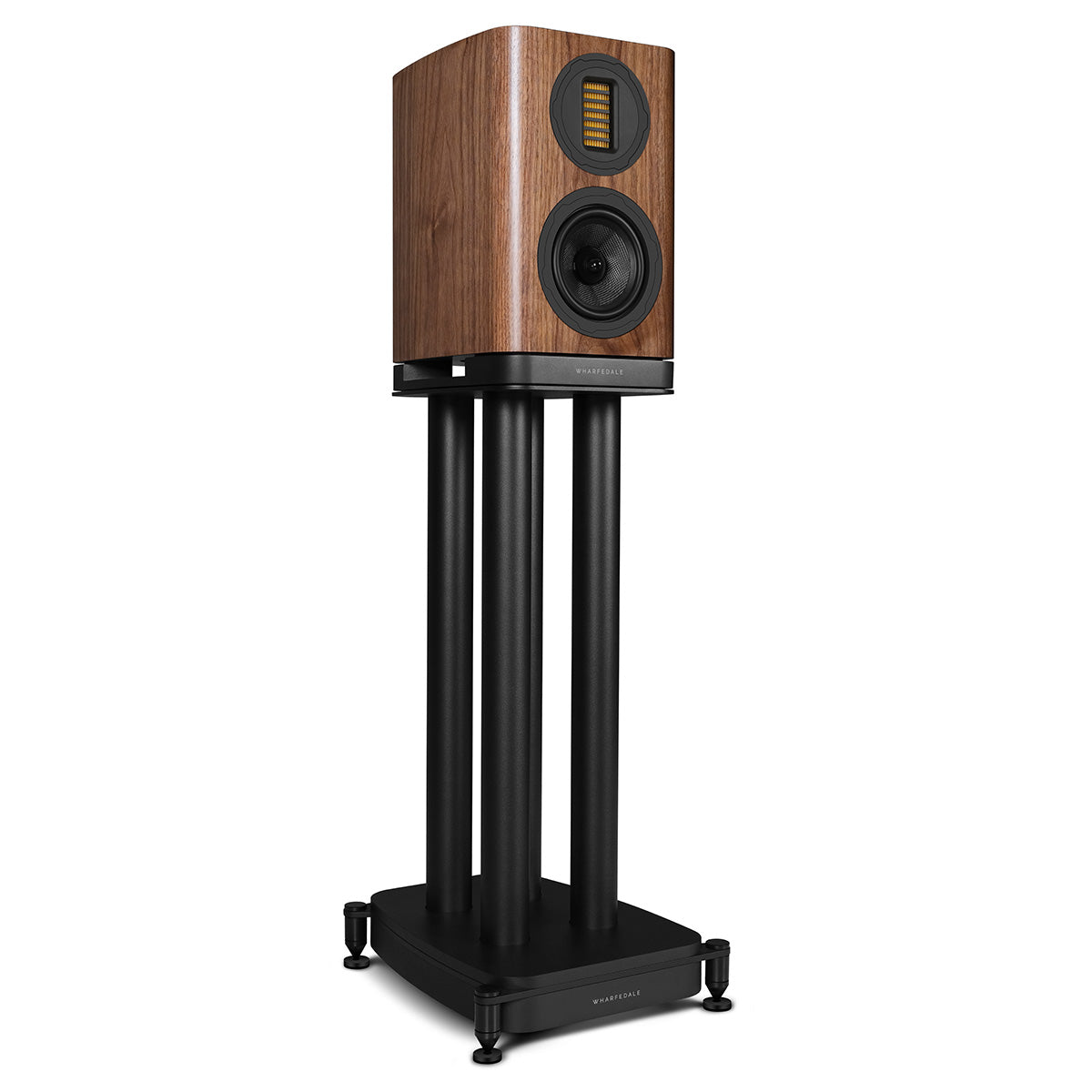

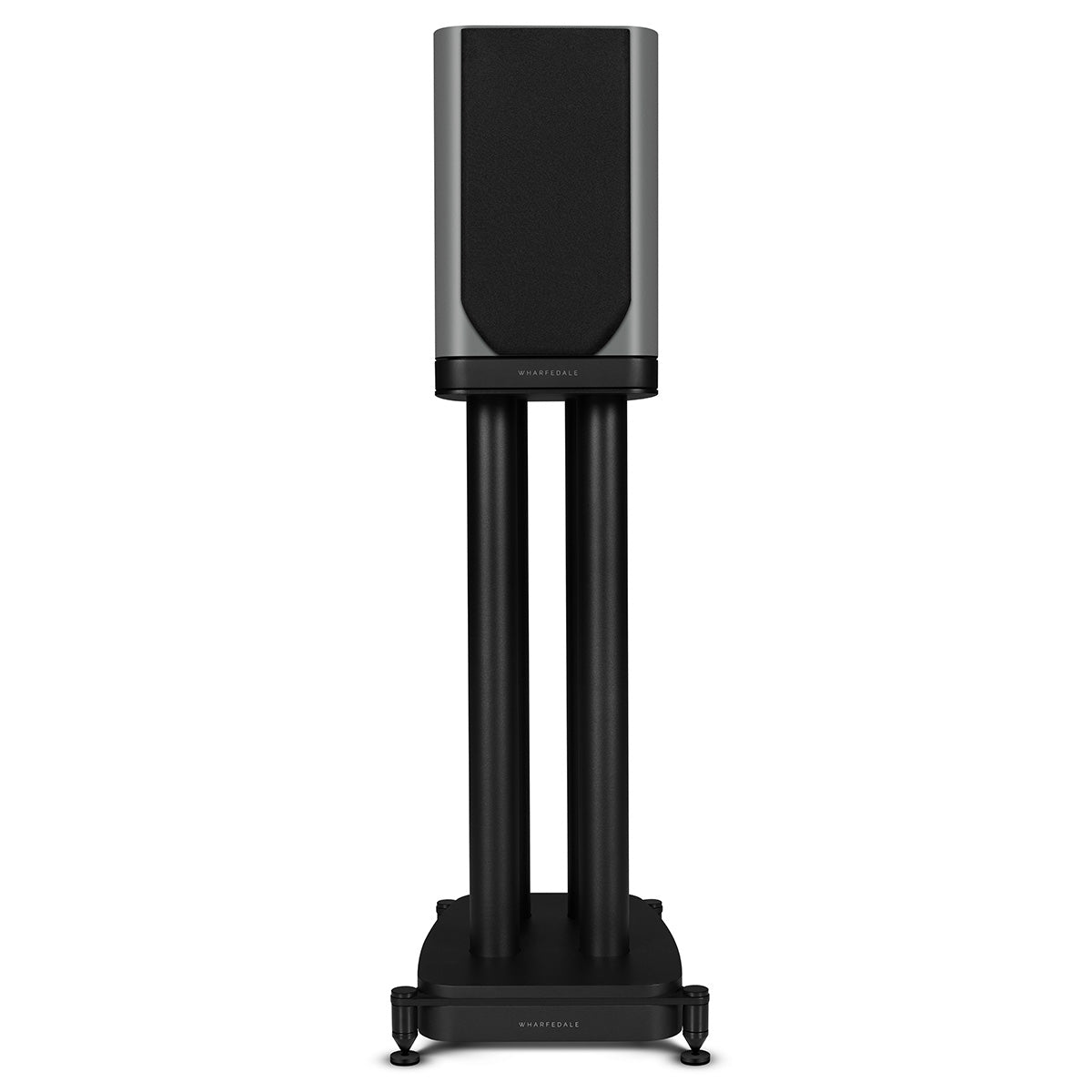

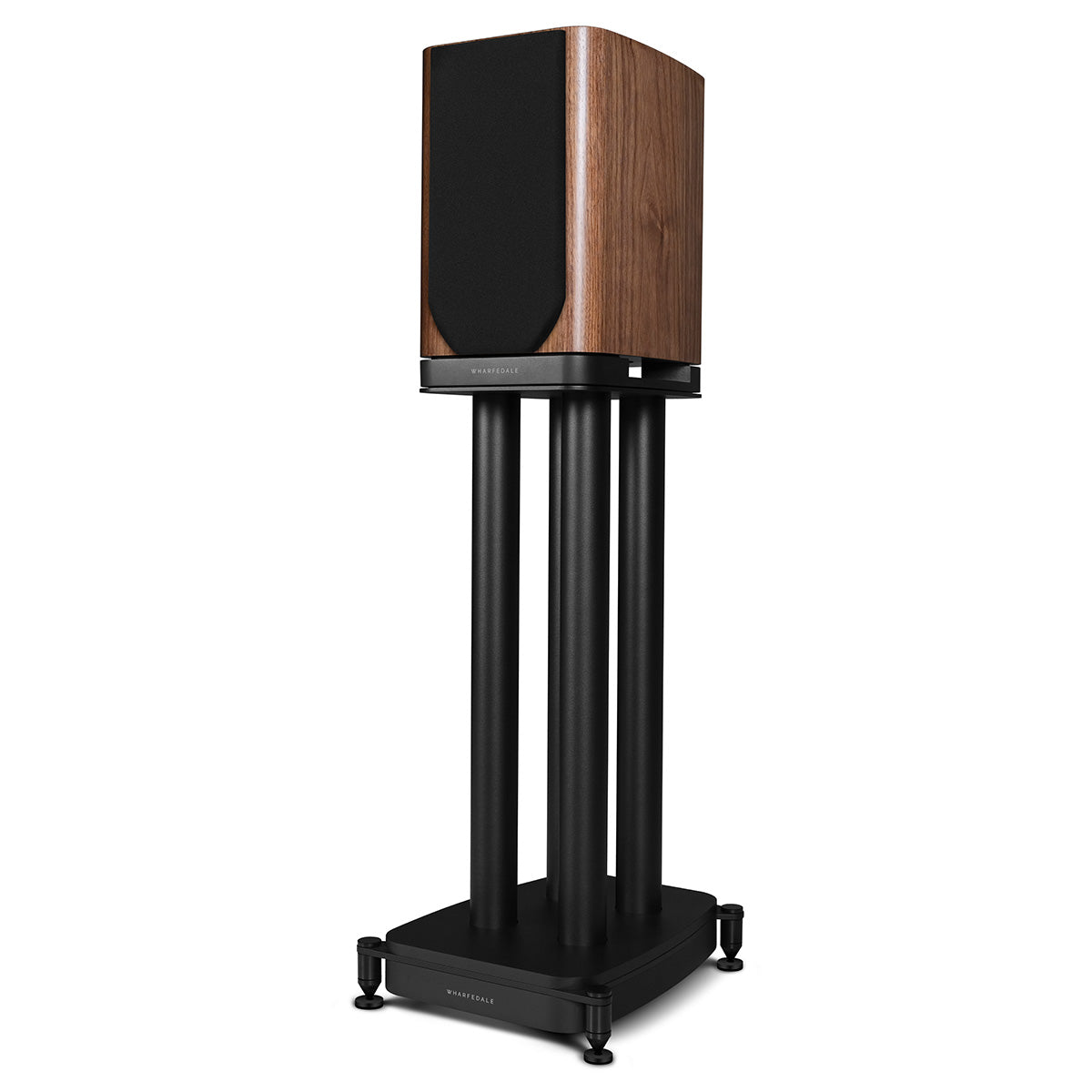

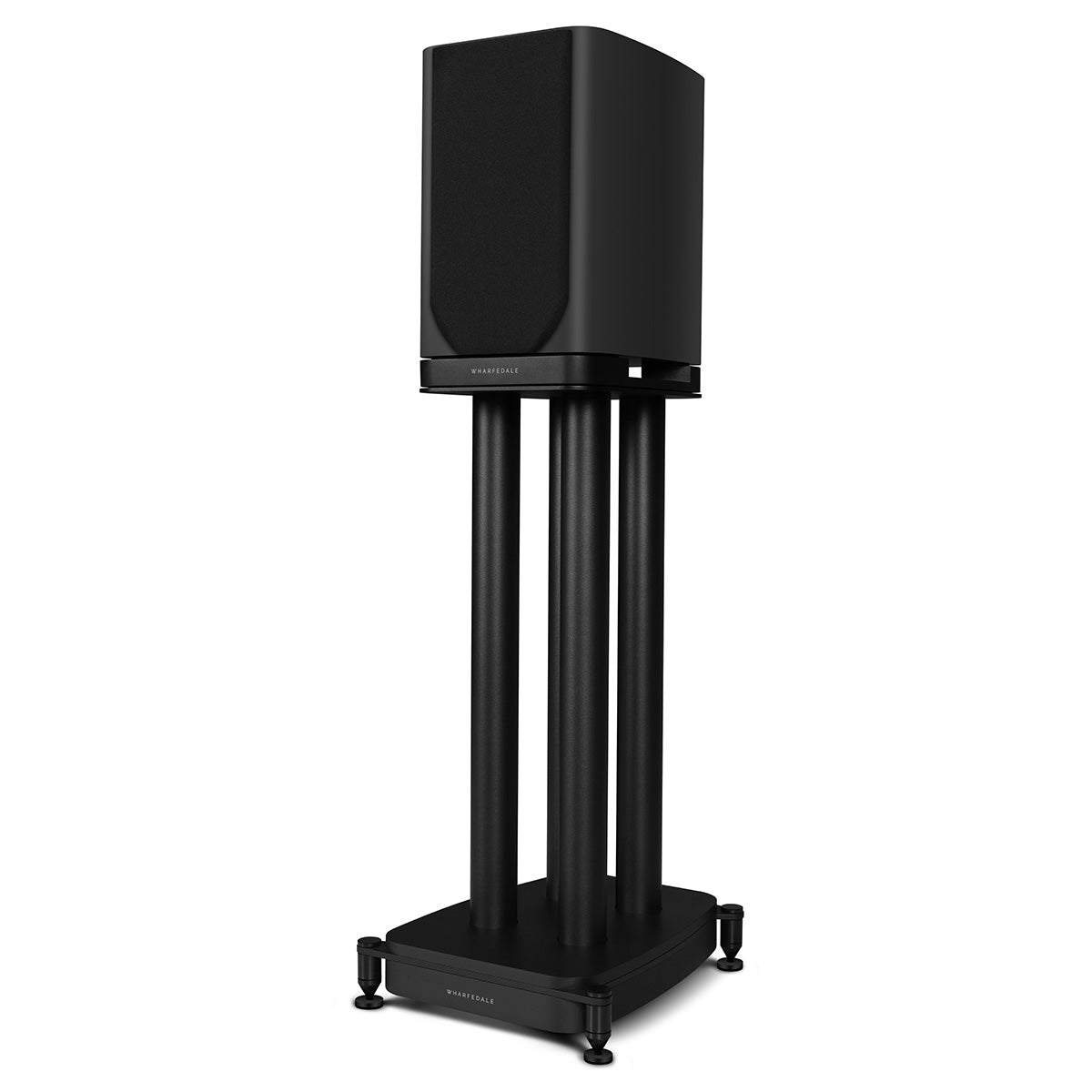

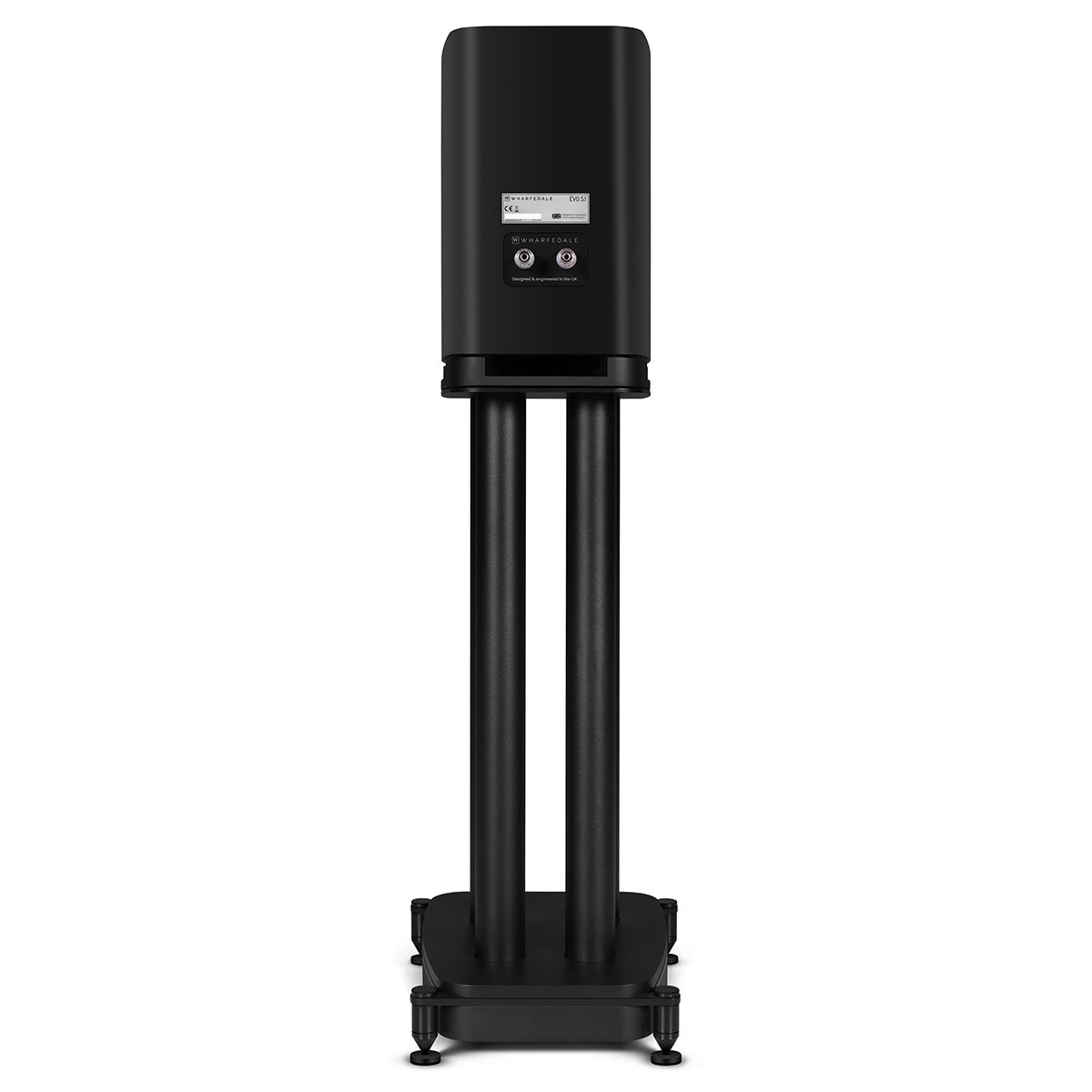

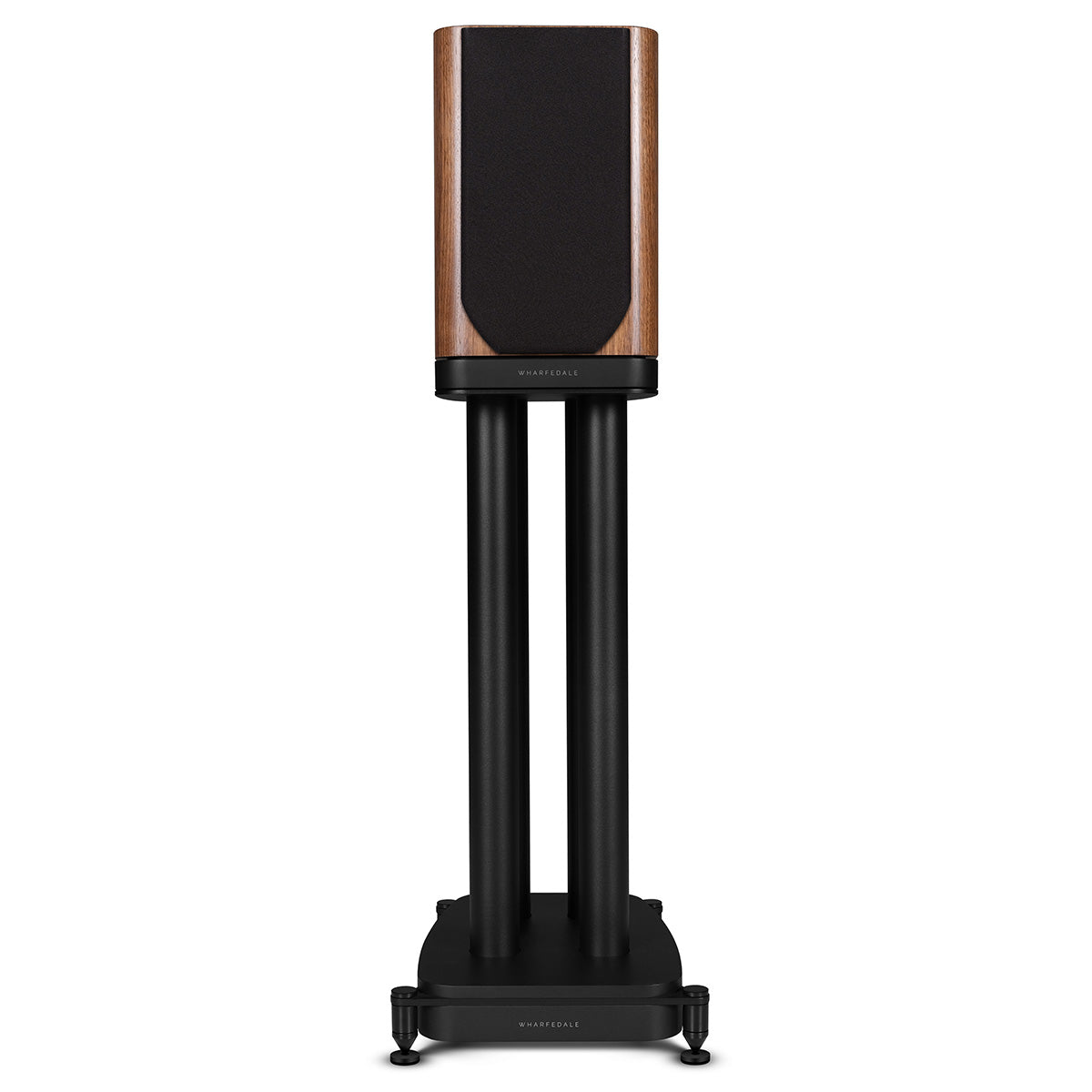

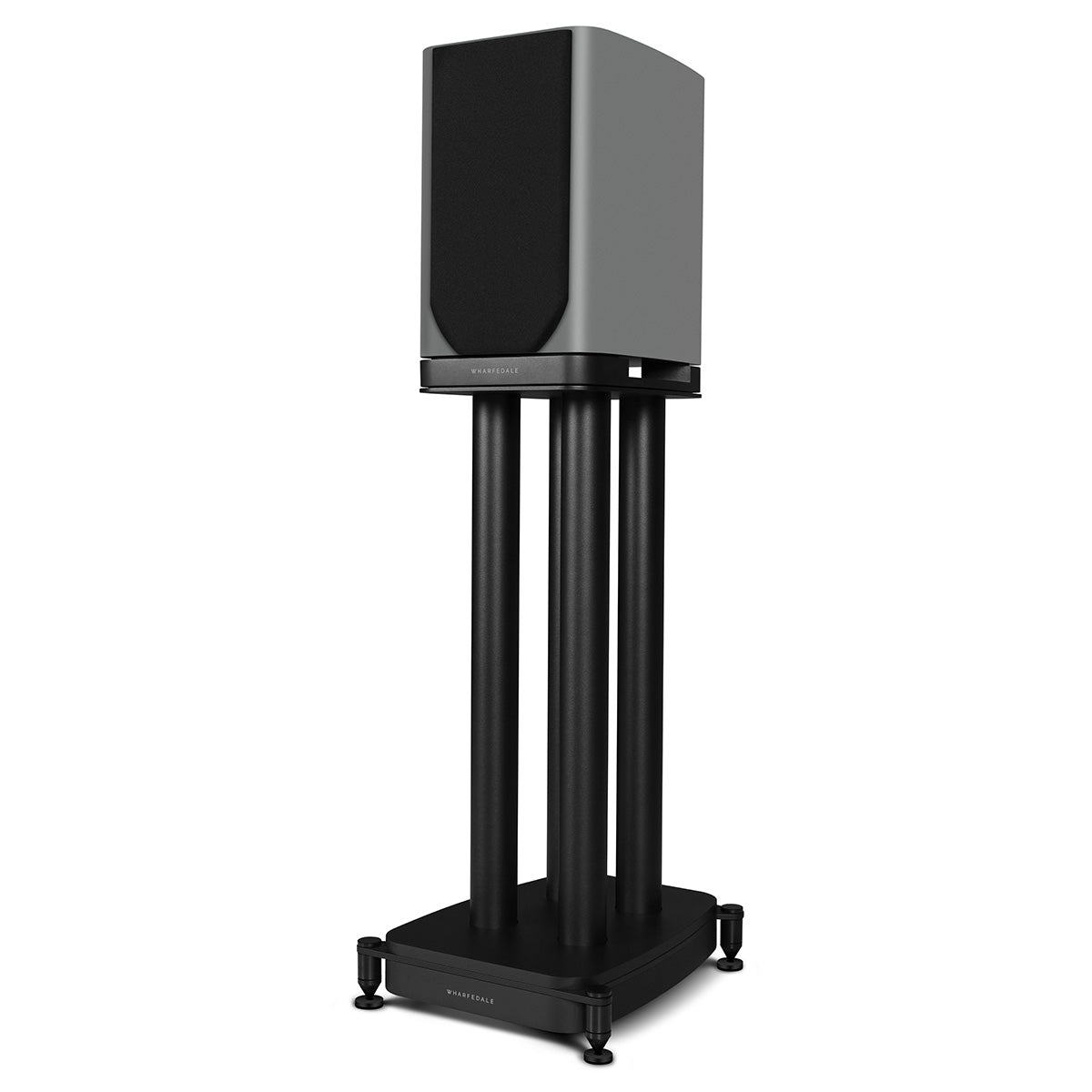

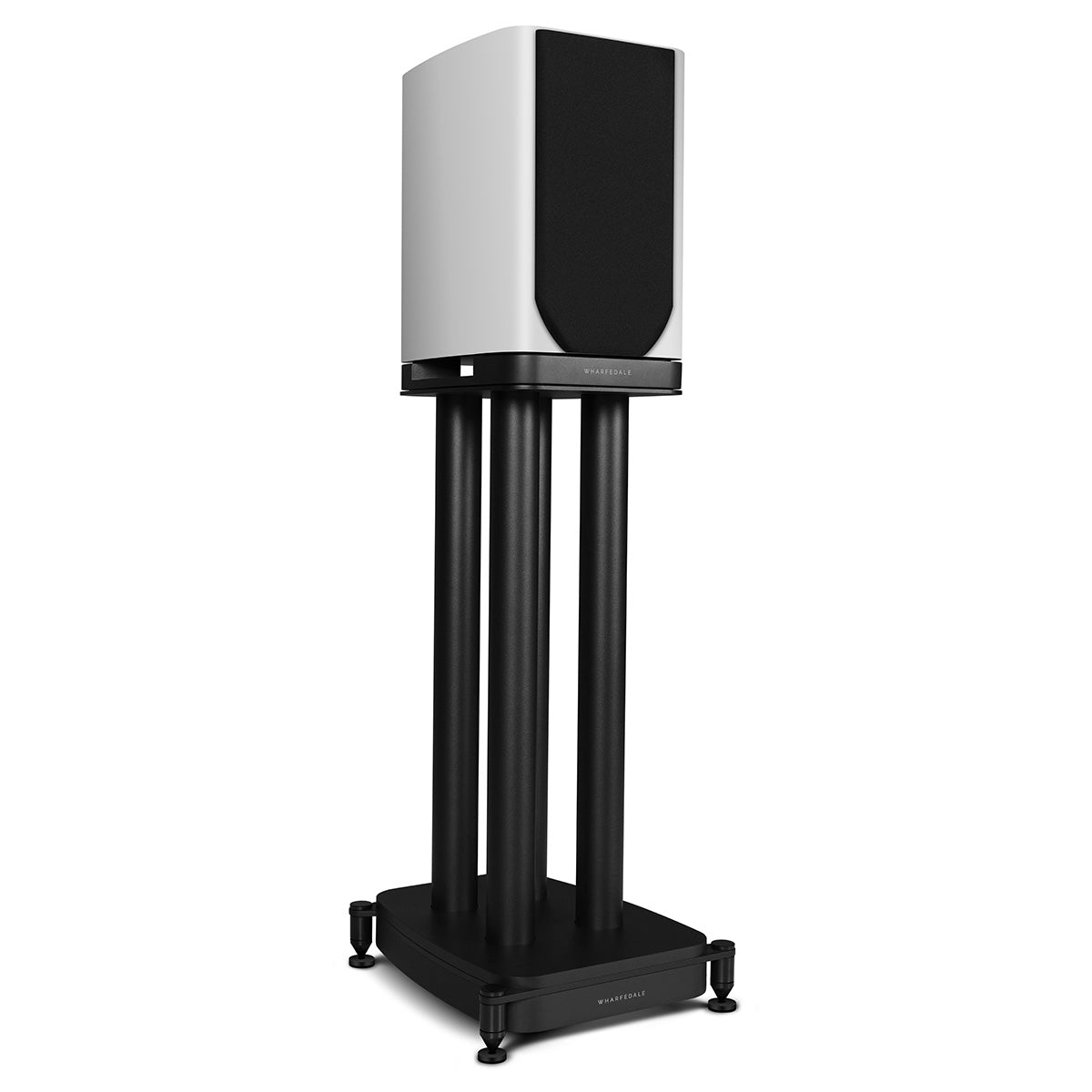

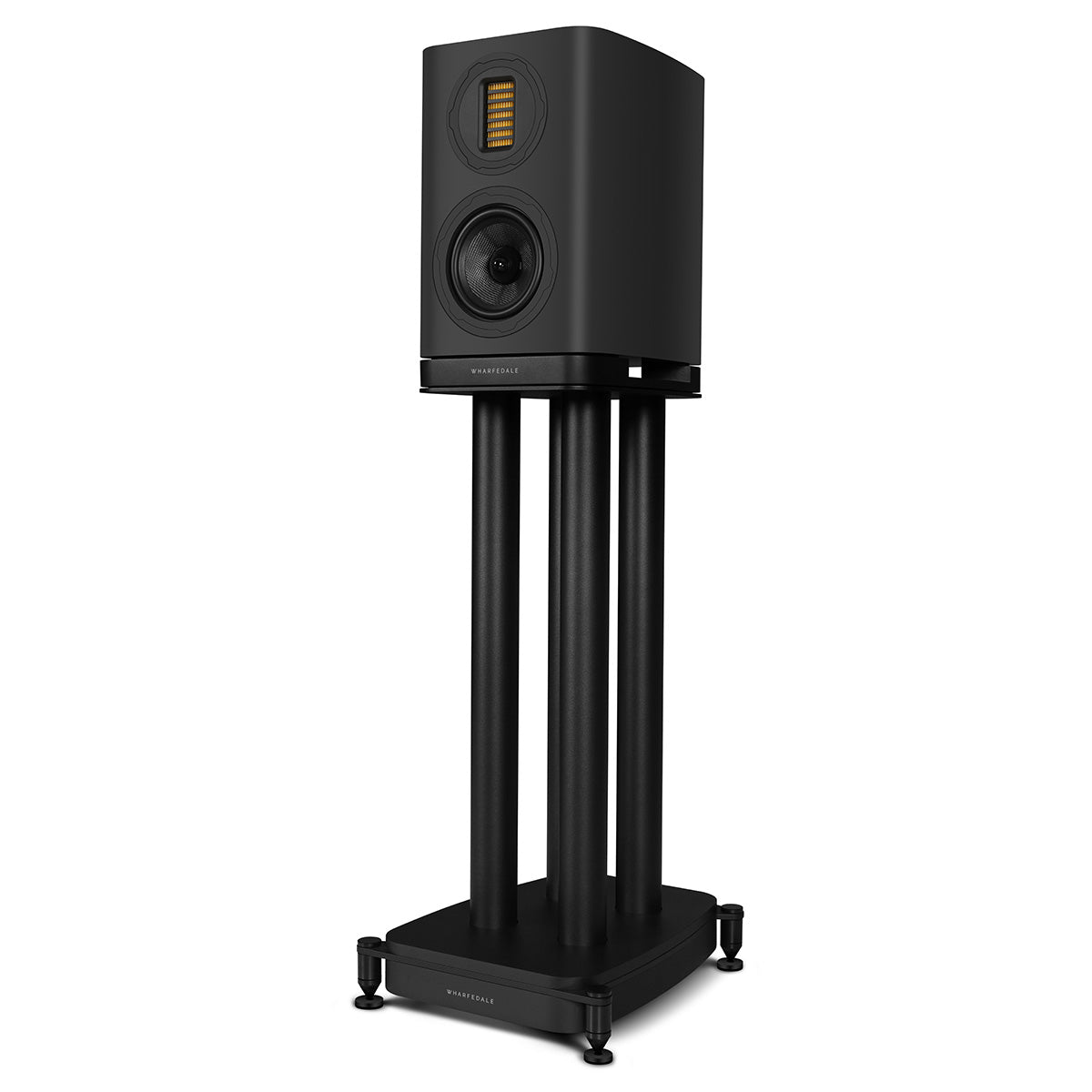

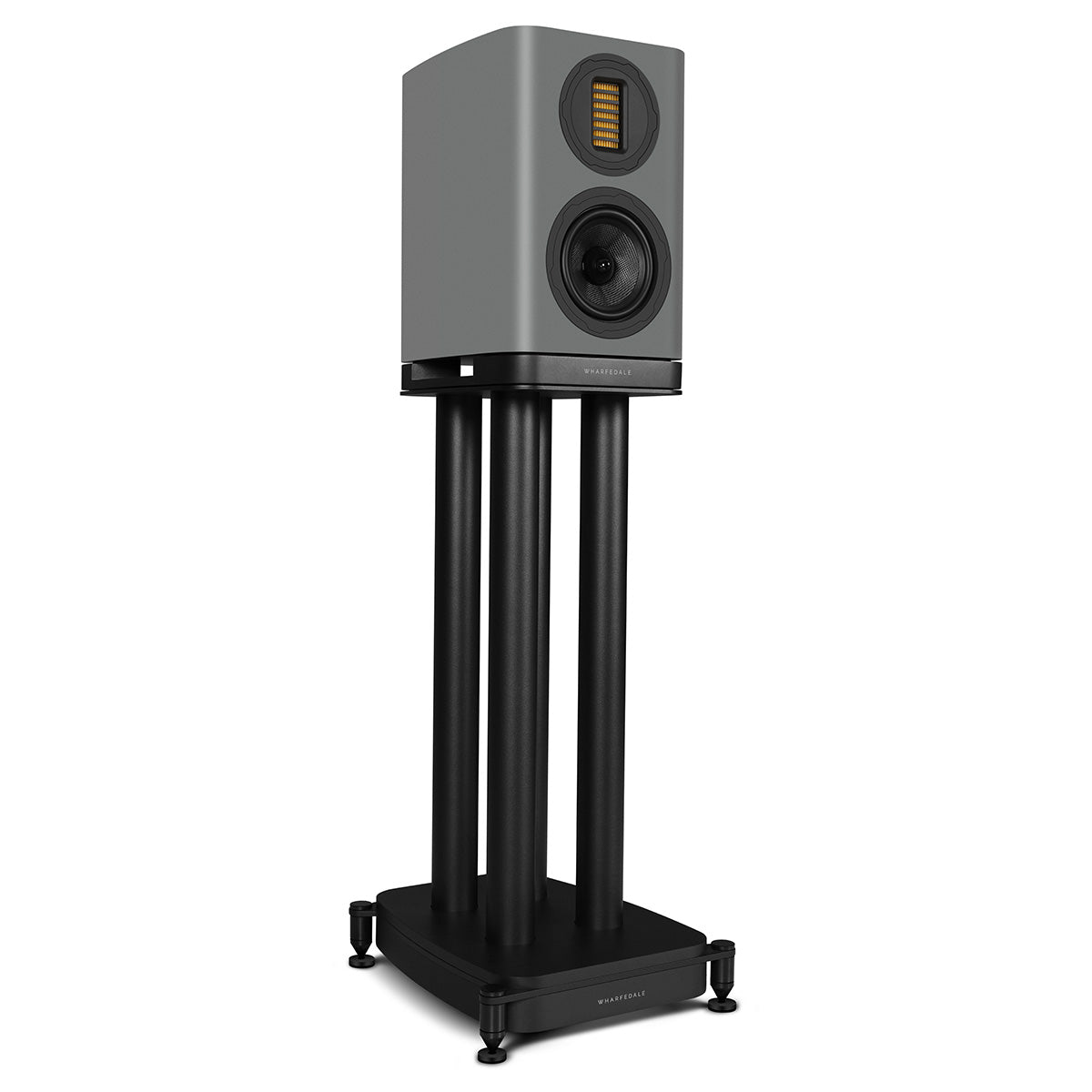

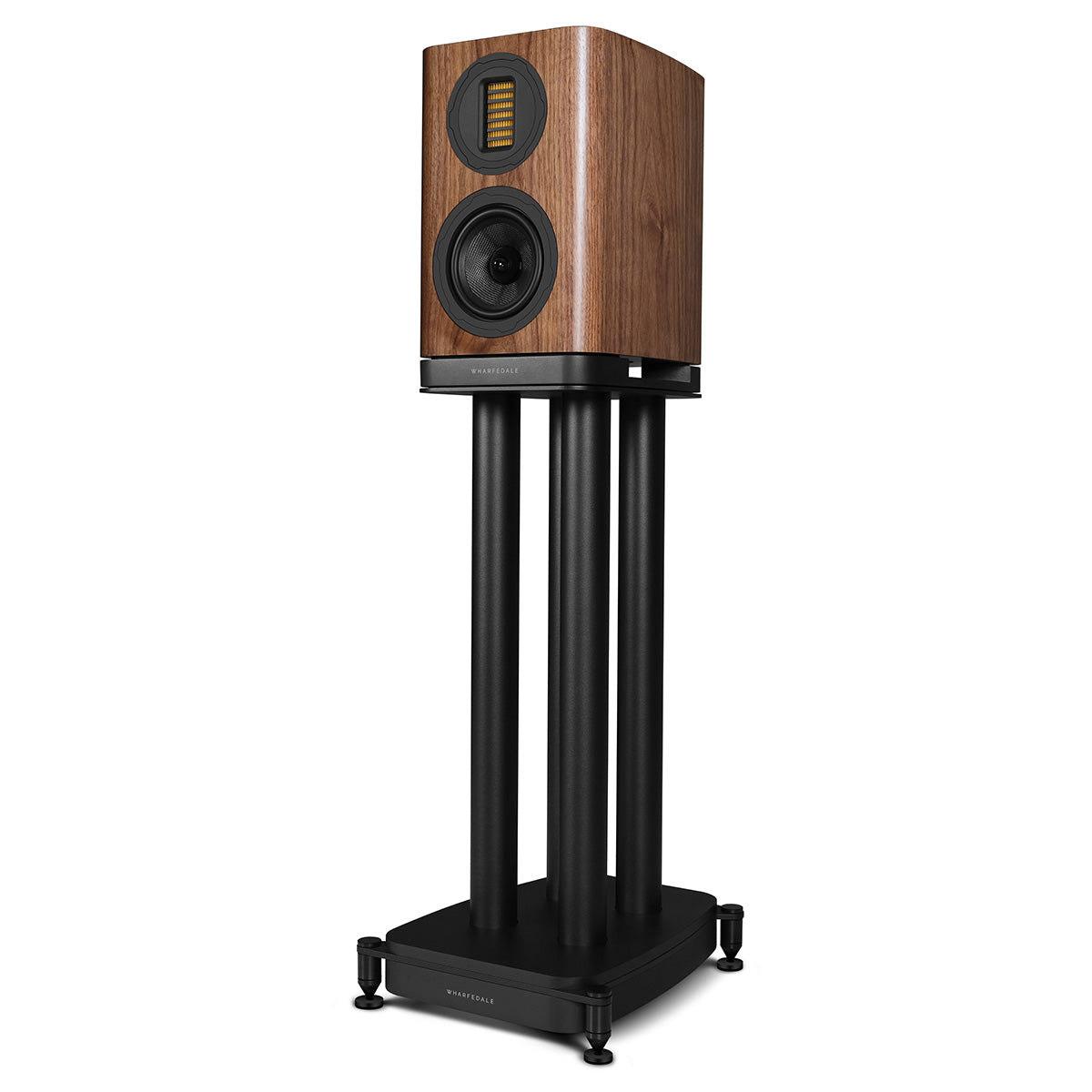

EVO 5 Stands

For the EVO 5.1 and EVO 5.2 loudspeakers, specially designed stands are offered to ensure the perfect synergy between form and function. Crafted from high-carbon steel, these stands provide exceptional strength and stability while effectively minimizing unwanted vibrations and interactions with floor surfaces that could compromise sound quality.

Engineered with precision, they position the loudspeakers at the ideal listening height, ensuring an immersive and well-balanced audio experience across various seating positions. Their understated yet elegant design seamlessly complements the aesthetic of the EVO 5 series, maintaining the refined and sophisticated appeal of the speakers themselves.

Details & Specs

Model EVO 5.1
General description2-way bookshelf speaker
Enclosure typeBass reflex
Transducer complement2-way
Bass driver5" Black Woven Kevlar Cone
Midrange driver
Treble driver1.4" x 2.75" AMT
AV shieldNo
Sensitivity (2.83V @ 1m)87dB
Recommended amplifier power25–100W
Peak SPL98dB
Nominal impedance4Ω (8Ω compatible)
Minimum impedance3.4Ω
Frequency response (+/-3dB)56Hz – 24kHz
Bass extension (-6dB)46Hz
Crossover frequency2.7kHz
Cabinet volume0.41 ft³
Dimensions (H x W x D)13.4" x 8.7" x 12.8"
Carton size24.0" x 16.3" x 17.9"
Net weight17.6 lbs each
Gross weight45.2 lbs per carton
Standard accessoriesRubber feet
