Wharfedale Elysian CR

Centre-Channel Loudspeaker

Wharfedale Elysian CR

Centre-Channel Loudspeaker
$11,995.00
Select Color:


Overview

Featuring dual 8.5 inch woofers, a 6 inch midrange driver, and a 27 by 45 mm AMT tweeter, the Wharfedale Elysian CR center channel speaker delivers 35 Hz to 22 kHz response. An ideal choice for a home cinema sound system setup powered by 25W to 250W amplifiers.

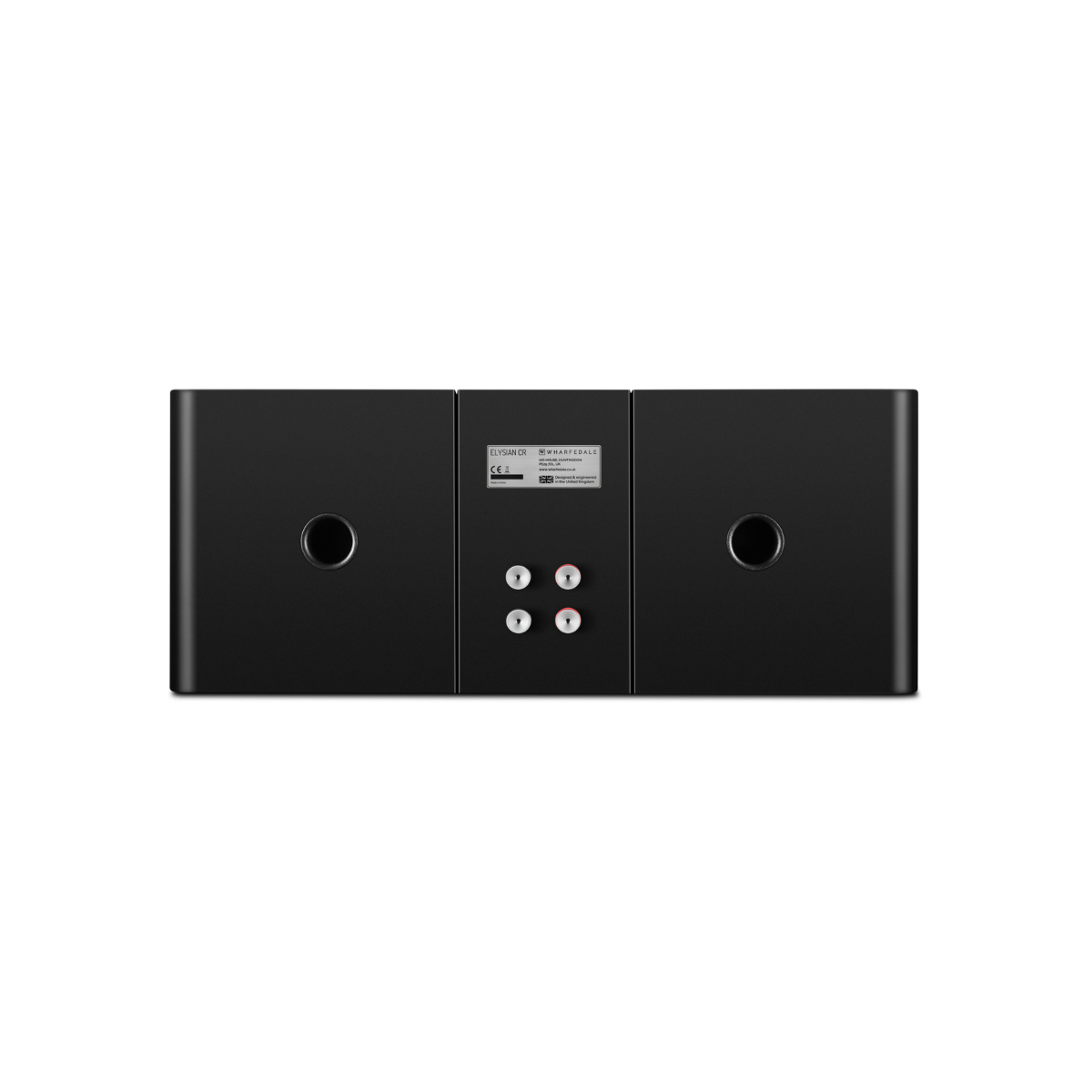

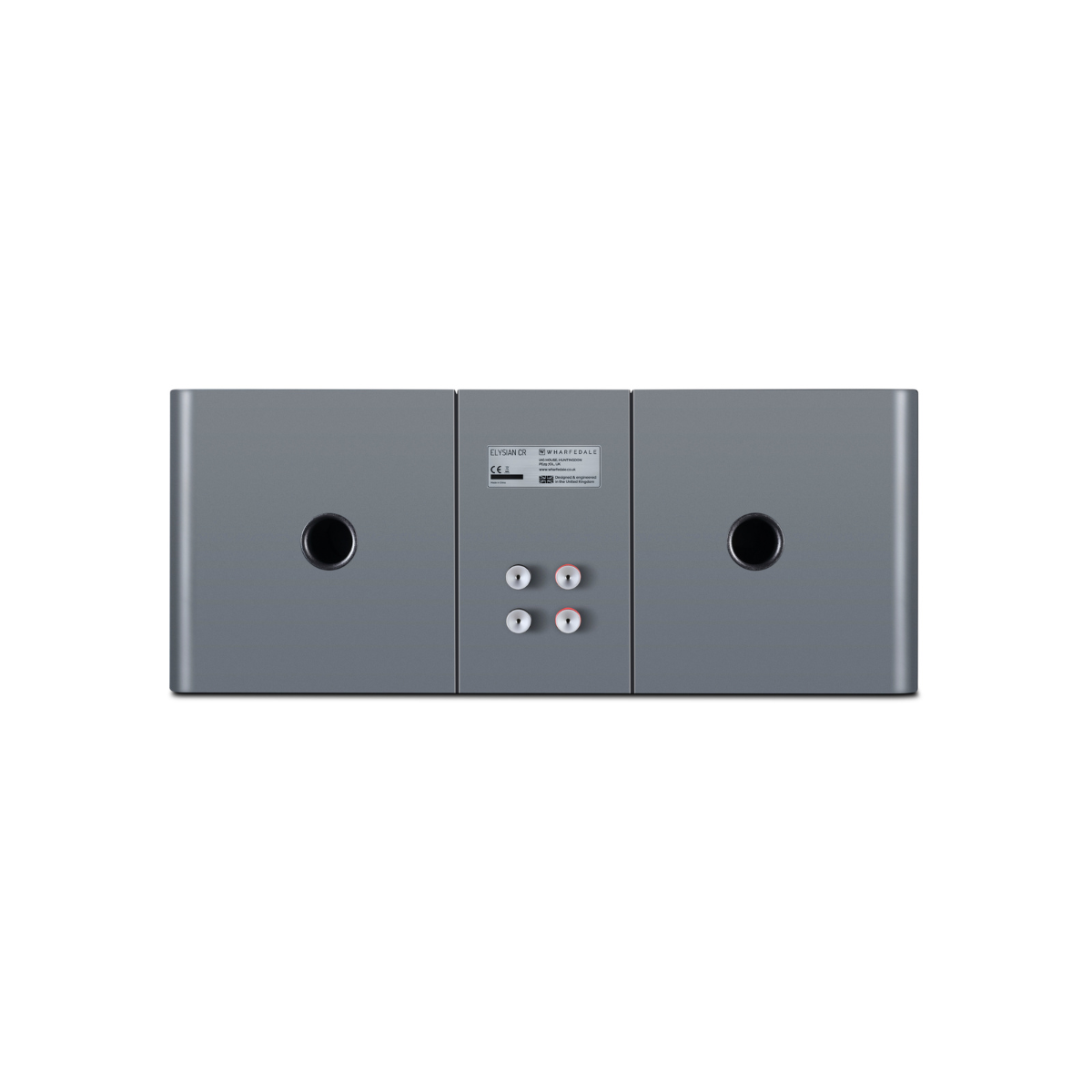

The Wharfedale Elysian CR is a three way center channel speaker built for multichannel music and home theater systems. Its bass reflex enclosure is designed to manage both small and large internal volumes, which helps with low frequency performance. The cabinet stands 320 mm tall on its plinth, 830 mm wide, and 370 mm deep including the rear terminals. At 30.2 kg, it is a substantial piece that stays stable in most setups.

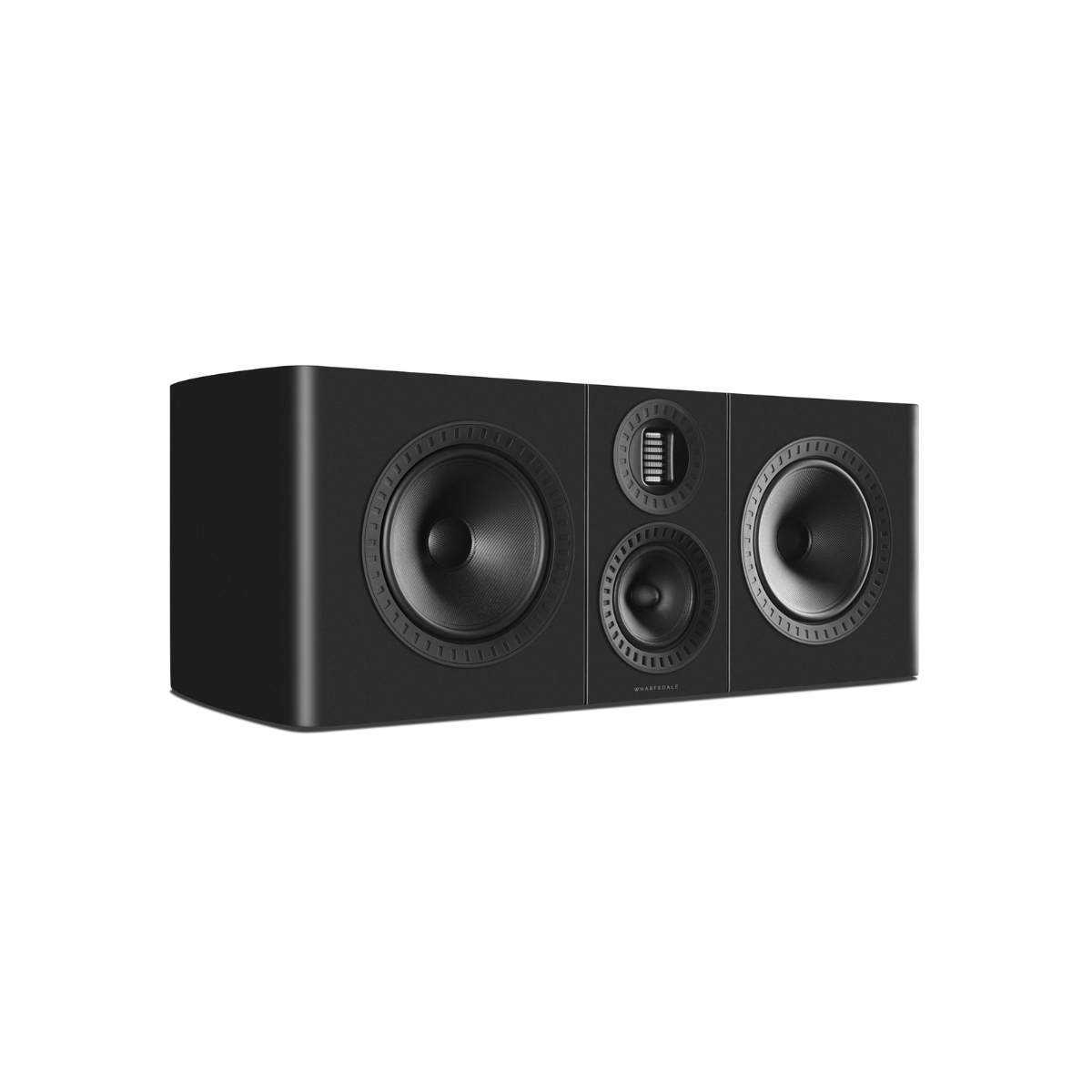

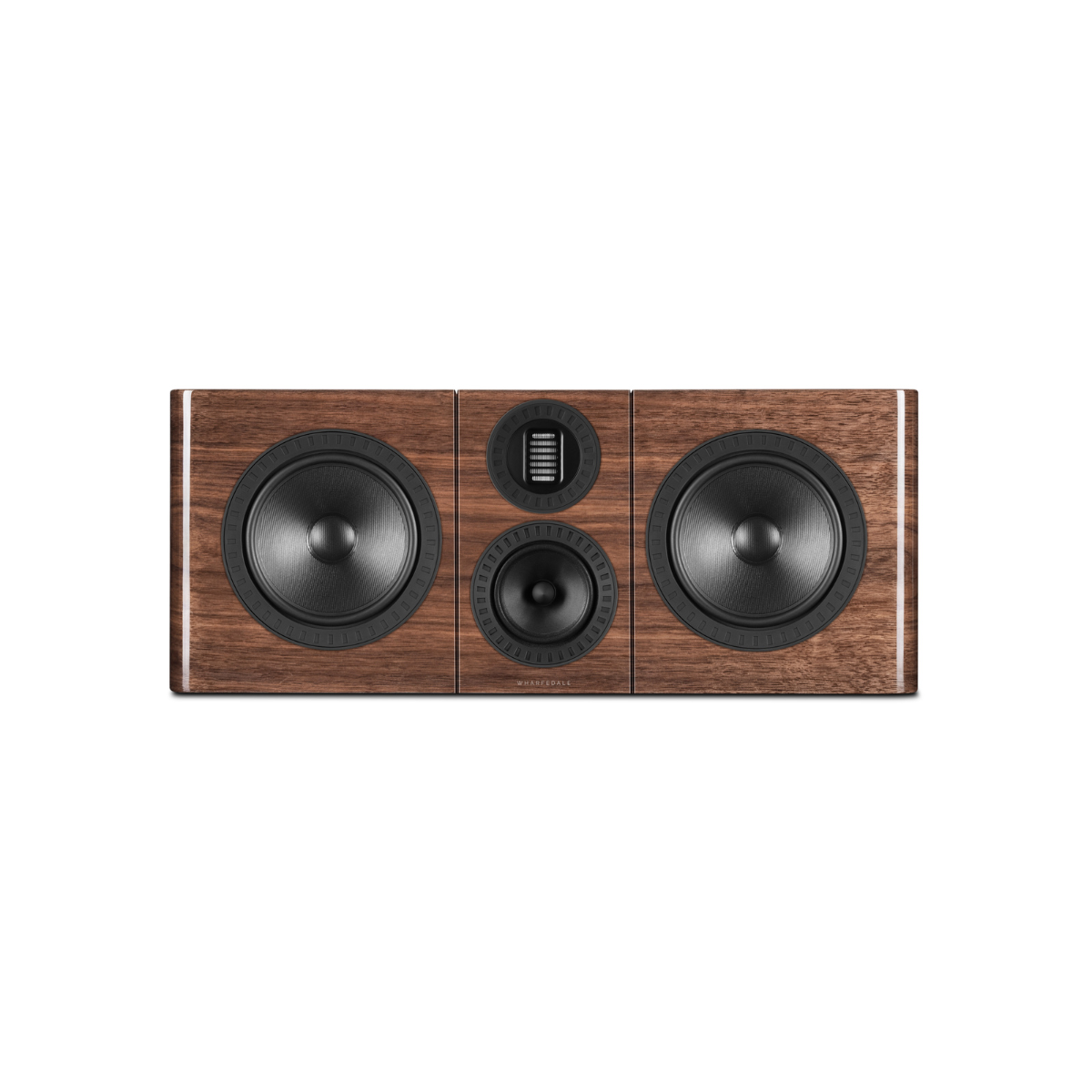

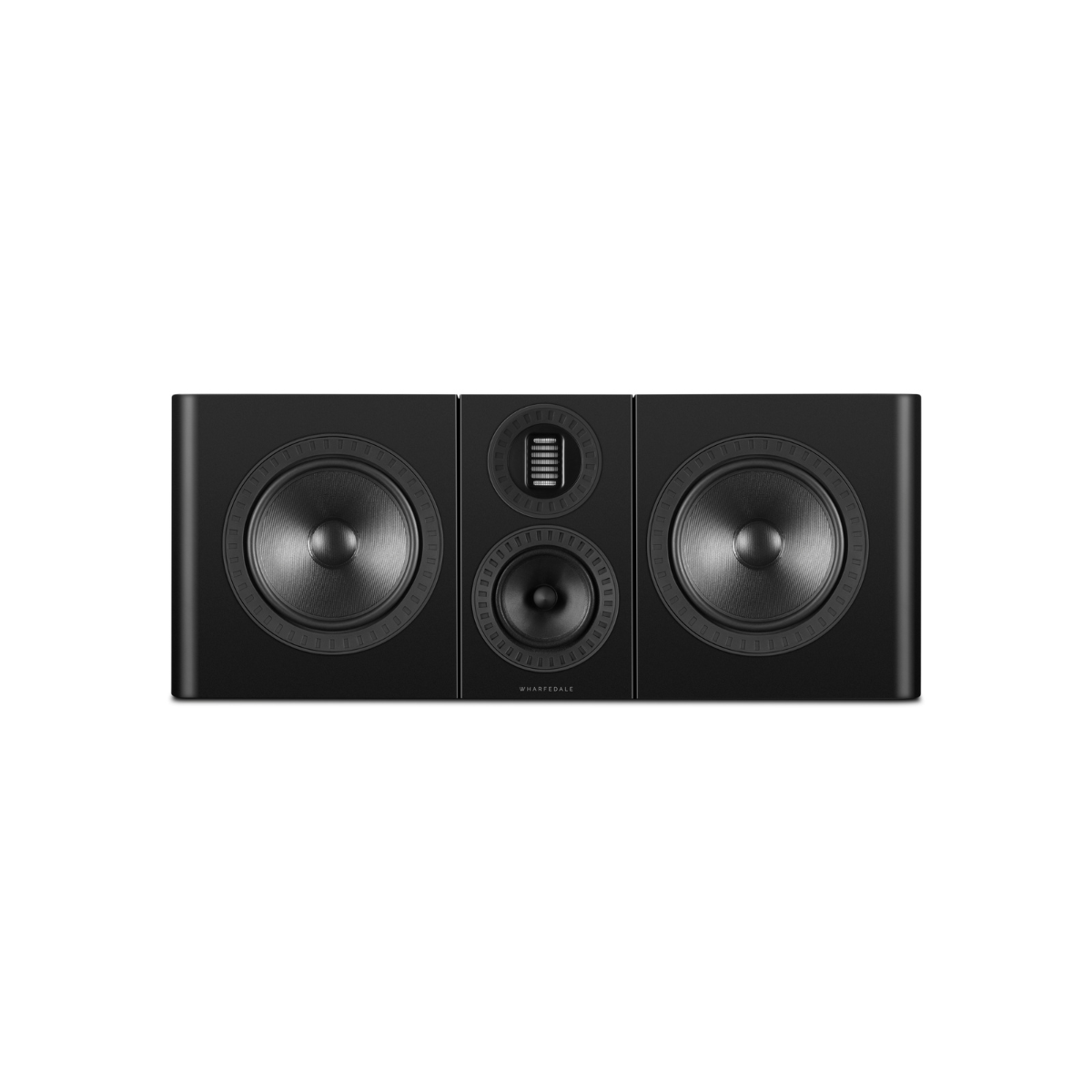

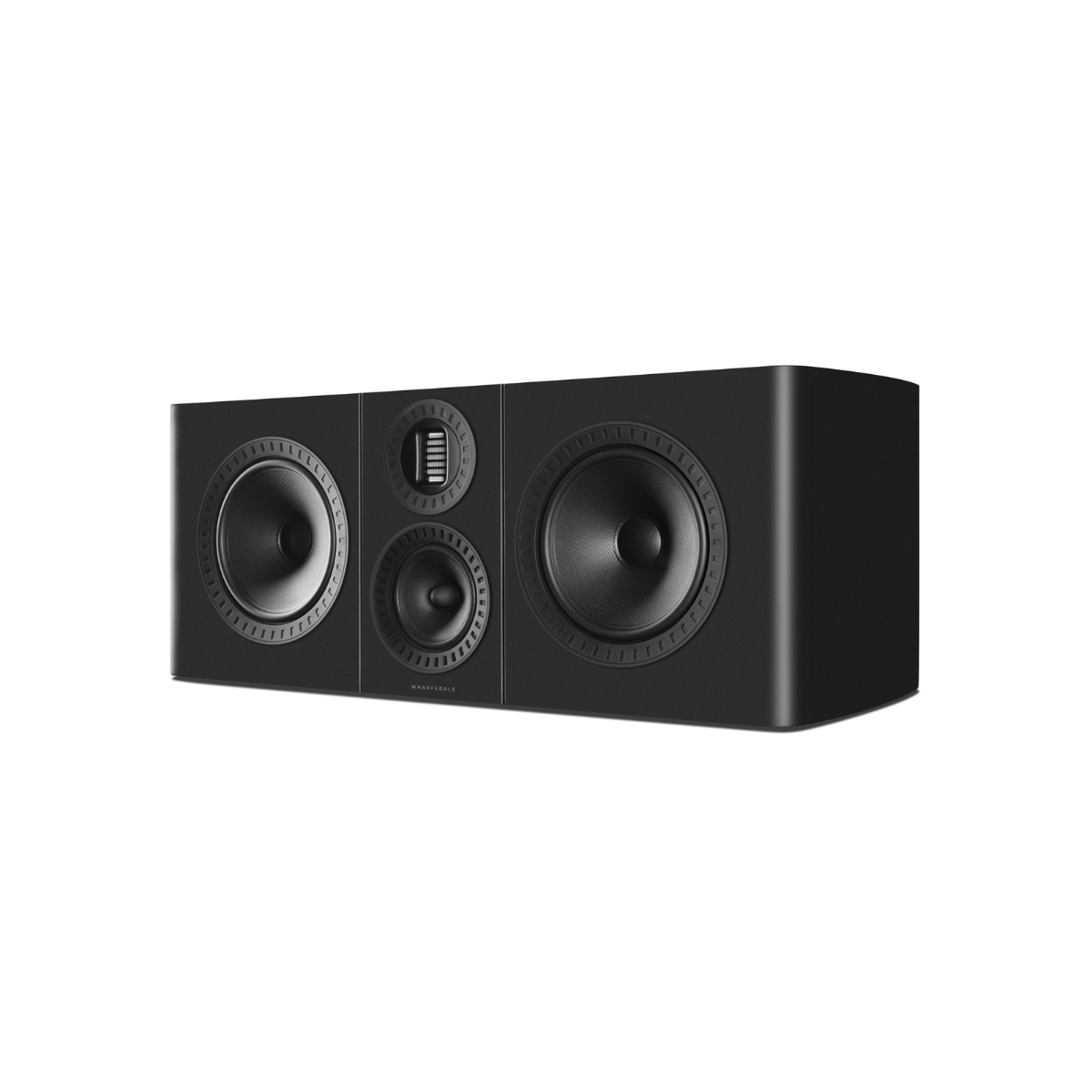

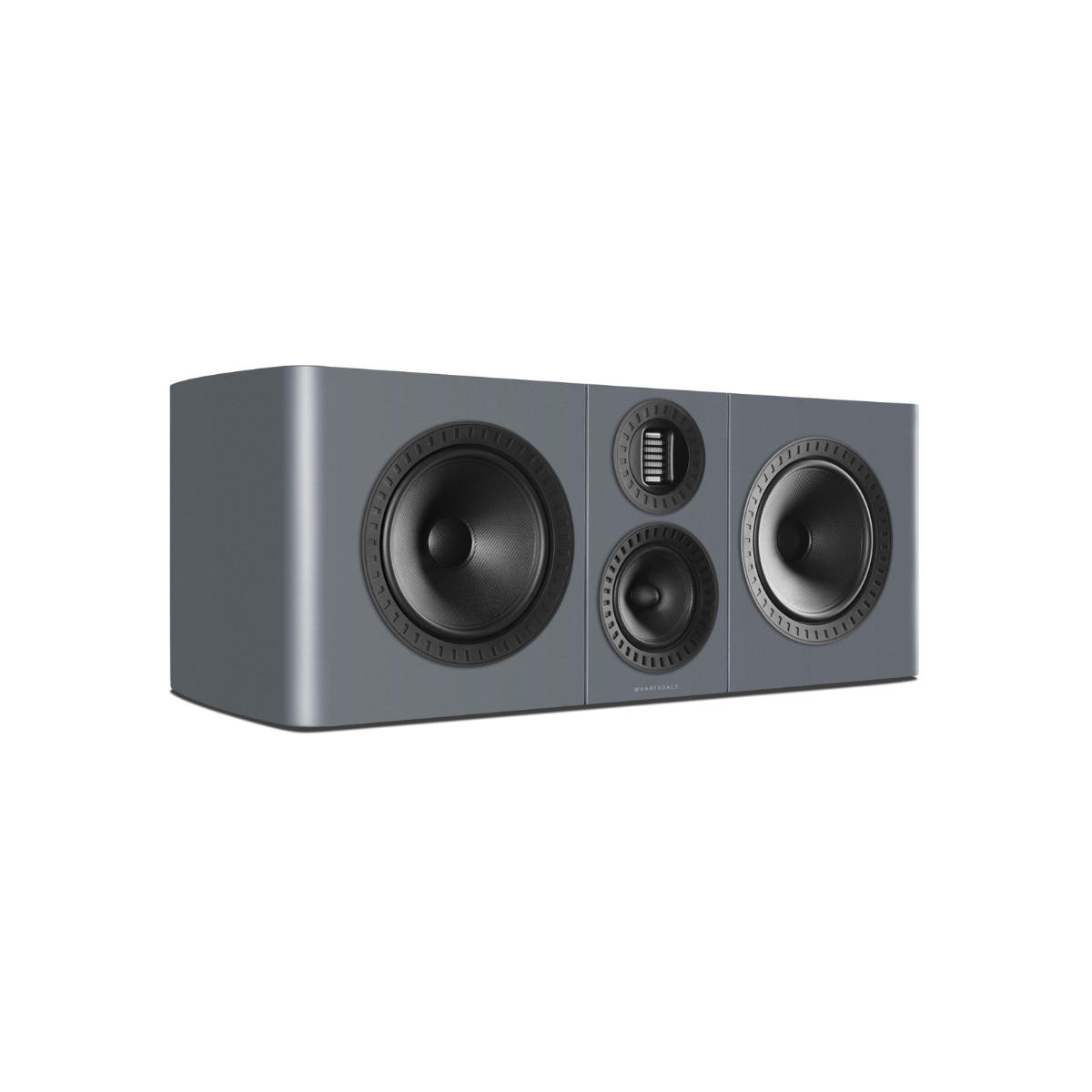

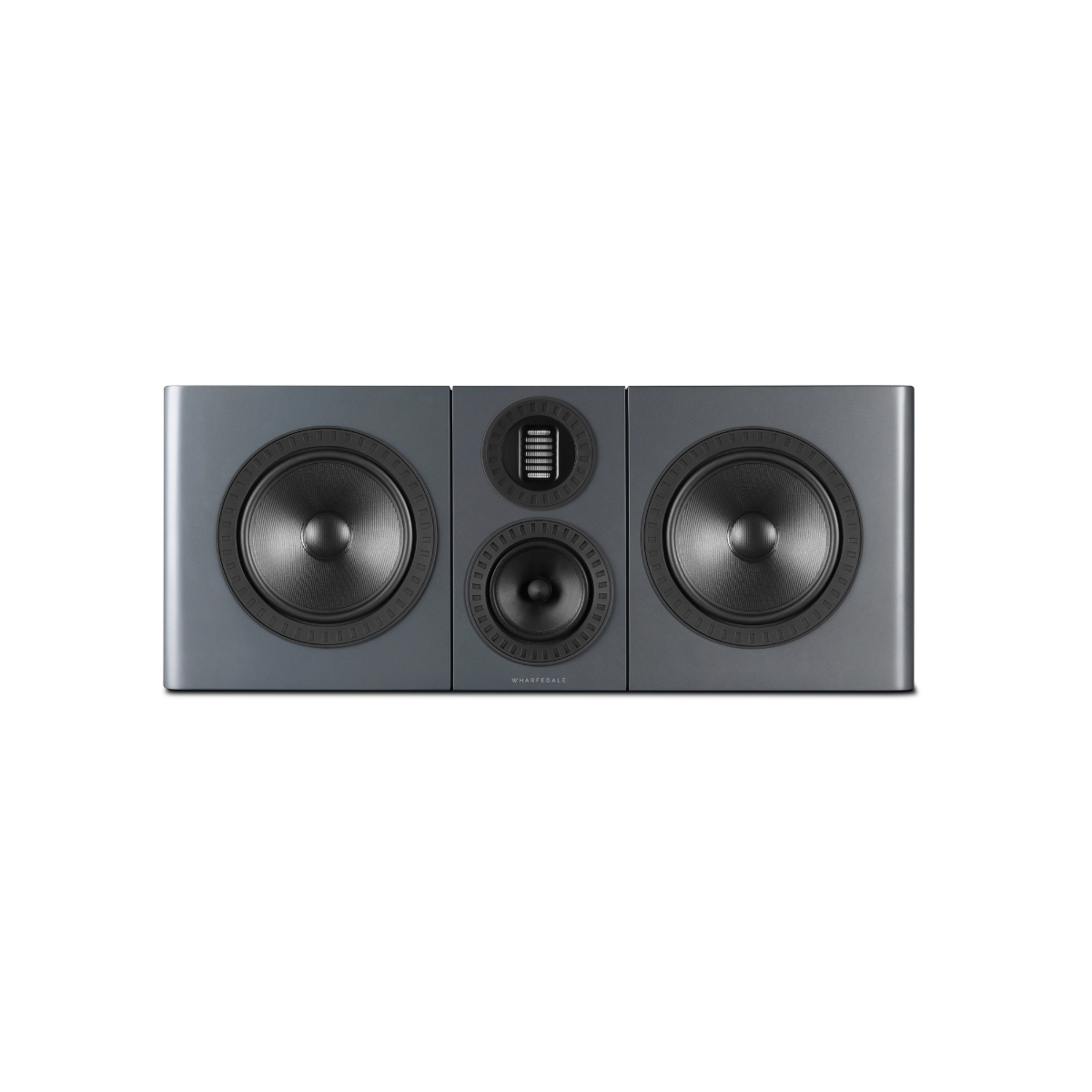

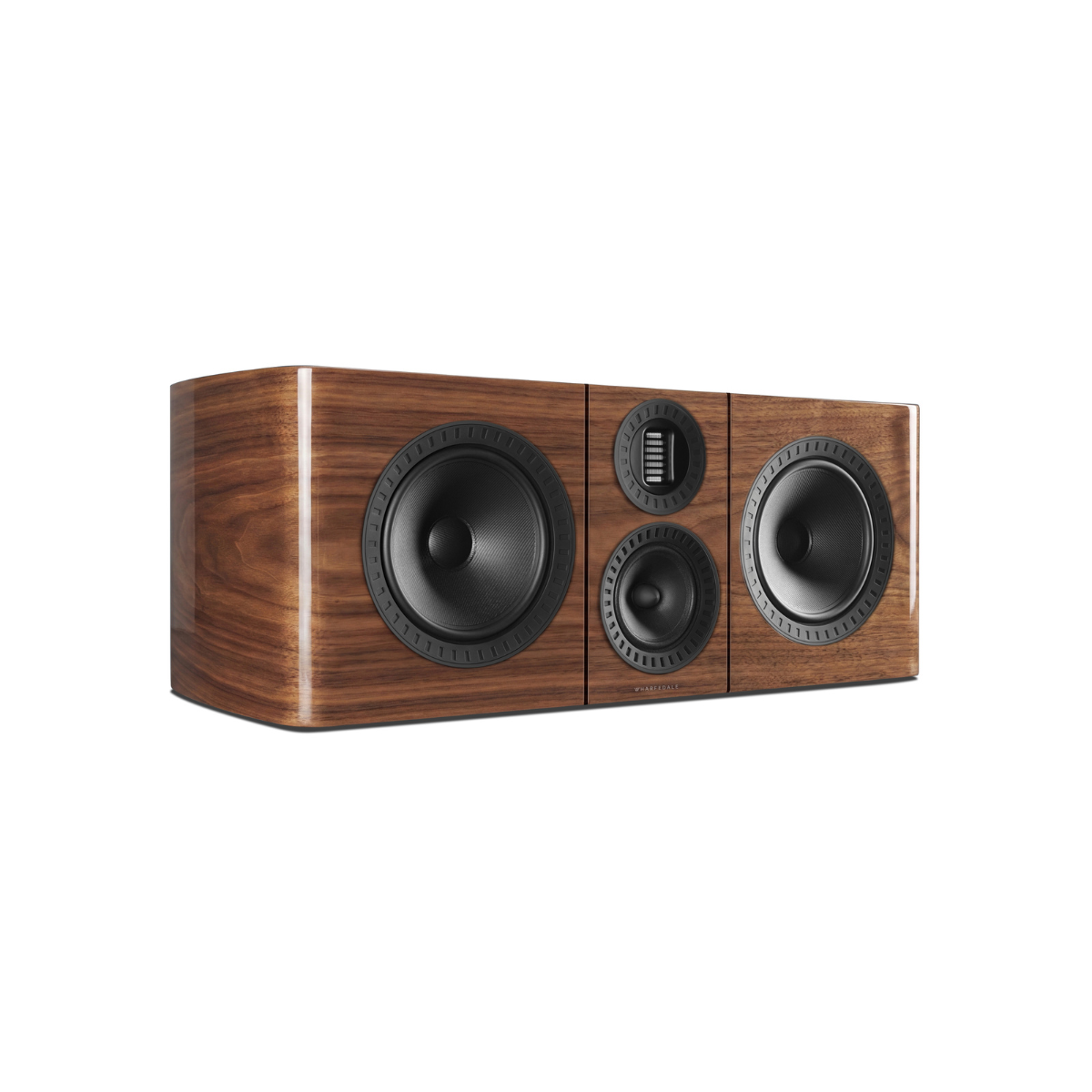

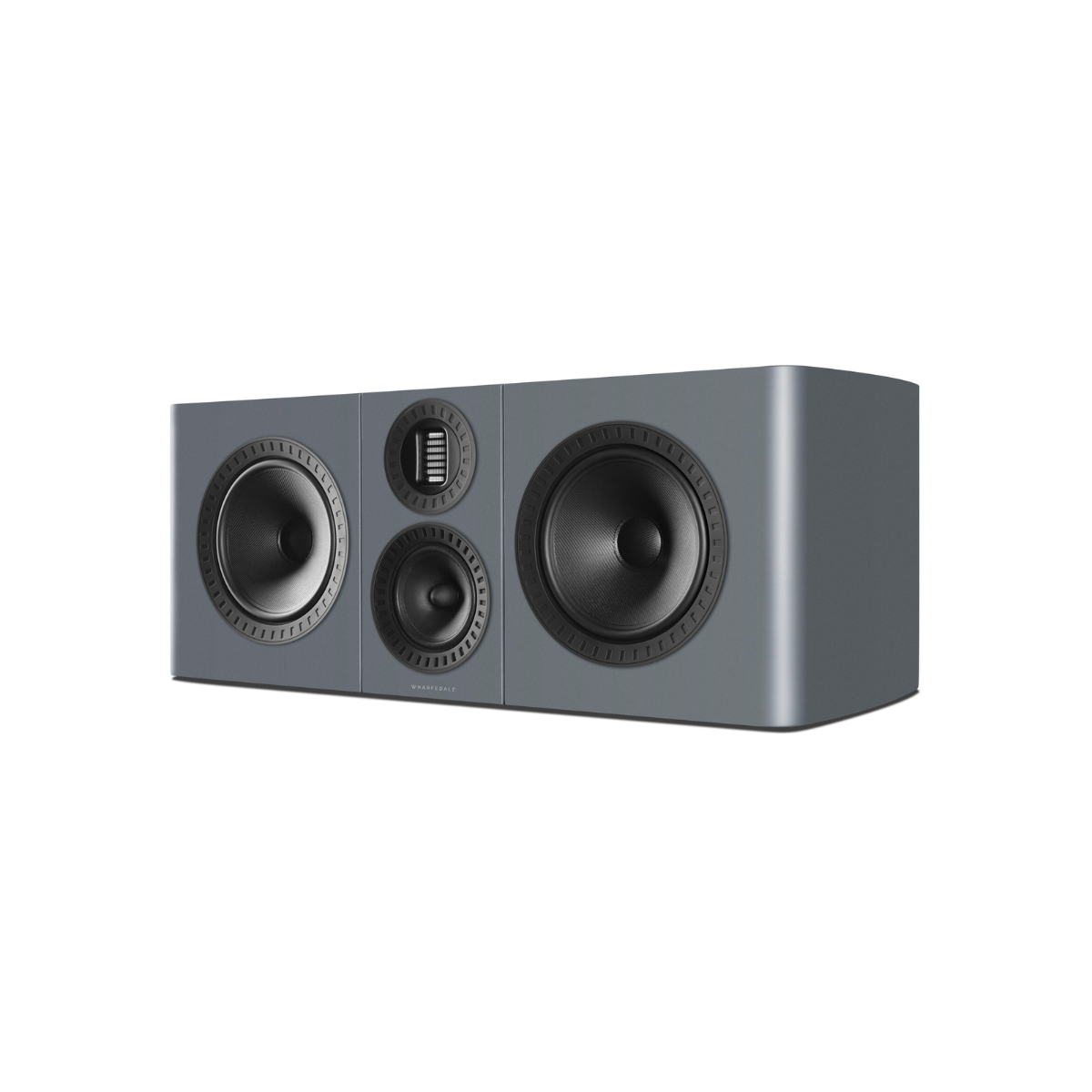

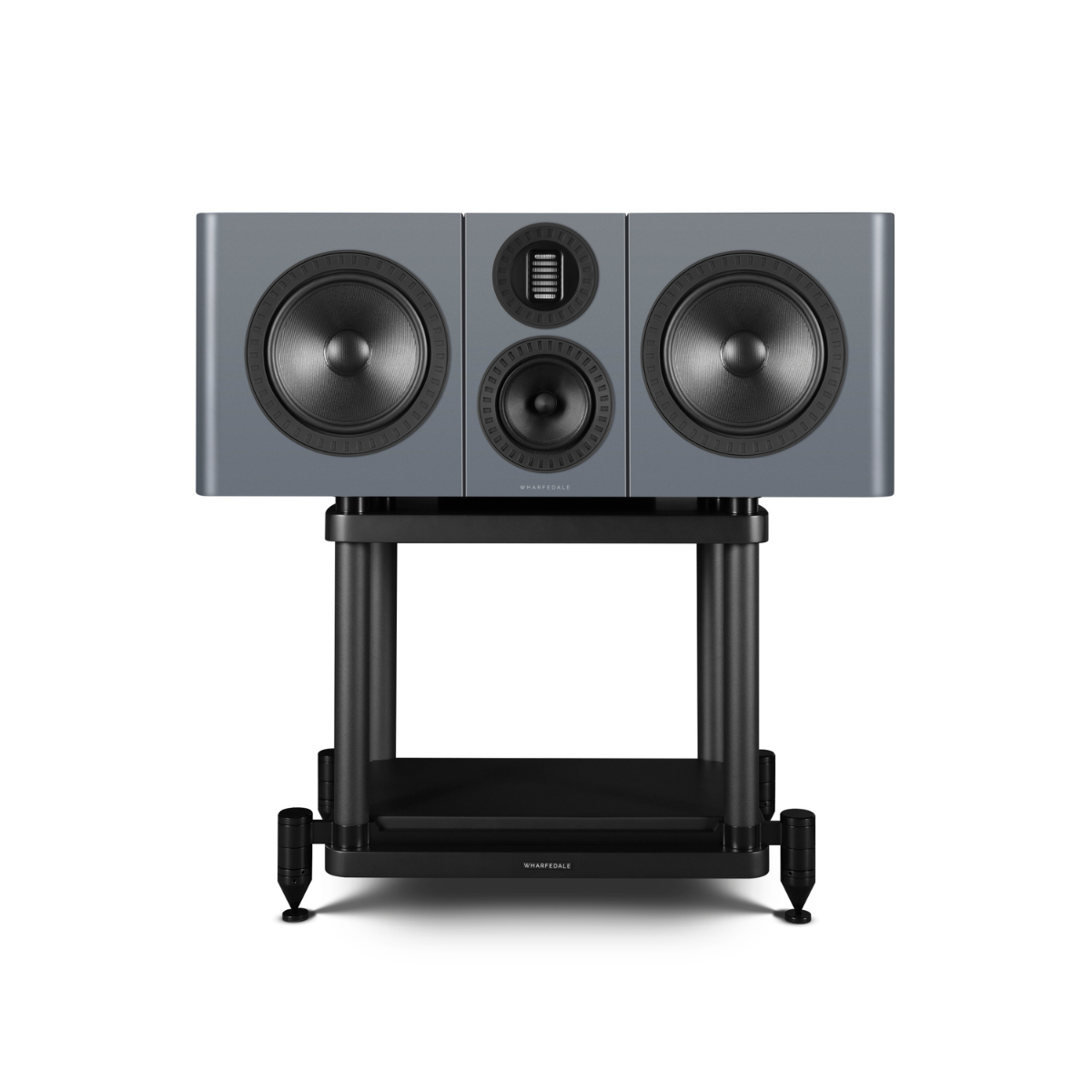

Four drivers work together to keep vocals clear and focused at the center of the soundstage. High frequencies are handled by a 27 by 45 mm Air Motion Transformer tweeter, which helps with detail and clarity. The midrange comes from a 6 inch coated glass fibre cone, while two 8.5 inch woofers manage the low end. This setup brings bass down to 27 Hz and covers a frequency range from 35 Hz to 22 kHz, so dialogue and effects sound full and natural.

The crossover splits the signal at 360 Hz and 2.9 kHz, which helps each driver do its job more efficiently. With a sensitivity of 91 dB and a peak output of 110 dB, the Elysian CR works well with most amplifiers rated between 25 and 250 watts. Its 6 ohm nominal impedance means it fits easily into systems designed for 8 ohm speakers. This makes it a solid choice as the centerpiece in a balanced home theater or custom audio visual setup.

Details & Specs

Model ELYSIAN CR
General Description 3-way centre speaker
Enclosure Type Bass reflex
Transducer Complement 3-way
Low Frequency Driver 2 × 8.5" (220mm) coated glass fibre matrix cone
Midrange Driver 6" (150mm) coated glass fibre matrix cone
High Frequency Driver 27 × 45mm AMT
Sensitivity (2.83V @ 1m) 91dB
Recommended Amplifier Power 25–250W
Peak SPL 110dB
Nominal Impedance 6Ω (compatible with 8Ω)
Minimum Impedance 3.5Ω
Frequency Response (±3dB) 35Hz – 22kHz
Bass Extension (-6dB) 27Hz
Crossover Frequency 360Hz, 2.9kHz
Cabinet Volume 5.7L, 64.0L
Height (on plinth) 320mm
Width (on plinth) 830mm
Depth (with terminals) (340 + 30)mm
Carton Size 965 × 495 × 455mm
Net Weight 30.2kg / pcs
Gross Weight 35.0kg / ctn
