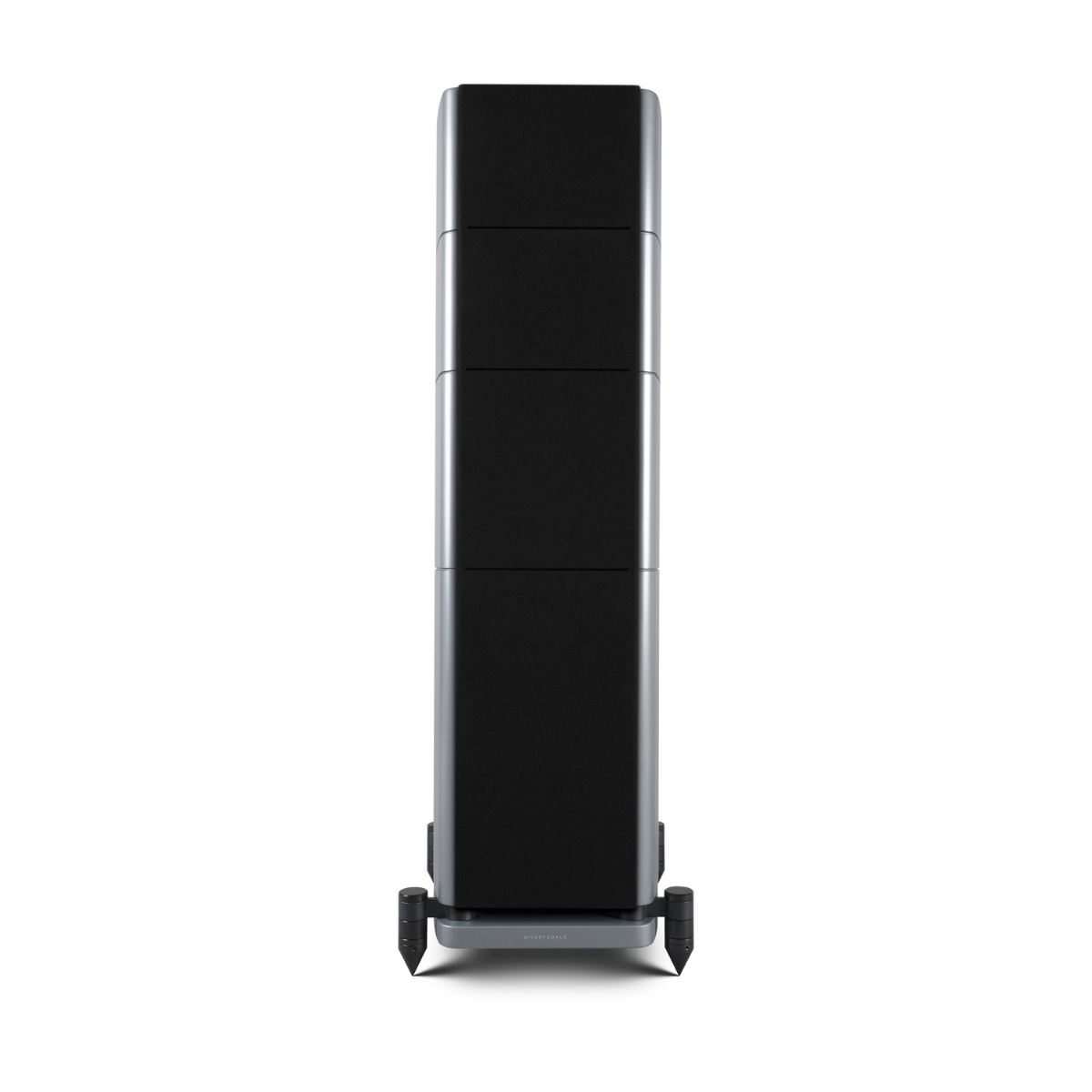

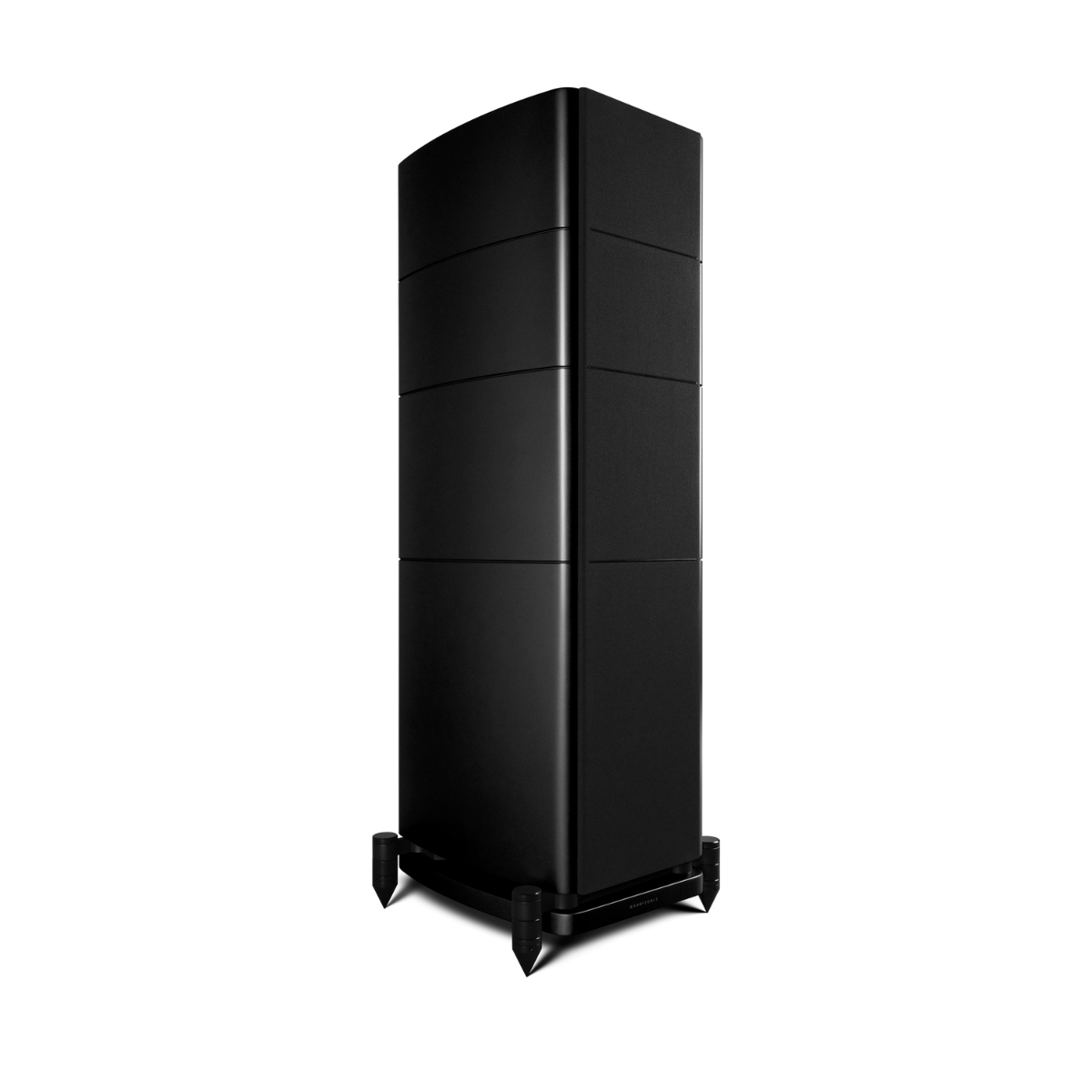

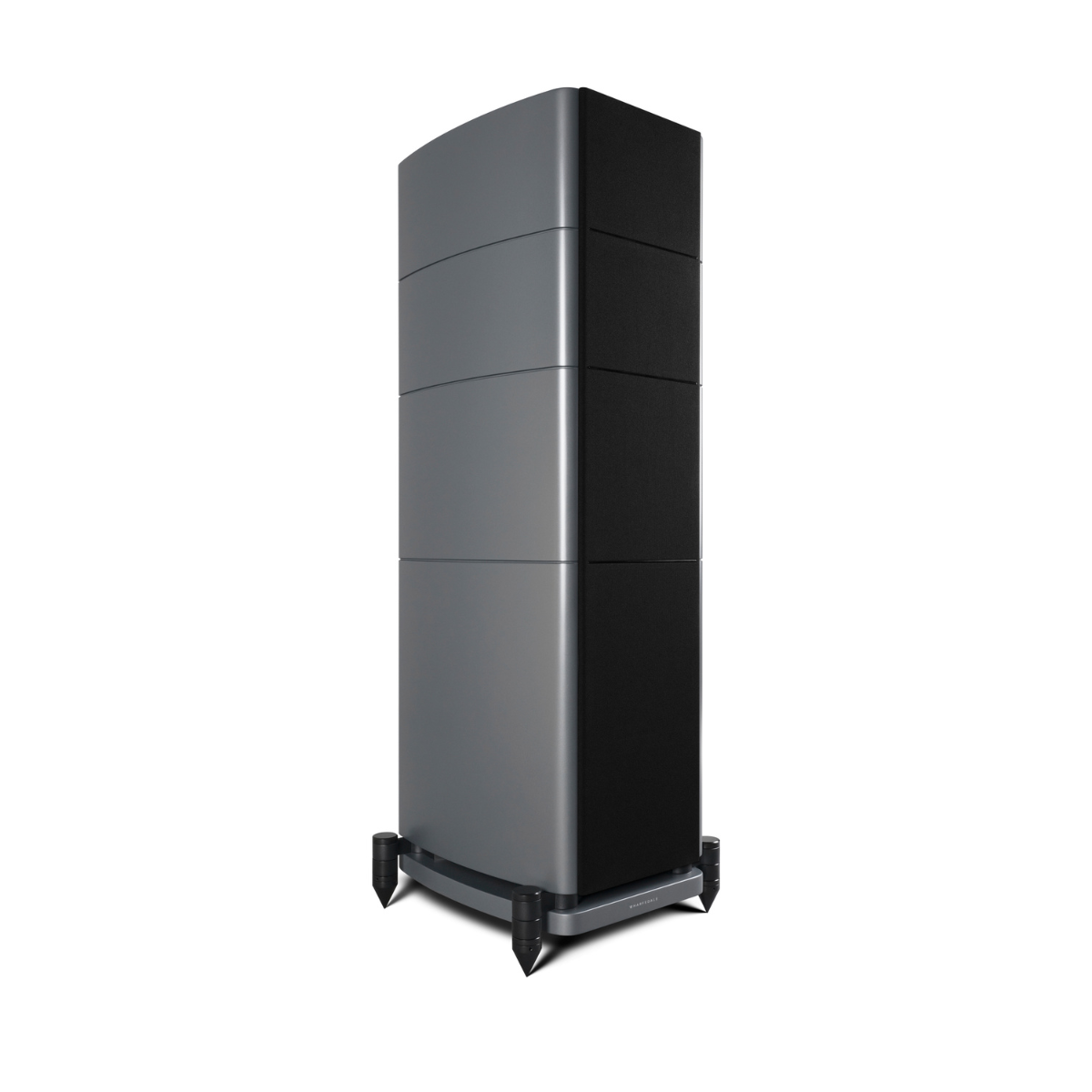

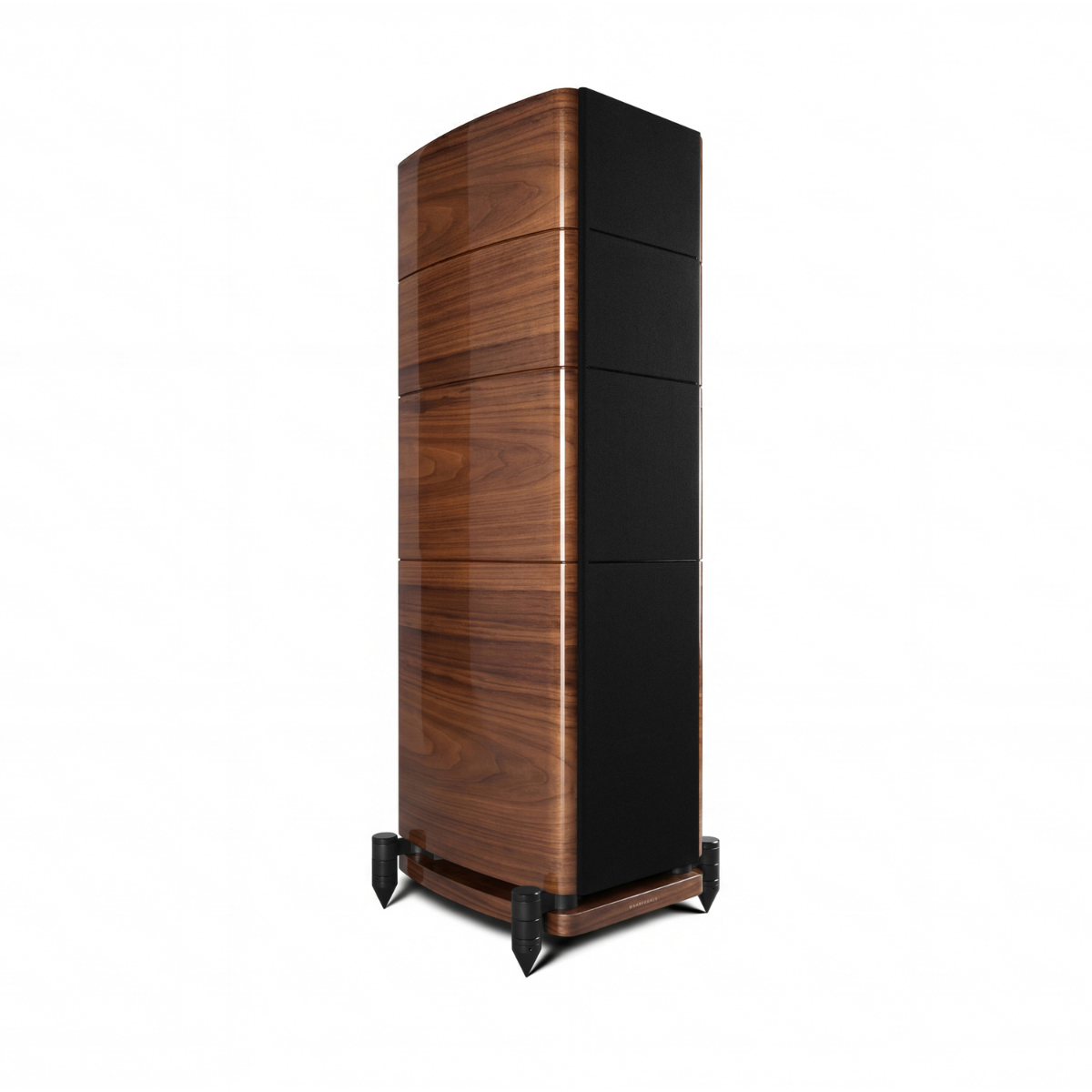

Wharfedale Elysian 4R

Flagship Floor Standing Loudspeaker

Wharfedale Elysian 4R

Flagship Floor Standing Loudspeaker
$11,995.00
Select Color:


Overview

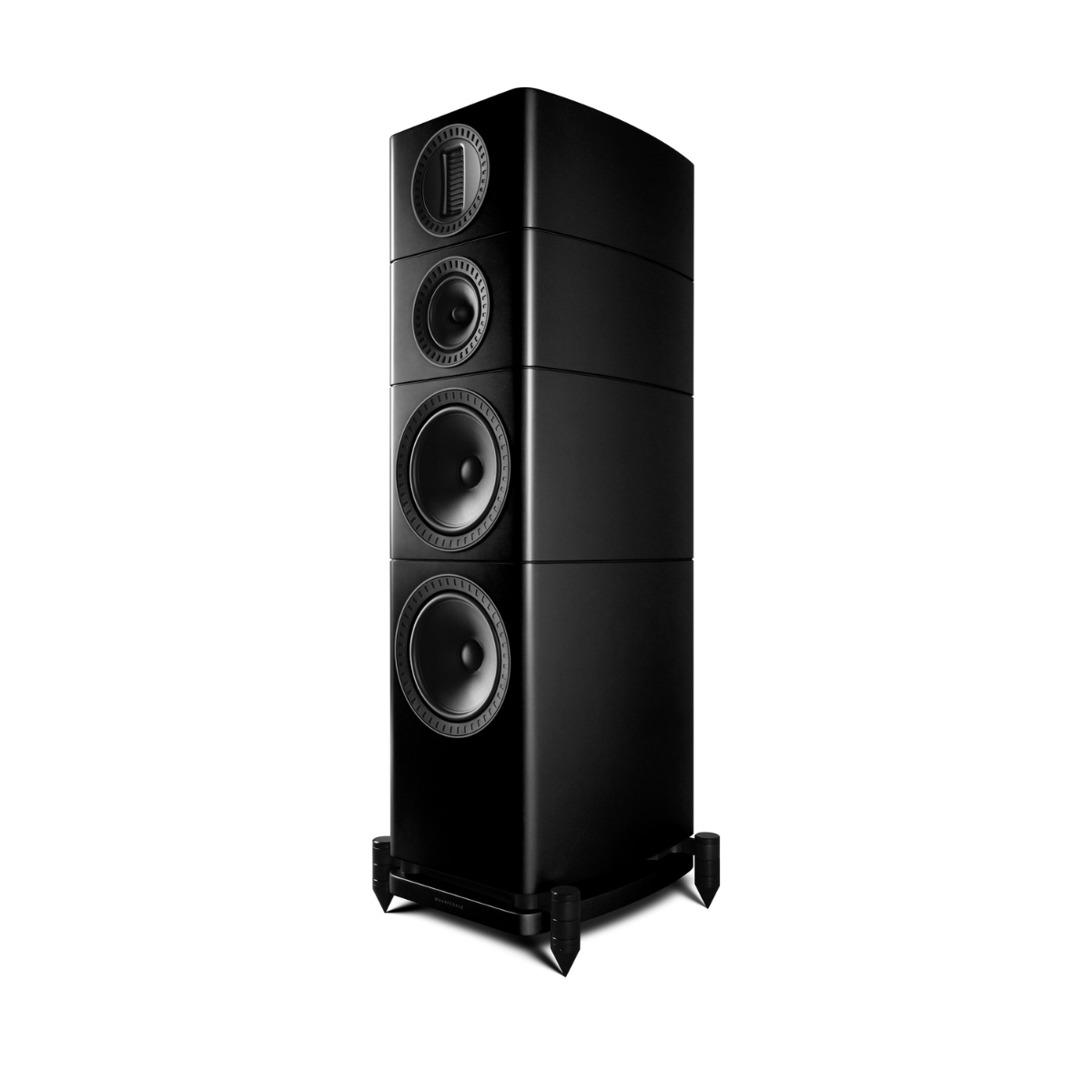

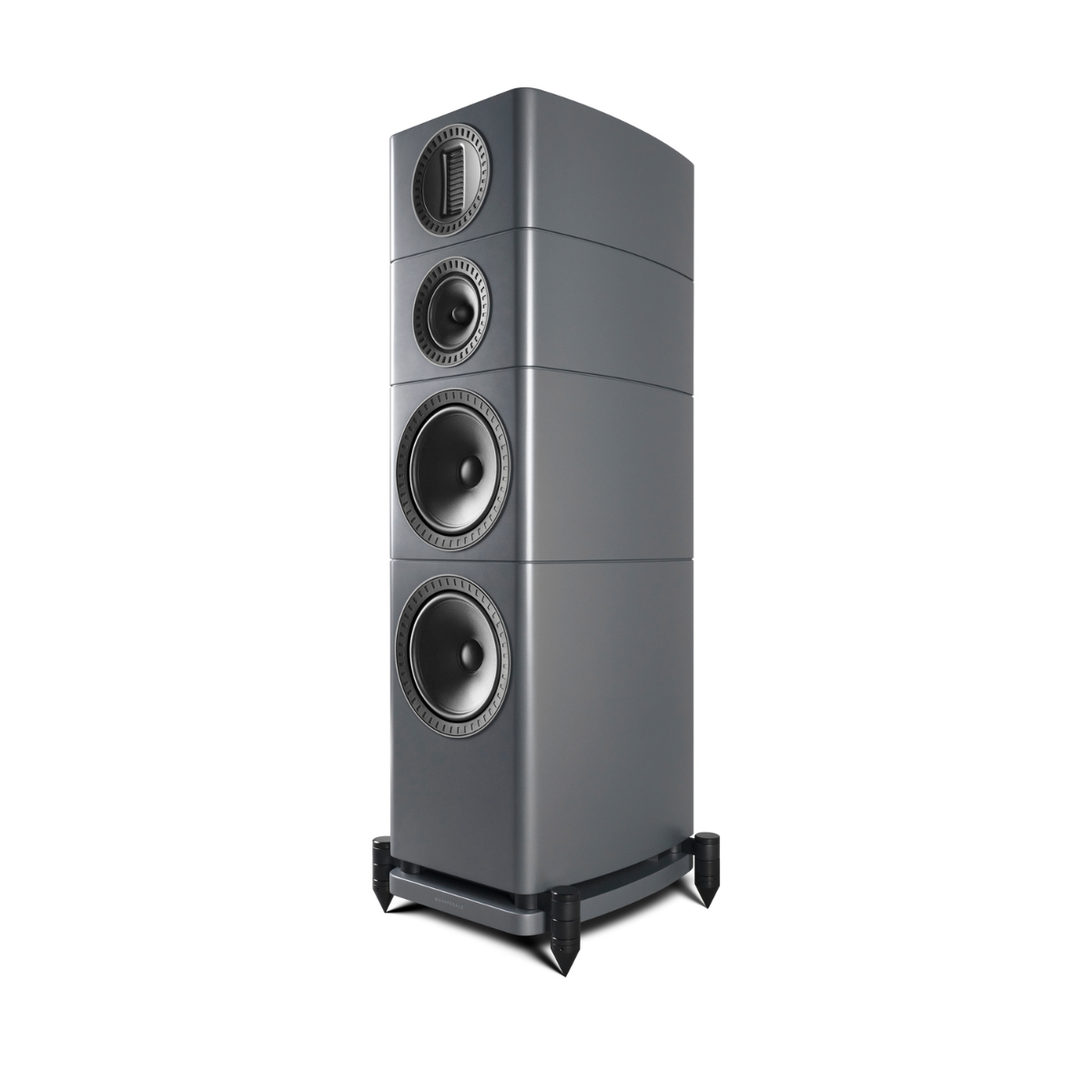

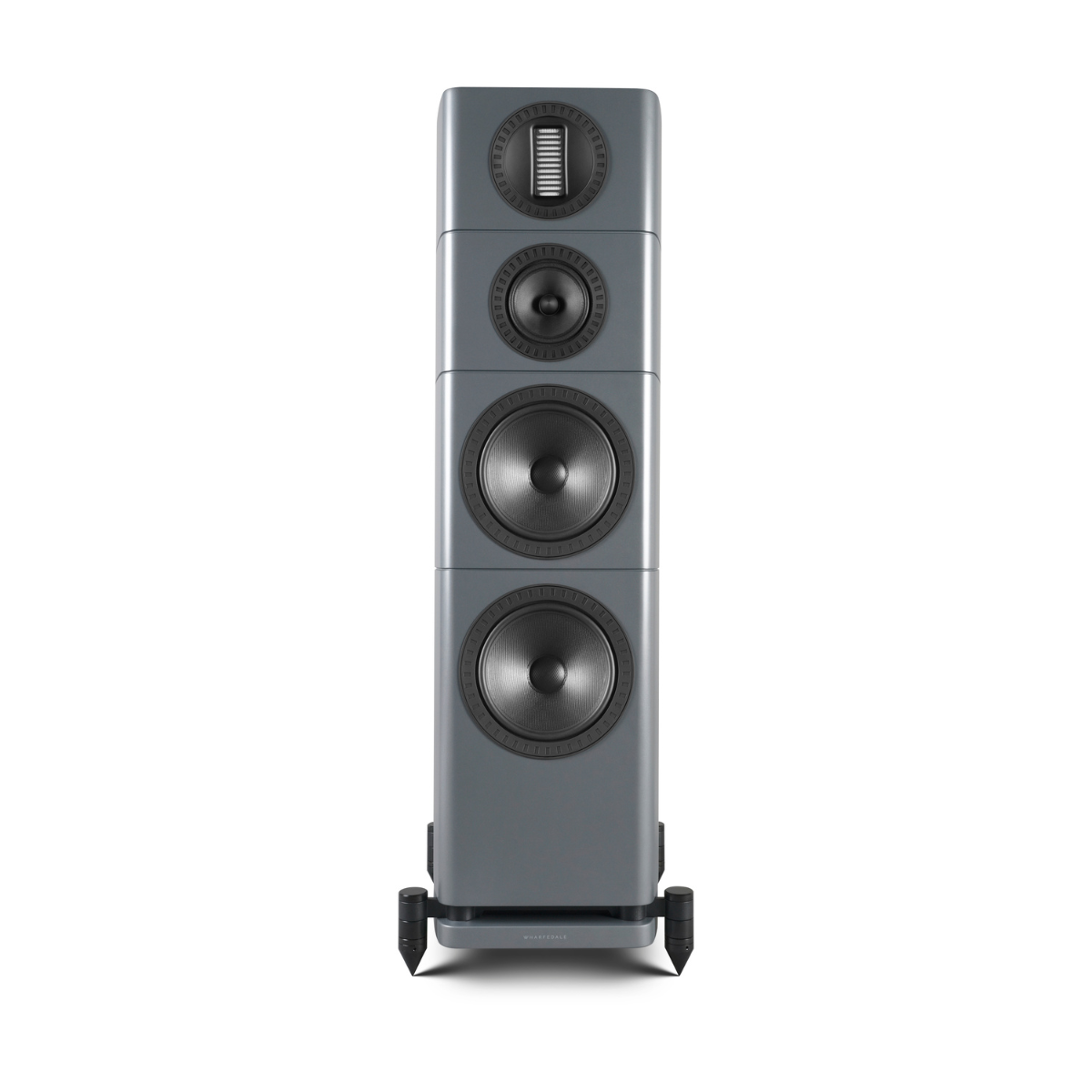

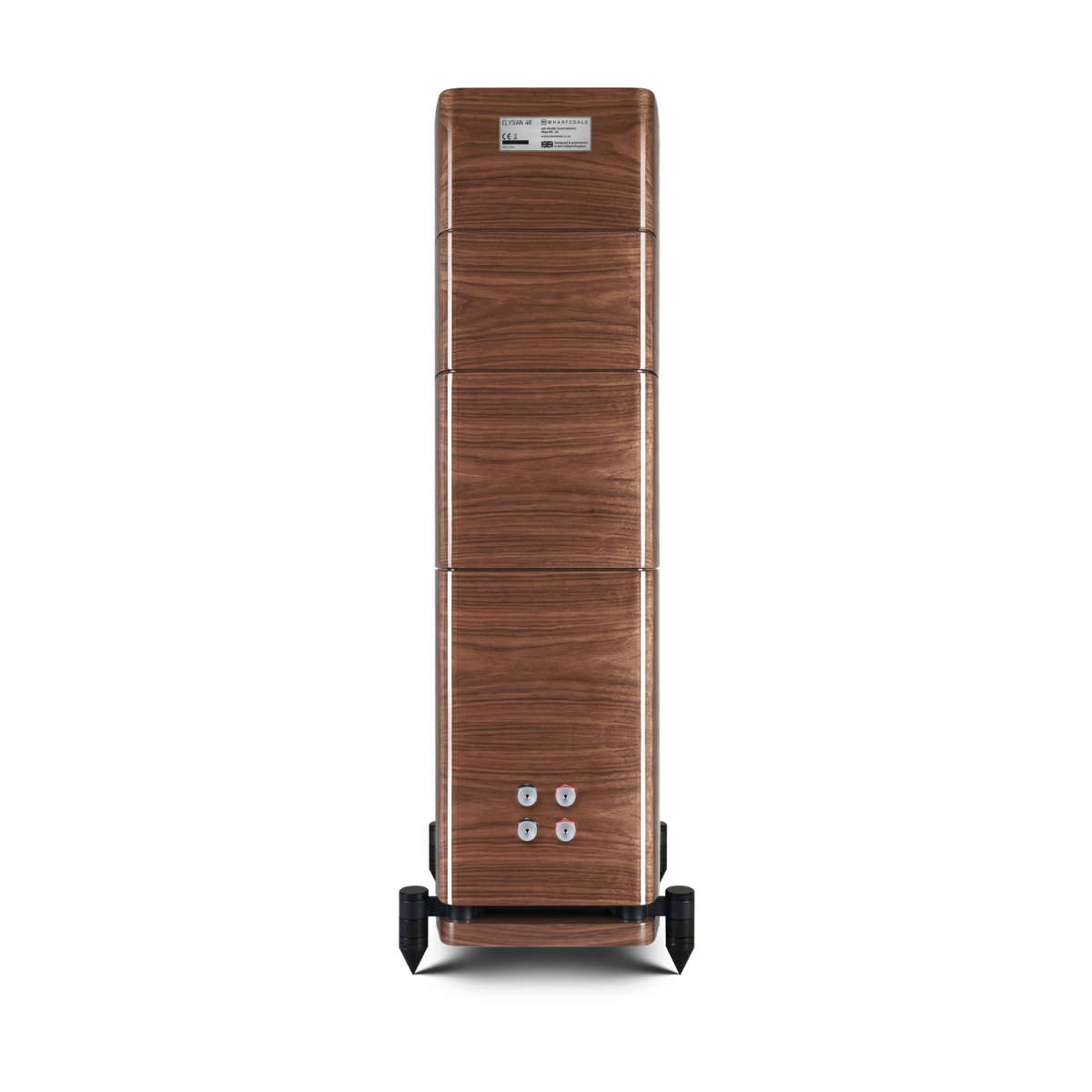

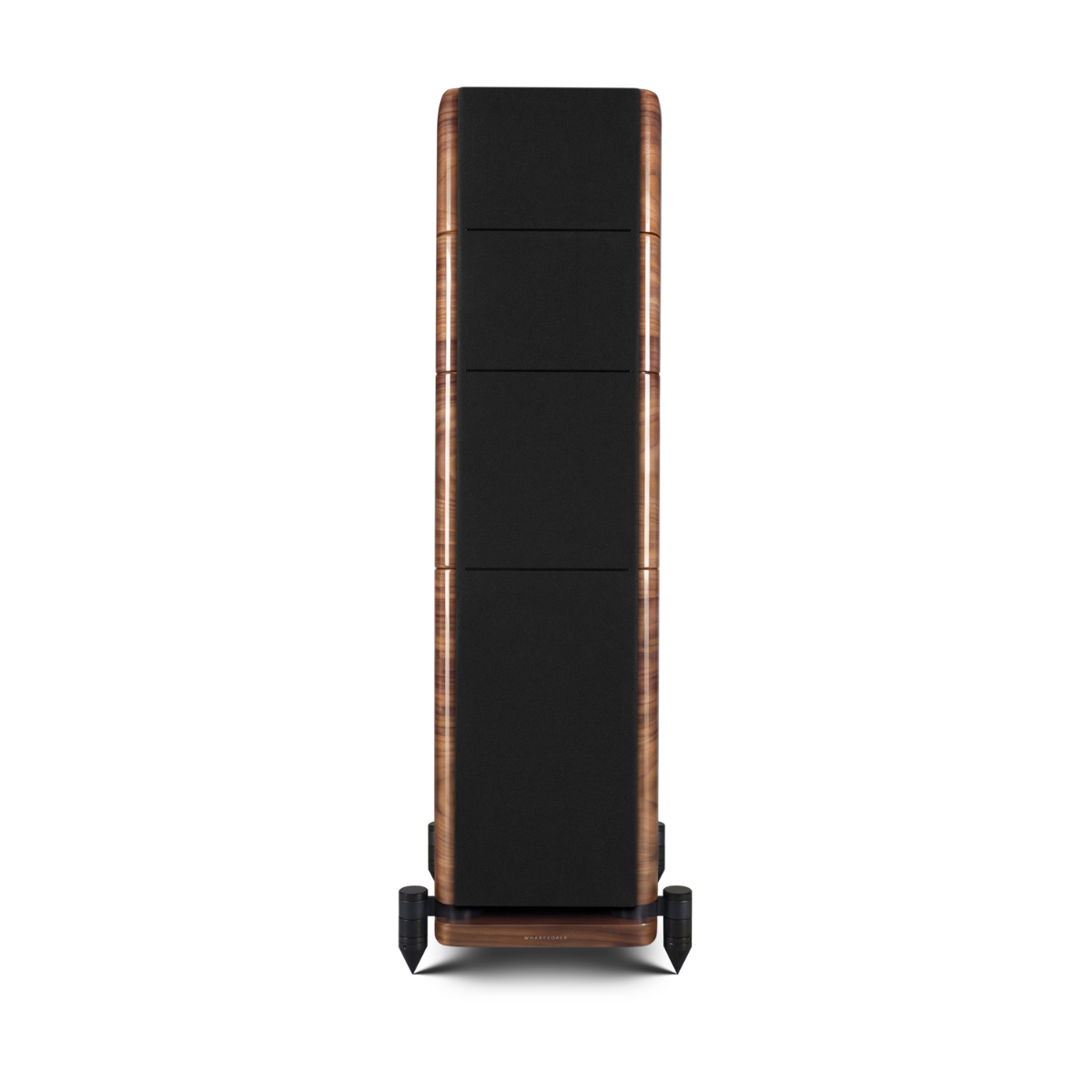

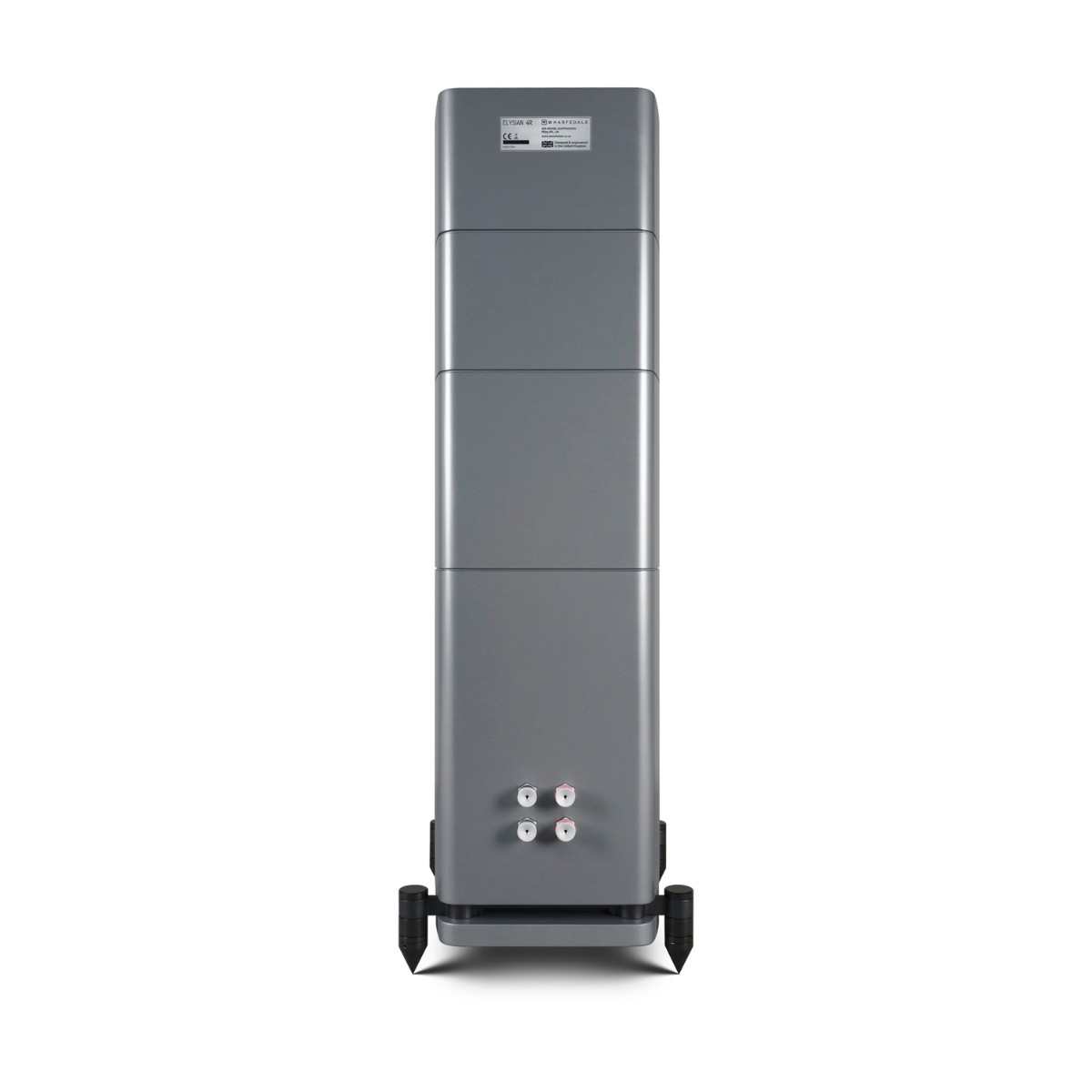

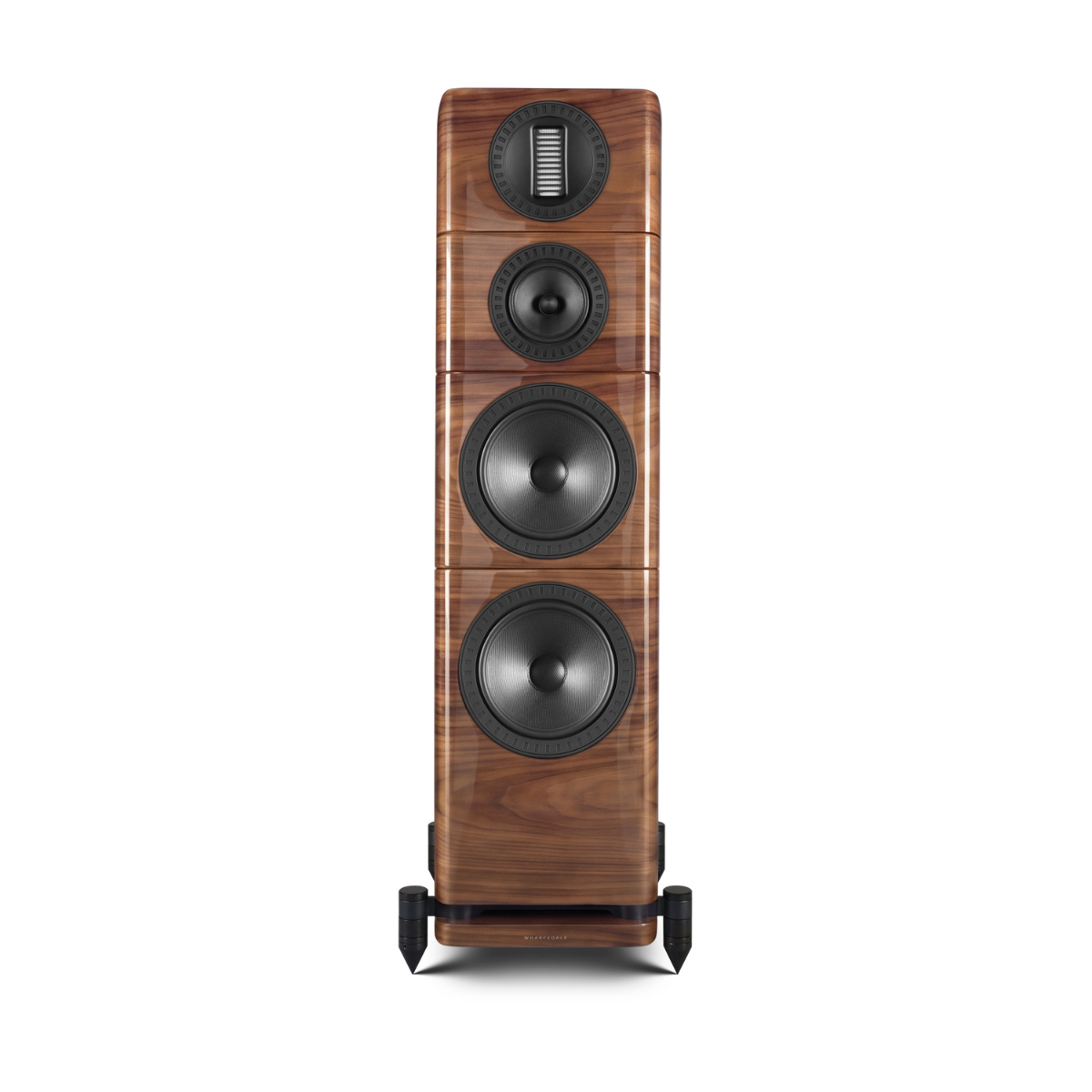

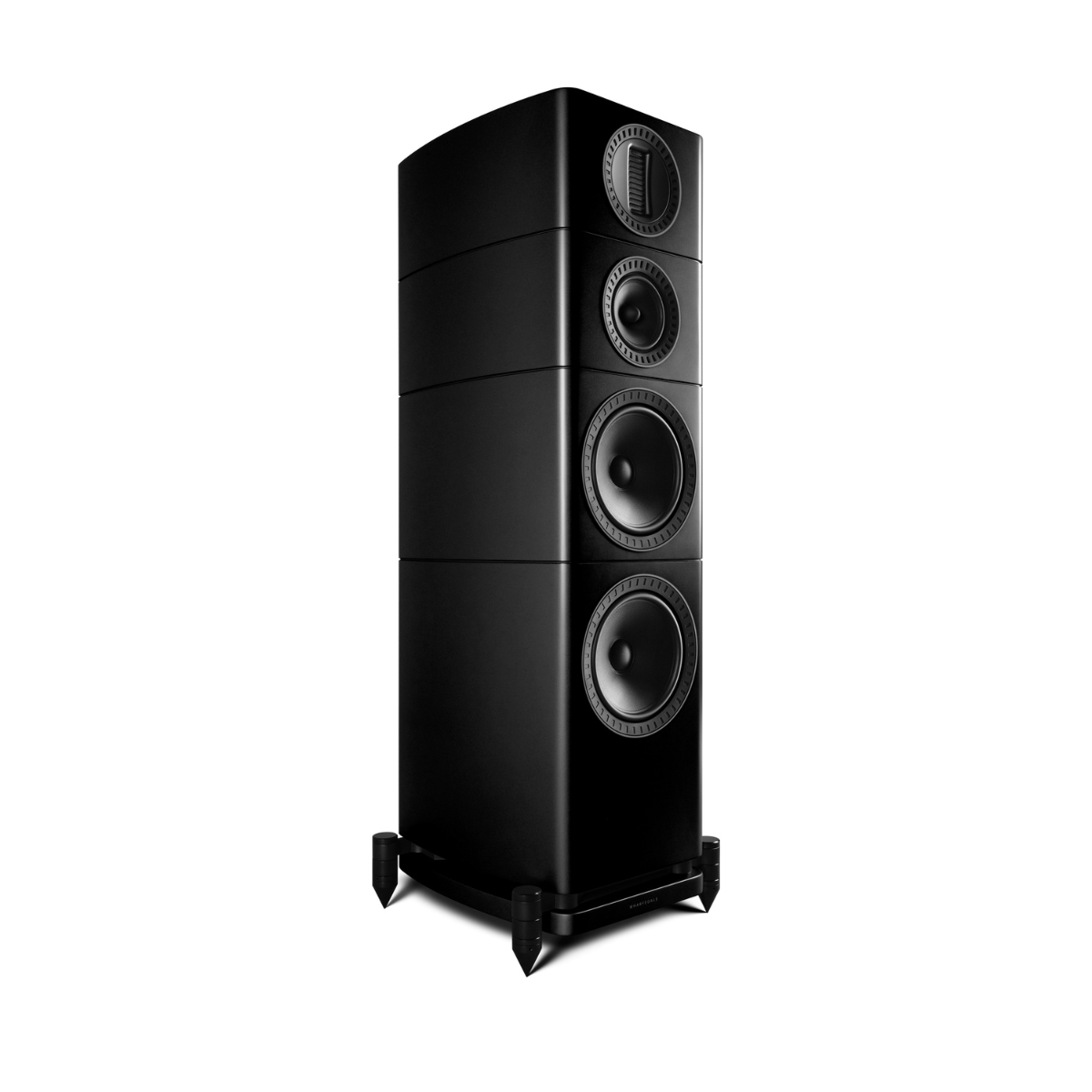

Featuring dual 8.5 inch woofers, a 6 inch midrange driver, and a 27 by 90 mm AMT tweeter, the Wharfedale Elysian 4R flagship speaker delivers a 30 Hz to 22 kHz response. An ideal choice for a two channel sound system setup powered by 15W to 250W amplifiers.

The Wharfedale Elysian 4R is a three way floor standing loudspeaker built for the Elysian R series. It uses a bass reflex enclosure with separate internal cabinet spaces of 38 liters and 79.4 liters. Each speaker measures 1188 mm tall on its plinth, 402 mm wide, and 462 mm deep including the terminals. The net weight is 49.5 kg.

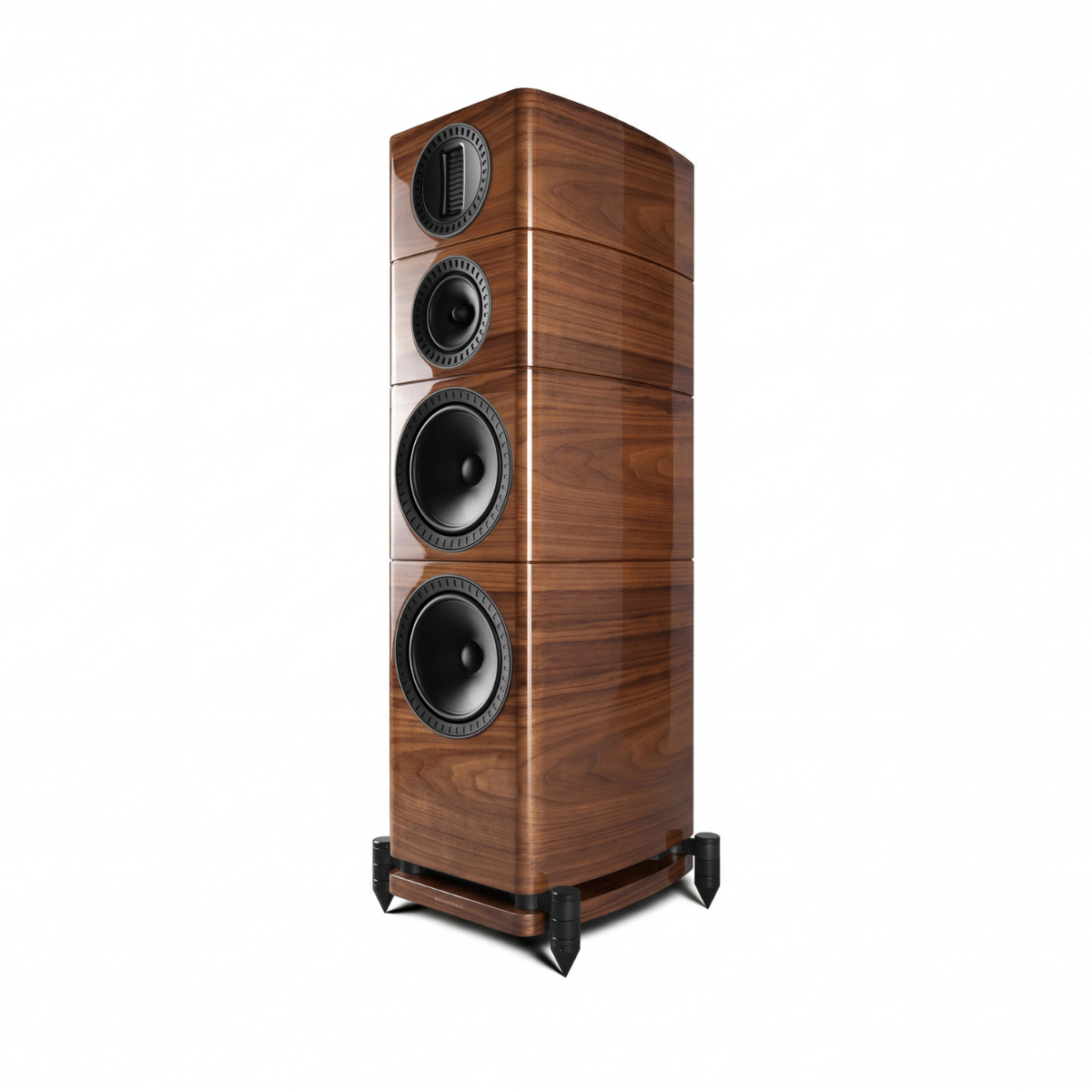

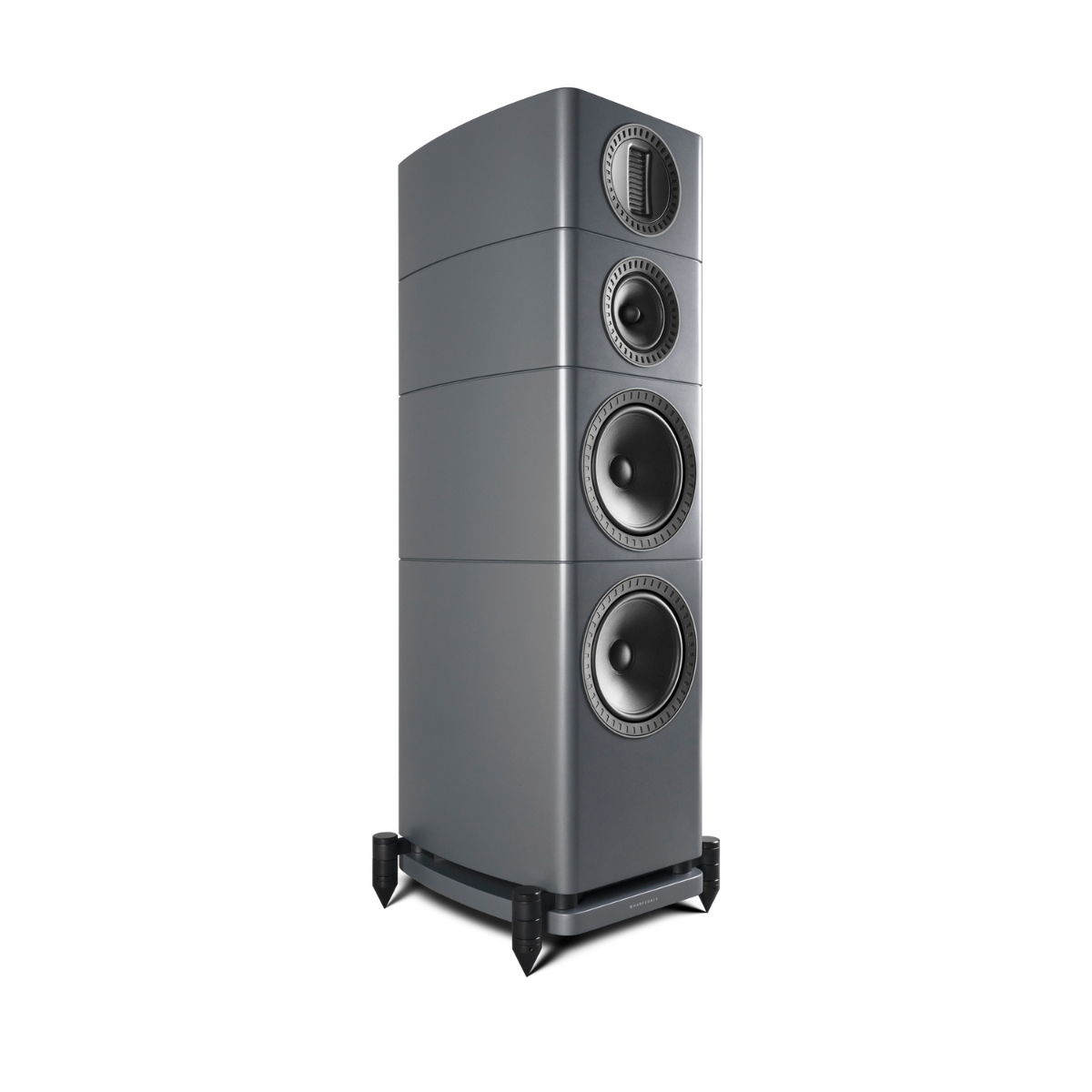

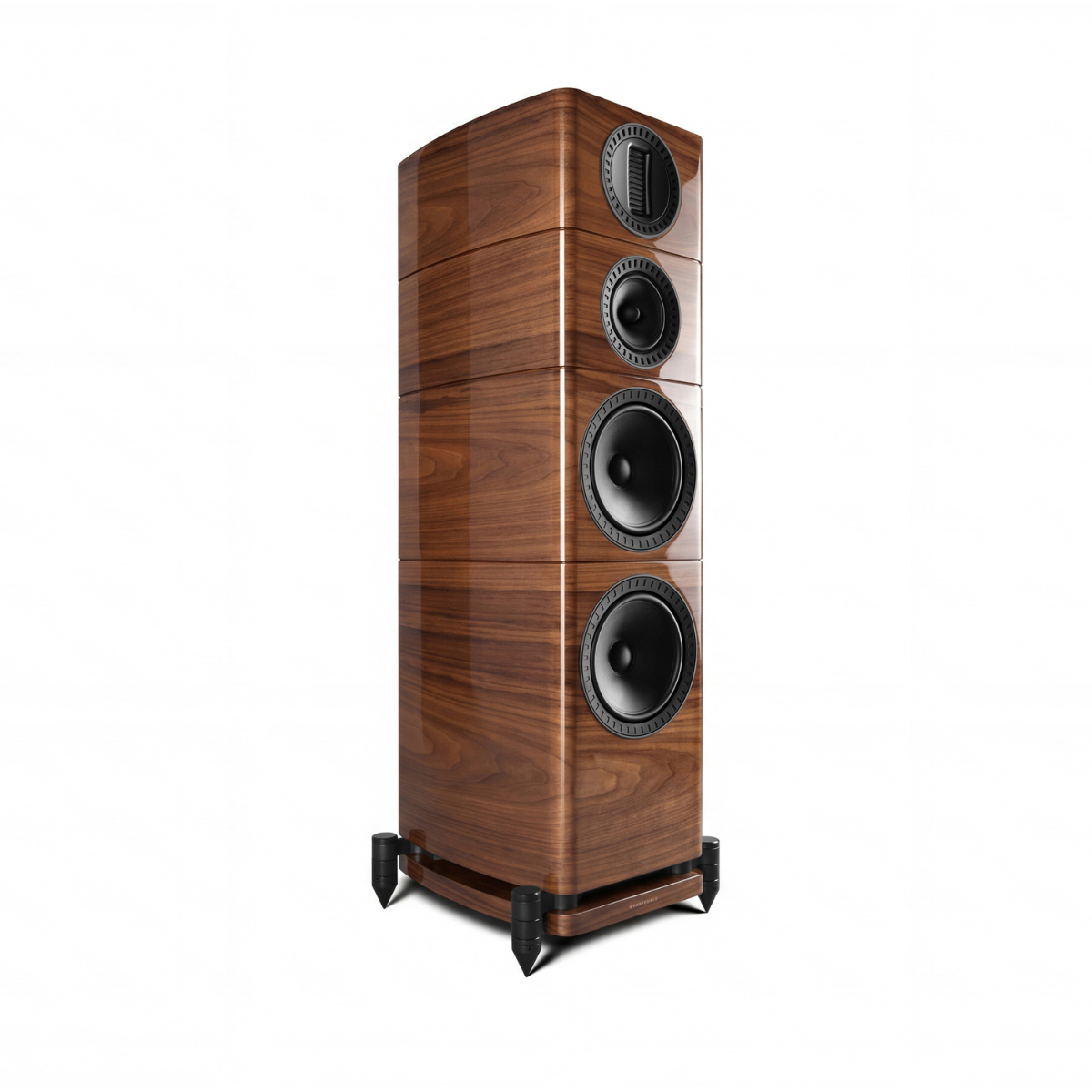

A four driver array covers the full frequency range. High frequencies are handled by a 27 by 90 mm Air Motion Transformer treble unit. The midrange uses a 6 inch, 150 mm coated glass fibre matrix cone. For low frequencies, two 8.5 inch, 220 mm coated glass fibre matrix woofers are used. This setup extends bass down to 24 Hz, with a frequency response from 30 Hz to 22 kHz.

Internal crossovers split the signal at 340 Hz and 3.1 kHz. The system has a sensitivity of 92 dB and can reach a peak SPL of 110 dB. It runs on a 4 ohm nominal impedance, with a minimum of 3.2 ohms. Recommended amplifier power is between 15 and 250 watts. These features make the Elysian 4R suitable for both high quality sound systems and dedicated stereo rooms.

Details & Specs

Model ELYSIAN 4R
General Description 3-way floorstanding speaker
Enclosure Type Bass reflex
Transducer Complement 3-way
Low Frequency Driver 2 × 8.5" (220mm) coated glass fibre matrix cone
Midrange Driver 6" (150mm) coated glass fibre matrix cone
High Frequency Driver 27 × 90mm AMT
Sensitivity (2.83V @ 1m) 92dB
Recommended Amplifier Power 15–250W
Peak SPL 110dB
Nominal Impedance 4Ω (compatible with 8Ω)
Minimum Impedance 3.2Ω
Frequency Response (±3dB) 30Hz – 22kHz
Bass Extension (-6dB) 24Hz
Crossover Frequency 340Hz, 3.1kHz
Cabinet Volume 38L, 79.4L
Height (on plinth) 1188mm
Width (on plinth) 402mm
Depth (with terminals) (432 + 30)mm
Carton Size 1285 × 595 × 480mm
Net Weight 49.5kg / pcs
Gross Weight 55.8kg / ctn
