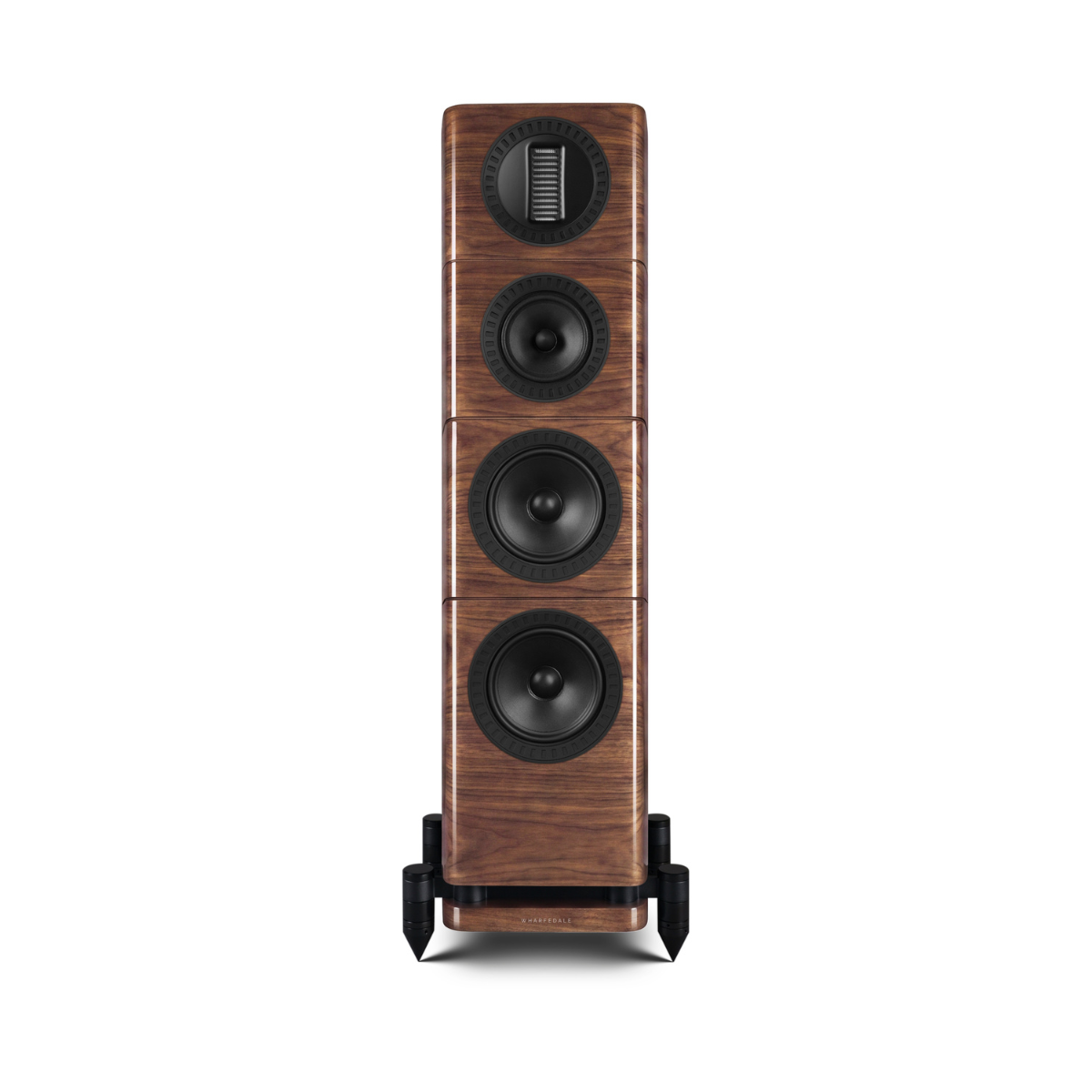

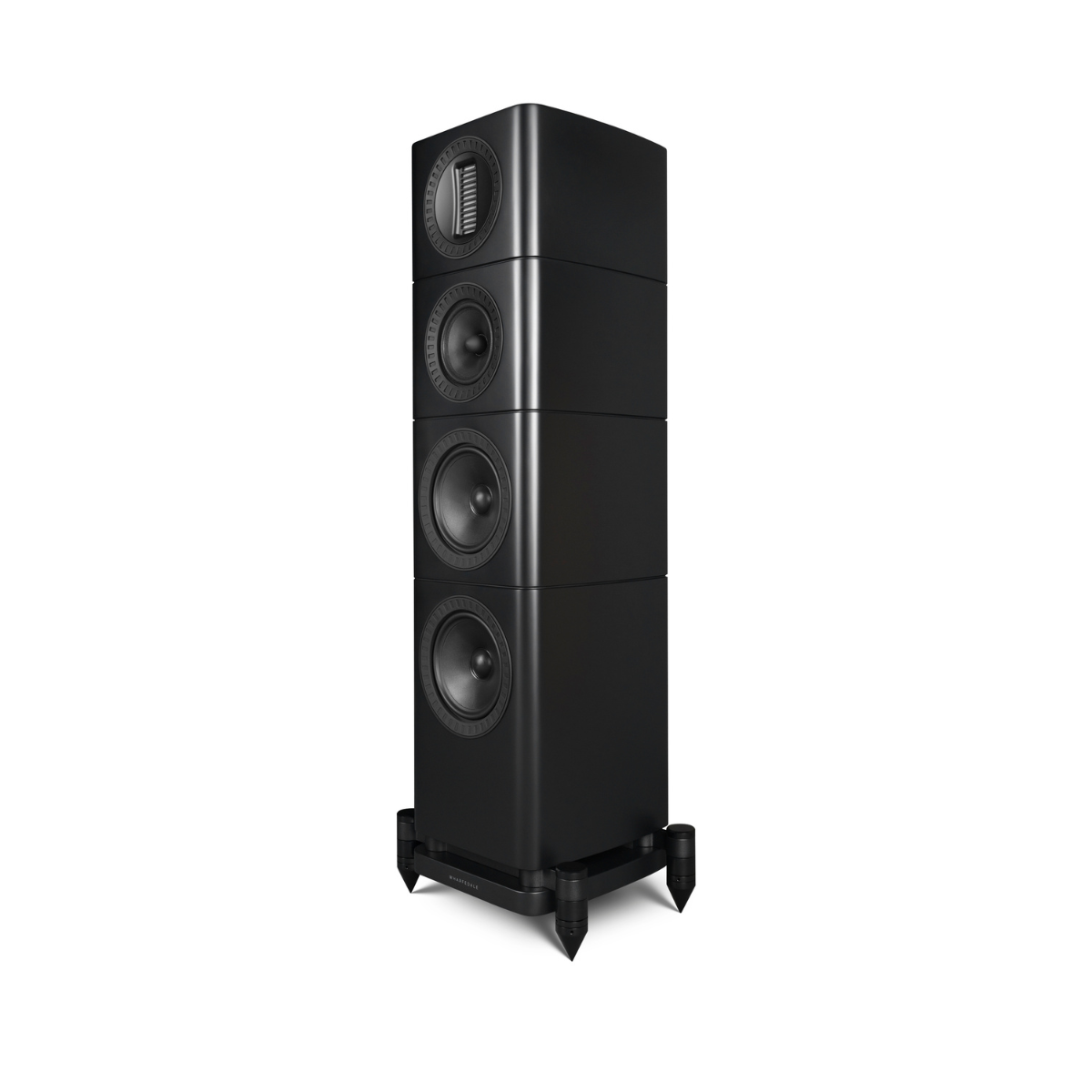

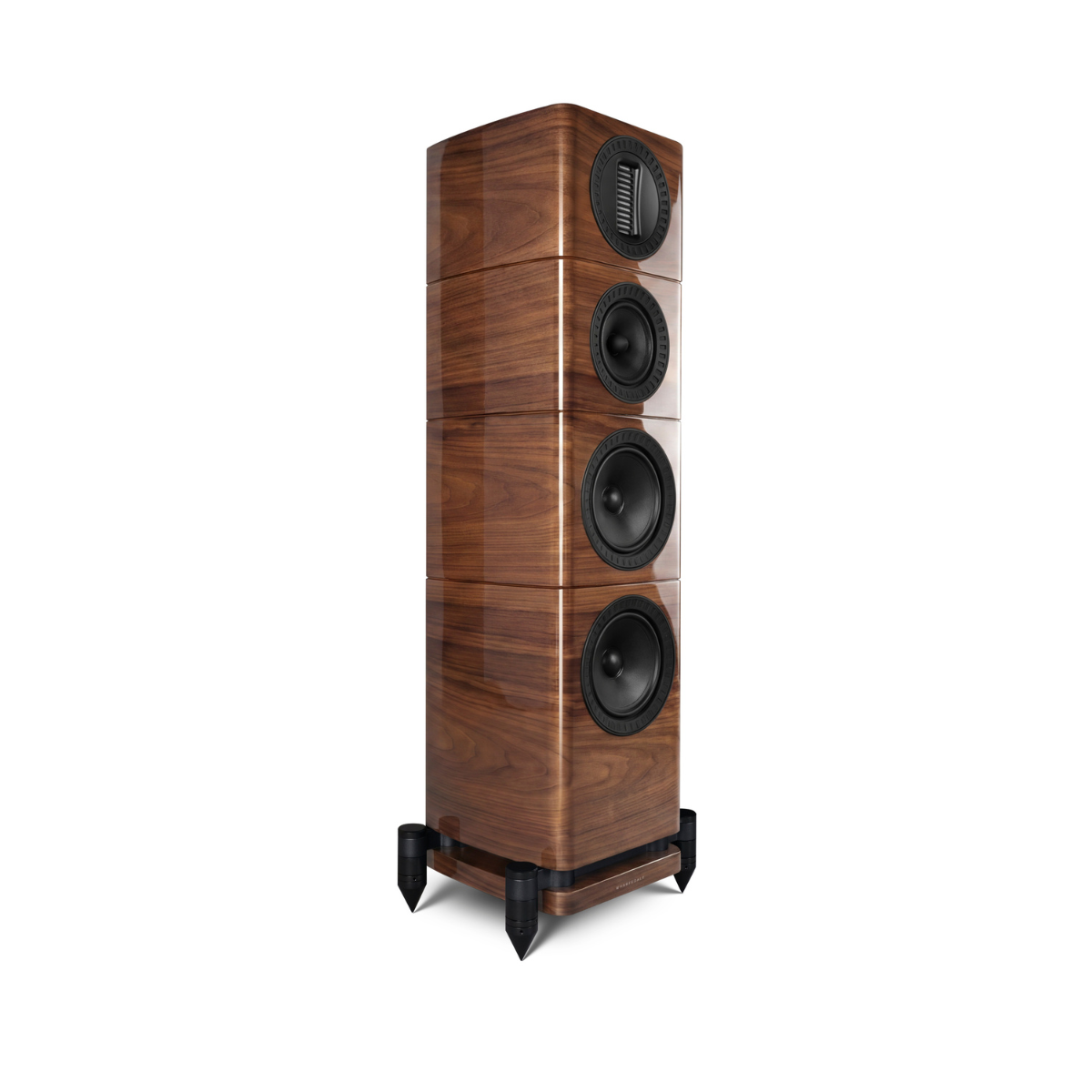

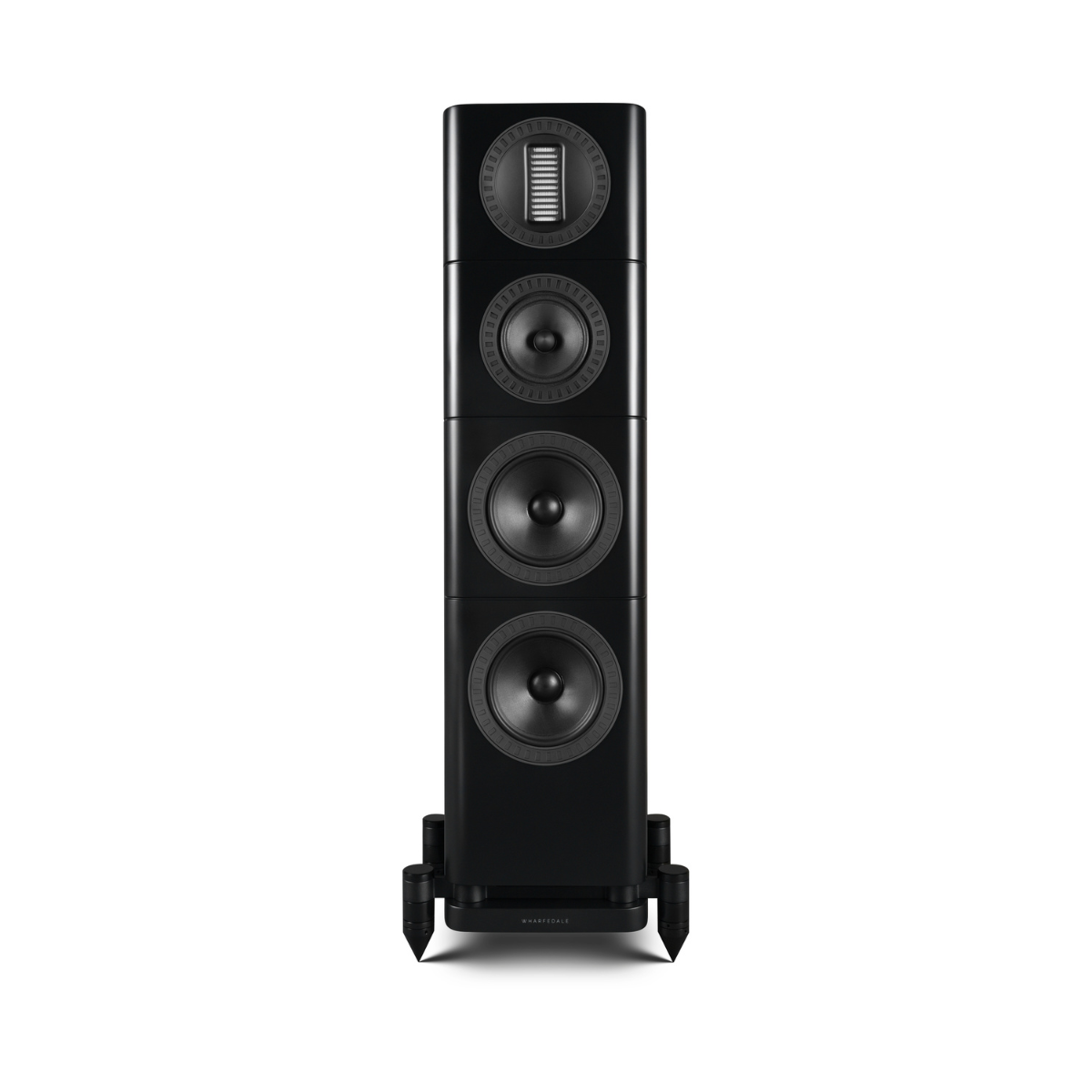

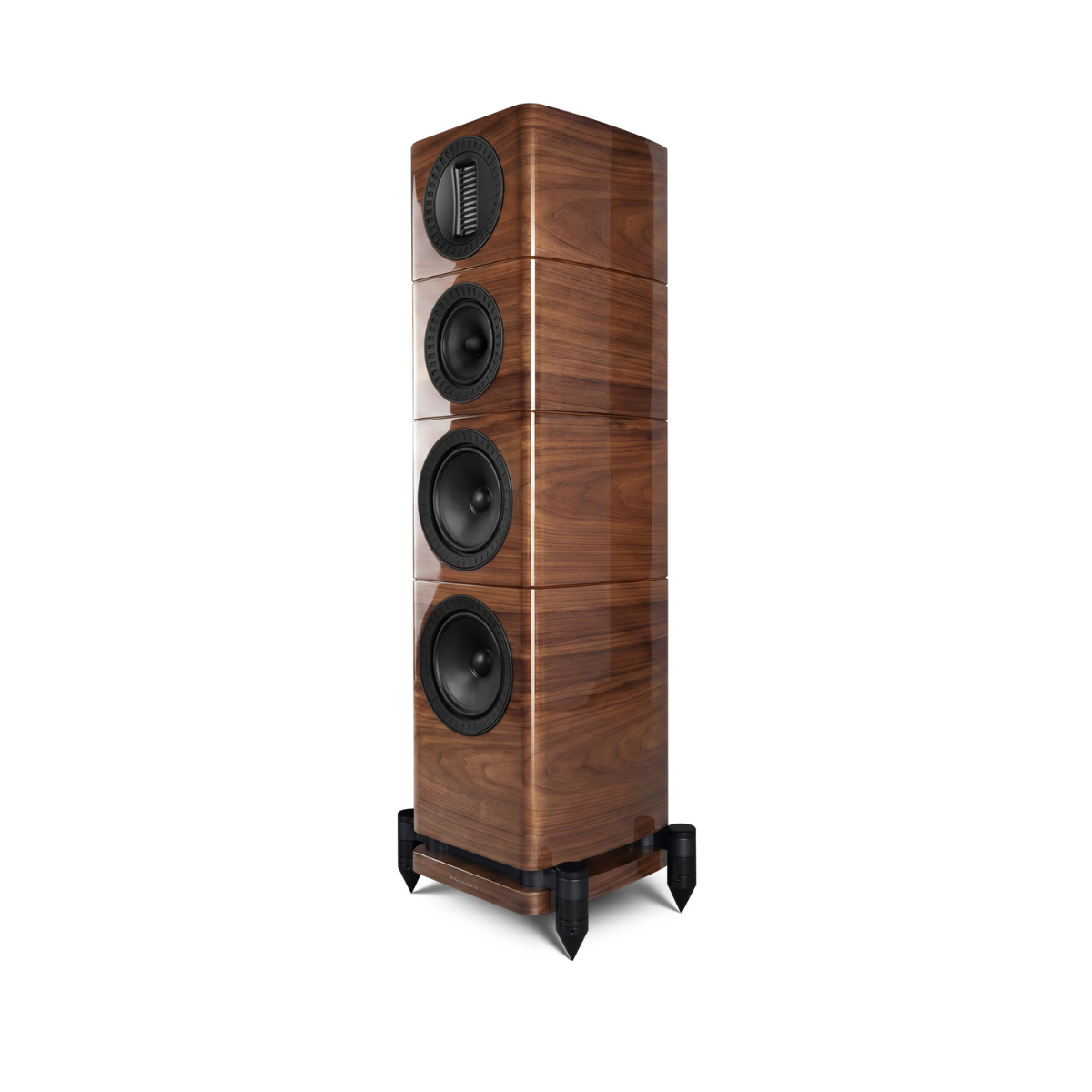

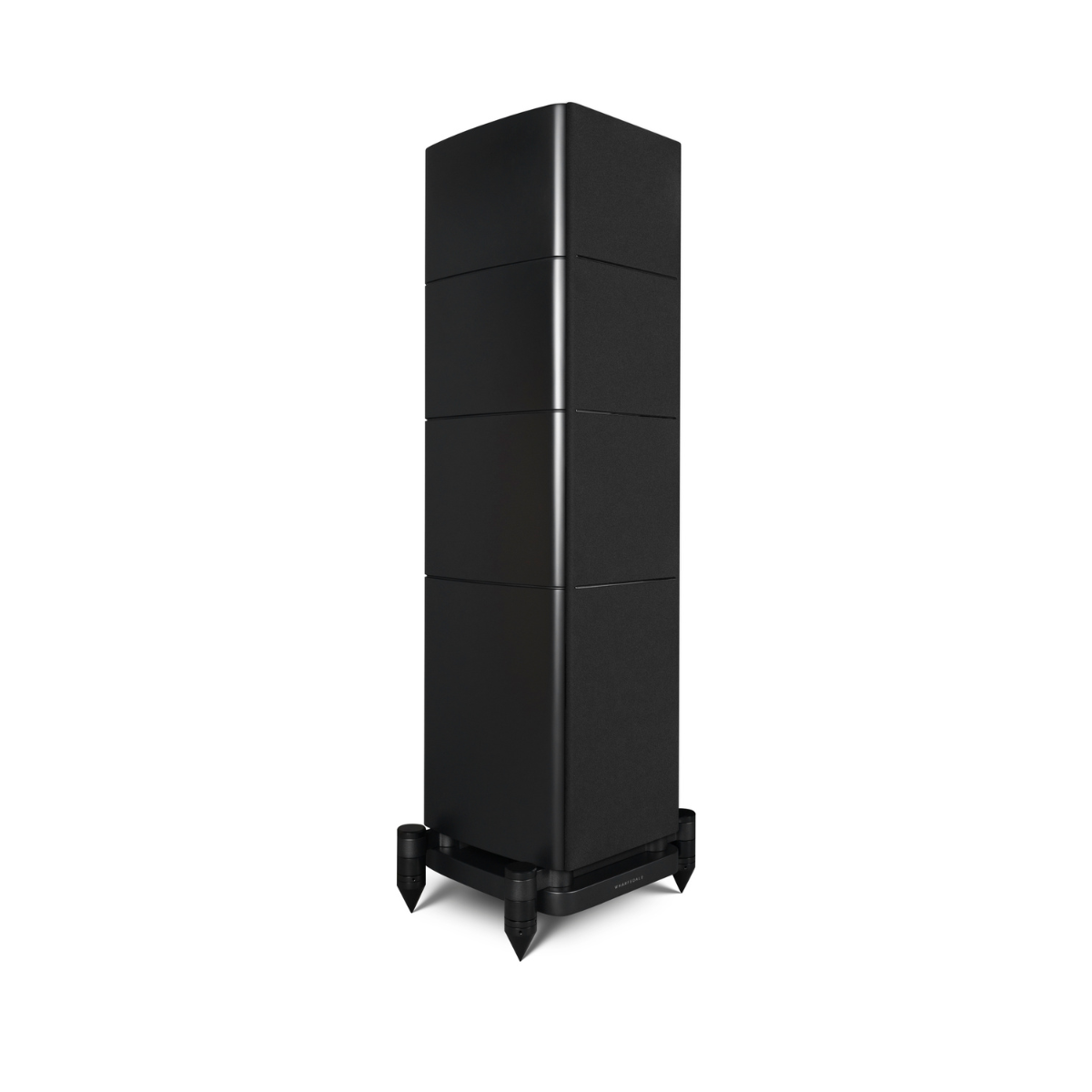

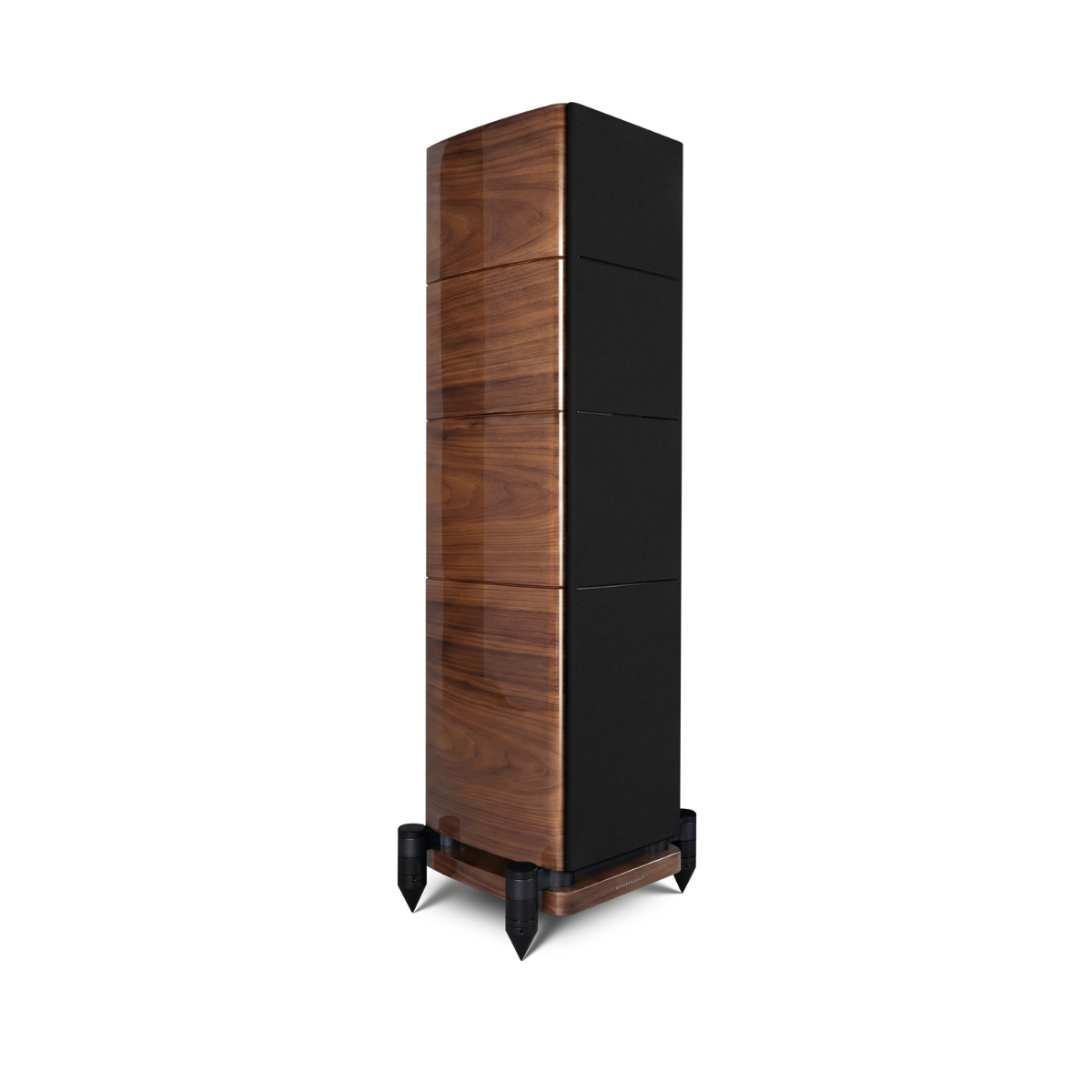

Wharfedale Elysian 3R

Compact Floor Standing Loudspeaker

Wharfedale Elysian 3R

Compact Floor Standing Loudspeaker
$9,995.00
Select Color:


Overview

Featuring dual 7 inch woofers, a 6 inch midrange driver, and a 27 by 90 mm AMT tweeter, the Wharfedale Elysian 3R floor standing speaker delivers a 44 Hz to 22 kHz response. An optimal choice for a precise sound system setup powered by 30W to 200W amplifiers.

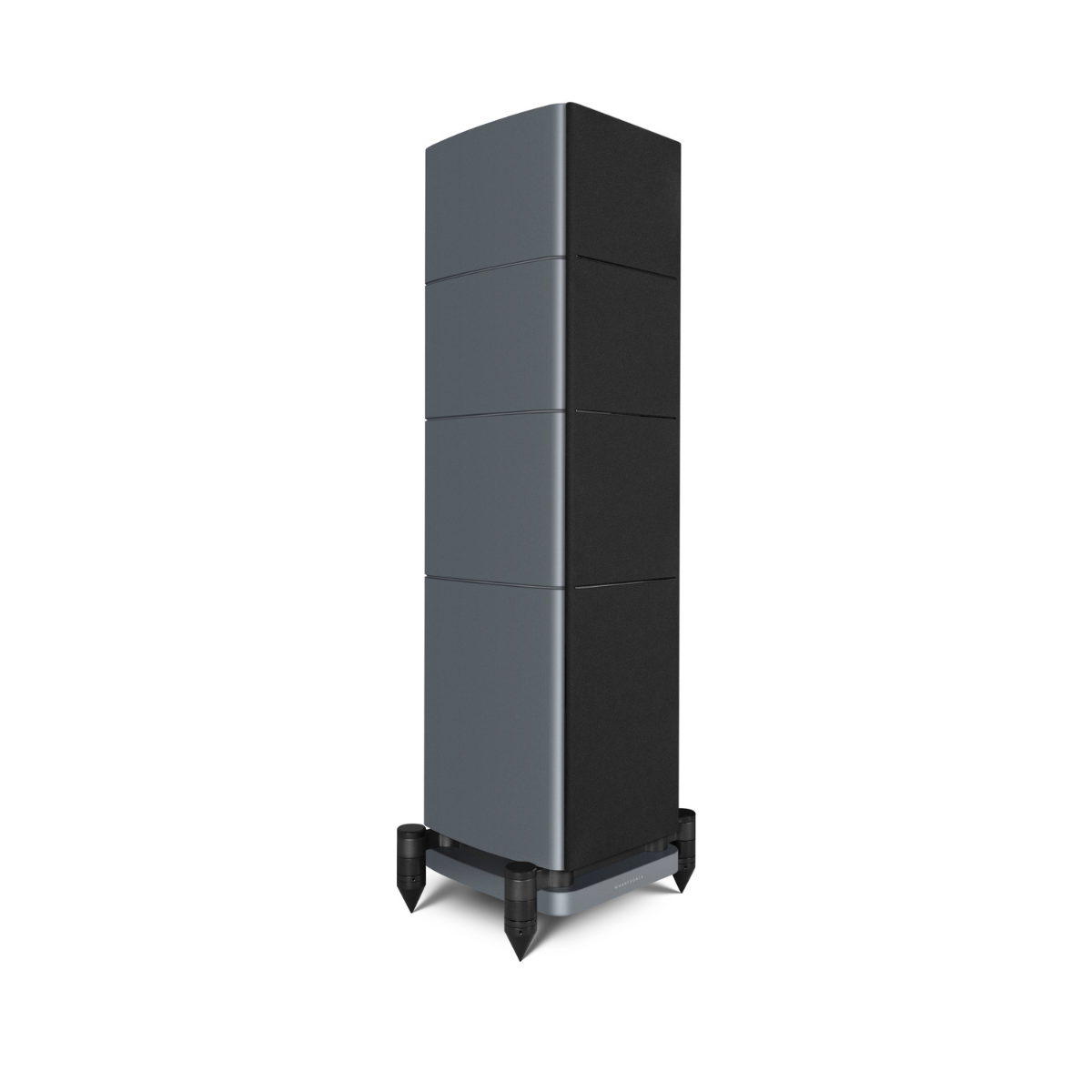

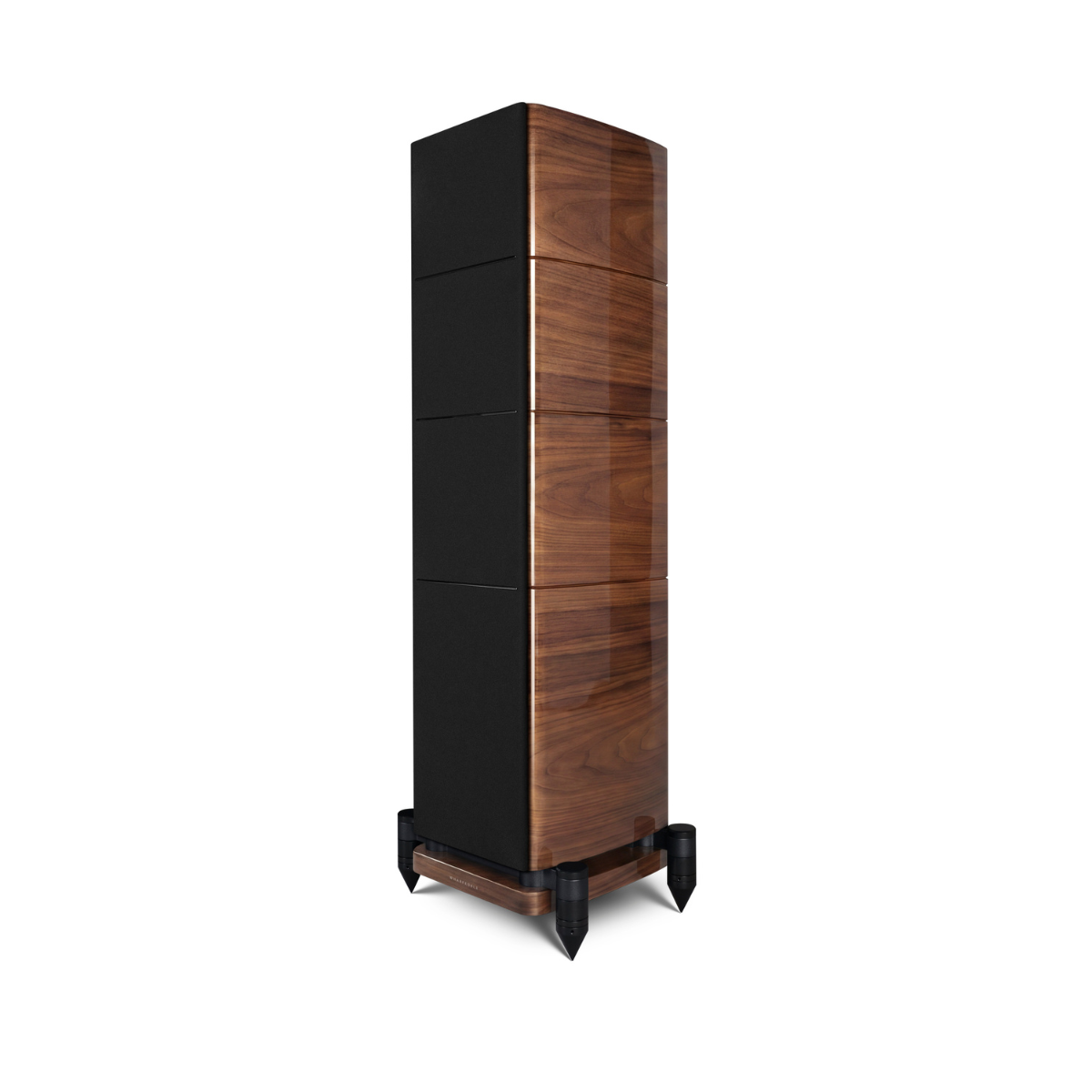

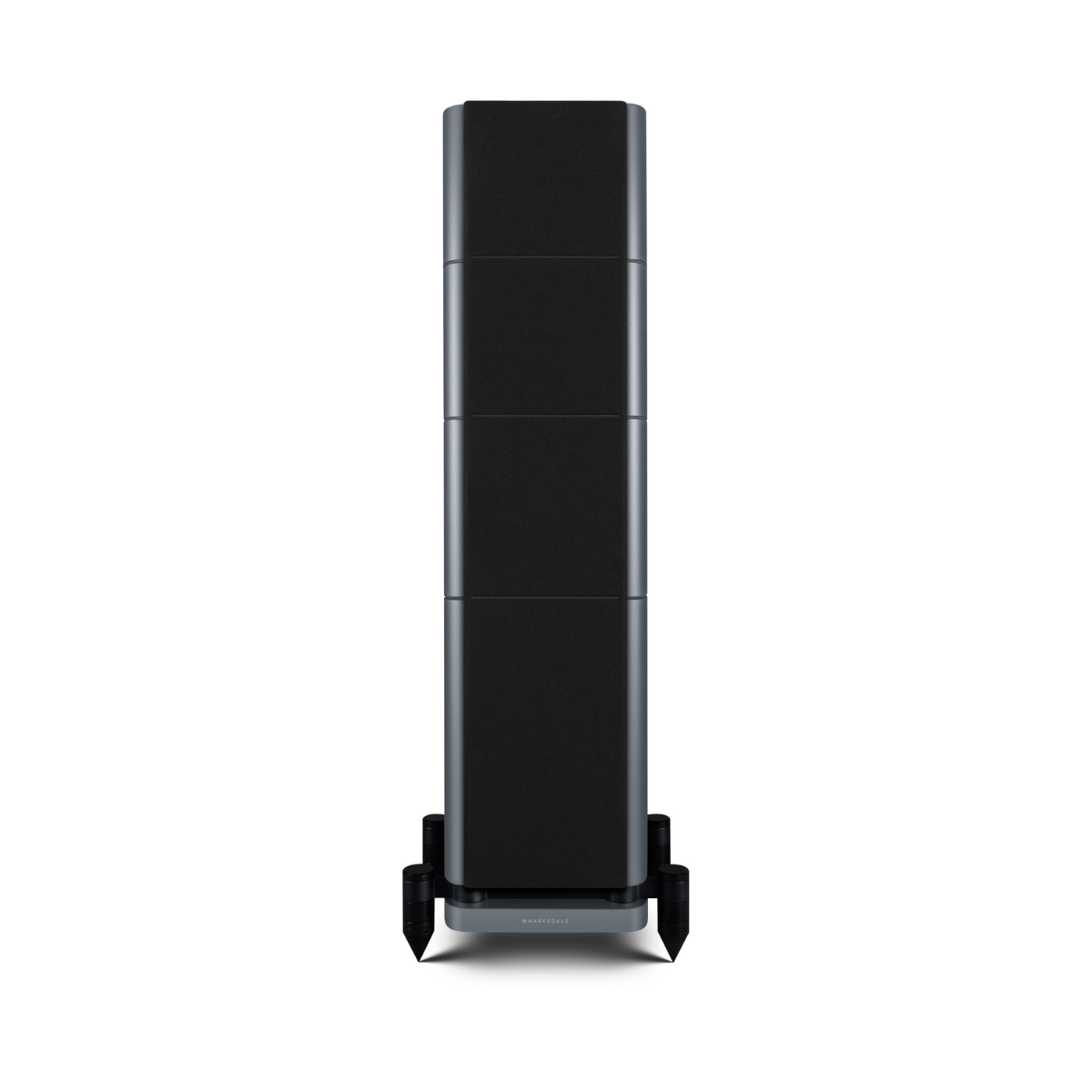

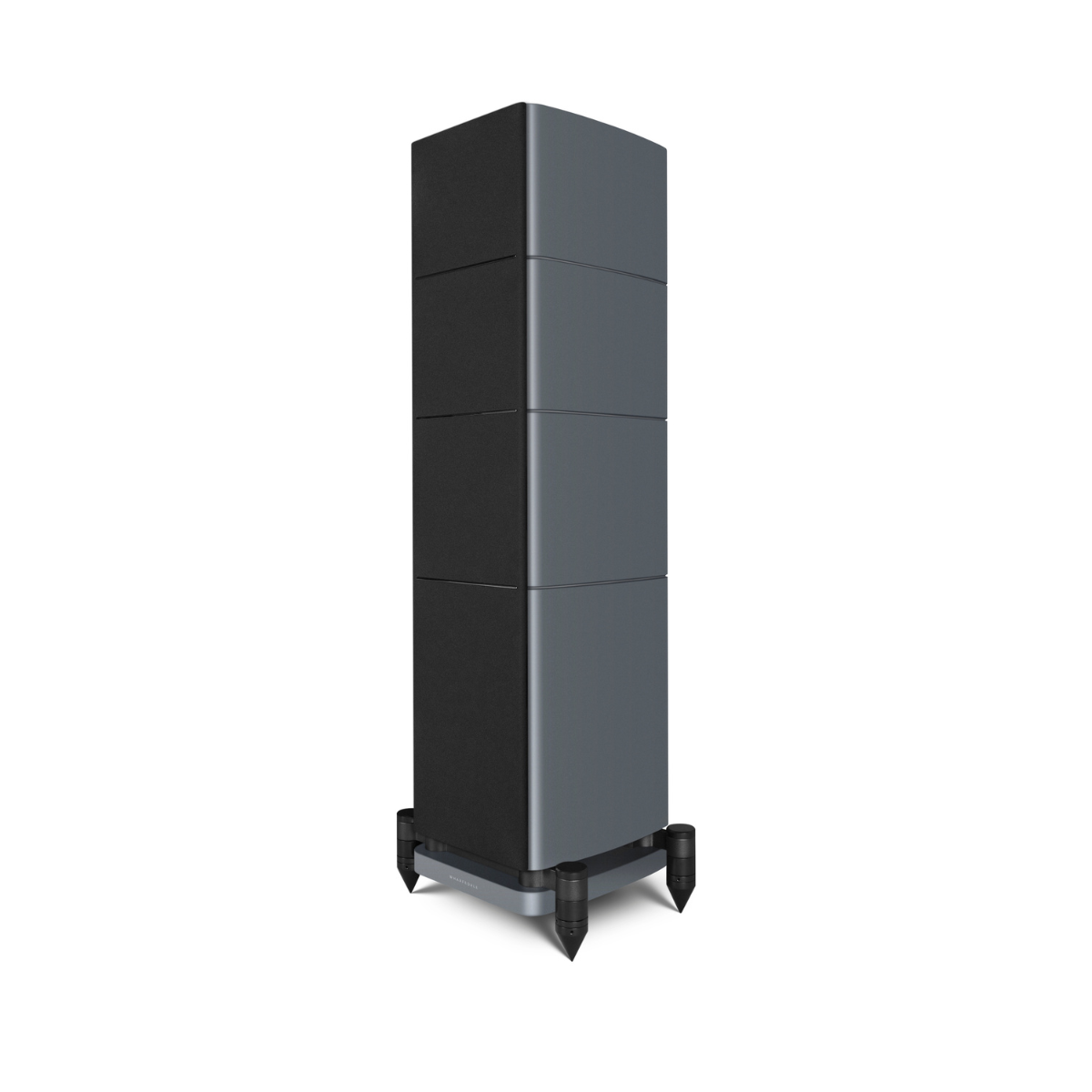

The Wharfedale Elysian 3R is a floor standing loudspeaker designed for rooms where space is at a premium but full range sound is still needed. Its bass reflex enclosure holds two separate internal volumes, one at 9.4 liters and another at 35 liters. The cabinet measures 1050 mm tall, 263 mm wide, and 315 mm deep including the rear terminals. Each speaker weighs 28.45 kg.

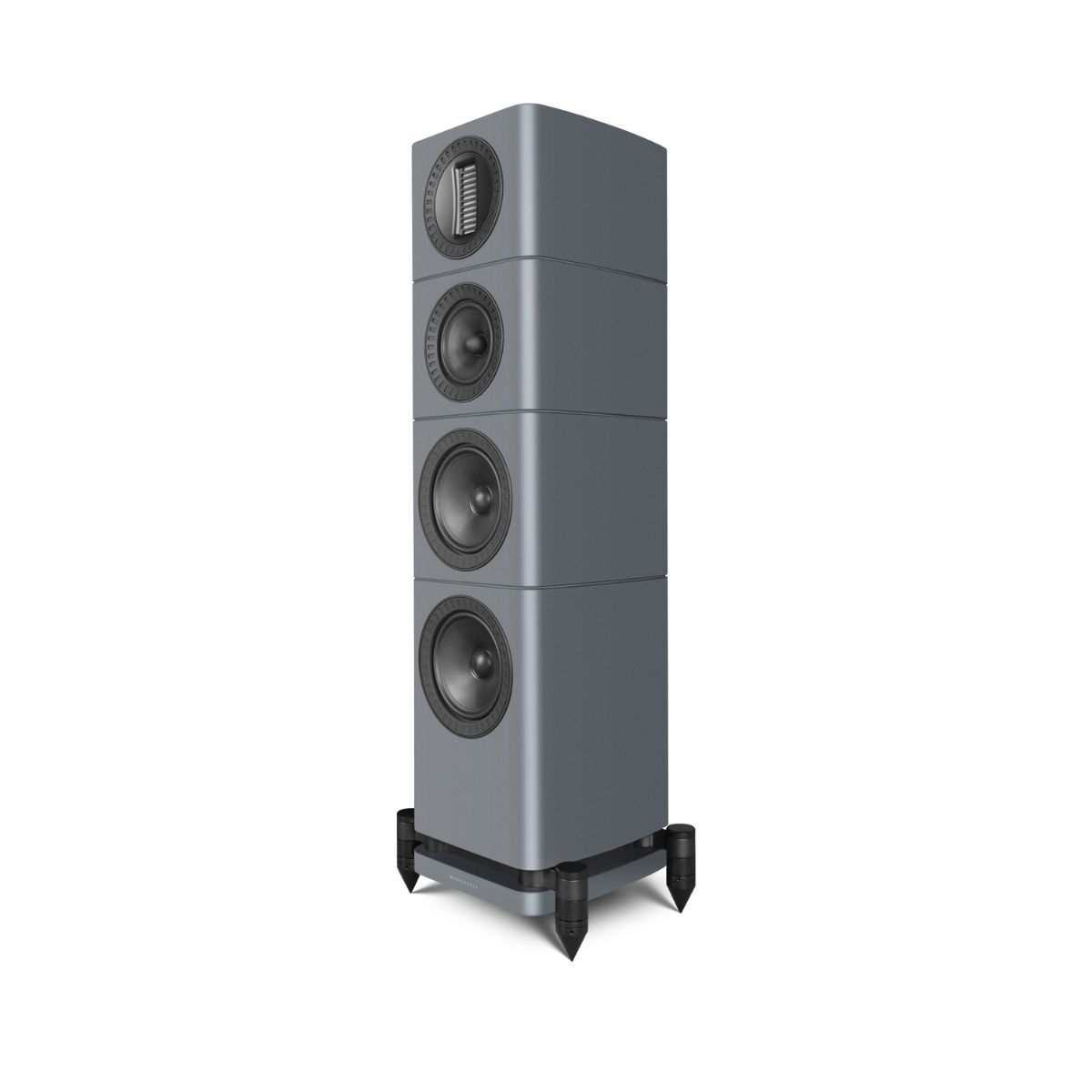

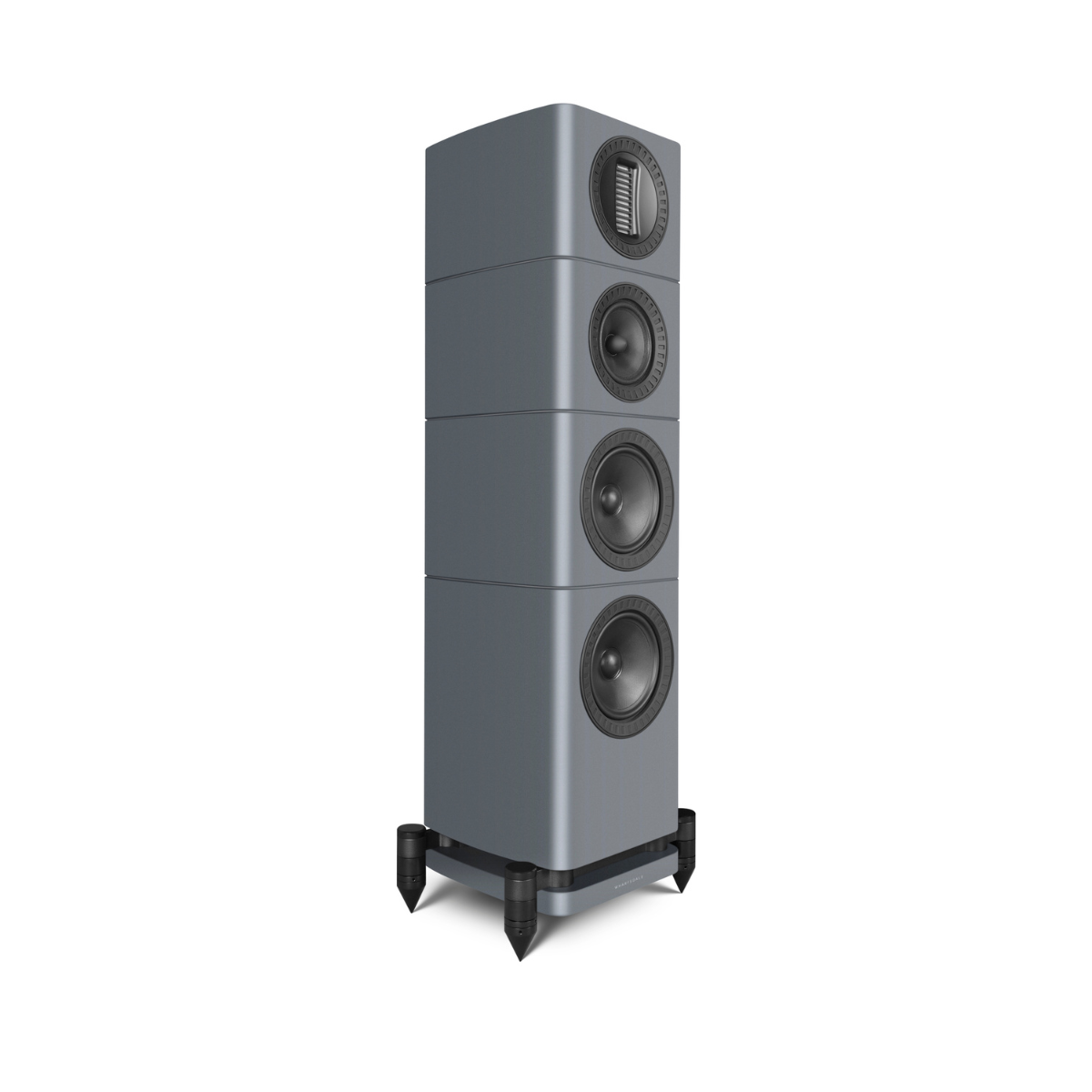

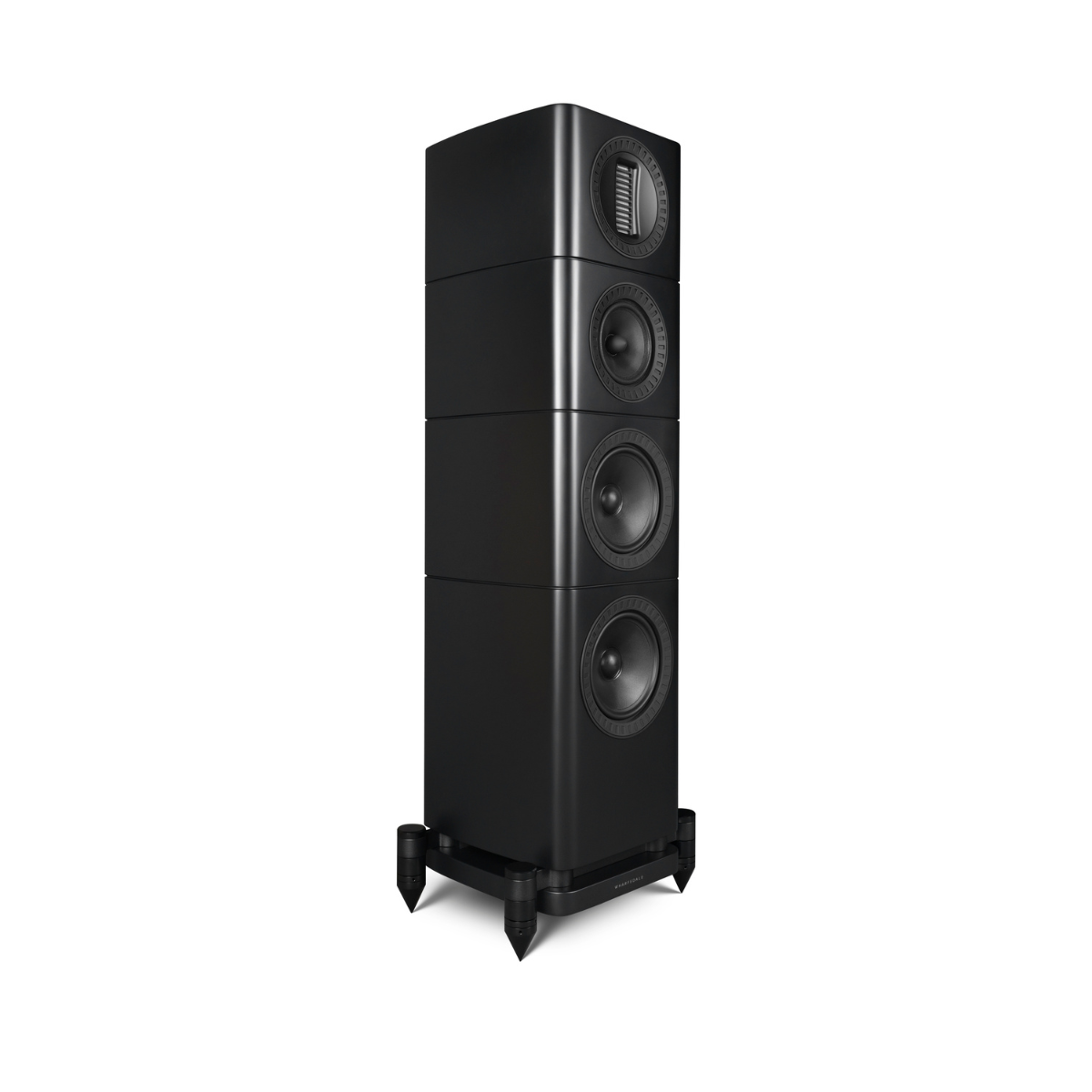

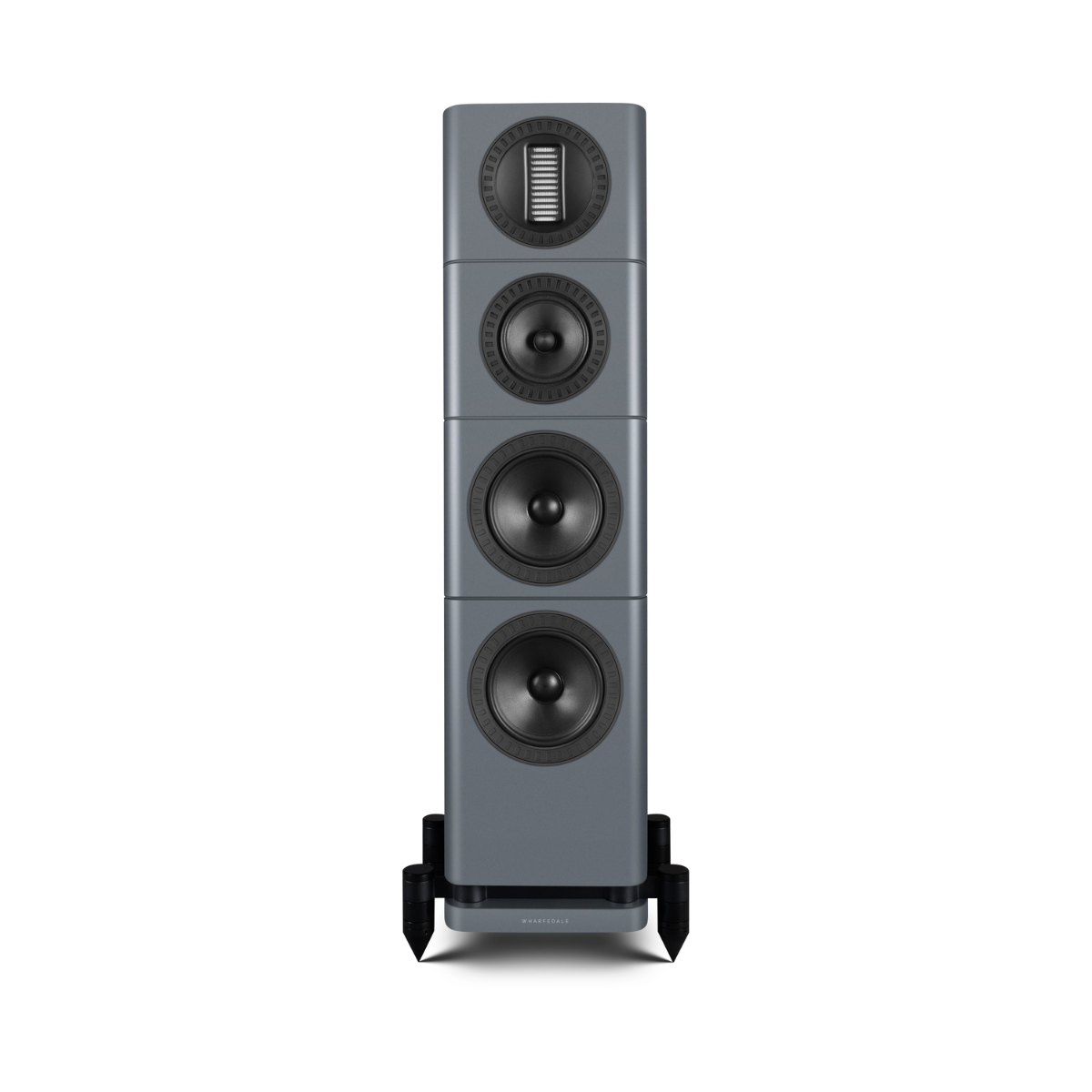

Inside, a four driver system covers the full frequency range. The Air Motion Transformer treble unit measures 27 by 90 mm and takes care of the high frequencies. A 6 inch coated glass fibre matrix cone handles the midrange. For bass, two 7 inch coated glass fibre matrix woofers are used. This setup allows the Elysian 3R to reach down to 35 Hz, with a frequency response from 44 Hz up to 22 kHz.

The crossover network divides the signal at 375 Hz and 2.9 kHz. Sensitivity is rated at 89 dB, with a peak sound pressure level of 108 dB. The speaker has a nominal impedance of 4 ohms, which works with most 8 ohm systems, and a minimum impedance of 2.3 ohms. Amplifiers from 30 to 200 watts are recommended, making the Elysian 3R a solid match for high performance audio setups.

Details & Specs

Model ELYSIAN 3R
General Description 3-way floorstanding speaker
Enclosure Type Bass reflex
Transducer Complement 3-way
Low Frequency Driver 2 × 7" (180mm) coated glass fibre matrix cone
Midrange Driver 6" (150mm) coated glass fibre matrix cone
High Frequency Driver 27 × 90mm AMT
Sensitivity (2.83V @ 1m) 89dB
Recommended Amplifier Power 30–200W
Peak SPL 108dB
Nominal Impedance 4Ω (compatible with 8Ω)
Minimum Impedance 2.3Ω
Frequency Response (±3dB) 44Hz – 22kHz
Bass Extension (-6dB) 35Hz
Crossover Frequency 375Hz, 2.9kHz
Cabinet Volume 9.4L, 35L
Height (on plinth) 1050mm
Width (on plinth) 263mm

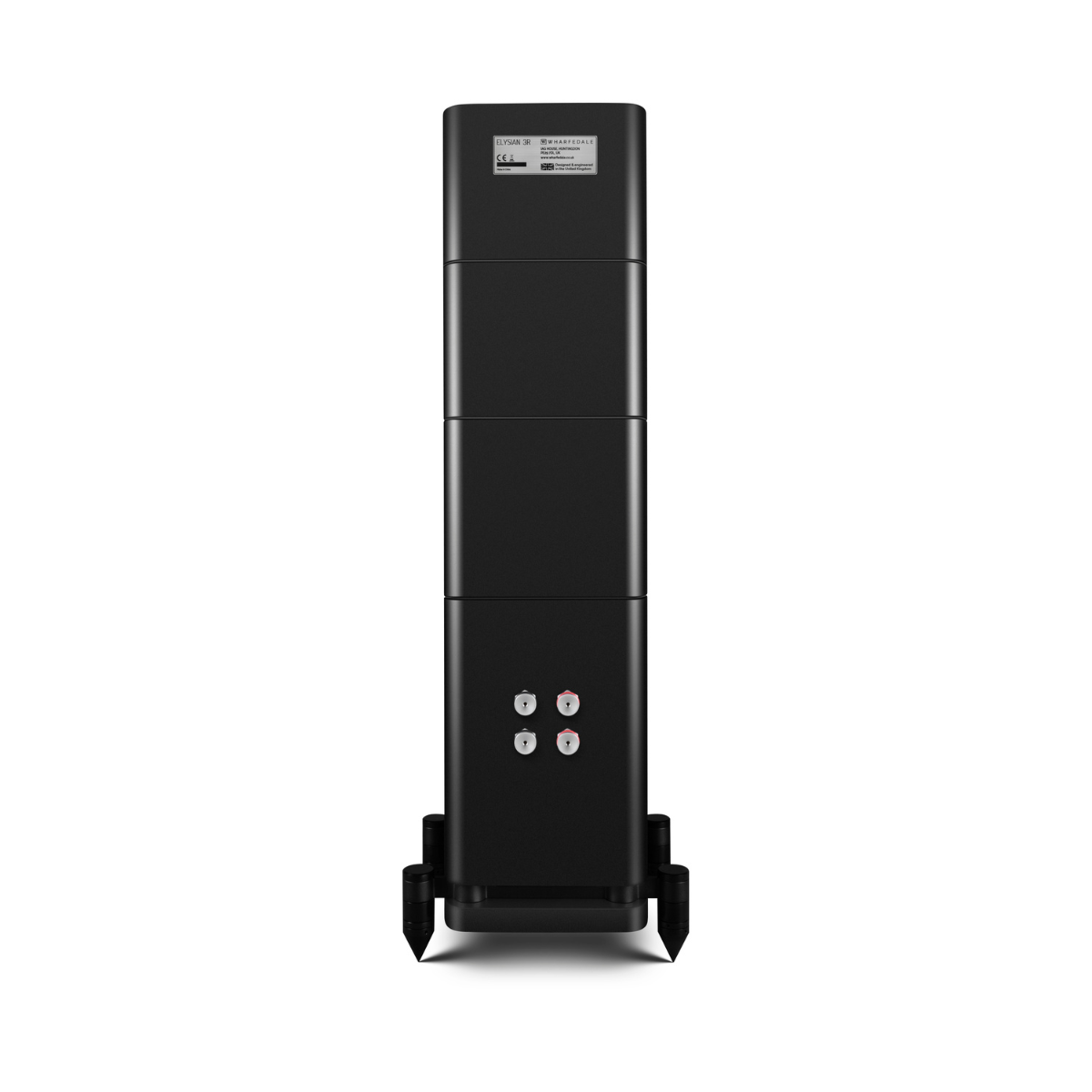

Depth (with terminals) (285 + 30)mm
Carton Size 425 × 415 × 1155mm
Net Weight 28.45kg / pcs
Gross Weight 35.37kg / ctn
