Wharfedale Elysian 3R

Three-way Stand Mount Loudspeaker

Wharfedale Elysian 3R

Three-way Stand Mount Loudspeaker
$8,495.00
Select Color:


Overview

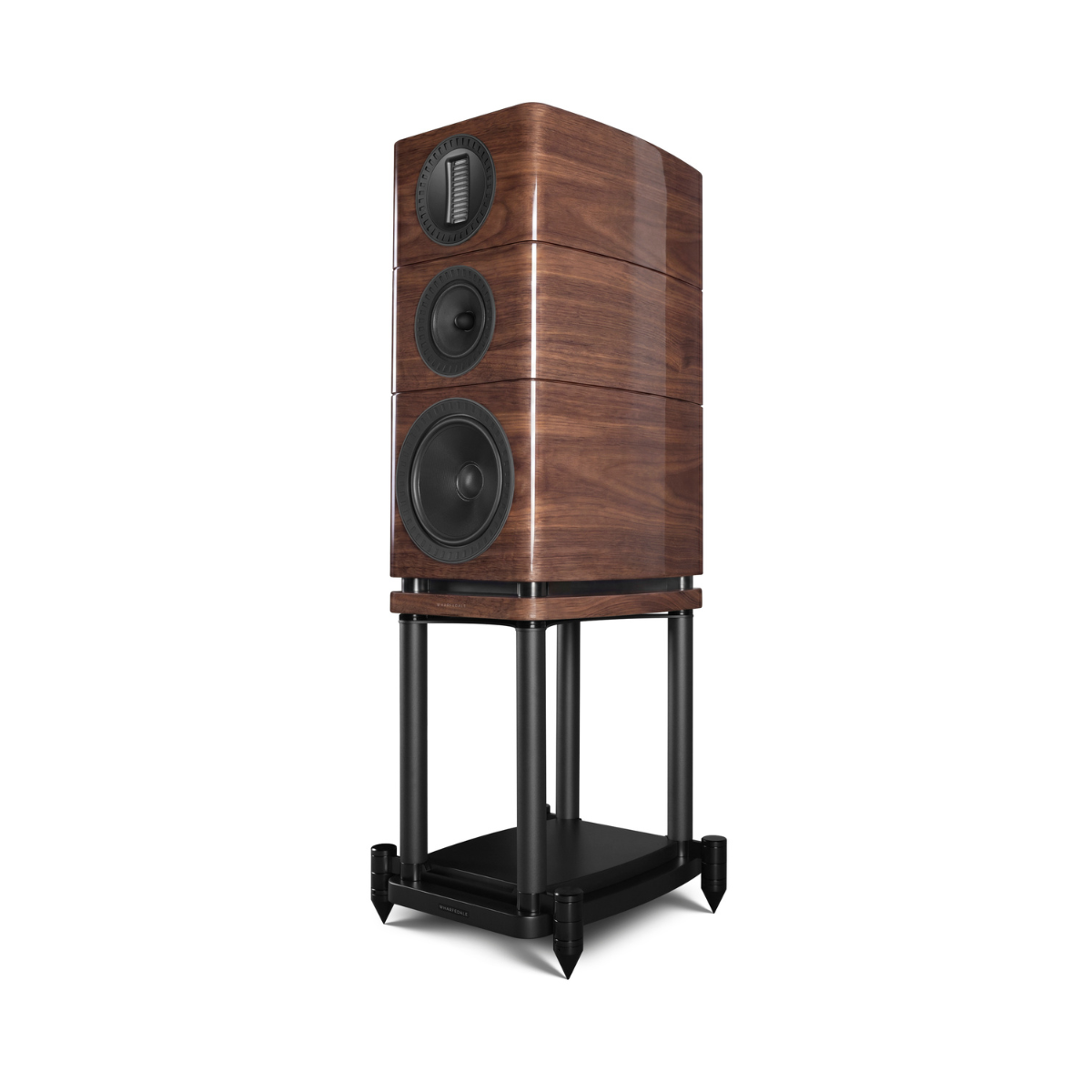

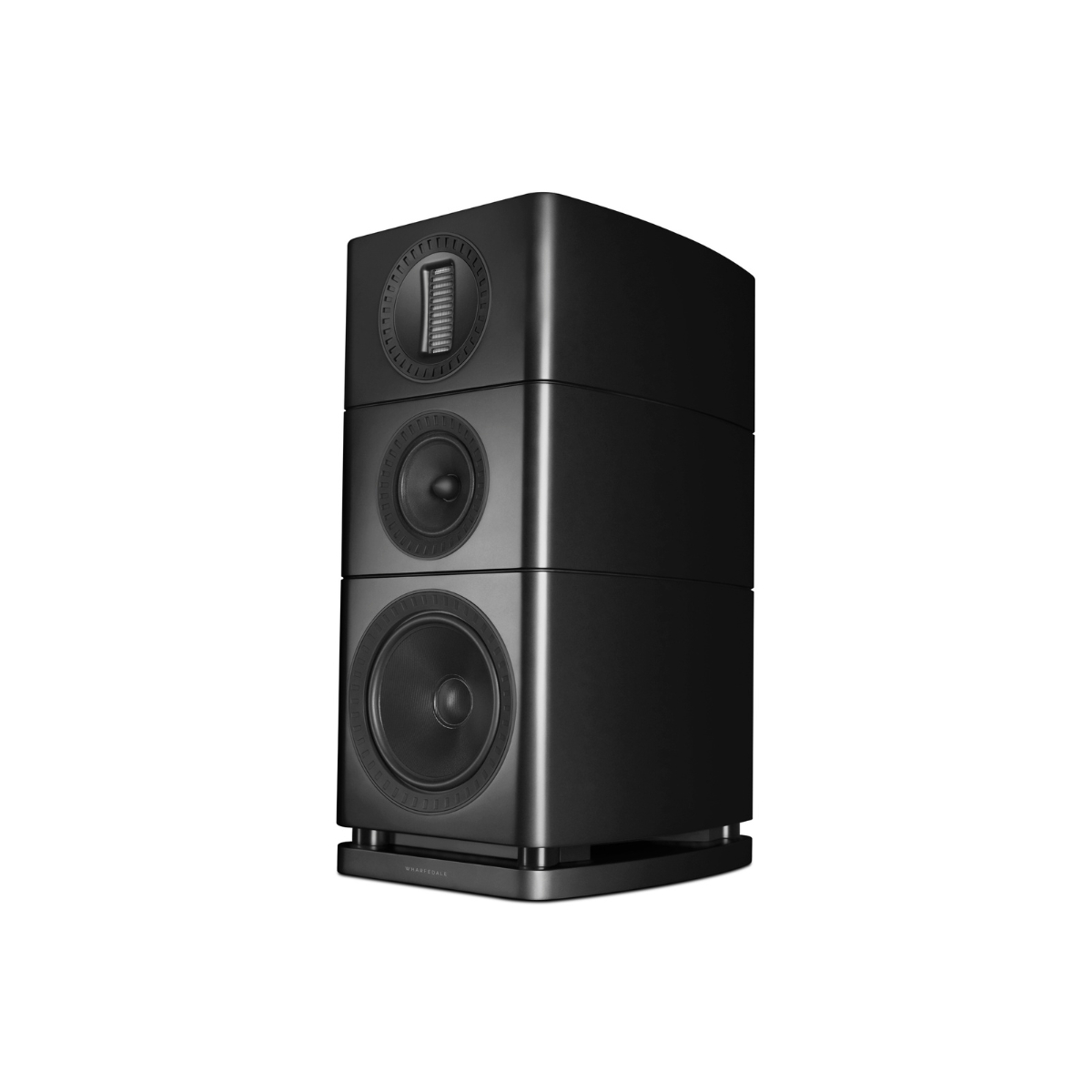

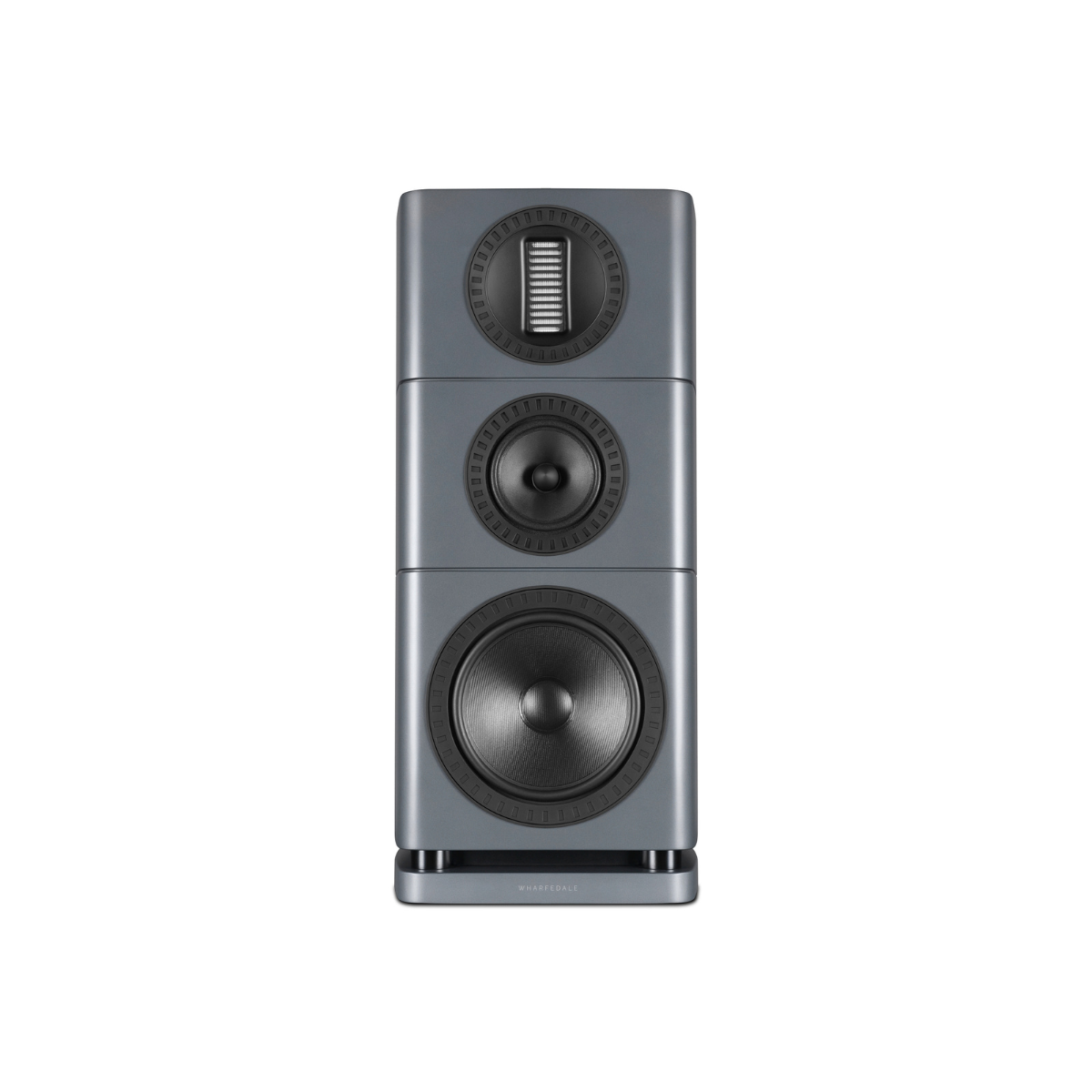

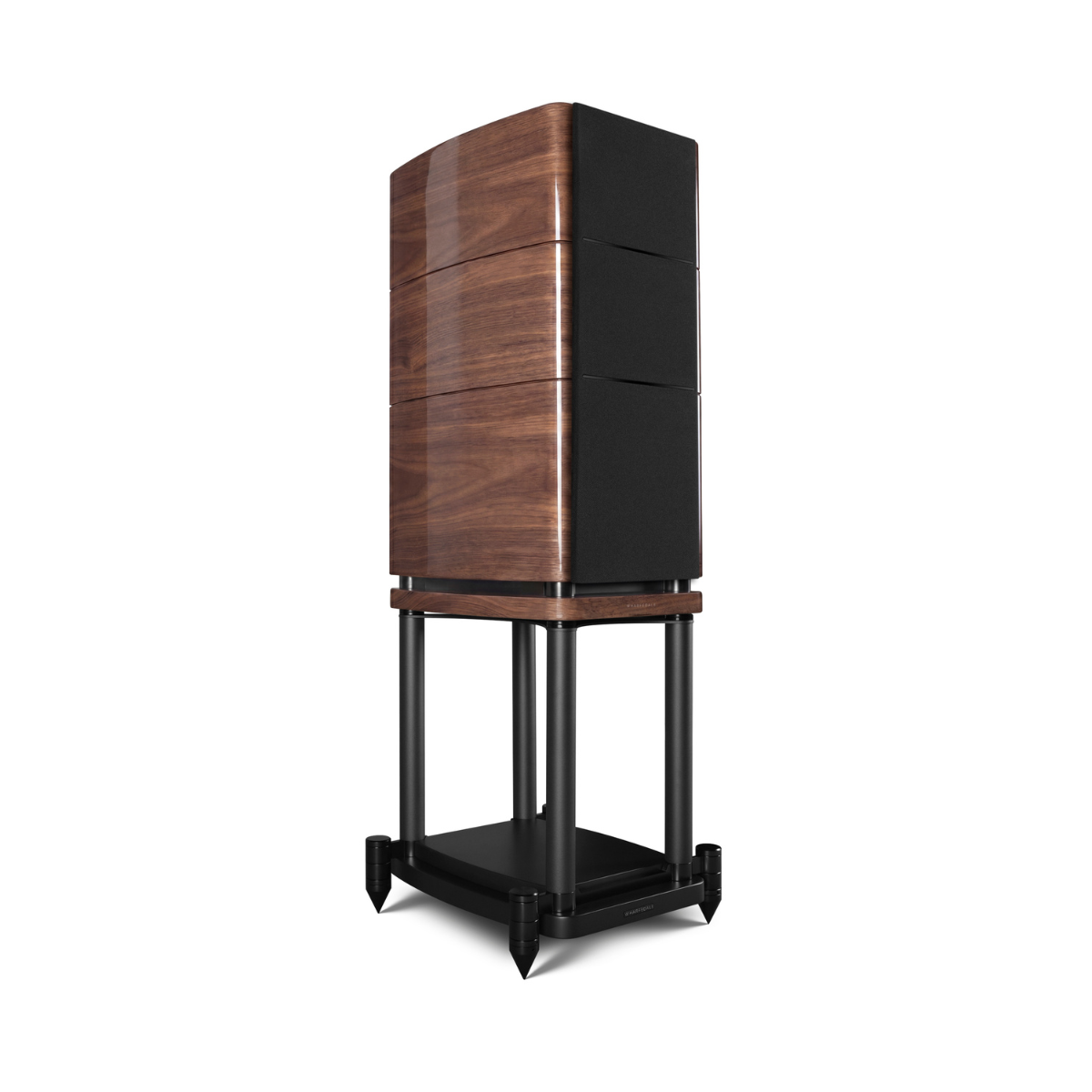

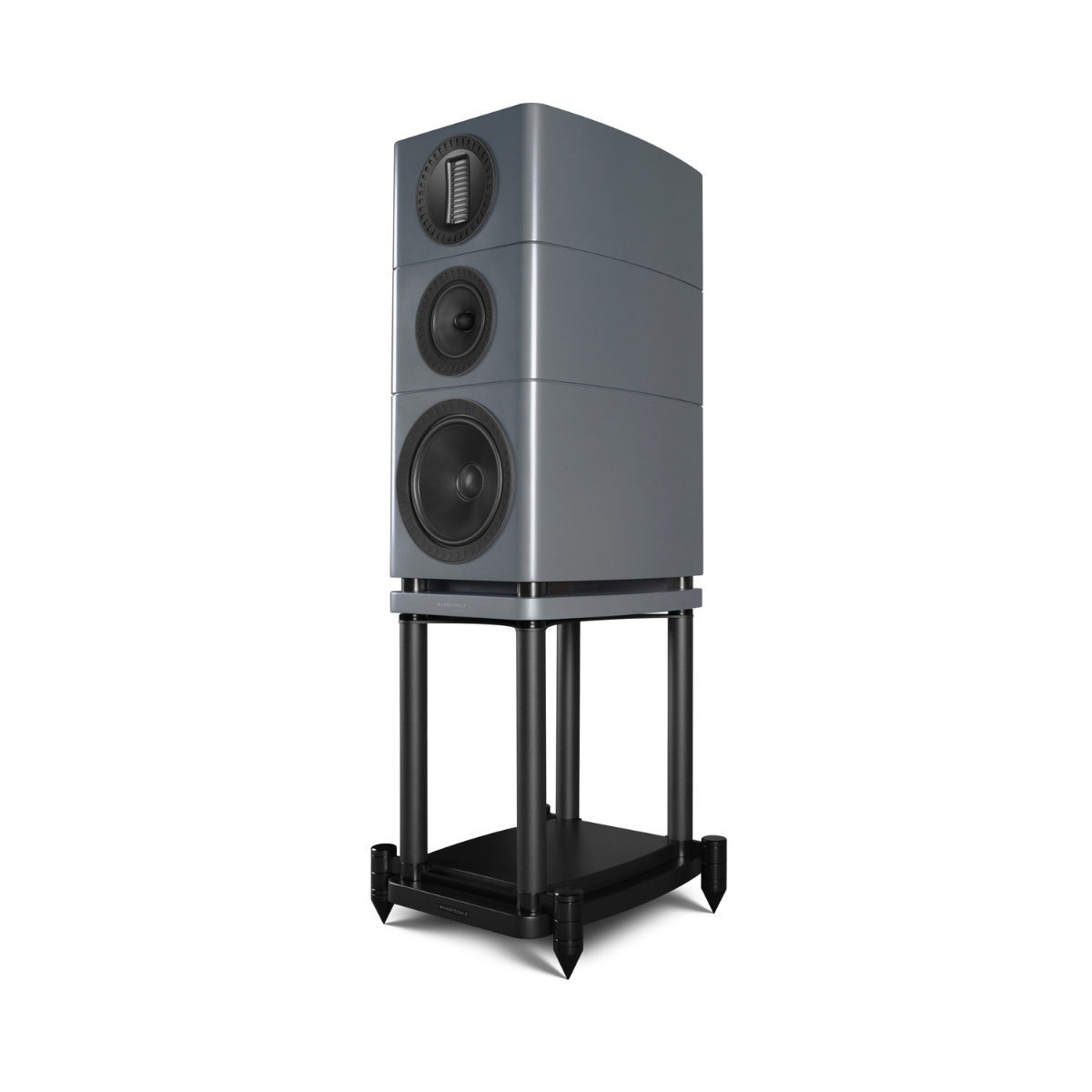

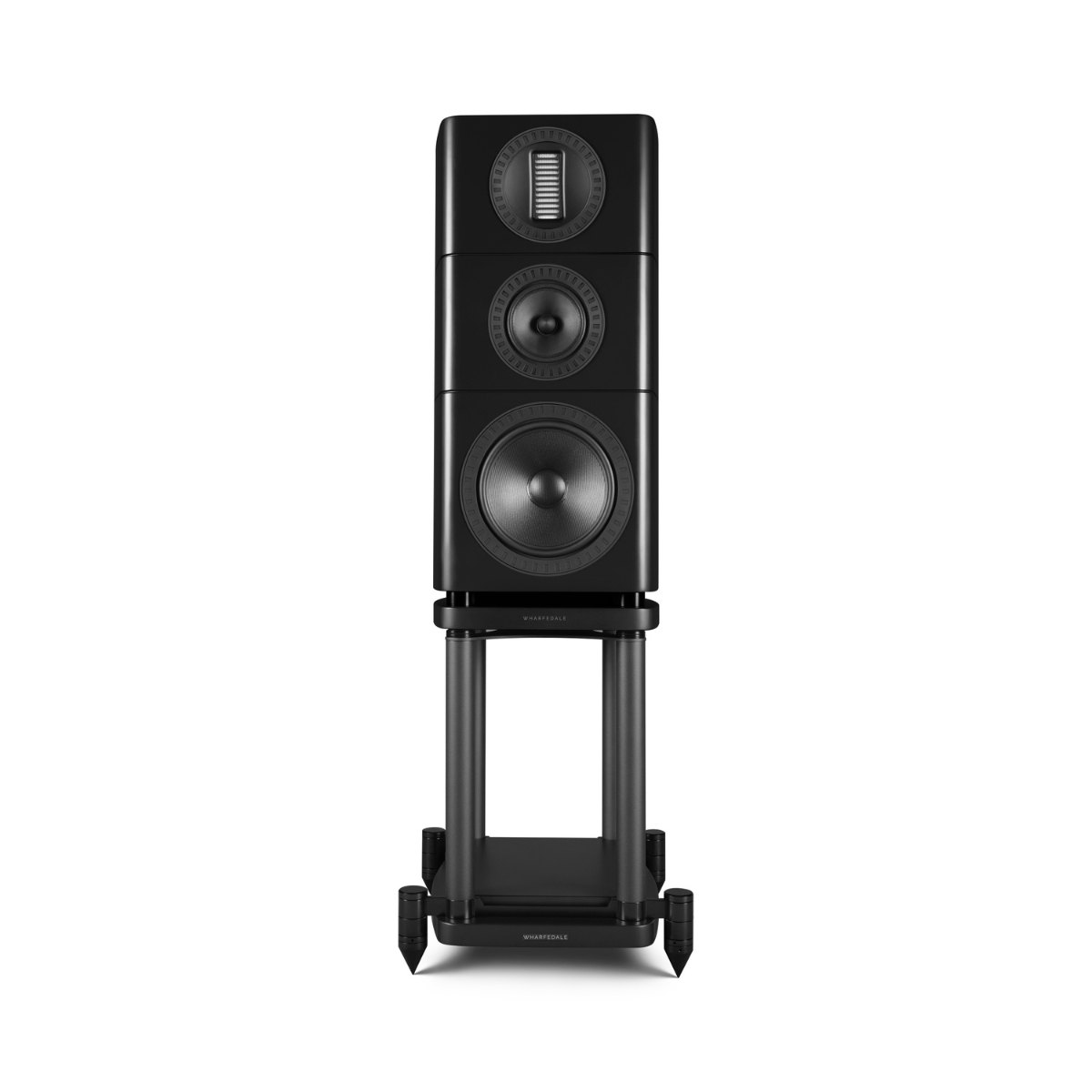

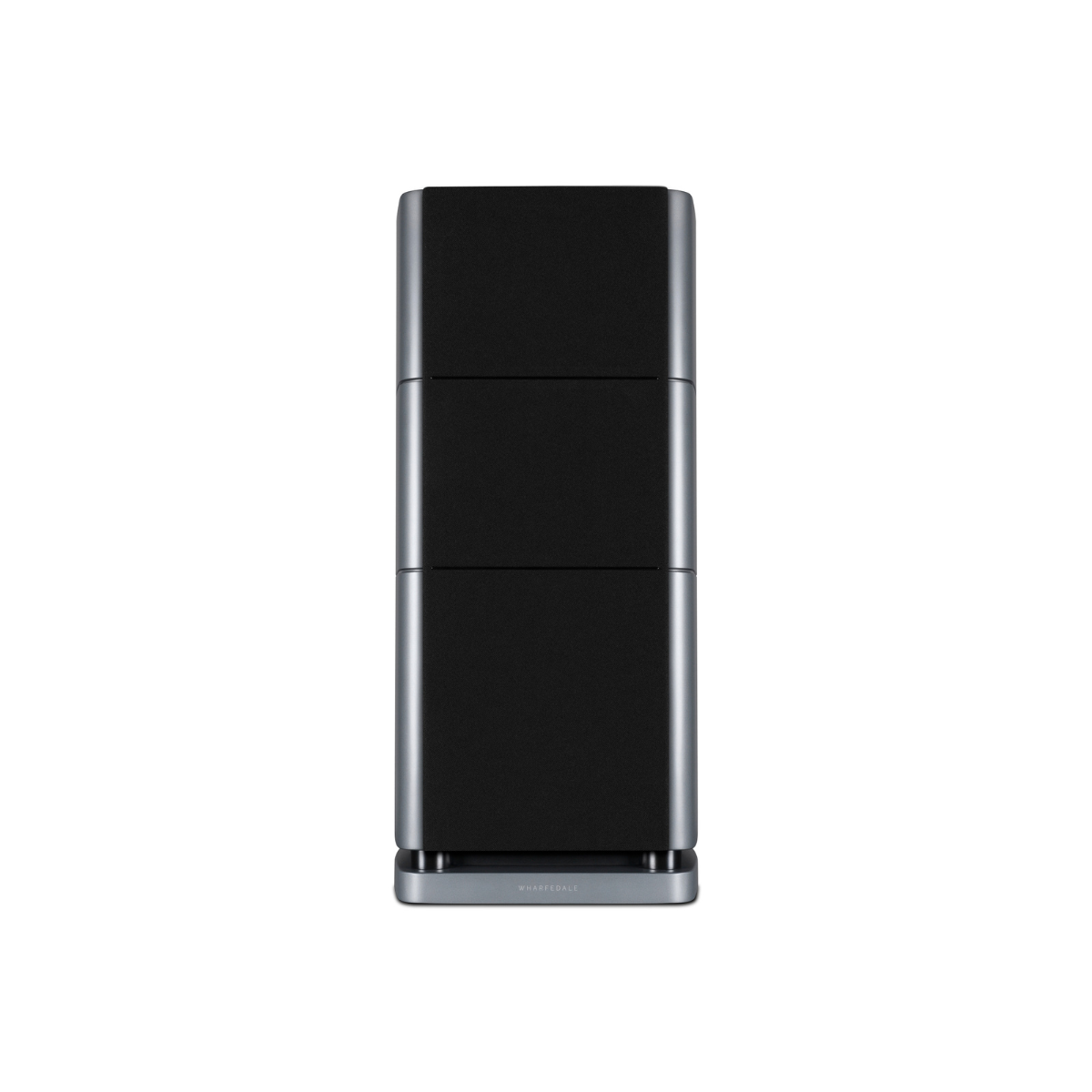

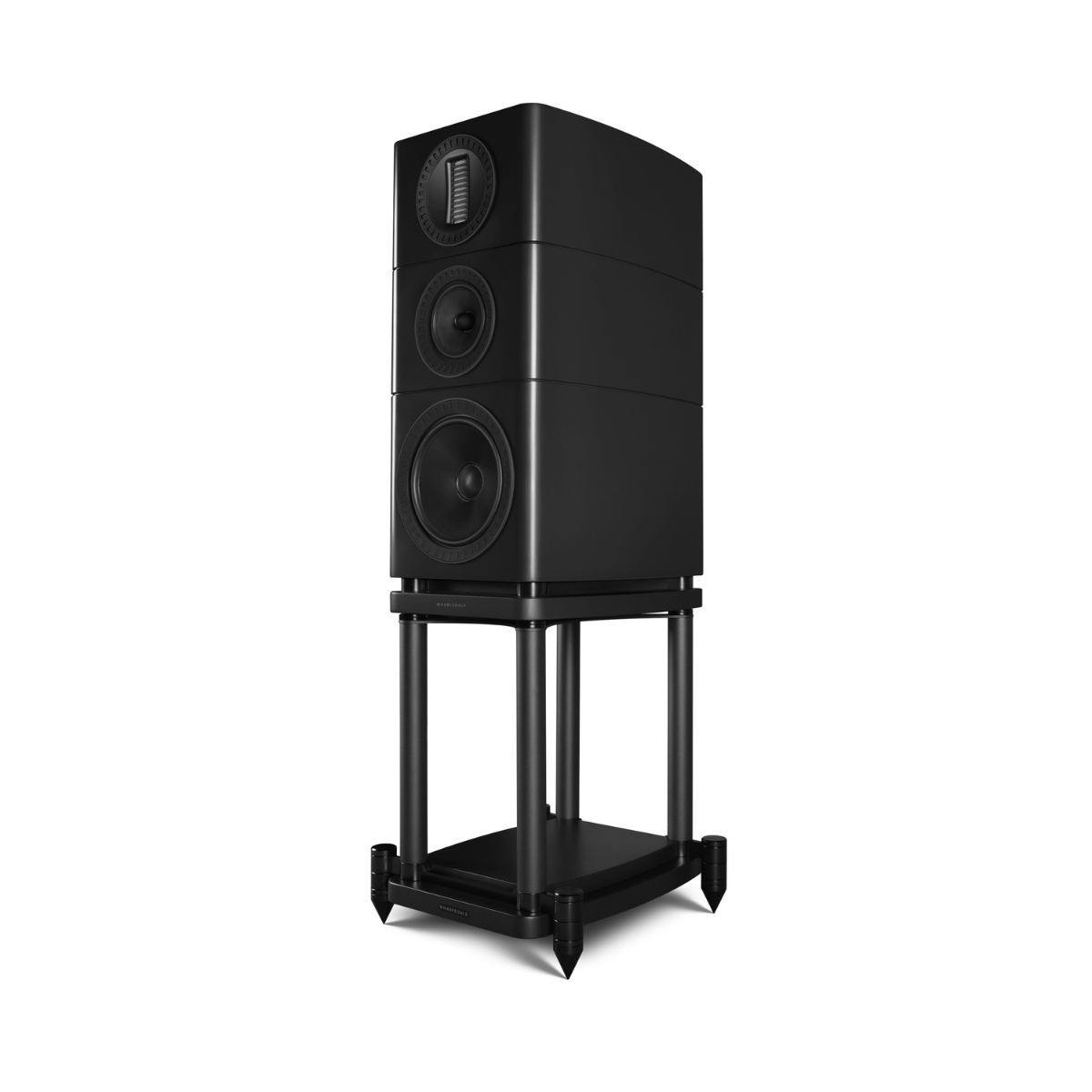

Featuring an 8.5 inch woofer, 6 inch midrange driver, and 27 by 90 mm AMT tweeter, the Wharfedale Elysian 2R three way stand mount speaker delivers a 35 Hz to 22 kHz response. An optimal choice for a high performance sound system setup powered by 25W to 250W amplifiers.

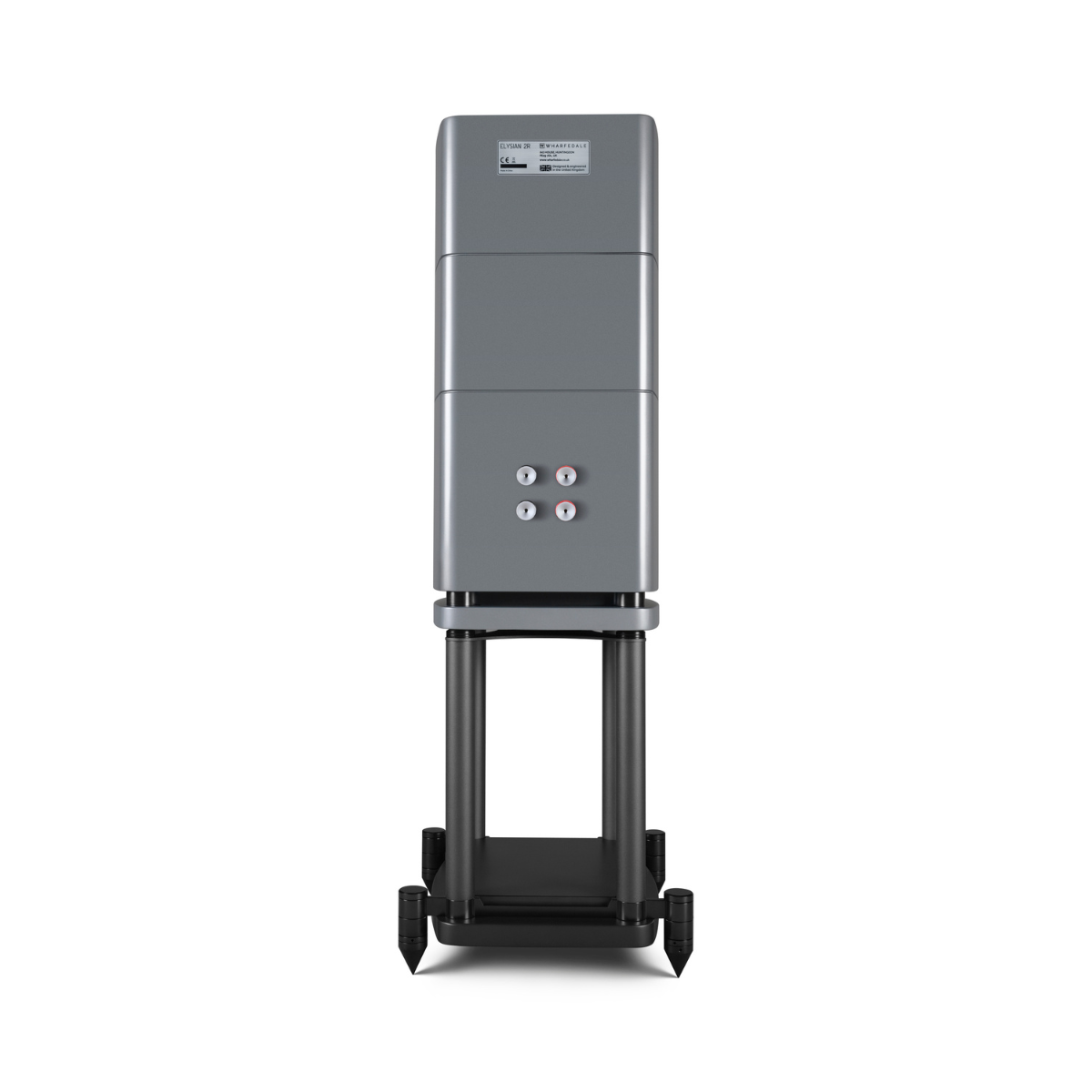

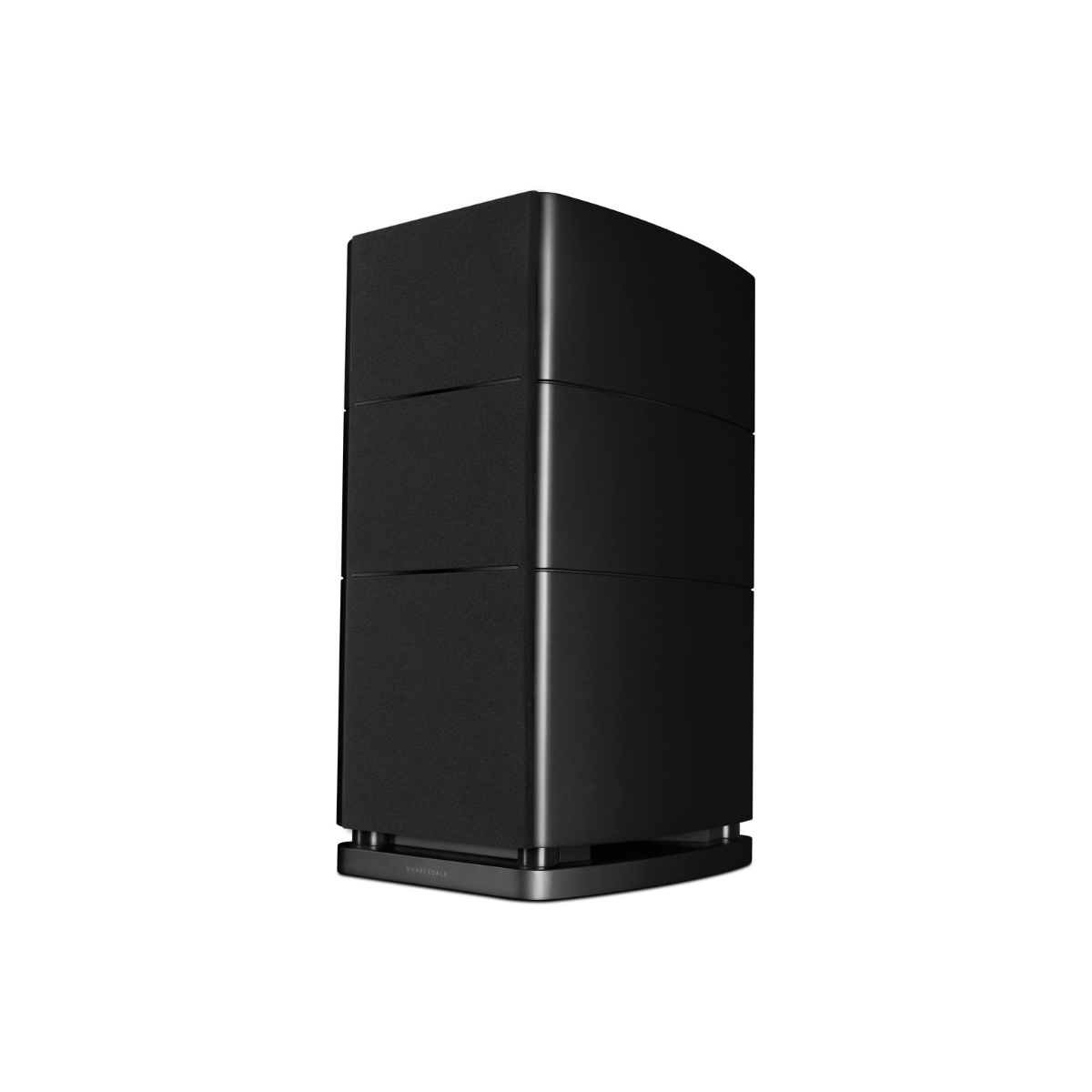

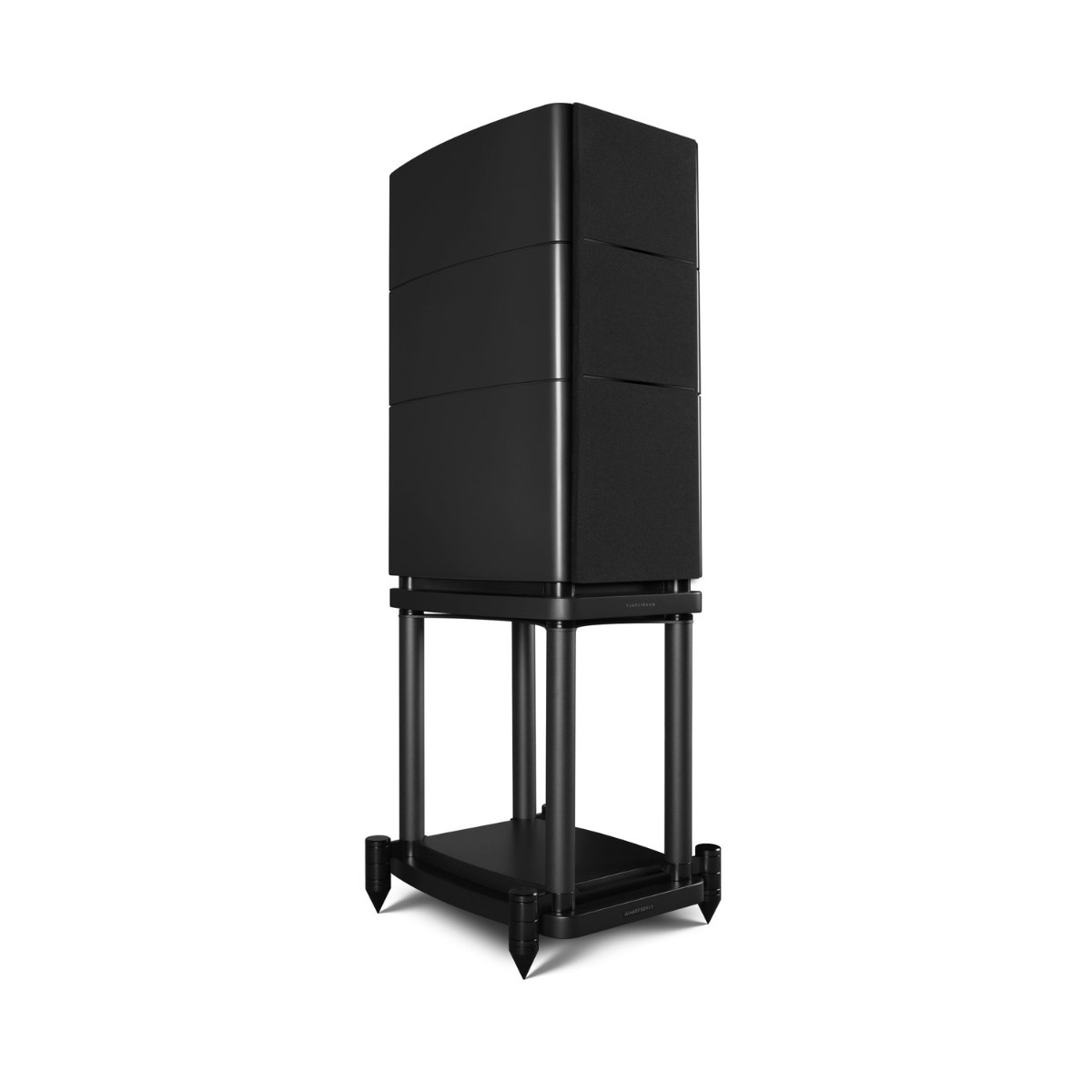

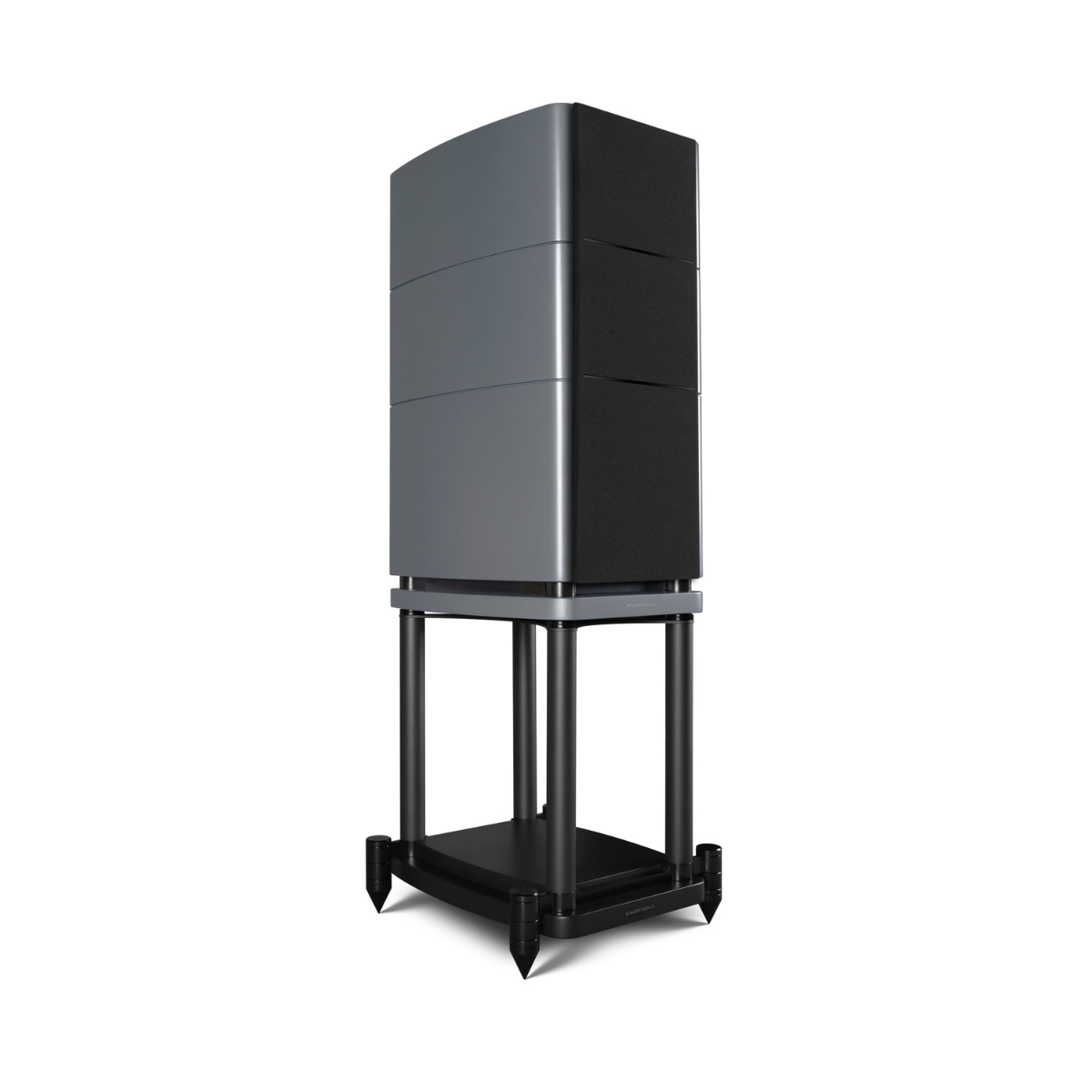

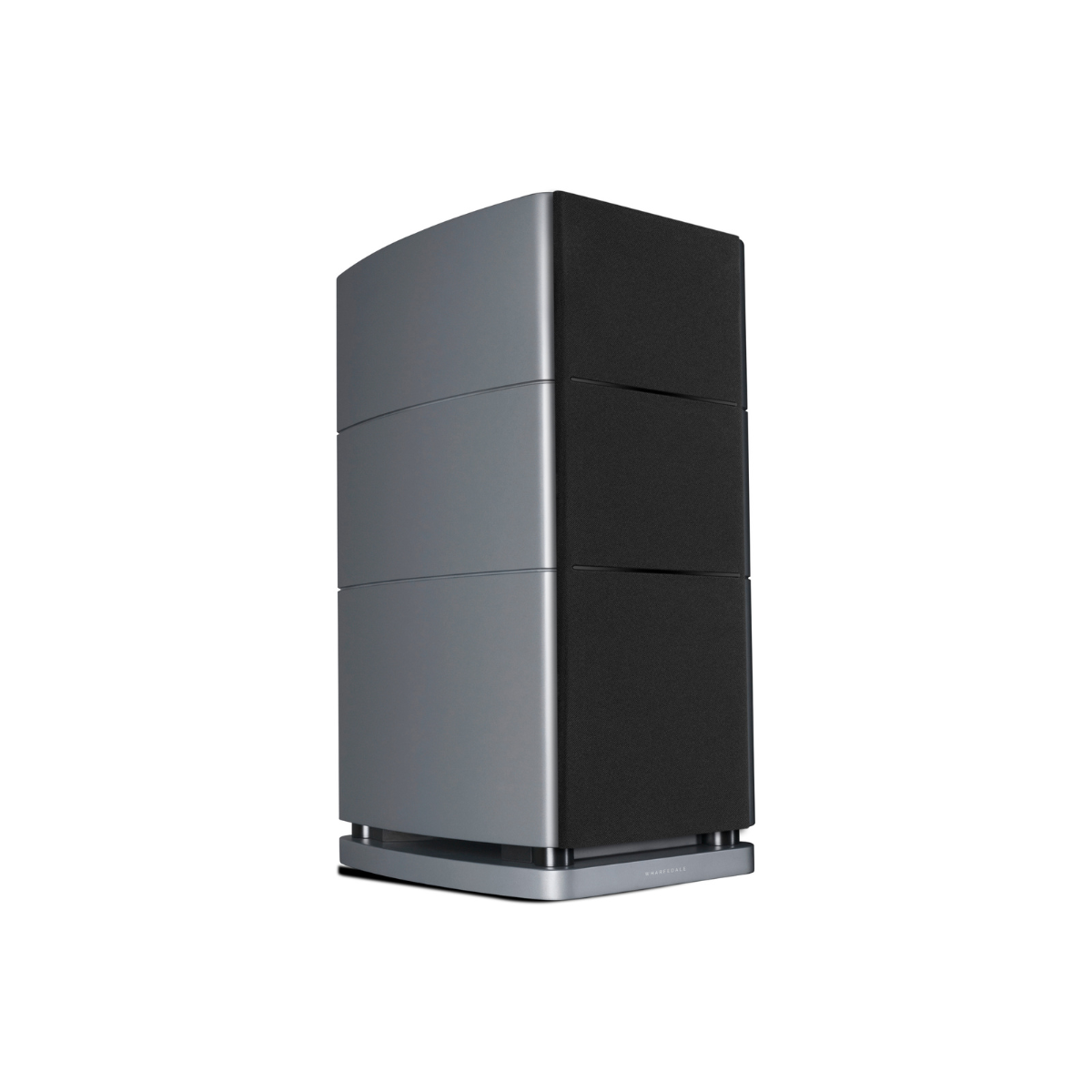

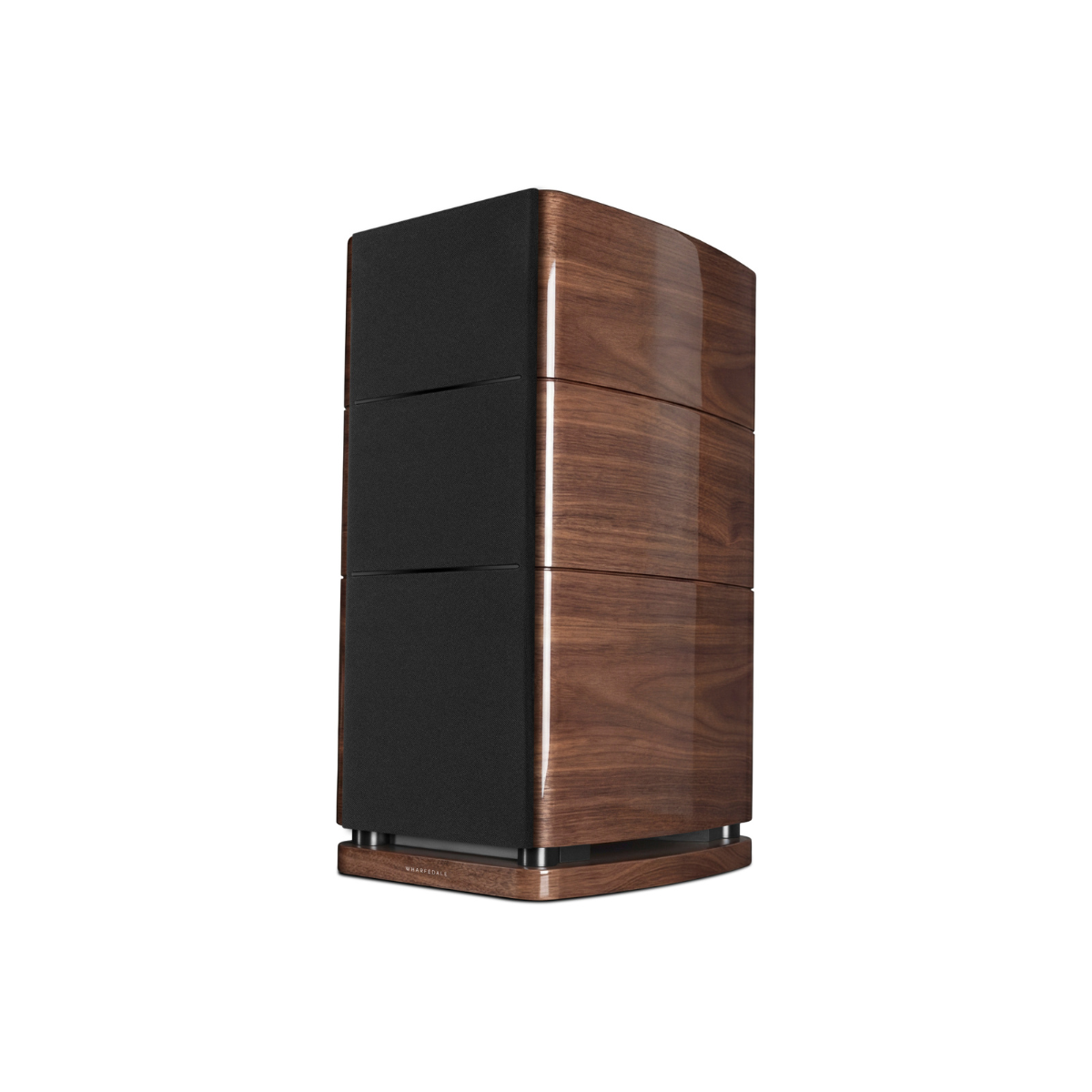

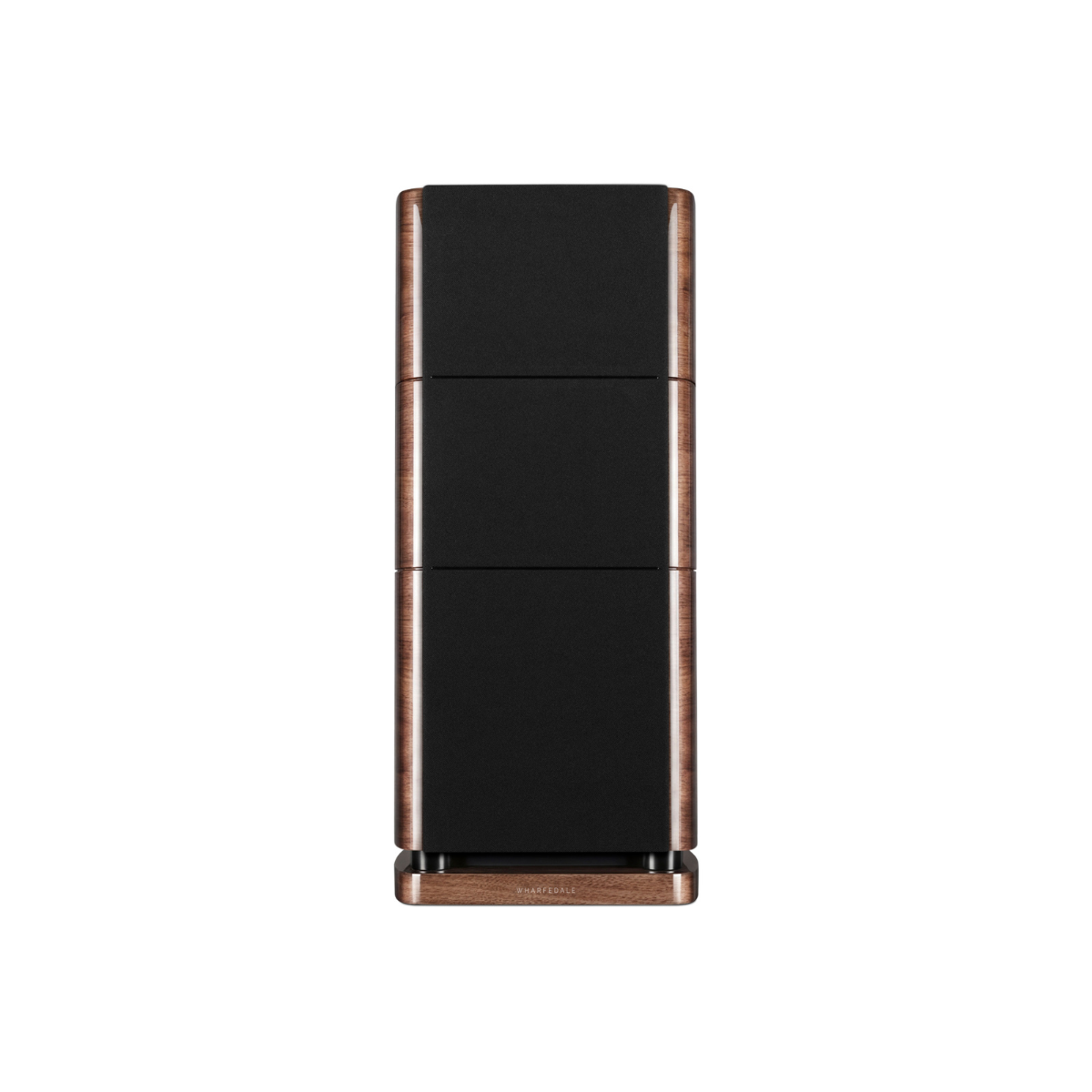

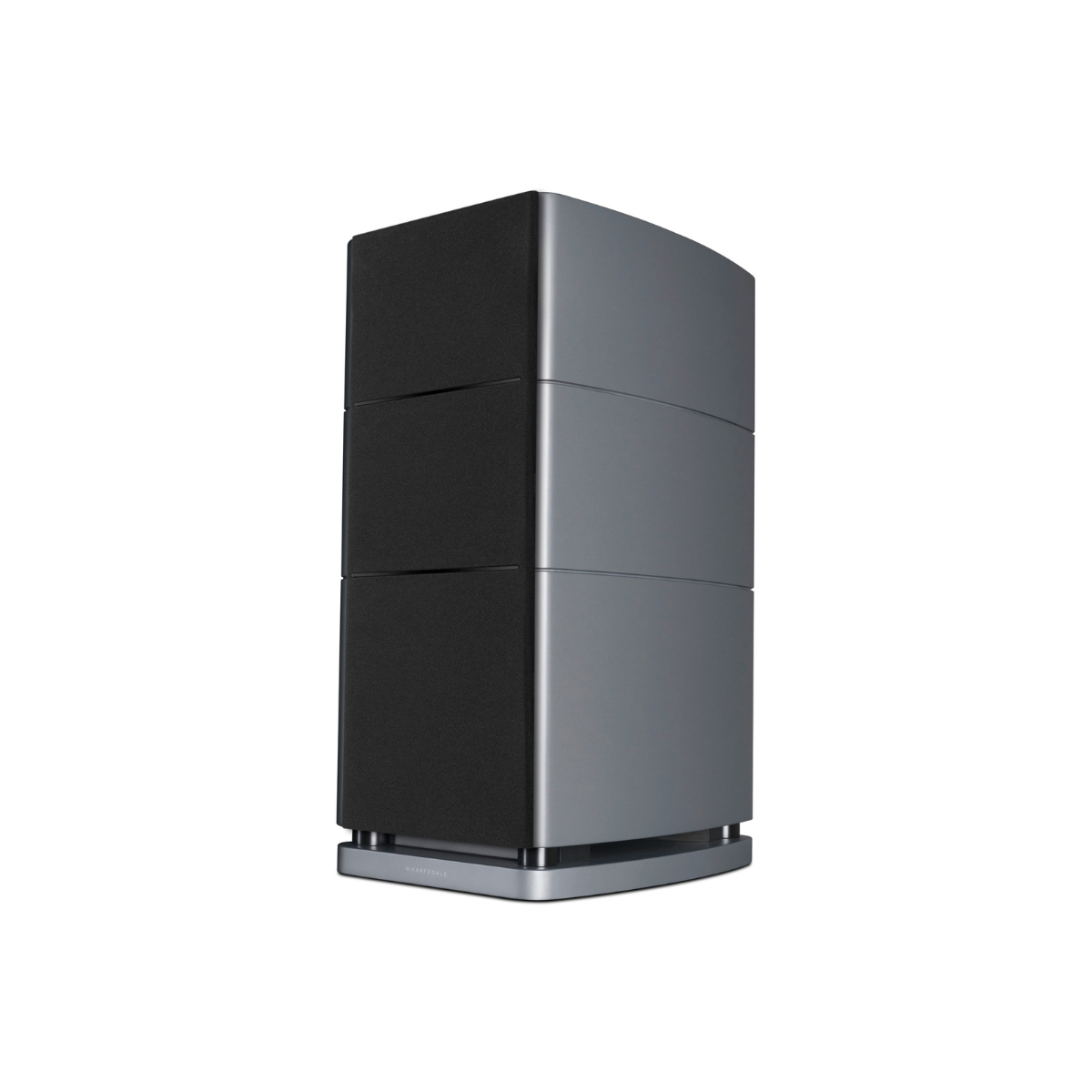

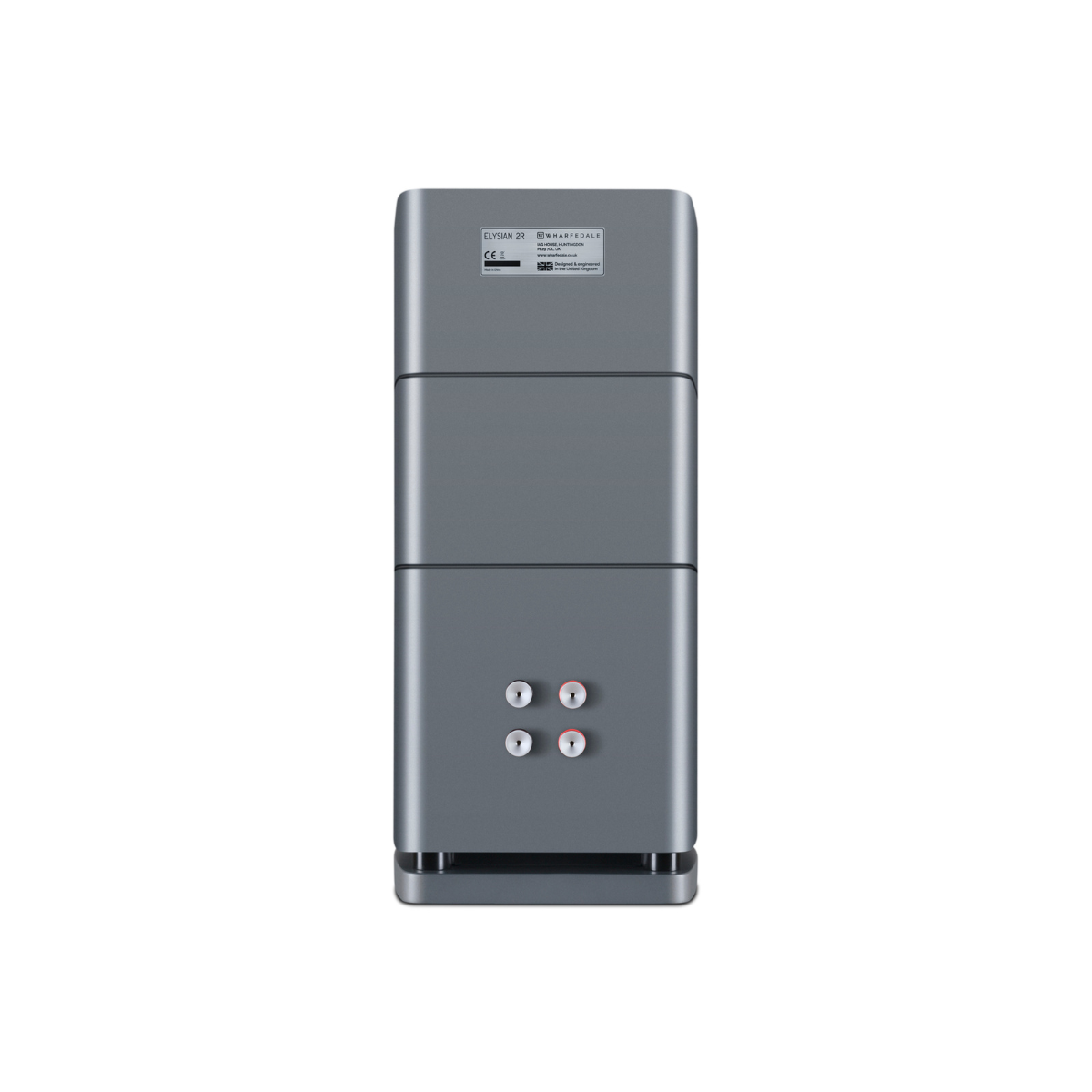

The Wharfedale Elysian 2R is a three way stand mount loudspeaker built with a bass reflex enclosure. Inside, the cabinet is divided into two separate volumes, one at 17.5 liters and the other at 43.6 liters. Each speaker measures 700 mm tall, 334 mm wide, and 462 mm deep including the rear terminals. The weight comes in at 30.5 kg per speaker.

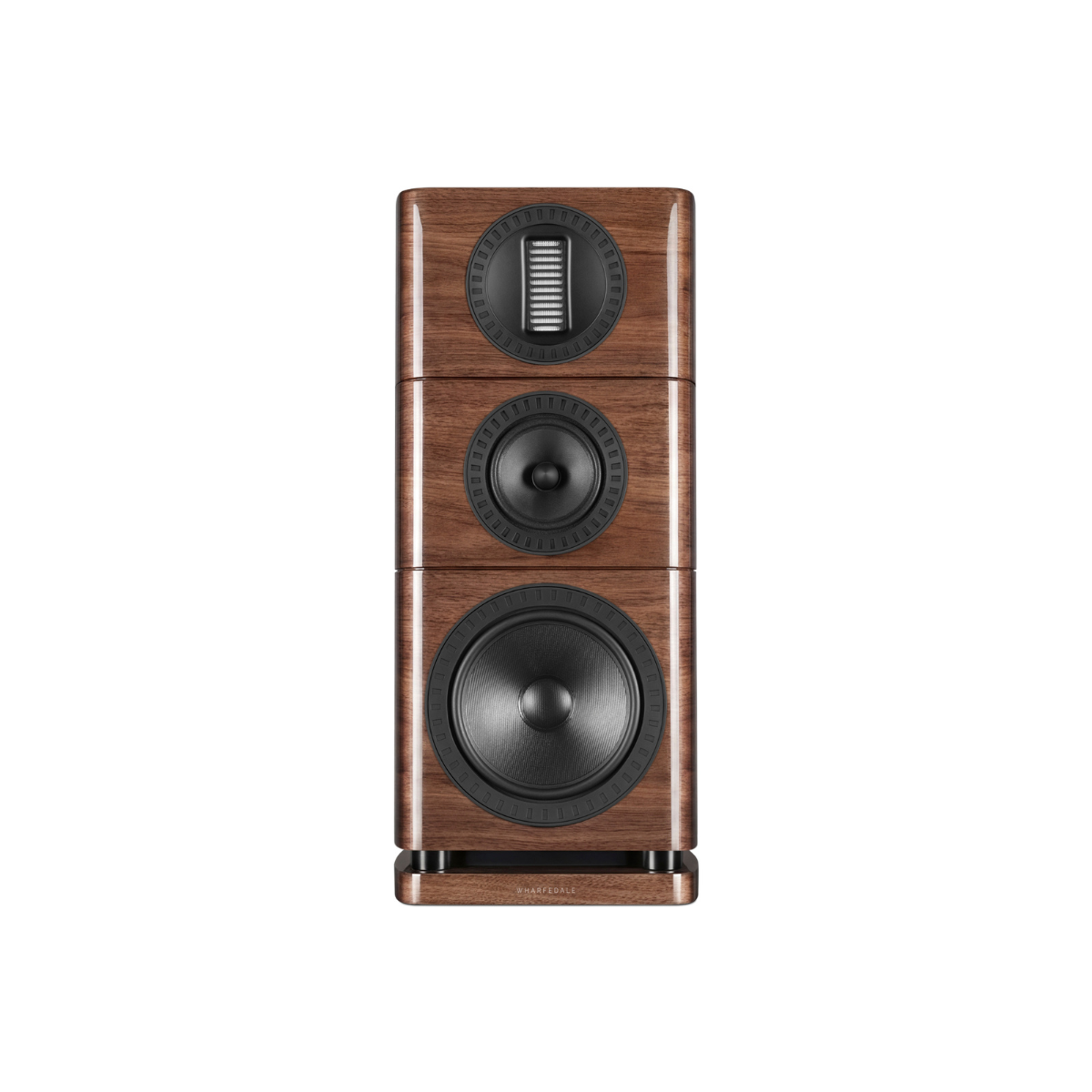

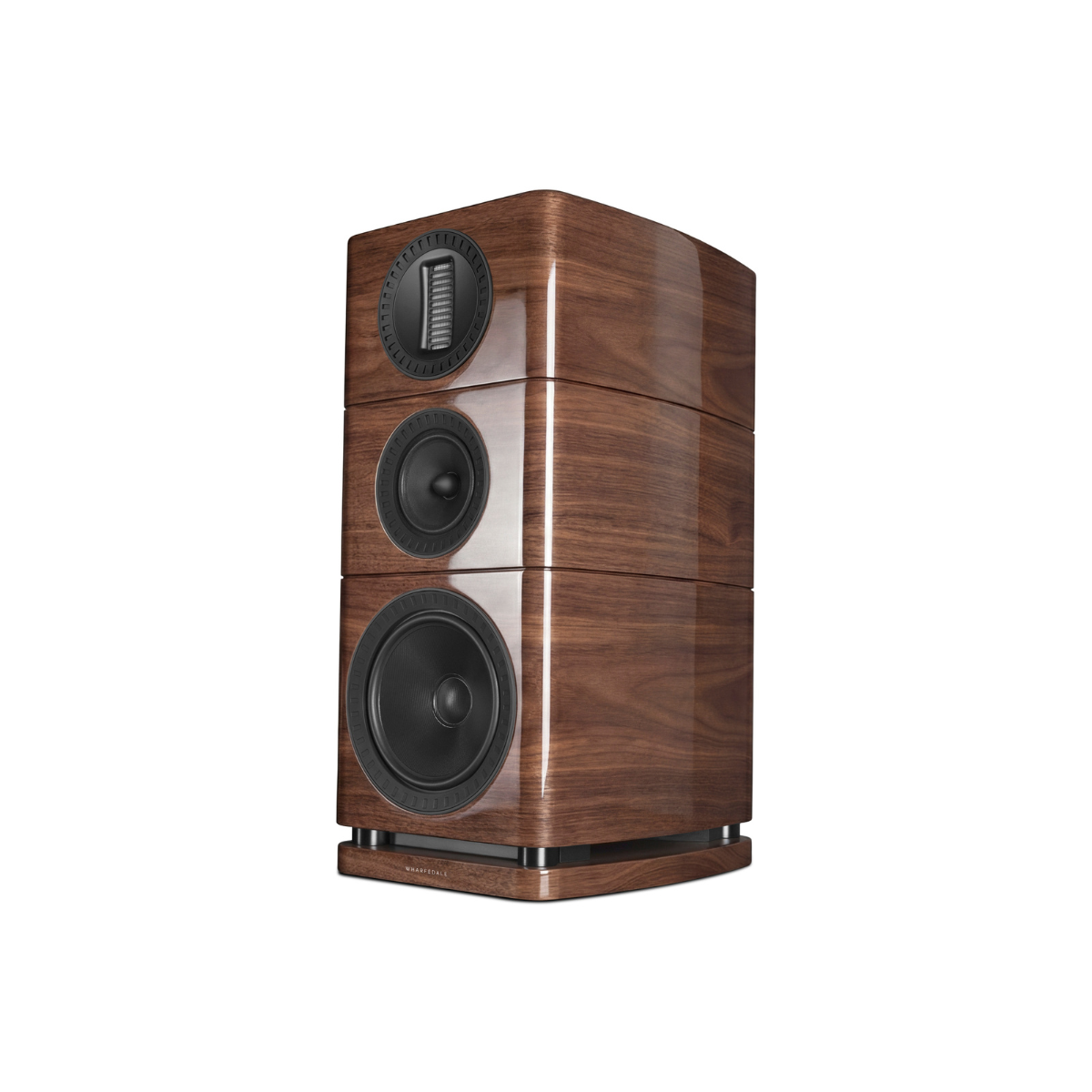

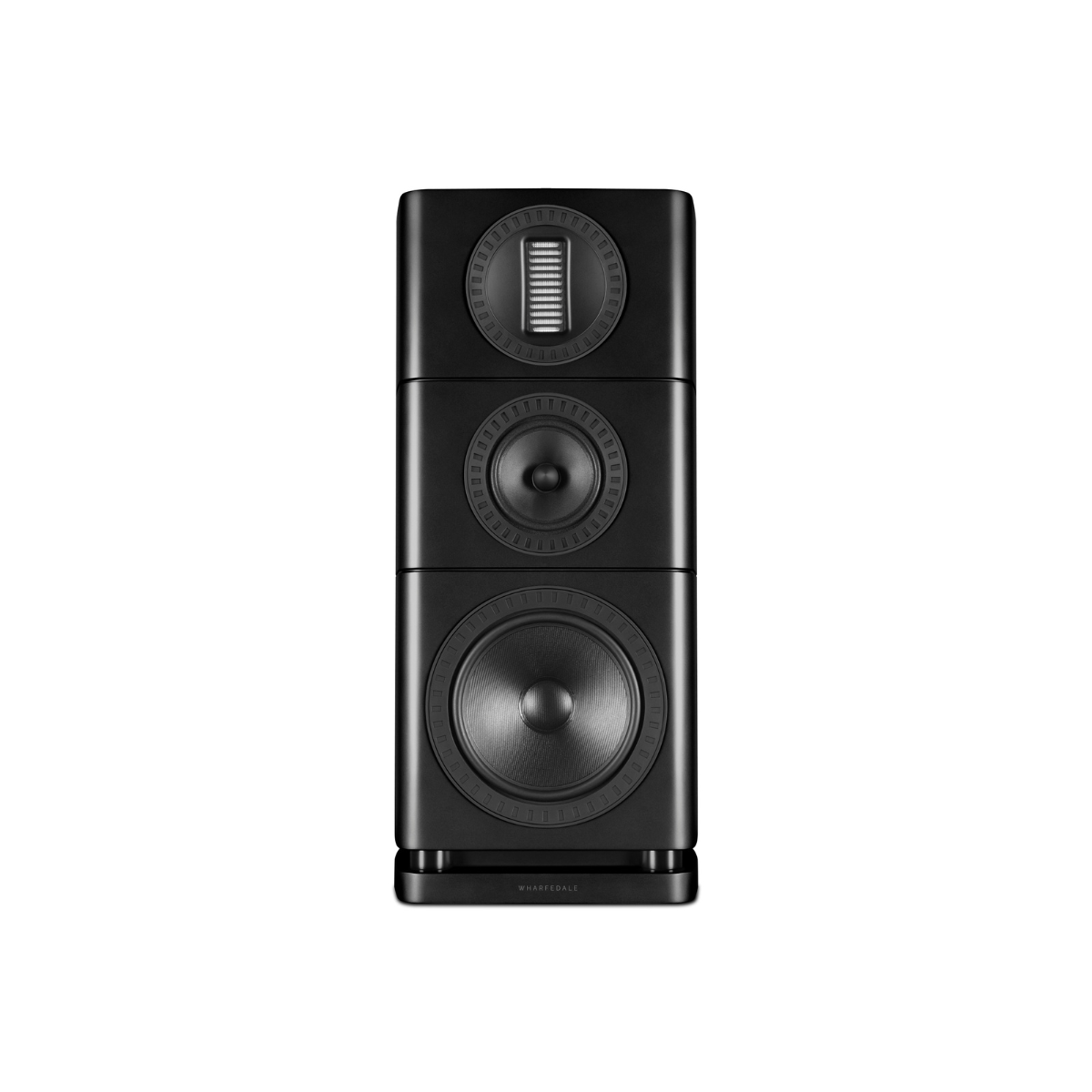

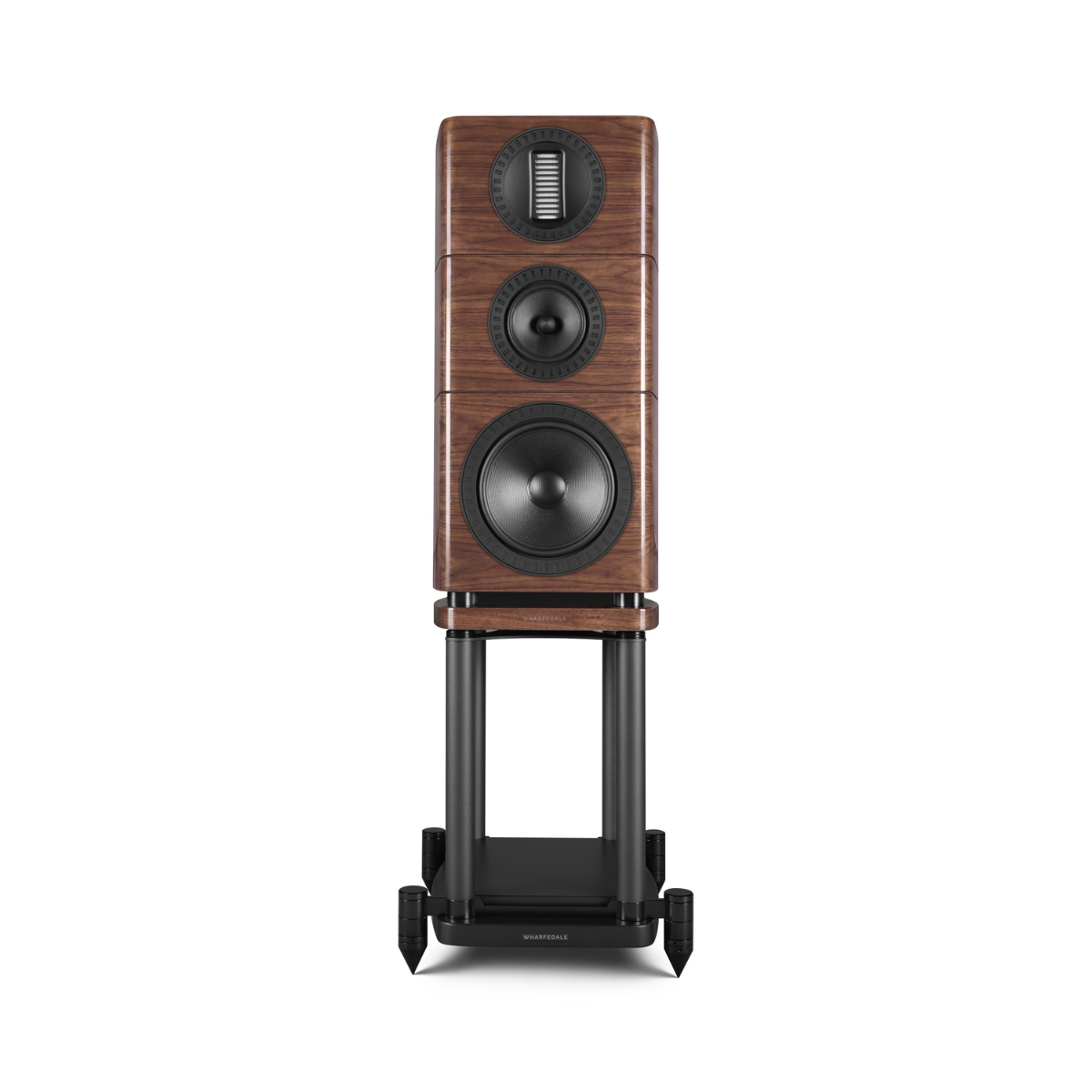

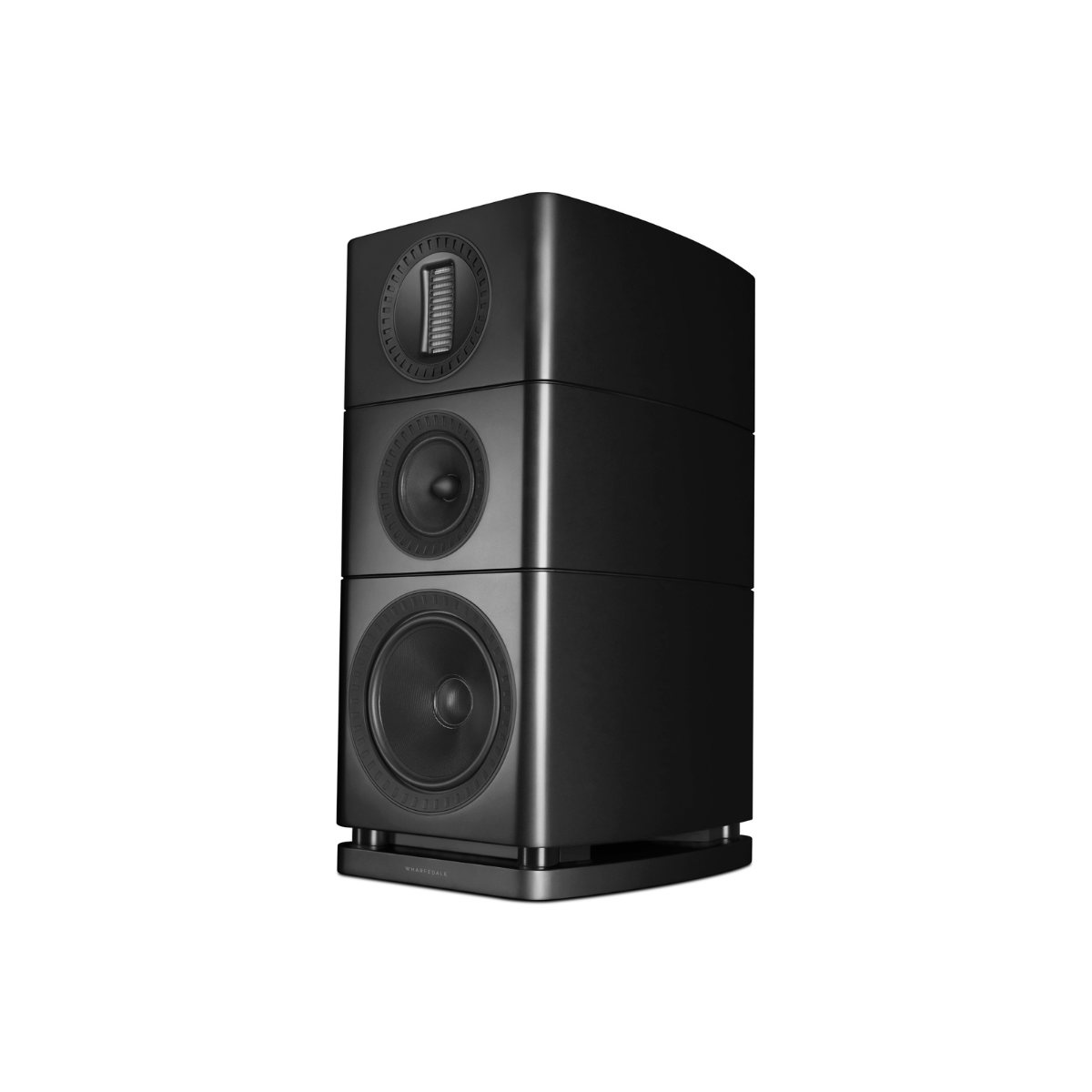

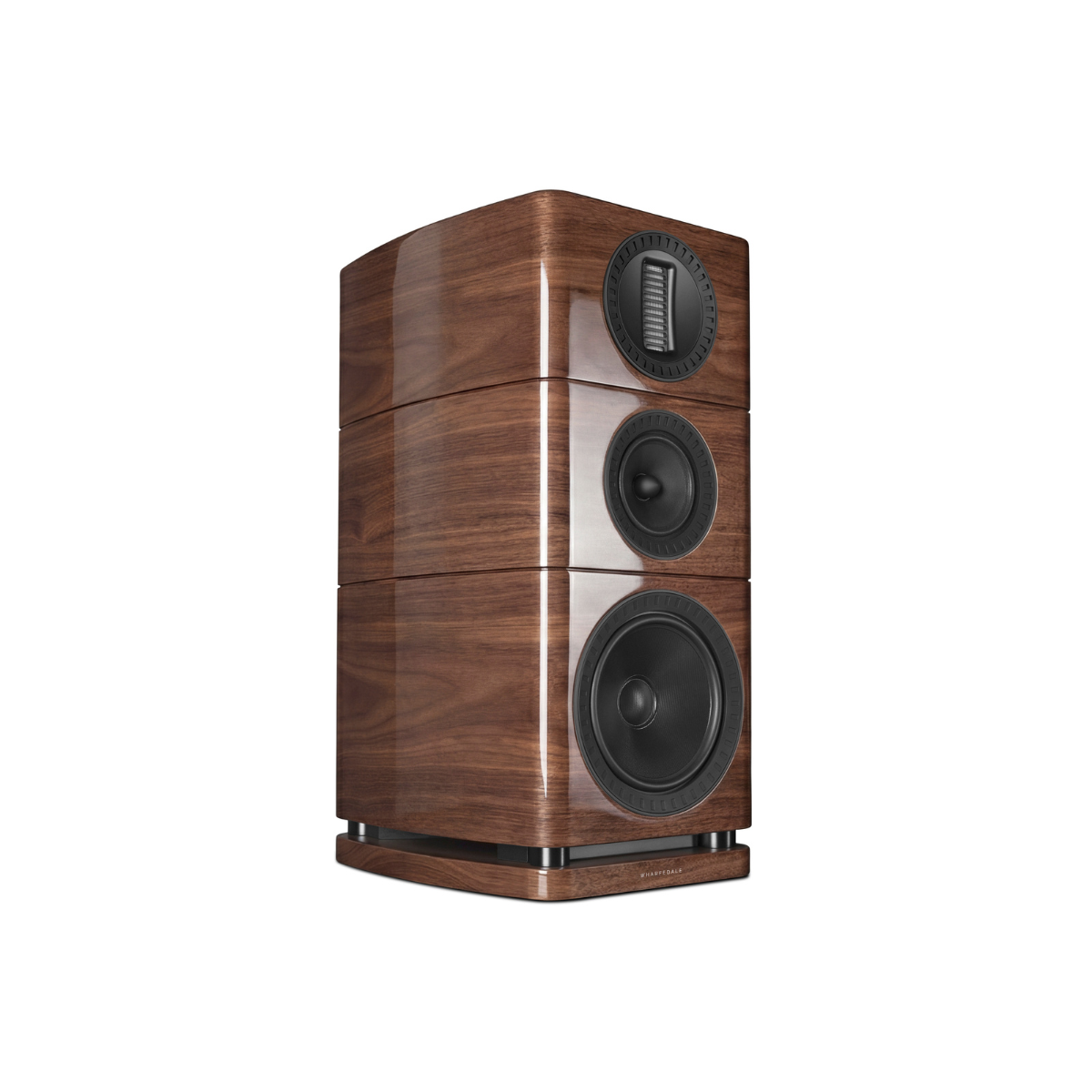

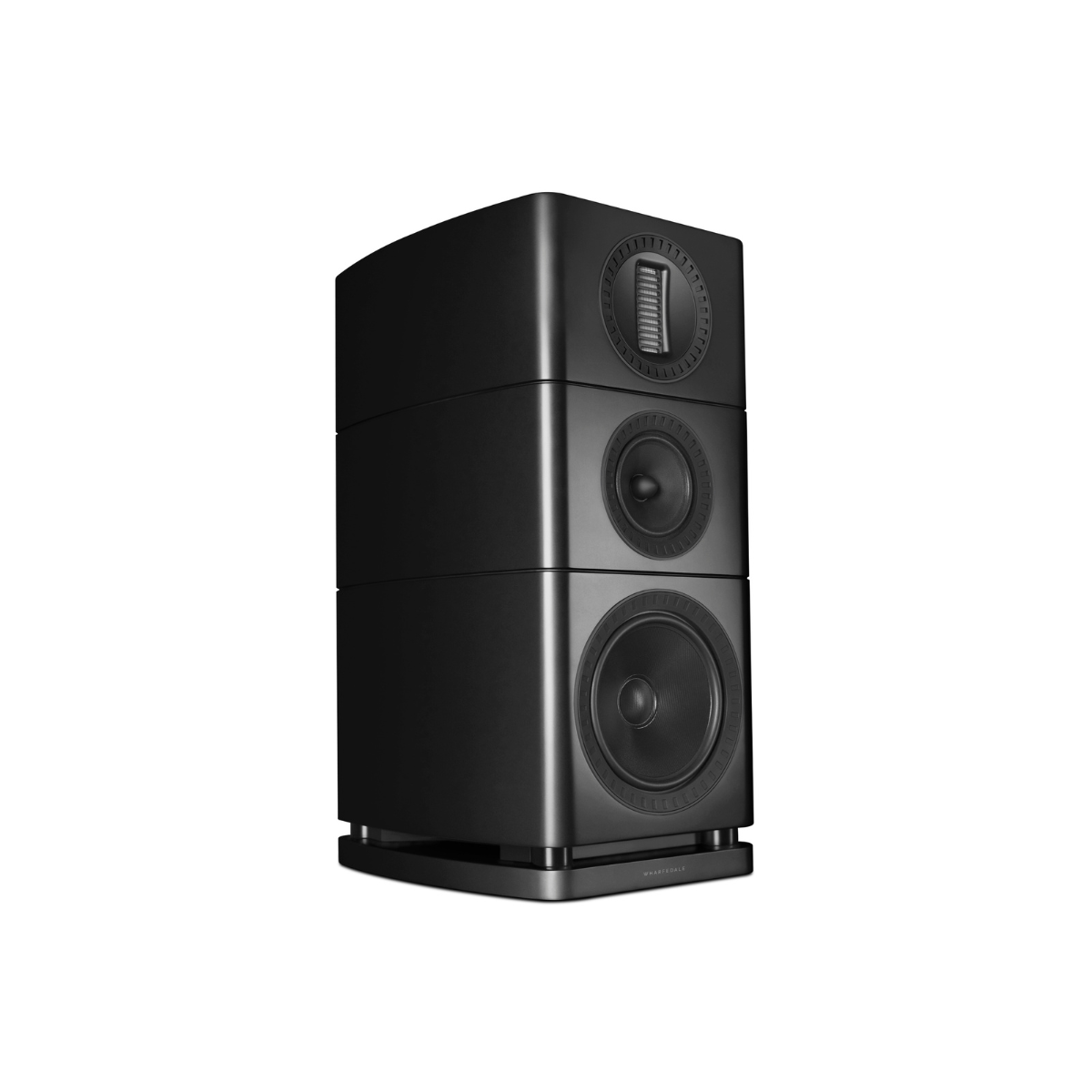

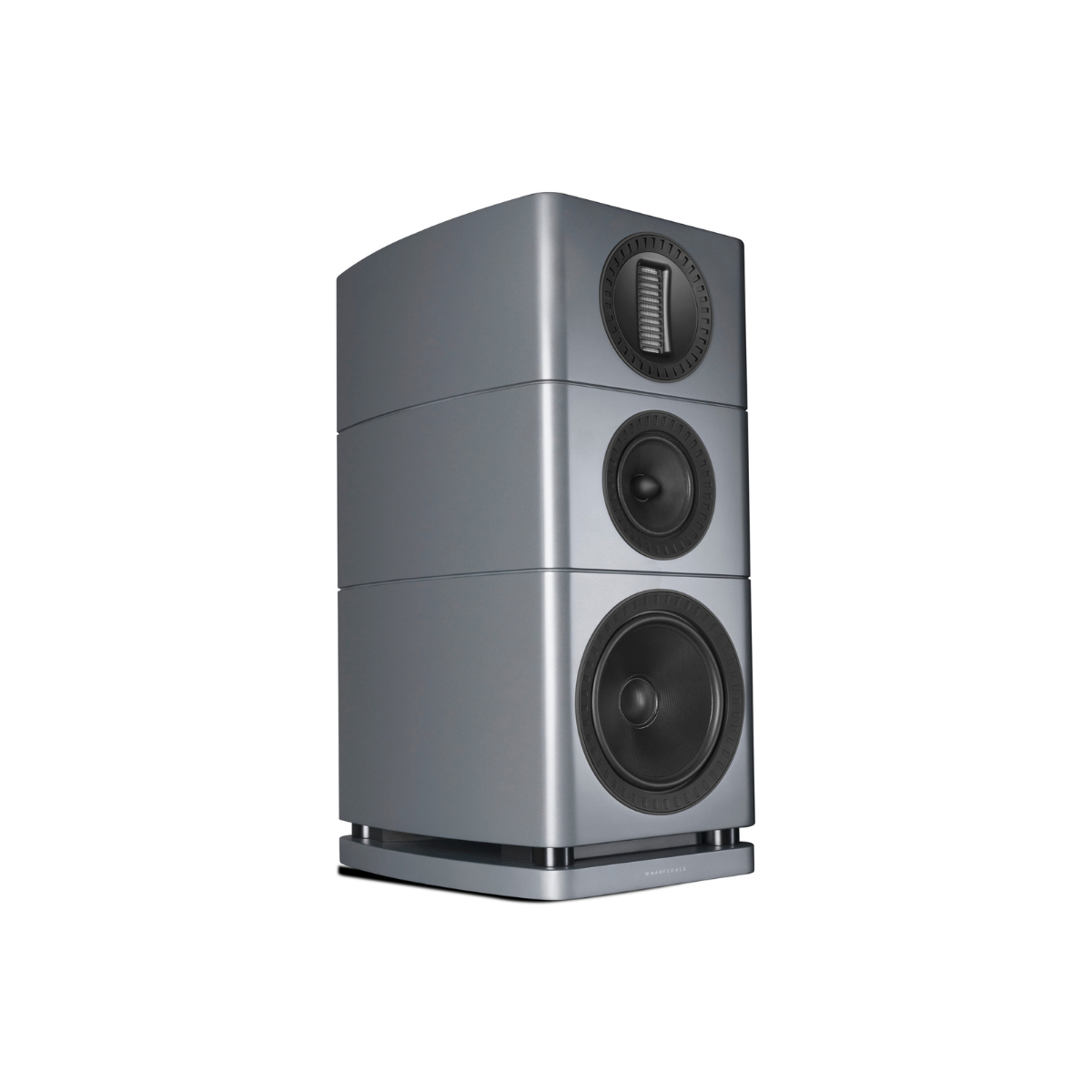

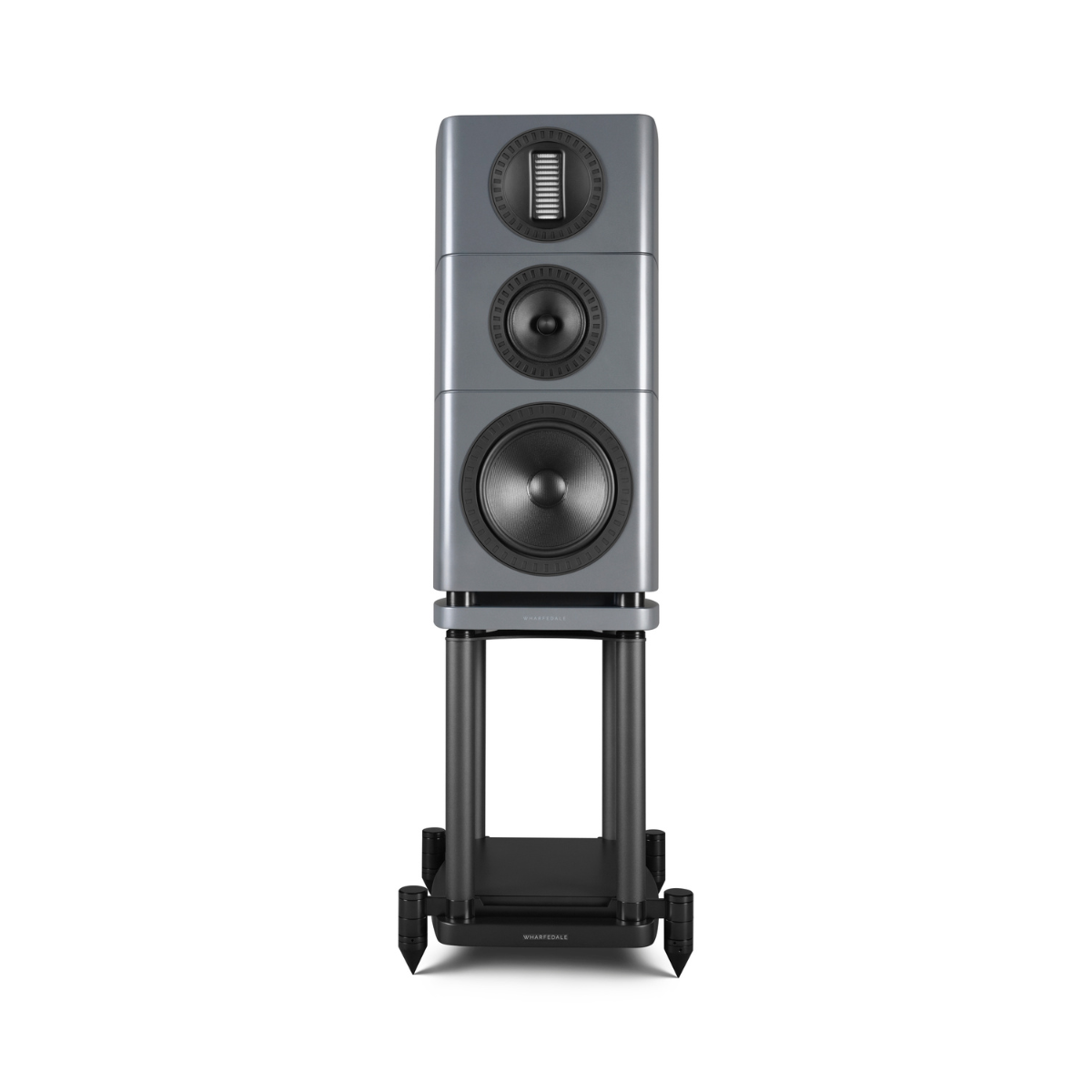

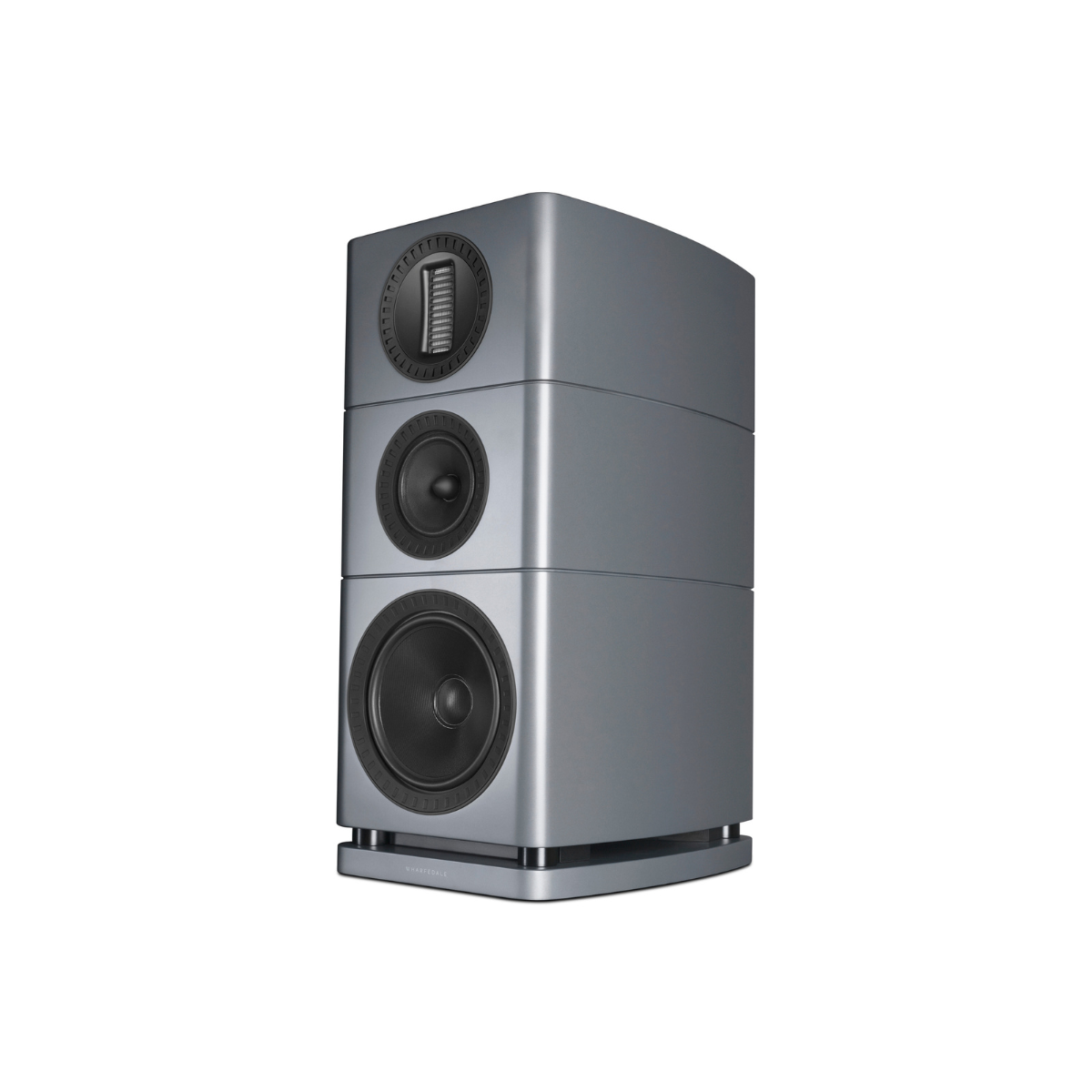

The three way transducer complement includes a 27 by 90 mm Air Motion Transformer treble driver with a pleated diaphragm for fast high frequency dispersion. Midrange frequencies pass through a dedicated 6 inch, 150 mm coated glass fibre matrix cone. Lower frequencies are generated by an 8.5 inch, 220 mm coated glass fibre matrix woofer supported by a Slot Loaded Profiled Port system, which reduces turbulence and placement sensitivity to extend bass down to 28 Hz with an overall frequency response of 35 Hz to 22 kHz.

The internal crossover uses direct path circuit boards with a mix of high silicon iron cored coils, air core coils, polypropylene capacitors, and low inductance resistors. Crossover points are set at 360 Hz and 2.9 kHz. The Elysian 2R has a sensitivity of 89 dB and can reach up to 109 dB peak SPL. It presents a 4 ohm nominal impedance, dipping to a minimum of 3.6 ohms. Amplifiers rated from 25 to 250 watts will work well, making the speaker suitable for a range of home audio setups.

Details & Specs

Model ELYSIAN 2R
General Description 3-way standmount speaker
Enclosure Type Bass reflex
Transducer Complement 3-way
Low Frequency Driver 8.5" (220mm) coated glass fibre matrix cone
Midrange Driver 6" (150mm) coated glass fibre matrix cone
High Frequency Driver 27 × 90mm AMT
Sensitivity (2.83V @ 1m) 89dB
Recommended Amplifier Power 25–250W
Peak SPL 109dB
Nominal Impedance 4Ω (compatible with 8Ω)
Minimum Impedance 3.6Ω
Frequency Response (±3dB) 35Hz – 22kHz
Bass Extension (-6dB) 28Hz
Crossover Frequency 360Hz, 2.9kHz
Cabinet Volume 17.5L, 43.6L
Height (on plinth) 700mm
Width (on plinth) 334mm
Depth (with terminals) (432 + 30)mm
Carton Size 580 × 460 × 830mm
Net Weight 30.5kg / pcs
Gross Weight 35.3kg / ctn
