Wharfedale Elysian 1R

Compact Standmount Bookshelf Speaker

Wharfedale Elysian 1R

Compact Standmount Bookshelf Speaker
$5,995.00
Select Color:


Overview

Featuring a 27 by 90 mm AMT driver and a 7 inch glass fibre woofer, the Wharfedale Elysian 1R standmount speaker delivers 49 Hz to 22 kHz response with 108 dB peak SPL. An ideal choice for a high performance sound system setup powered by 25W to 175W amplifiers.

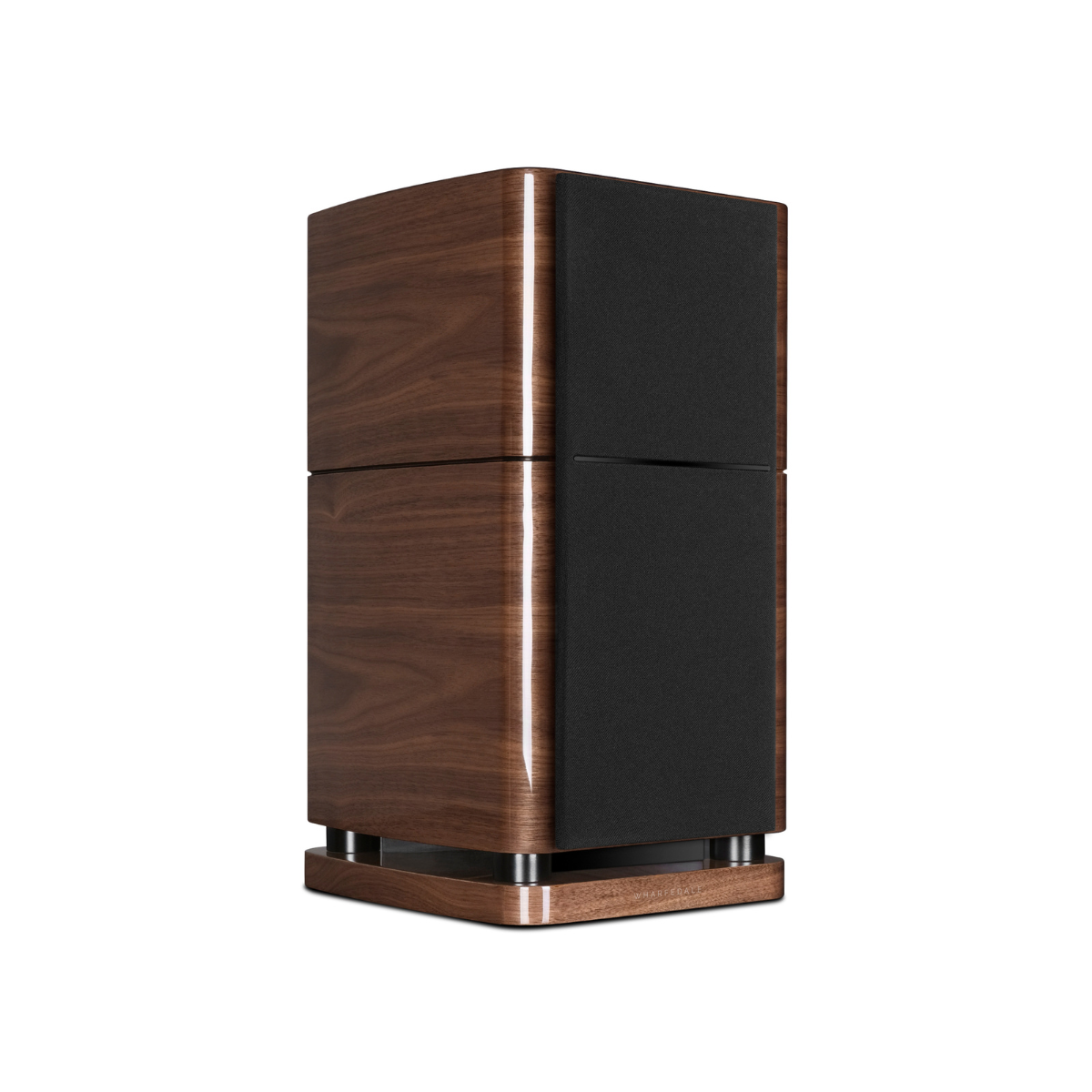

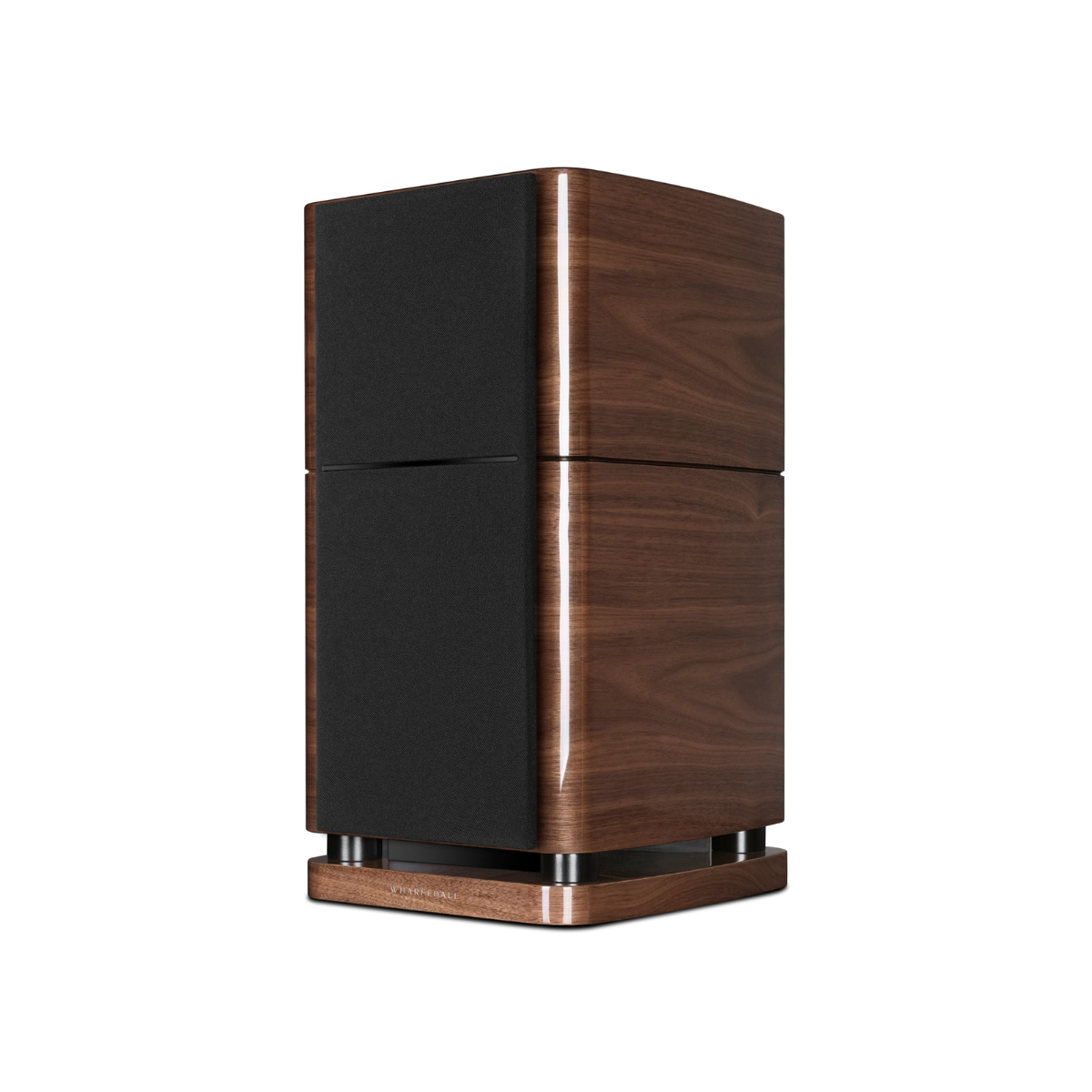

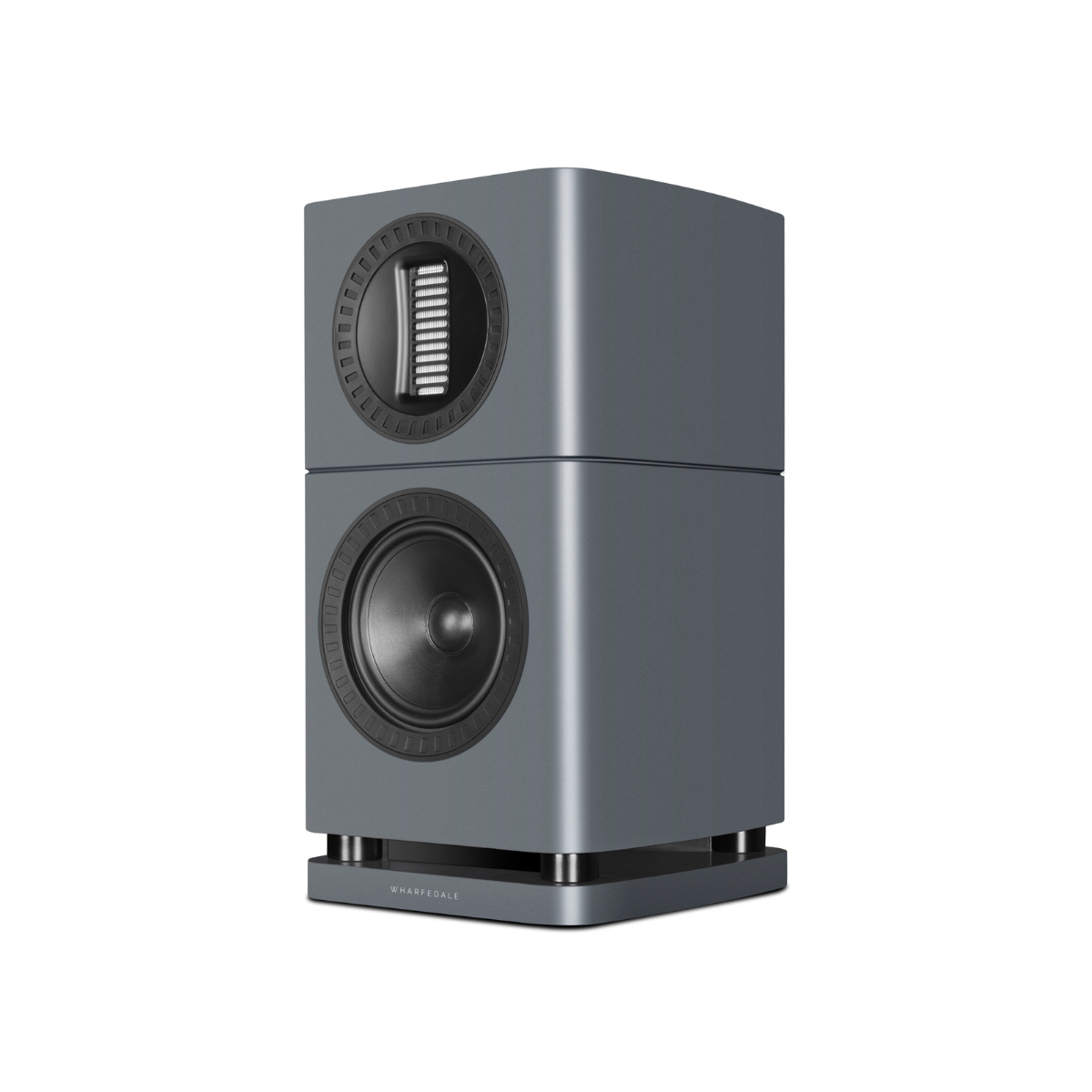

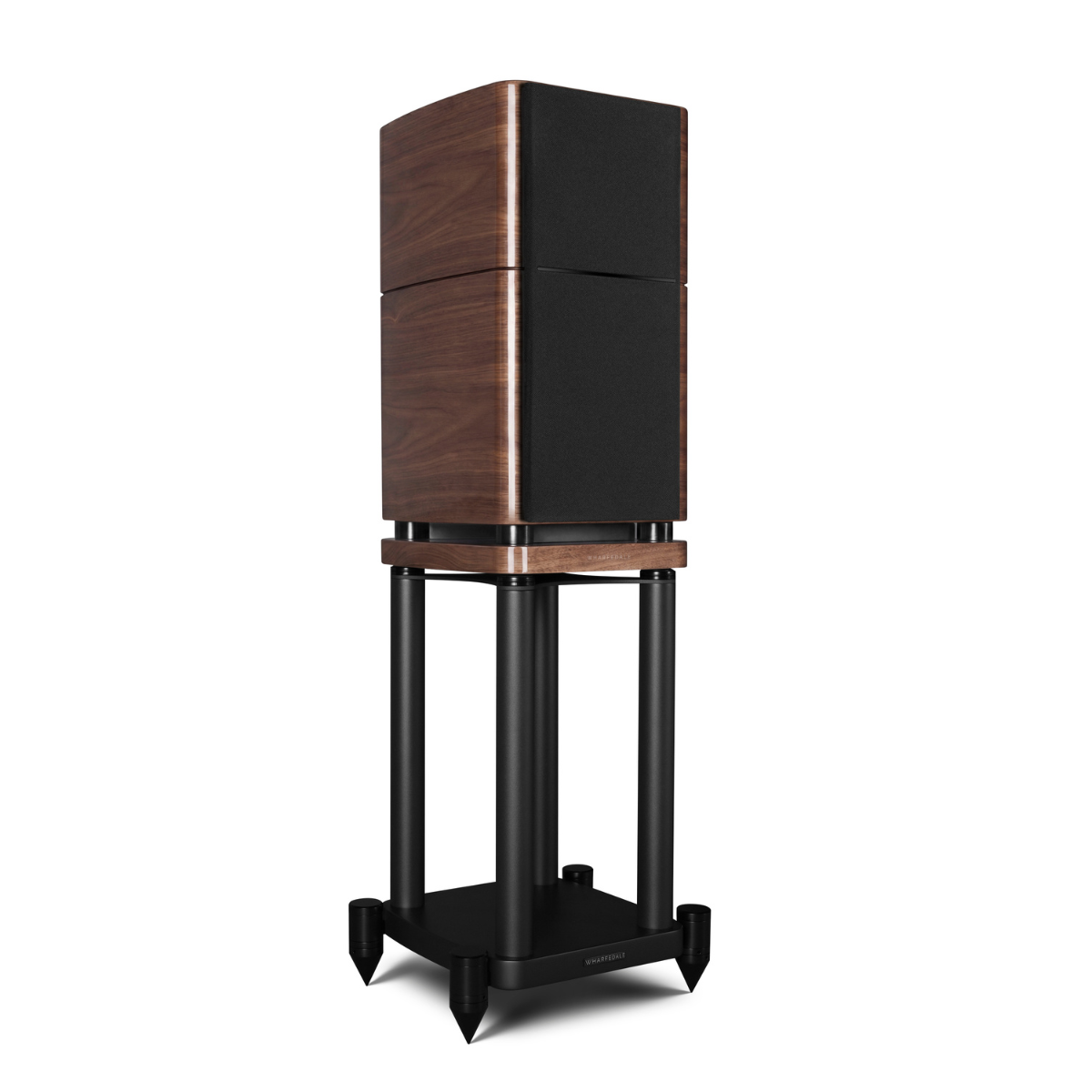

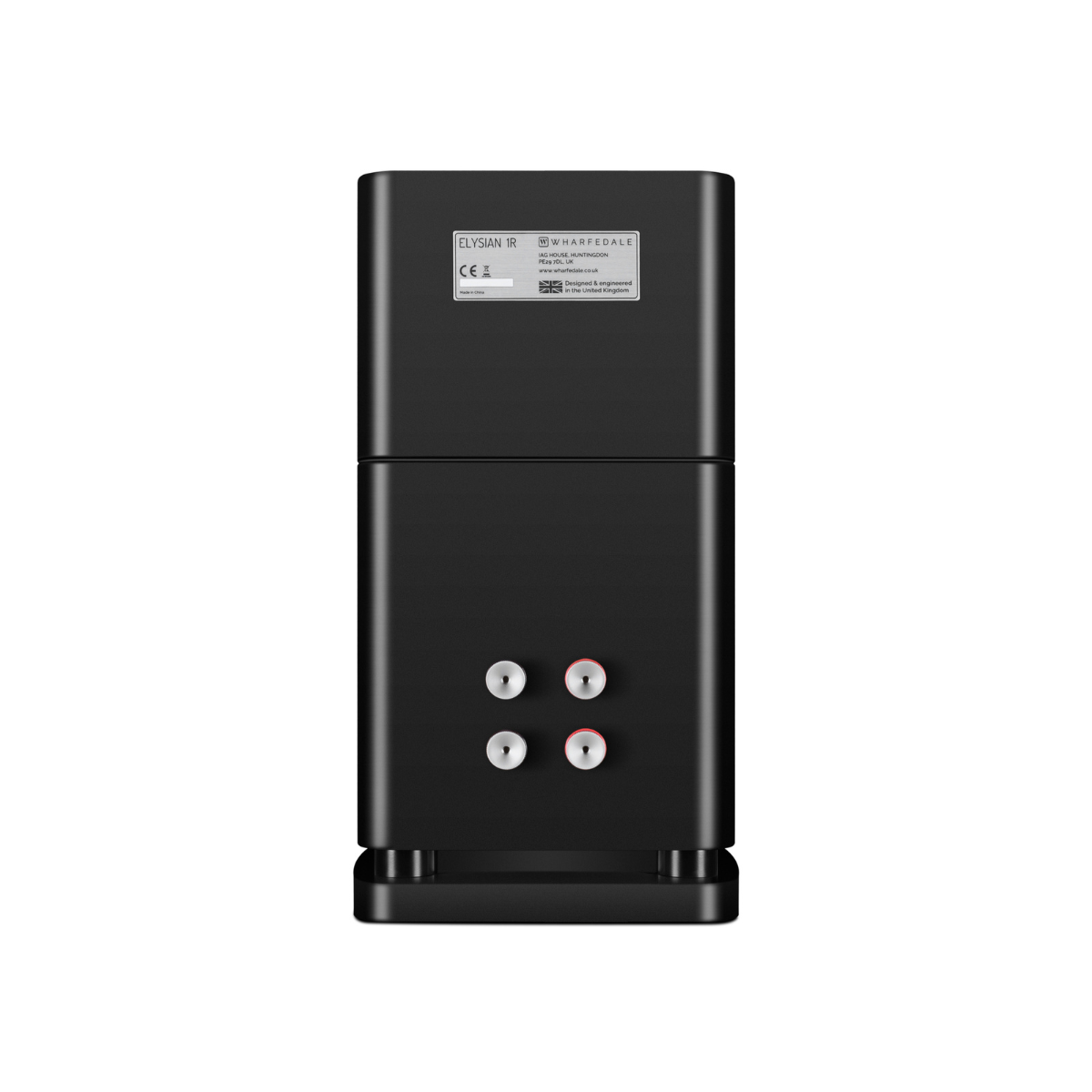

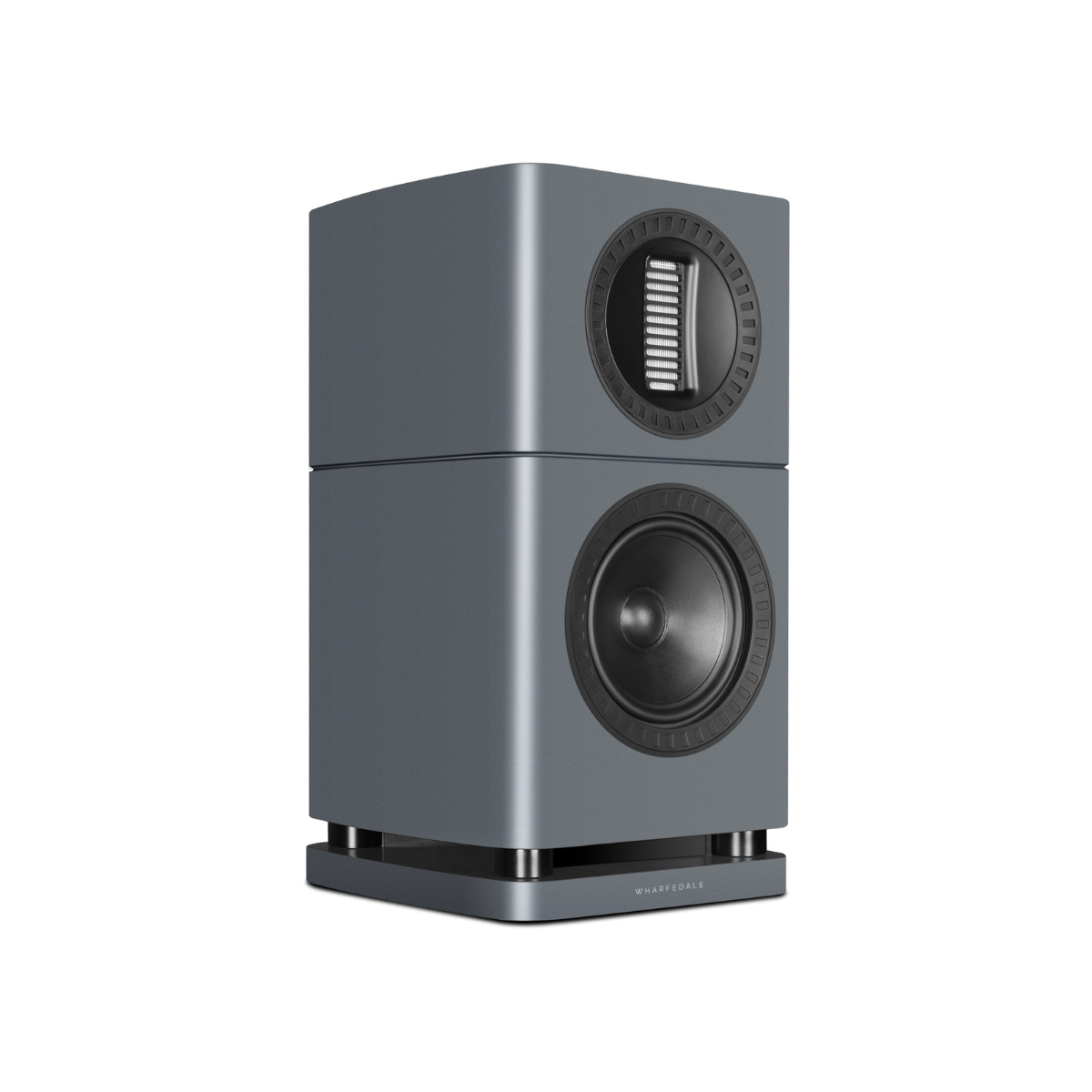

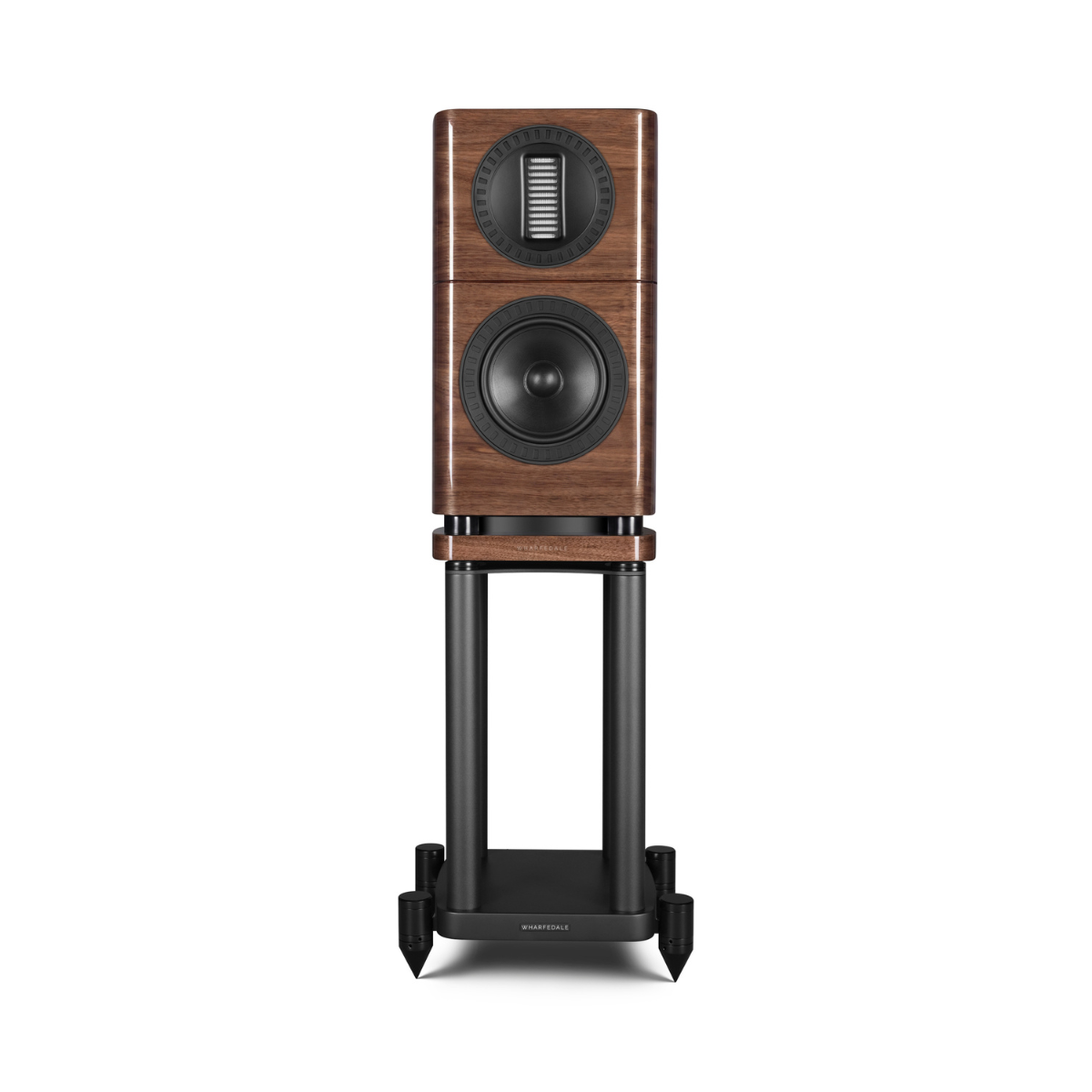

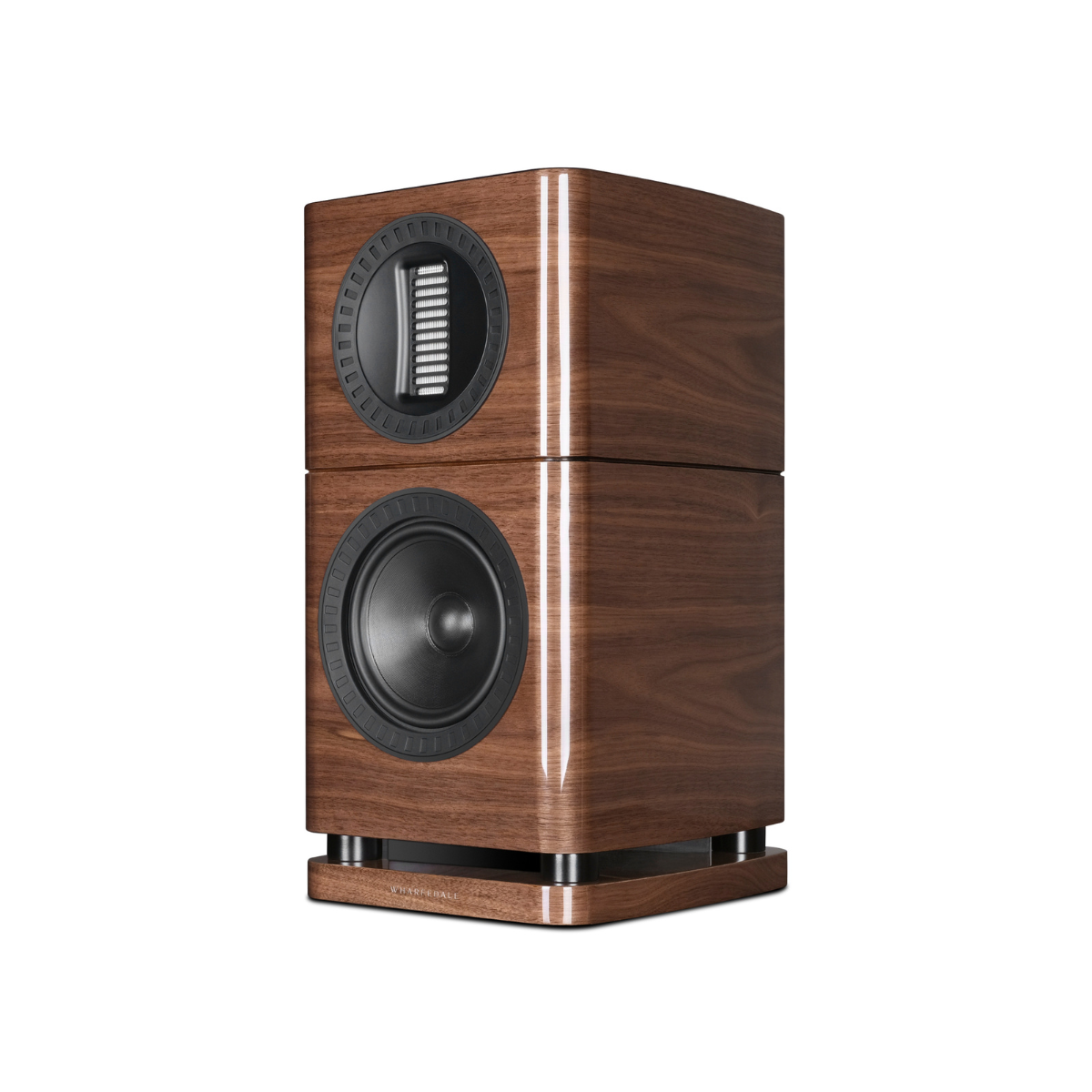

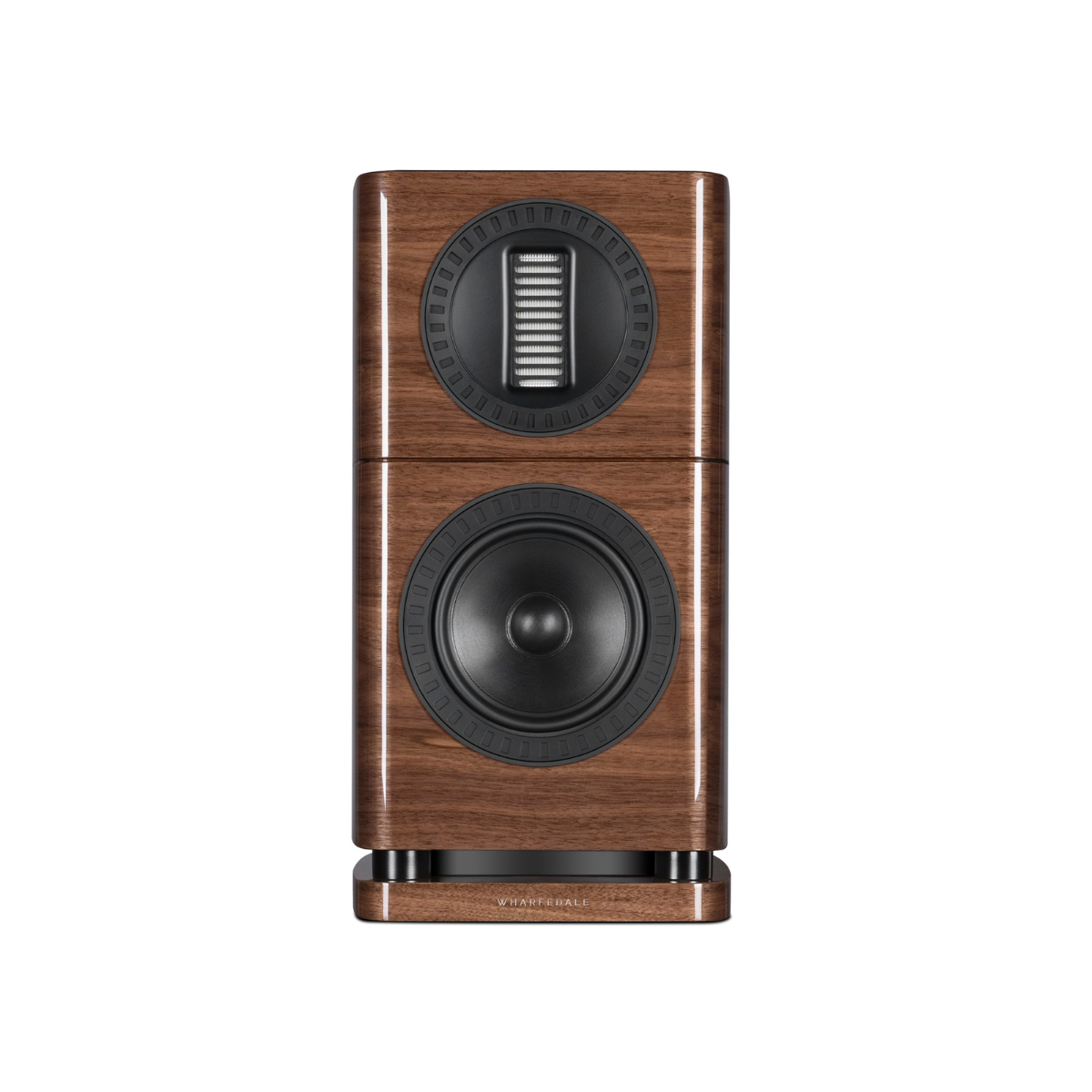

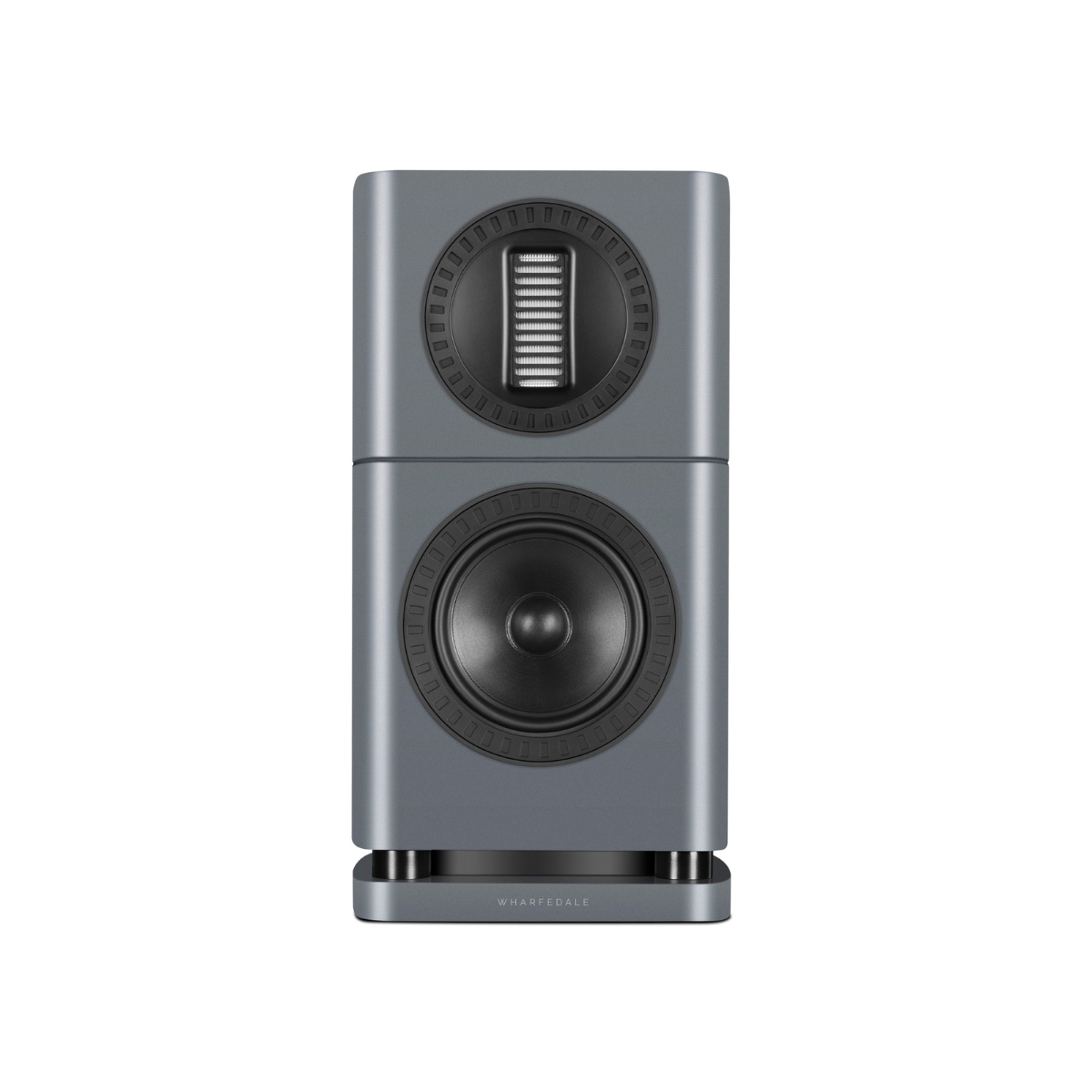

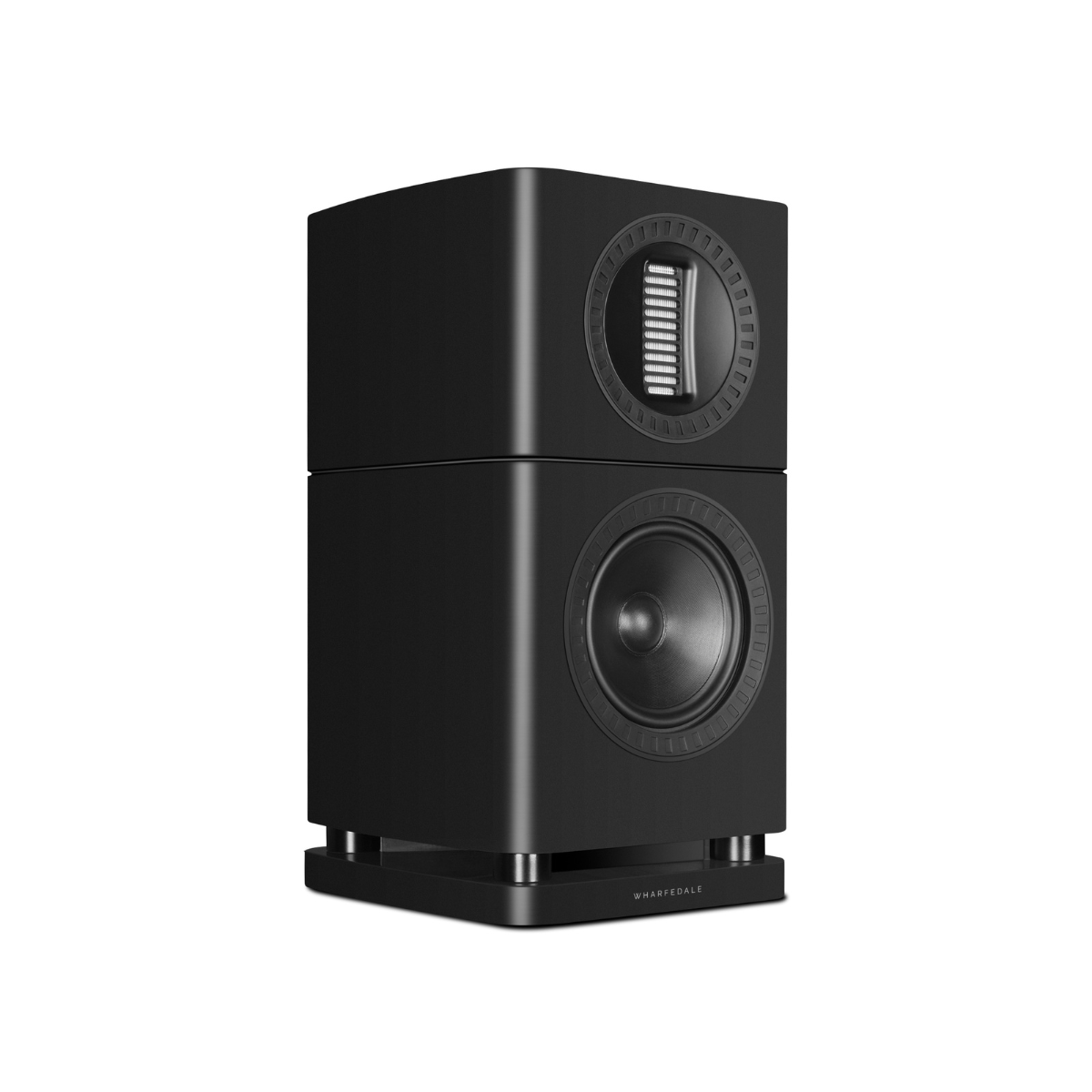

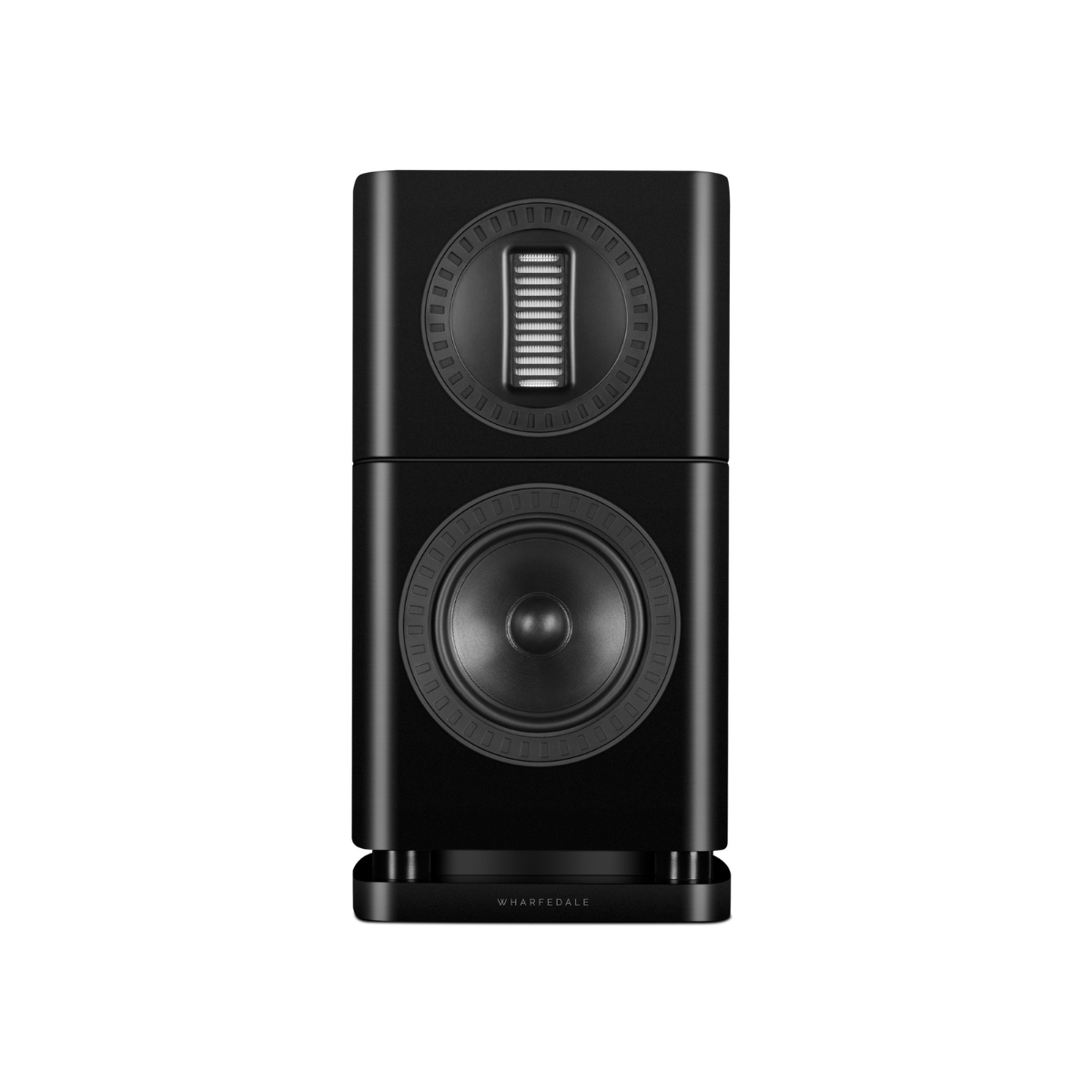

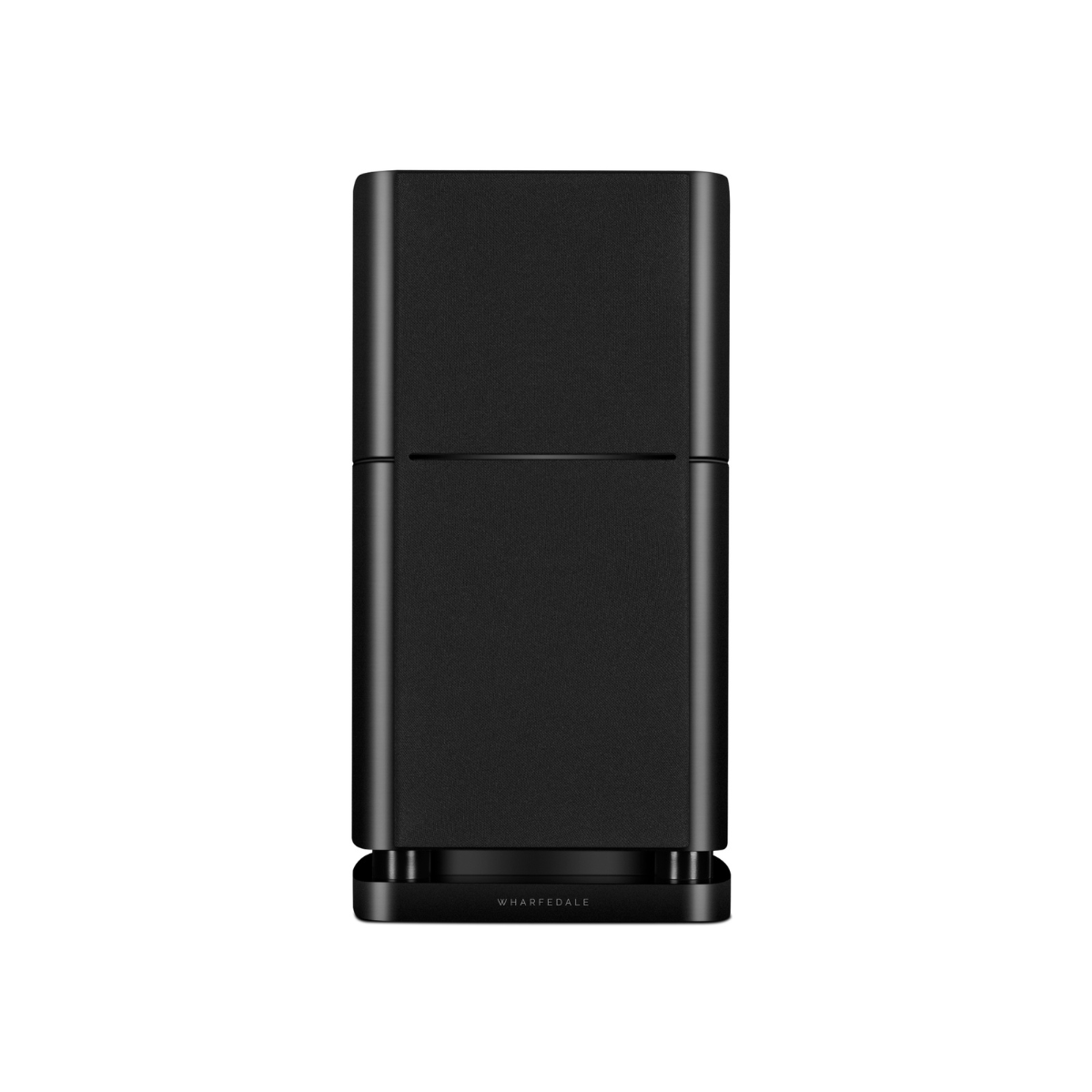

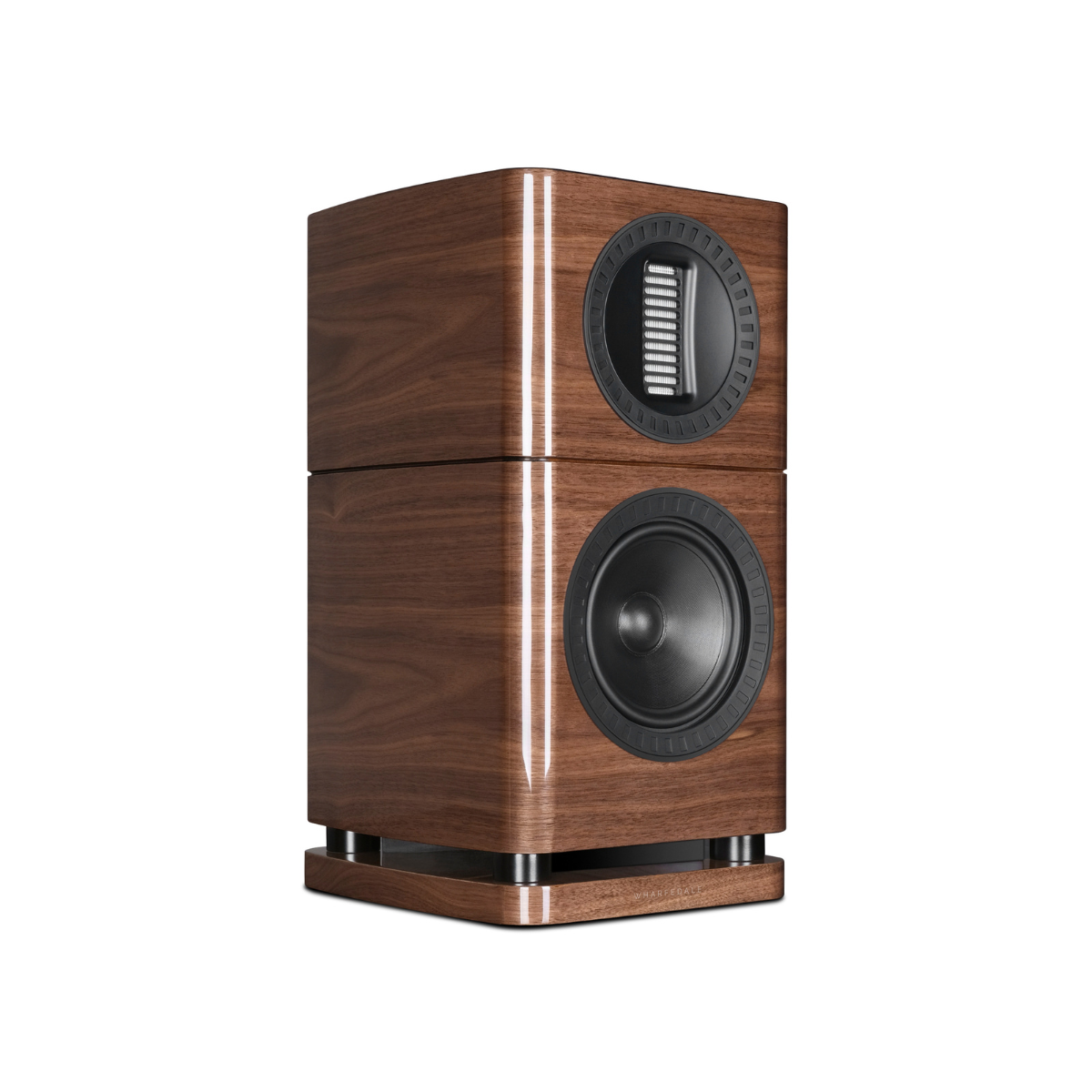

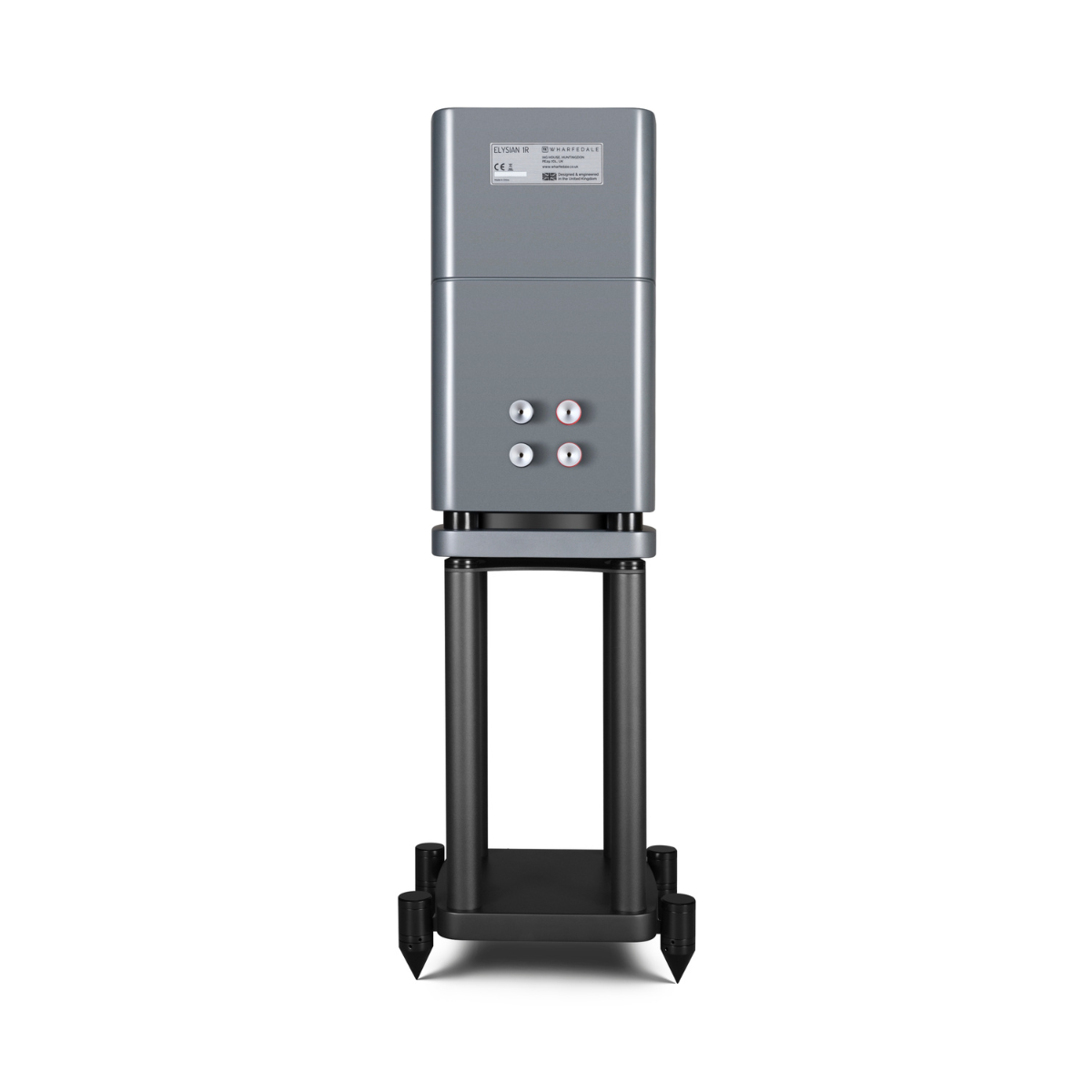

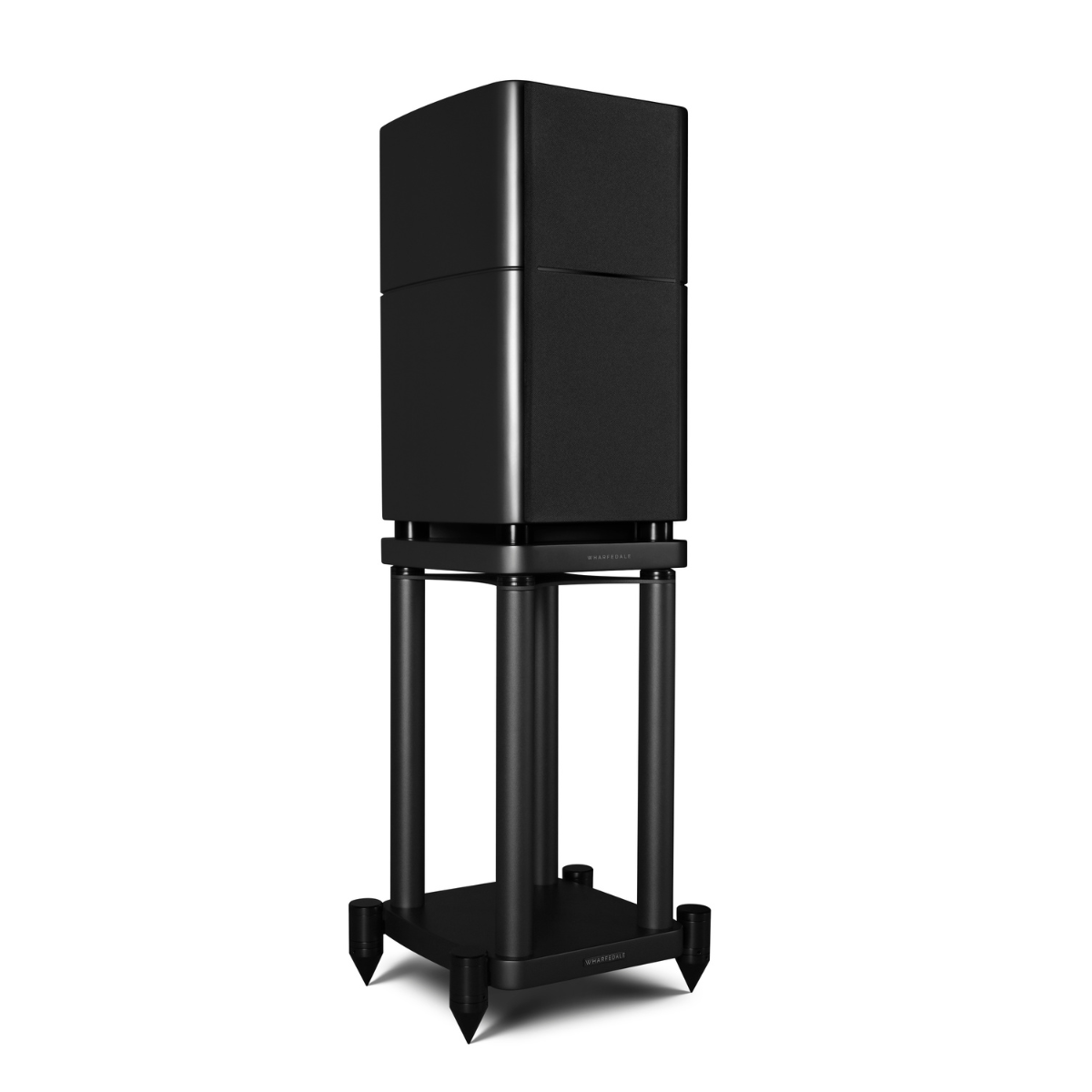

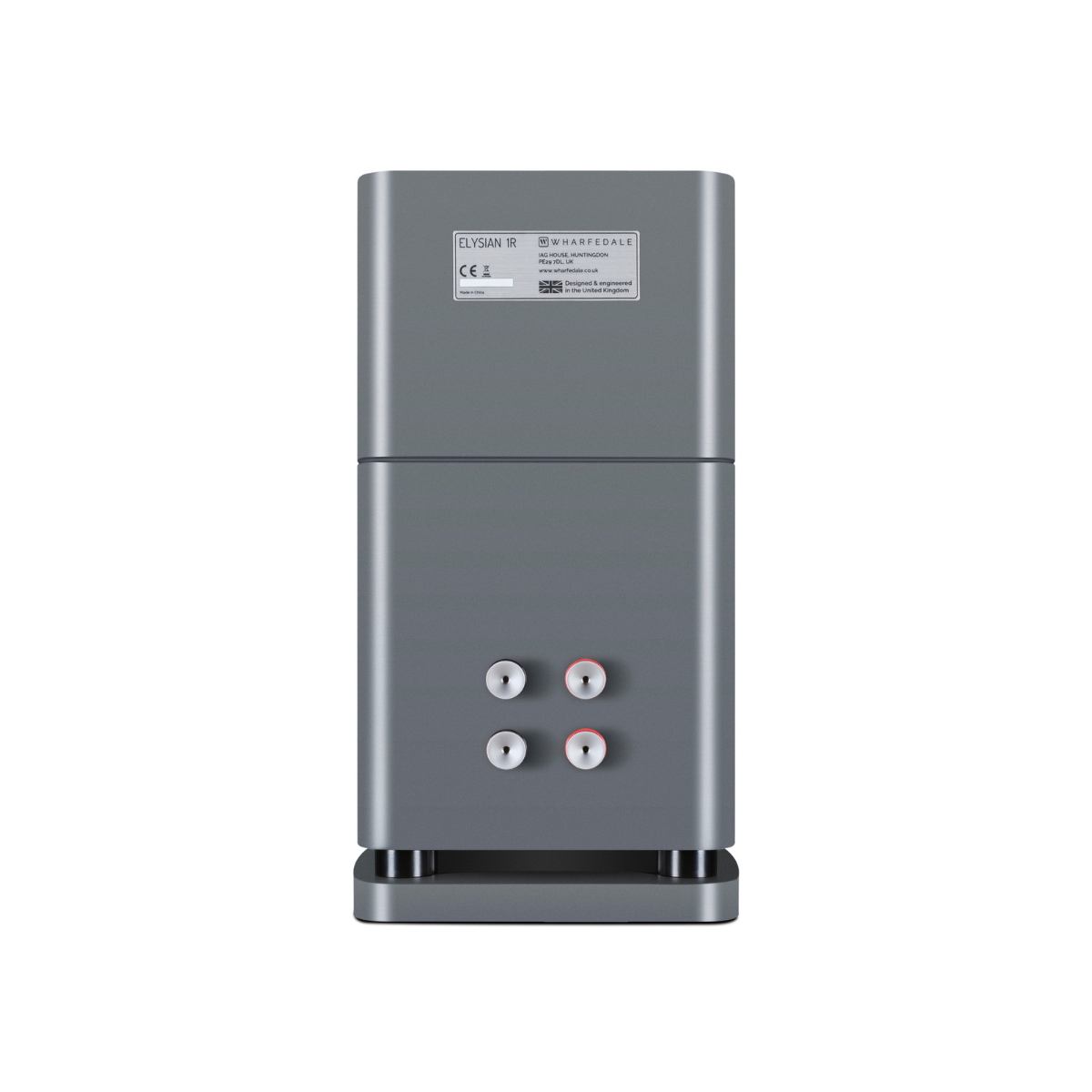

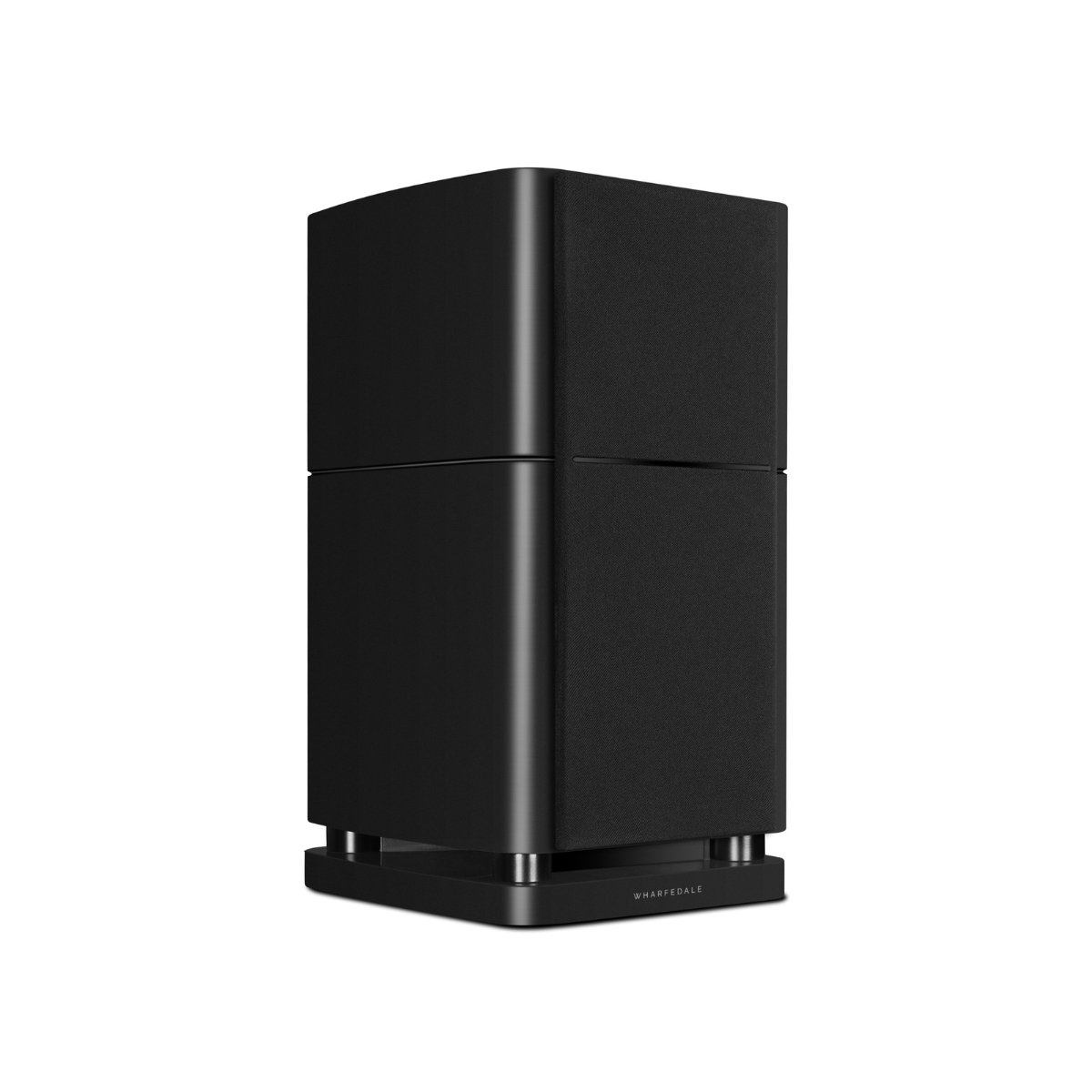

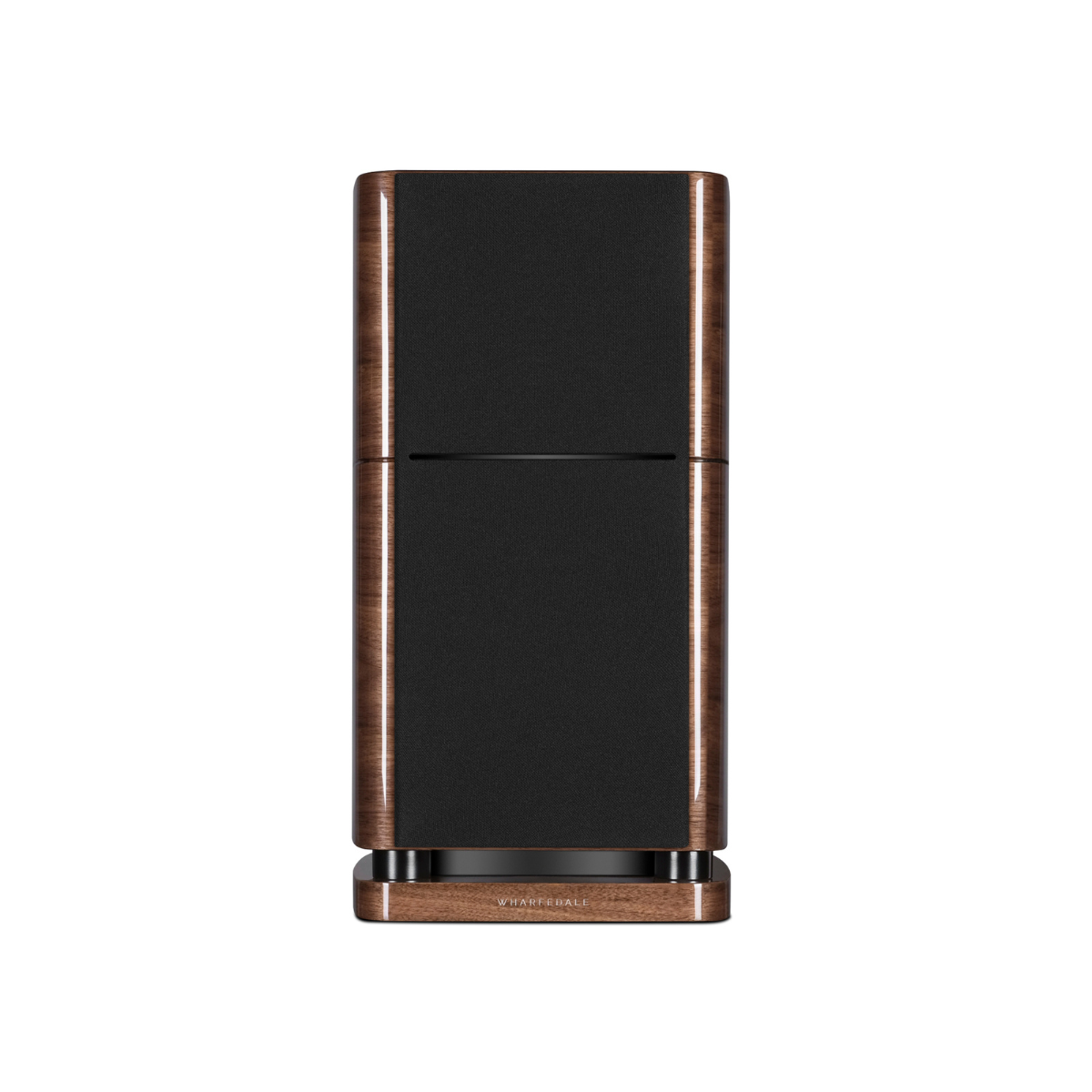

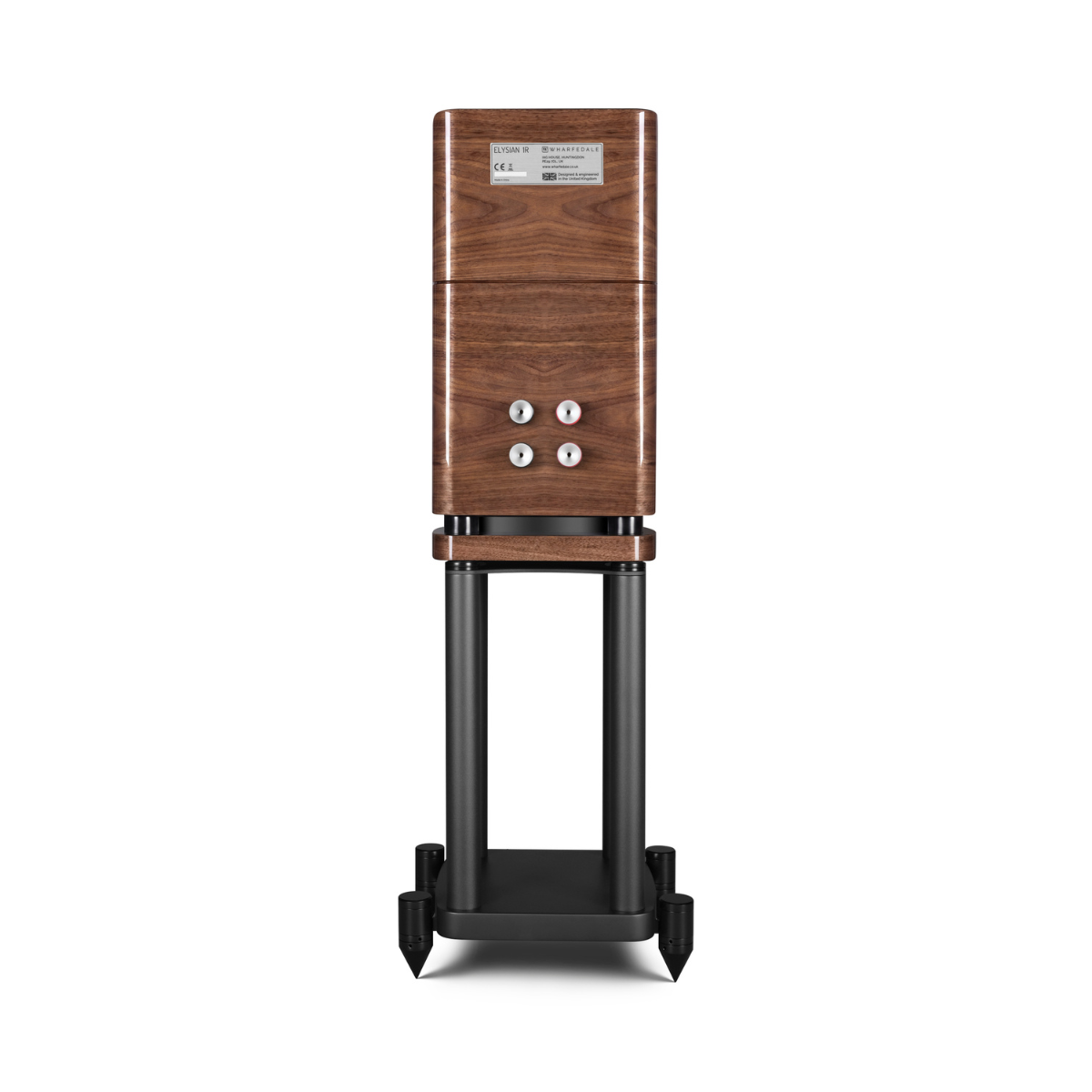

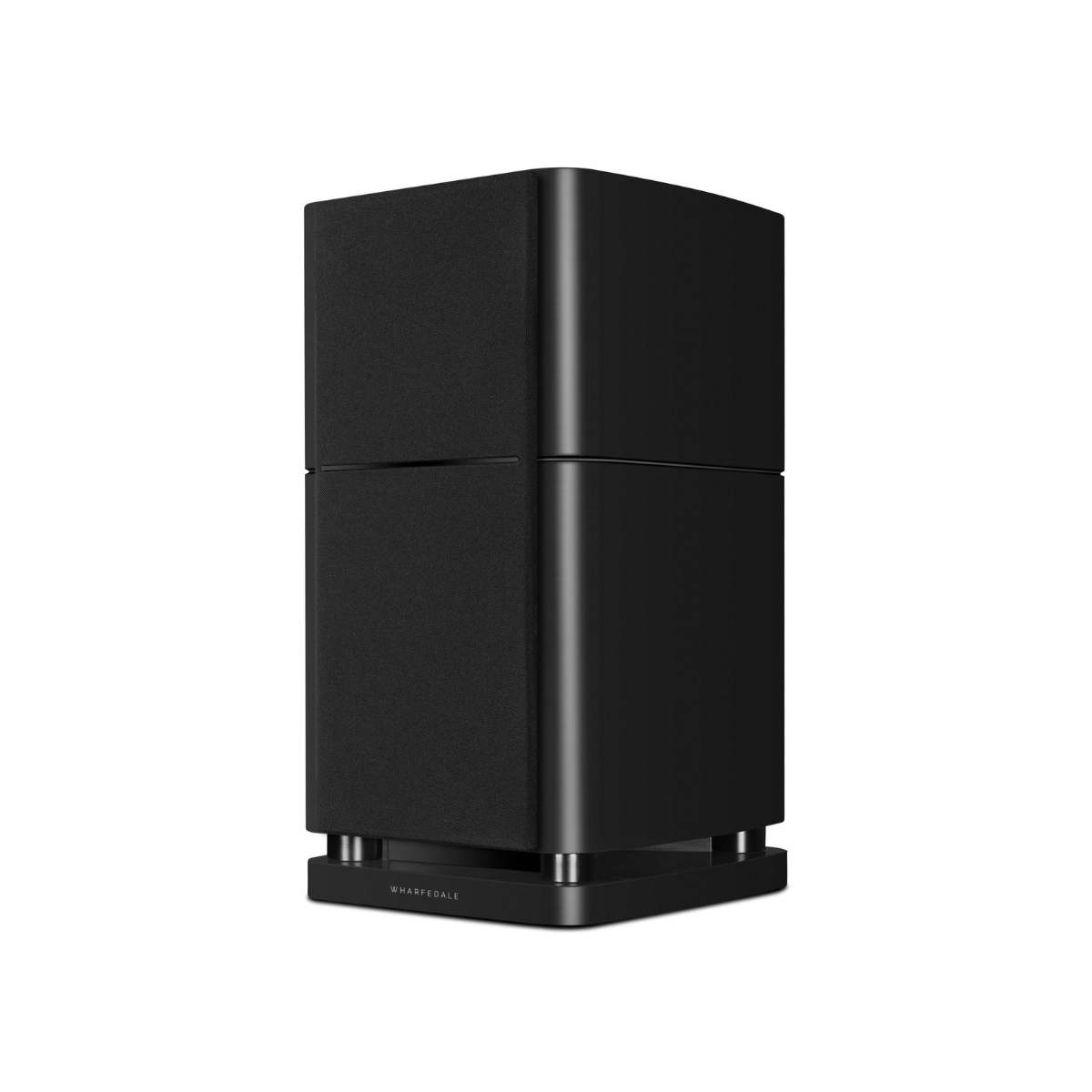

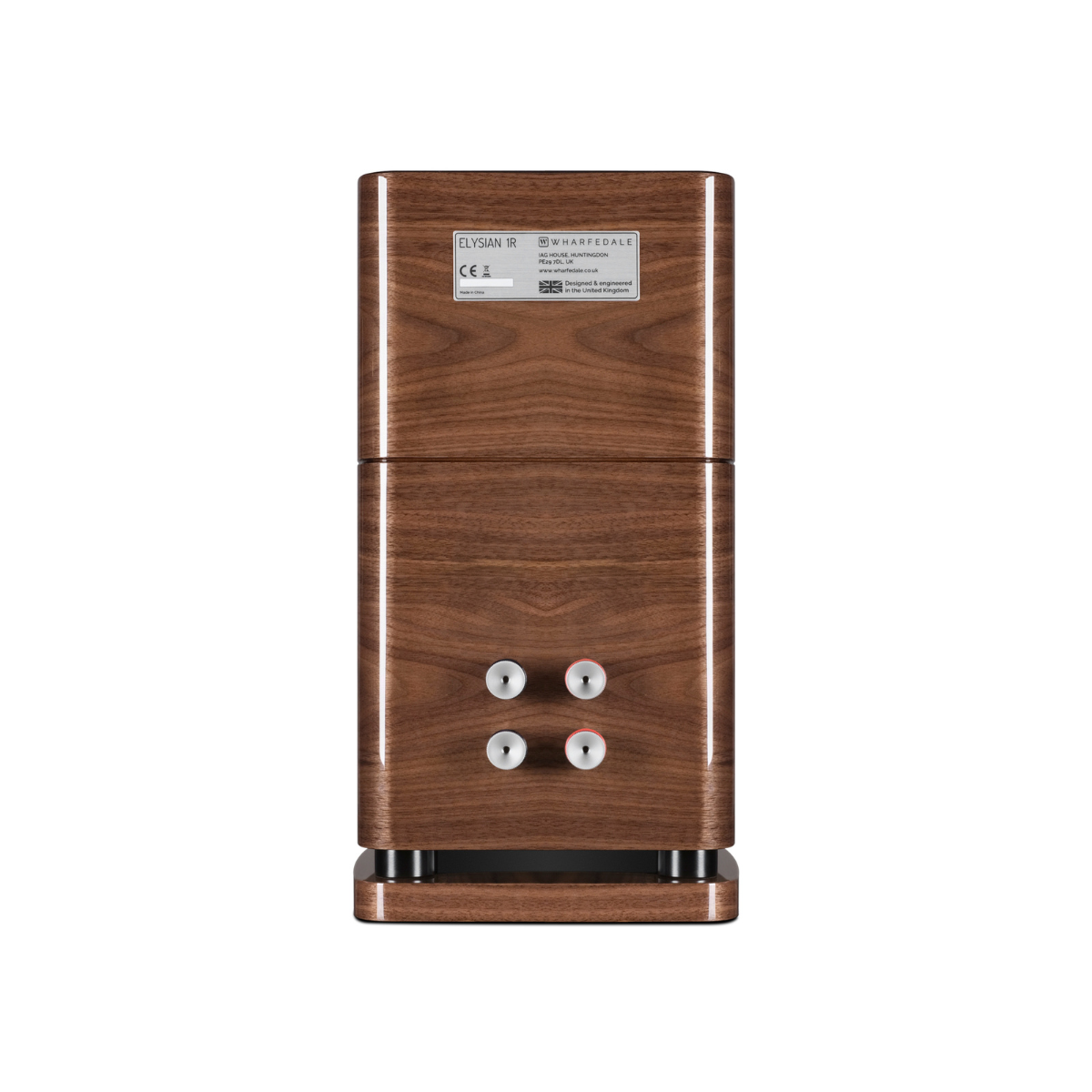

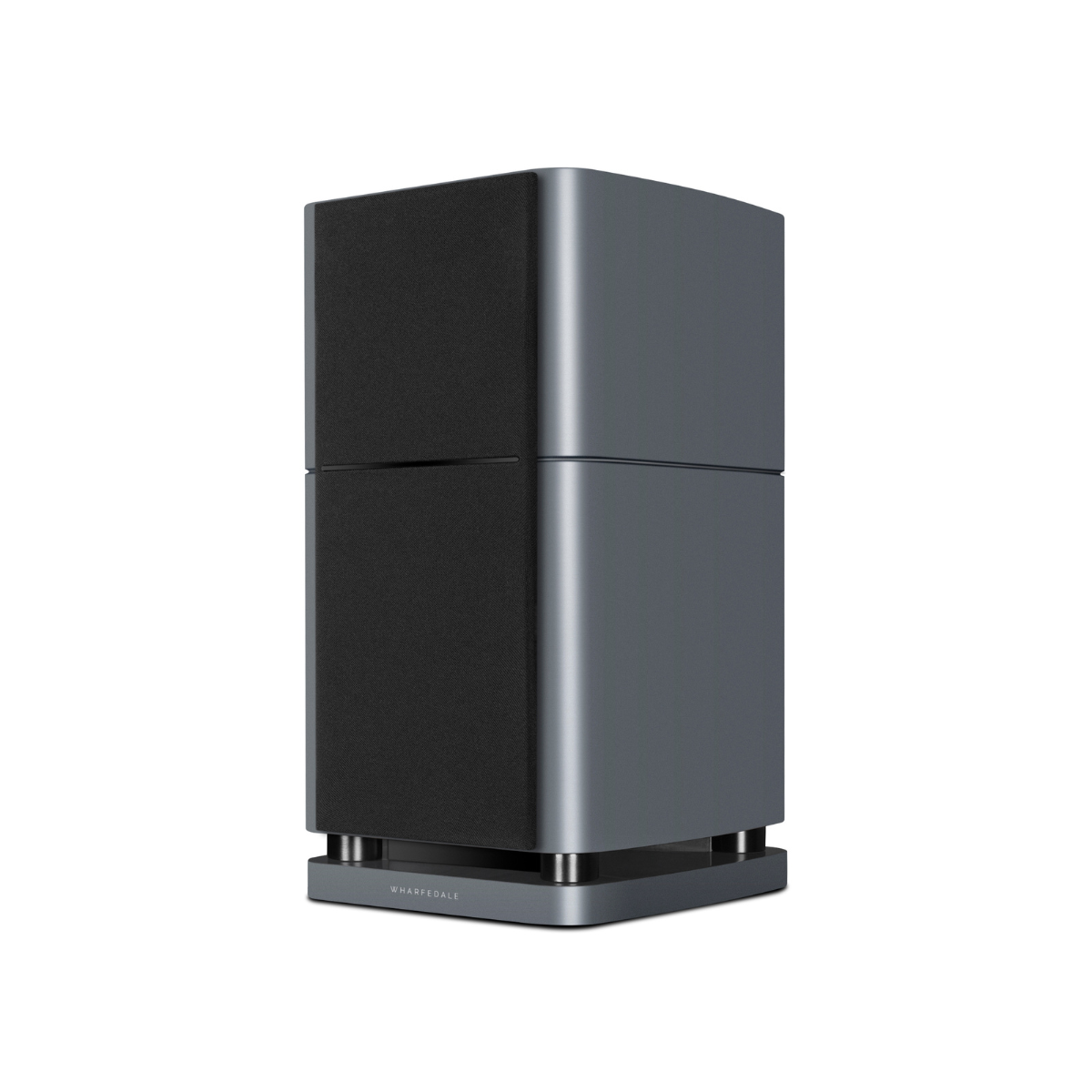

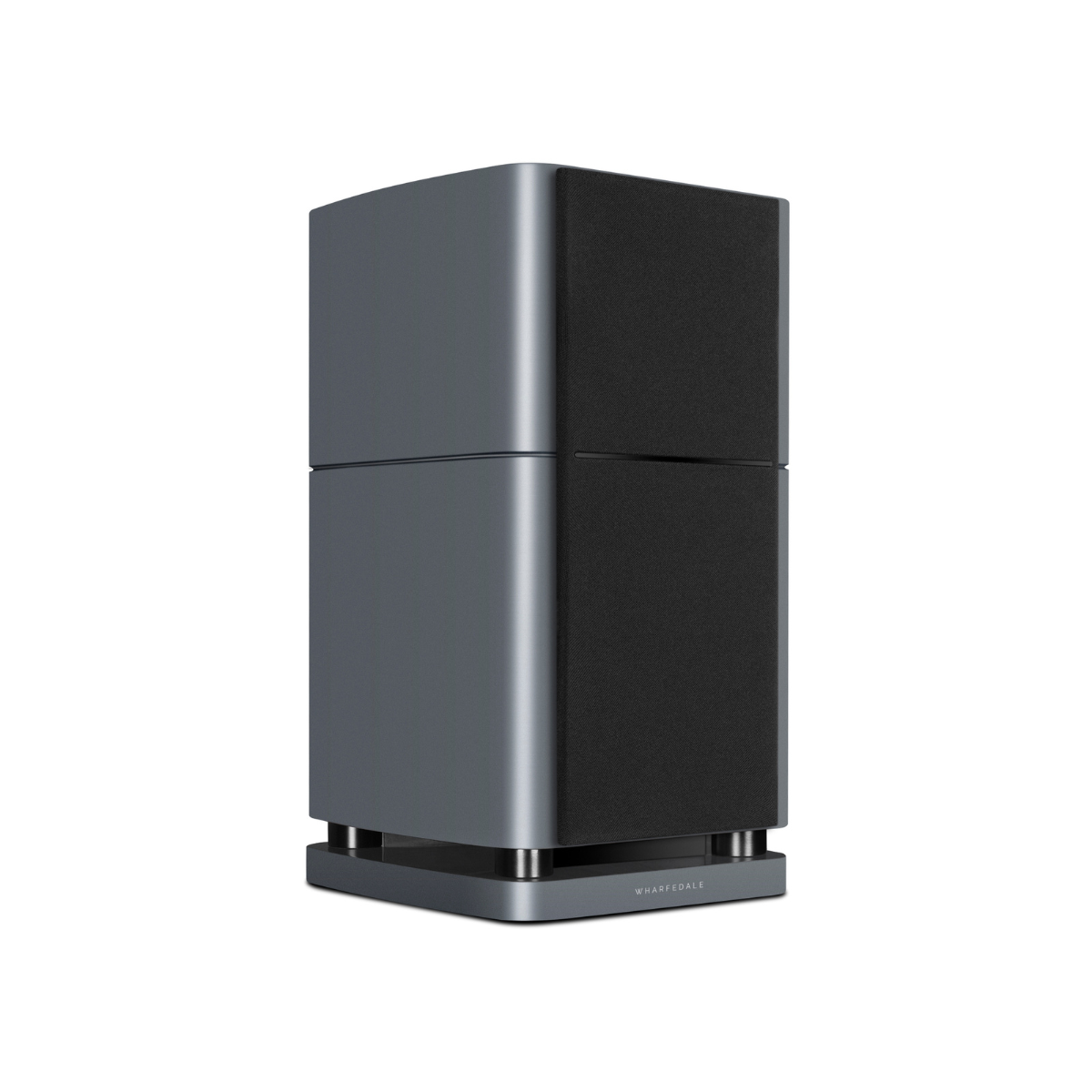

The Wharfedale Elysian 1R is a compact standmount speaker designed for situations where space is limited but high quality sound is still needed. It works well as a main stereo pair or as surround speakers in an Elysian multichannel system. The cabinet holds 21.6 liters of internal volume and measures 490 mm high, 263 mm wide, and 315 mm deep including the rear terminals. Each unit weighs 15 kg. Finish options include Walnut High Gloss, Matte Black, and Lunar Grey with modern trim details.

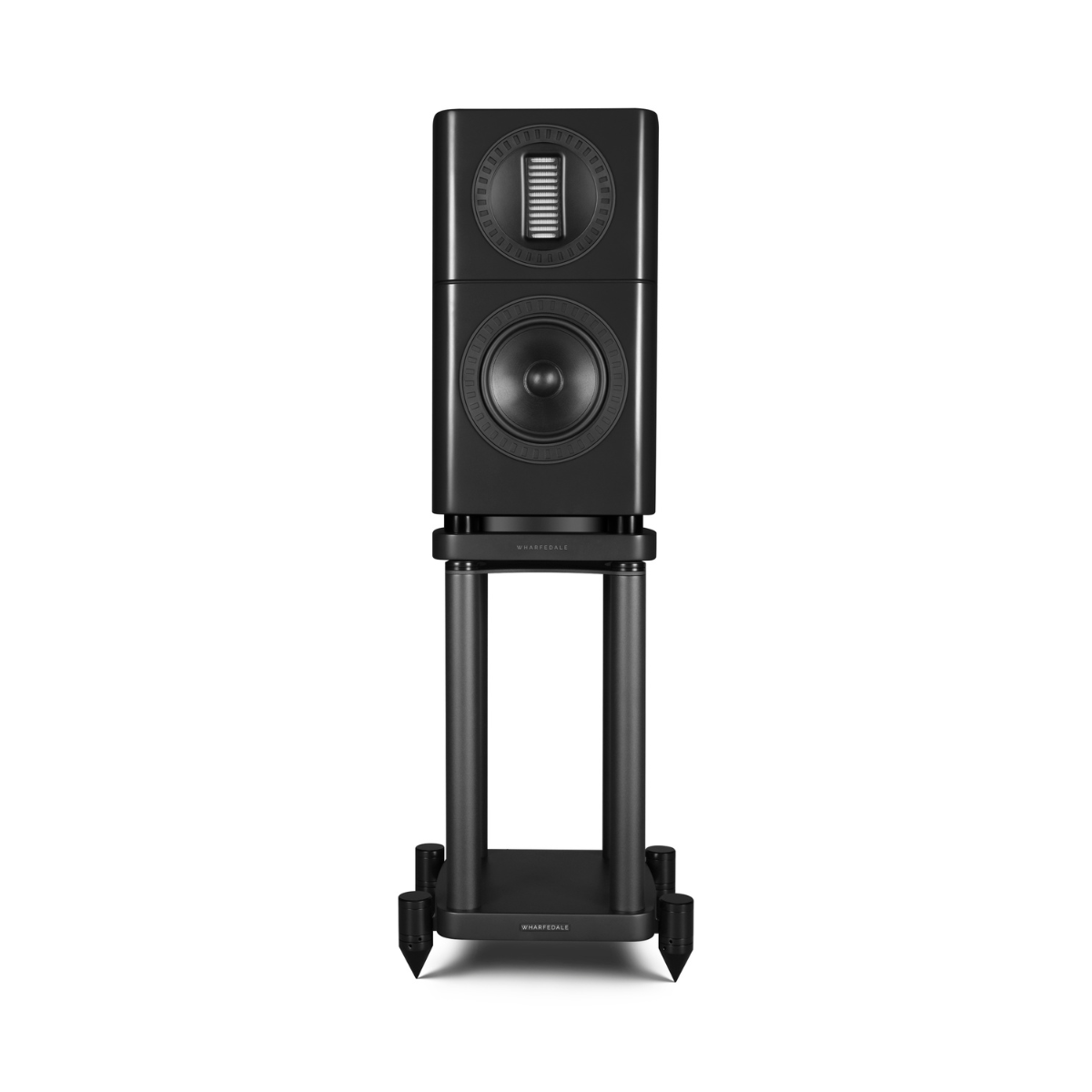

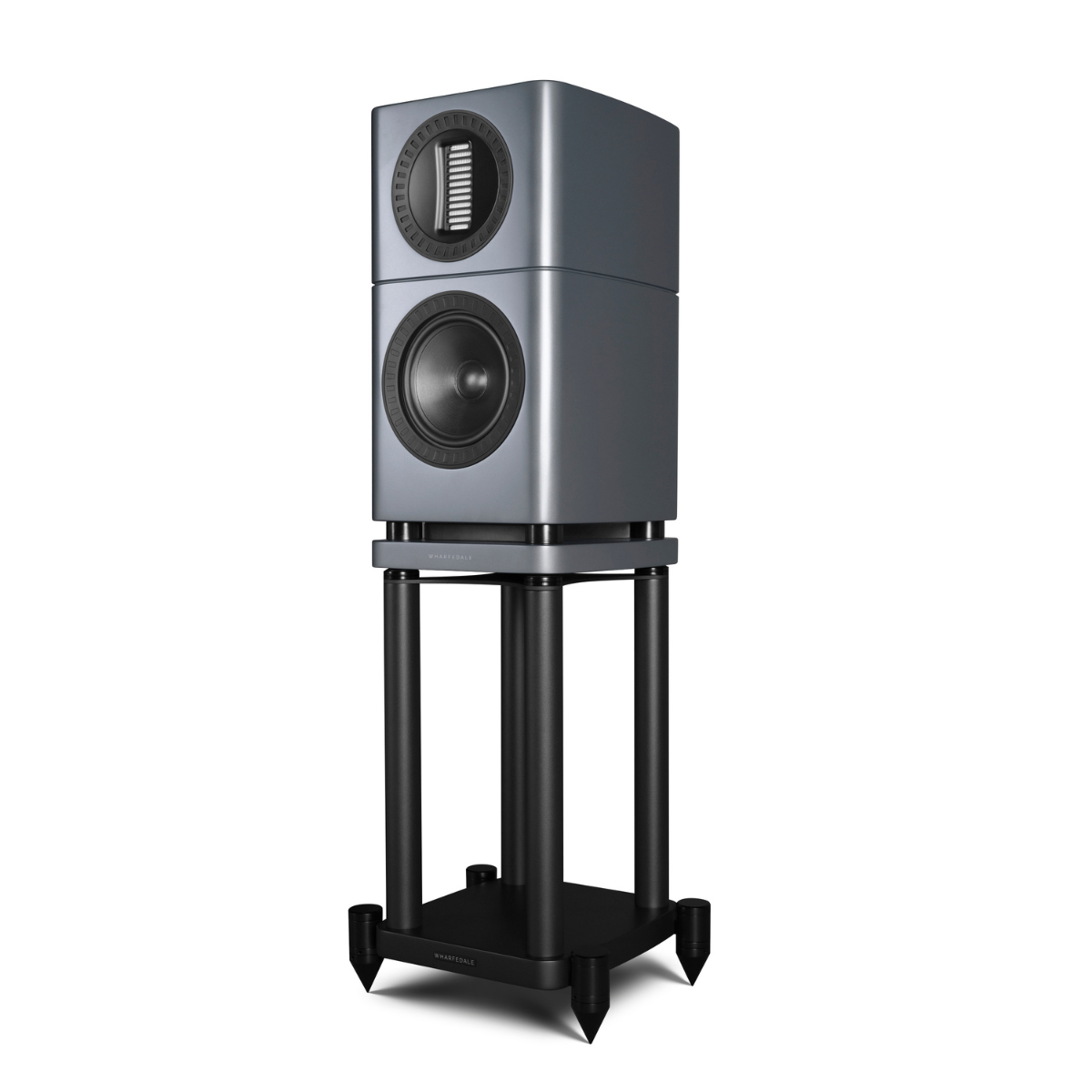

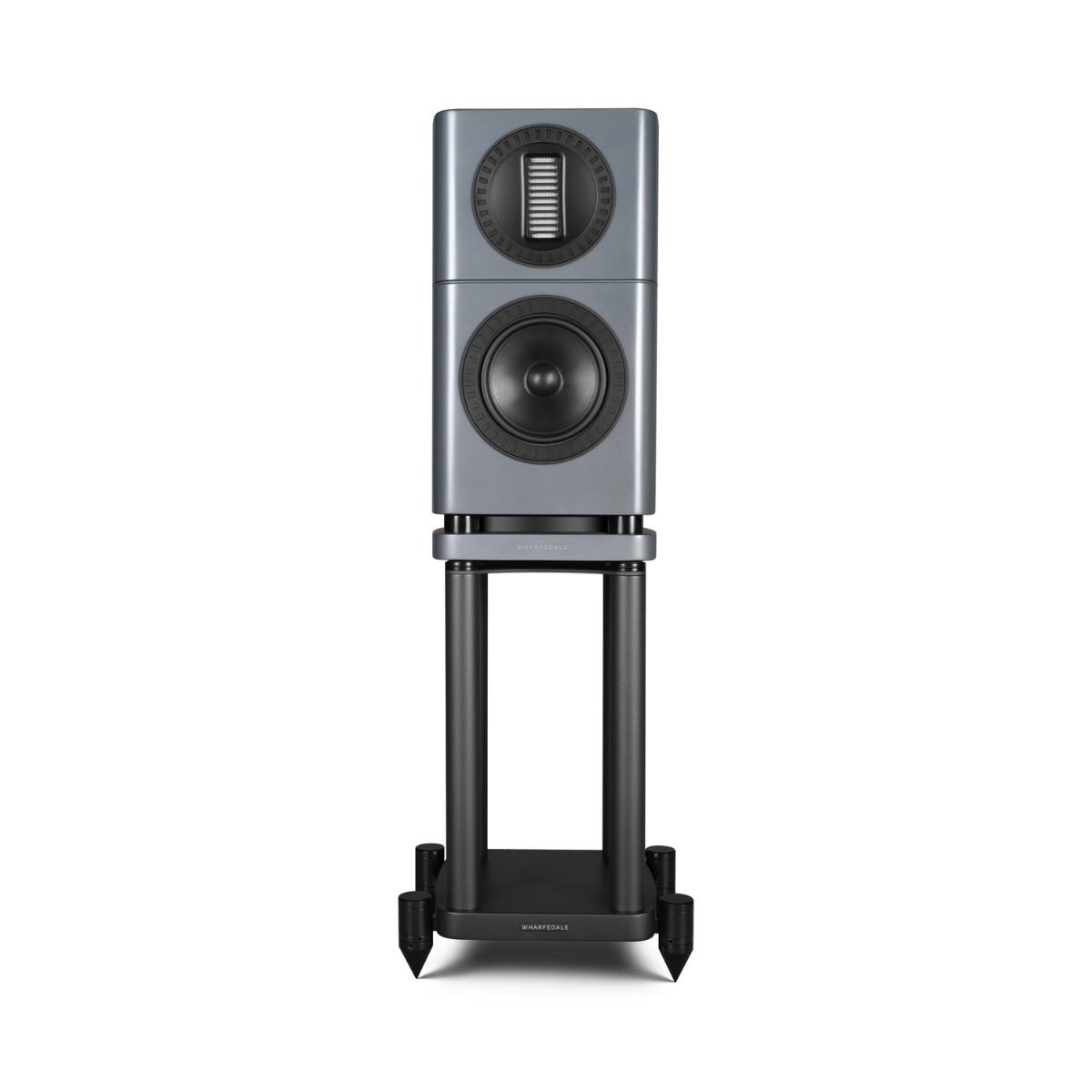

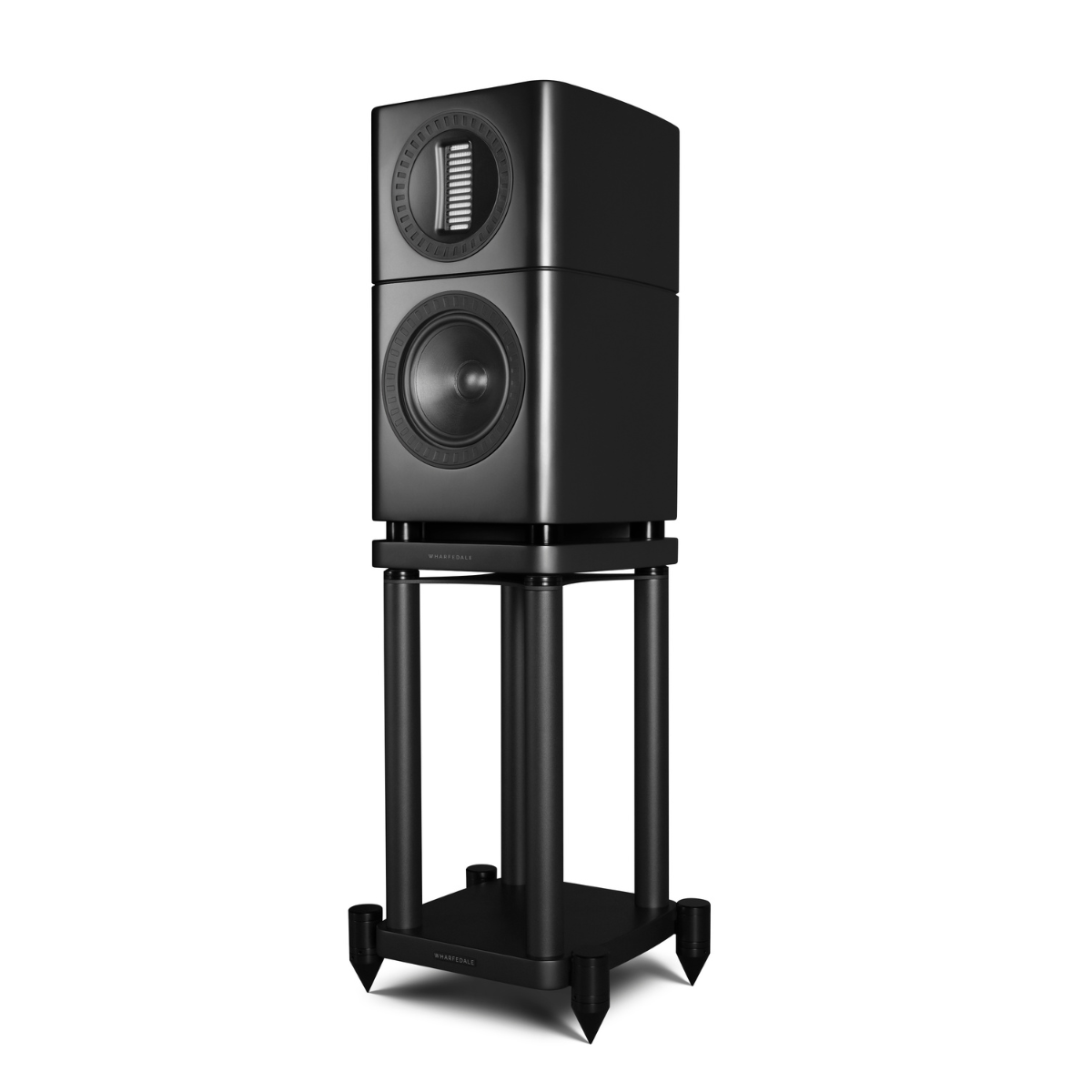

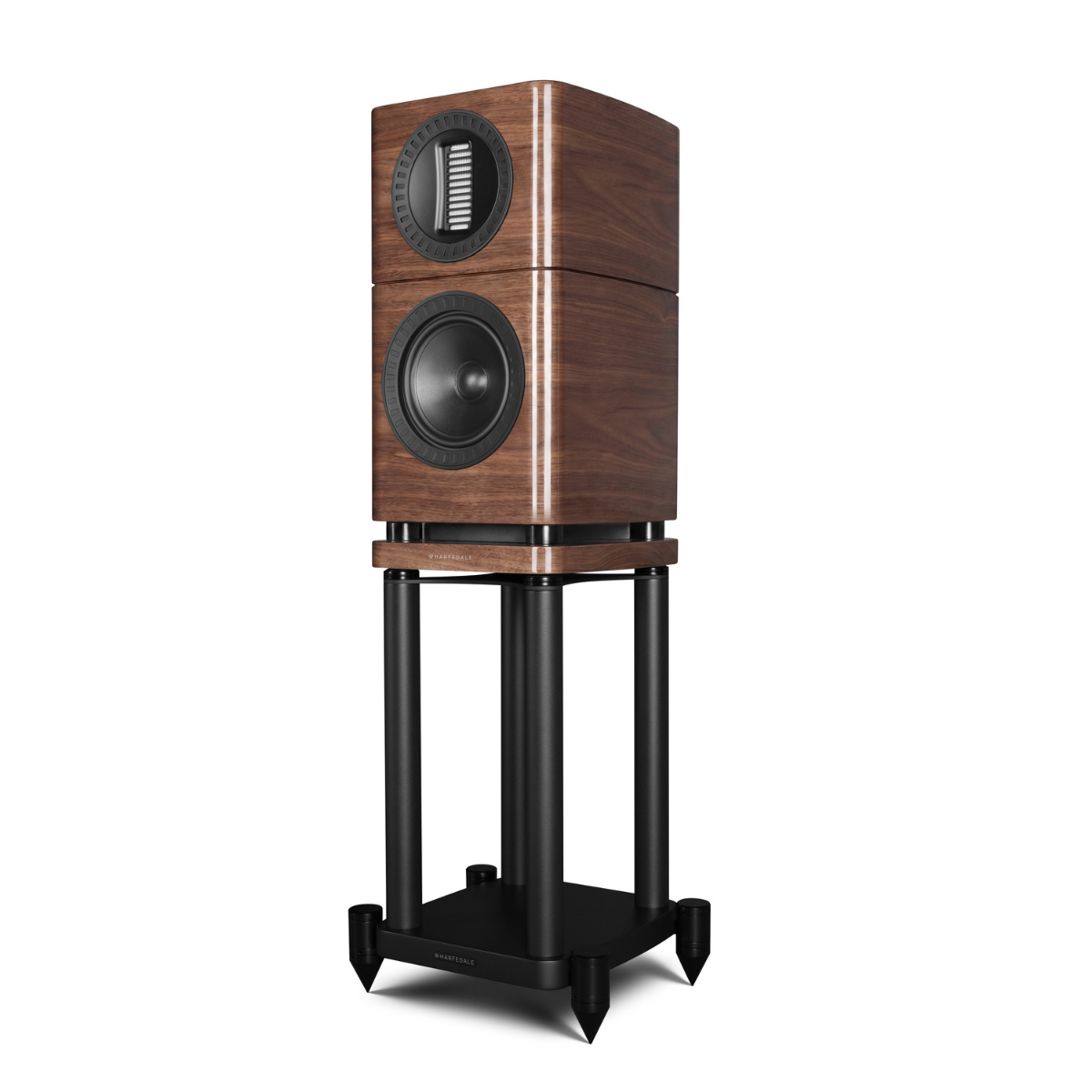

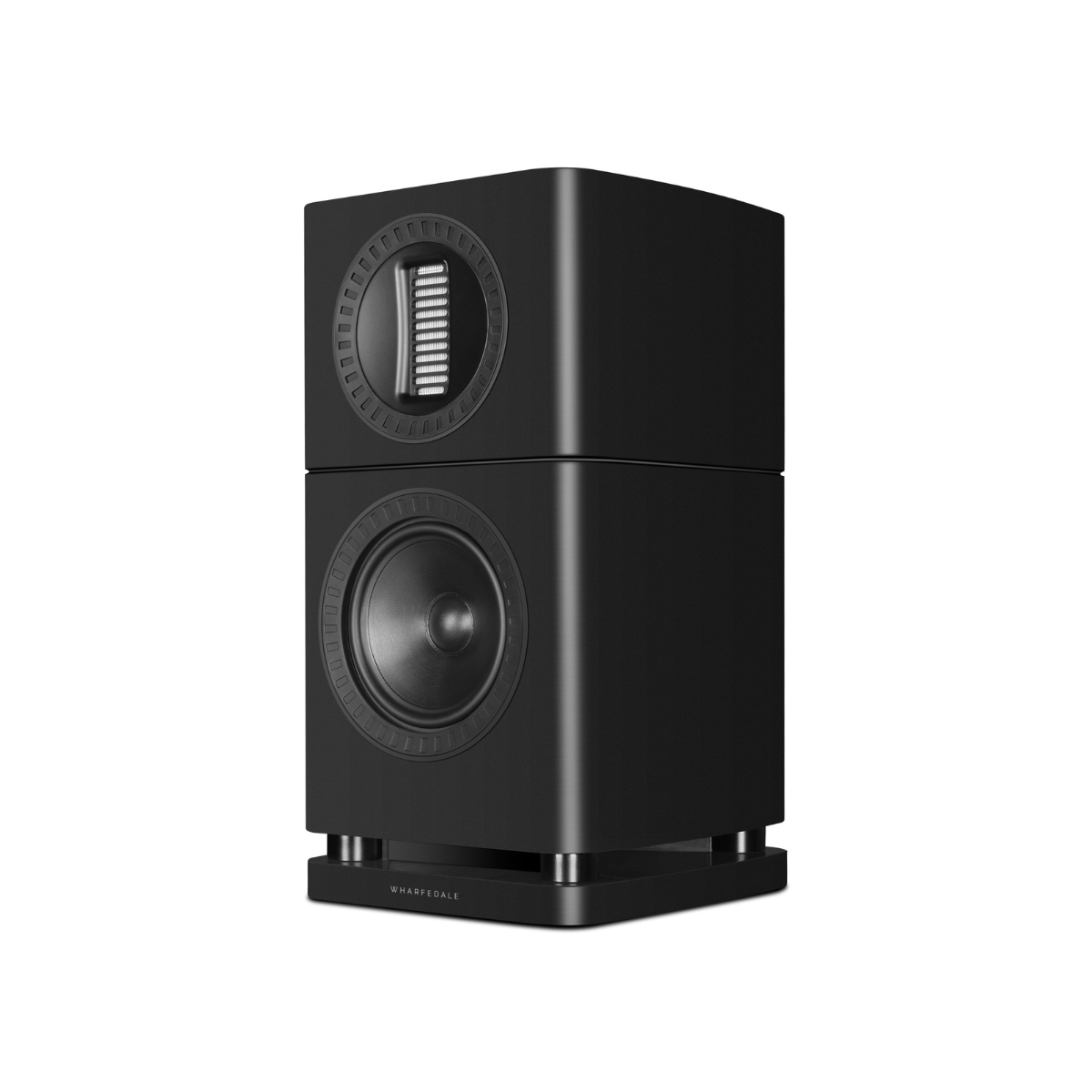

A 27 by 90 mm Air Motion Transformer treble unit manages high frequencies. This design helps the diaphragm move quickly and keeps transients accurate. For bass and midrange, a seven inch coated glass fibre matrix driver is used. It is built to keep distortion low and control vibrations. Wharfedale's Slot Loaded Profiled Port helps reduce turbulence and makes placement less sensitive, so the speaker can reach bass down to 44 Hz. The overall frequency response is 49 Hz to 22 kHz.

The crossover is set at 2.6 kHz. Sensitivity is rated at 89 dB, with a peak SPL of 108 dB at one meter. The speaker has a 4 ohm nominal impedance and a 3.8 ohm minimum, so it works with 8 ohm systems. Recommended amplifier power ranges from 25 to 175 watts. These specifications make the Elysian 1R suitable for a range of high quality sound system setups.

Details & Specs

Model ELYSIAN 1R
General Description 2-way standmount speaker
Enclosure Type Bass reflex
Transducer Complement 2-way
Low Frequency Driver 7" (180mm) coated glass fibre matrix cone
Midrange Driver -
High Frequency Driver 27 × 90mm AMT
Sensitivity (2.83V @ 1m) 89dB
Recommended Amplifier Power 25–175W
Peak SPL 108dB
Nominal Impedance 4Ω (compatible with 8Ω)
Minimum Impedance 3.8Ω
Frequency Response (±3dB) 49Hz – 22kHz
Bass Extension (-6dB) 44Hz
Crossover Frequency 2.6kHz
Cabinet Volume 21.6L
Height (on plinth) 490mm
Width (on plinth) 263mm
Depth (with terminals) (285 + 30)mm
Carton Size 690 × 445 × 625mm
Net Weight 15kg / pcs
Gross Weight 33.2kg / ctn
