VicFix Suspension Profile

Fixation System for Hanging Acoustic Panels - Box of 4

VicFix Suspension Profile

Fixation System for Hanging Acoustic Panels - Box of 4
From $45.00
Select Model


Overview

Ceiling mounting tracks allow heavy acoustic panels to be suspended safely overhead. Featuring factory drilled screw holes, a simple slide in tracking design, and secure removable end caps, these structural profiles simplify ceiling treatment during a professional sound system setup.

The Vicoustic VicFix Suspension Profile is built for hanging acoustic panels directly from a ceiling. It works with panels that use the VicFix mounting layout and uses an aluminum track to support heavier acoustic treatments that would not have been safe to hang overhead before. This helps spread out the weight and keeps panels secure in home theaters, studios, or commercial AV spaces.

Each profile comes with predrilled holes that fit large mounting screws, making it easier to line up and secure the track to the ceiling. After the track is in place, panels can be slid into the track with little effort. Removable end caps on both sides keep the panels from moving once they are installed.

Each package contains four profiles per box. It is important to note that this suspension system does not work with the Multifuser DC3, Wavewood Diffuser Ultra MKII, or Wavewood Diffuser EPS MKII panels. For other compatible Vicoustic panels, these tracks make it straightforward to extend wall treatments onto the ceiling and keep everything lined up during installation.

Details & Specs

Model VicFix Suspension Profile

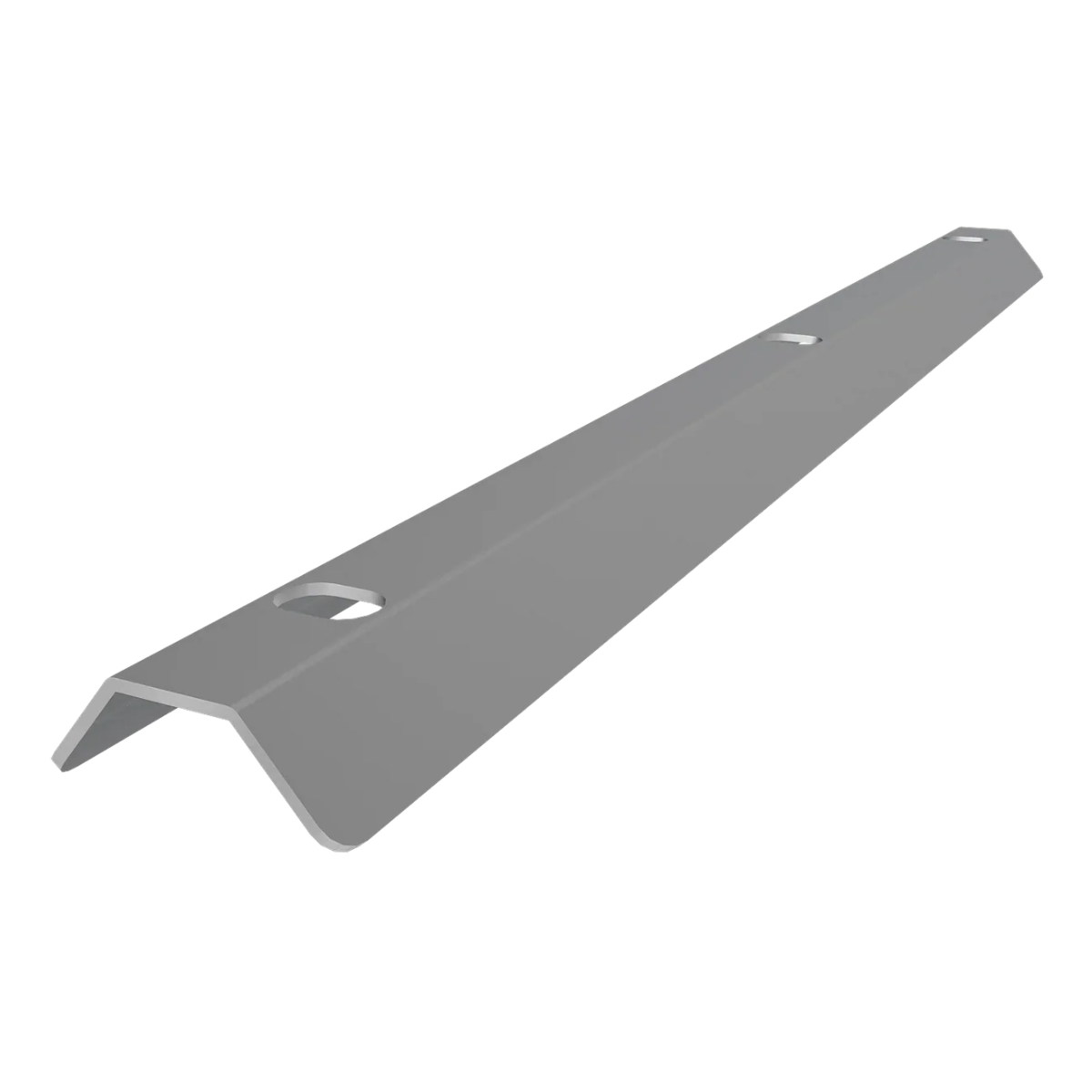

Dimensions 225mm: 9x28x225mm / 0.35"x1.1"x8.86"

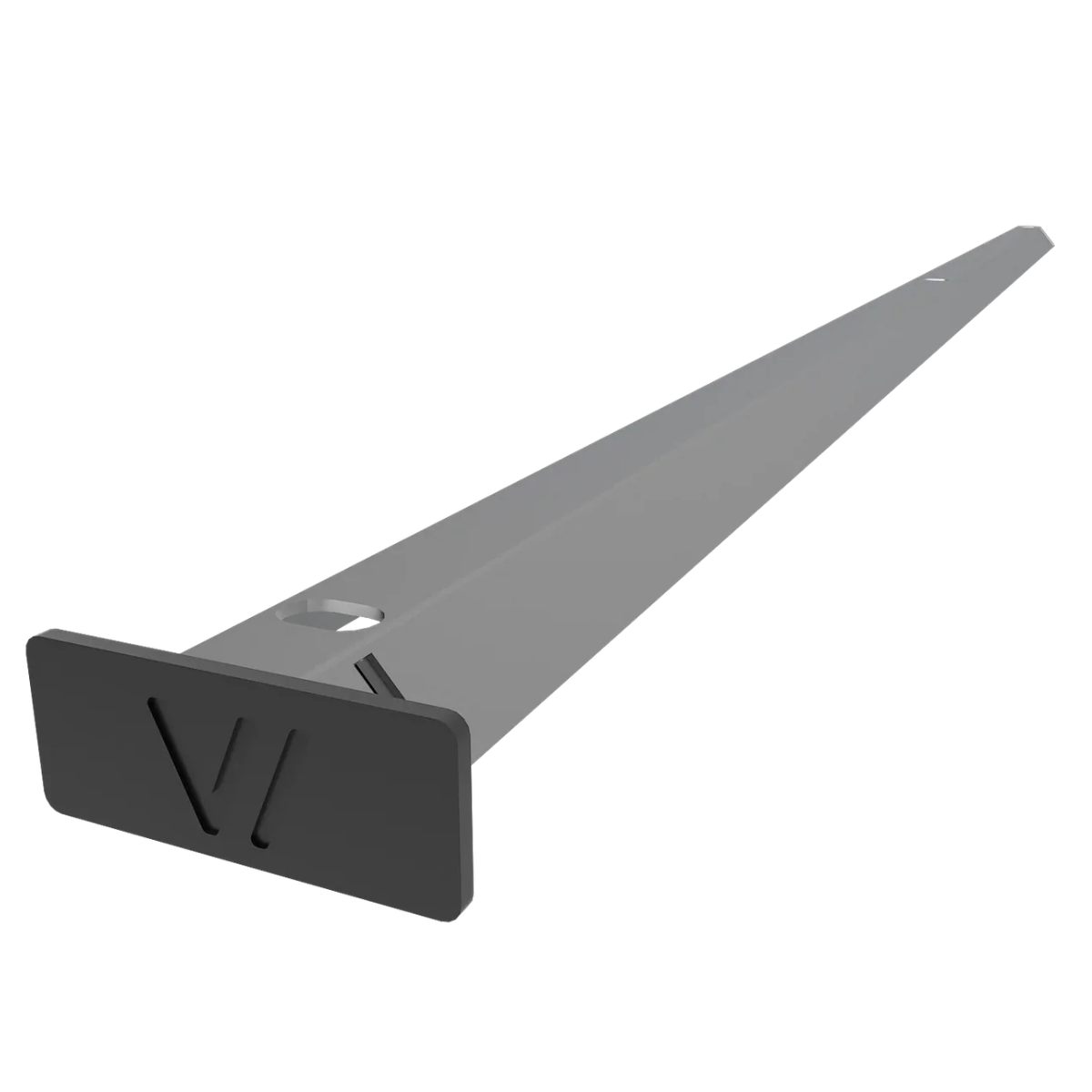

595mm: 9x28x595mm / 0.35"x1.1"x23.43"

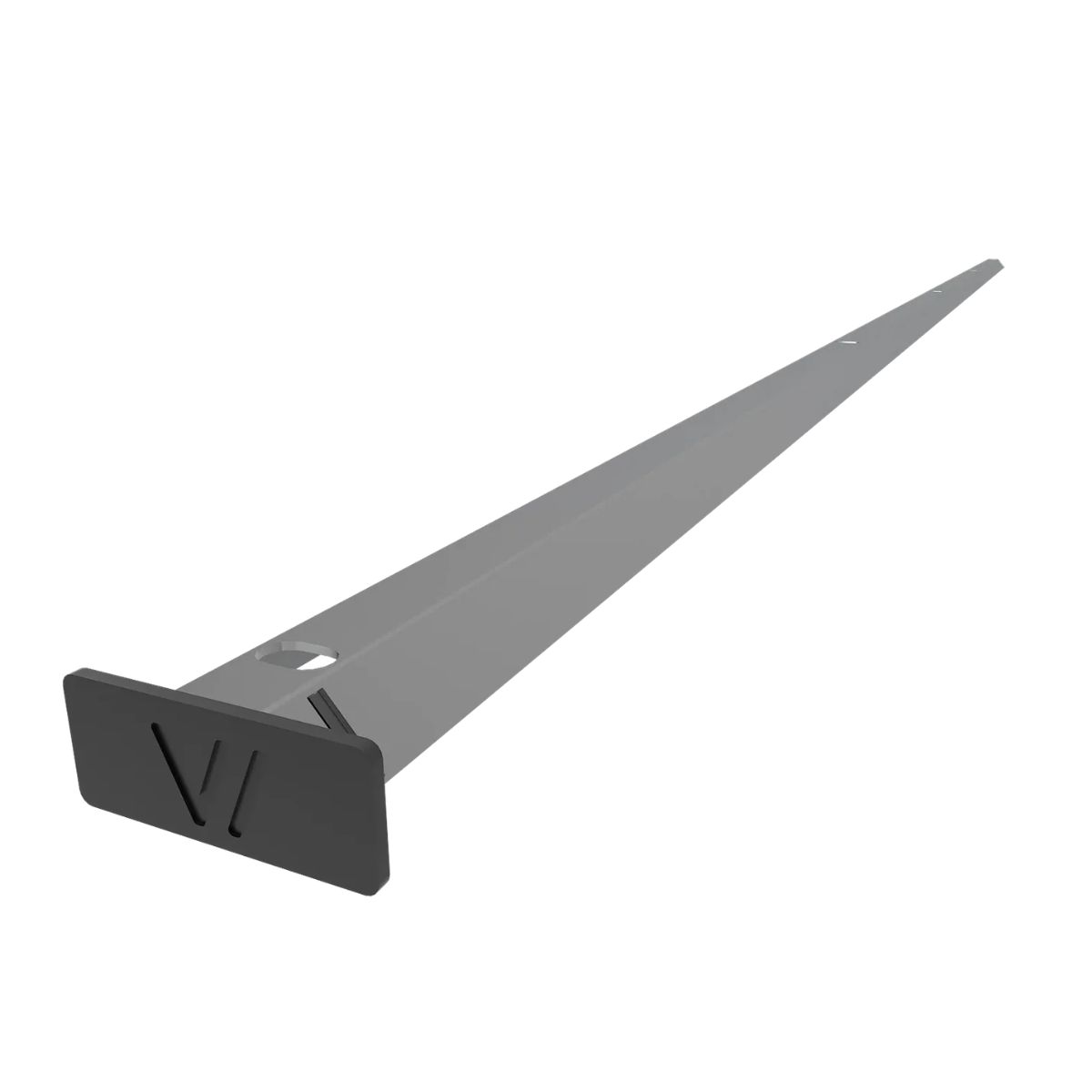

1190mm: 9x28x1190mm / 0.35"x1.1"x46.85"
Raw Materials Aluminium
Fire Classification Not Available
Function Accessories
