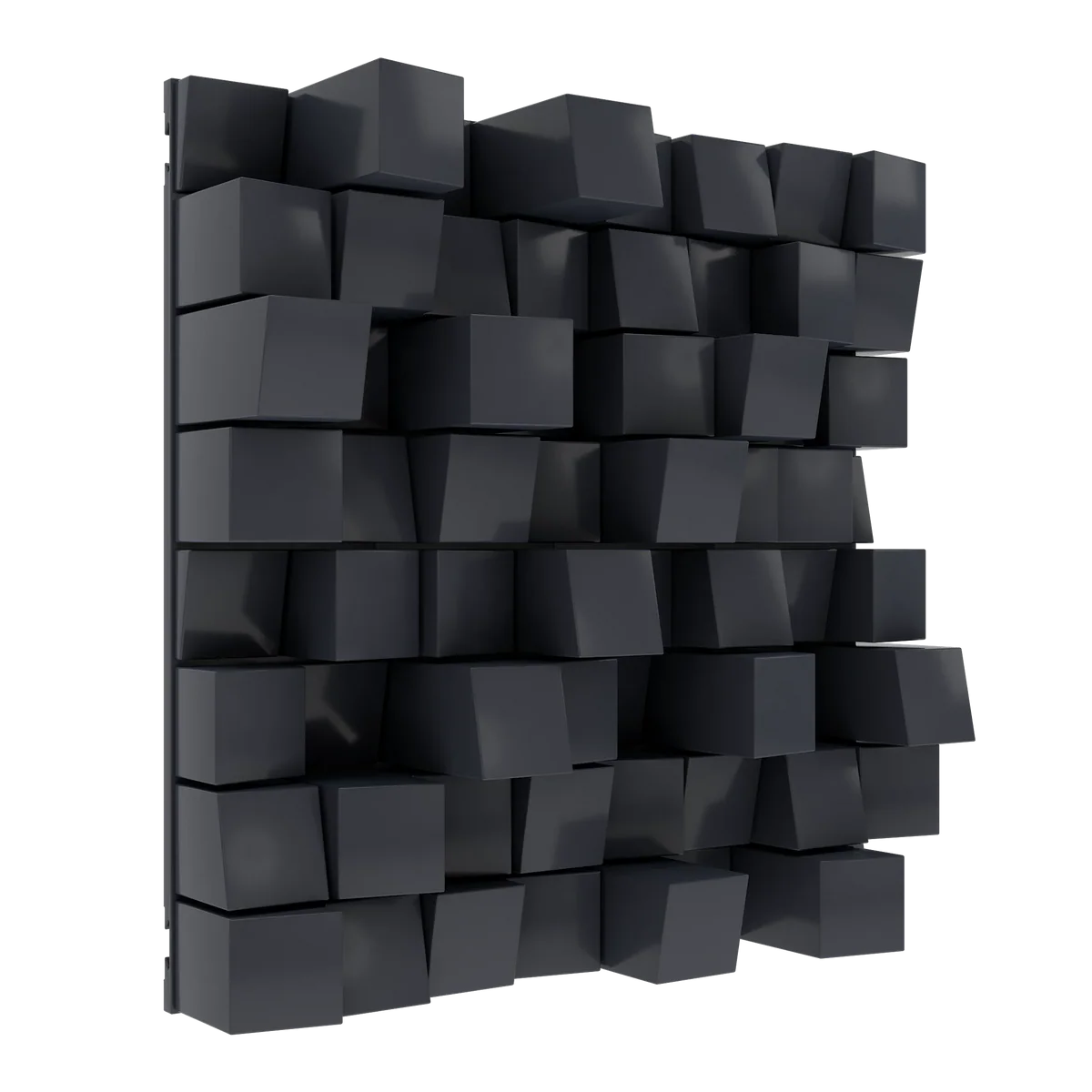

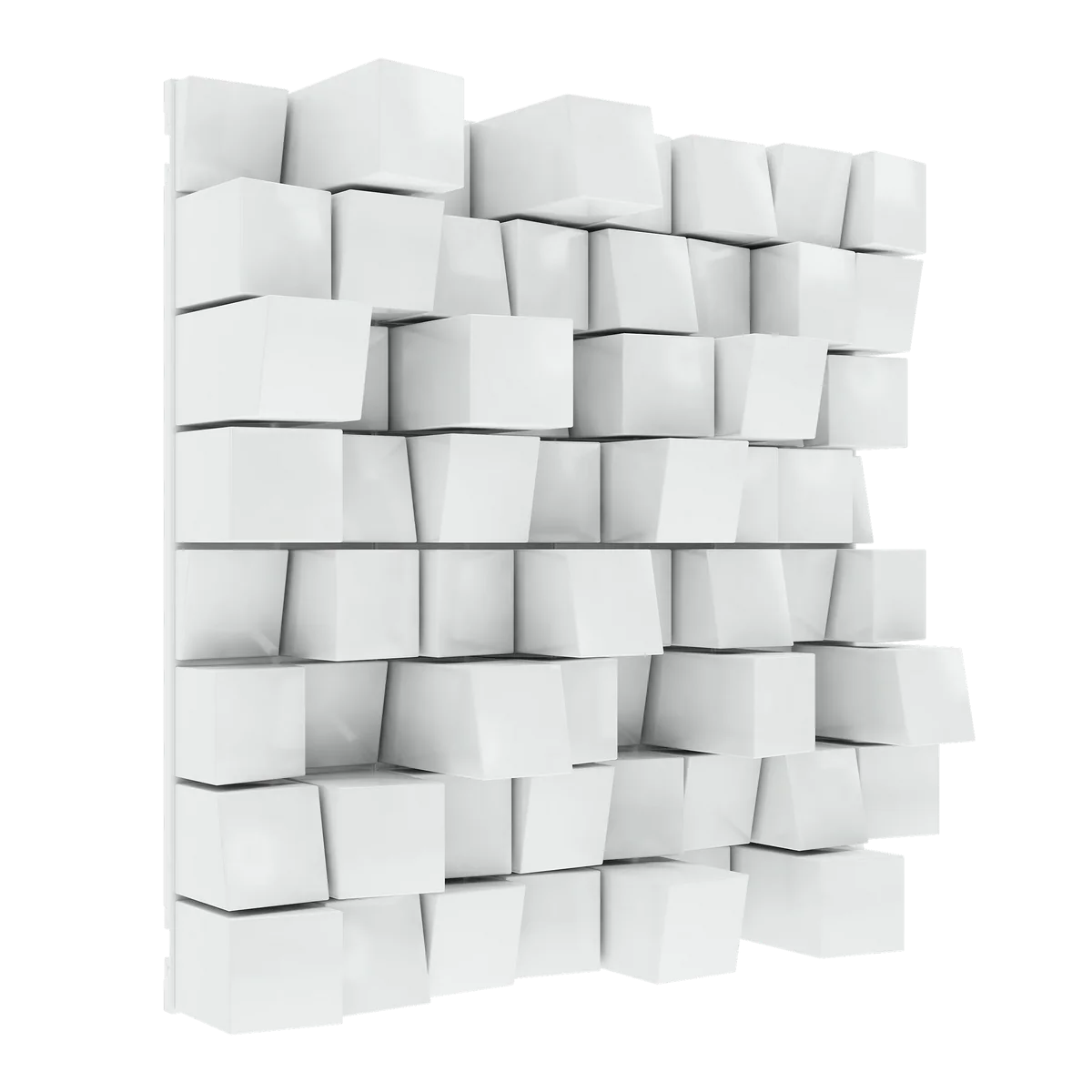

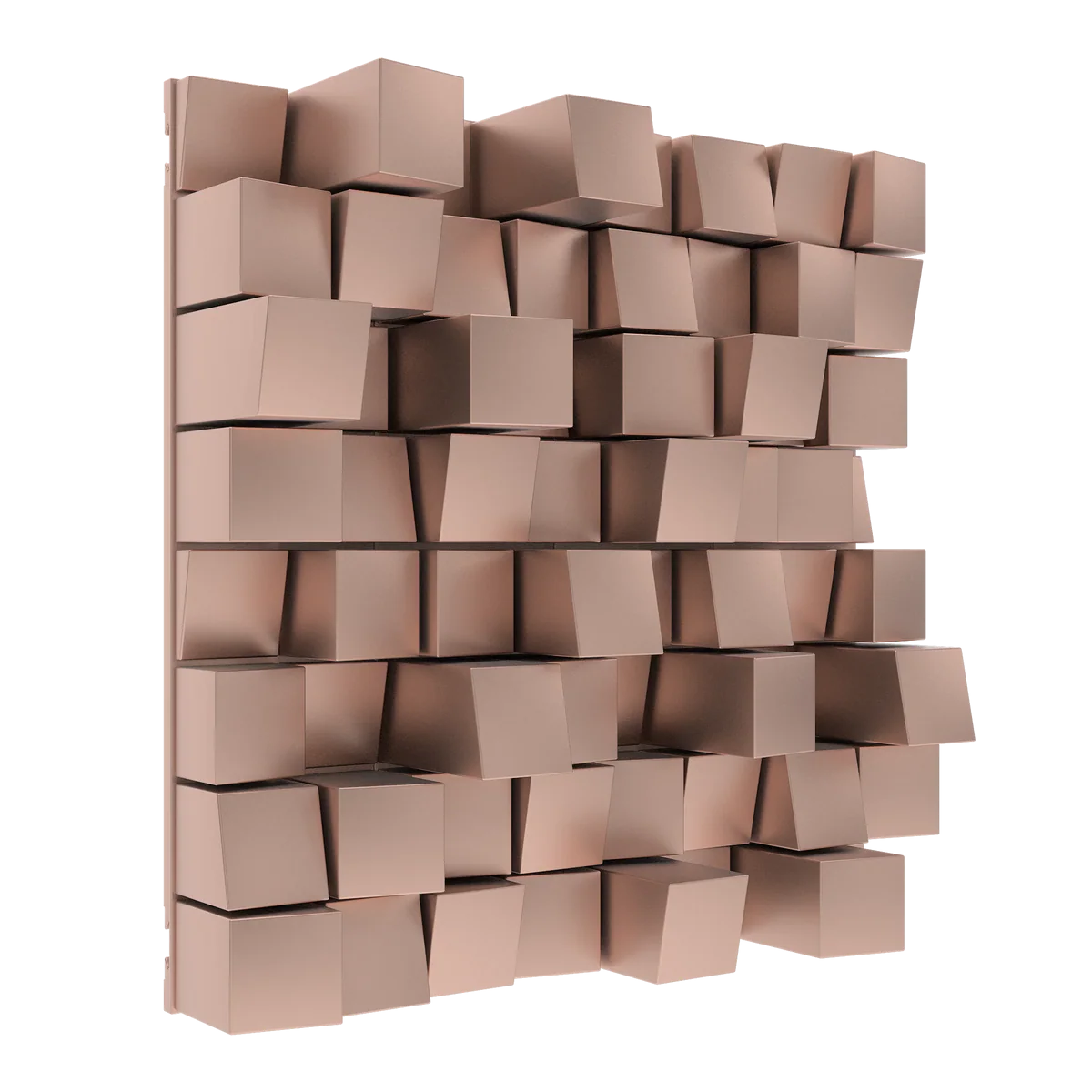

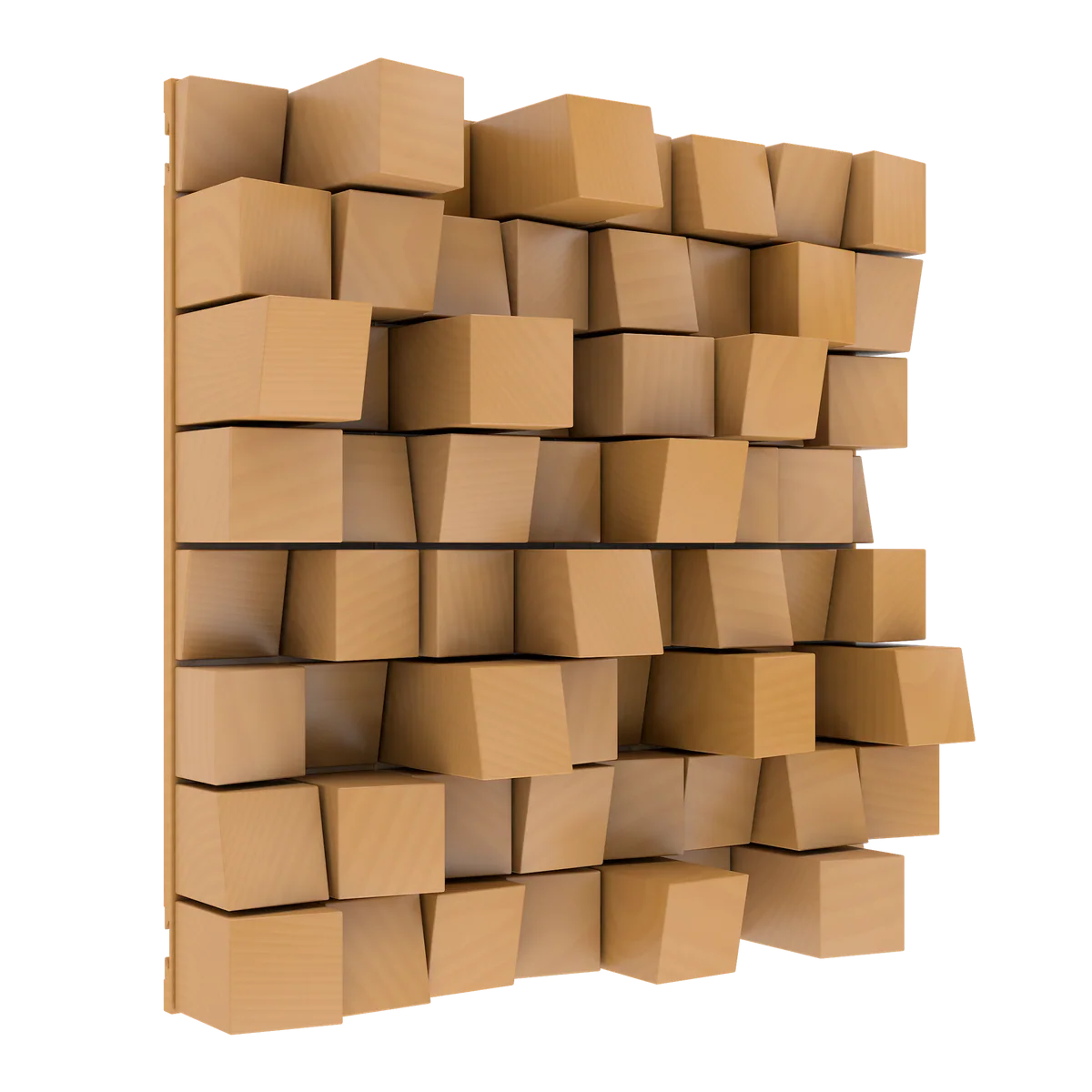

Multifuser Wood MKII

Two-dimensional Sound Diffuser Panel - Unit of 1

Multifuser Wood MKII

Two-dimensional Sound Diffuser Panel - Unit of 1
From $649.00
Select Color:

Select Model


Overview

Two dimensional wood diffusion panels achieve omnidirectional sound scattering across mid and high frequencies without over deadening a room. Available in multi part rotatable configurations, these solid wood or lacquered MDF units provide stable acoustics for a high performance sound system setup.

Vicoustic Multifuser Wood MKII panels provide two dimensional sound diffusion for performance critical venues. They are designed for spaces like concert halls, high fidelity rooms, and recording studios where engineers require effective scattering without adding excessive acoustic absorption. Available as the 36 model or the 64 model, these panels are constructed from either two or four rotatable parts. Installers can turn each individual section in different directions to produce uniform, omnidirectional sound scattering that is particularly effective at spreading mid and high frequencies.

The panels are built using high quality materials, with natural wood finishes utilizing solid wood and plywood, while the matte and metallic color variations consist of lacquered MDF and plywood. For physical measurements, the 36 model stands 96 millimeters deep and weighs 12.10 kilograms, offering a Noise Reduction Coefficient of 0.25. The deeper 64 model measures 143 millimeters thick, weighs 17.55 kilograms, and carries a Noise Reduction Coefficient of 0.35. Both models share matching face dimensions of 595 by 595 millimeters.

Regarding fire safety standards, these wood diffusers achieve a European Euroclass E rating and a USA Class B rating under ASTM E84. They fit securely into a custom sound system setup on walls using the included VicFix J Profile hardware. For ceiling placements, the units are compatible with either the 595 millimeter or 1190 millimeter VicFix Suspension Profile. Shipped as a single unit per box, these acoustic diffusers combine visual appeal with precise energy management for professional audio visual solutions.

Details & Specs

Model Multifuser Wood MKII
Dimensions 36 – 595×595×96mm / 23.4"×23.4"×3.8"
64 – 595×595×143mm / 23.4"×23.4"×5.6" (L×H×W, per panel)
Weight 36 – 12.10kg / 26.68lb
64 – 17.55kg / 38.69lb (per panel)
Raw Materials Natural Wood – Solid Wood and Plywood
Matte and Metallic colors – Lacquered MDF and Plywood
Functions Diffusion
Installation VicFix J Profile (included), VicFix Suspension Profile 595mm or 1190mm (ceiling)
Fire Rate Europe: Euroclass E; USA: Class B (ASTM-E84)
NRC 36 – 0.25; 64 – 0.35
