Technics SL-G700M2 - Black

CD, SACD, Network Player & DAC with MQA & Silent Power Supply

Technics SL-G700M2 - Black

CD, SACD, Network Player & DAC with MQA & Silent Power Supply
$3,499.95
Select Color Options:

Contact Us

Overview

The Grand Class SL-G700M2 Network and Super Audio CD Player is the new generation multi-digital player that delivers the highest sonic fidelity with new digital/analog processing technology and power supply noise suppression that thoroughly eliminates adverse effects on minute signals. Built-in Wi-Fi and Bluetooth, allow you to stream your music from a wide variety of sources, or play traditional CD and SACD with crisp, clear audio.  The SL-G700M2 brings out rich details and tones in music files, no matter what the format.

High Precision Coherent D/A Converter

The SL-G700M2 is equipped with the High Precision Coherent D/A Converter, which is the result of the accumulation of these technologies, converts digital values to analogue signals with the utmost precision and outputs them to an amplifier. It is composed of (1) coherent processing, (2) high-performance D/A converter in dual monaural configuration, and (3) a proprietary discrete amplifier circuit.

The dual ESS ES9026PRO is newly adopted for the DAC chip. The symmetrical placement of one L/R unit on each side and their independent transmission structures reduce mutual interference and faithfully reproduce the sound image and musical space contained in the sound source.

The filter circuit after the D/A conversion uses an amplifier circuit with a unique discrete configuration instead of an operational amplifier IC. This realizes even higher responsiveness and S/N and reproduces even the most subtle sounds.

Coherent Processing Technology

Technics' new proprietary coherent processing technology improves the reproducibility of impulse signals by minimising amplitude and phase deviations that occur throughout the D/A conversion process for signals up to 192 kHz PCM using proprietary digital signal processing*. With this processing, purity of the sound is increased, and the sound image is clearer.*DSD signals such as Super Audio CD are input directly to the DAC without performing this processing.

Multi-Stage Silent Power Supply

Digital audio players that handle small signals require thorough noise suppression because even the slightest noise can significantly affect sound quality. The Multi-Stage Silent Power Supply provides thorough noise suppression in three stages: (1) High-speed switching power supply, (2) low-noise regulator, and (3) current injection active noise cancelling.

The SL-G700M2 uses a high-speed switching power supply of approximately 300 kHz, which is also used for the analogue circuits of the SU-R1000 reference-class integrated amplifier. By increasing the switching frequency, the interference of noise on the music playback bandwidth is reduced and a highly responsive power supply is achieved.

The low-noise regulator also provides low noise at high level and stable power supply are realised with the fine tuning of circuit patterns.

Current Injection Active Noise Canceling

This newly developed technology, current injection active noise canceling removes unwanted noise components by applying an inverse phase current to the detected noise. More effective current noise rejection can be achieved by using the push/pull method in combination with conventional noise rejection by drawing current.

Super Audio CD and MQA - Also USB-B Input is Newly Supported

The SL-G700M2 supports playback of Super Audio CD, which is a high-quality audio disc format. For further sound quality enhancement, a "Pure Disc Playback" mode, dedicated for Super Audio CD/CD playback. This model also supports MQA and is capable of full decoding playback of MQA files and MQA-CDs. Various other high-resolution formats are also supported, including WAV/AIFF, FLAC/ALAC, and DSD file playback.

In addition, the SL-G700M2 is equipped with a new USB-B port that allows constant connection to a network audio server or PC for playback of high-resolution sound sources from the connected device.

Supports a Wide Variety of Music Sources and High Connectivity

The SL-G700M2 supports Chromecast built-in, which enables a wide range of music streaming services from Google Chromecast-enabled apps, as well as AirPlay 2. Wi-Fi® and Bluetooth® wireless connections are also supported.*

*A Google Voice-activated Speaker must be included in the same network.Compatible music streaming services will be supported sequentially through firmware updates.Network content services are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Some content may not be available in the country in which you reside. Registration/subscription may be required. Fees may apply.

Housing and Chassis that Support High Sound Quality and High-quality Design

The SL-G700M2 is divided into four sections inside the chassis, with the power supply, digital interface, analogue circuitry, and disk drive sections, each being independent of the other. This suppresses mutual interference between circuits and reduces sound quality degradation. The disc drive adopts a three-layer chassis configuration. Powerful vibration-damping and quiet construction, including a disc tray made of die-cast aluminium, ensures high-precision disc playback.

The exterior features a hairline-finished 7mm-thick aluminium front panel and mm-thick aluminium side panels, as well as an engraved Technics logo for a high-grade design and finish.

Details & Specs

Model SL-G700M2
Covers Most of the Digital Audio Media Available Today SACD (Single/Hybrid 2ch) CD Playback Network Supports to High-res Digital Audio Files Including MQA MQA-CD Playback Chromecast Built-in / Works with Google Assistant Spotify Connect TIDAL DEEZER Internet Radio Airplay2 Bluetooth Amazon Music Qobuz
Grand Class High-quality Sound High-speed switching power supply High-performance D/A converter ESS ES9026PRO, and Dual Mono Construction D/A Circuit, Variable Analog Audio Output Proprietary discrete amplifier circuit Battery Driven Clock Generator Pure Disc Mode for SACD/CD Playback for Greater Sound Purity Supports Higher Grade Headphone Connection with Integrated Class AA Headphone AMP High-Res Re-master
High-quality Technics Design Four-Section Configuration High-Rigidity Chassis and Aluminium Die-cast Disc Tray – High-Stability SACD Mechanism 7mm Thick Aluminium Plate Used for the Front Panel Control Port for System Control with SU-G700
Disc Compatibility Super Audio CD (2 ch area only), CD, CD-R, CD-RW
Disc Format Super Audio CD, CD-DA
Frequency Response Super Audio CD: 2 Hz to 50 kHz (-3 dB) / CD: 2Hz to 20 kHz (-3 dB)
Dynamic Range (IHF-A) Super Audio CD: BALANCED: 110dB (IHF-A) / UNBALANCED: 110dB (IHF-A) CD: BALANCED: 98dB (IHF-A) / UNBALANCED: 98dB (IHF-A)
Signal to Noise Ratio (IHF-A) Super Audio CD:BALANCED: 121 dB / UNBALANCED: 118 dB CD:BALANCED: 121 dB / UNBALANCED: 118 dB
THD+N Super Audio CD: 0.0006% (1 kHz, 0 dB) / CD: 0.0015% (1 kHz, 0 dB)

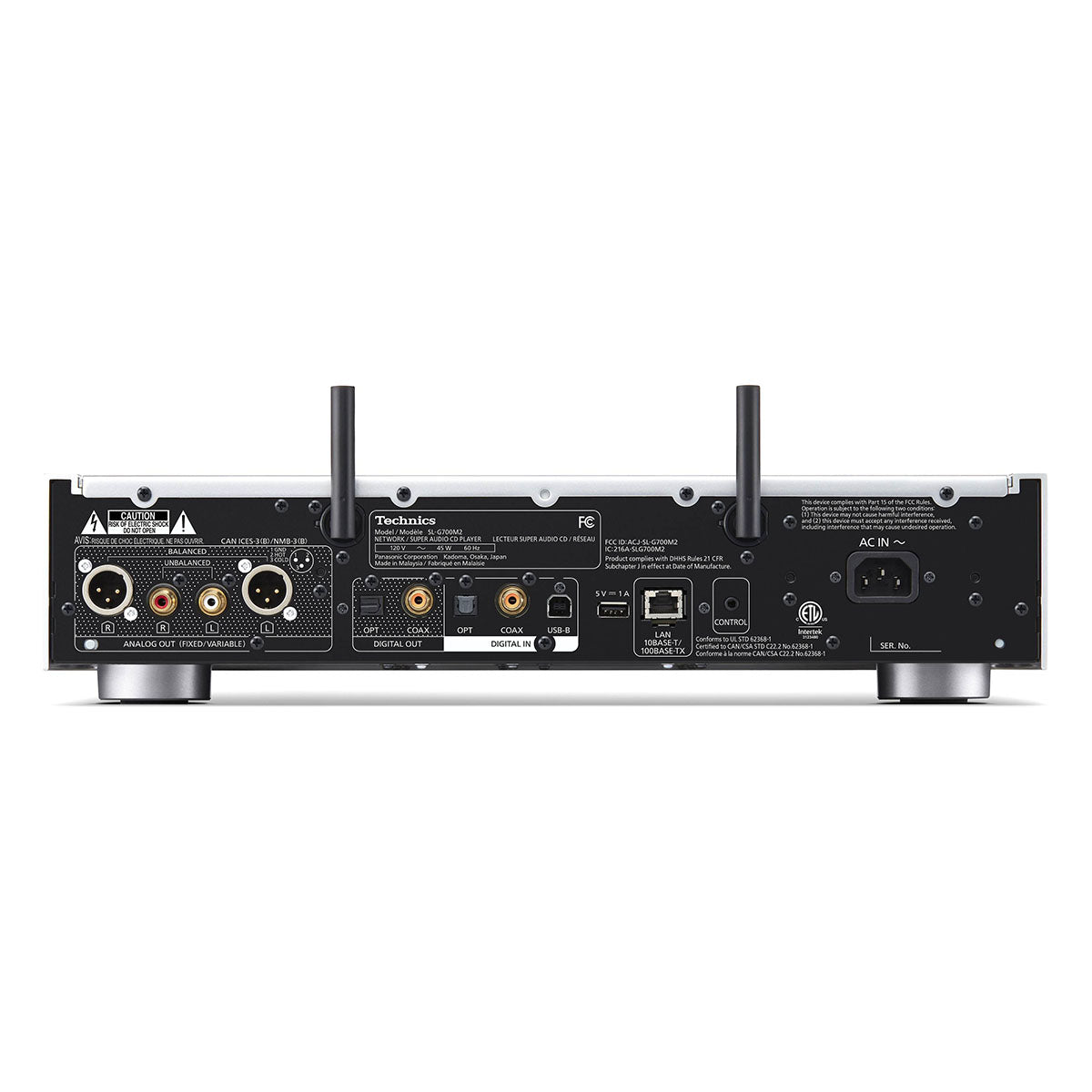

Digital Input Terminal Coaxial Digital x 1, Optical Digital x 1, USB-A x 2(Front/Rear), USB-B x1
Analogue Output Terminal BALANCED x 1, UNBALANCED x 1 Support Variable Level Output
Digital output Terminal Coaxial Digital x 1, Optical Digital x 1
System Port System Control (Φ3.5 mm Jack)
Headphone Output Yes(Φ6.3 mm, 110 mV, 32 Ω VOL MAX)
USB-A/ USB-B (back) Support Codex (WAV) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
USB-A/ USB-B (back) Support Codex (FLAC) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
USB-A/ USB-B (back) Support Codex (DSD) Yes (2.8 MHz, 5.6 MHz, 11.2MHz)
USB-A/ USB-B (back) Support Codex (AIFF) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
USB-A/ USB-B (back) Support Codex (ALAC) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
USB-A/ USB-B (back) Support Codex (AAC) Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
USB-A/ USB-B (back) Support Codex (MP3) Yes (32, 44.1, 48 kHz / 16-320 kbps)
Network Playback Support Codec (WAV) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
Network Playback Support Codec (FLAC) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
Network Playback Support Codec (DSD) Yes (2.8 MHz, 5.6 MHz, 11.2 MHz)
Network Playback Support Codec (AIFF) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit)
Network Playback Support Codec (ALAC) Yes (32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24 bit)
Network Playback Support Codec (AAC) Yes (32, 44.1, 48, 88.2, 96 kHz / 16-320 kbps)
Network Playback Support Codec (MP3) Yes (32, 44.1, 48 kHz / 16-320 kbps)
Ethernet Interface LAN (100 Base-TX / 10 Base-T)
Wi-Fi IEEE 802.11 a/b/g/n/ac, 2.4 GHz / 5 GHz Band
Bluetooth(Support codec) Yes (AAC, SBC)
Power Supply AC 220-240 V, 50 Hz / 60 Hz
Power Consumption/ Standby 45W/ 2W(Network Standby On)
Dimensions (W x H x D) 16.9 x 3.9 x 16 in
Weight Approx. 27 lb

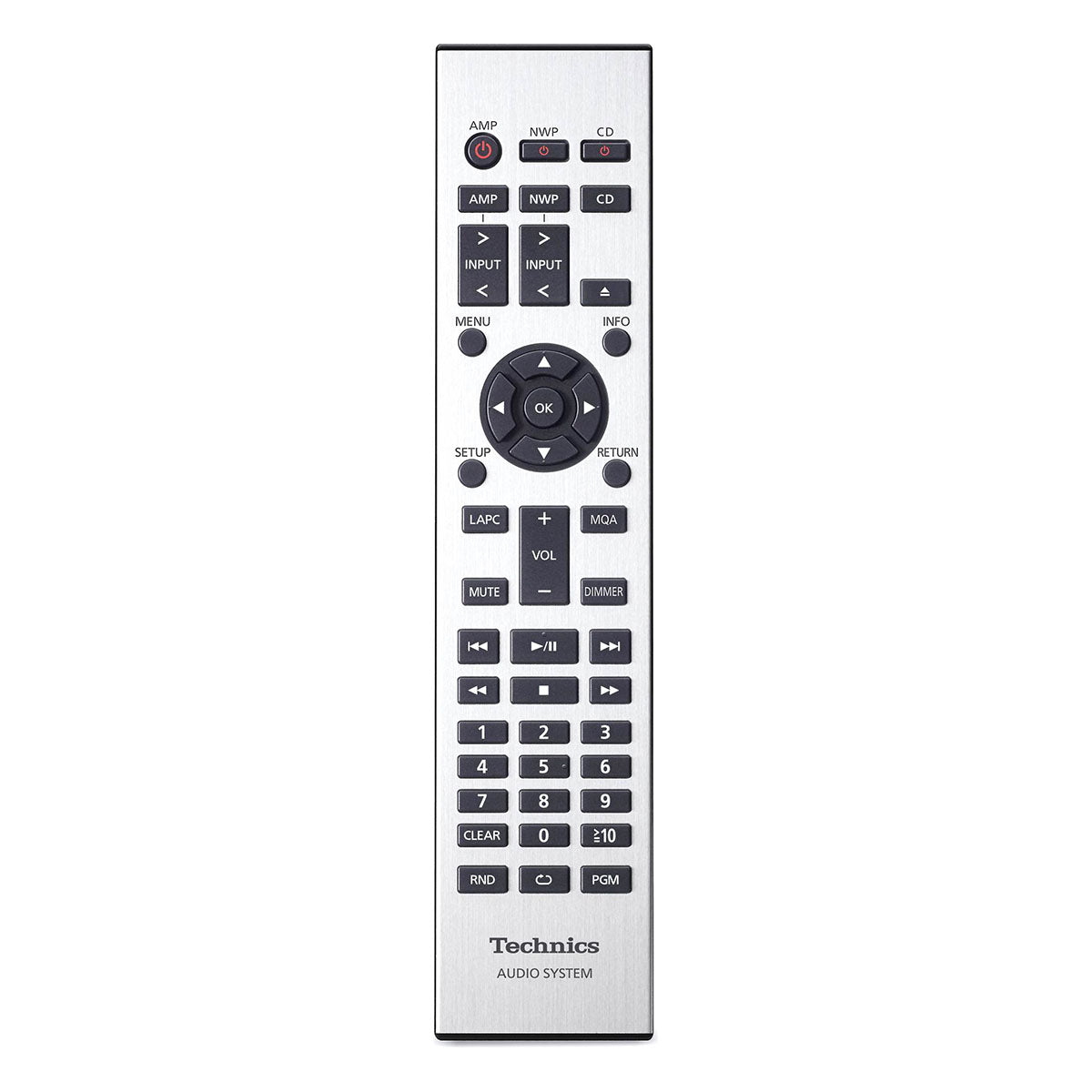

Accessories Remote Control, AC Cord, System Connection Cable, Analogue Audio cable, Owner's Manual
