Sutherland TZ Vibe

Moving Coil Phono Preamp

Sutherland TZ Vibe

Moving Coil Phono Preamp
$1,400.00
More on the way! Order now to reserve risk free.
Contact Us

Overview

The TZ VIBE design has combined elements from two of Sutherland's well-established and highly regarded products. The KC VIBE provides the foundation and second gain stage. The little LOCO Mk2 provides the trans-impedance (TZ) input gain stage. It is an incredible opportunity to try the Sutherland trans-impedance experience at a more accessible price.

Note: Only for use with low-output moving coil cartridges.

System Considerations

The TZ VIBE presents a virtual short as the cartridge load. Instead of voltage being the input parameter, it is the current generated by the cartridge that conveys musical content. The endless worry about finding the 'best' load value is obviated. The cartridge must be the moving coil type. Those with low output will be embraced. Not compatible with moving magnet or moving iron or step-up-transformers. Thanks to the new little LOCO Mk2 circuit, the shell of the RCA input jack is now at ground. There are no special TT cable requirements.

Linking Into Your System

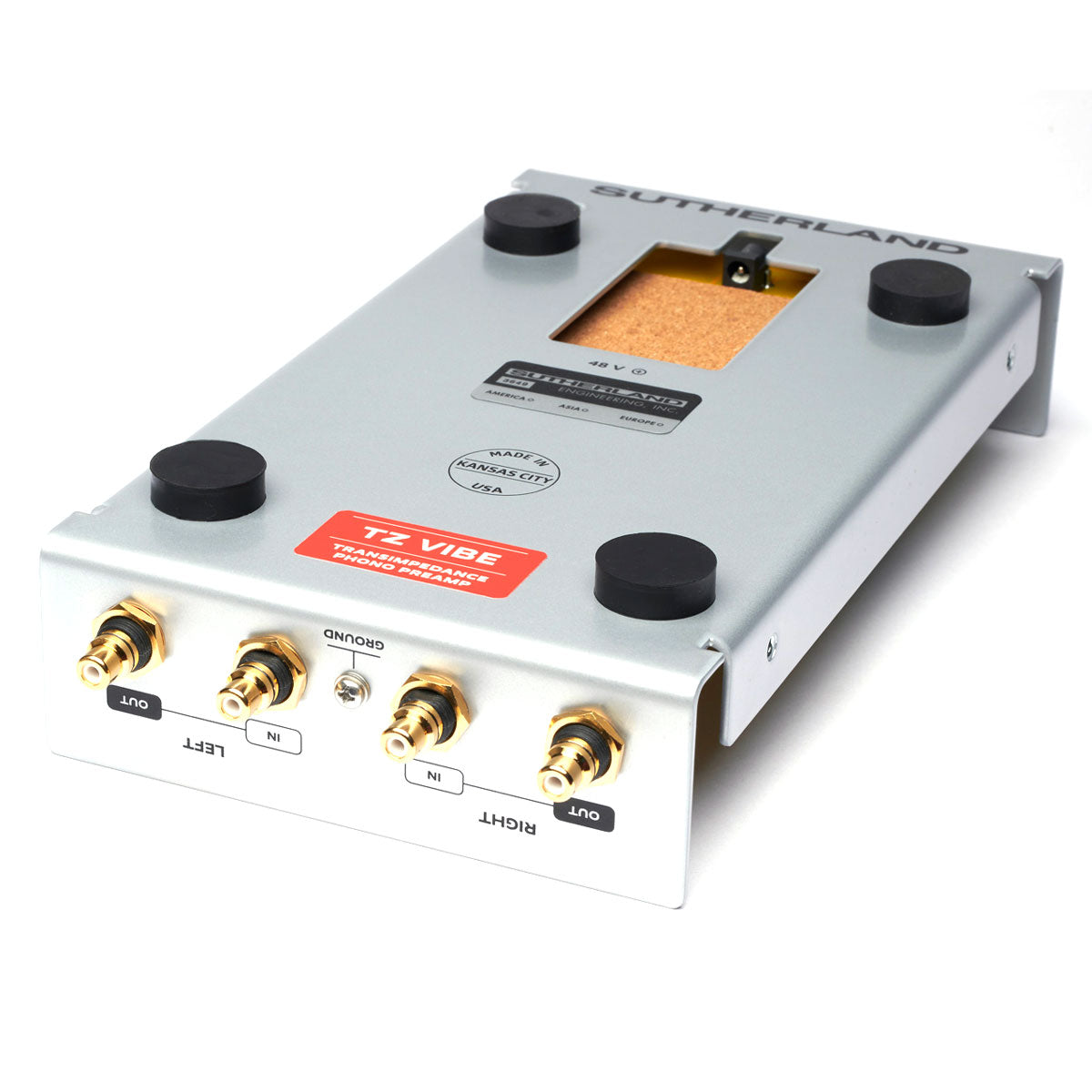

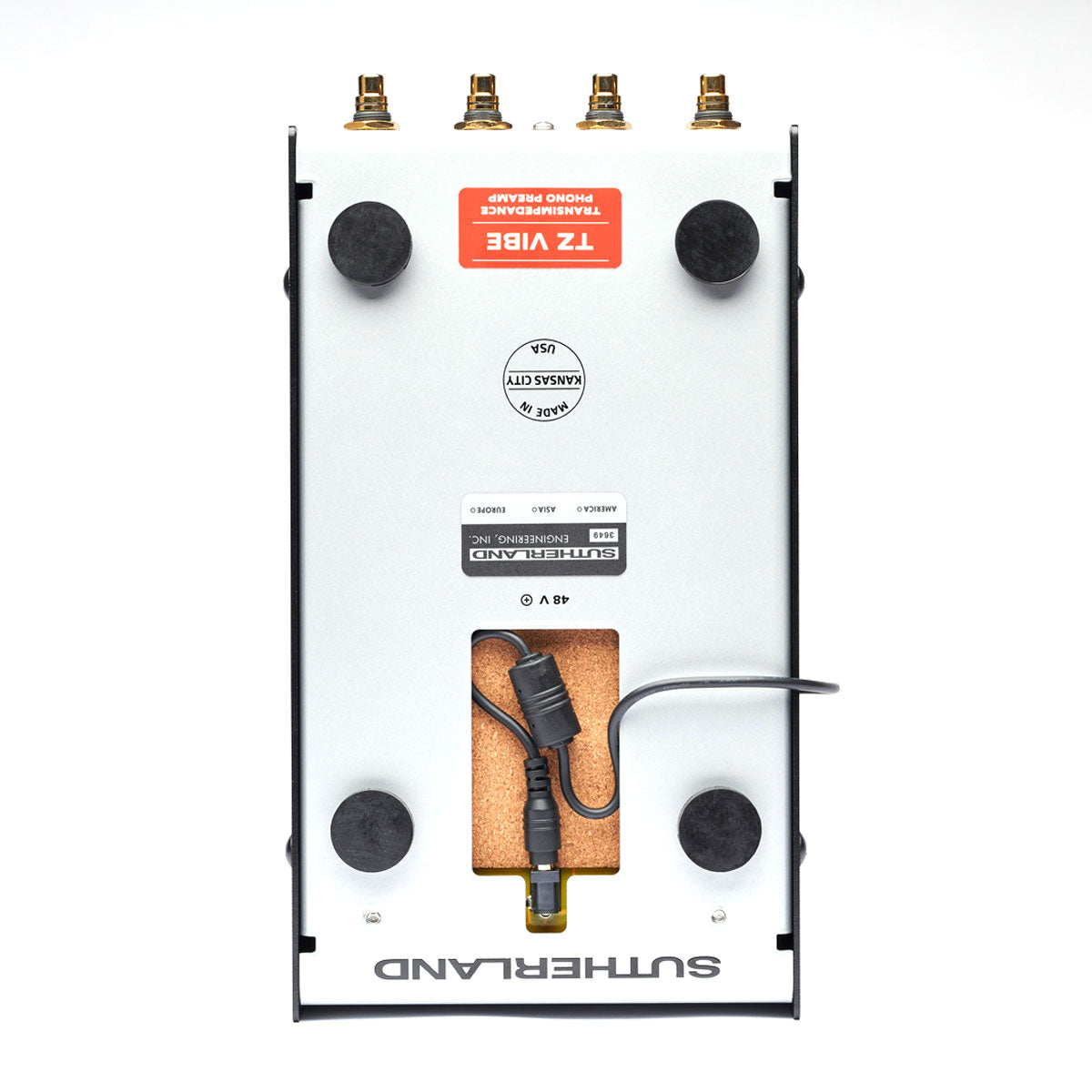

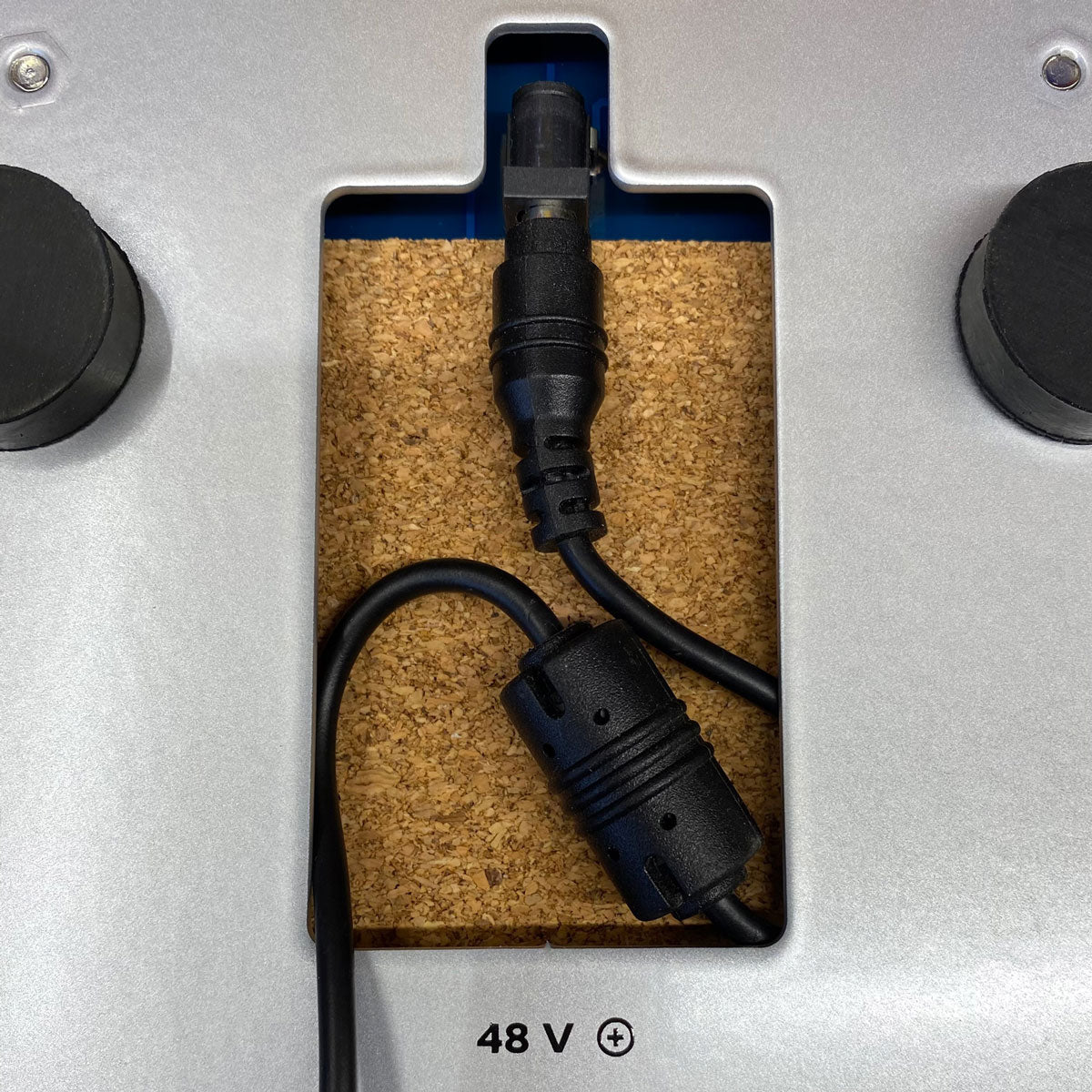

Locate the TZ VIBE near the turntable. The turntable signal is applied to the two centrally located RCA jacks on the back panel. Often there is a ground wire coming from the turntable. Connect it to the grounding screw in the center of the back panel. The output of the TZ VIBE goes to a line-level input on your preamp or integrated amplifier. The DC power connection is made in the opening on the bottom of the TZ VIBE case. Orient the cable routing so the ferrite filtering element in within the bottom opening. Otherwise, the case will not sit solidly on the four rubber feet.

Load Settings

There are no loading adjustments in the TZ VIBE. Your cartridge will see a load of zero Ohms. The input signal will be the current your cartridge produces into that virtual short. No need to worry about or fuss around with loading choices.

Gain Settings

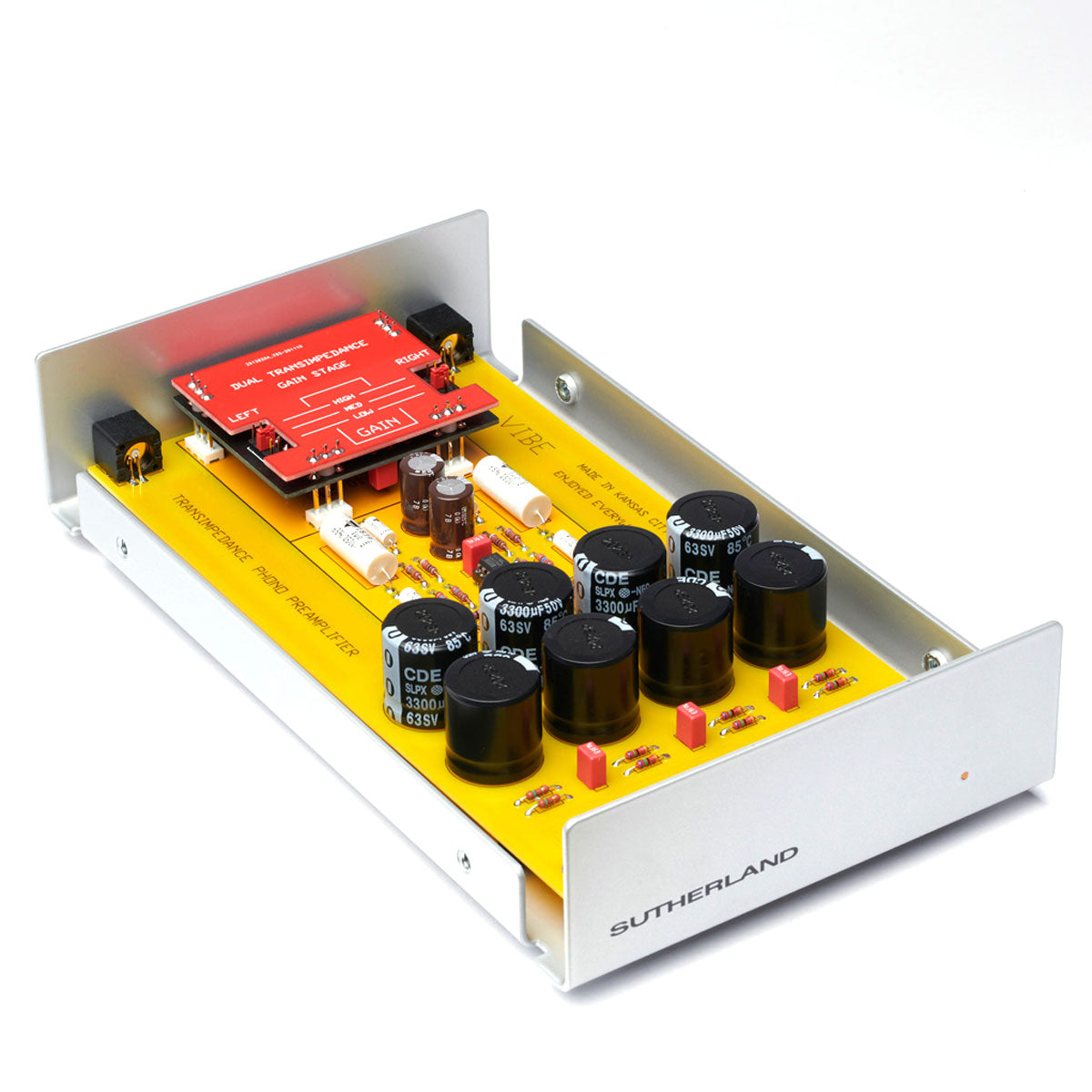

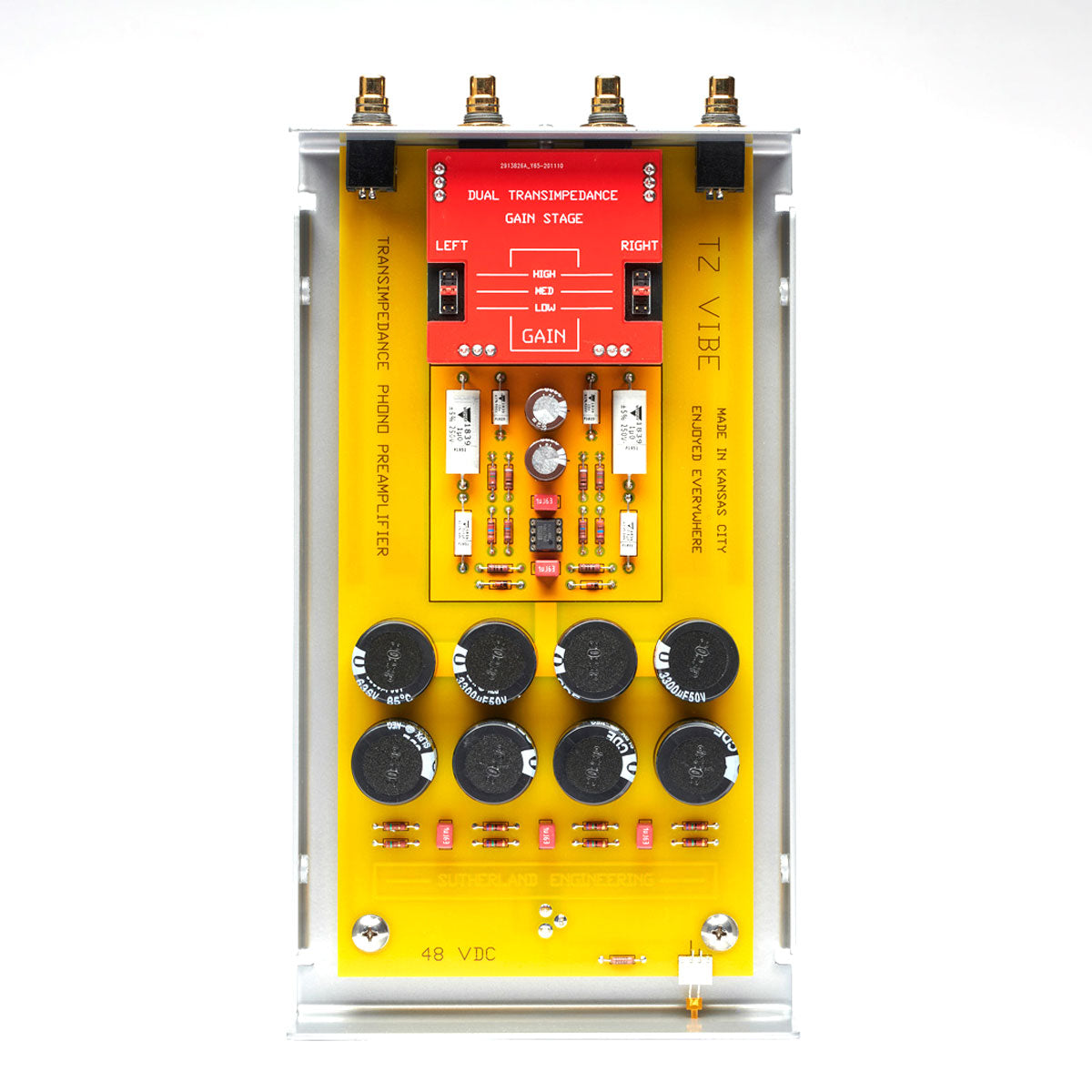

Your TZ VIBE is factory-set to medium gain. That should work very well in most situations. The usual concerns about cartridge output voltage do not apply here. Cartridges of varied output voltage specs tend to supply about the same level of drive current into a short. i.e. higher output voltages usually have an associated higher internal resistance. Lower output voltages usually have an associated lower internal resistance. If your particular situation would benefit from a gain adjustment, you can change it. Inside, on the red circuit board, you will see moveable shunts for gain setting. From the factory, they are set to MED GAIN. You can boost the output voltage by 6dB when the shunts are moved to HIGH GAIN. You can reduce the output voltage by 6dB when the shunts are moved to LOW GAIN.

WARNING: The TZ VIBE uses an external power supply with an unusually high output voltage. Use it ONLY with the TZ VIBE. If used on other equipment, there is a real possibility of causing severe damage. Use the TZ VIBE only with the included power supply. It provides the specific requirements that must be met.

Details & Specs

  • Power Requirements - 86 to 260 volts AC, 5 Watts universal, no adjustment required
  • Dimensions -
    • 11” x 9” x 2” (TZ Vibe)
    • 14.5” x 12.5” x 6.5” (shipping)
  • Weight -
    • 6 lbs (TZ Vibe)
    • 9.5 lbs (shipping)

Reviews

Customer Reviews

Based on 1 review
0%
(0)
100%
(1)
0%
(0)
0%
(0)
0%
(0)
M
Mattyk
Great unit

Love this preamp but at this price point I would think engineering could have done the power cord different. Most everything has a power cord. It is incredibly quiet and other than power cord, it's a home run.
