Item #DIF396FIN

Sonus Faber Arena 5

3-Way In-wall/In-Ceiling Speaker - Each
Item #DIF396FIN

Sonus Faber Arena 5

3-Way In-wall/In-Ceiling Speaker - Each
$6,000.00
Available In-Store
Contact Us

Overview

Architectural 3 way in wall speakers combine a sealed wood and aluminum enclosure with two 6.5 inch woofers, two 5.25 inch midranges, and a silk dome tweeter. Featuring a shallow 100.0 mm mounting depth, this high output unit anchors a clean sound system setup.

The Sonus Faber Arena 5 3 Way In Wall Speaker is built for installations where space is limited but sound quality is still important. Its sealed box enclosure uses wood and aluminum to create a rigid cabinet. The enclosure measures 300 millimeters wide, 1058 millimeters high, and has a mounting depth of 100 millimeters.

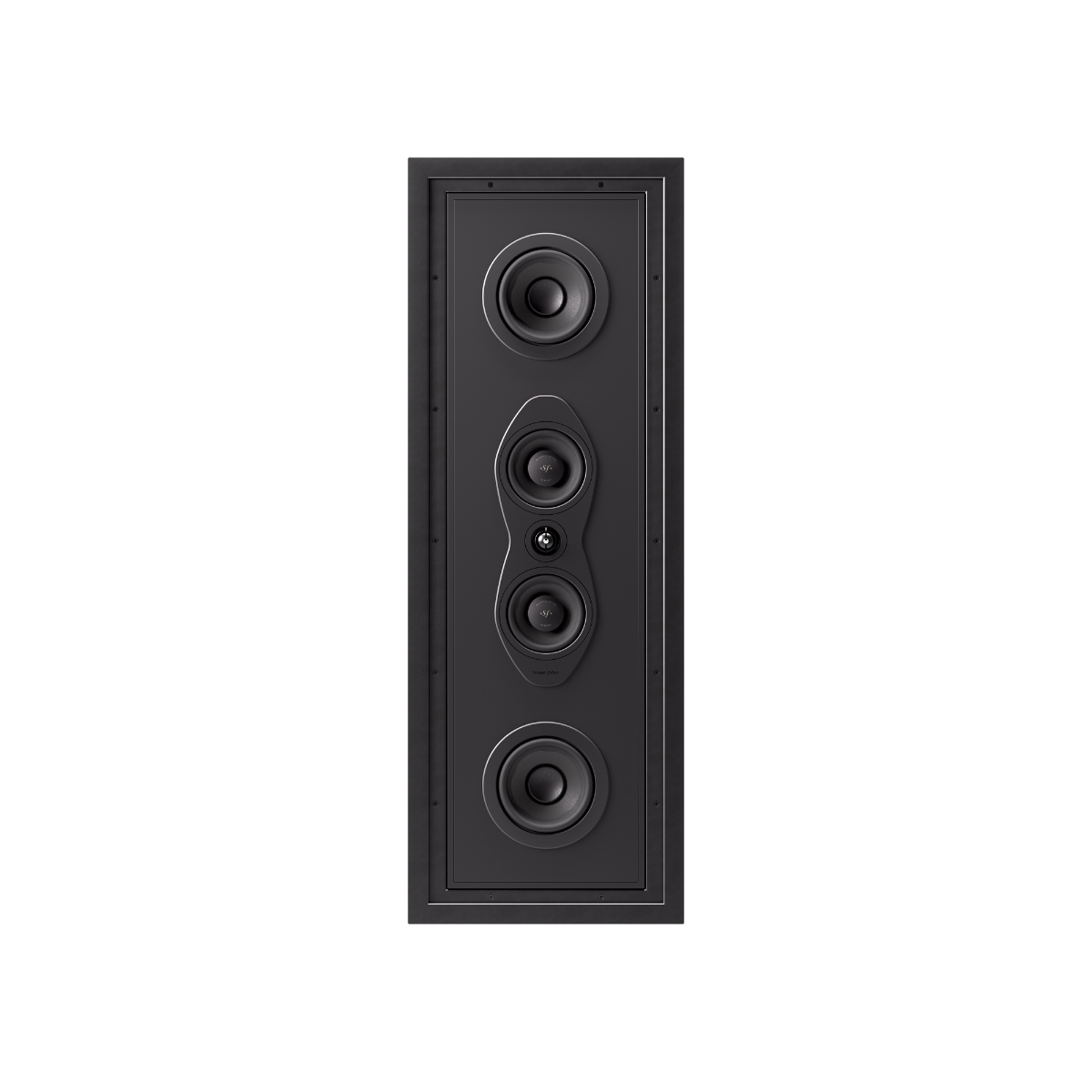

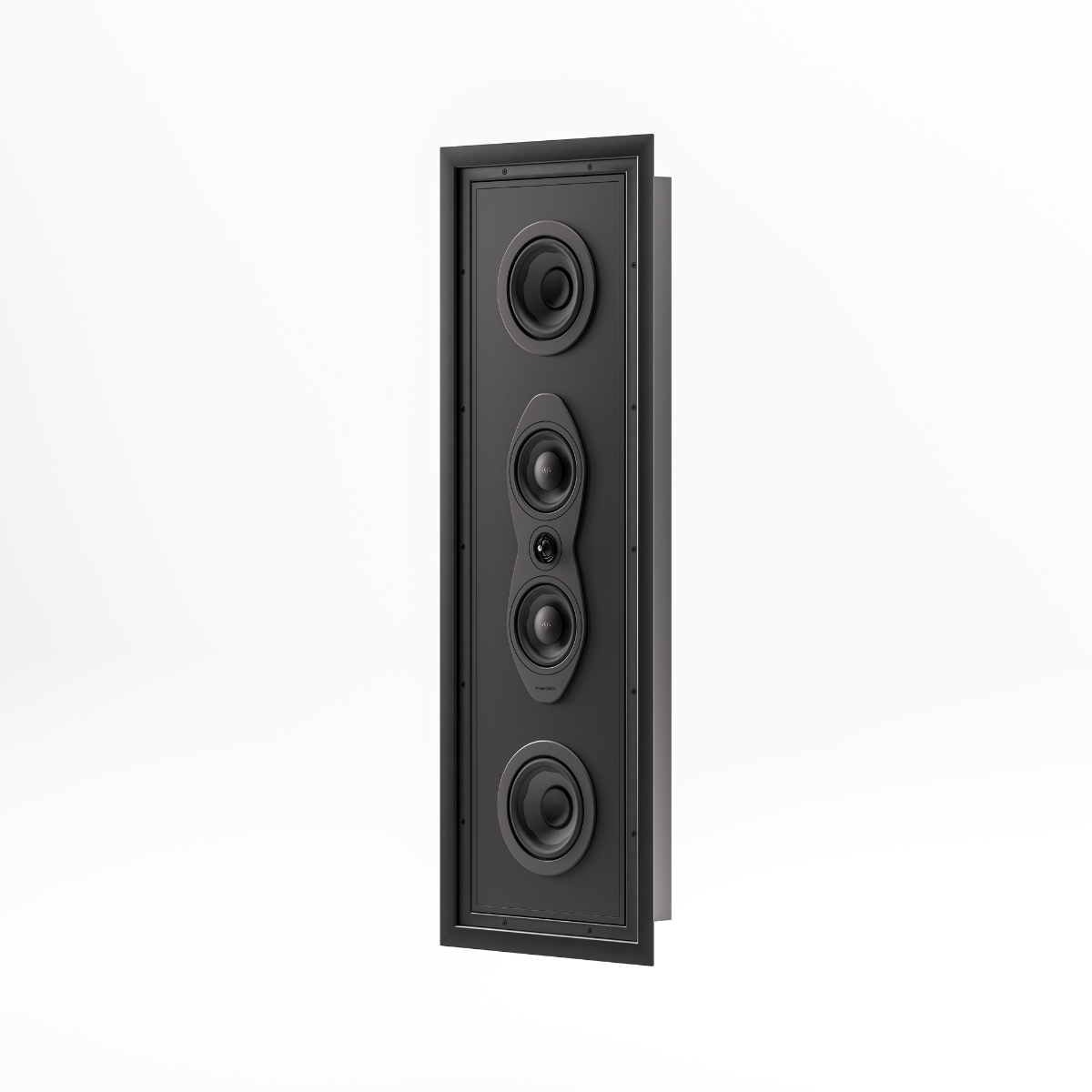

The speaker uses two 6.5 inch paper cone woofers with neodymium magnets, two 5.25 inch paper cone midrange drivers with ferrite magnets, and a 1.1 inch silk dome tweeter with a neodymium magnet and copper cap. The mid and low drivers use a non symmetric organic basket pattern that keeps the structure rigid while letting air move freely behind the cones. This helps the drivers move more easily and reduces unwanted air pressure. The crossover network is tuned to manage timing between the drivers, which helps create a wide and detailed soundstage.

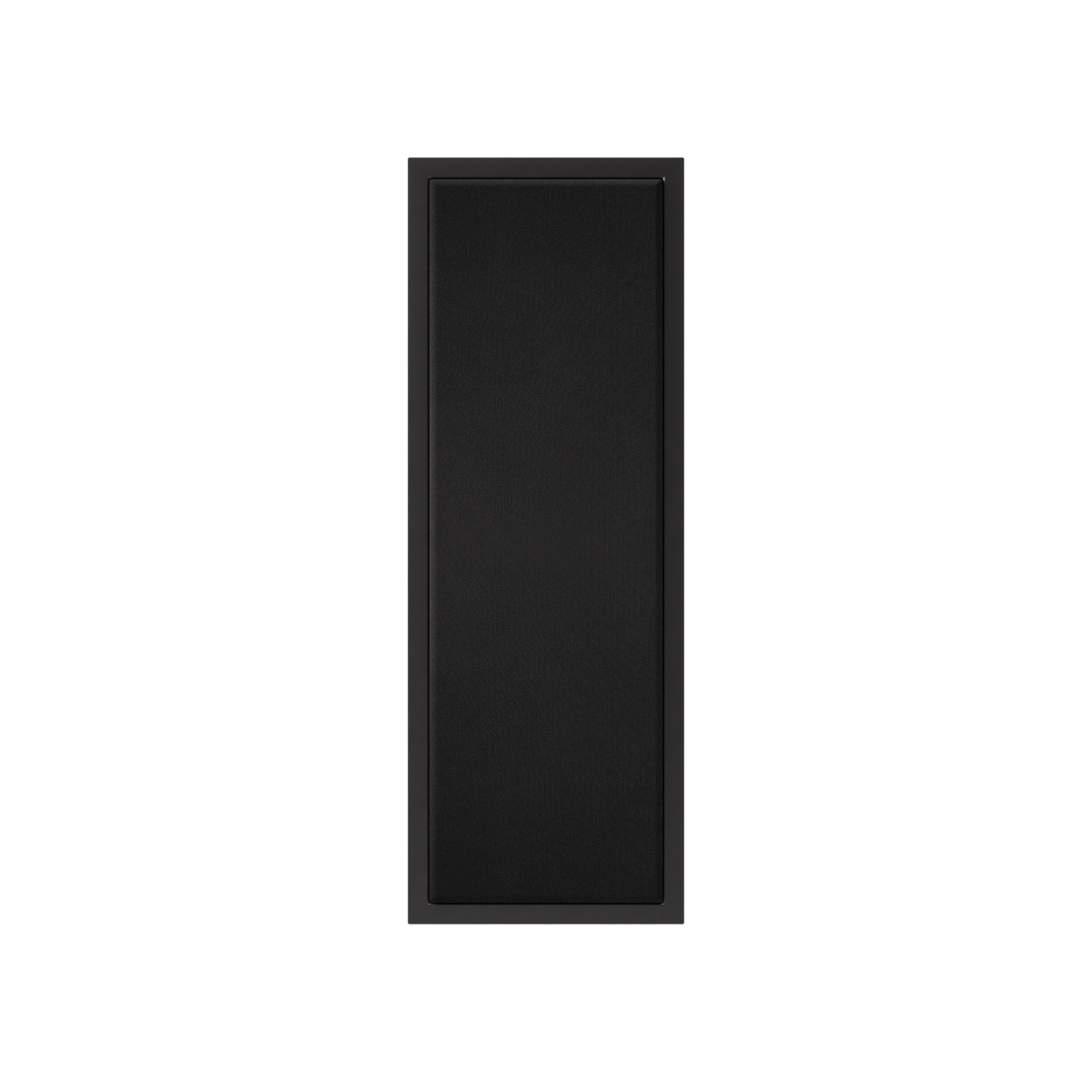

Operating across a frequency response range of 65.4 Hz to 40000.0 Hz at three decibels on axis, the unit achieves a sensitivity rating of 90.6 decibels. The Arena 5 covers a frequency range from 65.4 hertz to 40000 hertz at three decibels on axis. It has a sensitivity of 90.6 decibels and a nominal impedance of 4 ohms. The speaker can handle up to 300 watts of amplifier power through mono wiring. An optional square magnetic grille is available to protect the drivers without affecting sound quality. These features make the Arena 5 suitable for custom audio-visual projects and demanding sound system installations.

Details & Specs

Model Arena S10
System 3 way, sealed box, In-wall
Loudspeakers Tw: Ø 28 mm
Md: Ø 2x133 mm
W: Ø 2x165 mm
Crossover Points 375Hz / 2700Hz
Frequency Response 65.4Hz - 2700Hz
Sensitivity 90.6 dB
Nominal Impedance 4 Ohm
Recommended Power Amplifier max 300 W
Connectivity Mono wiring
Product dimensions (HxWxD) Mounting Depth: 100mm - 3.93in
1058 x 300 x 100 mm / unit
41.65 x 11.81 x 3.93 in / unit
Weight (EA) 24 Kg / unit
52.91 lb / unit
Cabinet Squared shape
Wood
Aluminum
