Item #DIF393HFI

Sonus Faber Arena 30H

4-Way In-Wall Speaker - Each
Item #DIF393HFI

Sonus Faber Arena 30H

4-Way In-Wall Speaker - Each
$17,000.00
Available In-Store
Contact Us

Overview

Designed for MicroLED setups, the Sonus Faber Arena 30H four way in wall speaker delivers up to 122 dB max SPL with 600 watt power handling. A ideal choice for a custom sound system setup, featuring six precision drivers and an optional magnetic grille.

The Sonus Faber Arena 30H in wall speaker is made for residential spaces where high quality sound is needed alongside MicroLED screens. Its four way closed box design fits into the wall to keep the room looking clean while still delivering strong audio for everyday use.

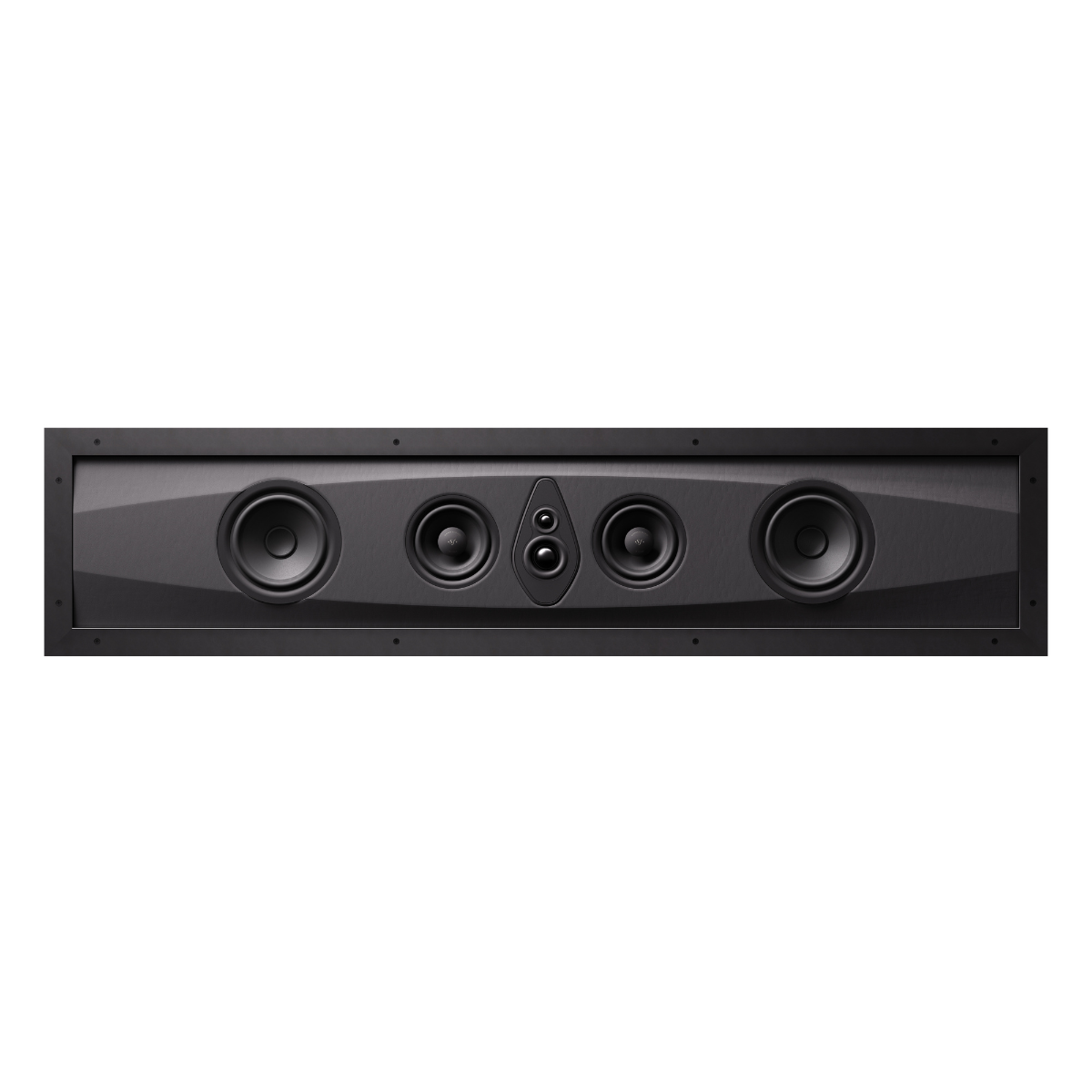

Inside the enclosure are six drivers. These include two eight inch woofers for bass, two six and a quarter inch drivers for mid and high frequencies, a one and a half inch tweeter, and a three quarter inch super tweeter. The crossover points are set at 200 Hz, 2000 Hz, and 10000 Hz. The speaker covers a frequency range from 40 Hz to 32200 Hz, with a sensitivity of 94 dB and a nominal impedance of 4 ohms.

The cabinet is rated for up to 600 watts of power and can reach a maximum sound pressure level of 122 dB at one meter. Each unit measures 69.8 inches high, 12.6 inches wide, and 6.6 inches deep, with a required mounting depth of 6.4 inches. The weight is 130.1 pounds per speaker. An optional square magnetic grille protects the drivers while keeping the sound unchanged, which helps the speaker fit into high end audio systems where both performance and appearance matter.

Details & Specs

Model Arena 30H
System 4 way, closed box, In-wall
Loudspeakers Stw: Ø 19 mm
Tw: Ø 38 mm
Md: Ø 2x159 mm
W: Ø 2x203 mm
Crossover Points 200, 2000, 10000 Hz
Frequency Response 40 Hz - 32200 Hz
Sensitivity 94 dB SPL (2.83V/1 m)
Nominal Impedance 4 Ohm
Max SPL 122 dB @ 1 meter
Recommended Power Amplifier max 600 W
Connectivity 2 connectors binding post
Product dimensions (HxWxD) Mounting Depth: 162 mm
6,4 in
1774 x 321 x 167 mm / unit
69.8 x 12.6 x 6.6 / unit
Dimensions with packaging (HxWxD) 2000 x 635 x 500 mm / unit
78.7 x 25 x 19.7 in / unit
Weight (EA) 59 Kg / unit
130.1 lb / unit
Cabinet 73 Kg / unit
160.9 lb / unit
Cabinet Squared shape
Leather
Aluminum
