Item #DIF395FIN

Sonus Faber Arena 2

3-way In-wall Speaker - Each
Item #DIF395FIN

Sonus Faber Arena 2

3-way In-wall Speaker - Each
$5,000.00
Available In-Store
Contact Us

Overview

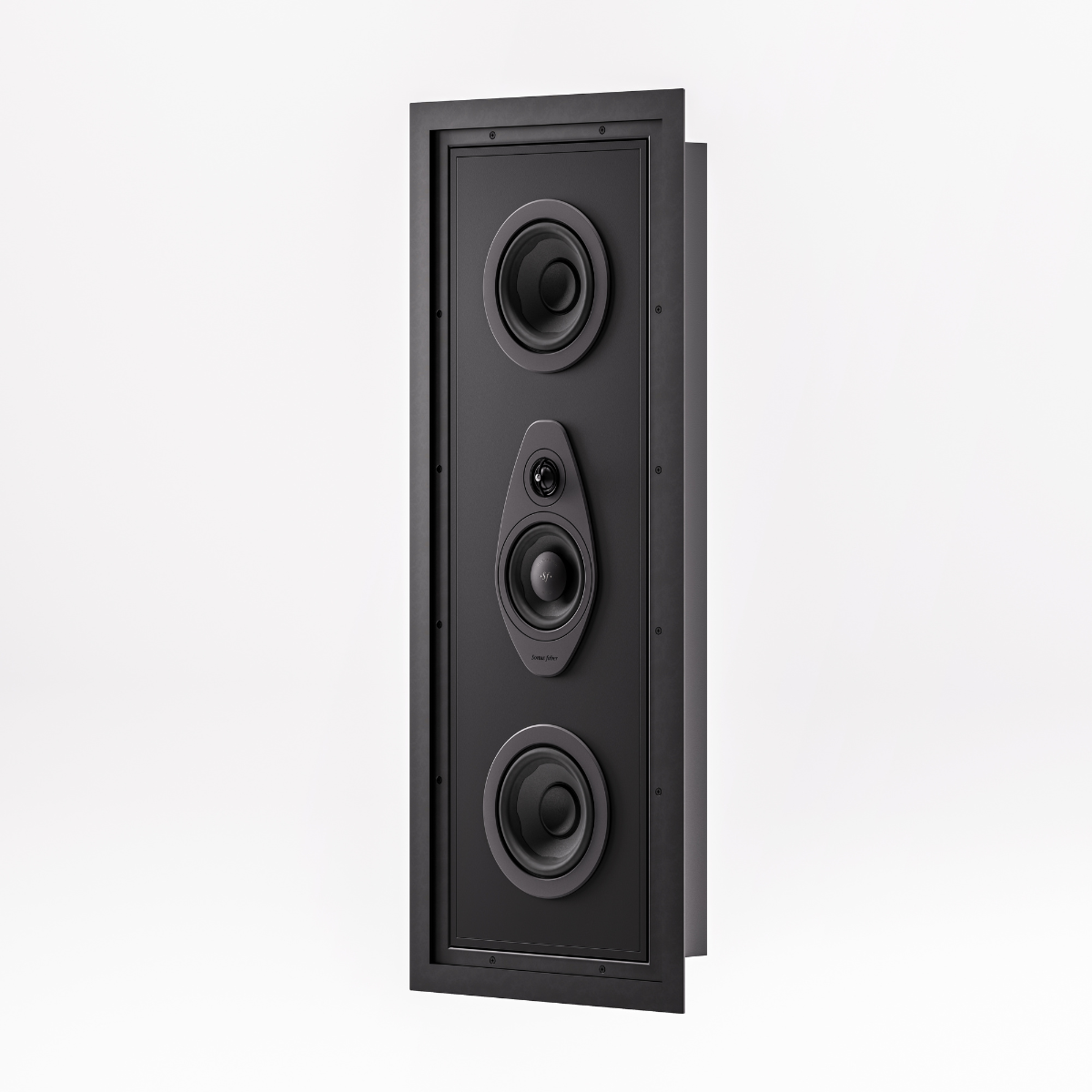

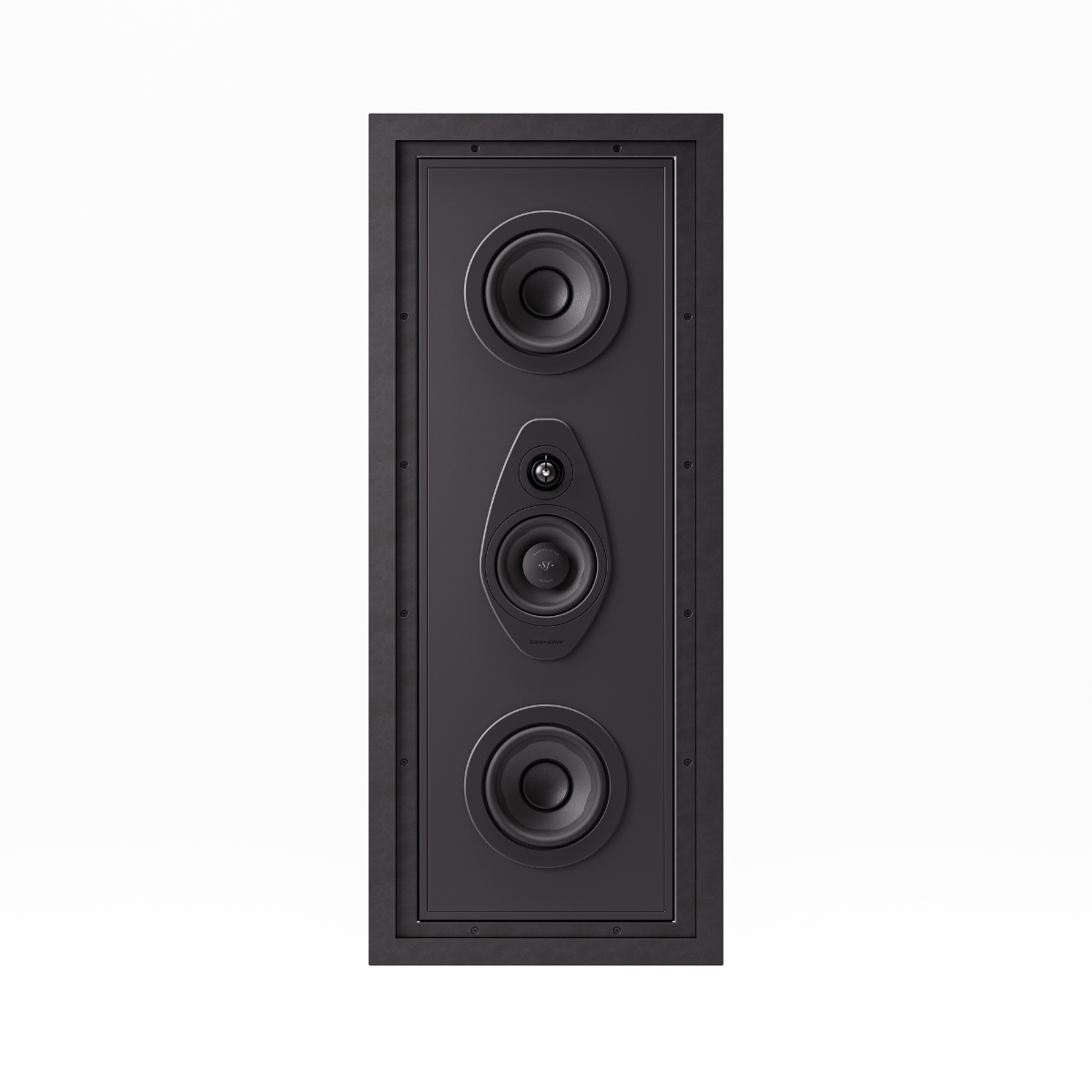

In wall 3 way speakers combine a sealed wood and aluminum enclosure with two 6.5 inch woofers, a 5.25 inch midrange, and a 1.1 inch silk dome tweeter. Featuring a shallow 100.0 mm mounting depth, this unit provides clean audio for any custom sound system setup.

The Sonus Faber Arena 2 architectural loudspeaker is built for custom installations where a slim in wall profile is needed. This 3 way system is handcrafted in Italy and uses a sealed box enclosure made from wood and aluminum. The cabinet is rigid and measures 300 millimeters wide, 900 millimeters high, and 100 millimeters deep.

The driver layout features two 6.5 inch paper cone low frequency transducers powered by neodymium magnets. Midrange frequencies are handled by a 5.25 inch paper cone transducer with an integrated phase plug, which linearizes high-frequency output across its useful bandwidth to improve off axis performance. High frequencies are managed by a 1.1 inch silk dome tweeter with a neodymium magnet and a copper cap. To prevent cone restriction, the drivers utilize a non symmetric organic basket pattern that adds structural stiffness while eliminating air stiffness behind the cone. Radial vibration modes are mitigated by a non circular Camelia surround pattern.

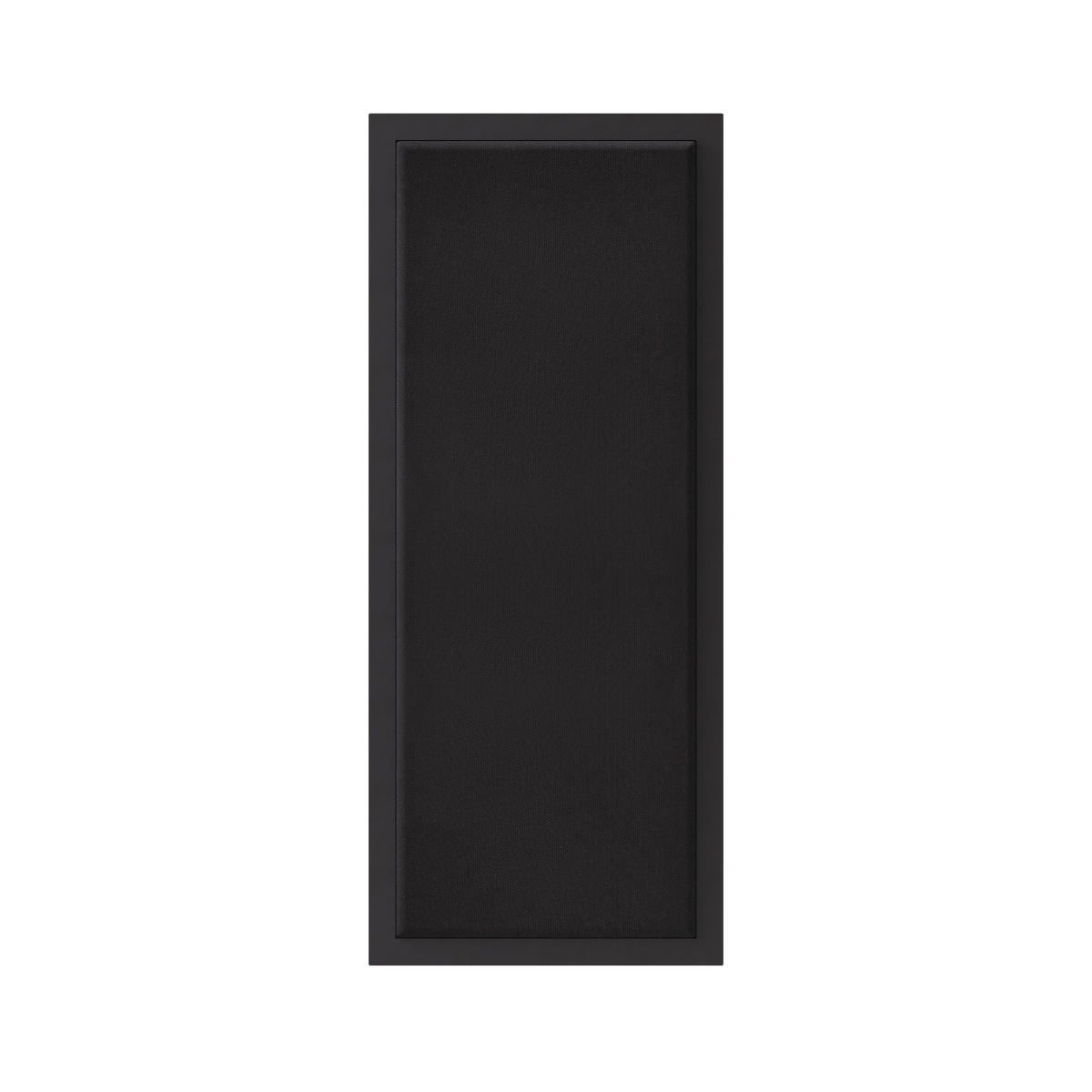

With a frequency response spanning 62.6 Hz to 40000.0 Hz at three decibels on axis, a nominal impedance of 4.0 ohms, and an 88.7 decibel sensitivity rating, the unit accepts up to 280.0 watts of recommended maximum amplifier output power over mono wiring connections. An optional square magnetic grille protects internal components without diminishing sound quality, making this speaker a practical component for high end home sound system setup installations and custom audio visual solutions.

Details & Specs

Model Arena 2
Speaker Type 3 way, sealed box, In-wall
Loudspeakers Tw: Ø 28 mm
Md: Ø 1x133 mm
W: Ø 2x165 mm
Crossover Points 400Hz / 3000Hz
Frequency Response 62,6Hz - 40.000Hz
Sensitivity 88.7 dB
Nominal Impedance 4.0 Ω
Recommended Power Amplifier max 280 W
Connectivity Mono wiring
Product dimensions (HxWxD) Mounting Depth: 100mm - 3.93in
900 x 300 x 100 mm / unit
35.43 x 11.81 x 3.93 in / unit
Weight (EA) 21 Kg / unit
46.30 lb / unit
Cabinet Squared shape
Wood
Aluminum
