Item #DIF397FIN

Sonus Faber Arena 1

3-Way In-wall/In-Ceiling Speaker - Each
Item #DIF397FIN

Sonus Faber Arena 1

3-Way In-wall/In-Ceiling Speaker - Each
$5,000.00
Available In-Store
Contact Us

Overview

This three way architectural speaker uses a sealed enclosure made from wood and aluminum. Inside are four 5.25 inch woofers, a 5.25 inch midrange driver, and a 1.1 inch silk dome tweeter. The phase coherent crossover helps keep sound balanced across the room. With a shallow 100 mm mounting depth, the speaker fits into tight spaces without sacrificing performance.
Watch our Comparison

The Sonus Faber Arena 1 architectural loudspeaker is built for private cinema rooms where space is limited but sound quality is important. Made in Italy, this model can be installed in a wall or ceiling and works well in different room sizes. The enclosure uses wood and aluminum to create a solid cabinet that keeps the drivers stable and reduces unwanted vibrations.

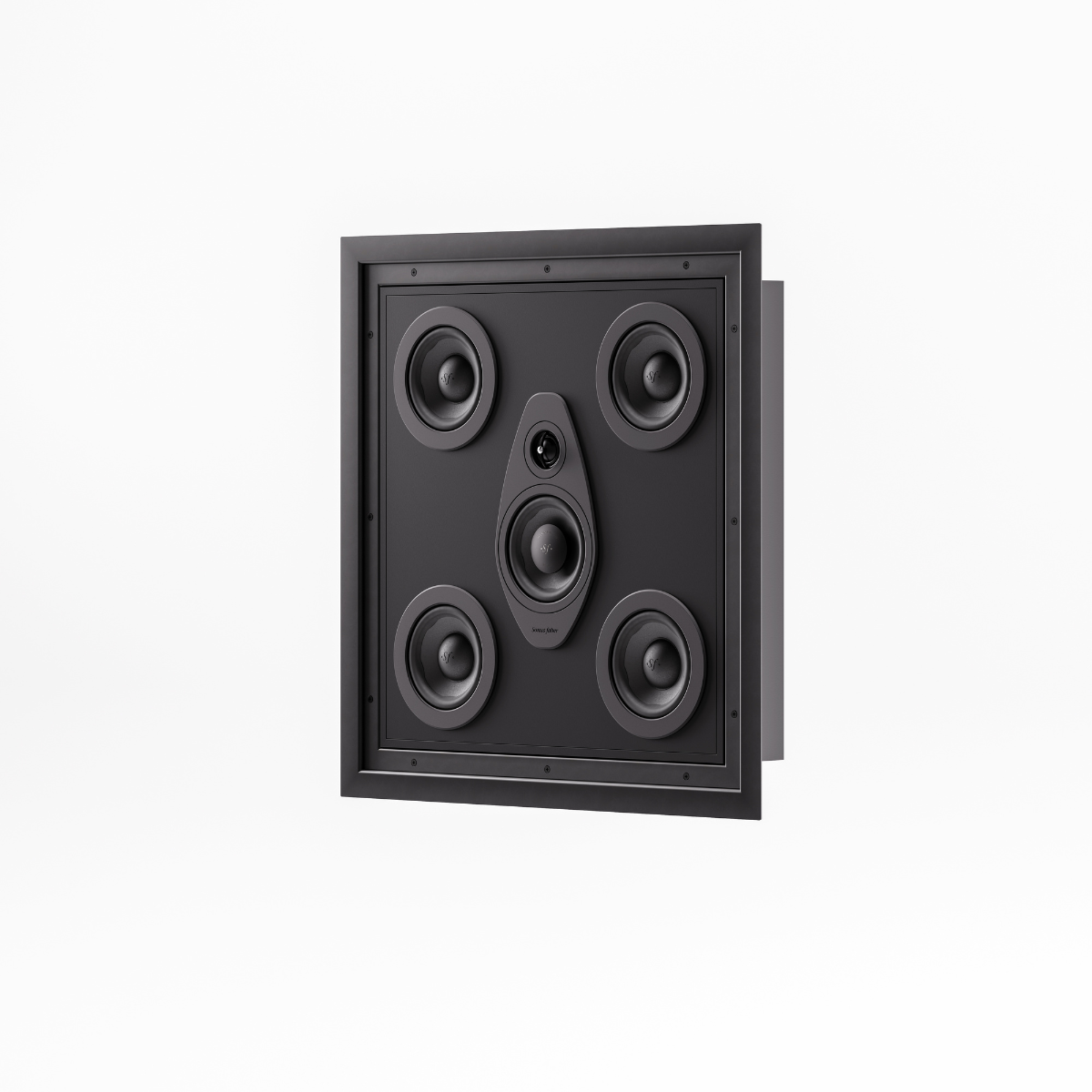

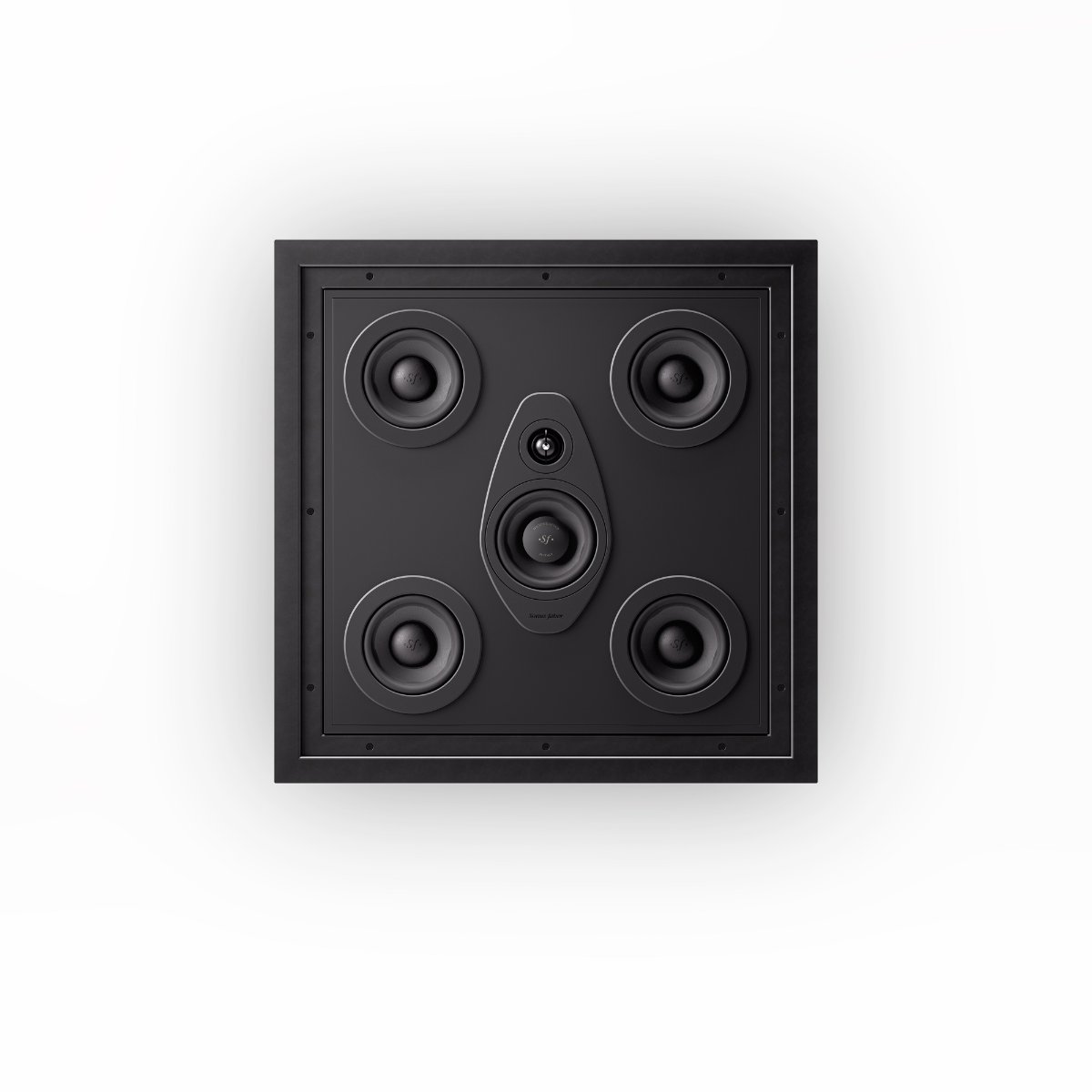

The Arena 1 uses a three way driver setup. Four 5.25 inch paper cone woofers with ferrite magnets handle bass and lower midrange, making it easier to reproduce complex movie soundtracks. A separate 5.25 inch paper cone driver with a phase plug manages the midrange and helps keep high frequencies clear, even when listening from the side. High frequencies are covered by a 1.1 inch silk dome tweeter with a neodymium magnet. The mid and low drivers use a special basket design to keep the structure rigid and allow the cones to move freely. The Camelia surround pattern helps reduce unwanted vibrations.

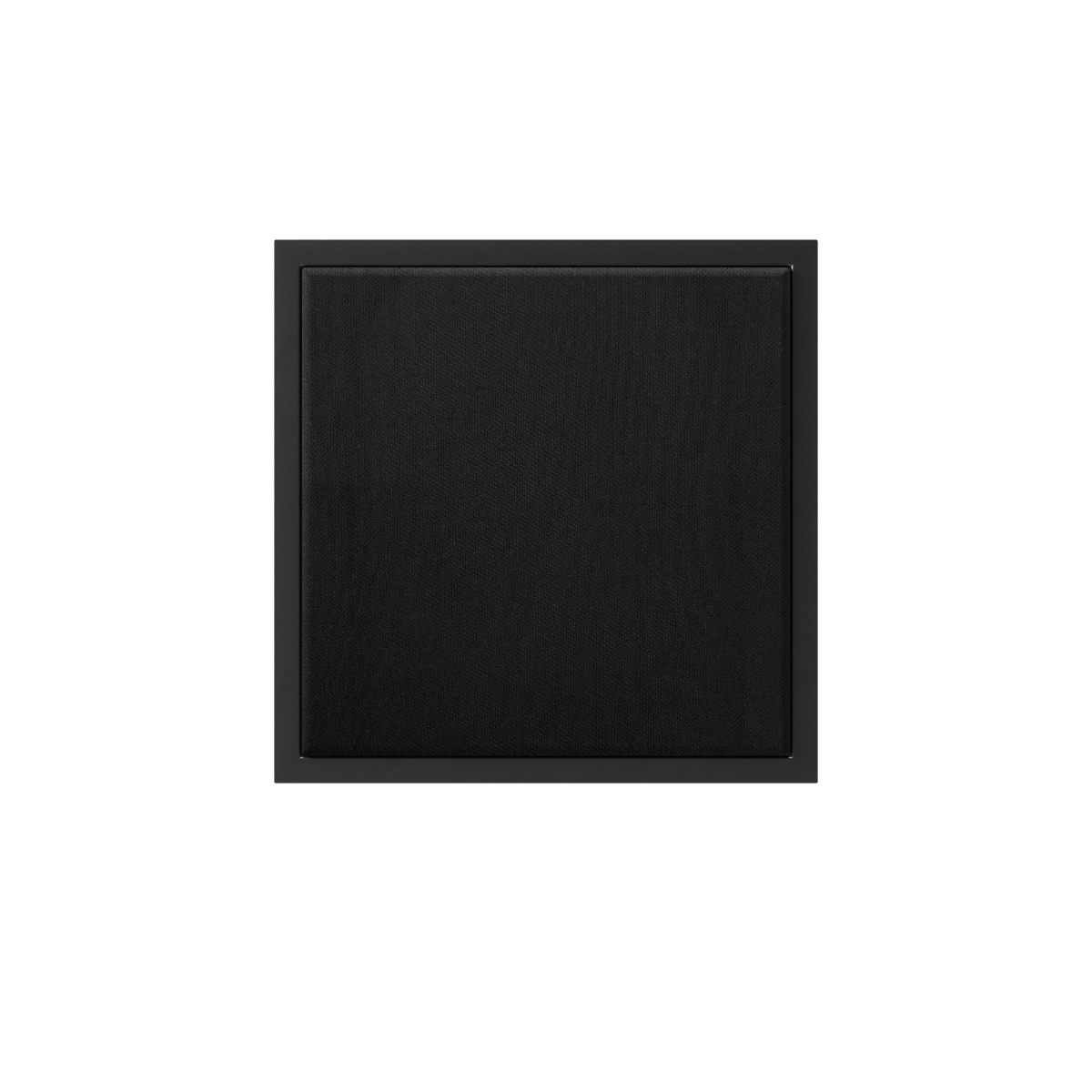

The crossover is designed to keep the timing between drivers accurate, which helps create a wider soundstage. The Arena 1 covers a frequency range from 77.7 hertz to 40000 hertz at three decibels on axis. It has a nominal impedance of 4 ohms and a sensitivity of 89.5 decibels. The speaker needs a mounting depth of 100 millimeters and uses a mono wiring connection. It can handle up to 190 watts of amplifier power. An optional square magnetic grille is available to protect the drivers during everyday use.

Sonus faber Sonetto G2 Speaker Lineup Review

Details & Specs

Model Arena 1
Speaker Type Arena 1
Loudspeakers Tw: 28 mm
Md: 1 x 133 mm
W: 4 x 133 mm
Maximum Recommended Power max 190 watts
Frequency Response 77.7 Hz - 40.000 Hz
Sensitivity 89.5 dB SPL (2.83V/1 m)
Nominal Impedance 4.0 Ω
Crossover Frequencies 450Hz / 3200Hz
Enclosure Type Closed Box
Mounting Depth 100mm
3.93in
Weight (EA) 18 Kg / unit
39.7 lb / unit
Signal-to-Noise Ratio More than 100dB
Dimensions (HxWxD) 525 x 525 x 100 mm / unit
20.67 x 20.67 x 3.93 in / unit
