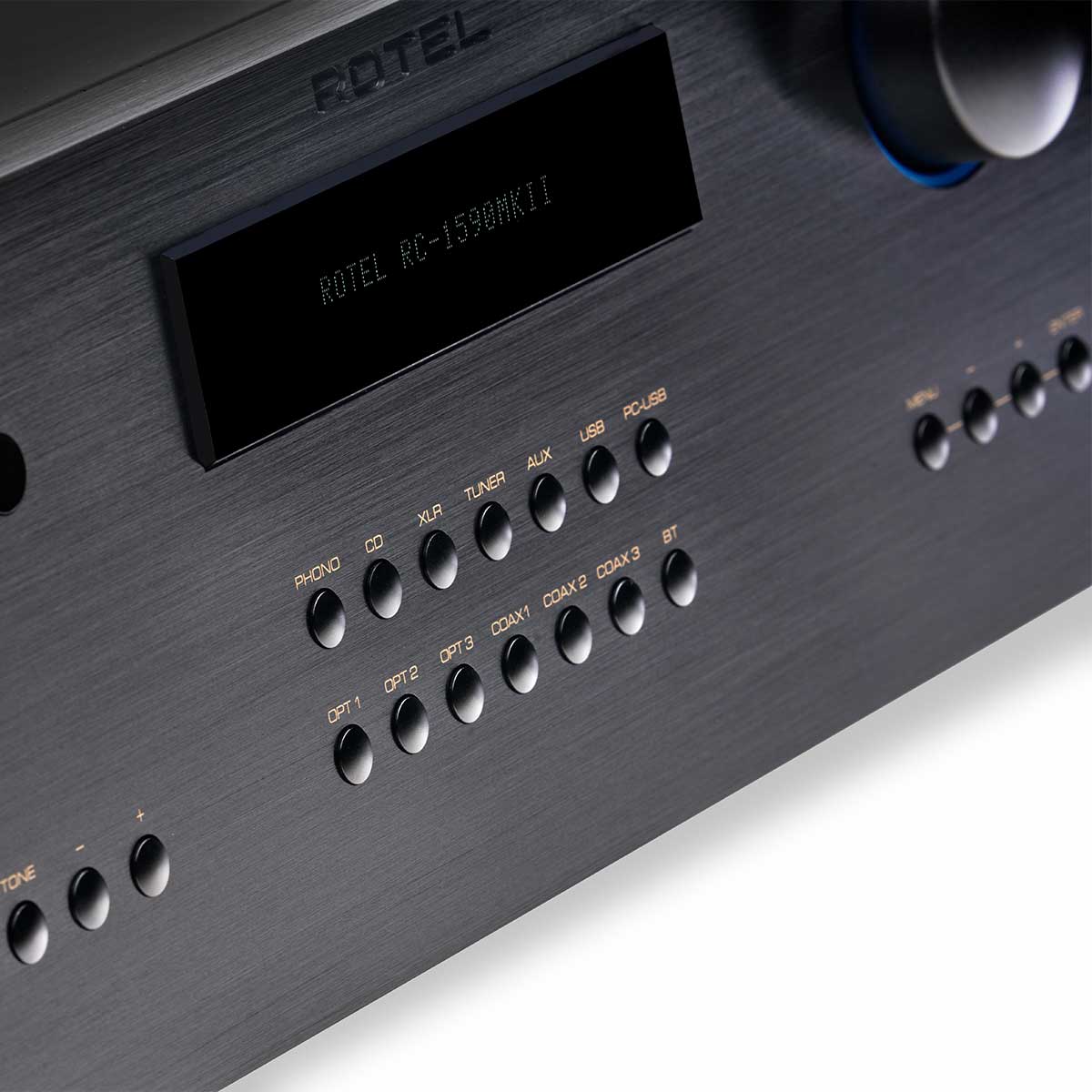

Rotel RC-1590 MKII

Stereo Preamplifier - Black

Rotel RC-1590 MKII

Stereo Preamplifier - Black
$2,299.99
Select Color Options:

Contact Us

Overview

Reference audio systems deserve reference audio equipment. The Rotel RC-1590MKII is exactly that - a reference preamplifier rending analog and digital sources with natural expression in a wide and open sound stage in stunning clarity.

The RC-1590MKII proudly continues Rotel’s 60-year legacy and heritage with their ongoing promises of performance, value, and unwavering commitment to quality. Authentic, engaging, and spacious – the RC-1590MKII proudly represents this iconic brand.

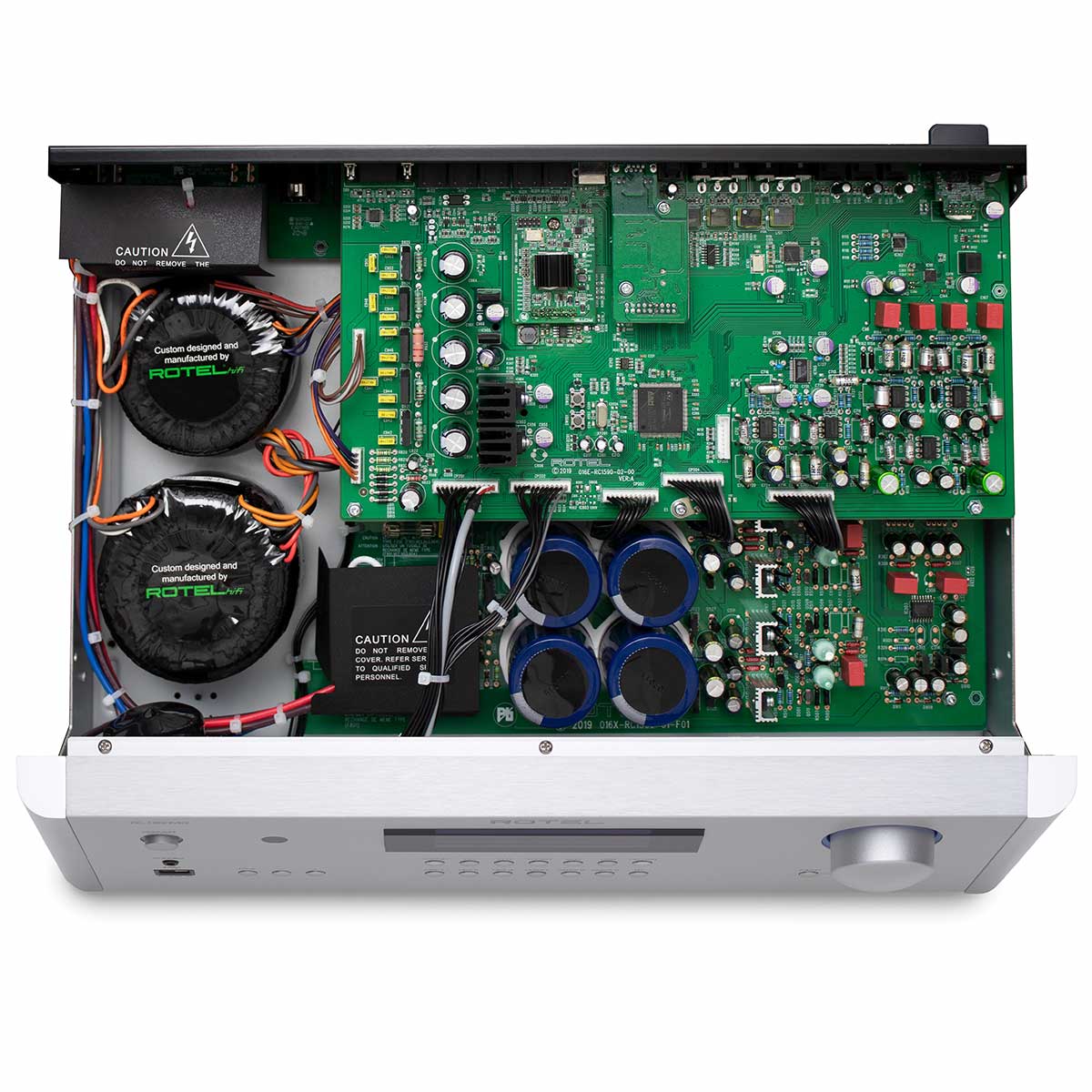

The heart of the RC-1590MKII begins with the power supply featuring dual in-house manufacture toroidal transformers. The transformers are physically and electrically isolated supplying dedicated analog and digital supply voltages to all critical circuits through low ESR slit-foil capacitors eliminating unwanted distortion and an extremely low noise floor.

Digital source inputs are processed utilizing an audiophile-grade Texas Instruments 32-bit/384kHz Digital to Audio Converter (DAC) with custom-engineered, proprietary acoustically tuned external output filter circuits rendering even the finest details with exceptional clarity and exact positing.

Analog signal paths feature DIRECT-PATH bypass modes eliminating unnecessary circuits maintaining signal integrity and further eliminating unwanted noise and distortion drawing you even closer and immersing you in the music.

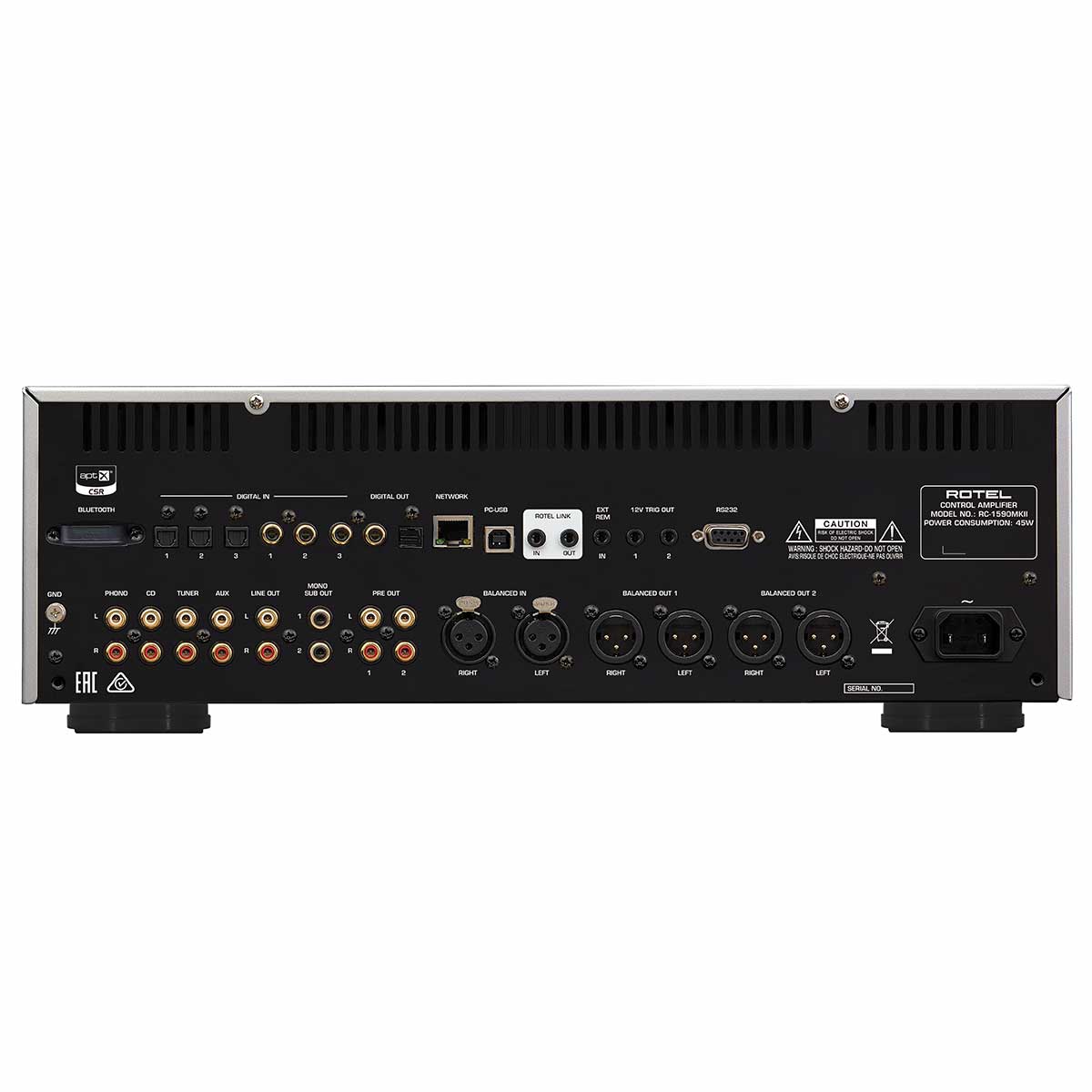

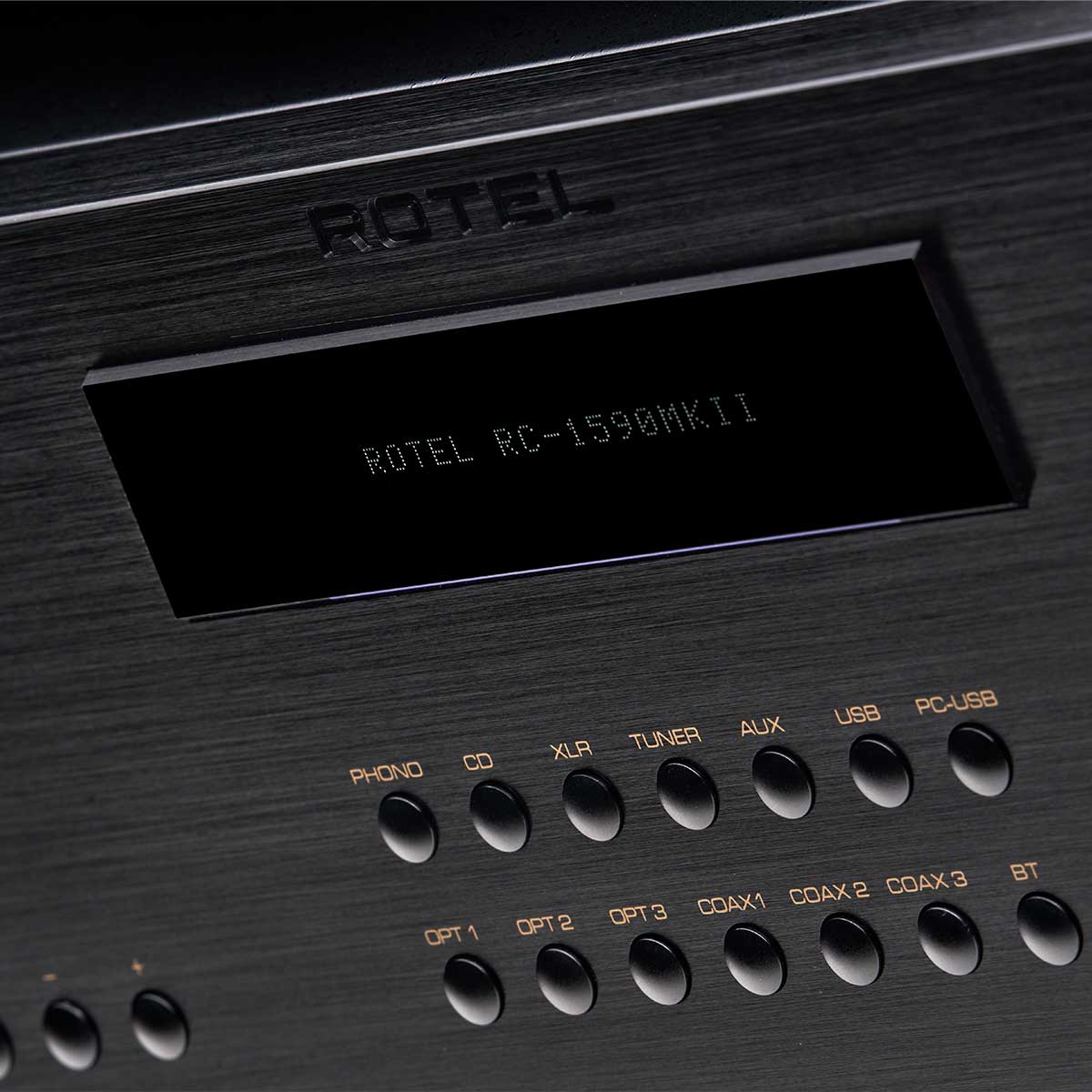

The RC-1590MKII supports a full array of inputs ensuring connection to your favorite sources including a Moving Magnet Phono input for vinyl lovers, Analog, Digital, XLR Balanced, high-quality aptXTM and AAC wireless Bluetooth, and PC-USB (32-bit/384kHz) supporting MQA unfolding and rendering as well as certified Roon Tested.

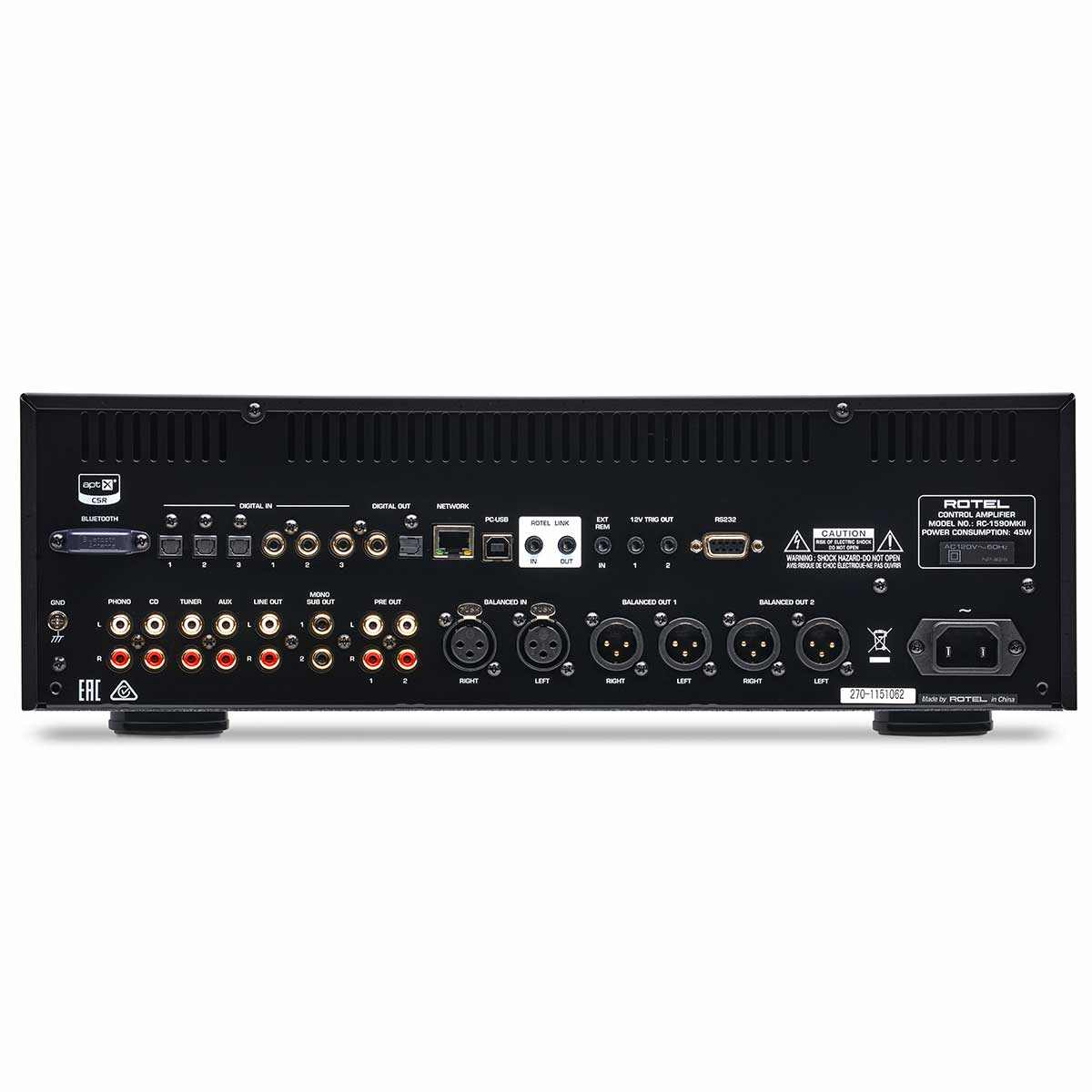

Dual RCA and XLR output connections provide the ultimate flexibility including bi-amplification installations. A subwoofer output is also included.

Details & Specs

General Specifications

  • Total Harmonic Distortion (20 Hz-20k Hz) - < 0.002%
  • Intermodulation Distortion (60 Hz: 7k Hz, 4:1) - < 0.002%
  • Input Sensitivity / Impedance -
    • Phono Input (MM) - 2.5 mV / 47k ohms
    • Line Level Inputs (RCA) - 150 mV / 100k ohms
    • Line Level Inputs (XLR) - 250 mV / 100k ohms
  • Input Overload -
    • Phono Input - 64 mV
    • Line Level Inputs (RCA) - 4 V
    • Line Level Inputs (XLR) - 5.5 V
  • Output Level -
    • Line Level (RCA) - 1 V
    • Balance (XLR) - 2 V
  • Frequency Response -
    • Phono Input - 20 Hz-20k Hz (+0.3 dB, -0.2 dB)
    • Line Level Inputs (RCA) - 10 Hz-100k Hz (+0 dB, -0.1 dB)
    • Line Level Inputs (XLR) - 10 Hz-100k Hz (+0 dB, -0.1 dB)
  • Tone Controls -
    • Bass - ±10 dB at 100 Hz
    • Treble - ±10 dB at 10k Hz
  • Signal to Noise Ratio (IHF “A” weighted) -
    • Phono Input - 80 dB
    • Line Level Inputs (RCA) - 117 dB
    • Line Level Inputs (XLR) - 115 dB
  • Channel Separation -
    • Phono Input - > 85 dB
    • Line Level Inputs (RCA) - > 85 dB
    • Line Level Inputs (XLR) - > 75 dB

Digital Section

  • Frequency Response - 20 Hz - 20k Hz (0 ± 0.5 dB, Max)
  • Signal to Noise Ratio (IHF “A” weighted) - 108 dB
  • Input Sensitivity/Impedance - 0 dBFs / 75 ohms
  • Preamplifier Output Level - 1.65 V (at - 20 dB)
  • Coaxial/Optical Digital Signals - SPDIF LPCM (up to 24-bit / 192k Hz)
  • PC-USB -
    • USB Audio Class 1.0 (up to 24-bit / 96k Hz )
    • USB Audio Class 2.0 (up to 32-bit / 384k Hz )* *Driver installation required
    • MQA and MQA Studio (up to 24-bit / 384k Hz )
    • Roon Tested
  • Power Requirements - 120 V, 60 Hz
  • Power Consumption - 45 watts
  • Standby Power Consumption - < 0.5 watts
  • BTU - 78 BTU/h
  • Dimensions (W x H x D) - 17 x 511/16 x 137/9" (431 x 144 x 348 mm)
  • Front Panel Height - 3U / 51/4" / 132.6mm
  • Weight (net) - 22.27 lbs (10.1 kg)
  • Finish - Silver and Black

Reviews

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
R
Rob
Worth the extra $

I seriously underestimated the differences in preamps. I started with the 1570 which sounded great and then I upgraded to the 1590. There was an immediate, noticeable difference. There is more bass and bass impact along with clearer highs and mids. If you can afford the difference in price, it is no-brainer.

B
Bill
RC1590 Preamp Rocks!

I stream HiFi and Master Tidal from my iMac via USB2 to this wonderful preamp with is on top! Great features like XLR inputs and outputs, Ton's of digital inputs and killer phono preamp! 0 problems in over a year...
