Rotel RC-1572 MKII

Stereo Preamplifier - Black

Rotel RC-1572 MKII

Stereo Preamplifier - Black
Was $1,699.00 $1,359.00
Save $340
Select Color Options:

Contact Us

Overview

Affordable high-end begins with Rotel’s RC-1572 MKII Preamplifier including multiple acoustic upgrades and refinements processing your favorite analog and digital sources to an even higher level of performance in stunning clarity with a natural, enveloping sound stage.

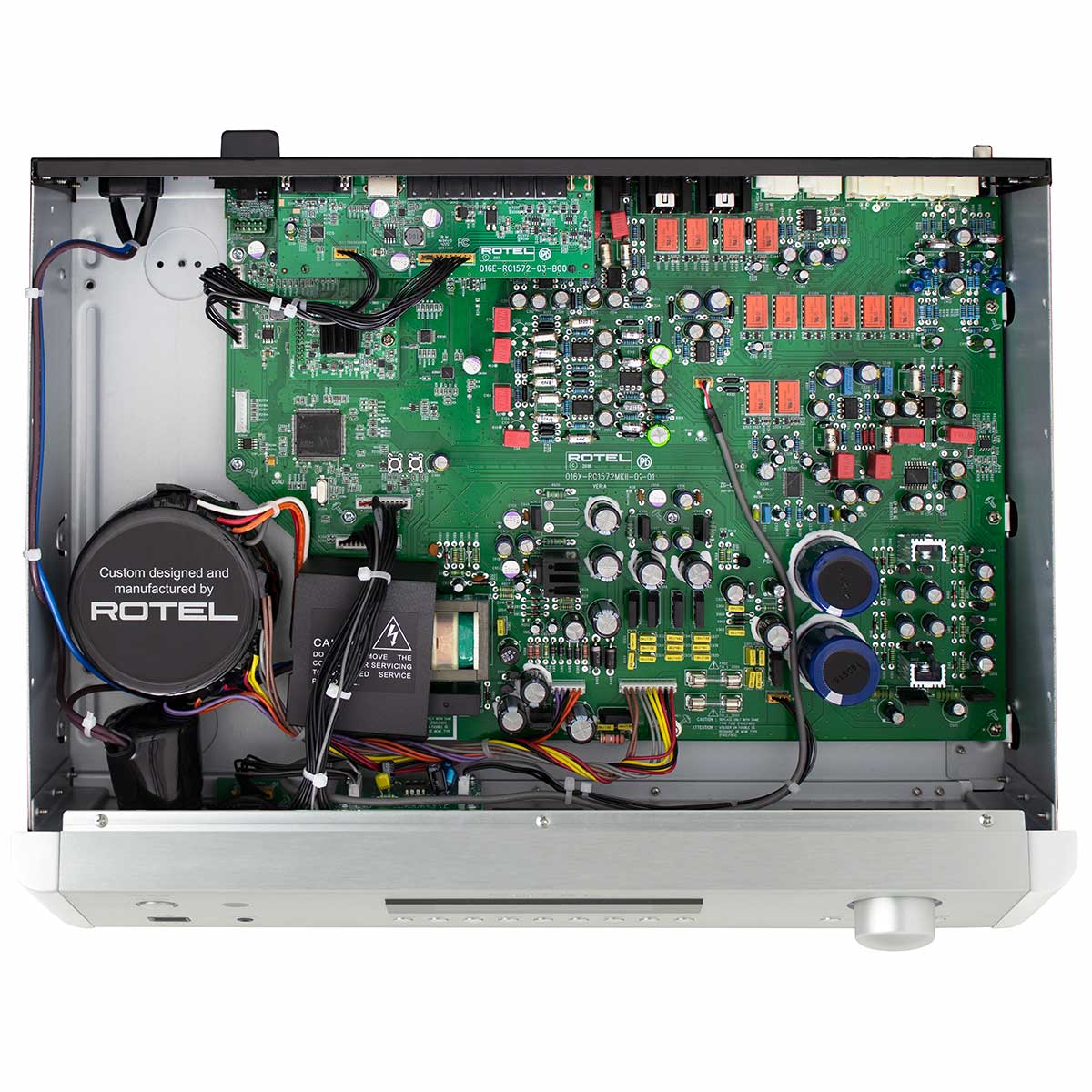

As an essential component in a Hi-Fi audio stack, the RC-1572MKII's precision engineering begins with Rotel’s ultra-low noise power supply including a large, in-house manufactured toroidal transformer. The transformer design reduces stray radiated emissions and feeds a bank of slit-foil, low ESR capacitors delivering stable current to all sensitive circuits reducing noise and distortion with an ultra-quiet noise floor.

A premium Texas Instruments 32-bit Digital to Analog converter (DAC) renders the digital sources supported by custom-tuned, proprietary external output filters ensuring the audio is effortlessly presented with exceptional dynamic detail and musical expression.

Analog, Digital, XLR, aptXTM, and AAC Wireless Bluetooth and Moving Magnet Phono Stage inputs ensure connection to your favorite music sources. Digital media files are supported via a 32-bit/384kHz PC-USB connection supporting MQA and is fully certified Roon Tested for graceful access to the near limitless catalog of online music.

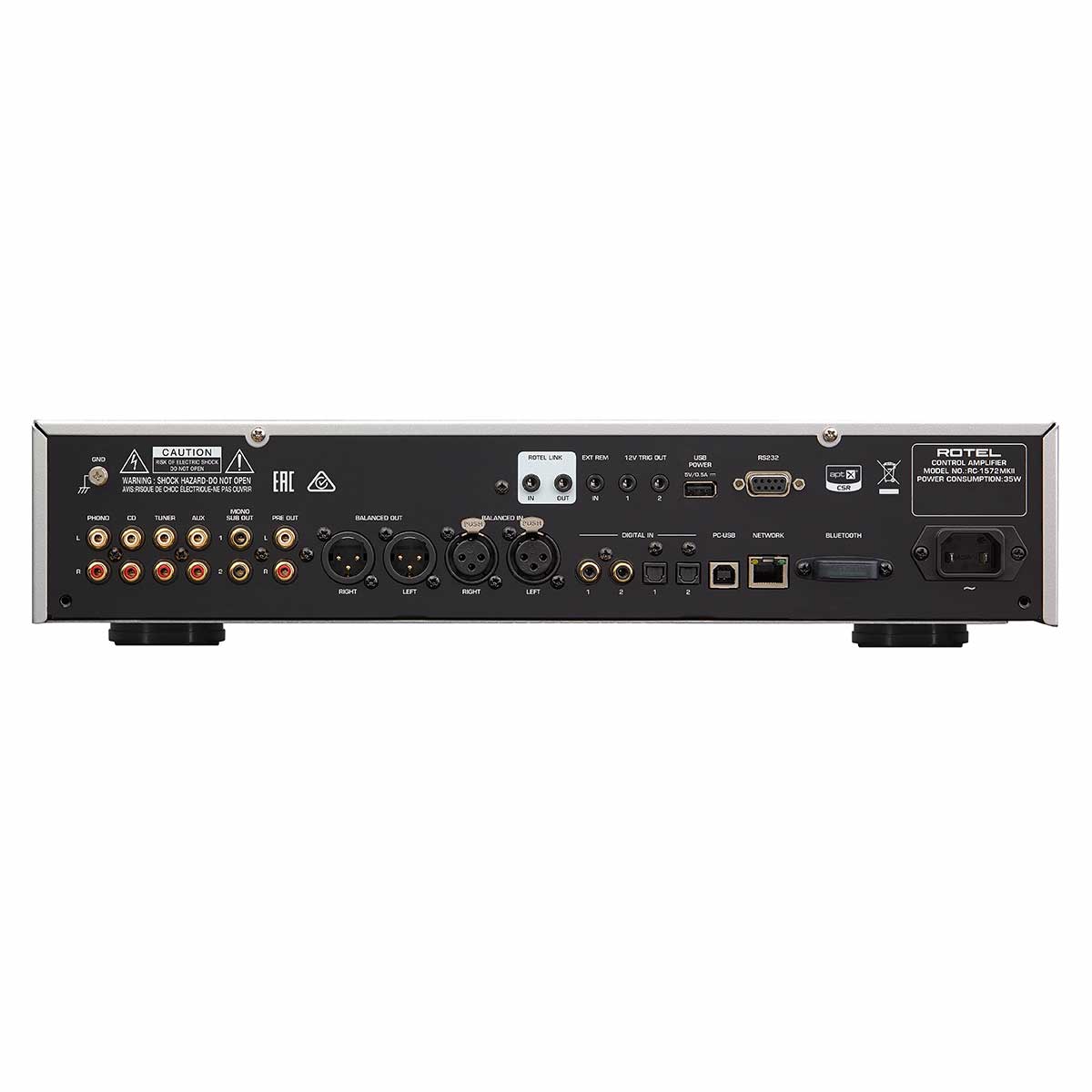

The RC-1572MKII is easy to operate using the included remote control and front panel display. Automatic power controls, signal sensing, fixed volume settings, and tone adjustments optimize customization settings.RCA, XLR, and subwoofer outputs are provided for installation flexibility. Ethernet and RS232 ensure simple integration with control systems and software updates.

Bring your CDs, Digital Files, and Vinyl allowing the RC-1572MKII to bridge generations of music and music lovers.

Details & Specs

  • Total Harmonic Distortion (20 Hz-20k Hz) - < 0.004%
  • Intermodulation Distortion (60 Hz : 7k Hz, 4:1) - < 0.004%
  • Input Sensitivity / Impedance -
    • Phono Input (MM) - 3 mV / 47k ohms
    • Line Level Inputs (RCA) - 200 mV / 100k ohms
    • Line Level Inputs (XLR) - 300 mV / 100k ohms
  • Input Overload -
    • Phono Input - 63 mV
    • Line Level Inputs (RCA) - 4 V
    • Line Level Inputs (XLR) - 5 V
  • Output Level -
    • Line Level (RCA) - 1 V
    • Balance (XLR) - 2 V
  • Frequency Response -
    • Phono Input - 20 Hz-20k Hz (+0.3 dB, -0.2 dB)
    • Line Level Inputs (RCA) - 10 Hz-100k Hz (+0 dB, -0.2 dB)
    • Line Level Inputs (XLR) - 10 Hz-100k Hz (+0 dB, -0.2 dB)
  • Tone Controls -
    • Bass - ±10 dB at 100 Hz
    • Treble - ±10 dB at 10k Hz
  • Signal to Noise Ratio (IHF “A” weighted) -
    • Phono Input - 80 dB
    • Line Level Inputs (RCA) - 118 dB
    • Line Level Inputs (XLR) - 118 dB
  • Channel Separation -
    • Phono Input - > 85 dB
    • Line Level Inputs (RCA) - > 85 dB
    • Line Level Inputs (XLR) - > 75 dB

Digital Section

  • Frequency Response - 20 Hz - 20k Hz (0 ± 0.5 dB, Max)
  • Signal to Noise Ratio (IHF “A” weighted) - 100 dB
  • Input Sensitivity/Impedance - 0 dBFs / 75 ohms
  • Preamplifier Output Level - 1.44 V (at - 20 dB)
  • Coaxial/Optical Digital Signals - SPDIF LPCM (up to 24-bit / 192k Hz )
  • PC-USB -
    • USB Audio Class 1.0 (up to 24-bit / 96k Hz )
    • USB Audio Class 2.0 (up to 32-bit / 384k Hz )**Driver installation required
    • MQA and MQA Studio(up to 24-bit / 384k Hz )
    • Roon Tested
  • Power Requirements - 120 V, 60 Hz
  • Power Consumption - 35 watts
  • Standby Power Consumption
    • Normal - < 0.5 watts
    • Network Wakeup - < 2 watts
  • BTU (4 ohms, 1/8 power) - 65 BTU/h
  • Dimensions (W x H x D) - 431 x 99 x 338 mm / 17 x 3 7/8 x 13 1/4 in
  • Front Panel Height - 2U / 88.1mm / 3 1/2 in
  • Weight (net) - 8.4 kg / 18.5 lbs
  • Finish - Silver and Black

Reviews

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
B
Barney
good component for the price

Give this unit 120-150 hr breakin period !!!! If not sound will be too bright . Thereafter, soundstage,depth & clarity are good for the price of admission . Lastly, the phonostage is decent for a ss component
