Rotel RA-1572 MKII

Integrated Amplifier - Black

Rotel RA-1572 MKII

Integrated Amplifier - Black
Was $2,499.00 $1,999.00
Save $500
Select Color Options:

Contact Us

Overview

The RA-1572MKII Integrated Amplifier brings your music to life with exceptional fidelity delivering 120 Watts of Class AB output into 8 ohms with deep, controlled bass energy. The audiophile grade DAC, analog, digital, aptXTM and AAC Bluetooth, PC-USB supporting MQA and Moving Magnet Phono stage ensure exceptional detail and immersive soundstage.

The RA-1572MKII Integrated Amplifier is an essential component for music lovers leveraging the best of Rotel’s analog and digital technologies bringing music to life with exceptional fidelity. The role of an integrated amplifier continues to evolve with the RA-1572MKII optimized in every aspect including the power amplifier delivering 120 Watts of robust Class AB output into 8 ohms, audio circuit design innovations, premium audiophile Digital to Analog Converter, and a full complement of source inputs.

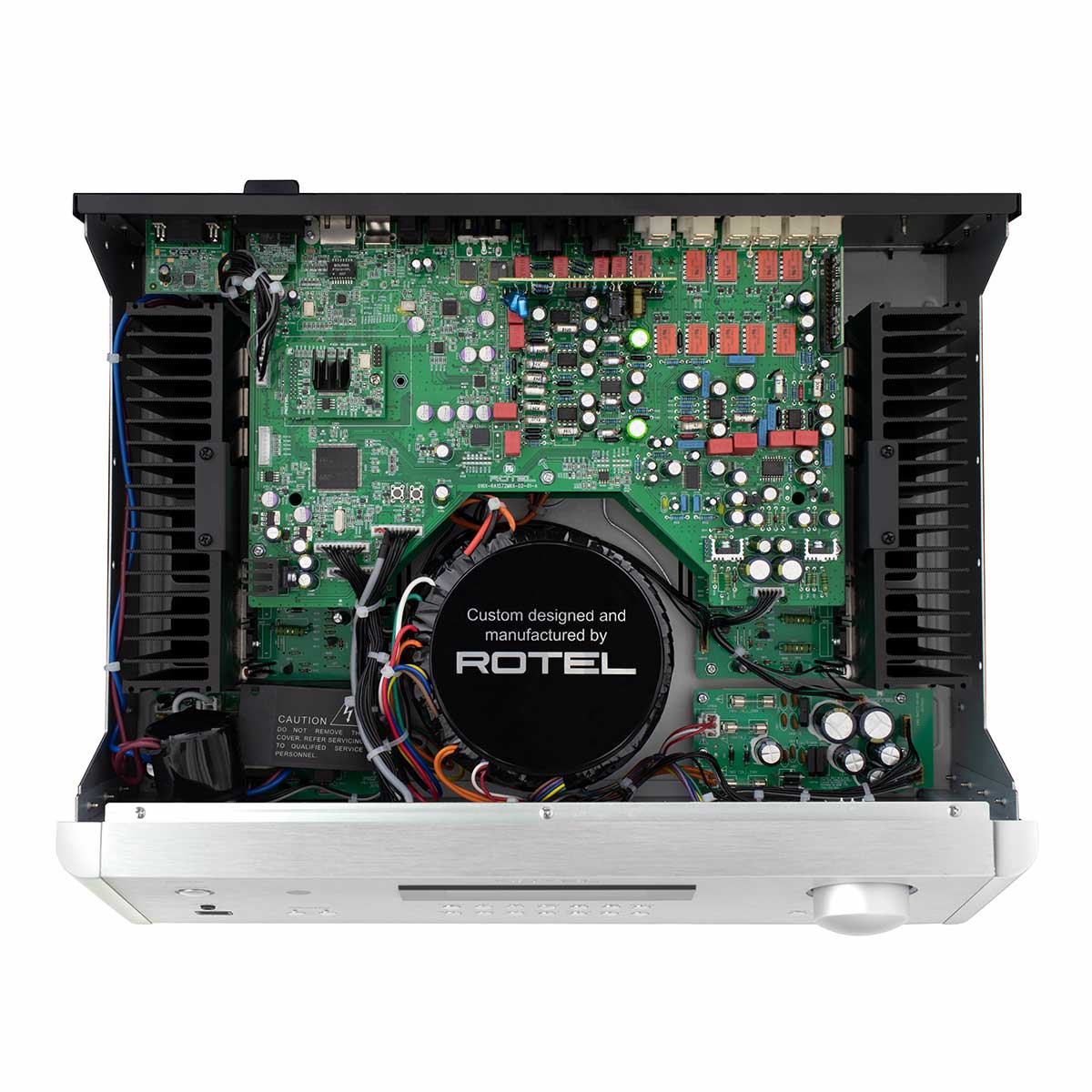

As typical of Rotel amplifiers, the RA-1572MKII utilizes an in-house manufactured oversized toroidal transformer. The toroidal transformer’s shape helps prevent stray radiation patterns from corrupting audio signals as they pass through adjacent circuits. The transformer feeds a bank of 4 low ESR, high efficiency, T-Network slit-foil storage capacitors for deep, controlled bass energy.

The RA-1572MKII supports digital sources utilizing a Texas Instruments 32-bit/384kHz DAC with critically tuned output filter circuits rendering even the most subtle detail. The preamplifier circuits and linear amplifier gain stages have been custom engineered ensuring natural detail, agility, and an immersive soundstage. Analog, digital, PC-USB supporting MQA, aptX™ and AAC wireless Bluetooth streaming, XLR Balanced and Moving Magnet Phono stage inputs ensures connection to your favorite sources.

The RA-1572MKII is certified Roon Tested delivering the best experience using Roon software so you can just enjoy the music.

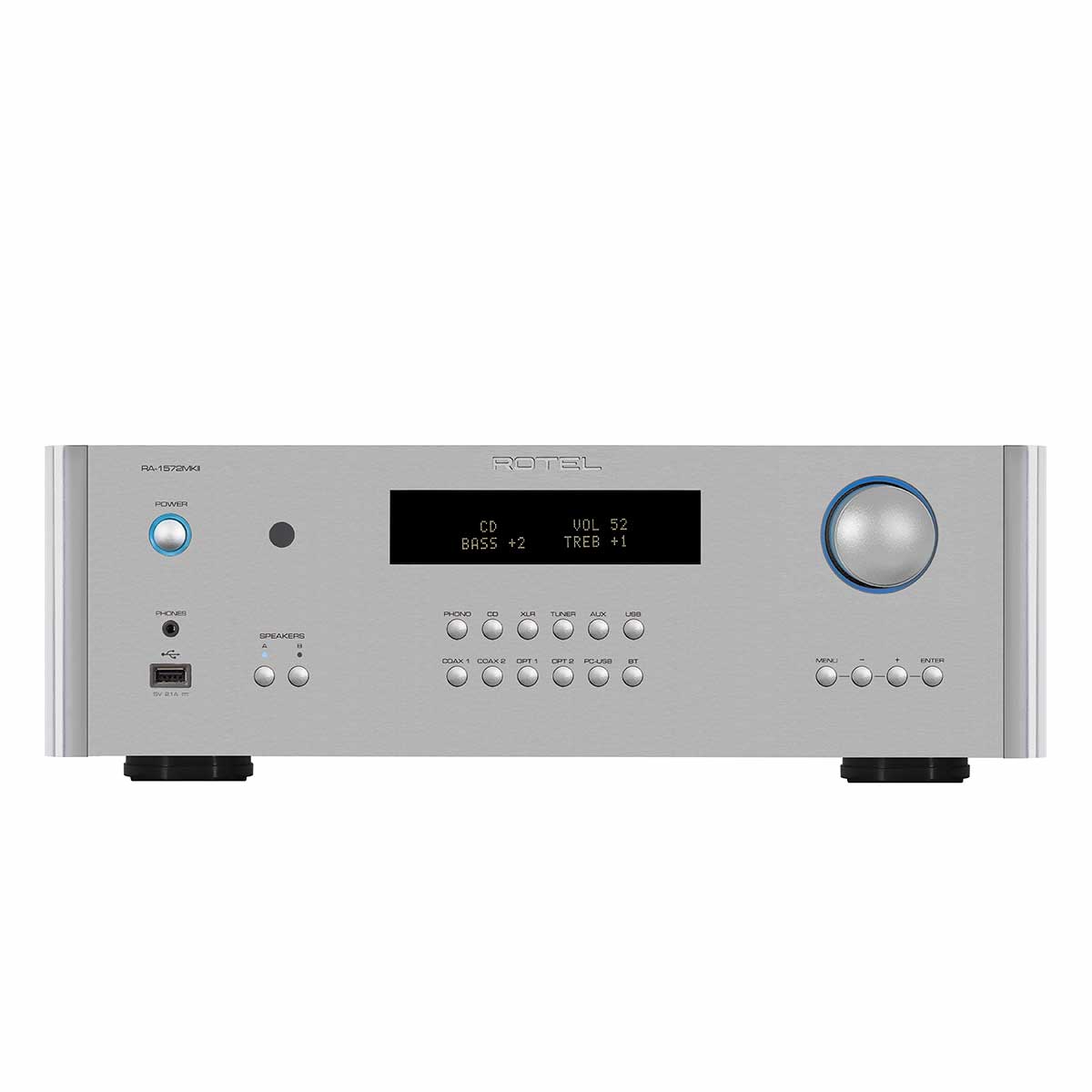

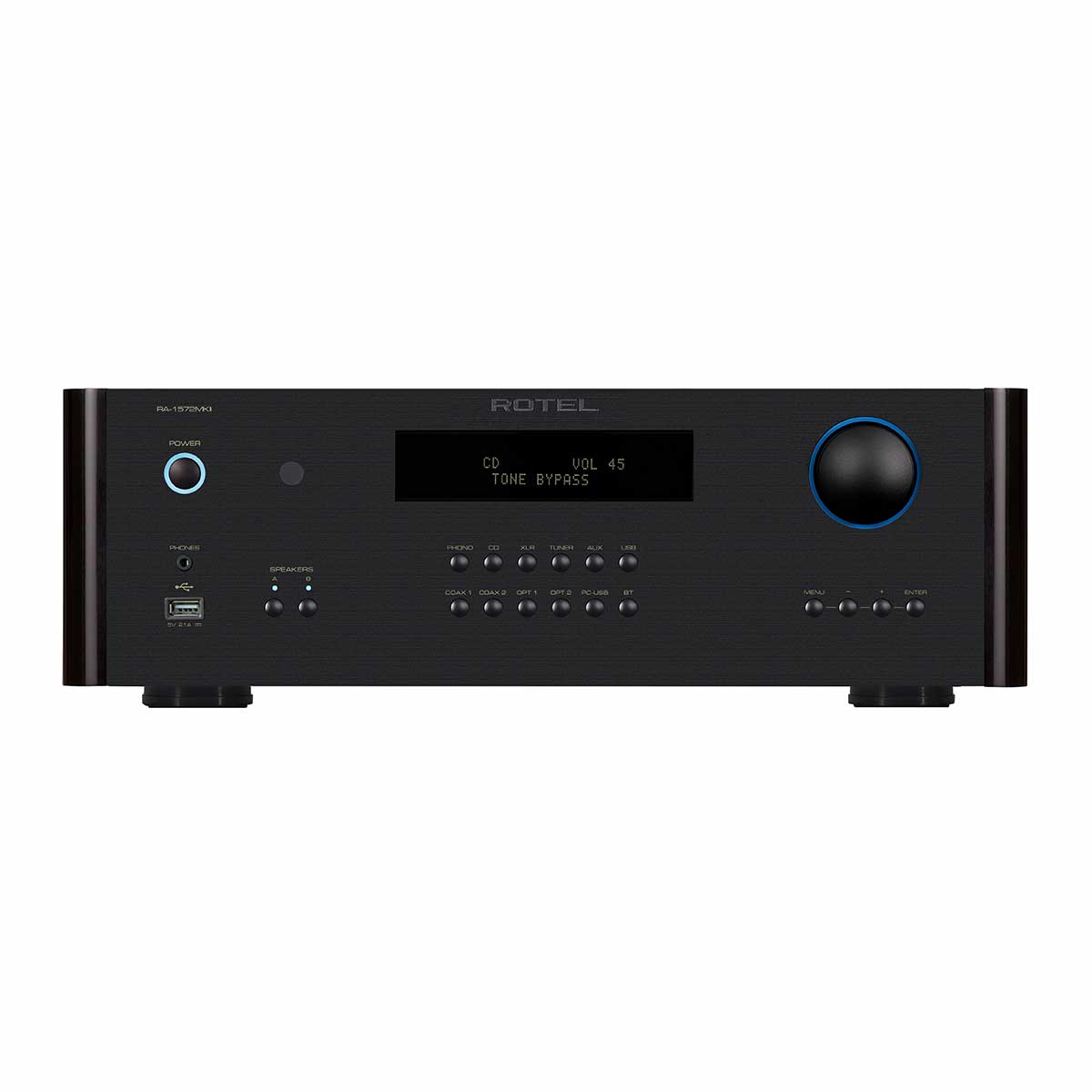

The front panel includes a status display, source and volume controls, Speaker A-B selection for Zone 2, and a 3.5mm headphone jack. Ethernet and RS232 connections allow seamless integration with control systems and software updates.

Details & Specs

  • Maximum Power Output - 200W/Ch (4Ω)
  • Continuous Power Output - 120W/Ch (8Ω)
  • Total Harmonic Distortion (THD) - <0.018%
  • Frequency Response -
    • Line Level Inputs: 10Hz - 100kHz, ±0.5dB
    • Digital Inputs: 10Hz - 90kHz, ±2dB
    • Phono Input: 20Hz - 20kHz, ±0.5dB
  • S/N Ratio (IHF "A" Weighted) -
    • Line Level Inputs: 100dB
    • Digital Inputs: 100dB
    • Phono Input: 80dB
  • Intermodulation Distortion (60Hz:7kHz, 4:1) - <0.03%
  • Damping Factor - 300
  • Input Sensitivity -
    • Line Level Inputs (RCA): 270mV
    • Line Level Inputs (XLR): 440mV
    • Digital Inputs: 0 dBFs
    • Phono Input (MM): 2.1mV
  • Input Impedance -
    • Line Level Inputs (RCA): 100kΩ
    • Line Level Inputs (XLR): 100kΩ
    • Digital Inputs: 75Ω
    • Phono Input (MM): 47kΩ
  • Input Overload -
    • Line Level Inputs (RCA): 4V
    • Line Level Inputs (XLR): 5.5V
    • Phono Input: 32mV
  • Preout Level - 1.5V
  • Output Impedance - 470Ω
  • Coax/optical Digital Input Signals - LPCM (Up to 24-bit/192kHz)
  • PC-USB -
    • USB Audio Class 1 (up to 24-bit/192kHz)
    • USB Audio Class 2 (up to 32-bit/384kHz) (Driver installation required)
    • MQA and MQA Studio (up to 24-bit/384kHz)
    • Roon Tested
  • Front Panel Height - 3U / 132.6mm (5.25")
  • Power Requirements - 120V, 60Hz
  • Power Consumption - 400W
  • Standby Power Consumption - <0.5W
  • Dimensions (W × H × D) - 431 × 144 × 358mm (17" × 5.7" × 14.1")
  • Net Weight - 13.63kg (30.05 lbs)
  • BTU Rating (4Ω, 1/8th power) - 810 BTU/h
