Rotel CD11 MKII

CD Transport with 32-bit/384kHz DAC and Digital & Analog Outputs

Rotel CD11 MKII

CD Transport with 32-bit/384kHz DAC and Digital & Analog Outputs
$599.99
Select Color Options:

Contact Us

Overview

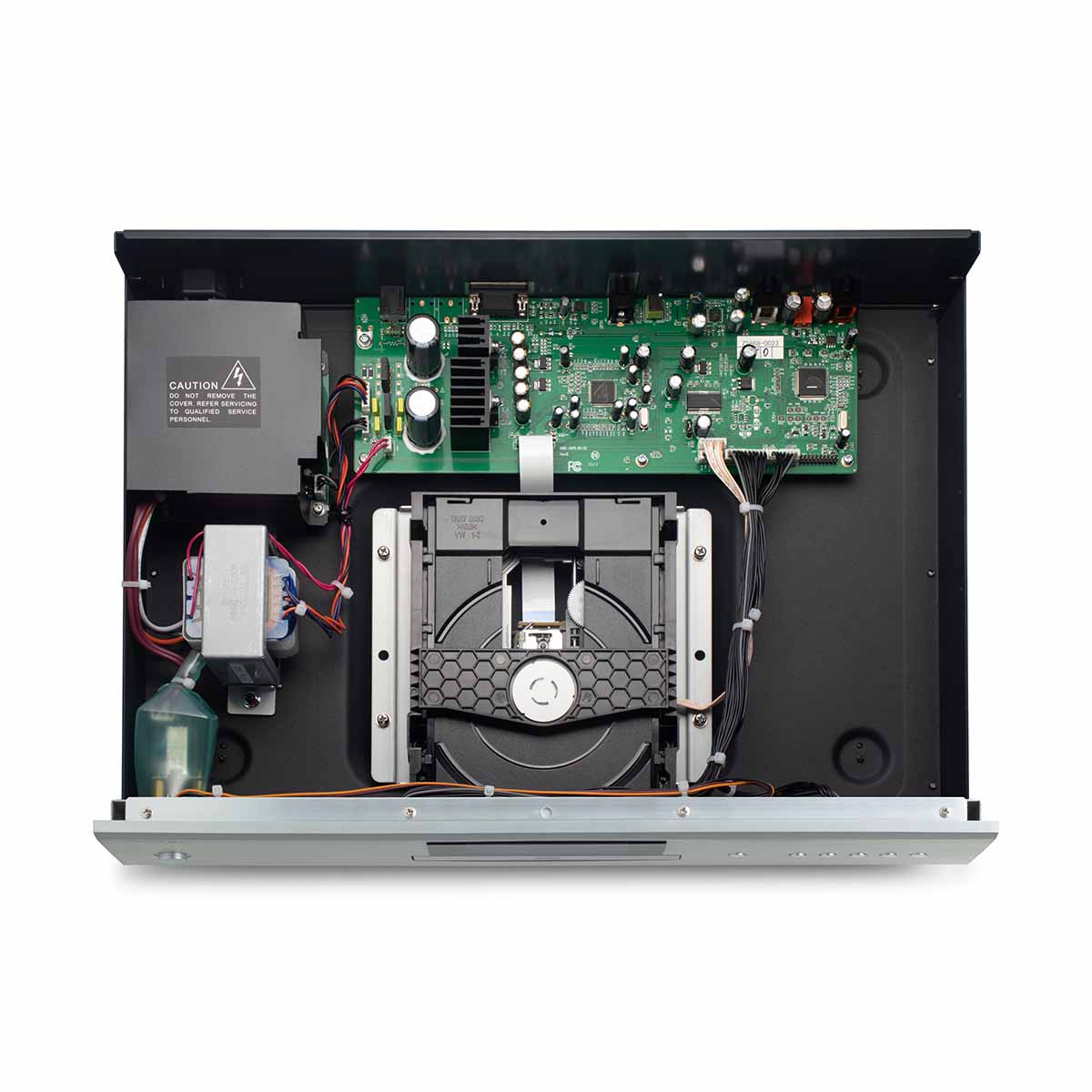

The CD11MKII CD Player furthers Rotel’s 30+ year legacy of delivering high performance, high value CD players. The player’s heavy steel chassis supports a proprietary Rotel disc transport exclusively for the playback of compact discs. The CD 11MKII’s smooth, tray-loading mechanism, precise laser pickup, and silent running motor controller ensures seamless, worry-free playback of your CD collection.

Digital to Analog conversion is handled by a premium Texas Instruments PCM5102A 32-bit/384kHz DAC feeding custom-tuned digital low pass filter circuits. This sound-first design renders music on a large, open sound stage with exceptional details, precision, and finesse.

A linear power supply provides isolated outputs to the CD motor control circuit and critical audio circuits reducing noise and distortion presenting even the smallest of details from your CD collection.

Intuitive CD control functions on the front panel and included remote control ensure simple operation. The front panel graphic display shows playback status and disc metadata information including the title and artist.

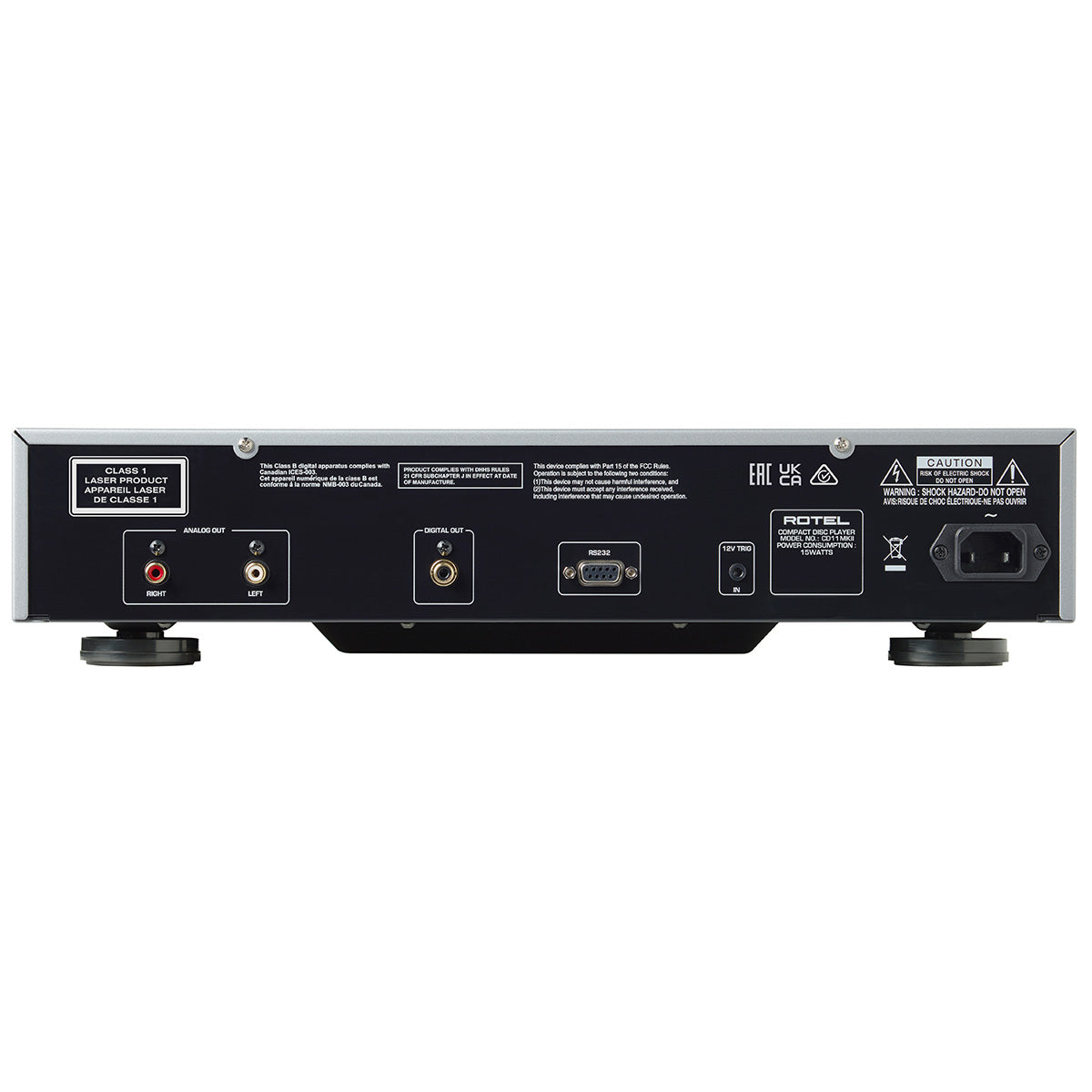

The digital coaxial output allows the CD11MKII to be utilized as a Disc Transport. A rear panel 12V trigger input and RS232 connector allows seamless integration into even the most complex systems.

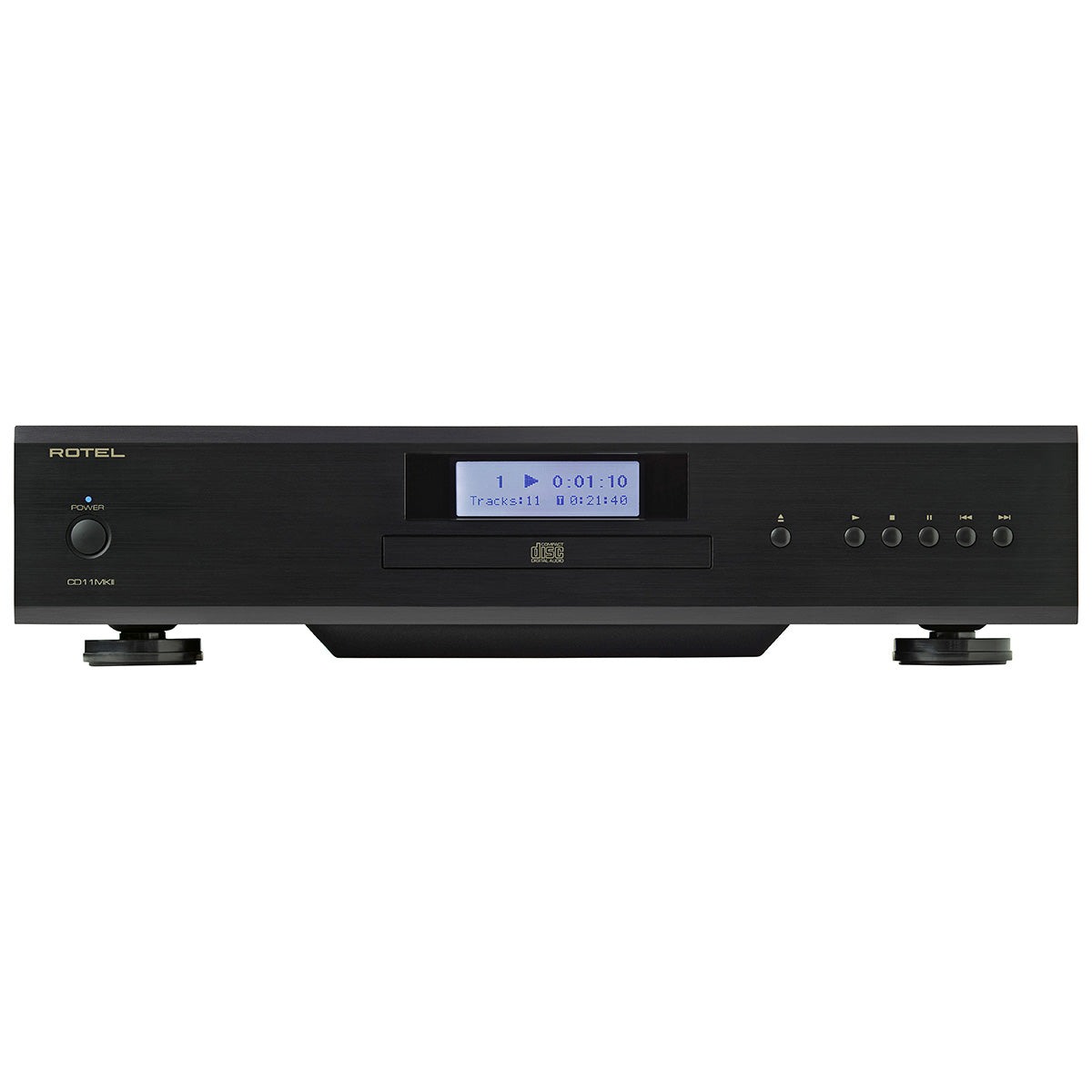

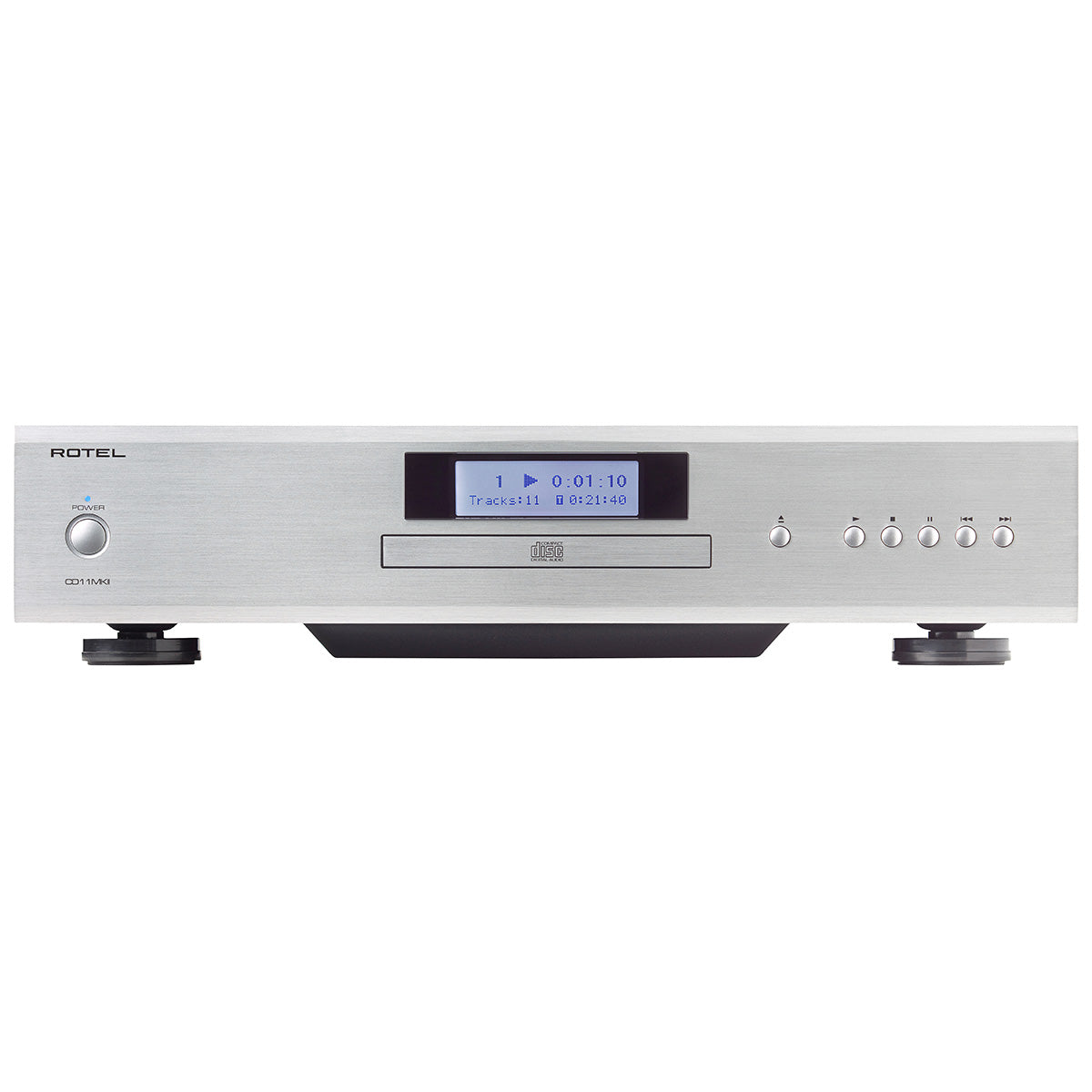

The CD11MKII is available in both black and silver colors.

Key Features

  • Smooth tray loading CD mechanism
  • Outputs including RCA analog and Coaxial digital
  • Texas Instruments premium 32-bit/384kHz Digital to Analog Converter
  • RS232 and 12V trigger input
  • Front panel display and IR Remote

Details & Specs

Model CD11 MKII
Total Harmonic Distortion + Noise 0.009% @ 1k Hz
Intermodulation Distortion 0.009% @ 1k Hz
Frequency Response 20 - 20,000 Hz
Channel Balance ± 0.5 dB
Phase Linearity ± 0.5 degree
Channel Separation > 115 dB @ 10k Hz
Signal to Noise Ratio (IHF "A" Weighted) > 125 dB
Dynamic Range > 99 dB
Digital to Analog Converters Texas Instruments
Analog Output Impedance 470 Ohms
Digital Output 0.5 V, Peak to Peak
Load Impedance 75 Ohms
Power Requirements 120 V, 60 Hz
Power Consumption 15 Watts
Standby Power Consumption < 0.5 Watts
BTU (4 Ohms, 1/8 Power) 40 BTU/h
Dimensions (WxHxD) 17” x 3-7/8” x 12-3/8”
Front Panel Height 3-1/8”
Weight (net) 13.7 lbs
Finish Black
Silver
