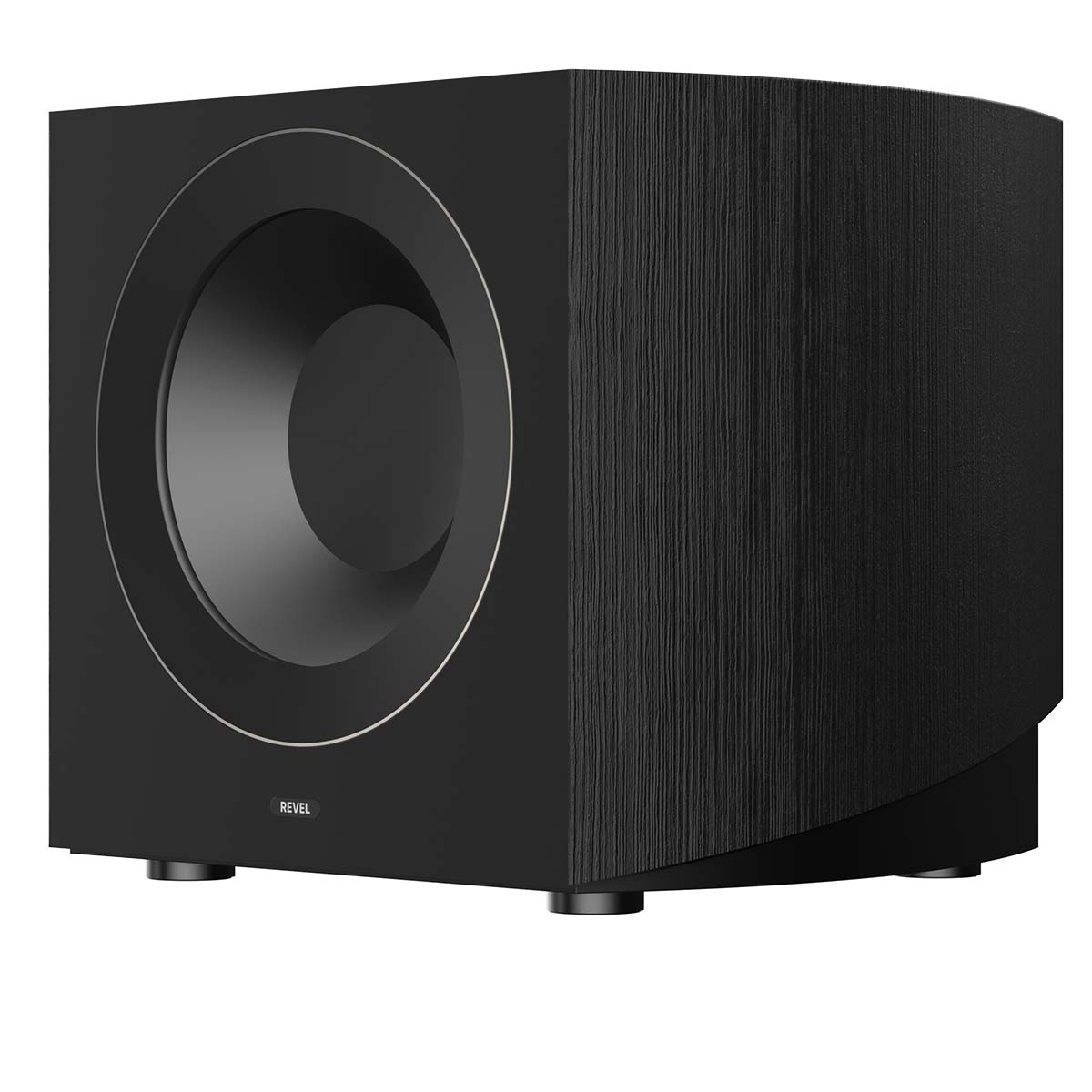

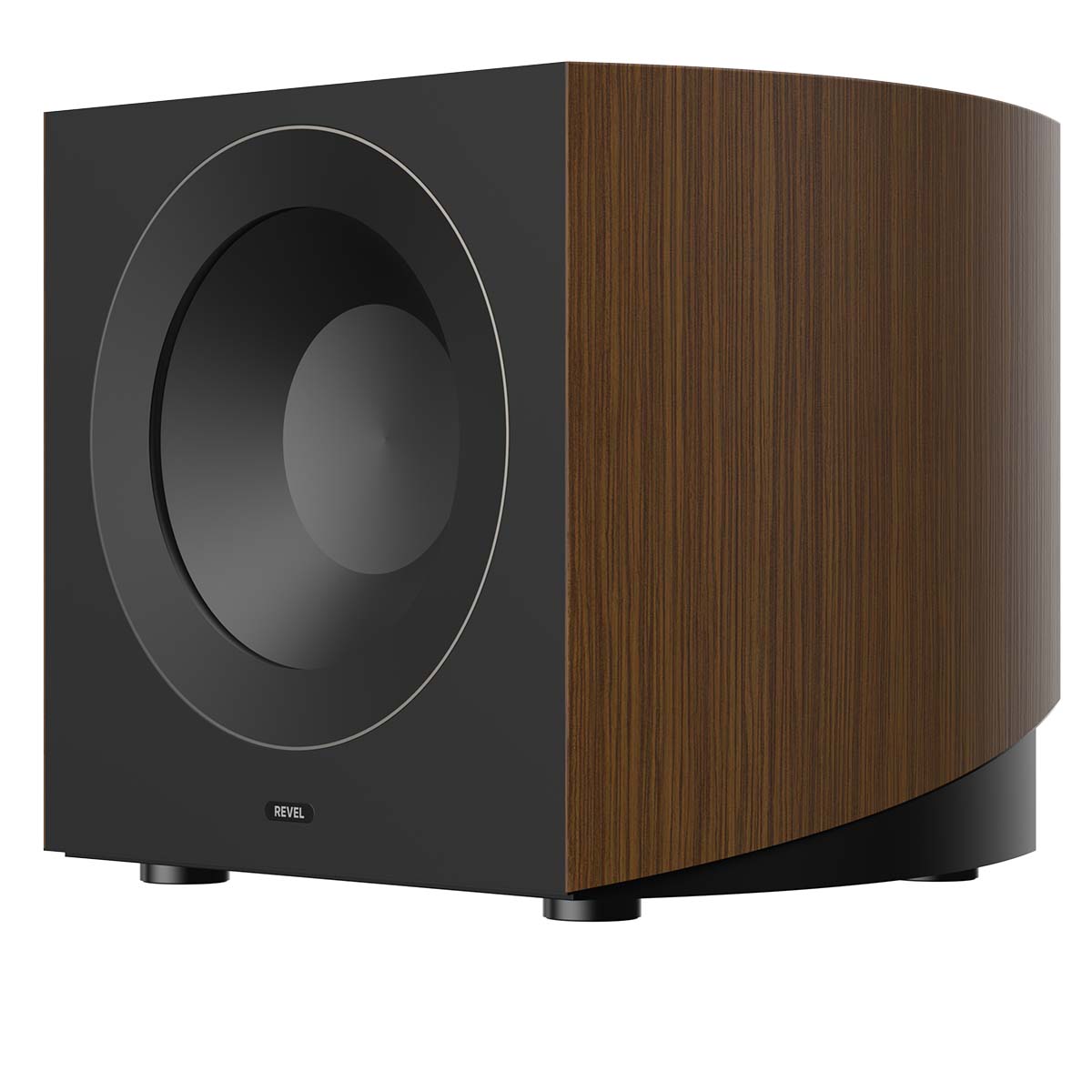

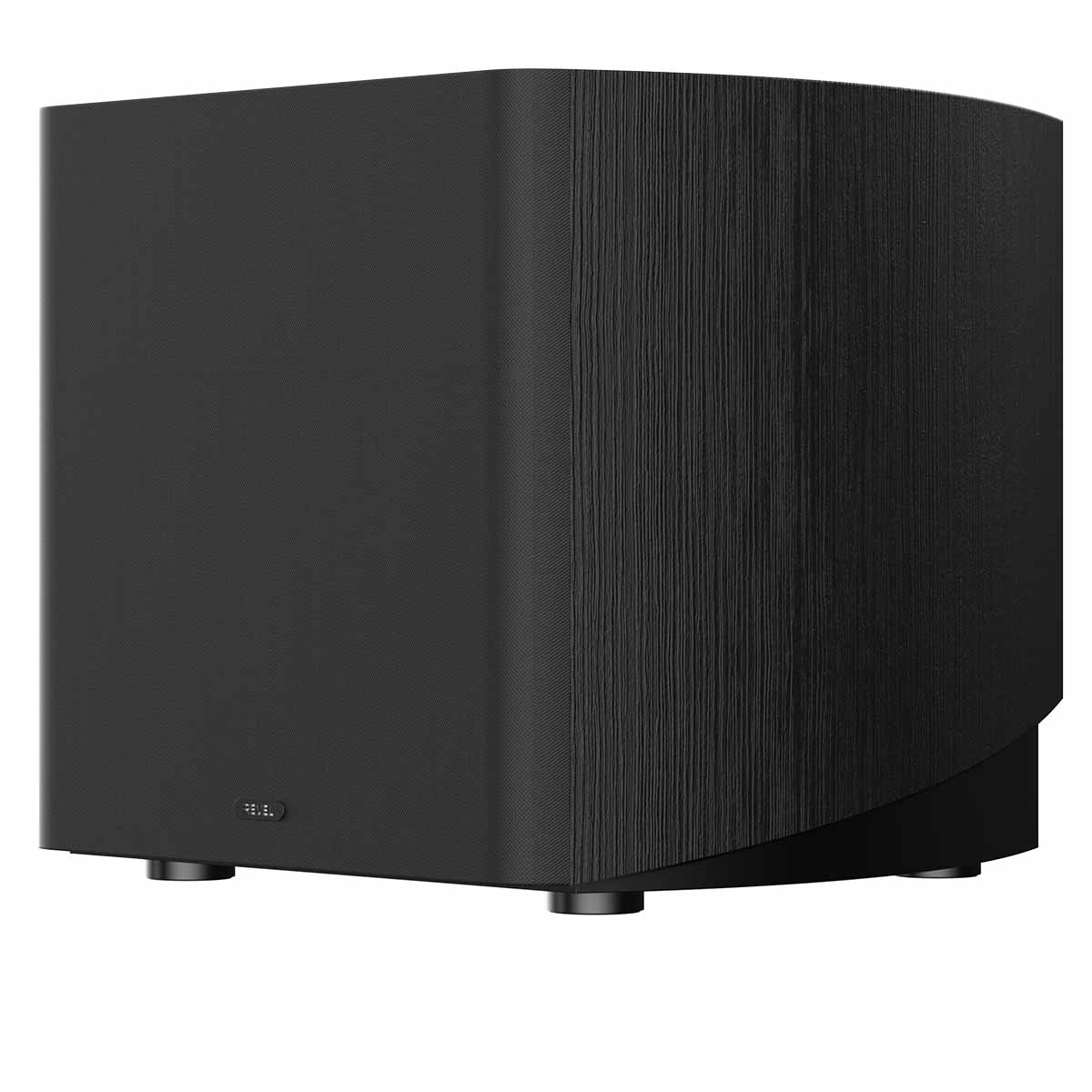

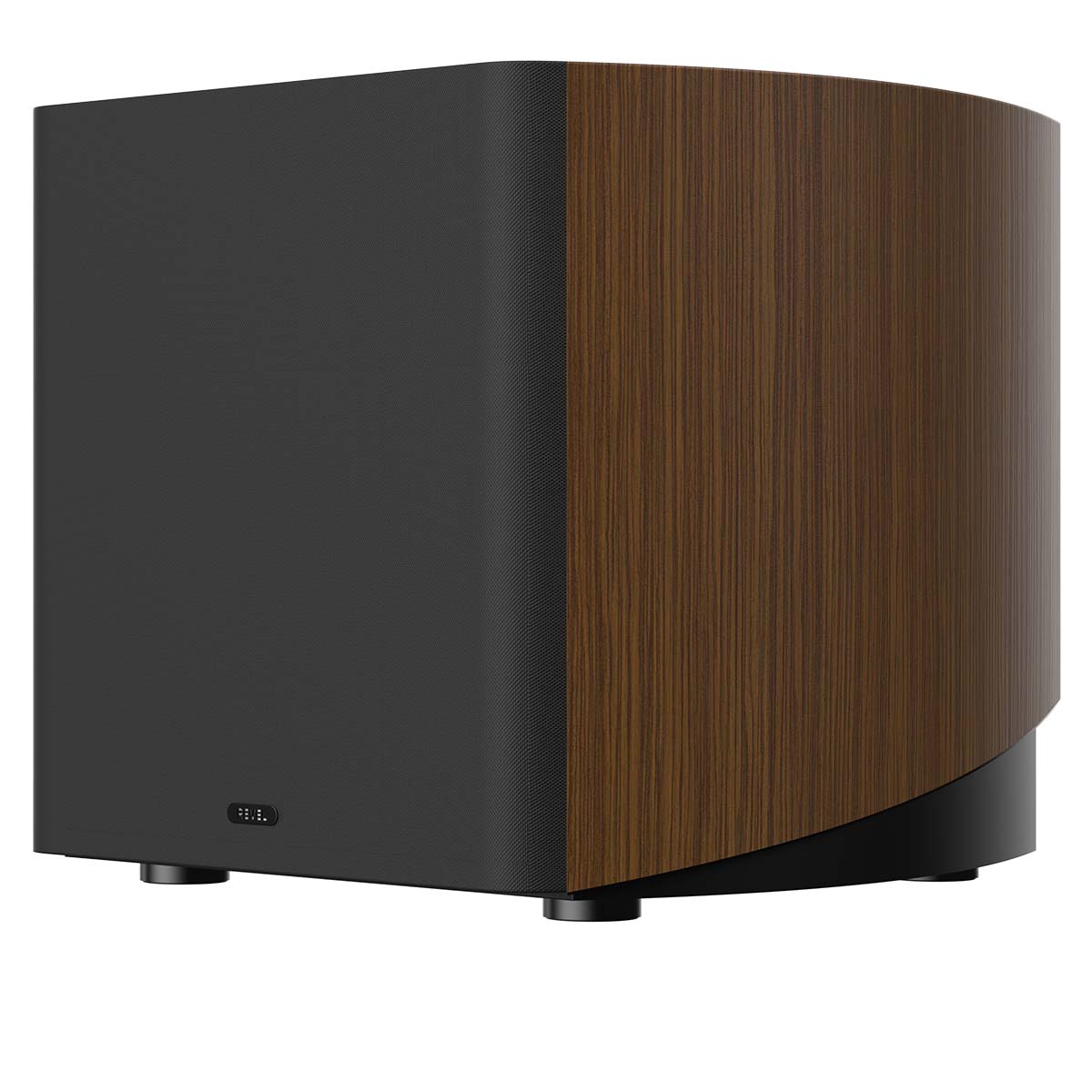

Revel Performa4 B140

10-Inch Powered Subwoofer - Each

Revel Performa4 B140

10-Inch Powered Subwoofer - Each
$2,999.95
Select Color:


Overview

Born from decades of world-class loudspeaker innovation, the Revel B140 powered subwoofer is the perfect companion to the Performa4 floorstanding and bookshelf loudspeakers. It features a 10-inch (250mm) fiber-composite cone woofer mated with a 750 Watt digital amplifier and includes a host of connectivity and tuning options to integrate seamlessly into any system. These components work in harmony with a bass-reflex tuned port enclosure to achieve unmatched audio accuracy and powerful deep bass response that makes your music and movies come alive.
Watch our Comparison

Fiber-Composite Cone Low-Frequency Driver

The B140 features a robust 10-inch (250mm) coated fiber-composite cone woofer designed around a precision cast aluminum frame. At its core is a massive 3-inch (75mm) two-layer copper voice coil, delivering an impressive 1.25-inch (30mm) peak-to-peak excursion for exceptional low-frequency performance. To maintain linearity across this extreme excursion, the pole piece extends 0.25-inch (10mm) above the top plate, ensuring a stable magnetic field. This extension also serves a dual purpose by enhancing thermal dissipation, keeping the voice coil cool under demanding conditions.

High-Power Class D Amplification

The B140 is powered by a high-efficiency Class-D amplifier delivering an impressive 750 watts RMS and 1,500 watts peak, ensuring deep, powerful bass response down to 26 Hz.

Rear-Mounted Volume, Crossover, Phase, and Power Controls

The B140 offers a comprehensive set of rear-mounted controls for precise system integration:

  • Variable Low-Pass Filter (50–150 Hz) – Allows perfect adjustment to match your main speakers.
  • LFE Input – Bypasses the low-pass filter when connected to a receiver or processor with its own bass management.
  • Phase Control – Variable adjustment for seamless blending with your system.
  • Volume Control – Fine-tunes output for perfect balance.
  • Auto On/Off – Automatically powers the subwoofer on when a signal is detected and off when idle, saving energy.

Premium Design Details

The B140 embodies luxury craftsmanship and decades of loudspeaker expertise, featuring magnetically attached grilles for a clean, seamless look with no visible fasteners. Hidden hardware and integrated trim rings add a refined touch, while a polished black accent complements the rigid, cross-braced cabinet. Solid aluminum feet with optional spikes and floor protectors ensure optimal positioning and isolation. Gently curved cabinet sides are finished in premium wood veneers, available in natural walnut or black walnut. Every detail is designed to please the eye as much as the ear.

Constant Pressure Gradient Rear Ported Cabinet

Revel’s patented Constant Pressure Gradient Port exemplifies precision engineering, delivering a uniform pressure change along its entire length. This innovative design minimizes turbulence and virtually eliminates port noise, ensuring pristine, distortion-free bass performance that complements the subwoofer’s uncompromising craftsmanship.

Revel Performa4 B140 10-Inch Powered Subwoofer - Each

Details & Specs

ModelRevel C245
Description:2-Way Dual 5.25" Center
Type:Center Channel
Crossover Type:High Order 2-Way with Film Capacitors and Air Core Inductors
Low-frequency Transducer Size:2 x 5.25" (130 mm)
Low-frequency Transducer Quantity:2
Low-frequency Transducer BasketCast Aluminum
Low-frequency Transducer Material:Aluminum Cone with Deep Ceramic Coating
Low-frequency Voice Coil:1.5" (38 mm), Four-layer Copper
High-frequency Transducer Size:1" (25 mm)
High-frequency Transducer Quantity:1
High-frequency Transducer BasketCast Aluminum
High-frequency Transducer Material:Aluminum Dome with Ceramic Coating
High-frequency Voice Coil:1.25" (32 mm), Two-layer Copper
Crossover Frequency:2.2 kHz
System Power Rating30 W to 200 W
Sensitivity:90 dB @ 2.83V/1m
Nominal Impedance:6 ohms
Low-frequency extension:55 Hz (-10 dB)
Frequency response:55 Hz to 40 kHz (-10 dB)
Maximum SPL @ 1m:109 dB peak
Recommended Listening Position:2 to 4 m
MDF cabinet:Yes
Cabinet design:Low-turbulence Rear-firing Port
Finish options:High gloss Walnut, White, Black
Driver location:Front
Grille:Magnetic
Height7.5" (191 mm)
Width22.7" (577 mm)
Depth11.1" (282 mm)
Weight33.0 lbs (14.97 kg)
Shipping carton height12.6" (320 mm)
Shipping carton width27.9" (709 mm)
Shipping carton depth15.4" (391 mm)
Shipping weight39.0 lbs (17.69 kg)
Cubic in/35433
Cubic ft/33.1
ControlsHigh Frequency Level (0/+1 dB)
Power Requirement:N/A
Power Consumption:N/A
