Revel M80XC

8-inch 2-Way Extreme Climate Loudspeaker - Pair

Revel M80XC

8-inch 2-Way Extreme Climate Loudspeaker - Pair
$990.00
Select Color Options:

Contact Us

Overview

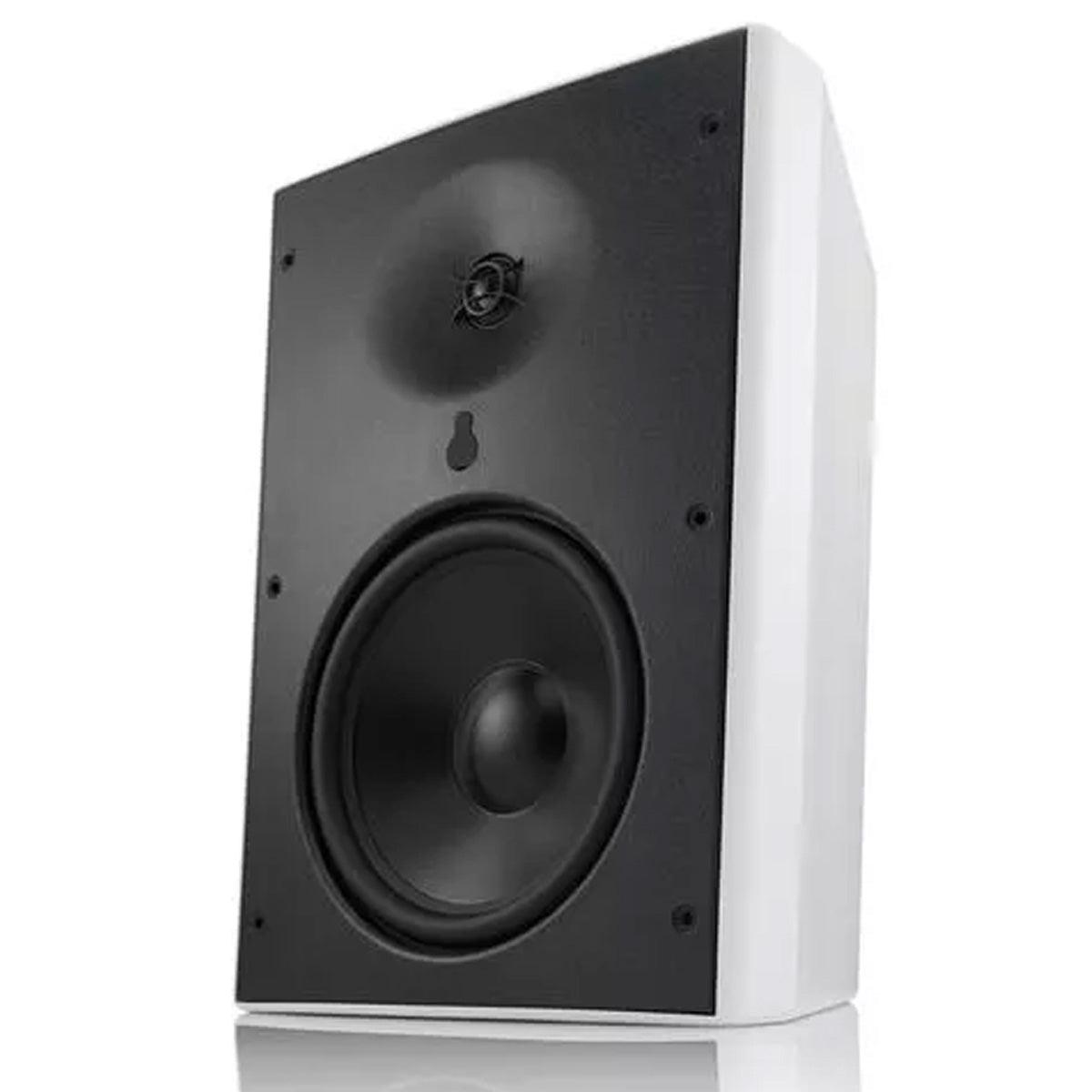

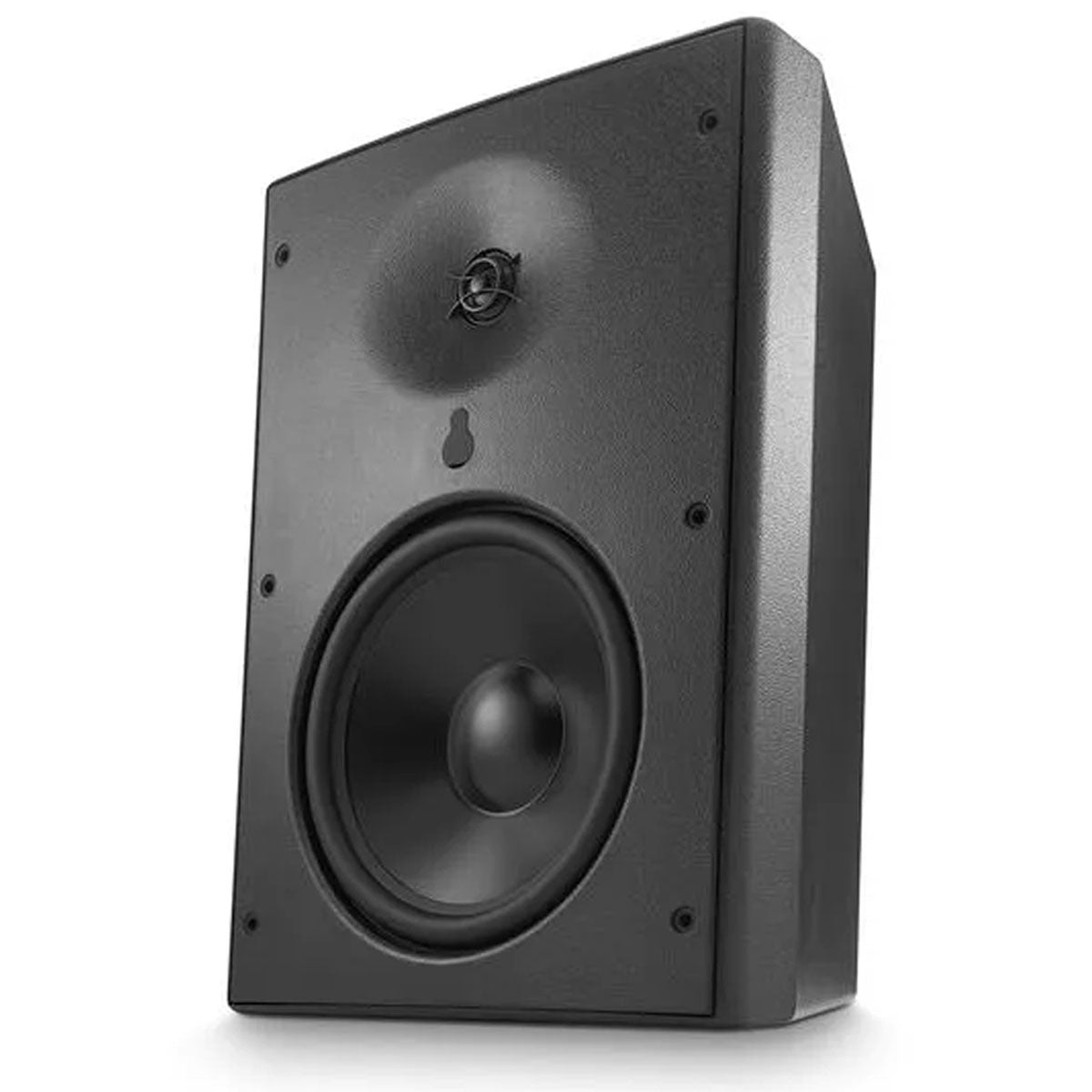

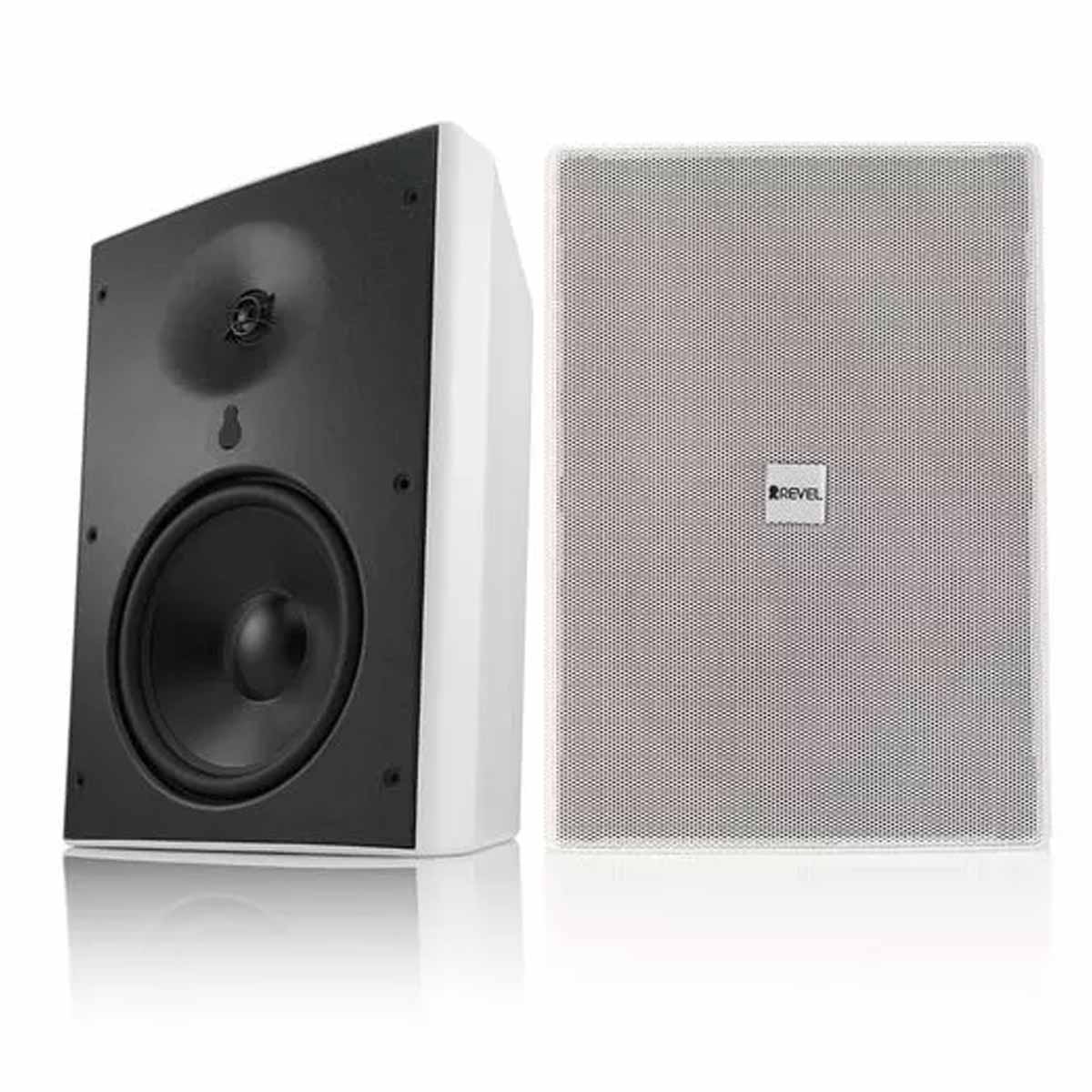

The Revel M80XC is a 2-way 8-inch / 200mm Extreme Climate outdoor loudspeaker designed to deliver true high-performance Revel sound while withstanding the harsh environments of locations that are hot, cold, damp, humid, or wet.

The Revel M80XC is a 2-way 8-inch / 200mm Extreme Climate outdoor loudspeaker. As part of the XC Series, they have been specifically engineered and rigorously tested to perform to Revel's exacting standards in outdoor, damp, wet, or high-humidity locations and have been designed to withstand environmental abuses while not affecting their performance. The M80XC is also resistant to corrosion from salt water and can be deployed in marine applications such as on docks or beachfront property. The included InvisiBall® mounting system provides flexible positioning options while the stainless steel speaker terminals with weather-protection cover ensure long-lasting performance. 70V / 100V capability is included for large system configurations or long cable runs. With the M80XC, audiophile-caliber sound quality can now be found in Extreme Climate installations.

Key Features

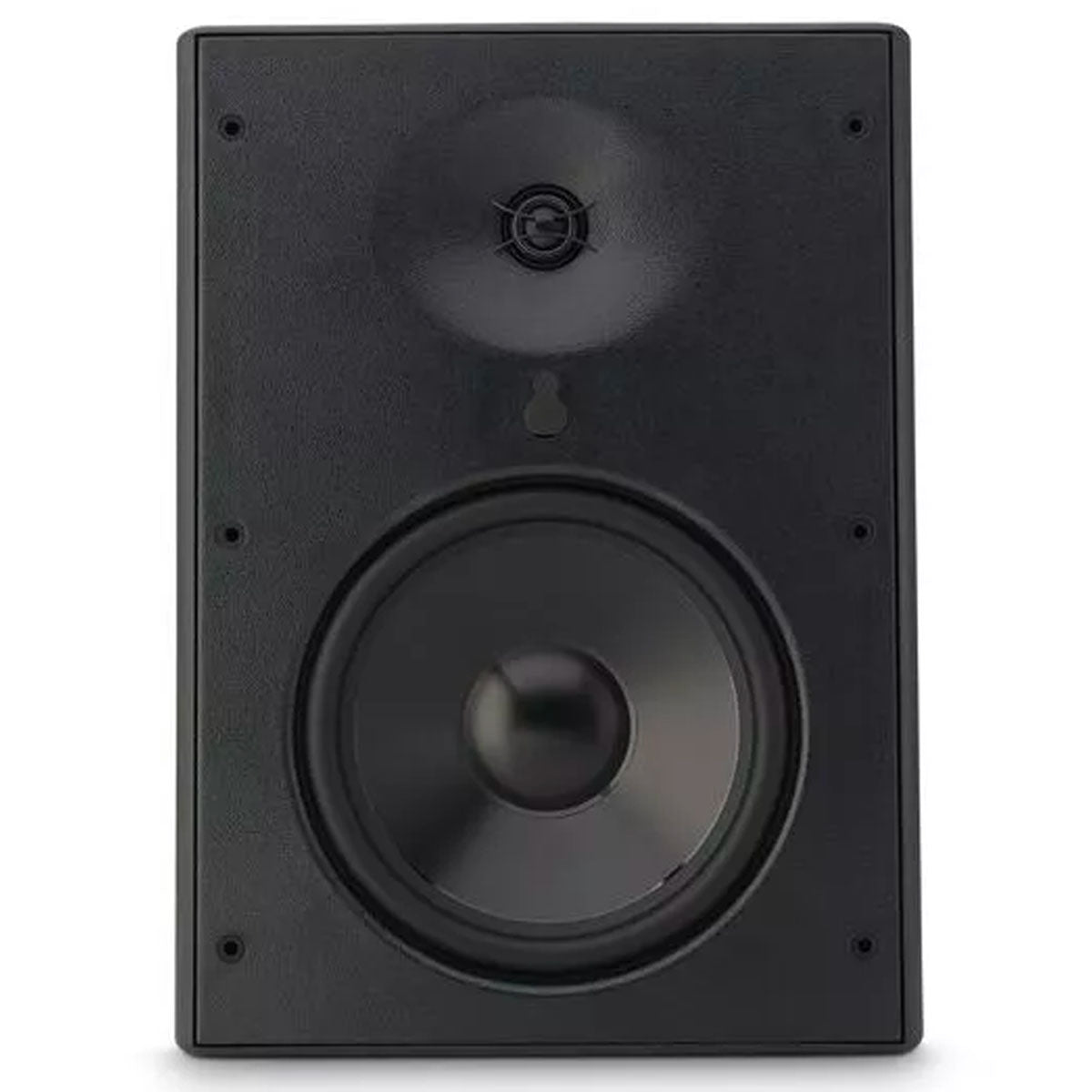

  • 8-inch / 200mm Aluminum cone woofer
  • 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
  • 70V / 100V 60W variable tap with 8-ohm bypass

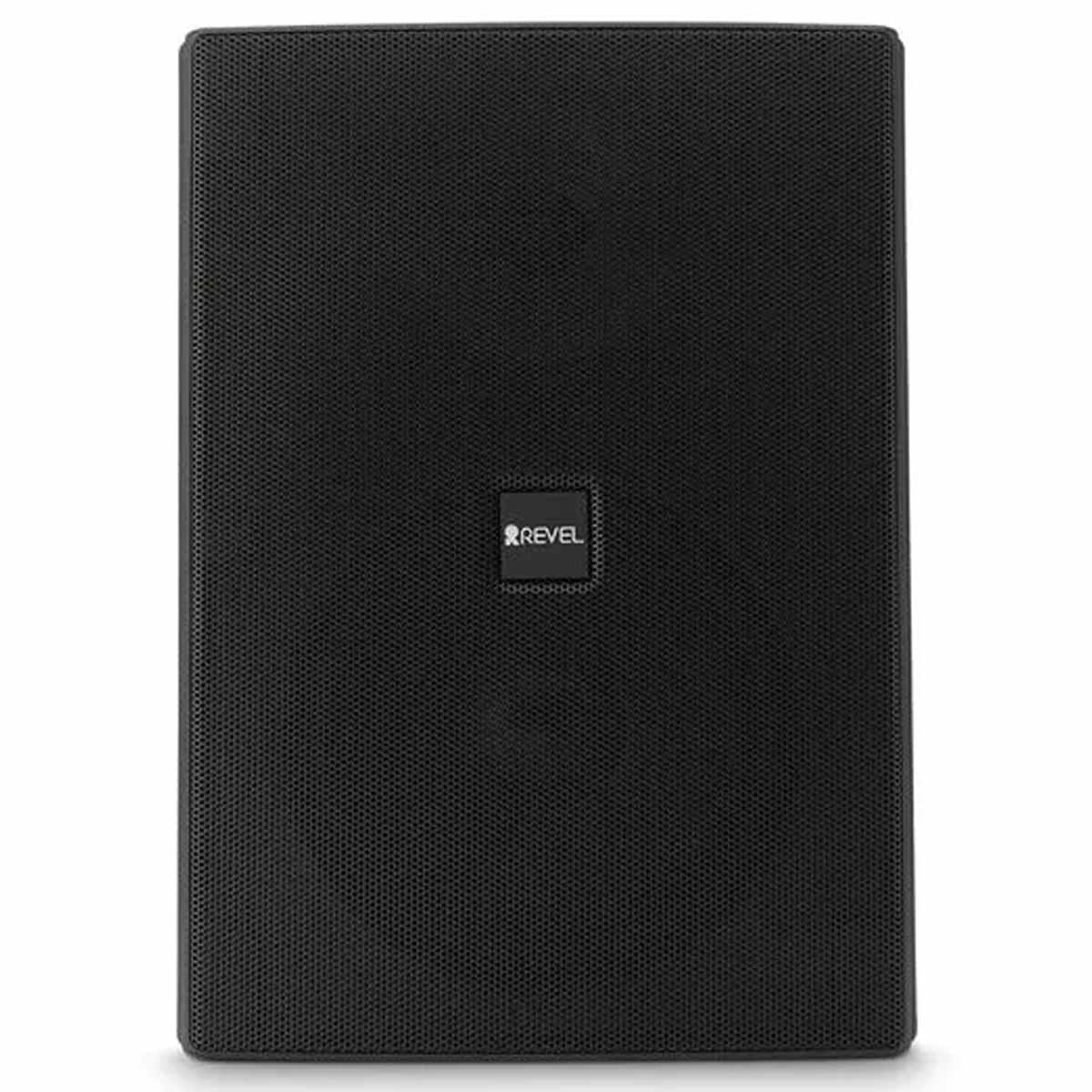

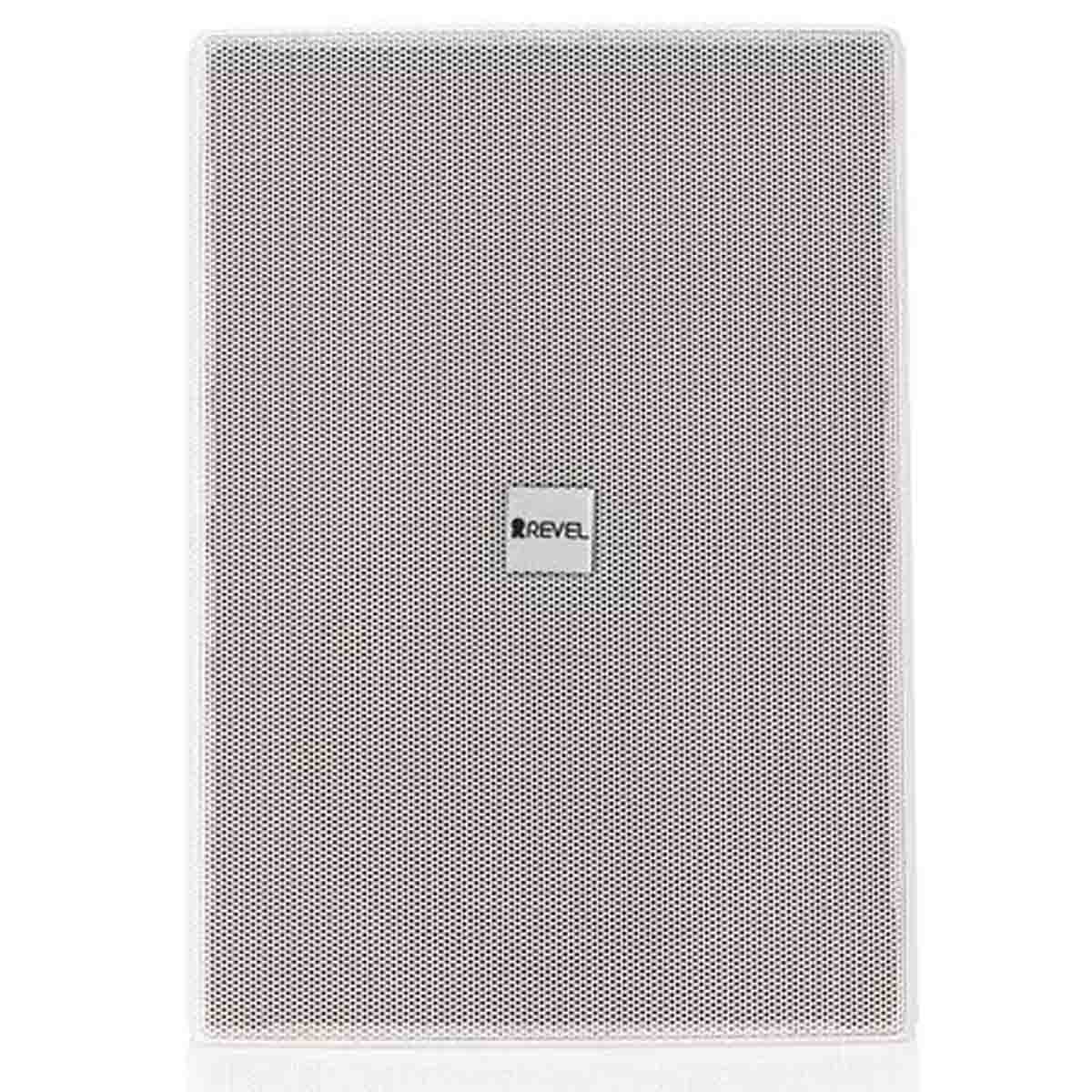

  • Durable polymer enclosure with weather-coated Aluminum grille

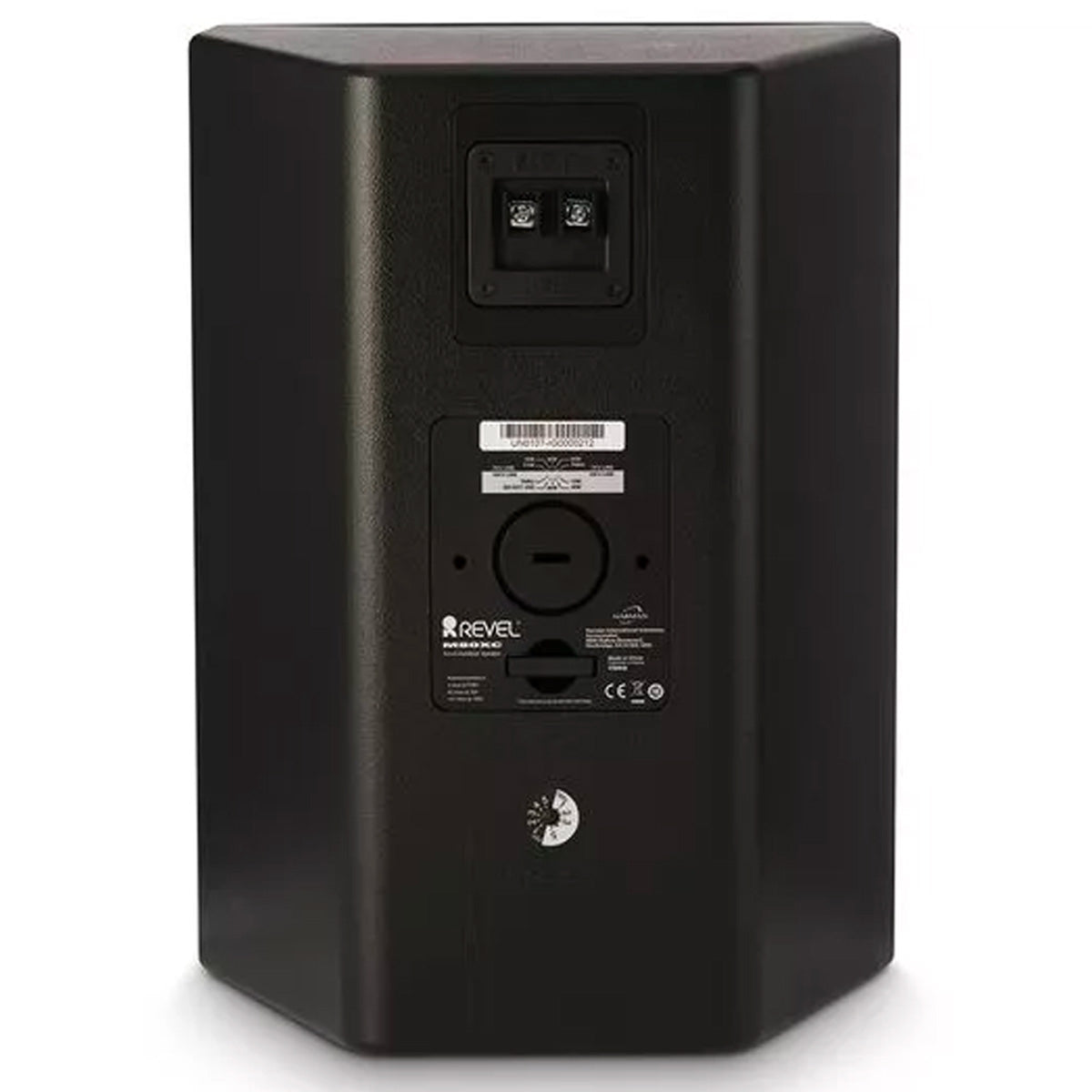

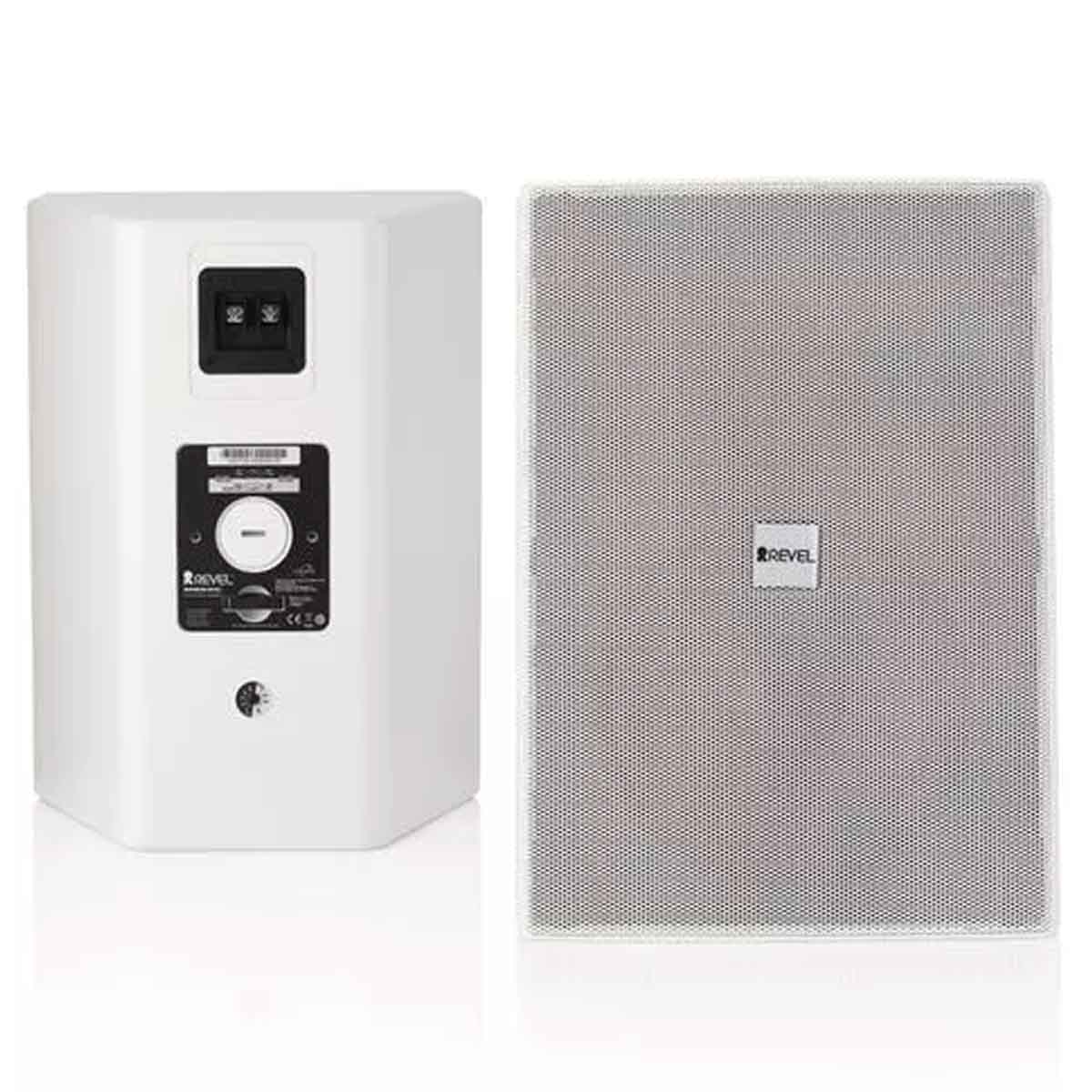

  • Stainless Steel input screw terminals with weather protection cover
  • Discrete InvisiBall® mounting system with flexible positioning
  • IP56 Weather Protection Rating
  • Available in Black or White finish

Details & Specs

Model M80XC
High-Frequency Driver Components 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
Low-Frequency Driver Components 8-inch / 200mm Aluminum cone woofer
Input Connections Stainless Steel screw terminals
Frequency Range 60Hz - 22kHz -3dB
Recommended Amplifier Power 20 - 80 Watts RMS
Transformer Taps 70V 60W, 30W, 15W, 7.5W, 8-ohm bypass 100V 60W, 30W, 15W, 8-ohm bypass
Crossover Frequencies 2.3kHz
Low Frequency Extension -10dB @ 45Hz, -6dB @ 52Hz, -3dB @ 60Hz
Impedance 70V / 100V 60W variable tap with 8-ohm bypass
Sensitivity 89dB @ 2.83V / 1m
Enclosure Type Sealed
Mounting InvisiBall® mounting system
Finishes Black or White
Dimensions (H X W X D) 15 x 11 x 8.6 in (380 x 280 x 220 mm) 8.0 in (200mm) deep when mounted on InvisiBall wall mount
Weight 14 lb (6.4 kg)
Included Accessories Input terminal weather cover, InvisiBall wall mount, 6 x 180mm hex key
