Revel M55XC

5.25" 2-Way Extreme Climate Loudspeaker - Pair

Revel M55XC

5.25" 2-Way Extreme Climate Loudspeaker - Pair
$660.00
Select Color Options:

Contact Us

Overview

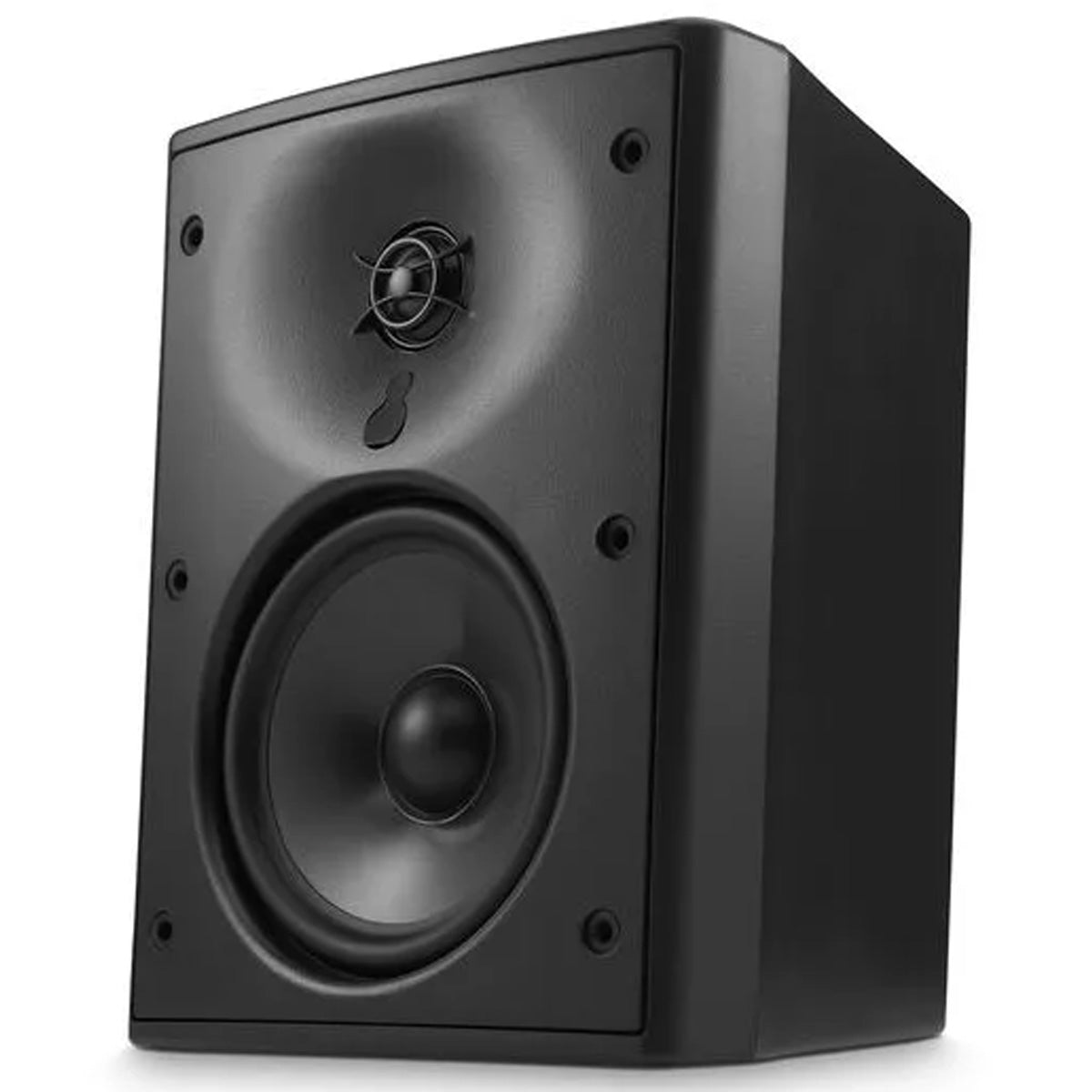

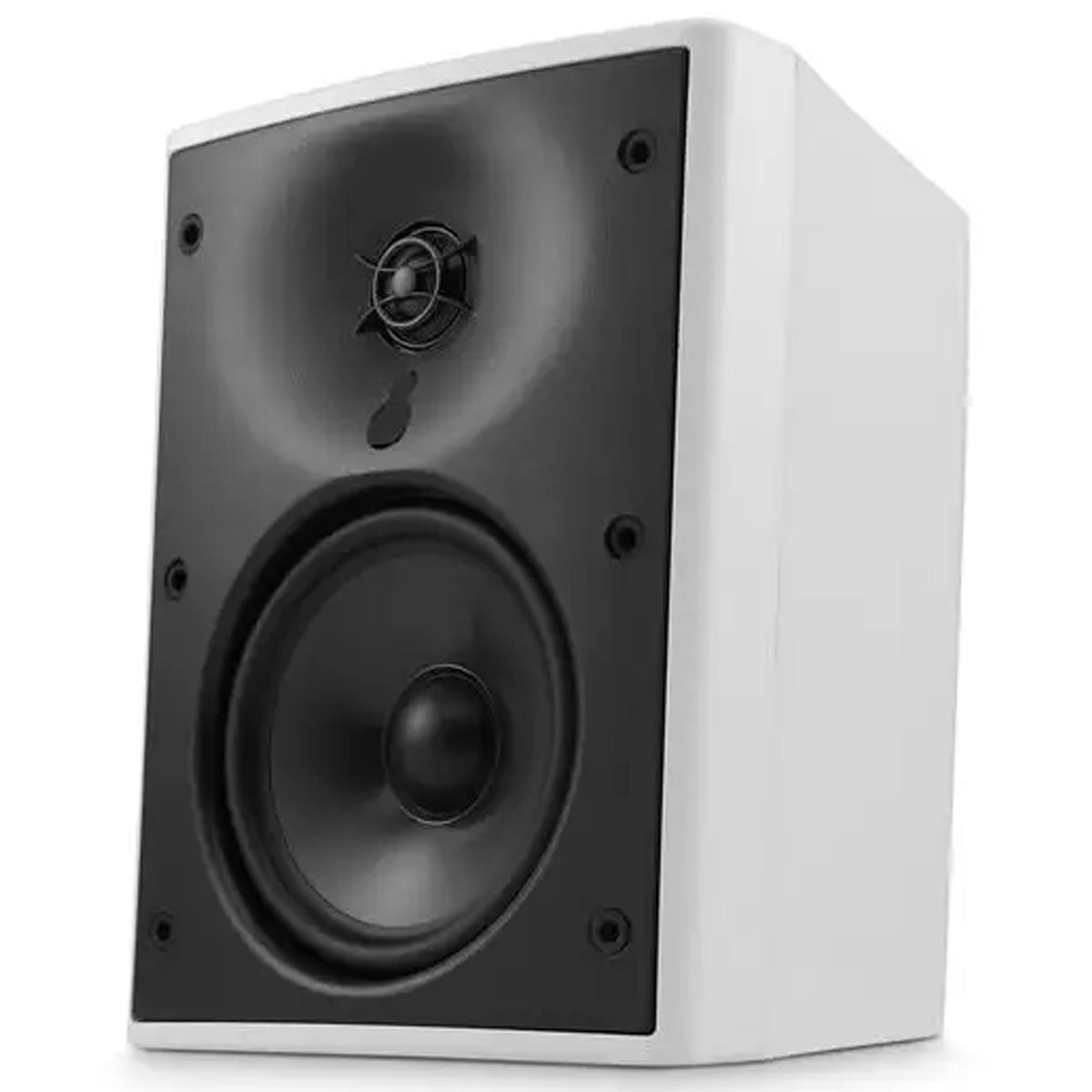

The Revel M55XC is a 2-way 5.25-inch / 130mm Extreme Climate outdoor loudspeaker designed to deliver true high-performance Revel sound while withstanding the harsh environments of locations that are hot, cold, damp, humid or wet.

The Revel M55XC is a 2-way 5.25-inch / 130mm Extreme Climate outdoor loudspeaker. As part of the XC Series, they have been specifically engineered and rigorously tested to perform to Revel's exacting standards in outdoor, damp, wet, or high-humidity locations and have been designed to withstand environmental abuses while not affecting their performance. The M55XC is also resistant to corrosion from salt water and can be deployed in marine applications such as on docks or beachfront property. The included InvisiBall® mounting system provides flexible positioning options while the stainless steel speaker terminals with weather-protection cover ensure long-lasting performance. 70V / 100V capability is included for large system configurations or long cable runs. With the M55XC, audiophile-caliber sound quality can now be found in Extreme Climate installations.

Key Features

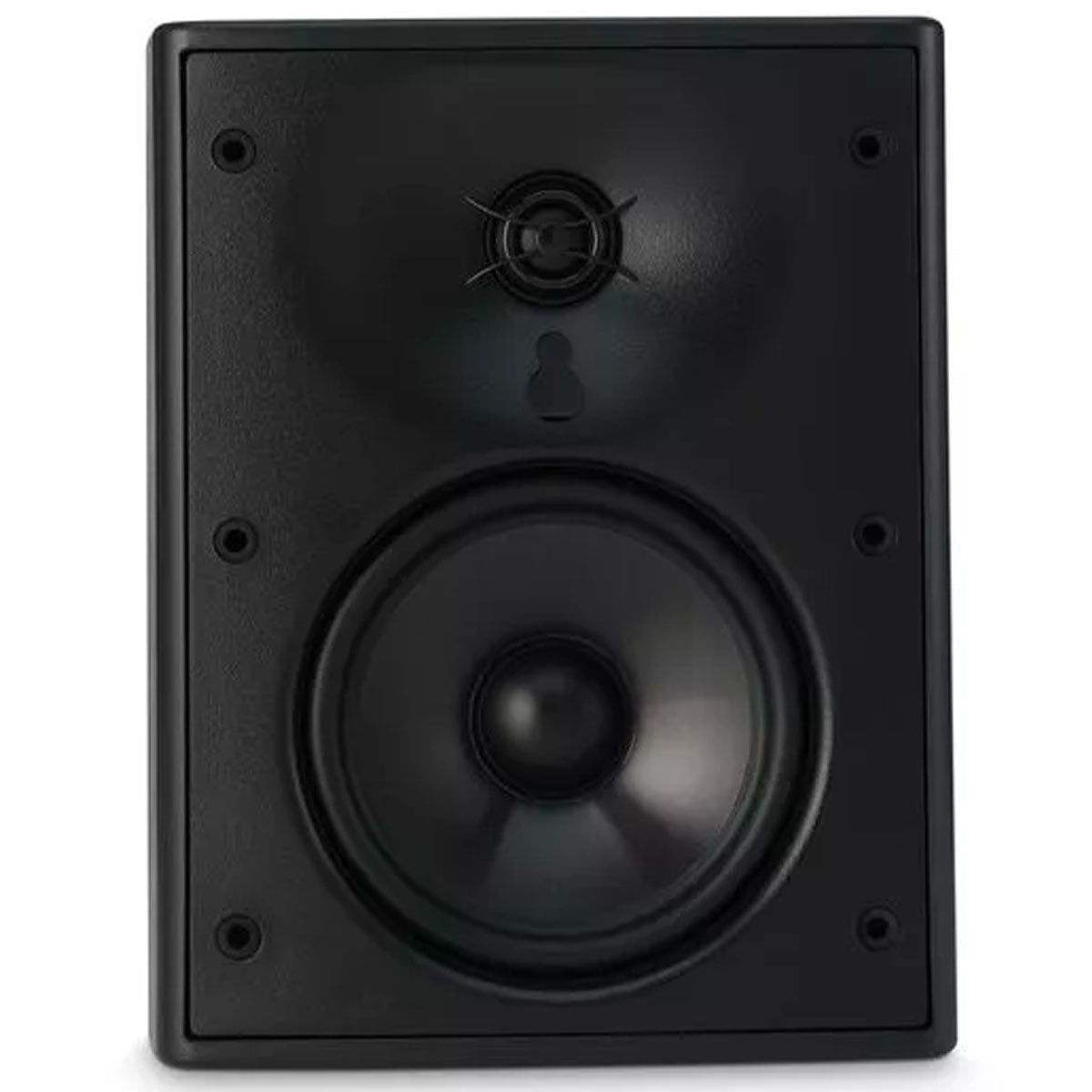

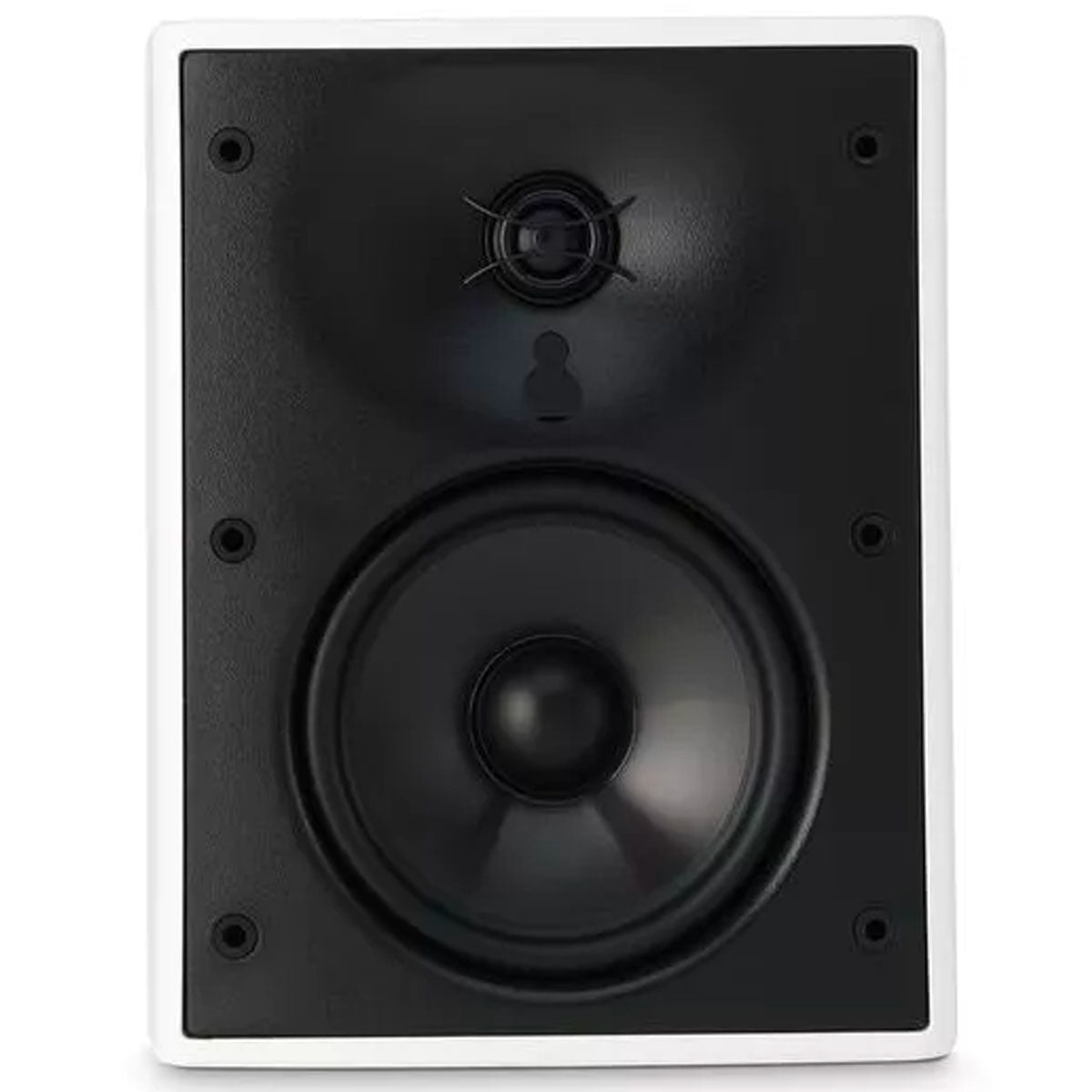

  • 5.25-inch / 130mm Carbon-infused Polypropylene cone woofer
  • 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
  • 70V / 100V 60W variable tap with 8-ohm bypass

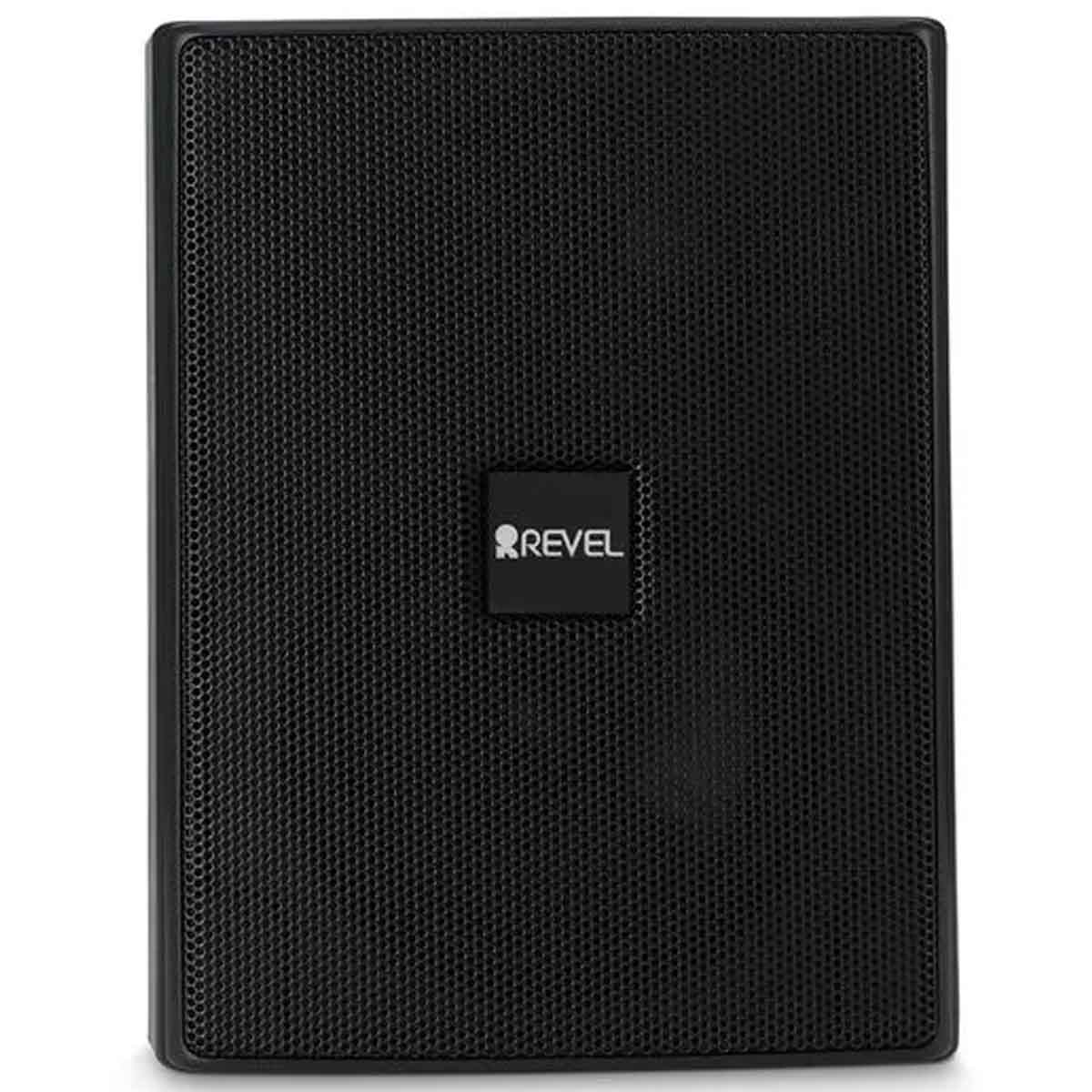

  • Durable polymer enclosure with weather-coated Aluminum grille

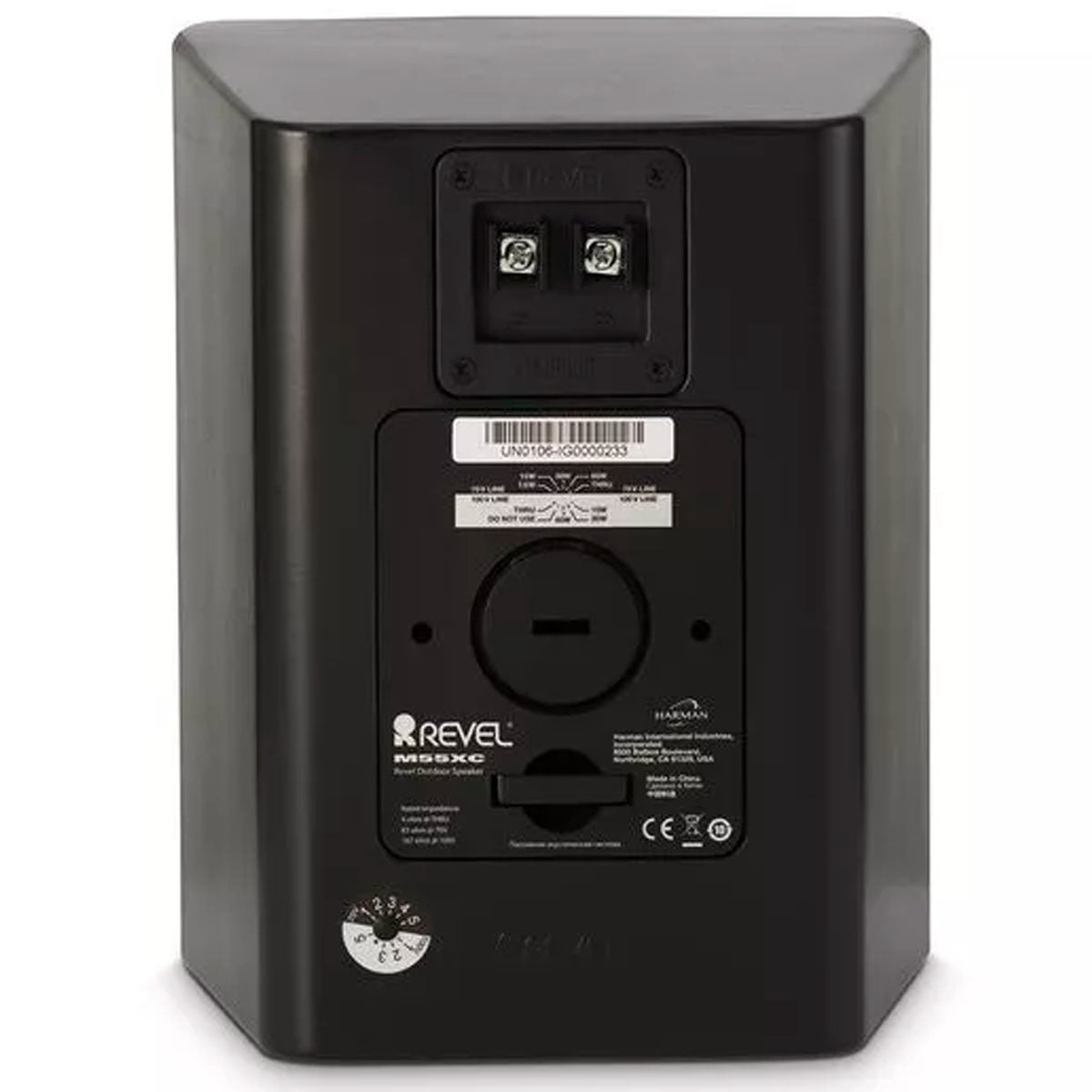

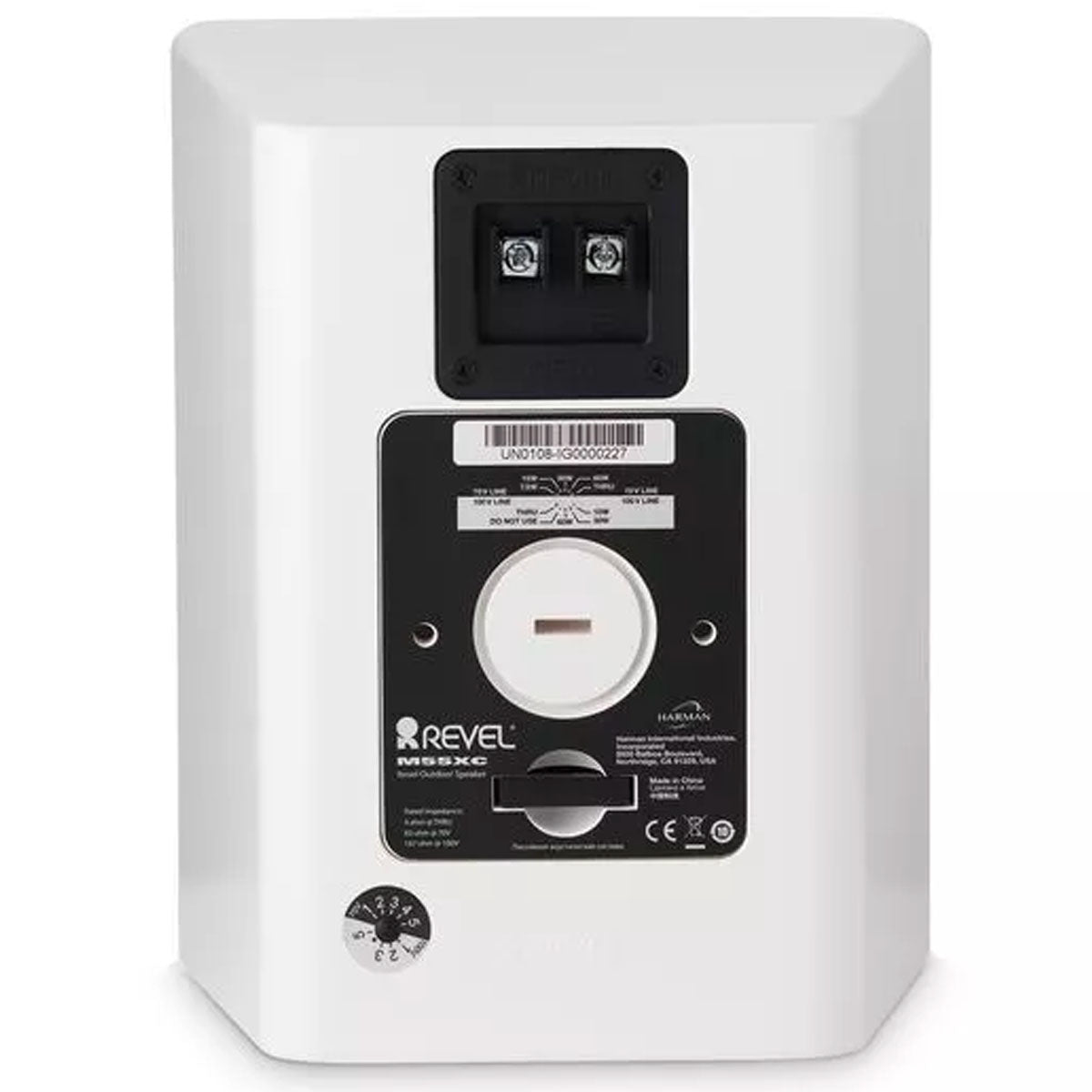

  • Stainless Steel input screw terminals with weather protection cover
  • Discrete InvisiBall® mounting system with flexible positioning
  • IP56 Weather Protection Rating
  • Available in Black or White finish

Details & Specs

Model M55XC
High Frequency Driver Components 1-inch / 25mm Aluminum dome tweeter with Acoustic Lens waveguide
Low-Frequency Driver Components 5.25-inch / 130mm Carbon-infused Polypropylene cone woofer
Input Connections Stainless Steel barrier strip screw terminals
Frequency Range 90Hz - 22kHz -3dB
Recommended Amplifier Power 10 - 60 Watts RMS
Transformer Taps 70V 60W, 30W, 15W, 7.5W, 8-ohm bypass 100V 60W, 30W, 15W, 8-ohm bypass
Crossover Frequencies 2.4kHz
Low Frequency Extension -10dB @ 60Hz, -6dB @ 74Hz, -3dB @ 90Hz
Impedance 70V / 100V 60W variable tap with 8-ohm bypass
Sensitivity 88dB @ 2.83V / 1m
Enclosure Type Sealed
Mounting InvisiBall® mounting system
Finishes Black or White
Dimensions (H X W X D) 9.3 x 7.4 x 5.8 in (236 x 188 x 149 mm) 8.0 in (200mm) deep when mounted on InvisiBall wall mount
Weight 8.2 lb (3.7 kg)
Included Accessories Input terminal weather cover, InvisiBall wall mount, 6 x 100mm hex key
