Item #C583

Revel C583

In-Ceiling Speaker - White - Each
Item #C583

Revel C583

In-Ceiling Speaker - White - Each
$495.00
More on the way! Order now to reserve risk free.
Contact Us

Overview

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put their loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion

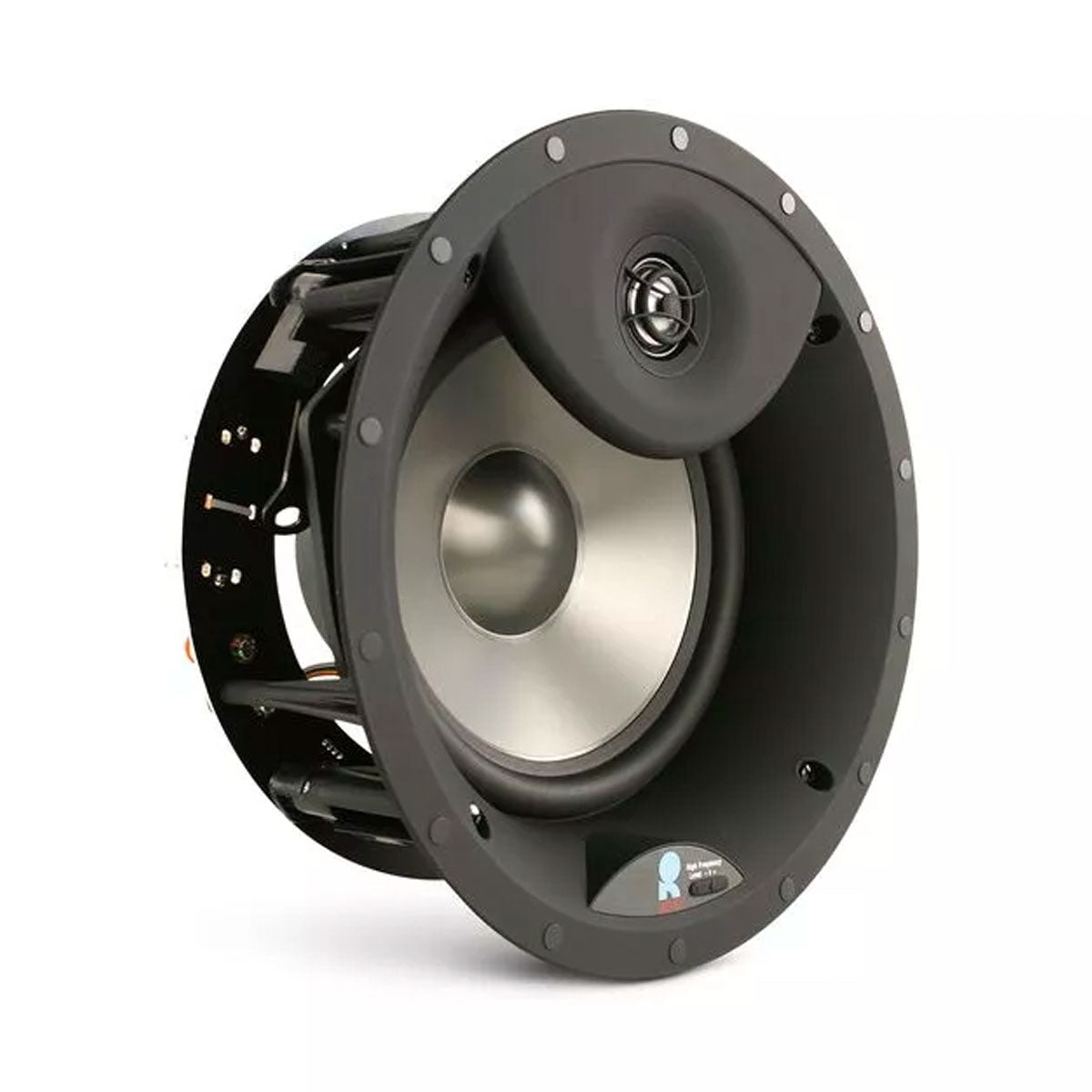

  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

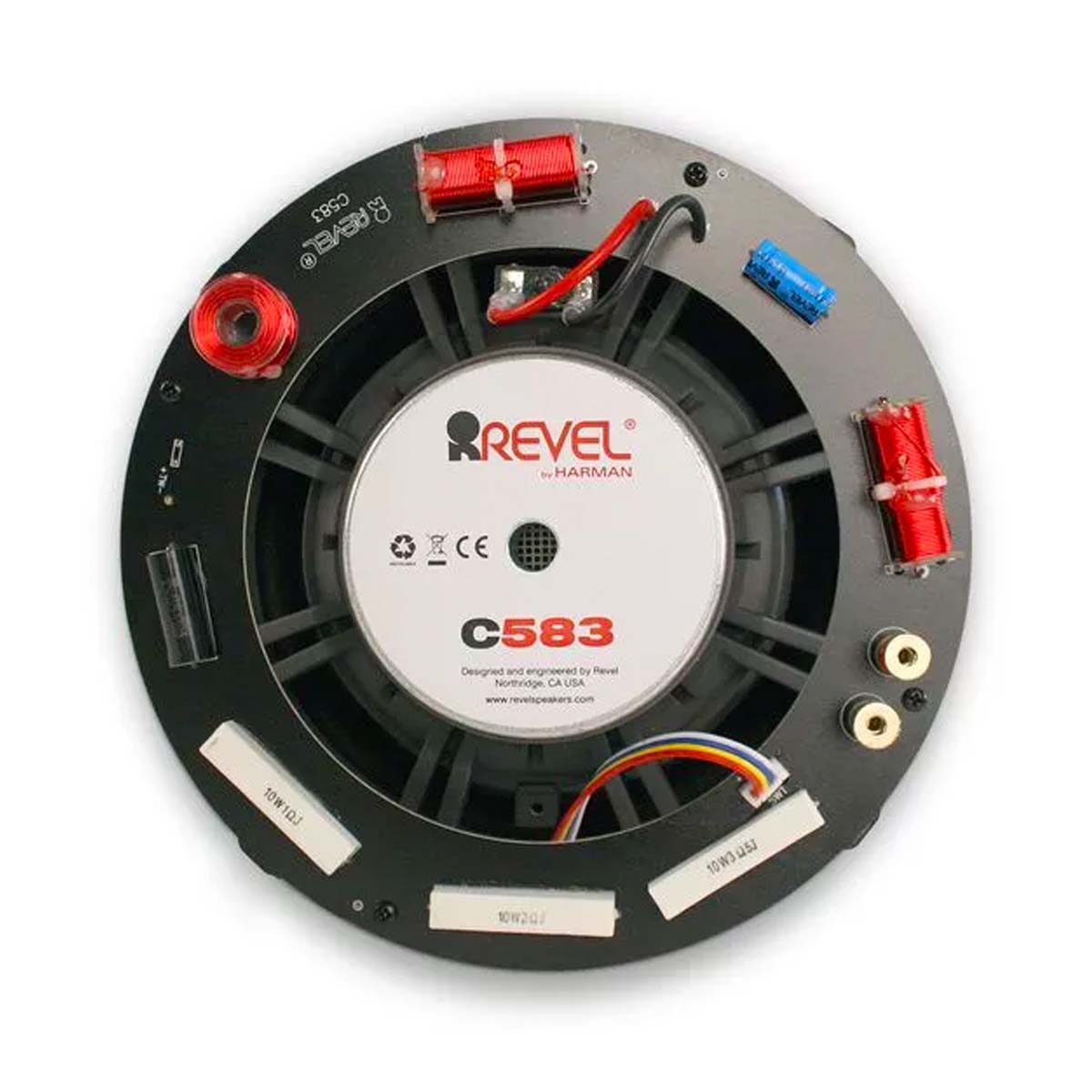

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles

Details & Specs

Height: Cutout dimensions (dia.) 9.6" (24.4 cm) Square grille finished Height 10.7" (27.2 cm)
Width: Square grille finished Width 10.7" (27.2 cm)
Depth: Mounting depth 5.2" (13.2 cm)
Weight: 2.8 lb (1.3 kg) / Shipping weight 3.8 lb (1.7 kg)

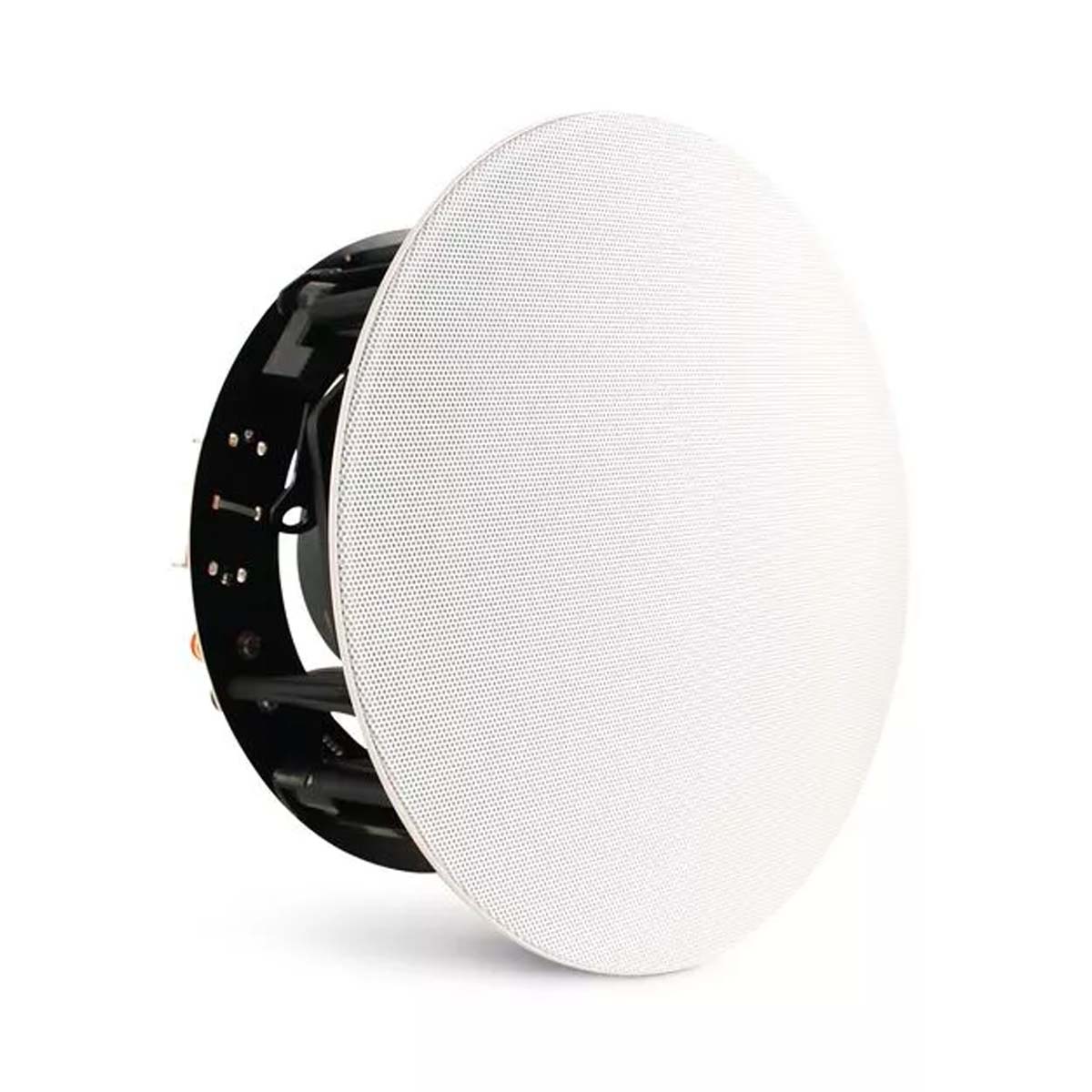

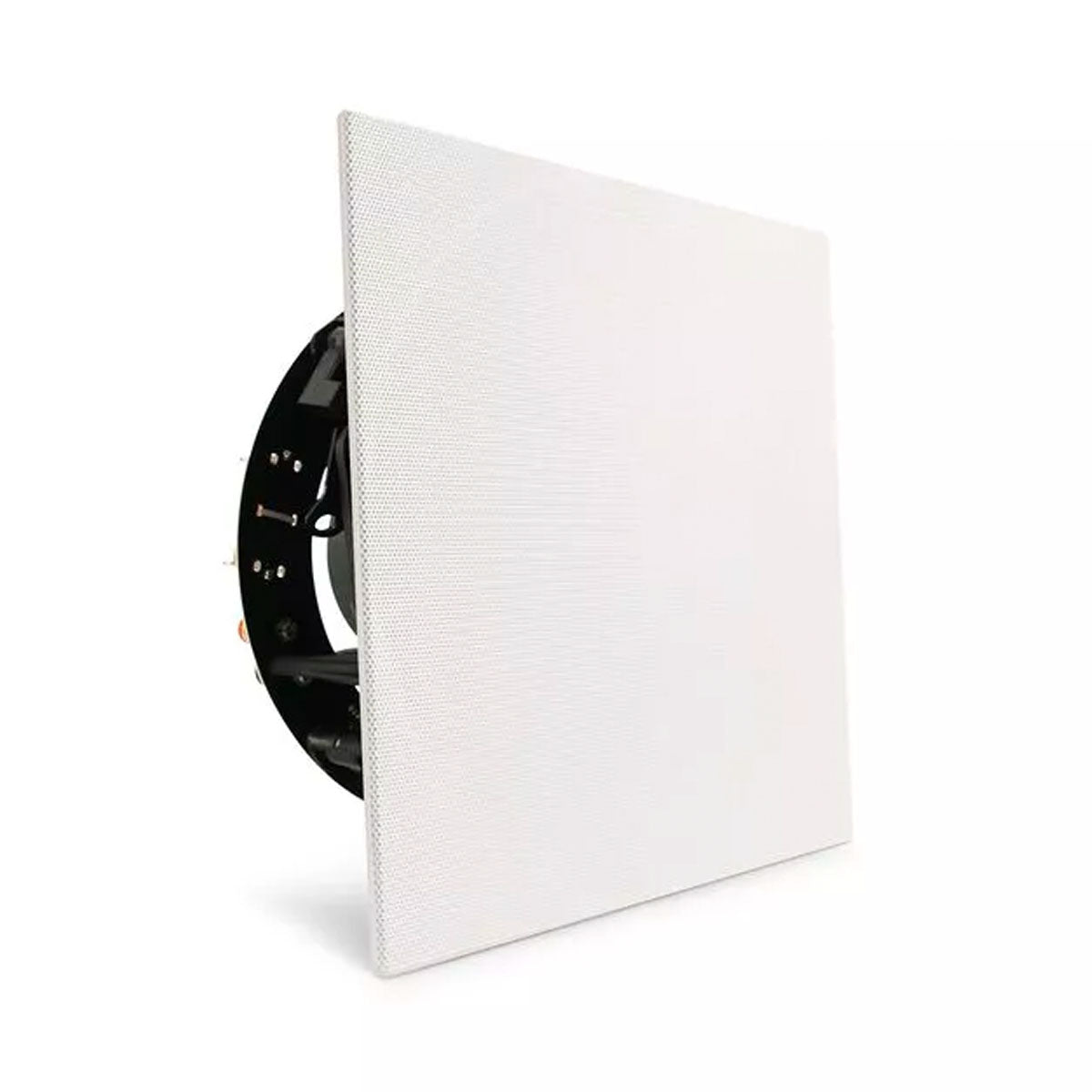

Features: Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 10.7" (27.2 cm)

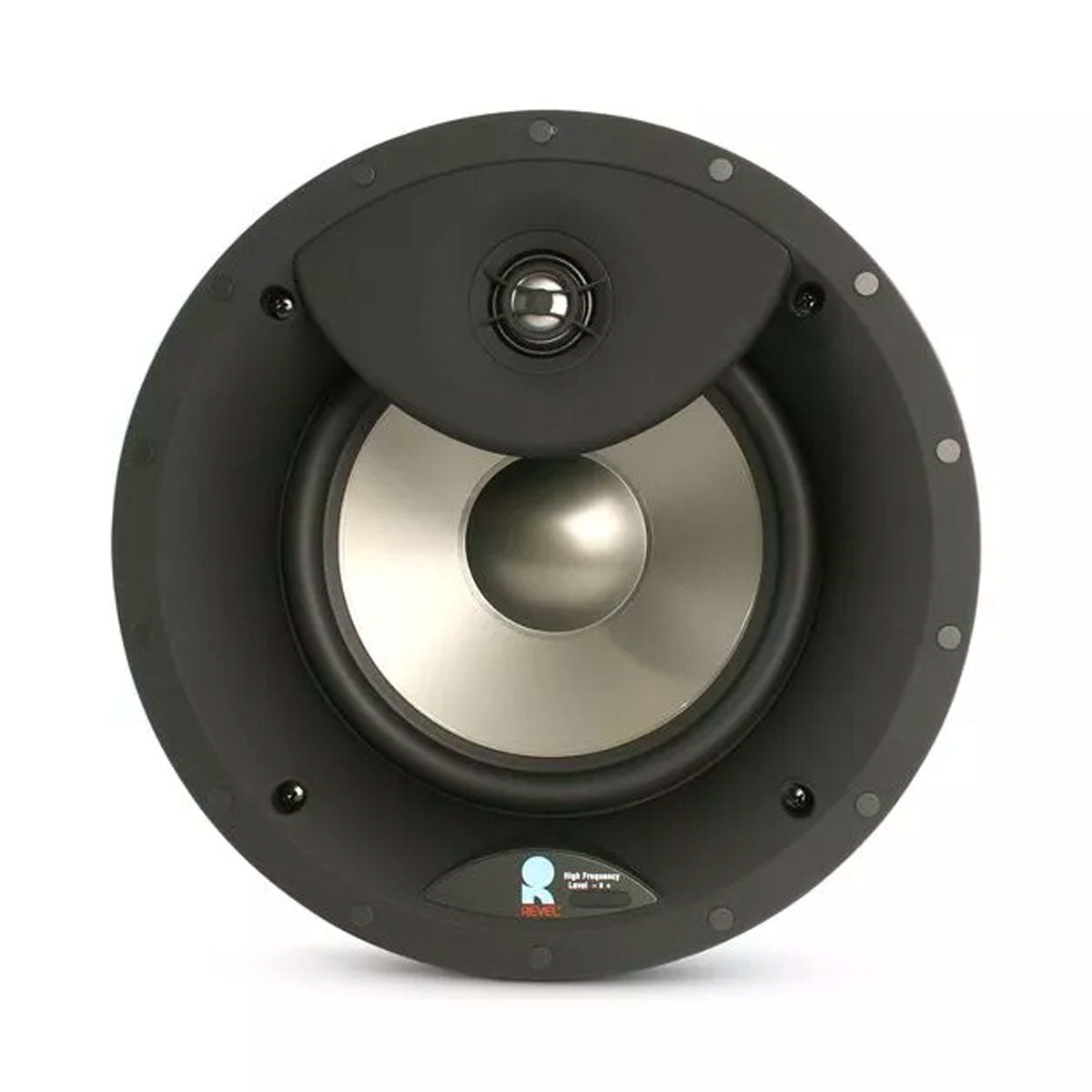

High-frequency Driver Components: 1" aluminum dome swiveling tweeter with waveguide
Low-frequency Driver Components: 8" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame Woofer
Mounting: C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power: 10 - 135 Watts RMS
