Item #B28W

Revel B28W

Architectural In-Wall Subwoofer with Dual 8" Drivers
Item #B28W

Revel B28W

Architectural In-Wall Subwoofer with Dual 8" Drivers
$1,100.00
Special Order: Extended Delivery Time
Contact Us

Overview

The B28W features two high-performance 8" (200mm) drivers, which allow it to provide high-quality, low-frequency output. The self-contained subwoofer module with integrated back-box allows for easy retrofit installation application. This in-wall subwoofer system is designed to be powered by the SA1000, a single channel, 1500W Peak Class D amplifier.

This complete in-wall subwoofer solution with external rack mountable amplifier is designed to complement Revel’s high-performance architectural product portfolio. It delivers dynamic bass and lifelike realism to concealed music and home cinema systems resulting from Revel’s advanced engineering prowess, and comprehensive subjective and objective measuring tests.

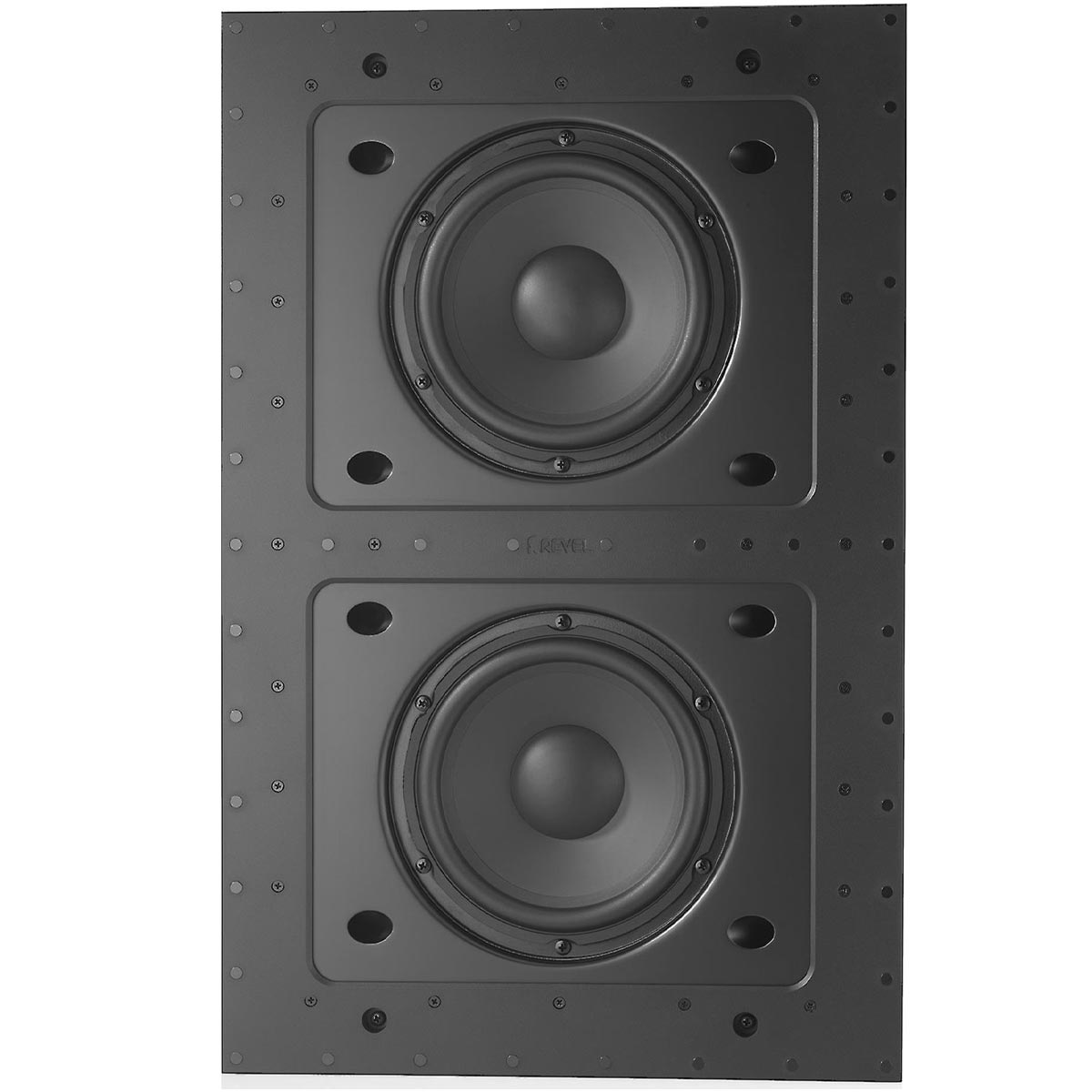

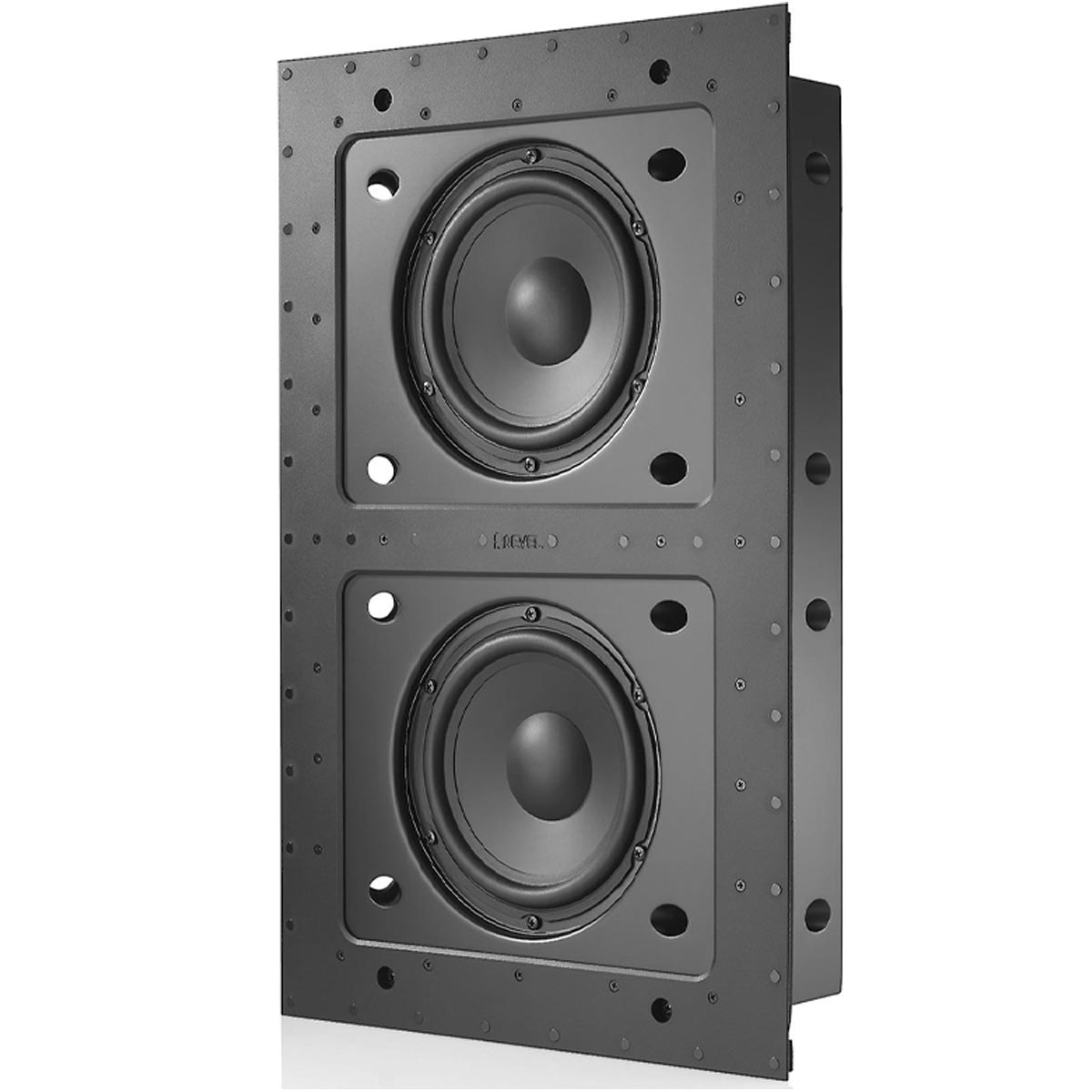

  • Dual 8" (200mm) low-profile, long-throw, Klippel-optimized, metal cone woofers
  • Front-firing drivers with sealed back box for superior acoustic tuning
  • Gold-plated speaker terminals

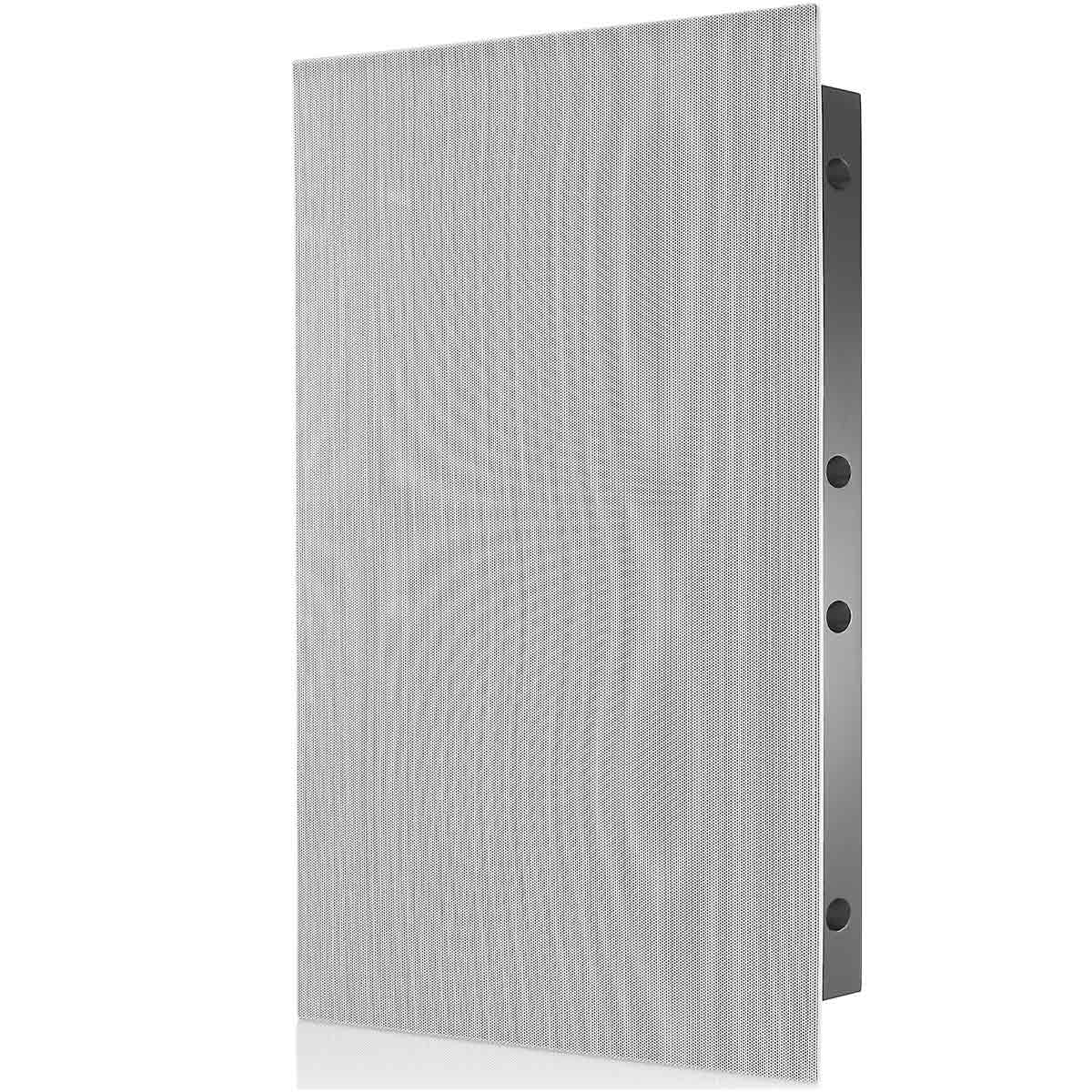

  • Zero-bezel, magnetically-attached grille
  • Completes in-wall/in-ceiling solutions for music and home theater systems
  • Connect up to two B28W Subwoofers with each SA1000 Amplifier
  • Designed to fit standard 2 x 4 stud frame construction
  • Self-contained subwoofer module with integrated back-box allows for easy retrofit installations

Details & Specs

  • Sensitivity (2.83V/1m) Variable using the SA1000
  • Frequency Response 36Hz – 150Hz (-6dB)
  • Nominal Impedance 8 Ohms
  • Required Amplifier: Revel SA1000
  • Mounting Cutout Size (H x W) 23-1/2" x 14-1/2"
  • Height 25.375” (645mm)
  • Width 16.5” (419mm)
  • Depth 4” (102mm)
  • Weight 28.4 lbs (12.9kg)
