REL Acoustics Serie T/9x

Subwoofer

REL Acoustics Serie T/9x

Subwoofer
$1,500.00
Select Color Options:

Contact Us

Overview

The job of any range-topper for REL is to deliver more of everything, particularly output and dynamics. The 9x is no different in this regard, as it delivers the goods in both music and theater applications. 9x, however, delivers a level of intimacy, clarity, and speed that means there are no longer trade-offs between the sonic balance of smaller models weighed against the power and scale of a model 9.

The all-new 9x has even greater output than before, but the headline news is the way it sacrifices nothing in clarity and transparency to achieve this. At this price, it opens the pathway for owners of high-performance floor and stand-mounted monitors and smaller panel speakers to enjoy truly full-range sound.

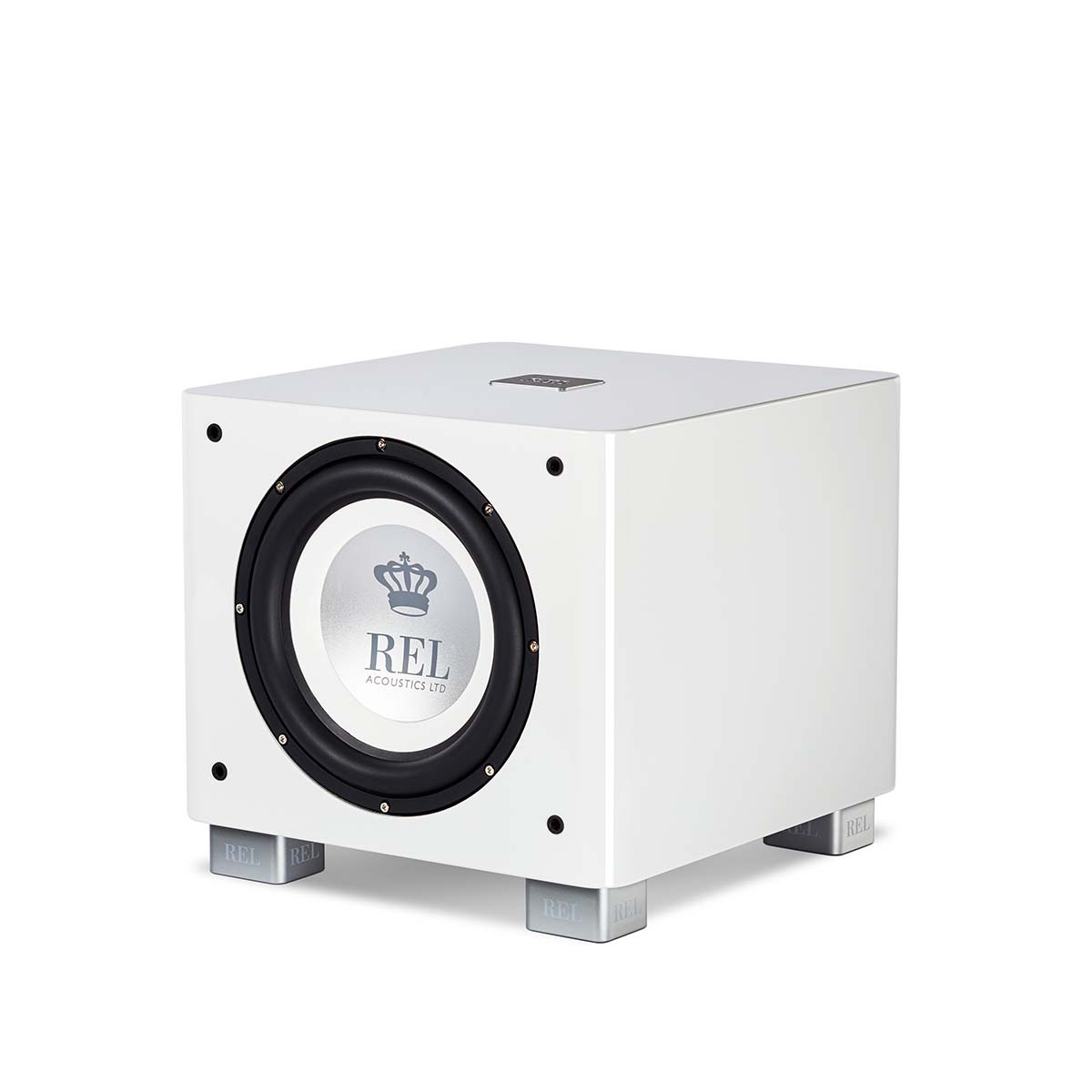

To achieve higher output with better control requires a complete overhaul of the suspension components. Much like the suspension on a sports car, these items are responsible for the tuning and feel of REL's designs. By increasing the cabinet volume, efficiency is improved yielding higher output for no more amplifier power. Less back pressure inside the cabinet means they can tune for a stiffer, better-controlled driver suspension. REL retained the best aspects of their previous design, such as the aluminum center cap responsible for stiffening the lightweight 10” (250mm) cone while adding almost no mass. The updated combination produces considerably better attack and dynamics with greater transparency.

REL has retained their signature Class A/B amplifiers used in every generation of Serie T since 2006. Reliability is the key to happy ownership and with some 200,000 and counting of this range leading long happy lives, Serie T/x owners can feel certain of REL’s standard-setting reliability. The powerful 300-watt MOSFET amplifier used in the T/9x remains an icon with huge reserves of current, massive power supplies but small upgrades are found everywhere. New driver MOSFETs that open up performance and transparency and new methods for securing the toroidal transformers mean better performance and superior strength.

REL’s legendary High-Level Input connection and fast filters are a significant part of the REL story. Connecting via the speaker outputs of your amplifier without drawing any power from it may seem like magic, but the real magic lies in the way the sound takes on a natural character. Unique tuning and special limiters means the T/x range sounds fresher, faster and more dynamic than before.

Standby Mode switch is only included on 220V units.

Details & Specs

Specifications

  • Type: Front-firing active driver, down-firing passive

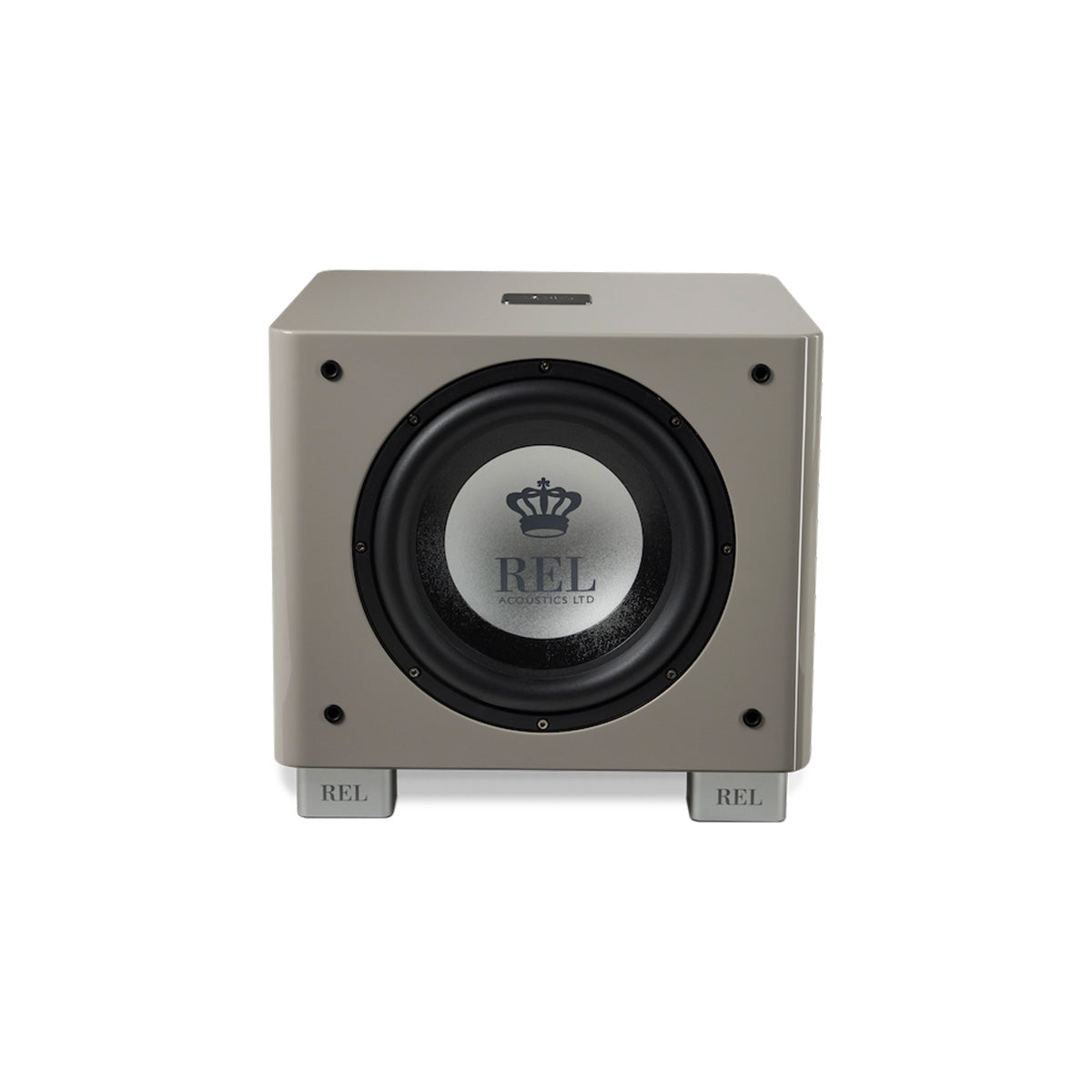

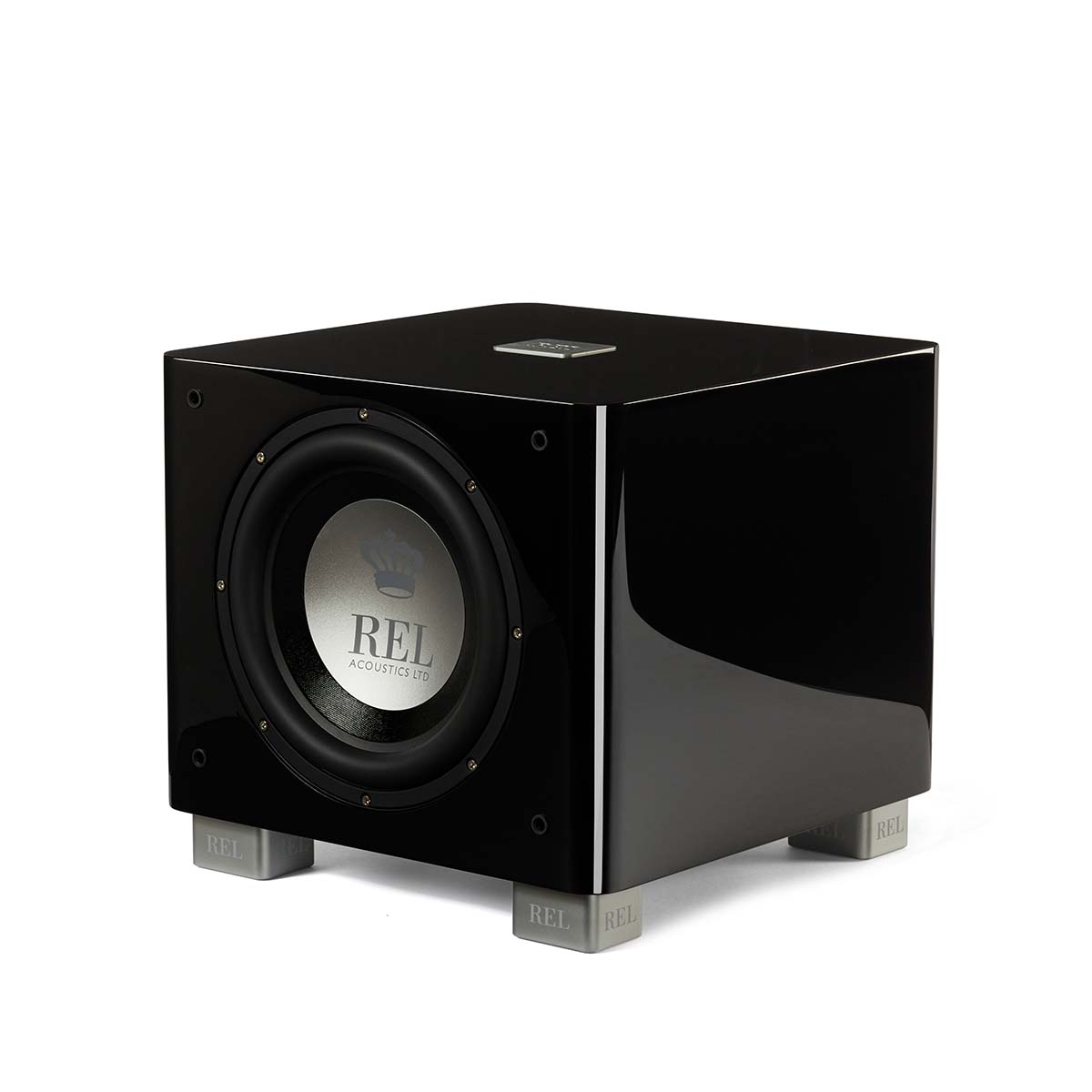

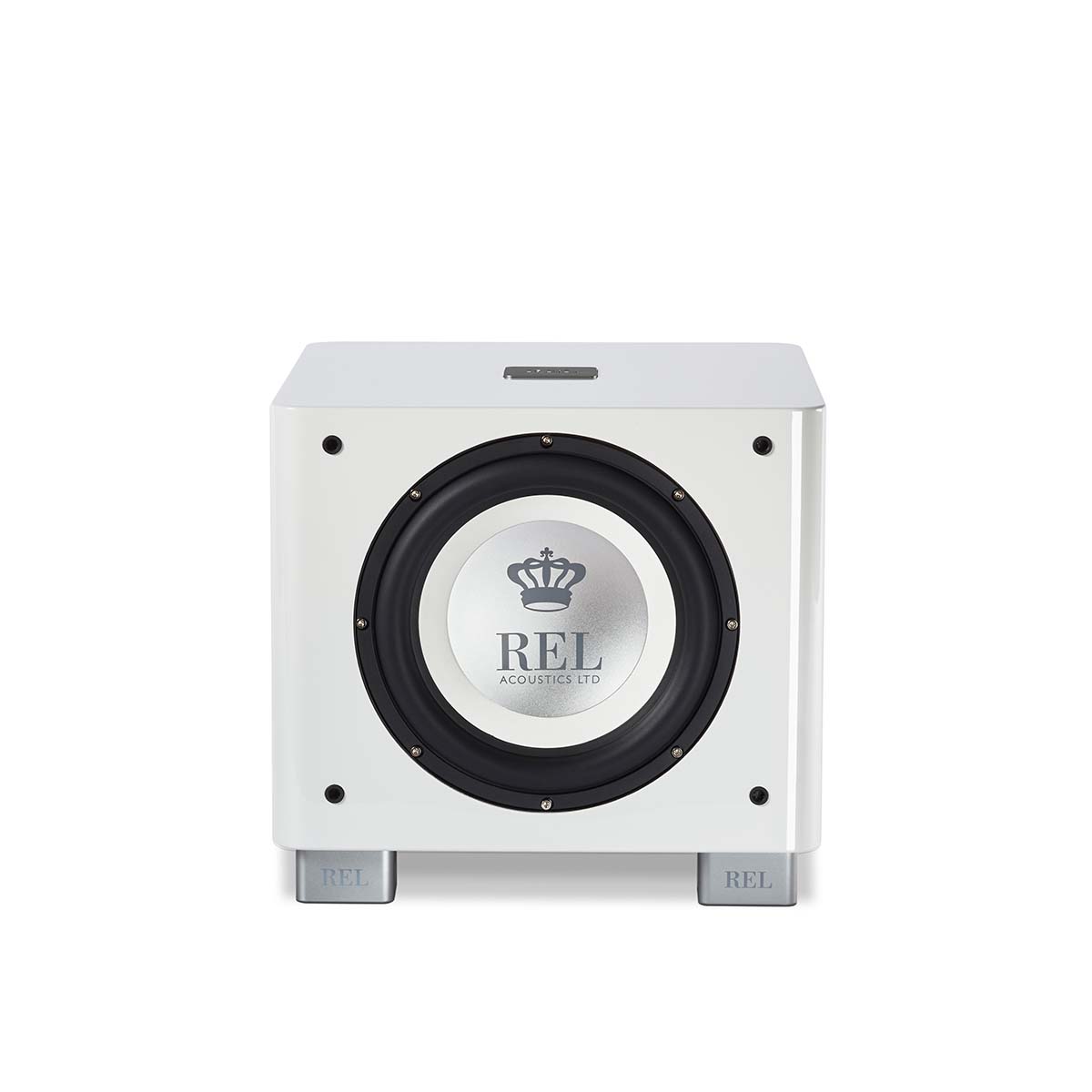

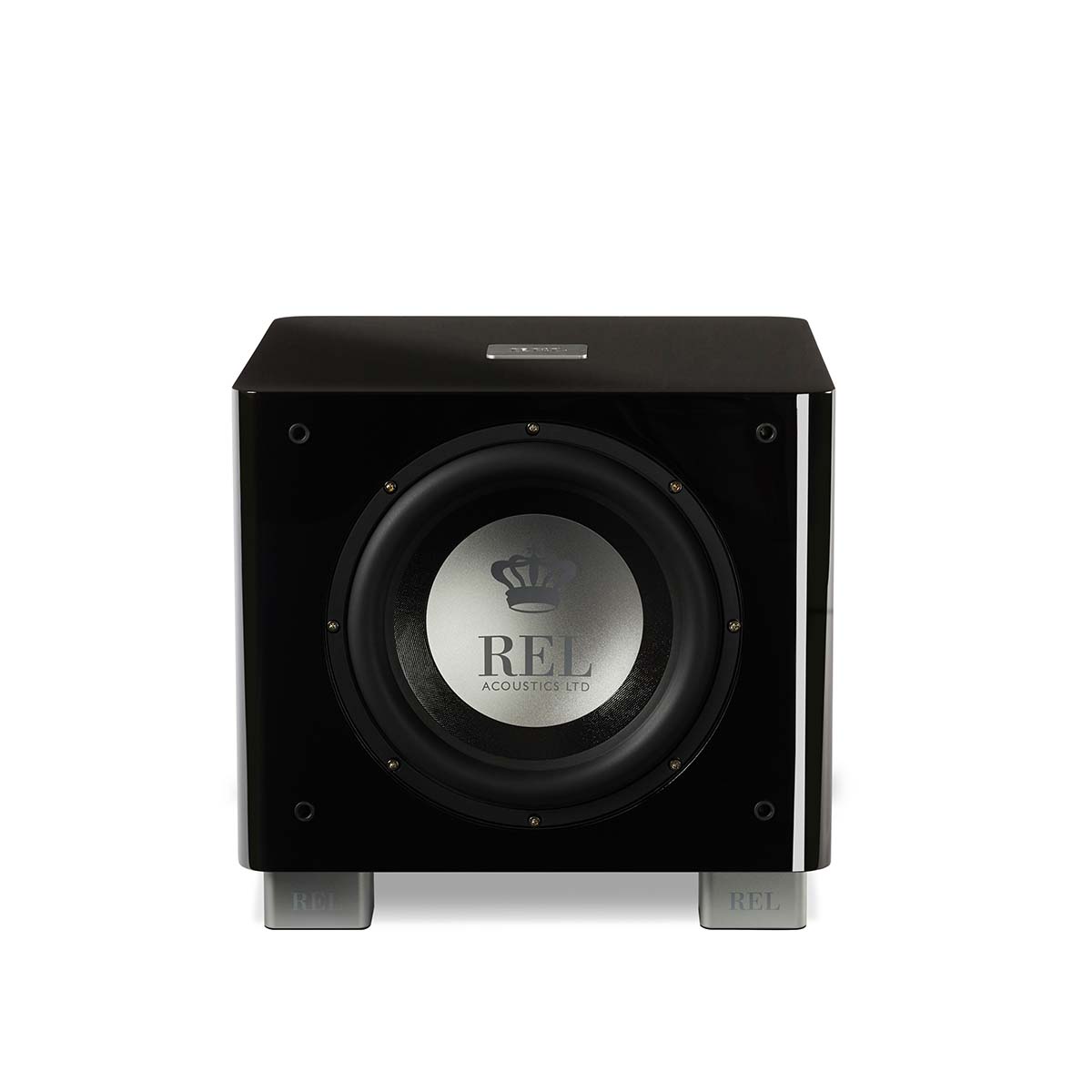

  • Active Driver Size & Material: 10 in. FibreAlloy™, 254mm long-throw, inverted alloy dust cap, steel chassis

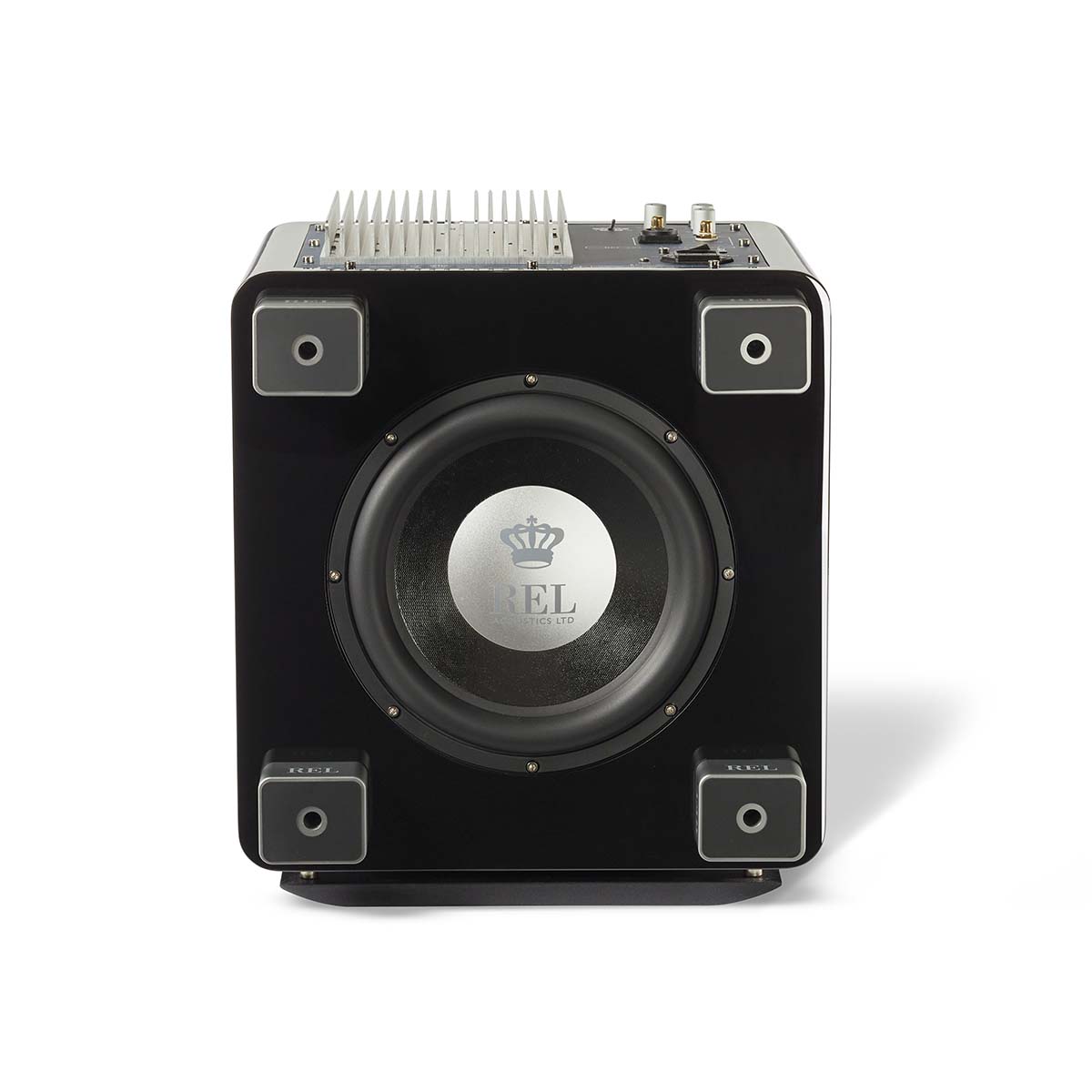

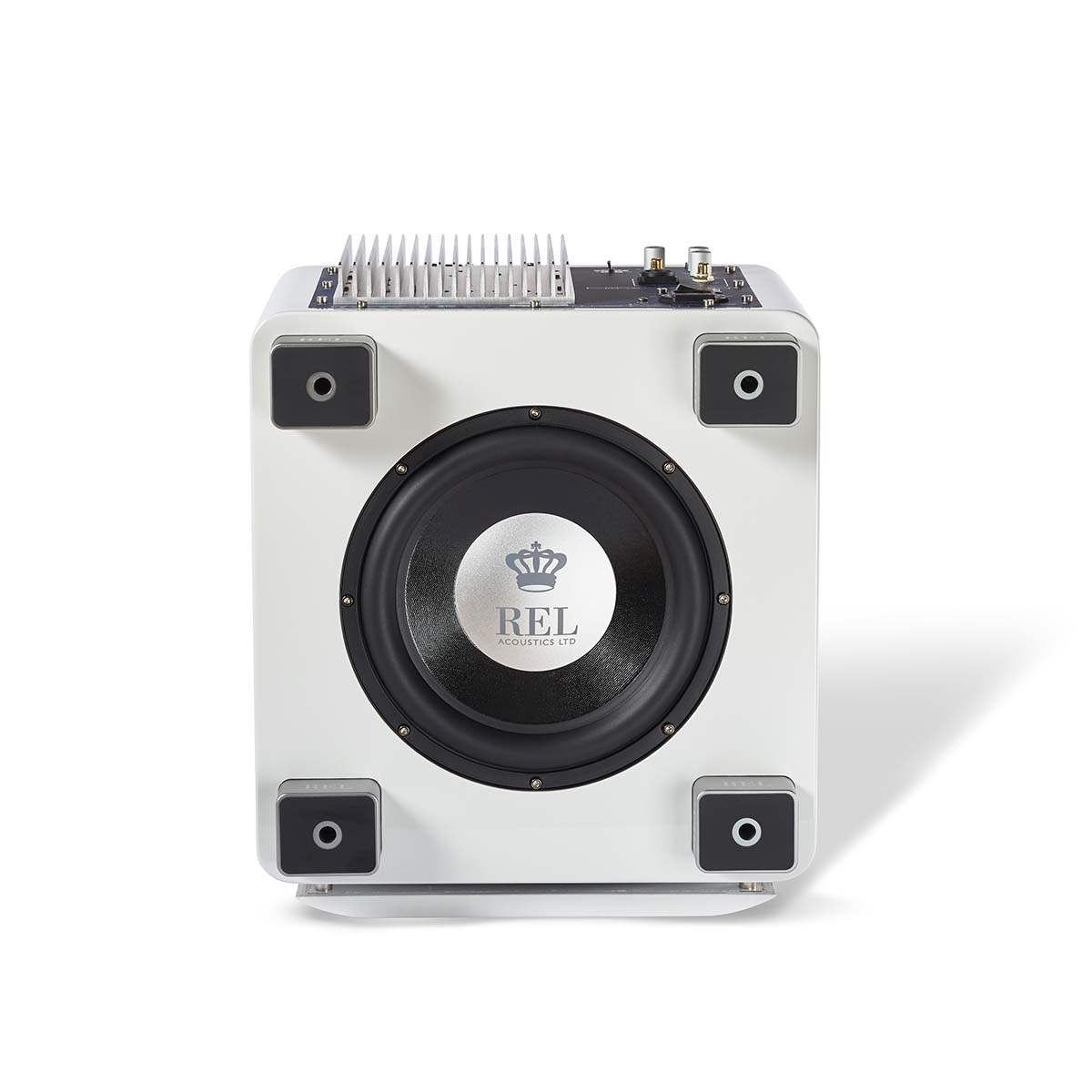

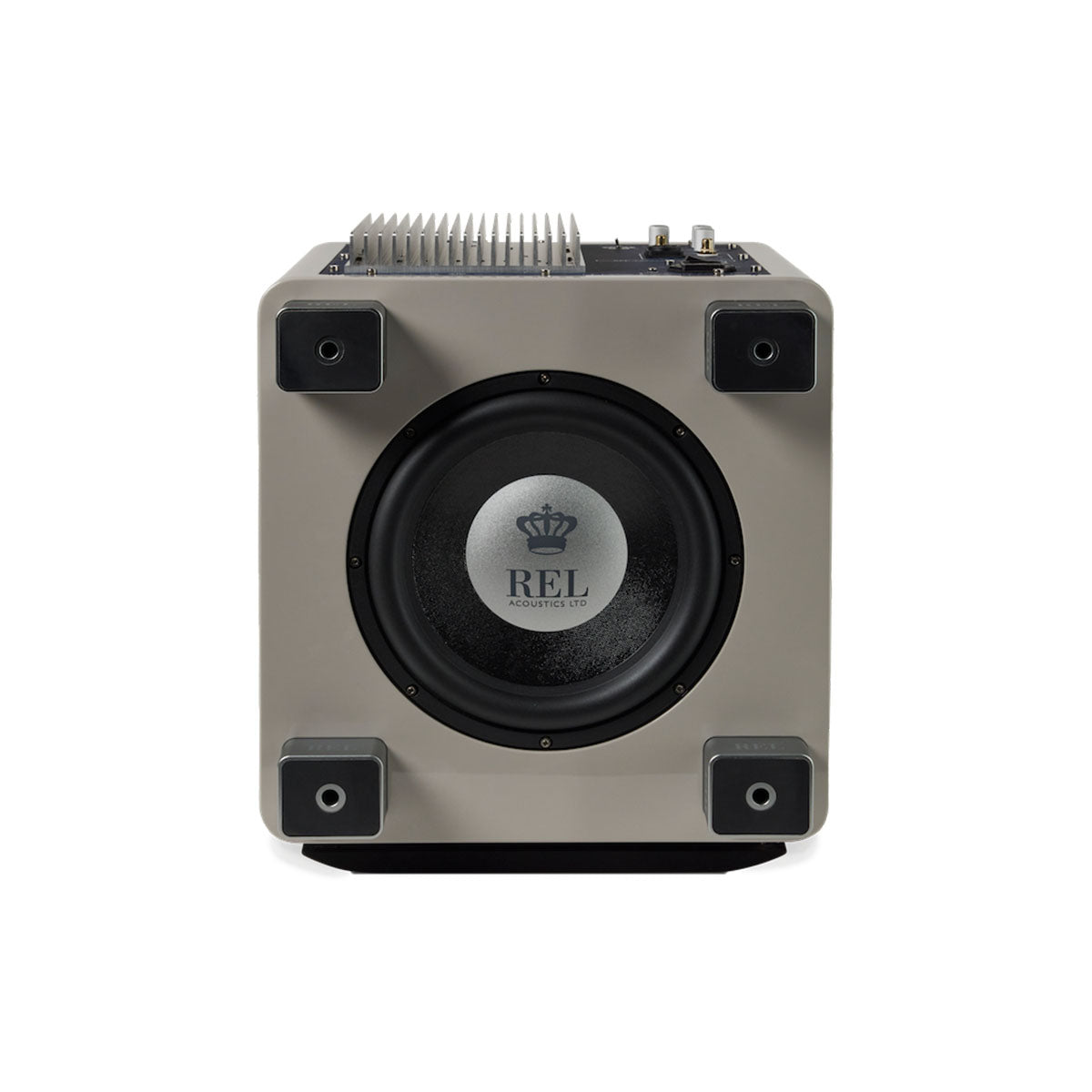

  • Passive Radiator Size & Material: 10 in., 254mm long-throw, inverted dust cap
  • Low-Frequency Extension: -6dB at 27 Hz

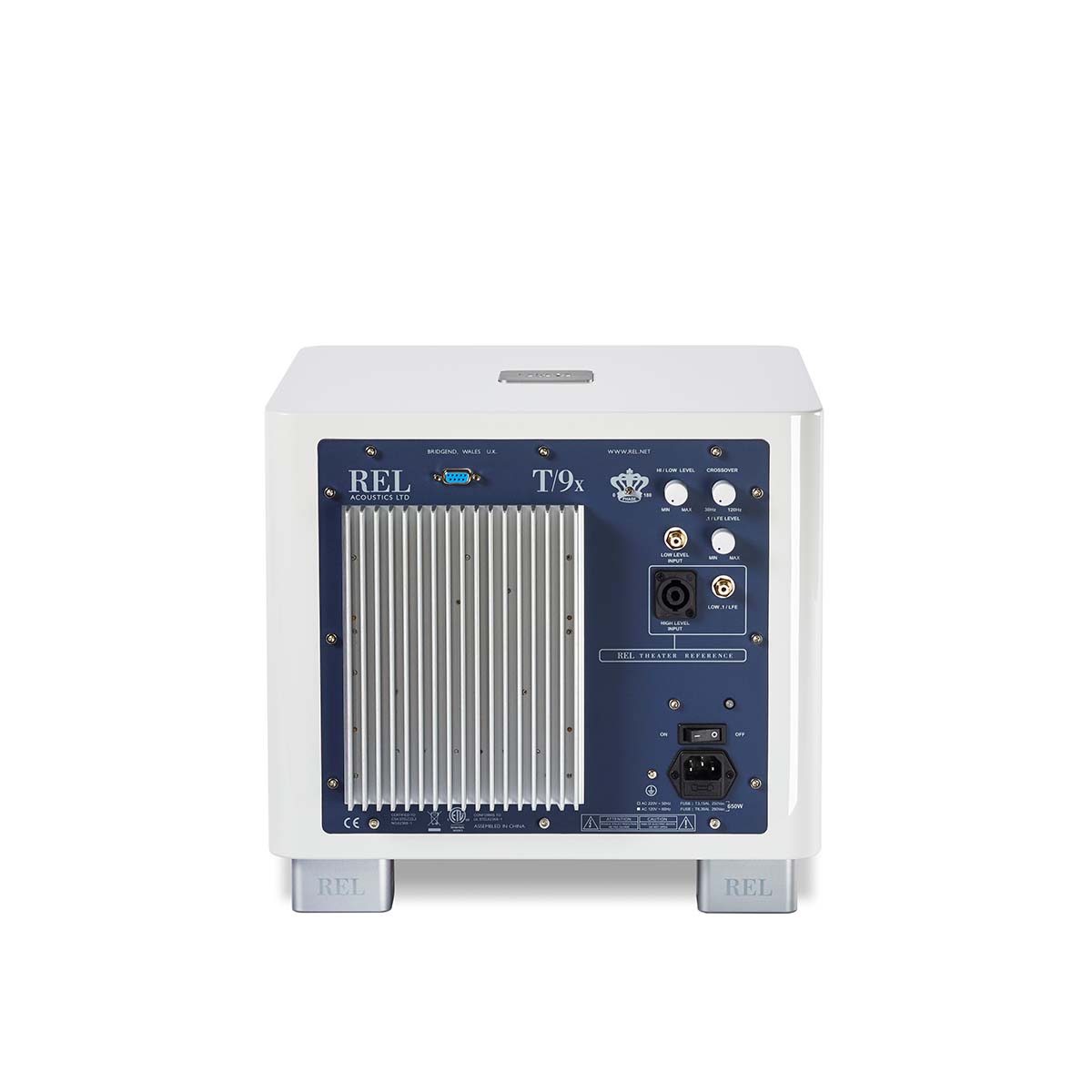

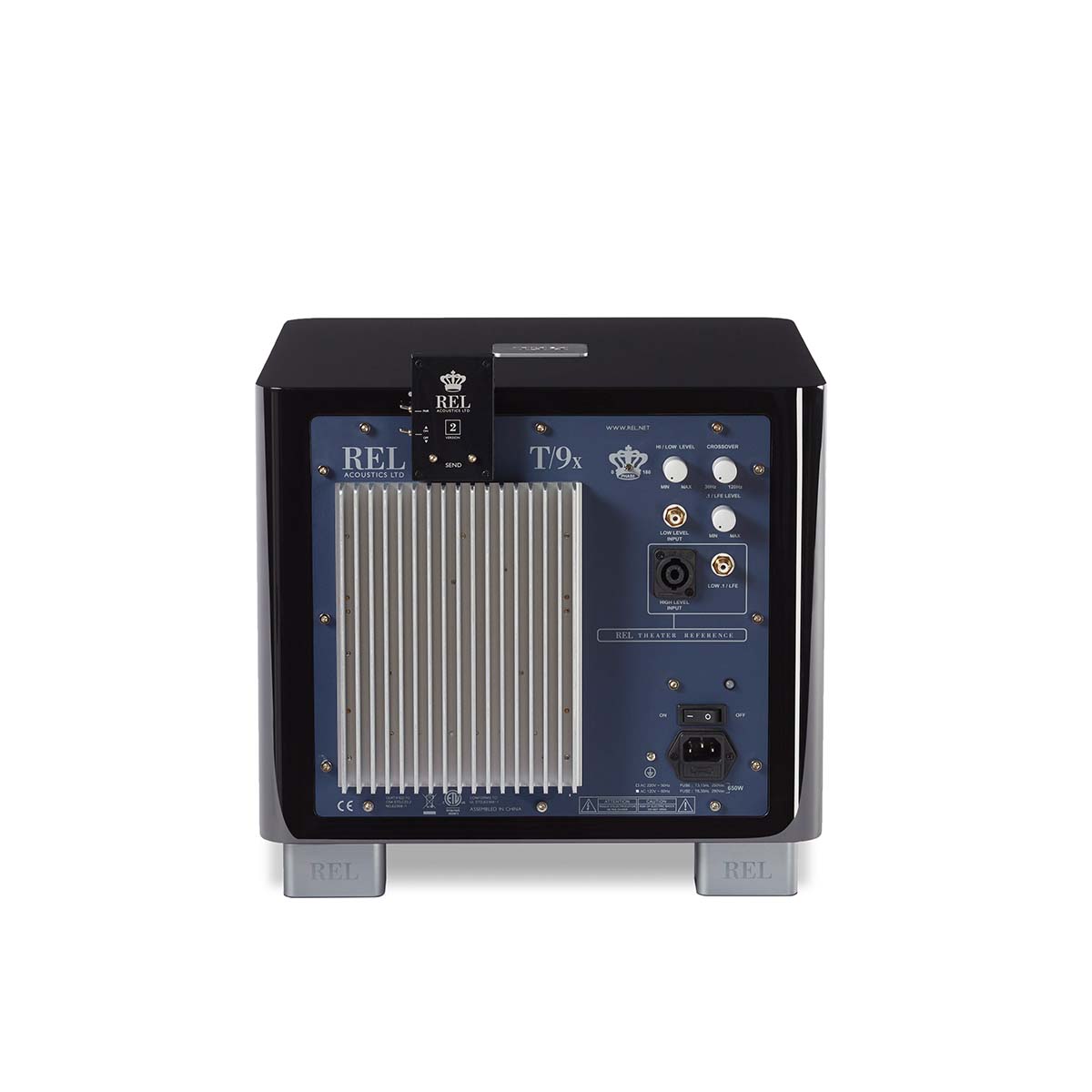

  • Input Connectors: High-Level Neutrik Speakon, Low-Level single RCA, LFE RCA
  • Output Connectors: N/A
  • Power Output: 300 watts (RMS)
  • Amplifier Type: Class A/B
  • Wireless Capability: Arrow (Optional), Zero Compression Single Large Scale Integrated Chip

Protection System

  • Fully Electronic Set Safe: Yes
  • D.C. Fault: Yes
  • Output Short: Yes
  • Mains Input Voltage: 220-240 volts, 110-120 volts for certain markets
  • Fuses: 3.15 Amp semi delay 230 volts operation, 6.3 Amp semi delay 115 volts operation

Dimensions

  • W x H x D: 14.5 x 13.4 x 15.5 in., (370 x 340 x 393 mm)
  • Net Weight: 45.5 lbs. (20.6 kg)

Supplied Accessories

  • Power Cord: Yes
  • Neutrik Speakon: Yes (10 Meters Nominal)
