Item #212SX

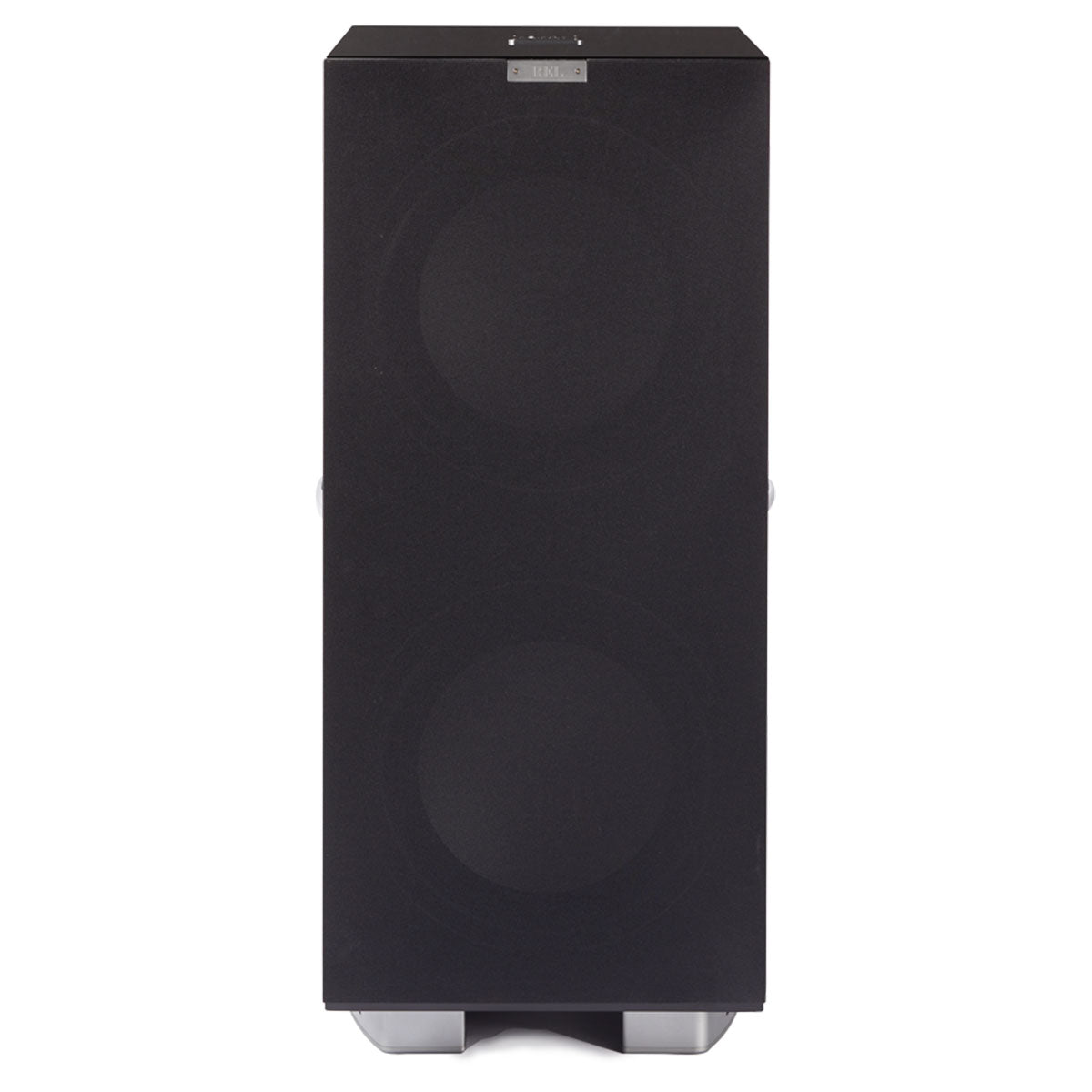

REL Acoustics 212/SX

Subwoofer
Item #212SX

REL Acoustics 212/SX

Subwoofer
$5,199.00
Available In-Store

Overview

212/SX builds on the strengths of the legendary 212/SE. Upgraded alloy drivers with carbon fiber blades are stronger, a new flat passive radiator extends even deeper and our PerfectFilter delivers crushing low bass with greater speed and air, taking 212/SX well beyond its illustrious predecessor.

The Powerful 212/SX: Quality Meets Quantity

At REL, a deeper understanding of quality underpins everything they do. So, whilst 212/SX thunders and shakes foundations, it also resolves detail and restores midrange warmth to its correct balance. At 1,000 watts with (4) 12” (350mm) drivers, 212/SX drives rooms hard and in multiple modes which allows it to create richer bass everywhere in a room.

Refinements to both REL's legendary ultra-fast filters and newly-developed drivers produce harder slam and bring to life quieter, gentler moments, improving system performance at both extremes. Plays brilliantly with both high end 2-channel and large power theatre applications.

Double Down: Twin Continuous Cast Alloy Bass Engines

Lightweight carbon fiber blades firmly attached to the rear of each active alloy cone serves to both strengthen the cone and quiet it. The twin 12” (300mm) active drivers now offer an additional 12mm of stroke and also benefit from updated suspension geometry and greater power handling. And a brand-new double-spider, high powered passive unit on the bottom delivers floor rippling low bass. The result is a major step forward in the 212 design, an already brilliant performer now playing louder with greater ease whilst better preserving the tiniest details of air and space with even greater precision.

Sound Beyond Its Size: Dual Continuous Carbon Passive Radiators

REL's uniquely-tuned passive radiators use special suspensions, now with an additional 30mm of linear travel, to produce performance far beyond conventional subwoofers. Their new SuperProgressive passive radiator produces extremely long travel allowing for very loud output while retaining the variable stiffness of its suspension.

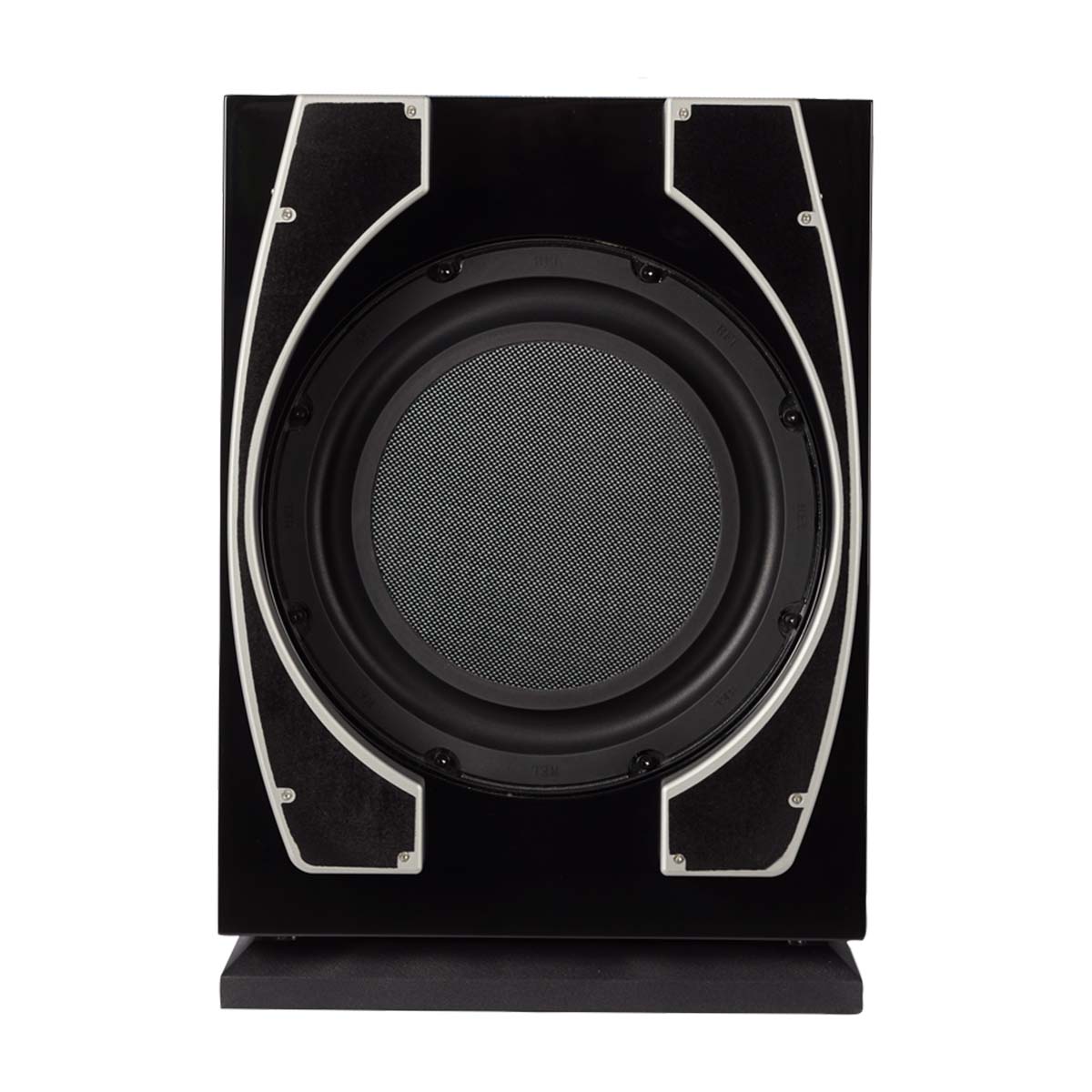

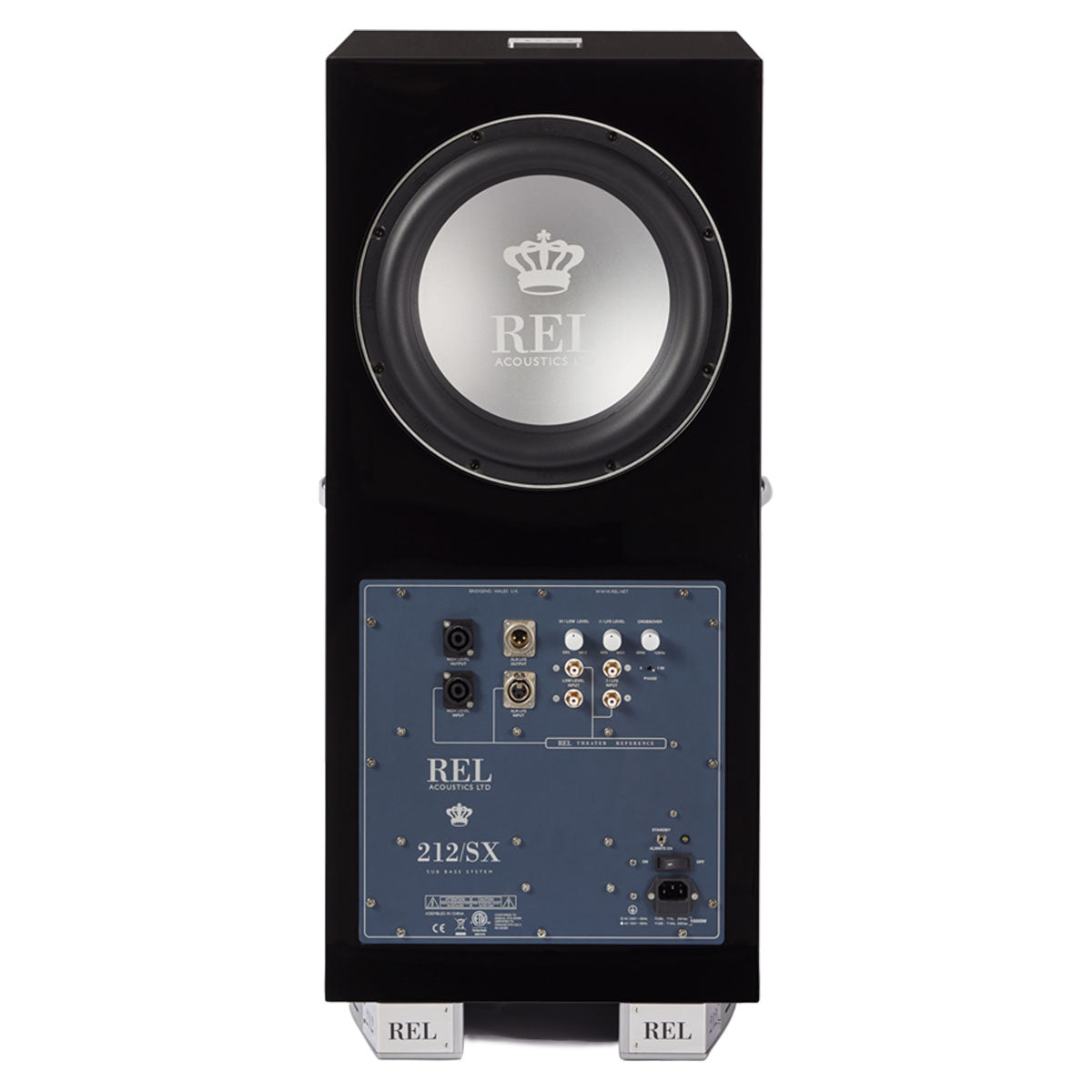

The down firing passive produces deep, floor-crawling bass that makes a room shudder. Mounted above the amplifier panel on the rear is the second passive. This unit produces wrap around “atmospheric” bass that adds air and shimmer to the sound. Coupling with either the rear wall or the rear corner of a room allows for bass to develop exceedingly long wavefronts and adds an ease and effortless quality unique to single-box designs.

NextGen 5 1,000w Digital Amplifier: Whoever said “Power Corrupts” Never Heard a 212/SX

With incredible reliability in units now numbering in the thousands, the NextGen 5 Class D amplifier is a paragon of extreme power and reliability. At 1,000 watts of output, plus the ability to connect both High Level and .1/LFE simultaneously with optional state of the art wireless, 212/SX delivers the goods at scale. It does so with incredible grip and control in the extreme deep bass where most amplifiers get loose and lose control.

212/SX has an almost limitless sense of power, coupled with precision. Where others offer brute strength, 212/SX delivers massive power and every secondary category of performance with ease and effortless versatility. Deafening output in a concert video or blockbuster movie? Check. Beautifully rendered female vocals accurately placed within a stone abbey? Check.

Futureproof Wireless: Airship Zero-Compression Wireless

REL seized the opportunity to develop a new high resolution, audiophile-grade uncompressed wireless system for 212/SX and their newer offerings in the Reference range. Airship is a new 5.8 gHz military-based wireless system built into a monolithic LSI chip that delivers incredibly fast bass. It ships full bandwidth, not just bass, through this system that includes (2) channels. The first channel handles the High Level Input and can be used for both stereo bass or use of a single channel with monoblock amplifiers. Simultaneously, Airship will process the .1/LFE channel necessary for special effects in film so both RCA and XLR inputs are provided. In the future, REL anticipates adoption of more active wireless loudspeakers reaching the market, so they included stereo low level inputs. With Airship, you’re ready for the future.

Details & Specs

Model REL 212/SX
SPECIFICATIONS
Type (2) Front-firing active drivers, (1) rear passive, (1) down-firing passive
Active Driver Size & Material (2) 12 in. (300mm) long throw, Continuous CastAlloy cone structure, die cast alloy chassis
Passive Radiator Size & Material Rear: 12 in. (300mm) Continuous CastAlloy cone structure, die cast alloy chassis; Down: 12 in. (300mm) Carbon/Carbon flat cone structure, steel chassis
Low Frequency Extension -6dB at 18 Hz
Input Connectors High Level Neutrik Speakon, Low Level (2) RCA, (1) LFE RCA, (1) LFE XLR
Output Connectors High Level Neutrik Speakon, (1) LFE RCA or (1) LFE XLR**
Power Output 1,000 watts (RMS)
Amplifier Type NextGen 5 Class D
Wireless Capability REL AirShip II (sold separately)
Dual Parametric Filter N/A
PROTECTION SYTEM
Fully Electronic Set Safe Yes
D.C. Fault Yes
Output Short Yes
Mains Input Voltage 220-240 volts, 110-120 volts for certain markets
Fuses 7 Amp semi delay 220 volts operation, 15 Amp semi delay 120 volts operation
DIMENSIONS
W x H x D 14 1/4in., x 33in., x 20 1/4 in., (362 x 838 x 514.5mm)
Net Weight 128 lbs. (58 kg)
Finish Piano Black Lacquer
SUPPLIED ACCESSORIES
Mains Lead Yes
Neutrik Speakon Yes - 10 Meters (33’6”) Nominal
Interconnect N/A
Users Manual Yes
