Rega RB Titanium

Performance Tonearm

Rega RB Titanium

Performance Tonearm
$6,995.00
Special Order: Free Shipping!
Contact Us

Overview

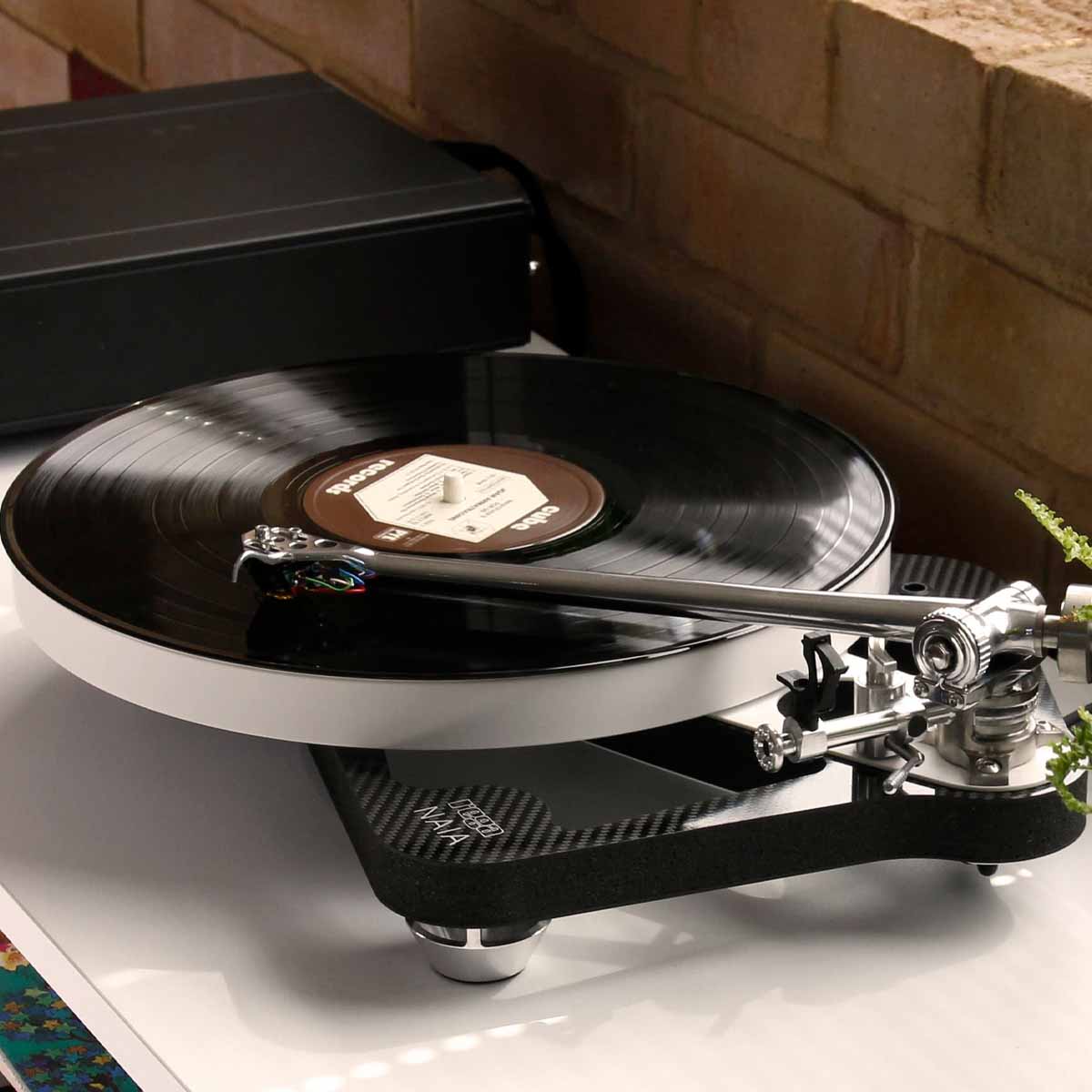

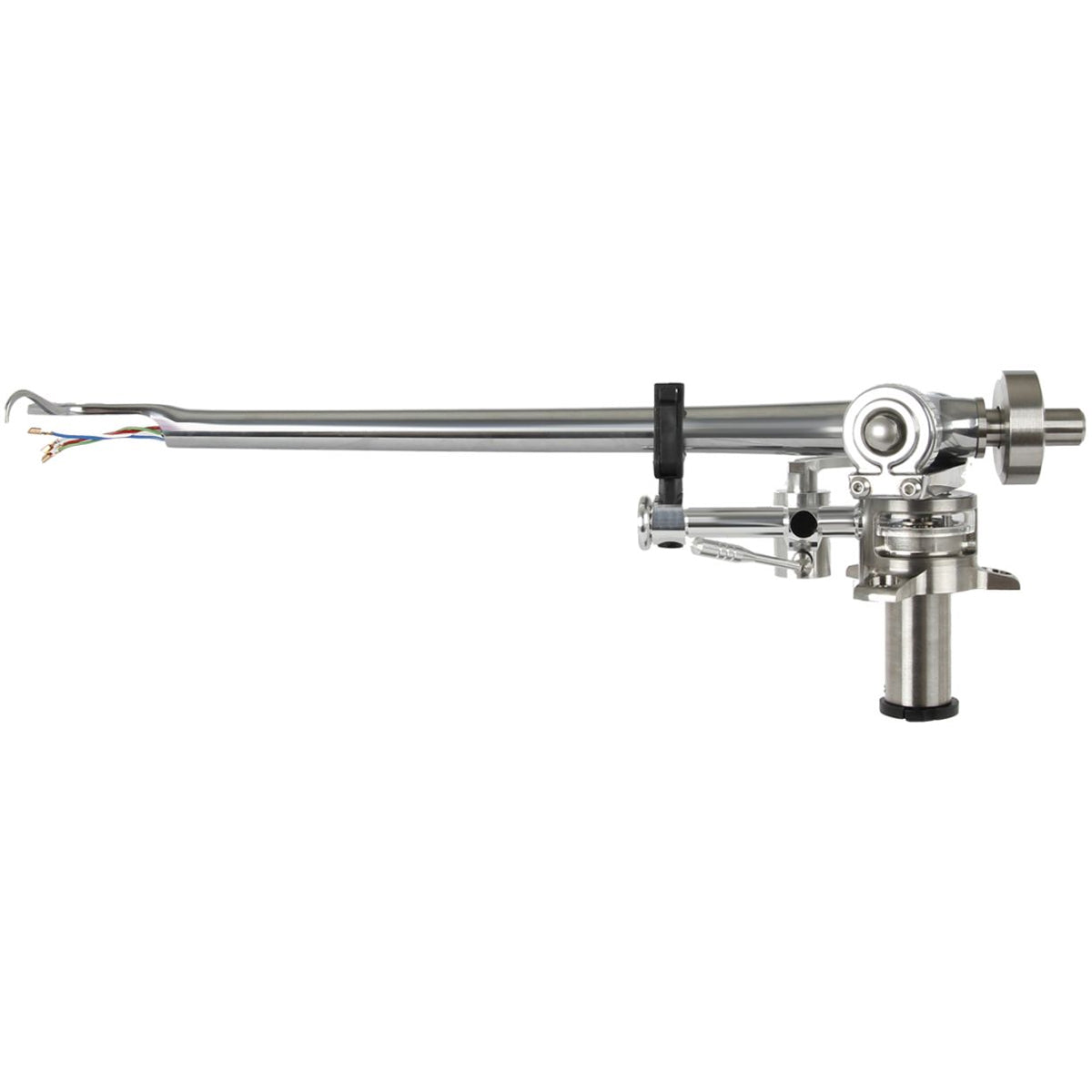

The RB Titanium tonearm is the most advanced and accurate production tonearm Rega has ever manufactured. The entire tonearm structure is designed to have the minimum of mechanical joints while using the stiffest materials in all critical areas. The RB Titanium was originally designed to complement their highest performing turntable the Naia, it is now available for the first time to purchase separately as a retail model.

Ultimate Precision

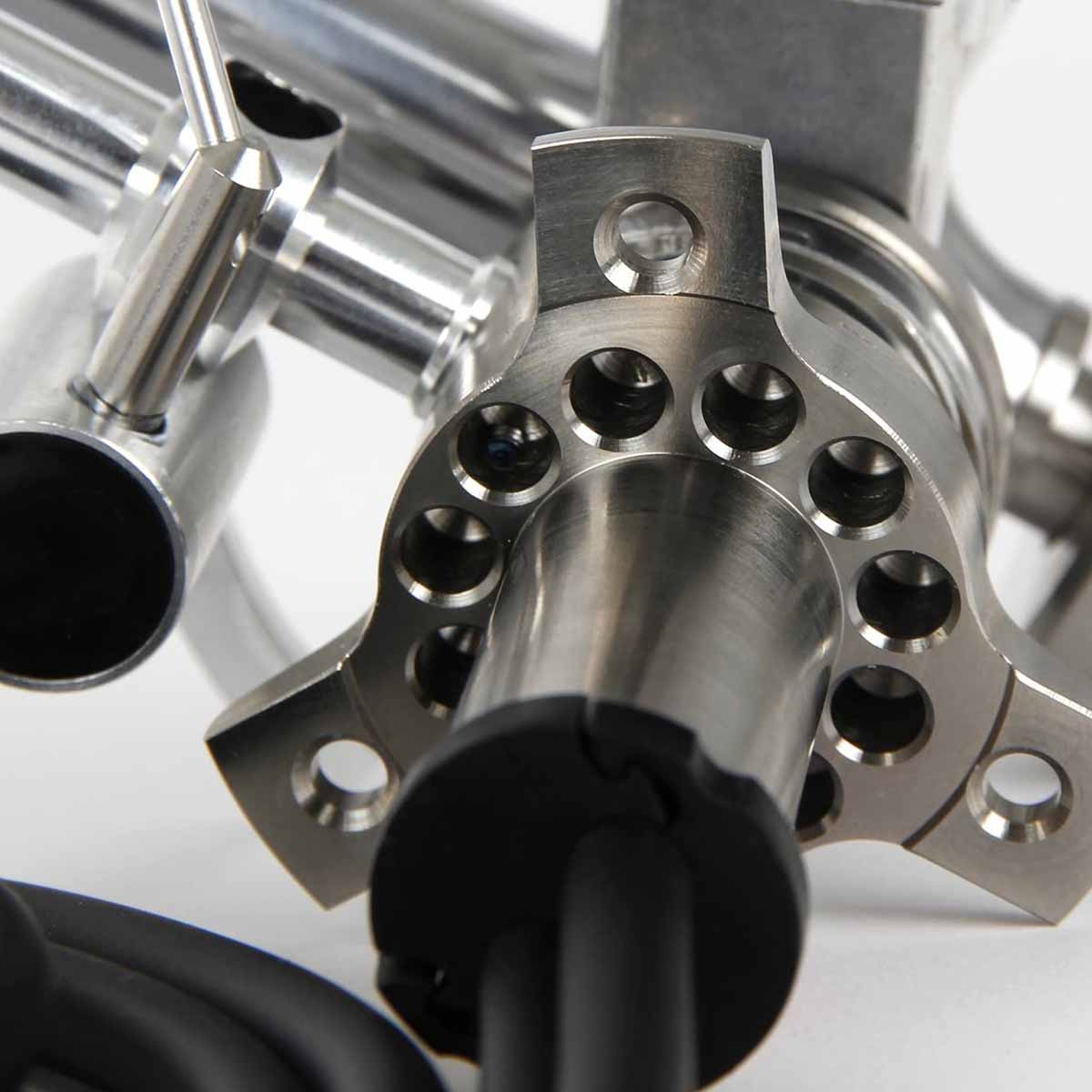

The RB Titanium achieves near frictionless movement horizontally and vertically while having no measurable free play in the bearing assemblies. The RB Titanium uses a new one-piece titanium vertical bearing housing and titanium vertical spindle assembly. The design is completed with a Tungsten balance weight shaft and balance weight. The RB Titanium tonearm is packed with new features pushing the boundaries of tonearm design. As with all Rega tonearms, each one is meticulously hand-built by a team of highly skilled technicians. The RB Titanium uses their highest graded bearings with each set being hand selected to be an interference fit with the paired spindle matching both the inside and outside diameters. This is a Rega developed method of increasing the amount of detail retrieved from the record surface, designed specifically to maximize performance of the tonearm and cartridge.

The importance of zero play in the bearings of a Hi-fi tonearm.

Rega is famed for its tonearm designs. One unique characteristic of these designs is the achievement of near frictionless movement horizontally and vertically while having no measurable free play in the bearing assemblies (and in reality one or two microns of pre load). So, why has Rega spent over thirty years and invested so heavily in this area of tonearm design where the removal of even microns of movement has been pursued?

Look at a stereo vinyl LP under an electron microscope and you will see microscopic ridges and bumps that the diamond stylus of the pick-up cartridge tracks and reads. The length of a ridge depends on its frequency. The height is its amplitude.

Towards the center of an LP, a 10Khz signal is just 26 microns long and if it’s very quiet it may be less than 10 microns high. If your tonearm has 10 microns of movement within the bearing assemblies (and even very expensive tonearms usually have much more play and movement), reading the bumps will be difficult and musical vibration will be lost in arm movement.

It is impossible to quantify exactly the musical distortion or loss of measured information. This is due to the random nature of pivot or bearing movement. However, it is easy to see that accurate measurement or tracking of a 10 micron bump is not possible if the tracking stylus can move randomly at least the same distance that it is trying to measure.

Details & Specs

Model RB Titanium Tonearm
Effective Mass Low / 11 g
Mounting Distance (platter center to arm hole center) 222 mm
Effective length 236.5 mm
Offset Angle 21.55°
Overhang 14.5 mm
