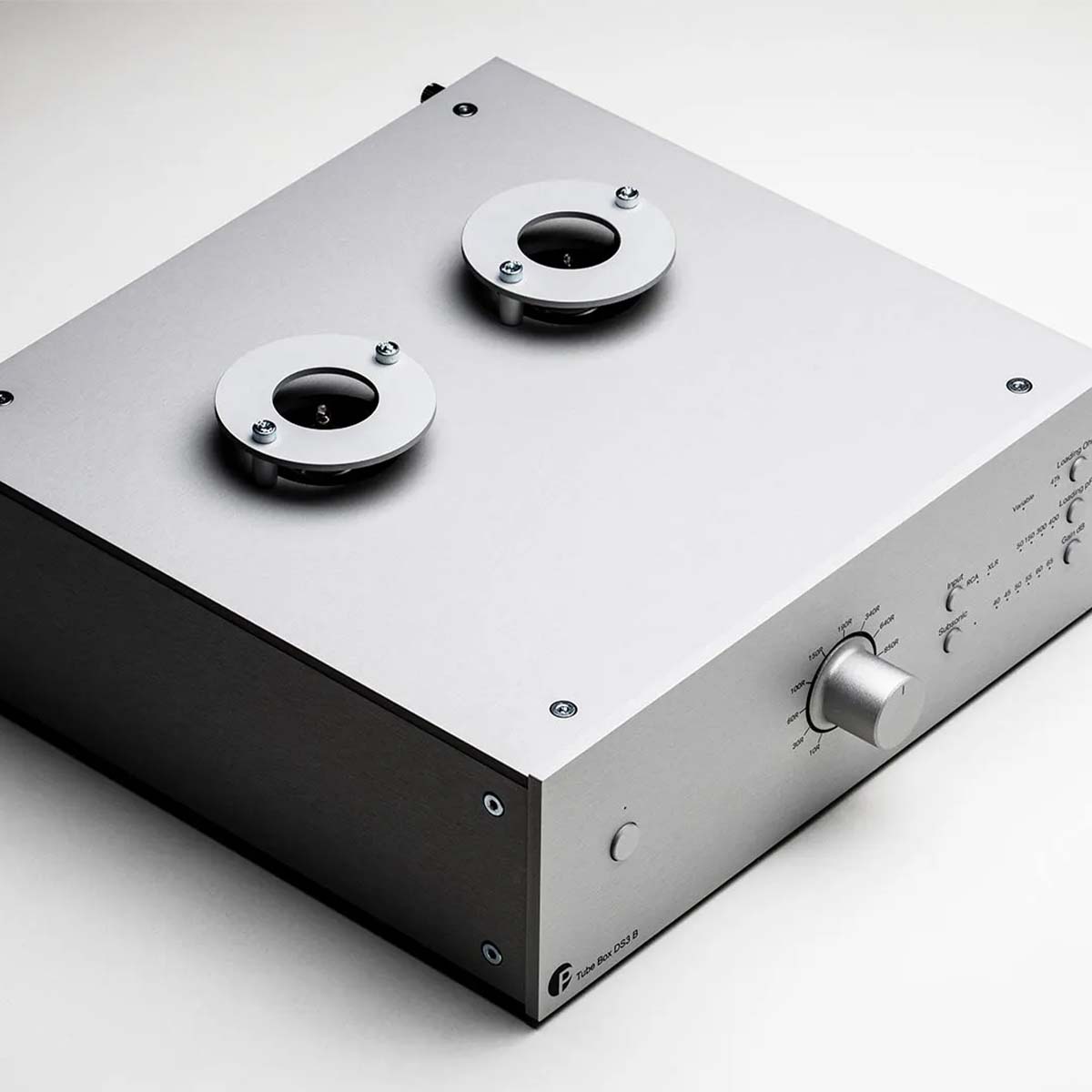

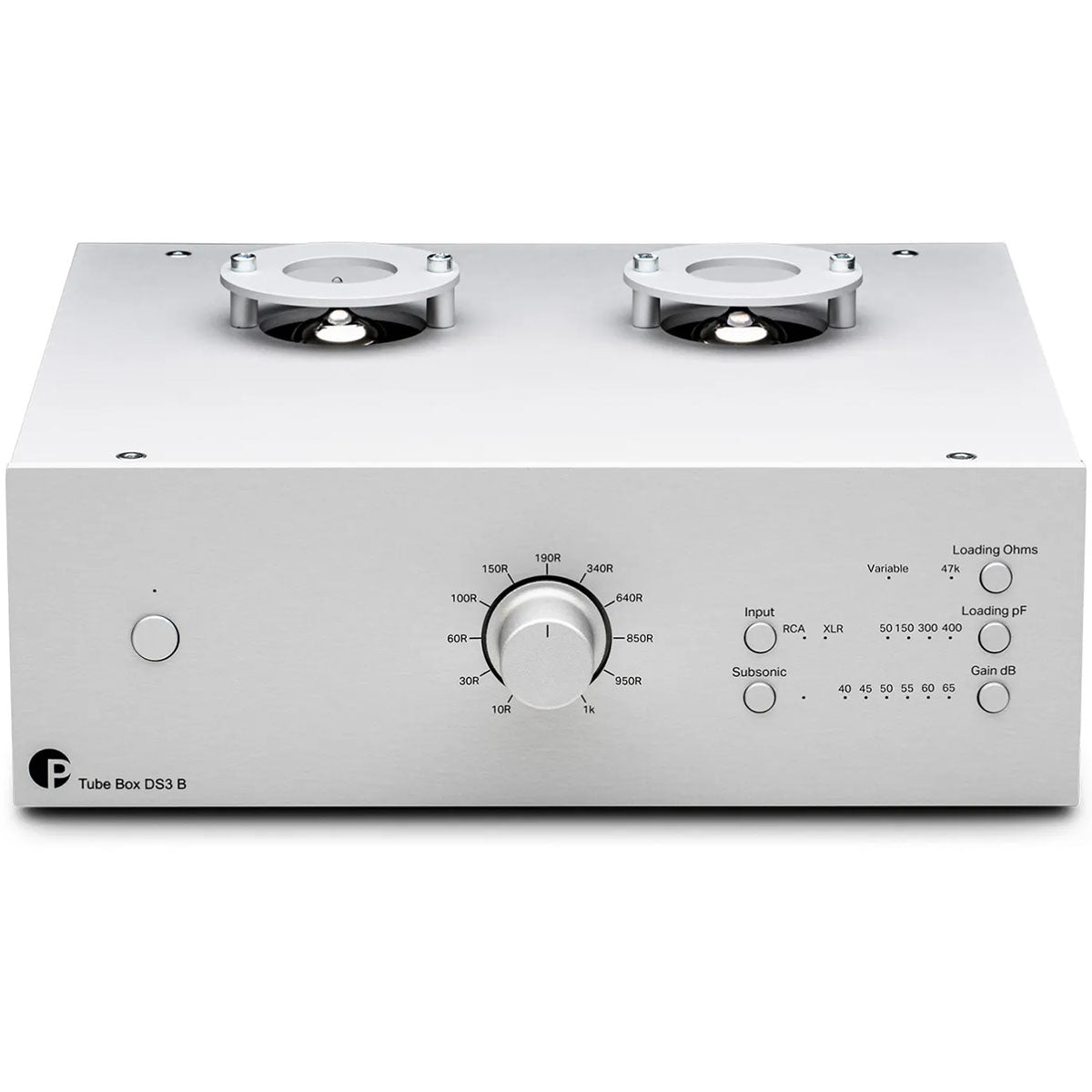

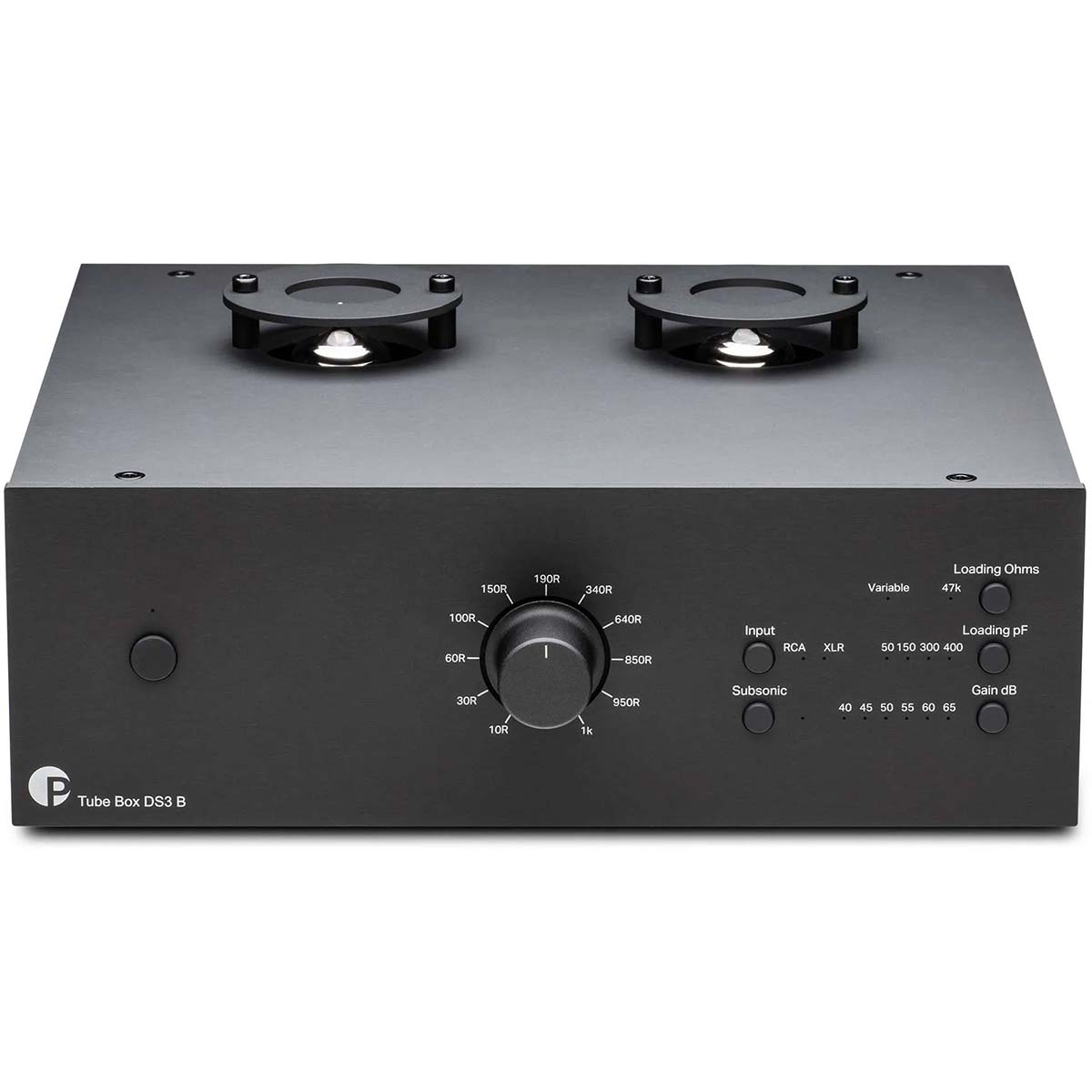

Pro-Ject - Tube Box DS3 B

High-End Balanced MM/MC Tube Phono Preamp

Pro-Ject - Tube Box DS3 B

High-End Balanced MM/MC Tube Phono Preamp
$1,099.00
Select Color Options:

Contact Us

Overview

Pro-Jects new Tube Box DS3 B phono preamp adds balanced inputs and outputs to the beloved tube amplification. This precision component benefits from outstanding circuit technology and uses 'ultimate' premium components.

High-End Tube Sound Quality

Tube phono stages have been an integral part of the product portfolio for many years. The latest Tube Box DS3 B adds balanced capability to the mix, making this the first True Balanced tube phono preamp. The design benefits from an outstanding dual-mono circuit layout with discrete components assembled with expertise in Europe. It’s a hybrid design utilizing tubes in the input and gain stages. All electrical components (including the tube output stage) are audiophile-grade, merging to deliver breathtaking sound quality from your turntable and phono cartridge.

Balanced – It’s Almost Unbelievable

Use the 5-pin mini XLR or standard XLR inputs to recruit the balanced circuit in the Tube Box DS3 B. In each channel, balanced audio signals (aka symmetrical) are comprised of hot and cold (or + / -) conductors carrying the same musical information but are inherently out of phase. The (-) signal is an inverted duplicate of the (+). Opposite polarities render them ‘different’ in the eyes of the balanced circuit. The balanced circuit is where common-mode rejection occurs, canceling accrued noise that’s affected each the hot (+) and cold (-) signals (thus the noise is ‘common’ to them). Once the balanced circuit has canceled the ‘common’ noise, the cold (-) signal’s polarity is inverted to match hot (+) one. This amounts to more amplitude (about 6dB), and less noise (about 10dB). You can imagine the wealth of detail and clarity that surfaces in the absence of the aforementioned noise and with the added amplitude. The difference is not subtle, and once you’ve heard it, there’s no turning back.

Two Turntable Inputs, Endless Cartridge Options

Two turntables can be connected simultaneously to the Tube Box DS3 B! The electrical settings for each turntable are easily managed from the front panel and are stored in the memory bank. A range in gain of 40-65dB is at your fingertips. This allows you to cater to your cartridge’s output as well as to the overall level of your audio sources. Load impedance (aka cartridge loading or input impedance) for MC cartridges is freely adjustable in the range of 10-1000 ohms. A system introduced to the audio industry by Pro-Ject, the potentiometer allows you to seamlessly adjust impedance during playback for on-the-spot evaluation. This is critical to finding the optimal impedance value for your cartridge as it performs in your system.

Details & Specs

Model Tube Box DS3 B
Tubes 2x 6922/E88CC
Input Impedance stepless 10-1000 Ohms, fix 47k Ohms
Capacitance 50 / 150 / 300 / 400 pF
Gain (+6dB using XLR Out) 40 / 45 / 50 / 55 / 60 / 65 dB
Output voltage typically 500 mV/1kHz at 5mV/1kHz (at 40dB)
Signal-to-noise ratio <87dBV – 'A' weighted
THD <0.03%
RIAA curve accuracy +/- 0.5dB / 20Hz - 20kHz
Subsonic filter at 20Hz with 18dB/octave

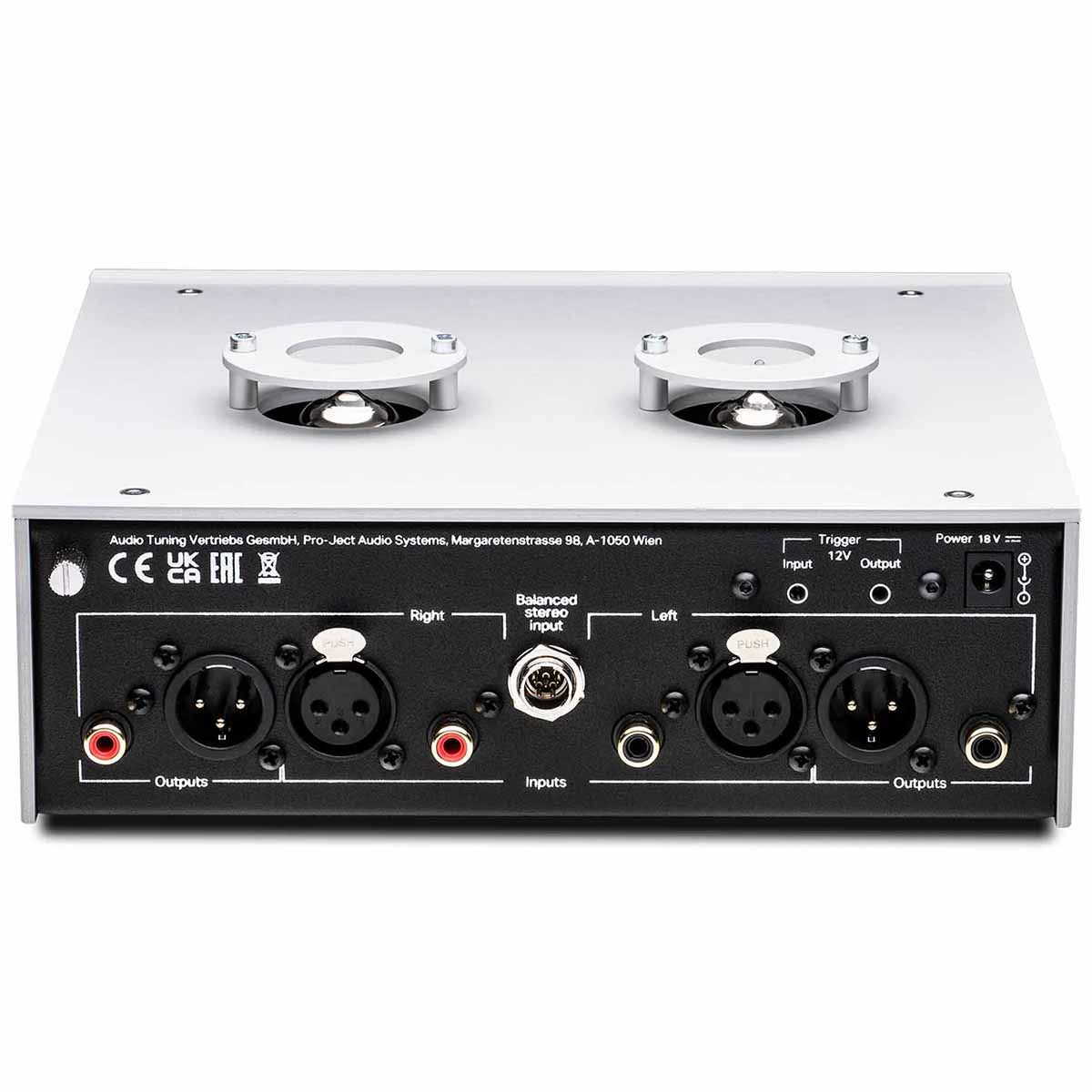

Input 1x 5-pin mini XLR / 1x pair XLR / 1x pair RCA phono
Output 1x pair RCA, 1x pair XLR
Power supply 18V/1000mA DC
Dimensions W x H x D: 8.1" x 2.75" x 7.6"
Weight 3.44 lbs
