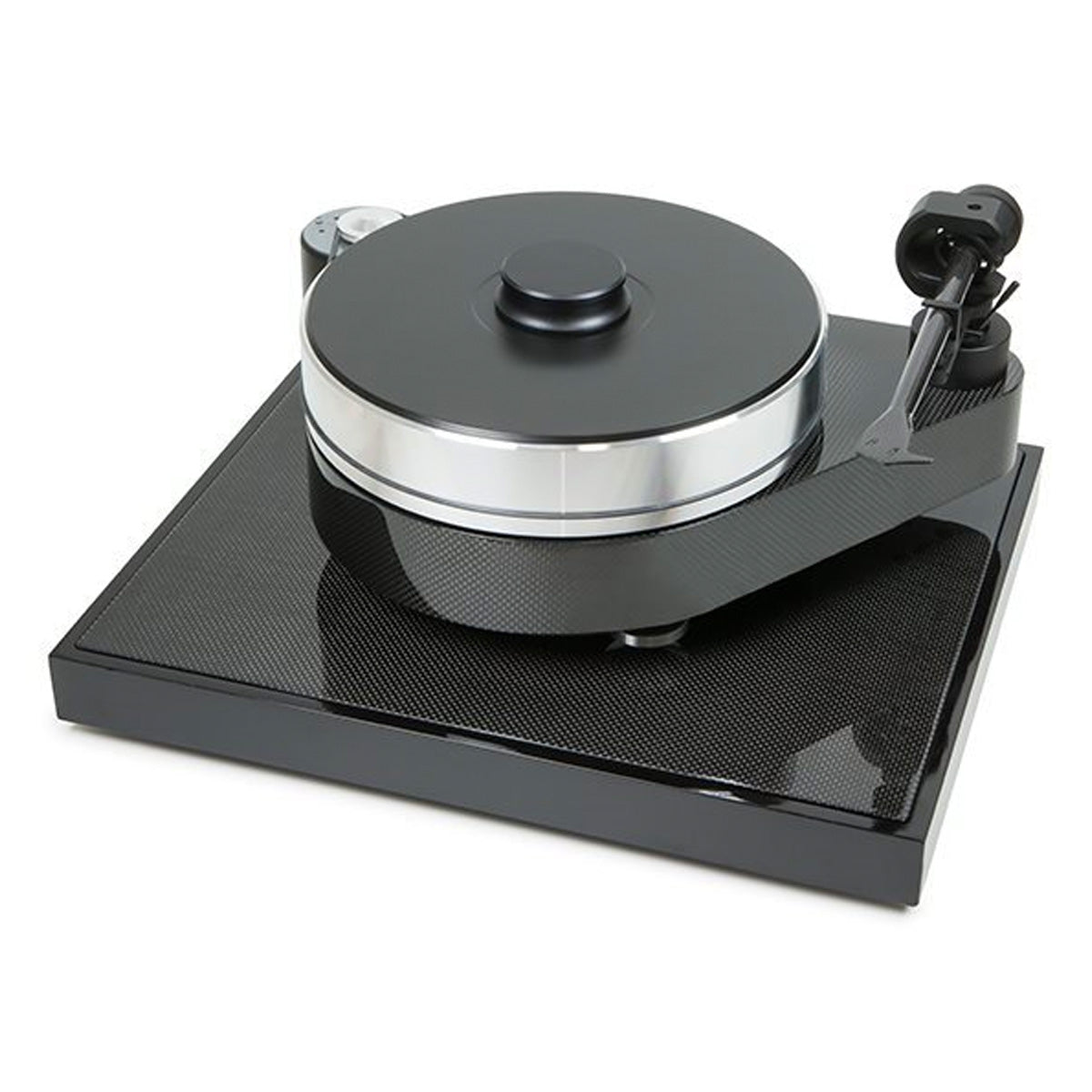

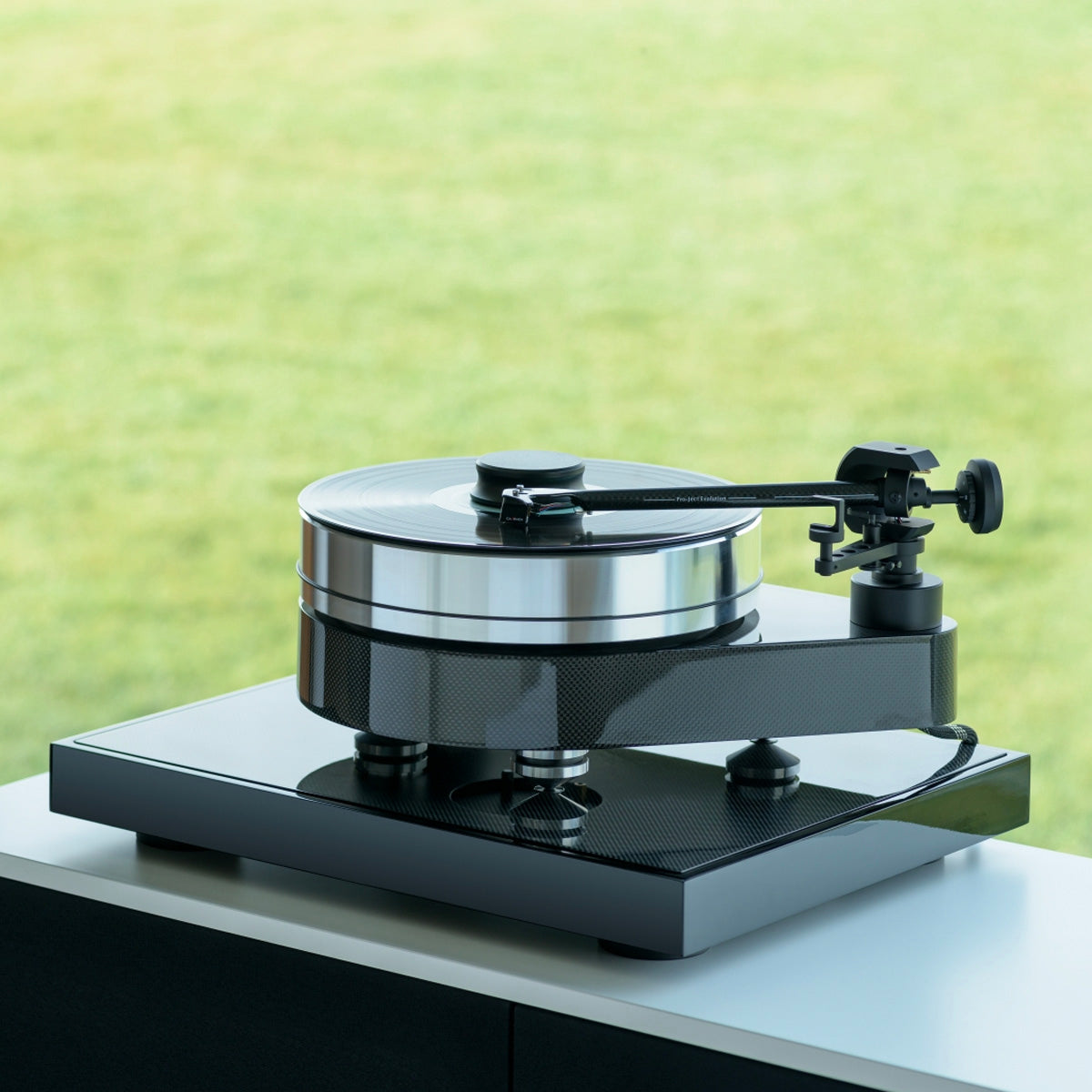

Pro-ject RPM 10 Carbon

Manual Belt Drive Turntable with 10cc EVO Tonearm

Pro-ject RPM 10 Carbon

Manual Belt Drive Turntable with 10cc EVO Tonearm
From $5,699.00
Select Cartridge Type


Overview

High-end belt-driven turntable with 10" EVO carbon fiber tonearm, outboard motor, and carbon wrapped isolation base.

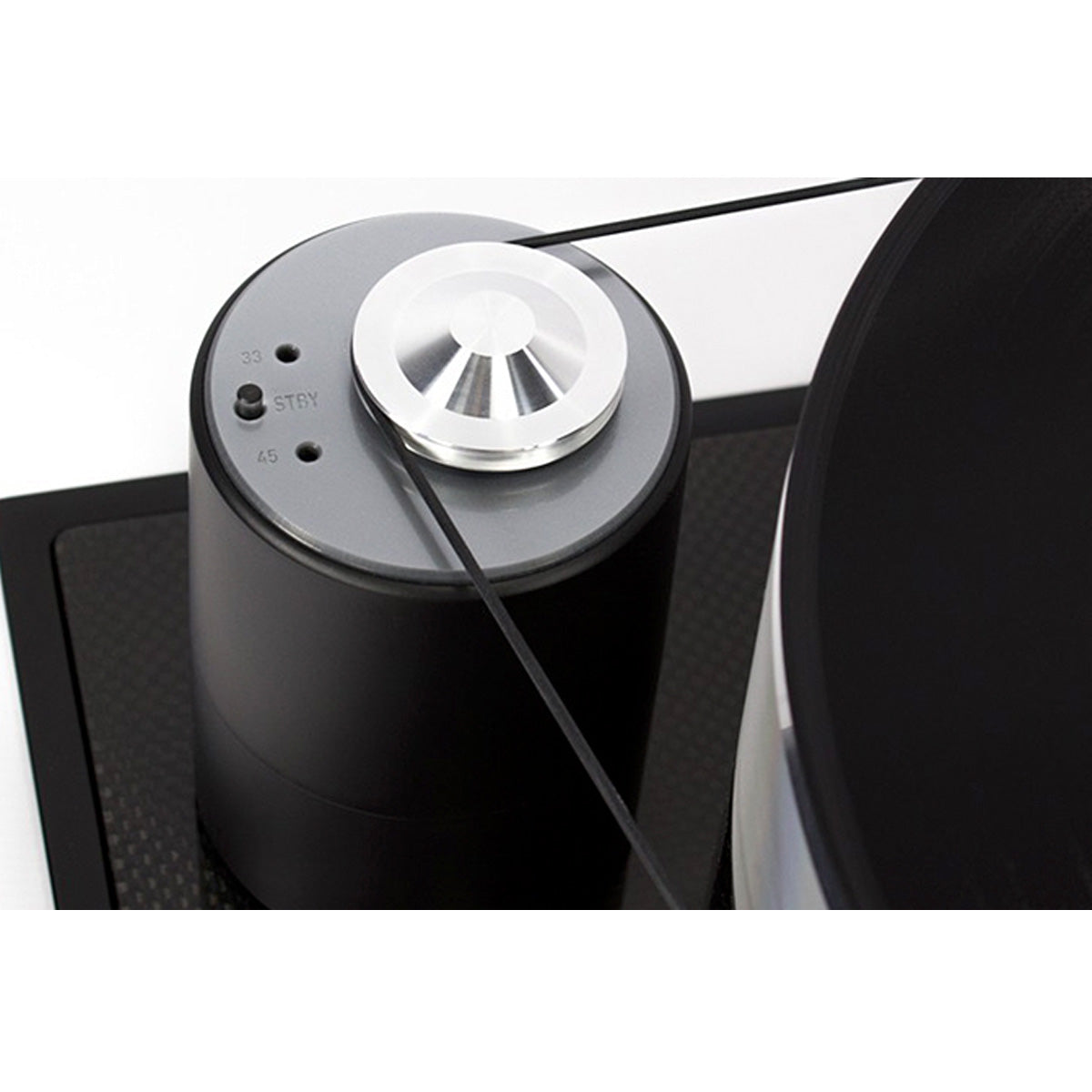

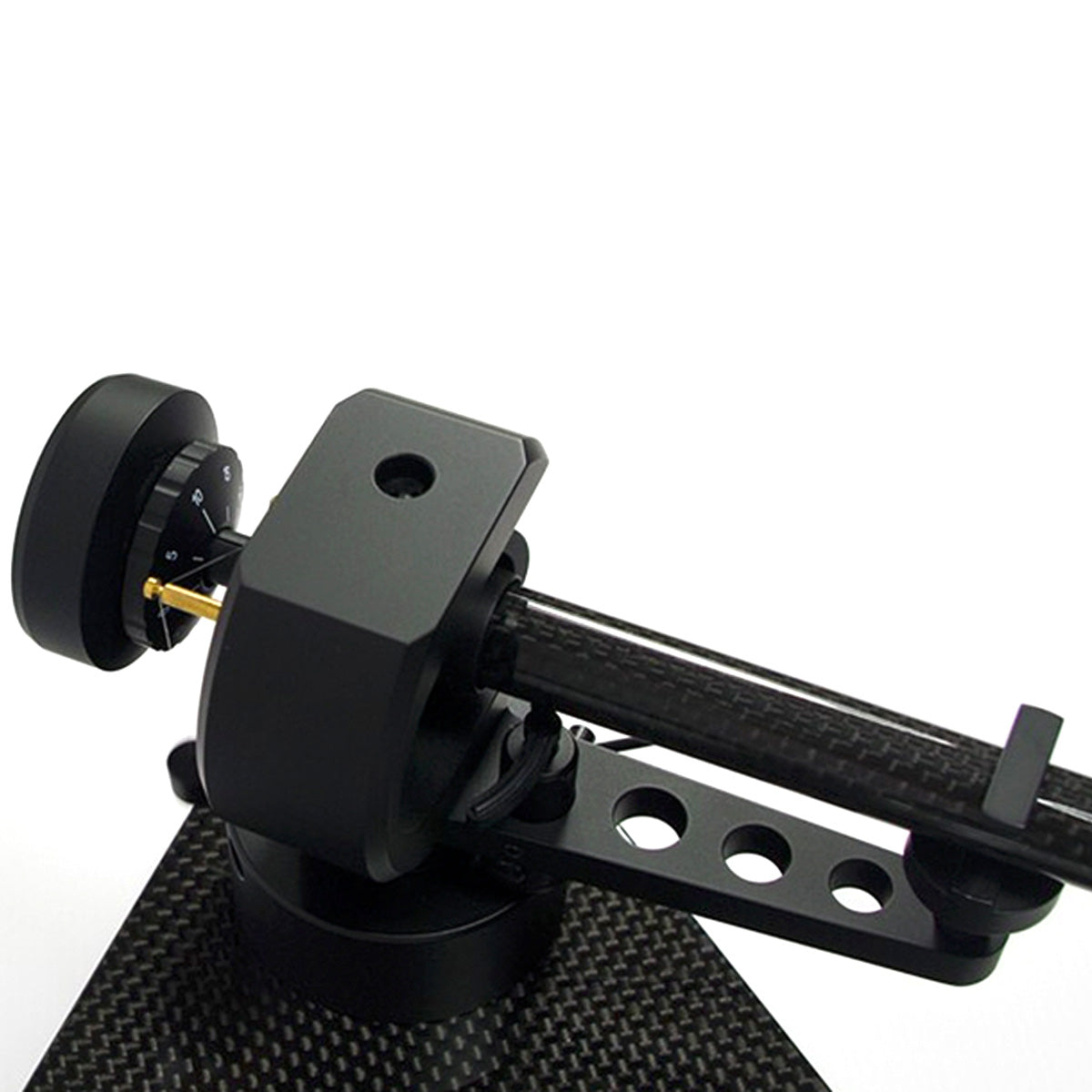

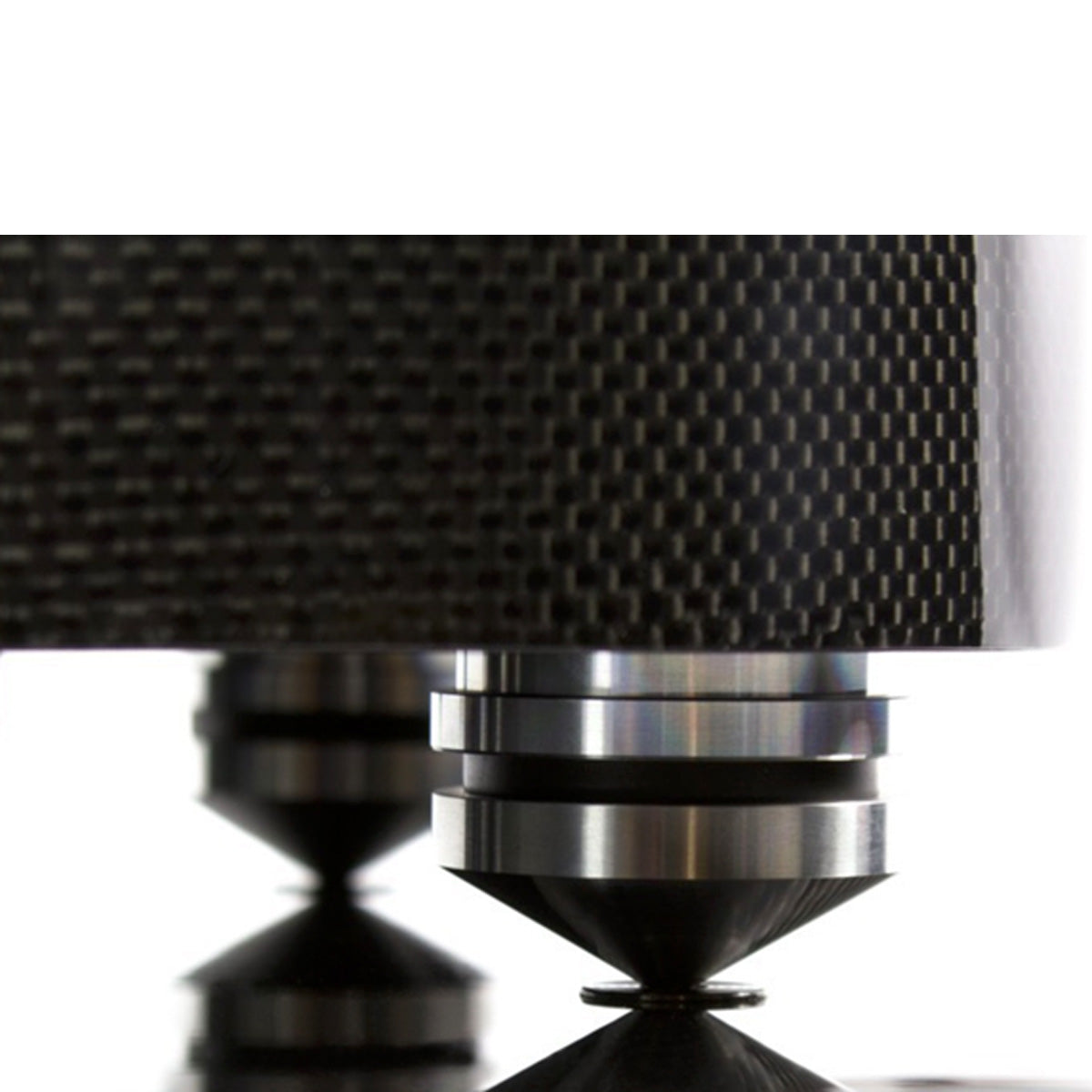

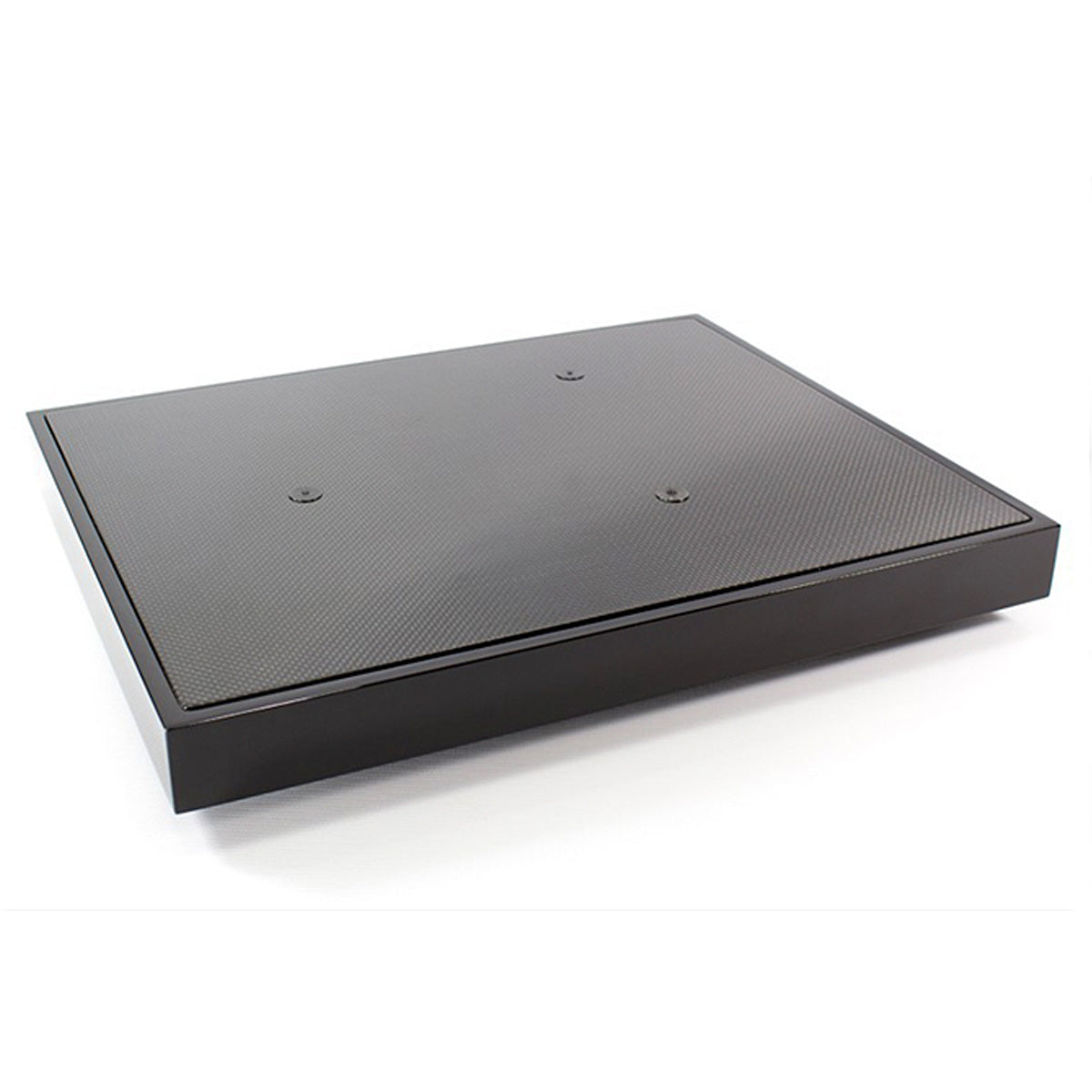

Thanks to extensive research and development, we have now elevated our classic RPM design to an even higher level. The RPM 10 Carbon uses a new extra-heavy chassis which features a special CNC-machined MDF base with resin-coated steel pellets to form an extra-heavy and precise sandwich construction. A special, complex heat treatment and carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. Combined with a new special polished aluminum platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolutely stable turntable speed with extra-low rumble due to the magnetic suspension of the platter. The heavy outboard motor unit is equipped with precise motor control and features a built-in switch between 33 & 45 rpm. Last but not least, the no-compromise 10" EVO tonearm with conical carbon-fiber arm tube and inverted bearing design ensures perfect tracking, even with demanding cartridges. Highly flexible, top-grade copper internal wiring is used. The RPM 10 Carbon is delivered with Ground it Carbon equipment base and top-grade 5P phono cable "Connect It CC" with RCA plugs (XLR as an option). An acrylic dust cover, "Cover it 1", is also available.

Specifications

Speed: 33, 45 rpm (electronic speed change)

Drive: Belt drive

Platter: 10.4 kg aluminum (300mm diameter)

Main Bearing: inverted stainless steel with ceramic ball/plate

Wow & Flutter: 33 +/- 0.11% 45: +/- 0.10%

Speed Drift: 33: +/- 0.01% 45: +/- 0.01%

Signal to Noise: -75dB

Tonearm: 10" Carbon EVO

Effective Arm Length: 254 mm

Effective Arm Mass: 8.5 g

Overhang: 16mm

Tracking Force: 10 - 35mN

Supplied Counterweights: 5 - 7.5g / 7 - 10g / 9 - 11g / 10 - 14g

External Power Supply: 15 volts DC / 1.6A

Power Connection: 110/120 or 230/240 Volt - 50 or 60 Hz

Power Consumption: 15 watts max
