Item #D212s

Perlisten D212s

Dual 12" Subwoofer
Item #D212s

Perlisten D212s

Dual 12" Subwoofer
$7,995.00
Available In-Store

Overview

The Perlisten Audio D212s Subwoofer is a flagship subwoofer designed to provide high-fidelity, high-output bass performance for home theater and music listening applications. This subwoofer features dual 12-inch high-excursion drivers and a 2400-watt Class-D amplifier, providing deep, tight, and dynamic bass with minimal distortion.

Massive amounts of output is not the only mark of a flagship subwoofer. Though we can compete with the worlds best in that category, our design metric is to have ultra low distortion to create the subtlety of every detail of the bass guitar, to the 12Hz stomp of that T-Rex. Innovative technology such as an 3kW smart amp with a 32 bit ARM core, iOS and Android app’s to control up to 8 subwoofers, a 2.4” TFT touchscreen, and a dual woofer Push-Pull configuration for extremely low distortion. This monster can dance as effortlessly as a ballerina or crush the frequencies well below 20Hz.

Every parts of this woofer was computer optimized to ensure every speck of performance was achieved and then validated with advanced test equipment like Klippel. Starting with the tuning of the massive 60mm peak linear excursion, spider compliance, and magnetic motor curve. The two woofers are then mounted on a massive 80mm front baffle and operated in a push pull configuration utilizing cancellation of the 2rd order harmonics to further reduce distortion. Every step of the way ensuring the best low frequency experience you can have.

At the core of our amps is a 32 bit ARM processor to control innovative technologies like real time temperature status, current and voltage monitoring, fault detection, and performance diagnostics evaluated at more than a 1000 times a second. All of this to make sure that our 3kW amplifiers are always in control even well below 20Hz. In addition we have dual balanced and un-balanced inputs with pass through, 12v trigger, and OTA firmware updates through our APP to always get the latest improvements. The end result is low distortion bass for the finest details with the dynamic range to meet the highest transients without compression and control at the click of button.

Bass management is critical to control the notoriously difficult acoustic environment known as your listening room. Standing waves, subwoofers in an imperfect position, and sound variation from seat to seat are only some of these issues. Control for up to 8 subwoofers with each woofer having 3 banks of 10 PEQ’s, Time Delay, Phase, up to 6 standard EQ’s, 24dB low-pass crossovers, and polarity, are all tools available to optimize your room performance. Our APP uses Bluetooth Low Energy to communicate with your iOS or Android based devices.

Details & Specs

Alignment Push-Pull, acoustic suspension
Amplifer 3.0kW rms short term
Display Interface 2.4" LCD color touchscreen
App iOS and Android
Processor 32-bit Arm Cortex M4, double precision floating point math
DSP Engine Ti DSP 48-bit data paths
Driver compliment (2)300mm, Carbon fiber diaphragm
+/-30mm linear excursion
Reference sensitivity 92dB / 150mV/ 1.0m
Frequency Response
THX EQ
Boost (Large Room) EQ
Cut (Small Room) EQ
20-231Hz (-6dB) / 16-245Hz (-10dB)
15-231Hz (-6dB) / 13.5-245Hz (-10dB)
24-231Hz (-6dB) / 18-245Hz (-10dB)

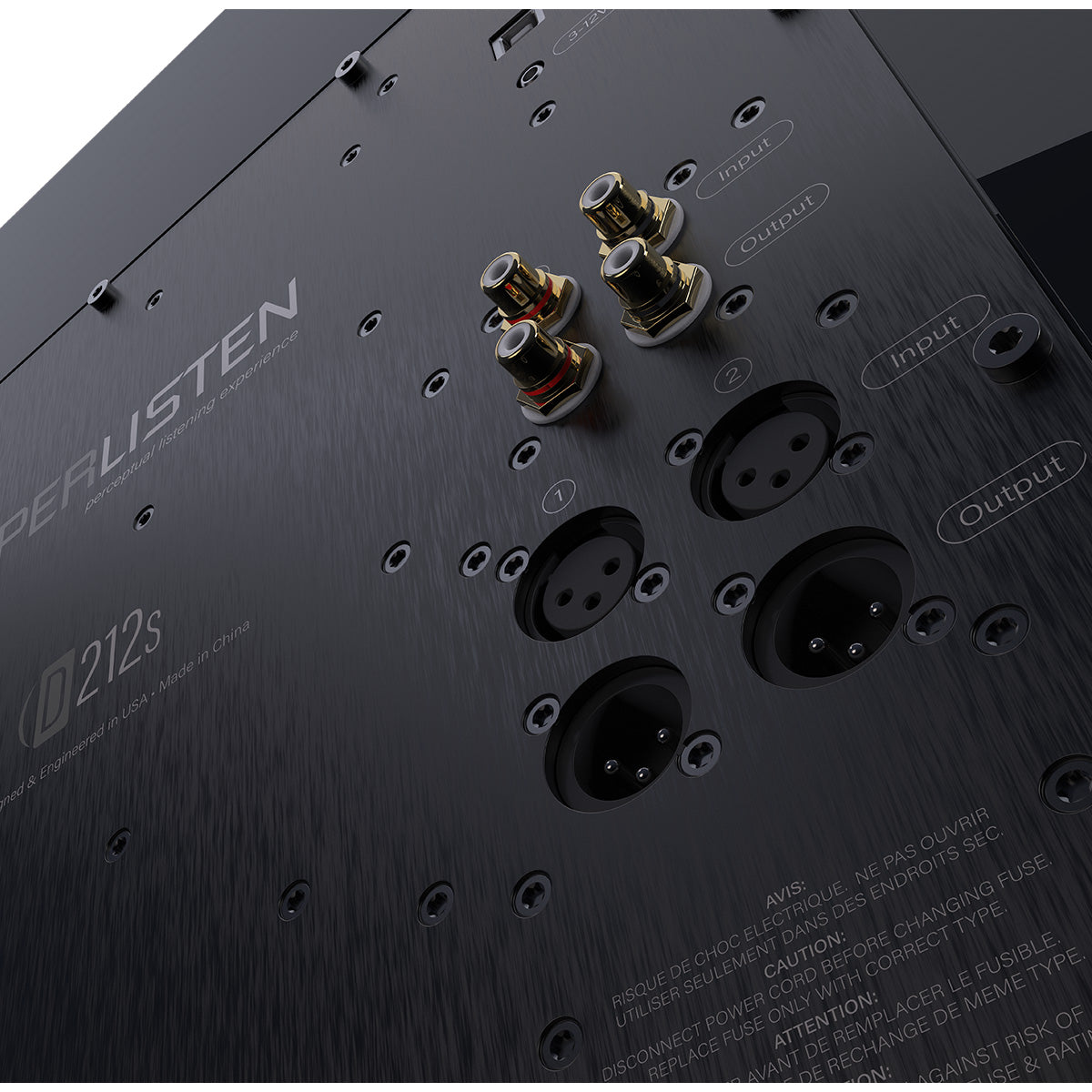

Inputs (2) Balanced XLR
(2) Unbalanced RCA
Outputs (2) Balanced XLR unbuffered
(2) Unbalanced RCA unbuffered
Parametric EQ 10-Band PEQ with 3 user presets
Low Pass filter Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase Variable 0-270°
Polarity Normal / inverted
Configurable Auto turn-on and 12v Trigger XLR 1, XLR 1+2, RCA 1, RCA 1+2
Dimensions (HxWxD) 668 x 420 x 550mm
26.3 x 16.5 x 21.6"
Weight 68.0 kg (149.6 lbs.)
Certification THX Dominus
Available finishes Piano black
