Item #D12S

Perlisten D12S

Single 12" Subwoofer
Item #D12S

Perlisten D12S

Single 12" Subwoofer
$4,995.00
Available In-Store

Overview

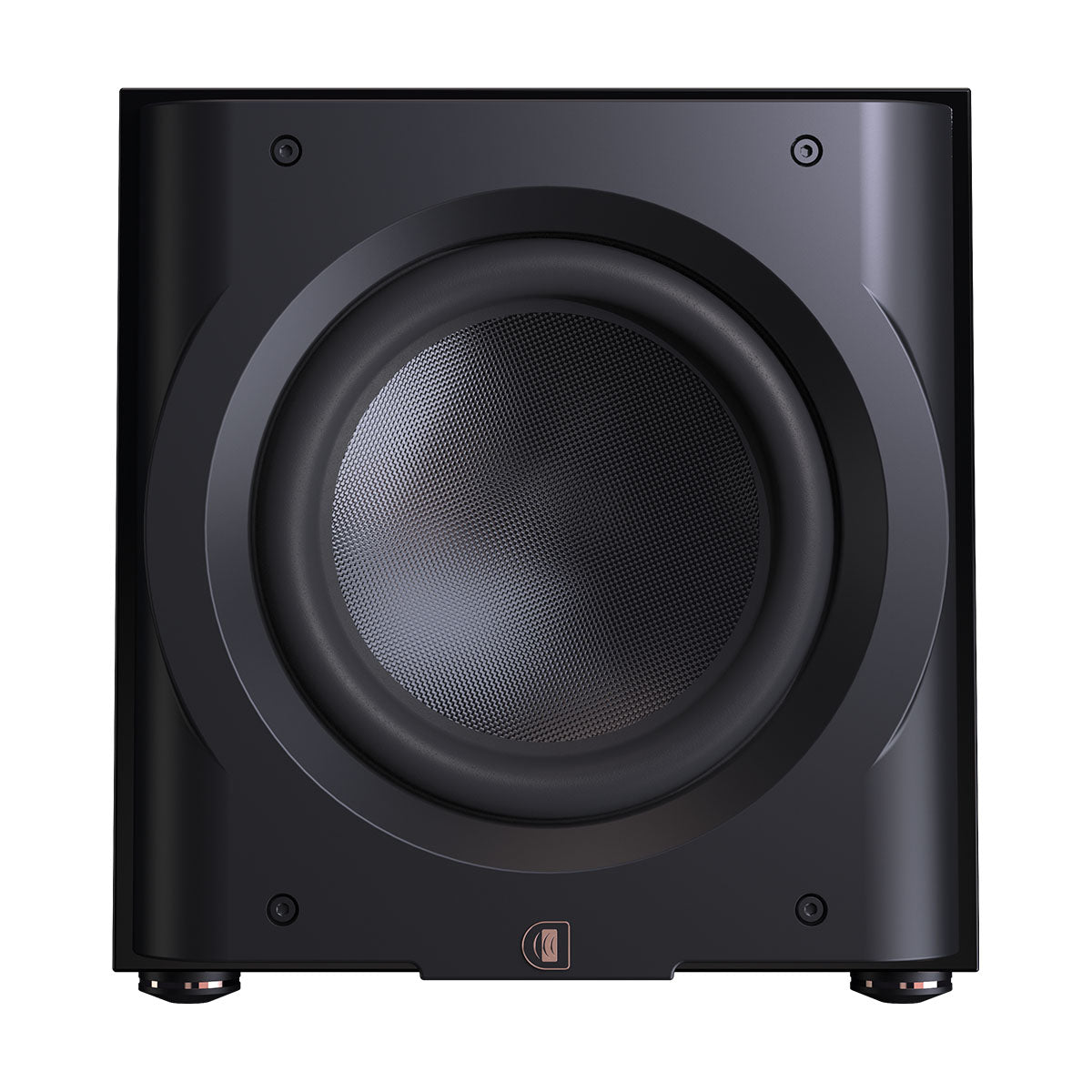

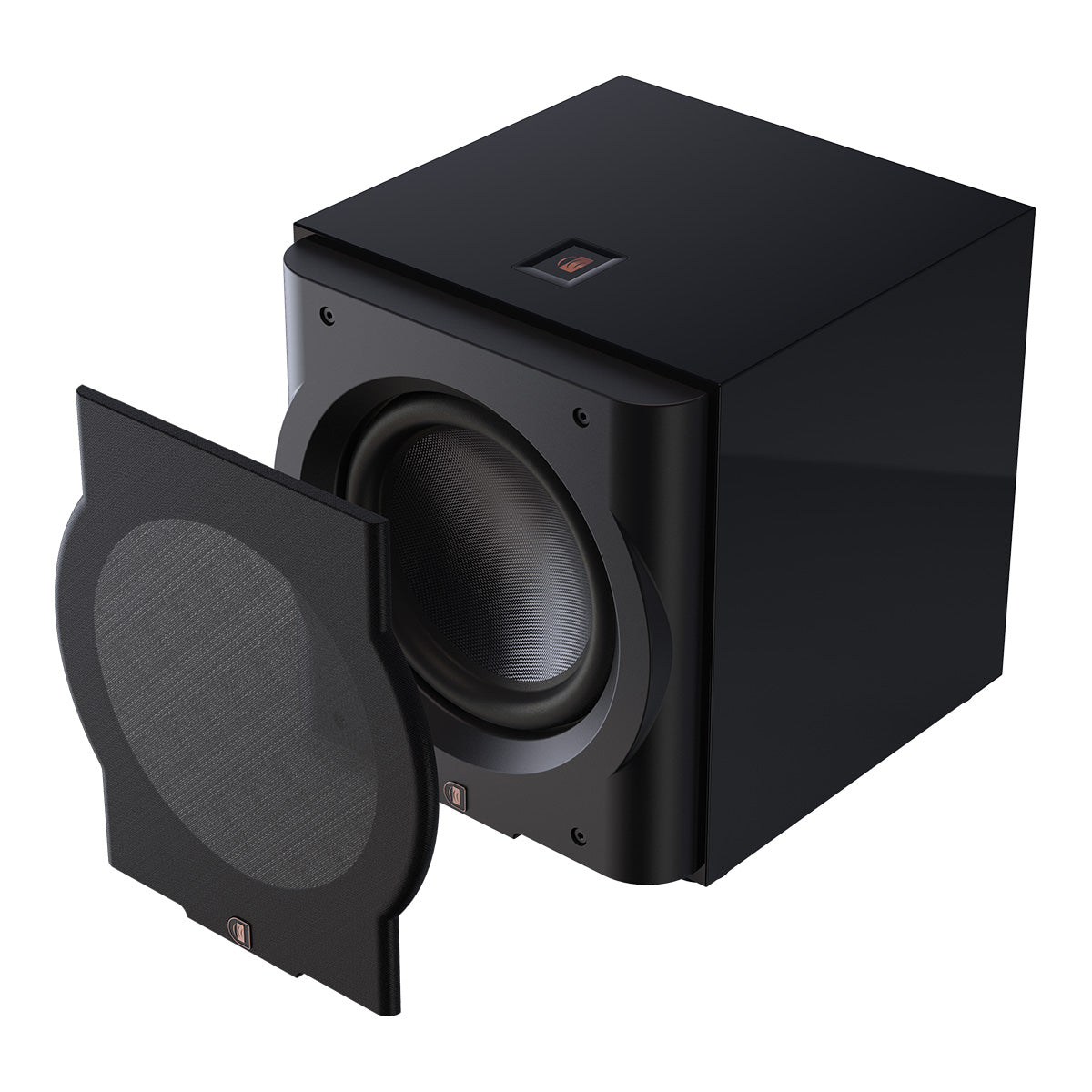

The D12s subwoofers have a sleek and stylish design, with a gloss black finish and an elegant front grille. They are compatible with a wide range of home theater and audio systems and can be used as part of a multi-channel surround sound setup or as a standalone bass source for music listening.

A 12” woofer with the low distortion output of most 15” woofers is something to be proud of. Massive amounts of output is not the only mark of a great subwoofer. Though we can compete with the worlds best in that category, our design metric is to have ultra low distortion to create the subtlety of every detail of the bass guitar, to the 12Hz stomp of that T-Rex. Innovative technology such as an 1.5kW smart amp with a 32 bit ARM core, iOS and Android app’s to control up to 8 subwoofers, a 2.4” TFT touchscreen, and the control of a acoustic suspension configuration for extremely low distortion.

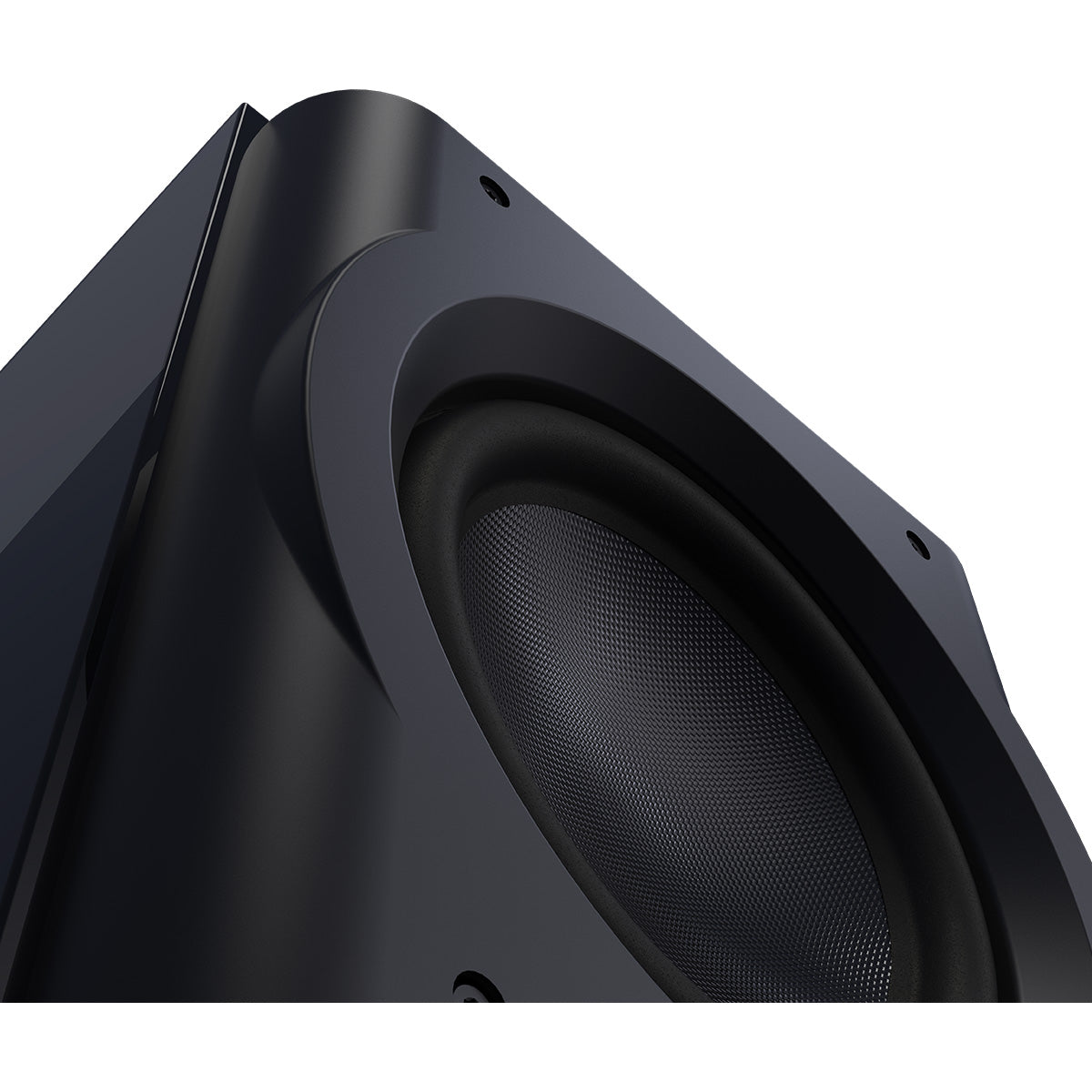

Every part of this woofer was computer optimized to ensure every speck of performance was achieved and then validated with advanced test equipment like Klippel. Starting with the tuning of the massive 60mm peak linear excursion, spider compliance, and magnetic motor curve, and shorting rings. The 12” woofer is then mounted on a massive 80mm front baffle and operated in an acoustic suspension configuration for maximum control. Every step of the way ensuring the best low frequency experience you can have.

At the core of our amps is a 32 bit ARM 4 processor to control innovative technologies like real time temperature status, current and voltage monitoring, fault detection, and performance diagnostics evaluated at more than a 1000 times a second. All of this to make sure that our 1.5kW amplifiers are always in control even well below 20Hz. In addition we have dual balanced and un-balanced inputs with pass through, 12v trigger, and OTA firmware updates through our APP to always get the latest improvements. The end result is low distortion bass for the finest details with the dynamic range to meet the highest transients without compression and control at the click of button.

Bass management is critical to control the notoriously difficult acoustic environment known as your listening room. Standing waves, subwoofers in an imperfect position, and sound variation from seat to seat are only some of these issues. Control for up to 8 subwoofers with 3 banks of 10 PEQ’s, Time Delay, Phase, 6 standard EQ’s, 24dB low-pass crossovers, and polarity, are all tools available to optimize your room performance. Using Bluetooth Low Energy to communicate with your iOS or Android based device

Details & Specs

Alignment Acoustic suspension
Amplifer 1.5kW rms short term
Display Interface 2.4" LCD color touchscreen
App iOS and Android
Processor 32-bit ARM Cortex M4, double precision floating point math
DSP Engine Ti DSP 48-bit data paths
Driver compliment 300mm, Carbon fiber diaphragm
+/-30mm linear excursion
Reference sensitivity 92dB / 150mV / 1.0m
Frequency Response
THX EQ
Boost (Large Room) EQ
Cut (Small Room) EQ
20-289Hz (-6dB) / 16-330Hz (-10dB)
16-289Hz (-6dB) / 14-330Hz (-10dB)
25-289Hz (-6dB) / 19-330Hz (-10dB)

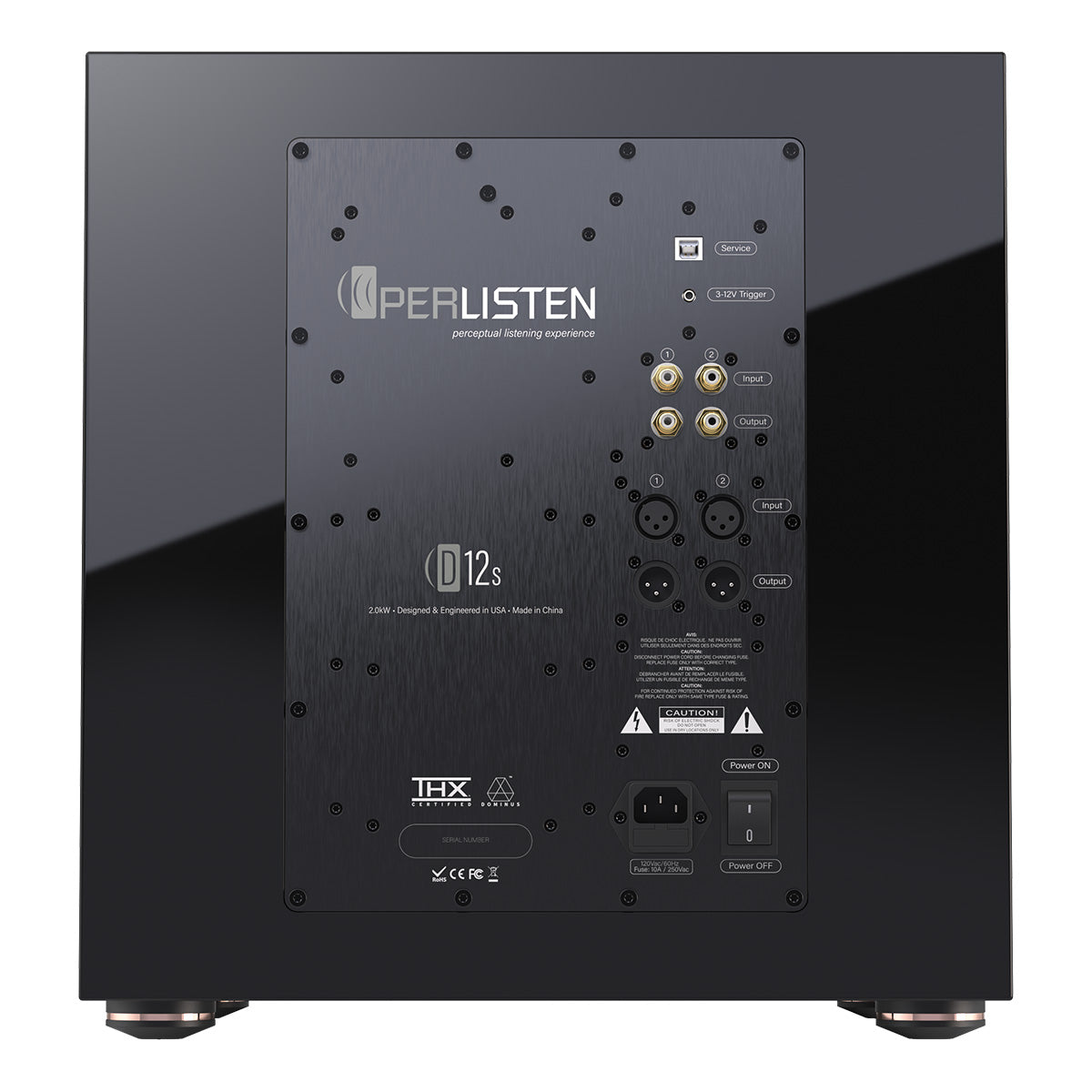

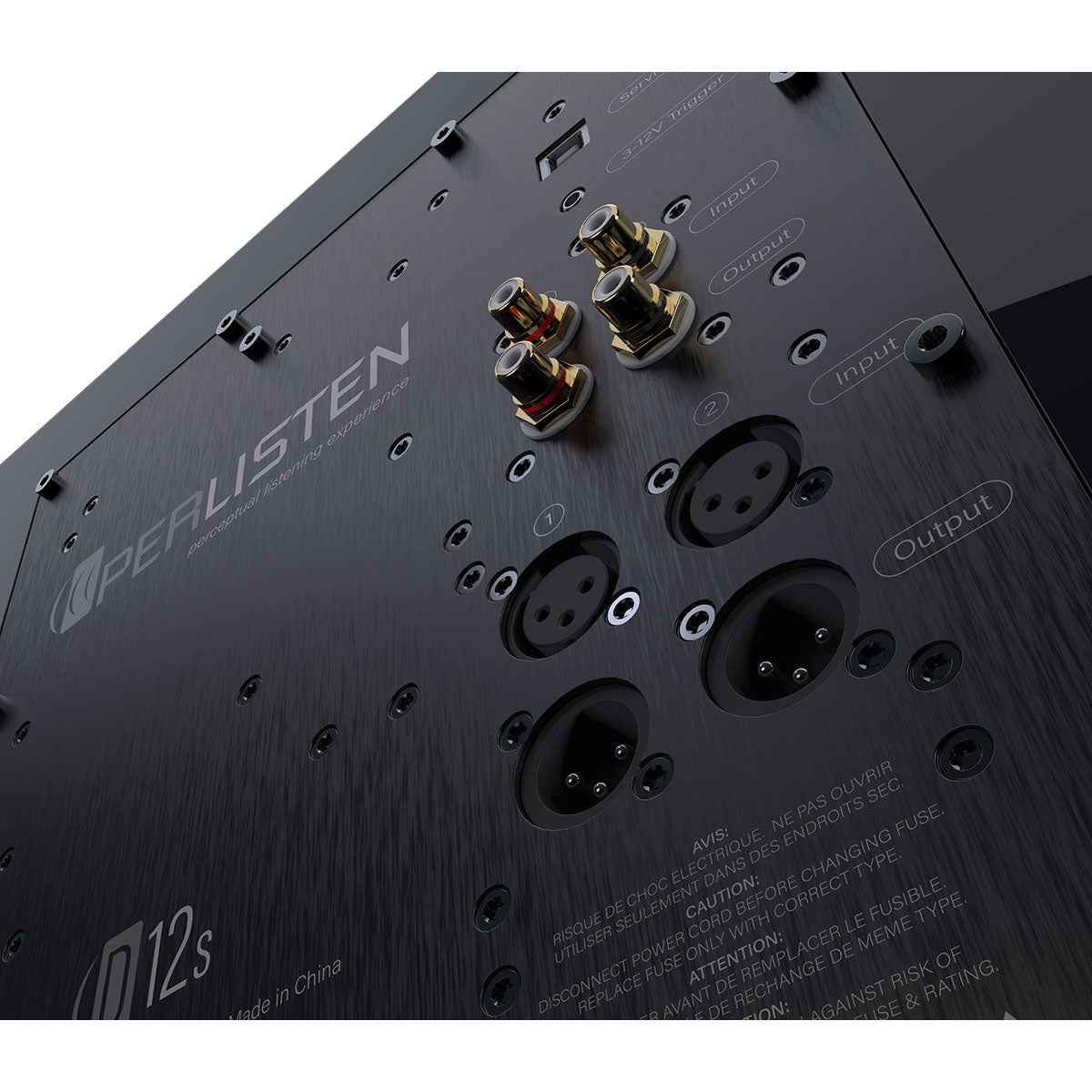

Inputs (2) Balanced XLR
(2) Unbalanced RCA
Outputs (2) Balanced XLR unbuffered
(2) Unbalanced RCA unbuffered
Parametric EQ 10-Band PEQ with 3 user presets
Low Pass filter Bypass, 30-160Hz, slope 6,12,18,24dB/oct
Phase Variable 0-270°
Polarity Normal / inverted
Configurable Auto turn-on and 12v Trigger XLR 1, XLR 1+2, RCA 1, RCA 1+2
Dimensions (HxWxD) 448 x 420 x 450mm
17.6 x 16.5 x 17.7"
Weight 41.0 kg (90.2 lbs.)
Certification THX Dominus
Available finishes Piano black
