Item #1090000068

Paradigm CI Pro P80-RX v2

8” Round High-Moisture In-Ceiling Speaker - Each
Item #1090000068

Paradigm CI Pro P80-RX v2

8” Round High-Moisture In-Ceiling Speaker - Each
$549.99
Special Order: Free Shipping!
Contact Us

Overview

The Custom Installer’s Smarter Choice. The CI PRO Series is manufactured in Canada and takes performance to the next level with patented technology, step-up components, and hallmark Paradigm sound quality.

Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens

AL-MAC is our unique blend of Aluminum, Magnesium, and Ceramic materials; each of which contribute to the end goal of greater accuracy and realism. Their special properties contribute to the final product which is not only strong and lightweight, but embodies a natural anti-resonance to ensure the tweeter doesn’t just sound good “on paper” but truly sounds incredible in the real world.

CARBON-X Cones

Paradigm’s exclusive CARBON-X Cone combines lightweight stiffness with high consistency for a greater degree of accuracy and smooth, uncolored frequency response. Drivers feature long excursion voice coil motors for greater power handling and reduced power compression.

Advanced Shock-Mount System

(baffle/basket isolation) Like the CI Elite Series, we’ve added the same great Advanced Shock-Mount™ System to mechanically decouple the basket from the chassis. This significantly reduces performance-robbing vibrations and resonances between the acoustic platform and the rest of the speaker. Without these resonances, all drivers are left free to deliver pure, unaltered sound with no audible distortion.

Patented† Active Ridge Technology (ART) surrounds

Made in-house and over-moulded directly onto each cone, achieve greater excursion for a 3dB gain in distortion-free output (50% greater) compared to drivers with standard surrounds. † US patents: D654,479S and 8,340,340B2.

High-Moisture Resistance

The P65-RX and P80-RX are designed specifically for high-moisture applications where conventional in-wall or in-ceiling speakers aren’t practical. Ideal for using in a bathroom or on a covered patio.

Advanced Features for a Solid and Secure Installation

  • FEA-Optimized Ultra Rigid Cast-Aluminum Baskets feature integrated heat sinks for higher power handling, for better bass, better dynamics, and less power compression.

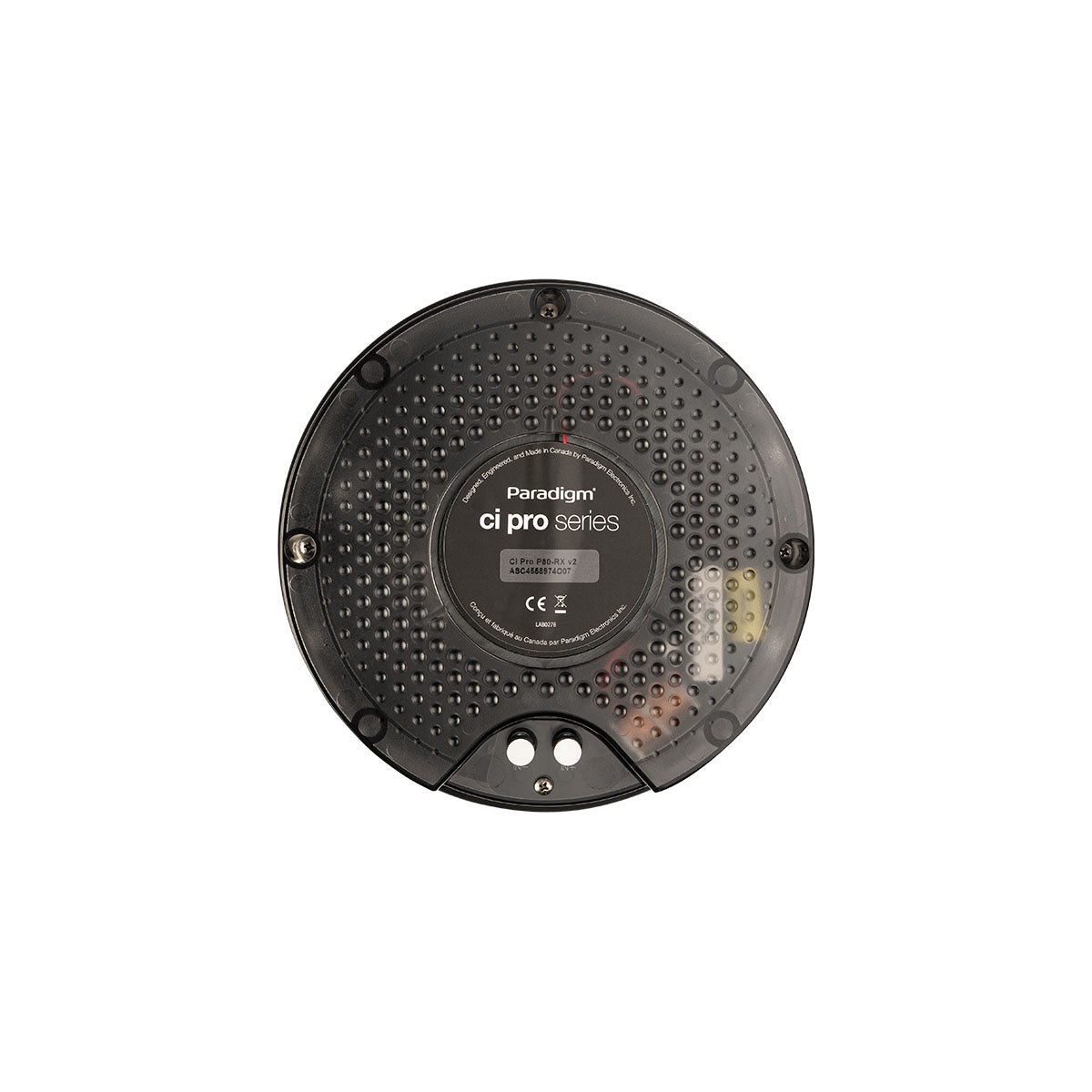

  • Rear Component Shielding protects internal parts from debris. The polycarbonate material creates an installation that will not warp. Flat covers also make it easy to lie speakers down during the installation process without tipping.
  • Reduced Edge Diffraction (RED™) Technology significantly reduces the adverse effects of diffraction while improving frequency response.
  • Pocketed screw holes help to hold the drill steady, making installation a snap.
  • Premium-grade components include high-power rated resistors, capacitors and heavy gauge wire inductors
  • Nickel-plated, spring loaded binding posts feature a larger wire hole to accept higher-gauge wire or banana plugs.

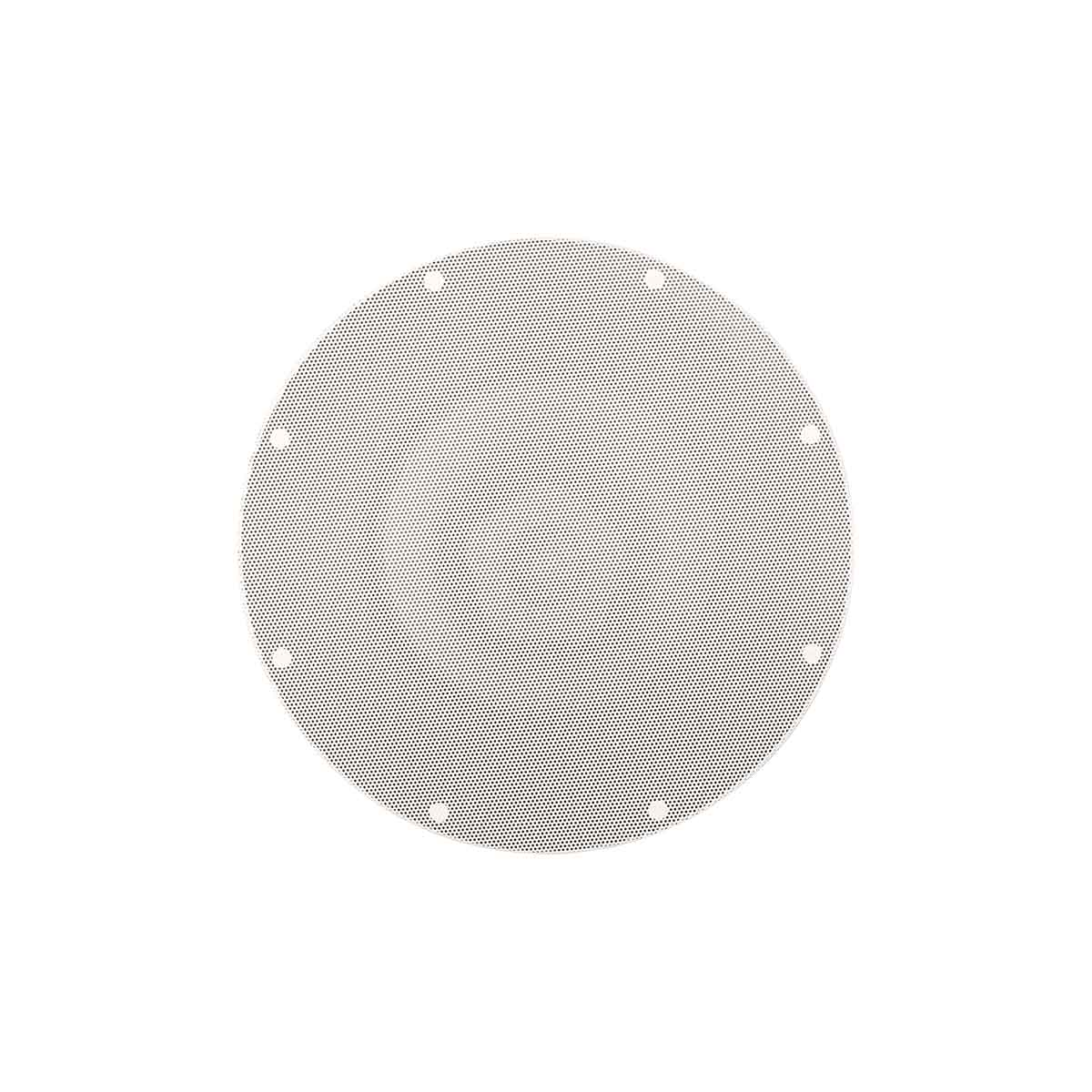

  • Bezel-Free Micro-Perf Grilles offer a clean aestetic from room-to-room.
  • Magnetically attached grilles: neodymium magnets hold grilles firmly in place.

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

Details & Specs

Model CI Pro P80-RX v2
Design 2-driver, 2-way in-ceiling, Advanced SHOCK-MOUNT System, Nylon Reinforced Baffle
Crossover 2nd-order electro-acoustic at 2.5 kHz
High Frequency Driver 1” (2.5cm) Aluminum Magnesium Ceramic (AL-MAC) Tweeter with Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens and Reduced Edge Diffraction (RED) Technology
Frequency Response (On-Axis) ±3 dB from 64 Hz - 22 kHz
Frequency Response (30° Off-Axis) ±3 dB from 64 Hz - 18 kHz
Mid/Bass Frequency Driver 8” (20.3cm) CARBON-X Cone with overmolded Active Ridge Technology (ART) surround, Advanced SHOCK-MOUNT System, FEA-Optimized Ultra Rigid Cast-Aluminium Baskets
Sensitivity Room / Anechoic 92 dB / 88 dB
Low Frequency Extension 39 Hz
Suitable Amplifier Power Range 15 - 110 W
Maximum Input Power 80 W
Impedance Compatible with 8 ohms
Finishes White, paintable grille, black speaker
Cut-out Dimensions 9-3/16” (23.4cm) dia.
Minimum Mounting Depth 3-7/8” (9.8cm) (Depth required is the distance between 1/2" drywall, or similar material.)
Dimensions (HxWxD including grille) 10-1/4” (diameter) x 4-1/2” (depth) (26.1cm x 11.4cm)
Weight 6.4 lbs (2.9 kg)
