Item #1090000084

Paradigm CI Home H65-IW v2

6.5" In-Wall Speaker - Each
Item #1090000084

Paradigm CI Home H65-IW v2

6.5" In-Wall Speaker - Each
$274.99
Special Order: Free Shipping!
Contact Us

Overview

Your “Go-To” Custom Install Speaker. The CI HOME series address the important considerations when selecting custom installation speakers: truly superior sound, trickle-down technologies, easy installation, and a bezel-free micro-perf grille with an incredibly discreet aesthetic.

Paradigm’s Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens

Protects the delicate tweeter dome. PPA technology acts as the Phase Plug, blocking out-of-phase frequencies for smoother, extended high frequencies with incredible detail and higher output. Ferro-fluid damped and cooled to ensure smooth high-frequency performance with amazing clarity across a wide listening area.

Dual-Directional Soundfield & 30°-Angled Guided Soundfield Models

Our Stereo/Mono (SM) systems offer rich pure-fidelity dual-channel L/R sound from a single speaker. The Dual Directional Soundfield provides wider-than-normal dispersion making the systems ideal in small rooms that are less suited to a stereo pair, or where a single speaker is preferred. Drivers in our 30°-Angled Guided Soundfield sit at a 30° angle from the ceiling, enabling you to adjust the direction of the sound, without compromising the curial sound dispersion pattern between drivers and baffle, thereby preserving sonic integrity. 30°-Angled Guided Soundfield systems are ideal as front speakers and as surround and/or rear speakers in a home theatre system.

Superior Mineral-filled Polypropylene Bass/ Midrange Cones

Oversized computer optimized ferrite magnets and high-power motor structures deliver detailed midrange performance with clean, extended bass.

Easy-access binding posts

High-quality binding posts feature a larger wire access hole and connect via banana plug, pin or bare wire.

Magnetically attached grilles

Neodymium magnets hold grilles firmly in place.

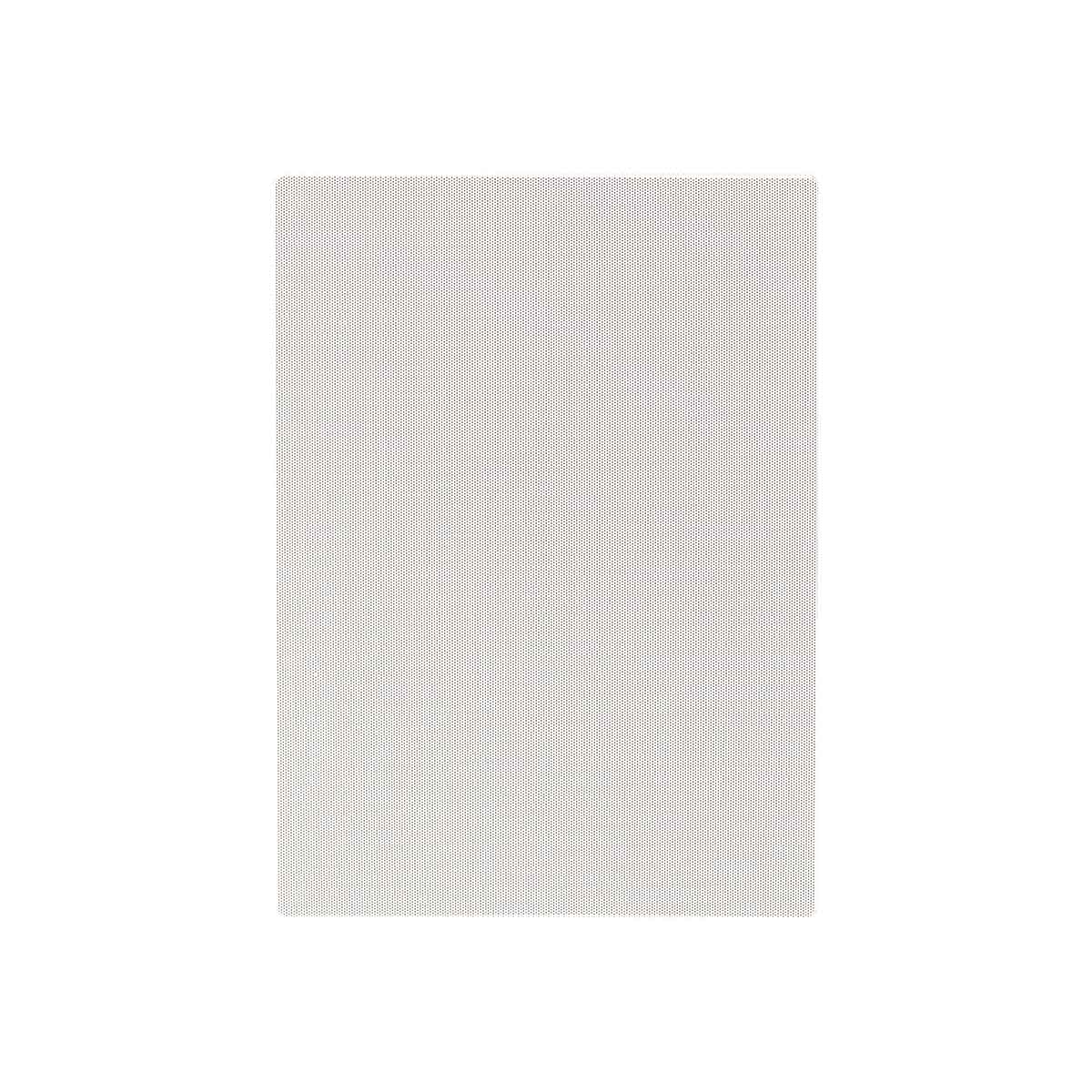

Bezel-Free, Micro-Perf Grilles

Allow you to mix and match CI Home, CI Pro and CI Elite Series for a seamless aesthetic from room-to-room!

Partnered with the NRC

Paradigm is partnered with Canada’s world-renowned NRC in ongoing research to reveal the true nature of sound and human hearing. Findings influence design and performance specs, resulting in a uniquely realistic listening experience, backed by sound science.

Other Features

  • Pocketed screw holes help to hold the drill steady, making installation a snap. In addition, exclusive TORX-guided clamps protect against screw cam out and stripping.
  • Rigid ABS clamps simplify and reduce installation time. ABS sandwiches and strengthens the area around the mounting hole, removing unwanted resonance and vibrations.
  • Available pre-construction brackets and square grille accessories provide the utmost installation flexibility.

Details & Specs

Model CI Home H65-IW v2
Design 2-driver, 2-way in-wall, ABS chassis & mounting clamps
Crossover 2nd-order electro-acoustic at 2.5 kHz
High Frequency Driver 3/4” (1.9cm) Exclusive Perforated Phase-Aligning (PPA) Tweeter Lens
Frequency Response (On-Axis) ±2 dB from 70 Hz - 20 kHz
Frequency Response (30° Off-Axis) ±2 dB from 70 Hz - 18 kHz
Mid/Bass Frequency Driver 6.5” (16.5cm) Mineral-filled Polypropylene Cone
Sensitivity Room / Anechoic 89 dB / 85 dB
Low Frequency Extension 55 Hz
Suitable Amplifier Power Range 15-90 W
Maximum Input Power 60 W
Impedance Compatible with 8 ohms
Finishes White, paintable grille, black speaker
Accessories (Not Included) PB-7X10N
Cut-out Dimensions 10-1/8” x 7-1/16” (25.7cm x 18cm)
Minimum Mounting Depth 2-3/4” (7cm) (Depth required is the distance between 1/2" drywall, or similar material.)
Dimensions (HxWxD including grille) 11-1/8” x 8-1/8” x 3-3/8” (28.3cm x 20.6cm x 8.7m)
Weight 3.5 lbs (1.6 kg)
