Item #Stylus 5s

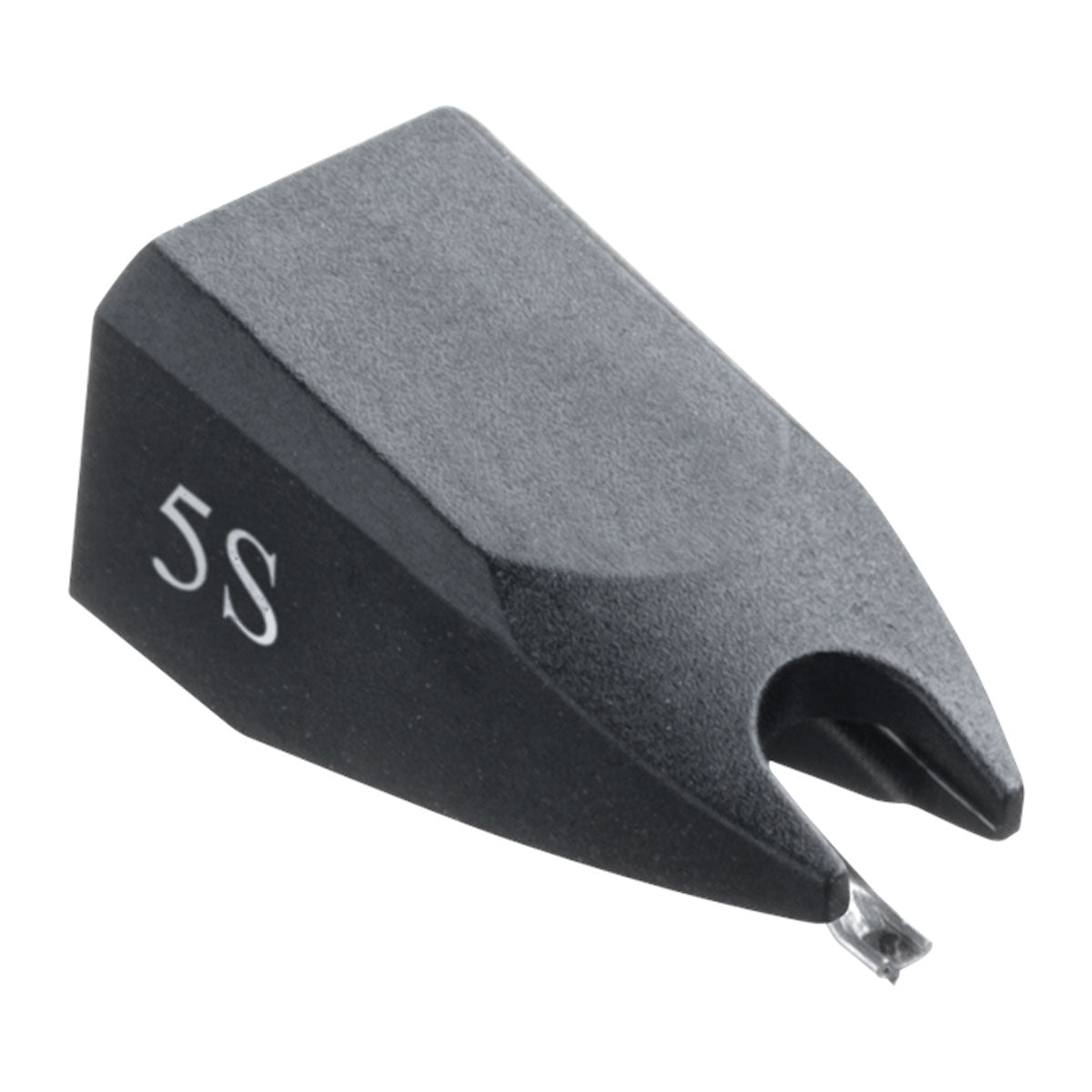

Ortofon OM-5S Replacement Stylus

For OM-5S Moving Magnet Turntable Phono Cartridge
Item #Stylus 5s

Ortofon OM-5S Replacement Stylus

For OM-5S Moving Magnet Turntable Phono Cartridge
$49.99
In Stock: Free 2-Day Shipping
Contact Us

Overview

For more than 50 years, Ortofon has been designing and manufacturing Moving Magnet cartridges. Along with our well-regarded Moving Coil cartridges, Moving Magnet models have established a good reputation among music lovers, and Hi-Fi enthusiasts the world over. The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E, and Super OM 5E.

The new Ortofon OM 5 series encompasses three basic cartridges: OM 5S, OM 5E, and Super OM 5E.

  • The series is the lowest-mass range of moving magnet cartridges offered by Ortofon.
  • The OM cartridges bodies have been designed to provide easy mounting and alignment on both top mount and bottom mount headshells.
  • The OM 5 Series provides excellent compatibility when used in an assortment of playback systems and with a wide variety of phono preamps.

Optimal fit and sound reproduction

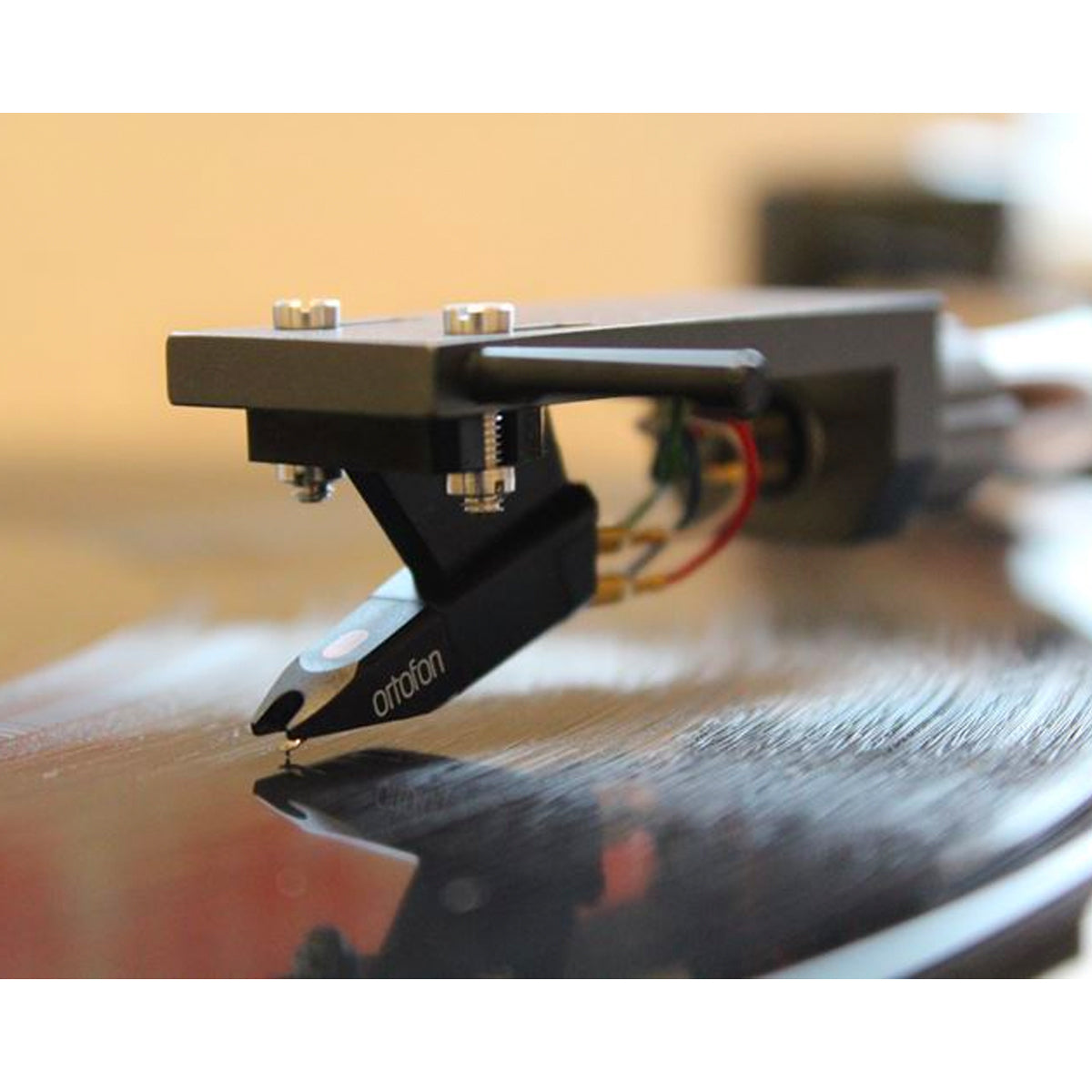

If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at any one of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.

If your tonearm is a standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.

OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.

Styli types and interchangeability
By adopting a wide range of replacement styli, the OM 5 Series can provide an optimum match for your home system, application, and budget.

In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus. Depending on your preference, styli for the OM 5 Series are easily interchanged and includes styli 3E, 5E, 10, 20, 30, 40 & 78 and D 25 M.

Details & Specs

  • Frequency range at -3dB - 20-20.000 Hz
  • Frequency response - 20-22.000 Hz
  • Tracking ability at 315Hz at recommended tracking force *) - 60 µm
  • Compliance, dynamic, lateral - 20 µm/mN
  • Stylus type - Spherical
  • Stylus tip radius - R 18 µm
  • Tracking force range - 1.5-2.0 g (15-20 mN)
  • Tracking force, recommended - 1.75 g (17,5 mN)
  • Tracking angle - 20°
  • Stylus color - Black
  • Recommended for OM 5S
