Item #MC Cadenza Black

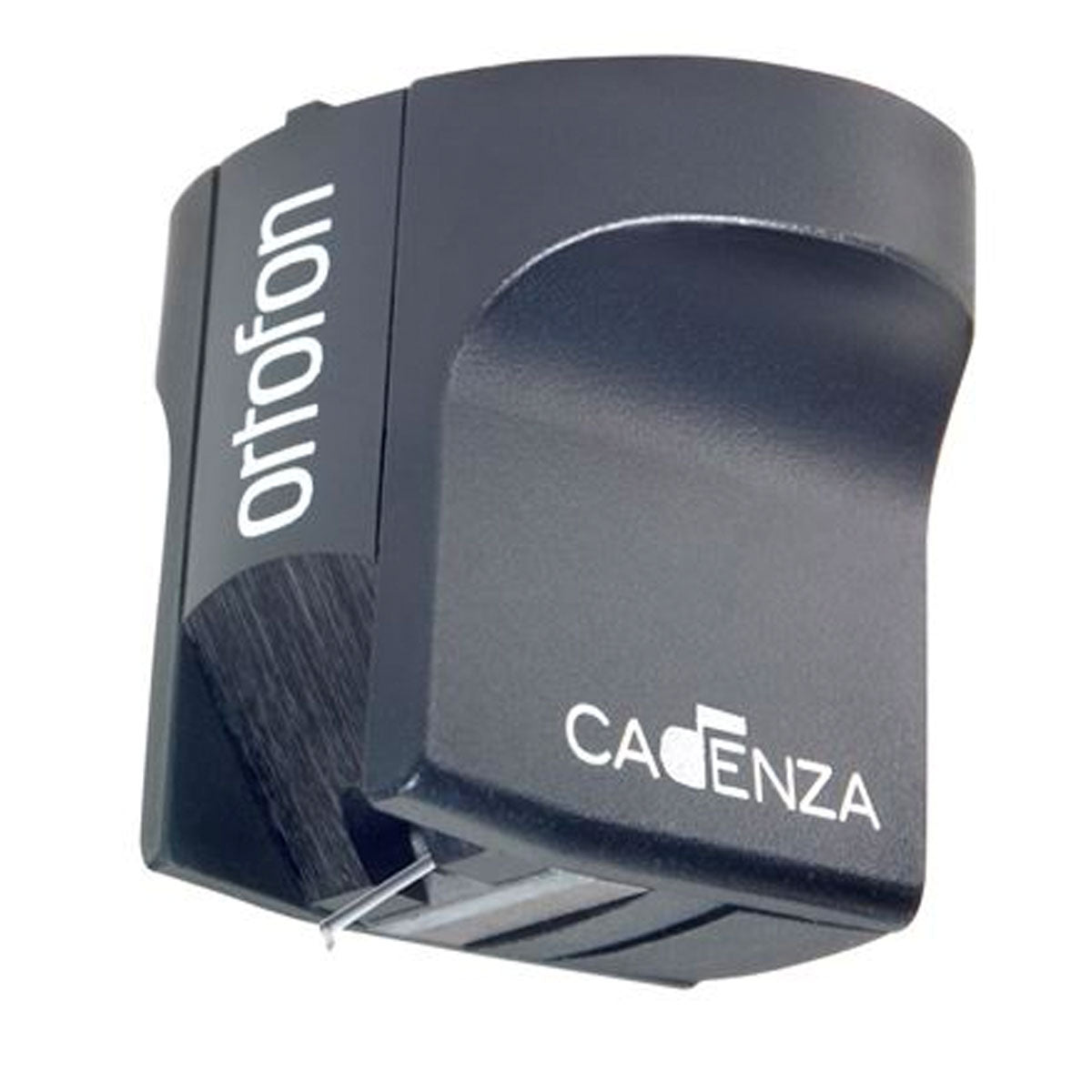

Ortofon Cadenza Black

Moving Coil Phono Cartridge
Item #MC Cadenza Black

Ortofon Cadenza Black

Moving Coil Phono Cartridge
$2,999.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

The Cadenza Black model is using a Nude Shibata stylus with a boron cantilever. The effective mass of the stylus/cantilever system is extremely low due to the use of a very thin boron rod. This material is extremely stiff and even more lightweight than aluminum. It also uses the WRD/Wide Range Damping-system applied for MC Windfeld, MC A90, MC Anna, Xpression and MC A95 cartridges, controlling the high and low frequency damping separately. The coil wire is the famous Ortofon Aucurum wire, which is a gold plated 6NX copper wire. Cadenza Black is high performing on areas like detail, consistency and sound staging.

The Cadenza series
Ortofon constantly looks for new technology to be used in their products and push the performance of existing technology. They assure the highest level of performance and quality. The Kontrapunkt models and MC Jubilee became market standards and are among their most popular cartridges. Nevertheless, Ortofon decided to develop a new cartridge series that is even more ambitious.

By carefully implementing cobalt-iron pole pieces, new improved winding process on the armature, using extruded aluminum housing in the models as well as other changes, we have been able to reveal new possibilities in performing the analog information. It was also decided to make a more complete range of cartridges, which meant an introduction of a moving coil Cadenza Mono model to support their customers, who have an extended interest in micro groove mono records.

Each of the five Cadenza Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations:

  • MC Cadenza Mono is a true mono cartridge for playing mono microgroove vinyl records
  • MC Cadenza Red delivers open, dynamic sound with a touch of warmth
  • MC Cadenza Blue adds more dynamics and resolution, sounds more open and reproduces more details
  • MC Cadenza Bronze adds even more details and resolution but in a very evenhanded way that pays respect to all elements
  • MC Cadenza Black is the best of everything, true to the groove with resolution and accurate insight into each recording

Details & Specs

  • Output voltage at 1000 Hz, 5cm/sec. - 0,33 mV
  • Channel balance at 1 kHz - < 0,8 dB
  • Channel separation at 1 kHz - > 27 dB
  • Channel separation at 15 kHz - > 20 dB
  • Frequency range at - 3dB - 20 - 60.000 Hz
  • Frequency response 20 kHz - 20 kHz - +1,5/0
  • Tracking ability at 315Hz at recommended tracking force *) - 90 µm
  • Compliance, dynamic, lateral - 16 µm/mN
  • Stylus type - Nude Shibata on Boron cantilever
  • Stylus tip radius - r/R 6/50 µm
  • Tracking force range - 2,0-2,5 g (20-25 mN)
  • Tracking force, recommended - 2,3 g (23 mN)
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 5 Ohm
  • Recommended load impedance - > 10 Ohm
  • Cartridge body material - Stainless steel Aluminium
  • Cartridge color - Black/Black
  • Cartridge weight - 10.7 gram
