Ortofon LW-6N

Headshell Leadwires
Item #LW 6N

Ortofon LW-6N

Headshell Leadwires
$65.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

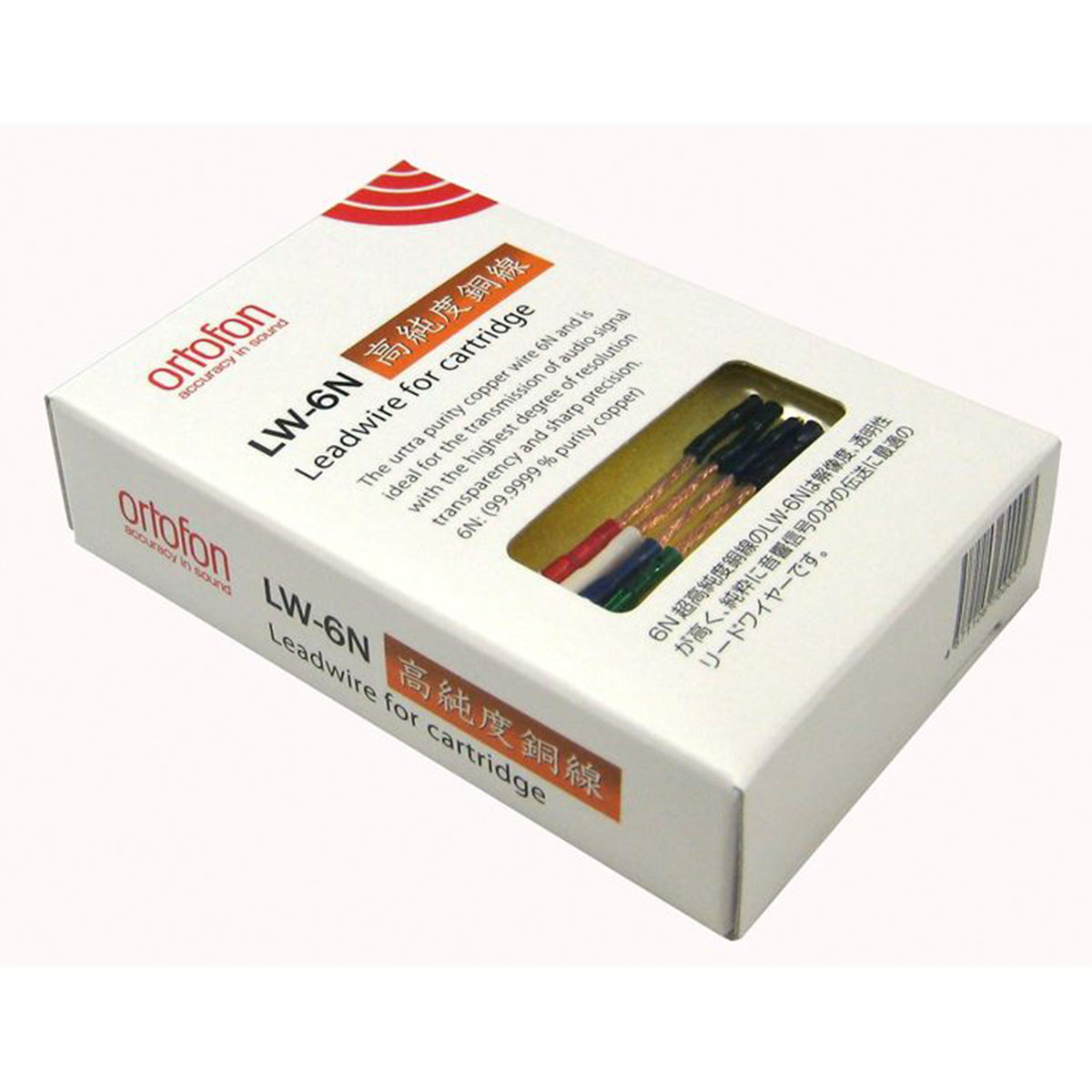

LW-6N is the 6N lead wire made of Ultra High Purity Copper wire. The configuration is very sofisticated with different diameter of wire strand, the inside strand is right windings, the outside strand is left winding. The end of wire is fastened by gold plated terminal. The tight winding against each other makes the clear transmission of music signals. Clear and crisp tonality.

Mounting instructions
All Ortofon cartridges have a color coding of the terminals, indicating red and green for right channel respectively hot and ground terminal. White and blue for left channel respectively hot and ground terminal. Green terminal will always be used for grounding the cartridge housings or motor-system, whenever connected inside the cartridge.

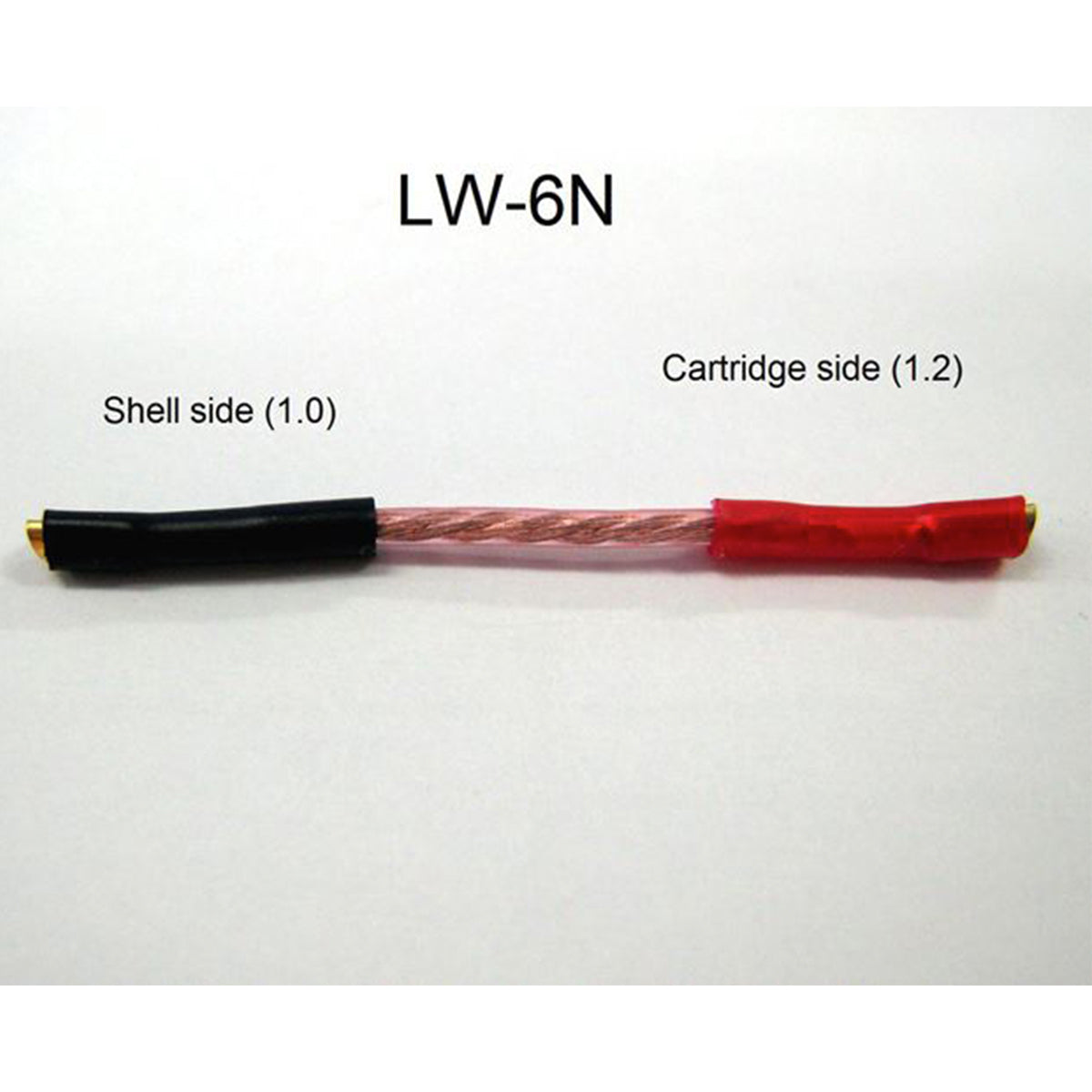

We recommend connecting lead wires to the cartridge and headshell before mounting the cartridge on the headshell. Please remember the correct orientation of the leads. Ortofon SH-4 headshell and Ortofon cartridges' terminal PINs diameter is 1.2 mm, whilst Ortofon headshells' PINs diameter is normally only 1.0 mm.

Using LW 6N with the SH-4 headshell requires the LW 6N shell side clamp to be widened a little bit to fit on the SH-4 PINs. If shifted around, it may cause over-tightening of the assembly. Being aware of this detail, you will avoid the risk of having the cartridge's terminal PINs fall out.

Details & Specs

  • High purity Cu wire 6NCu: 7 x φ 0.18mm (Right strands)
  • High purity Cu wire 6NCu: 17 x φ 0.10mm (Left strands)
