NAD C 338

Hybrid Digital DAC Amplifier
Item #C 338

NAD C 338

Hybrid Digital DAC Amplifier
$749.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

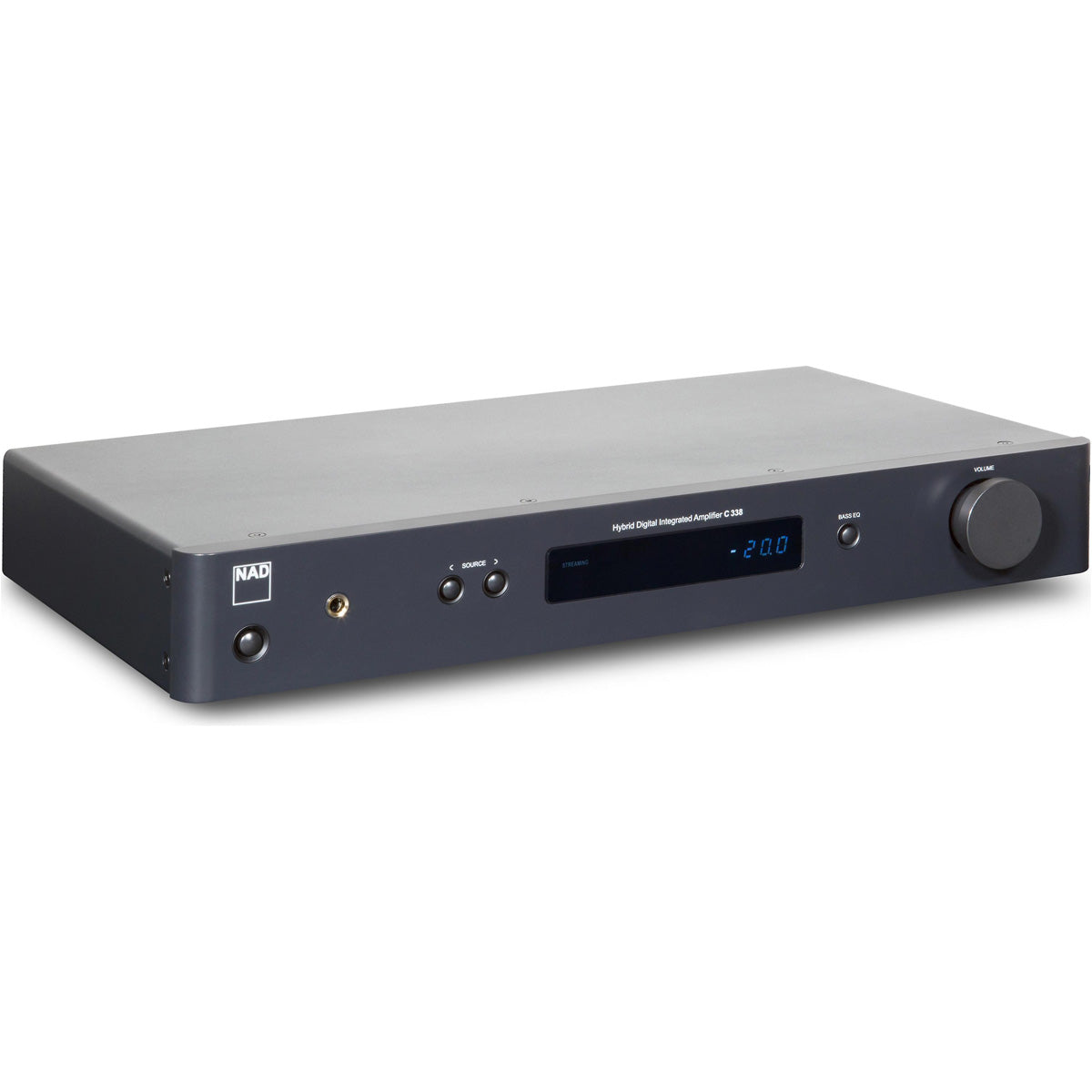

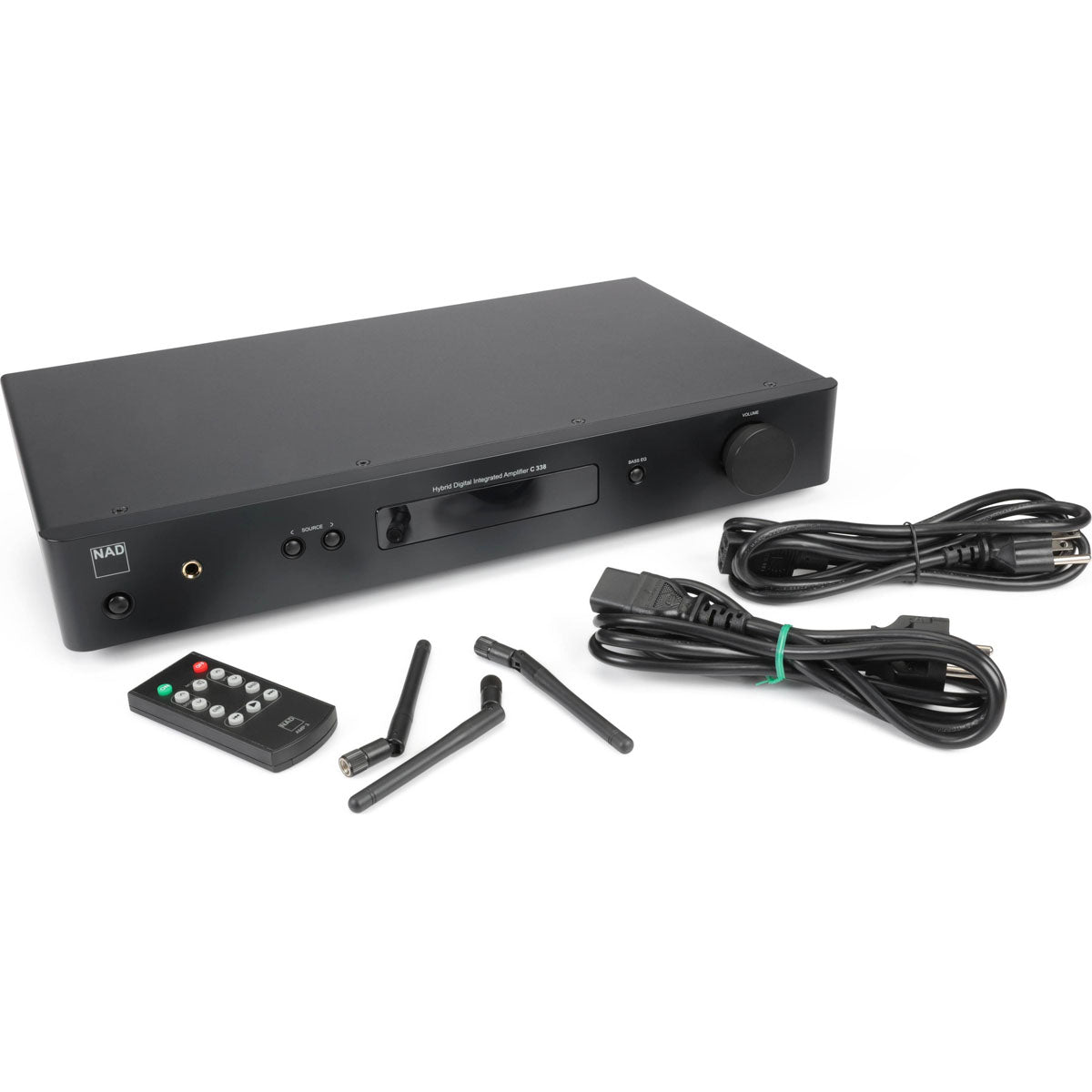

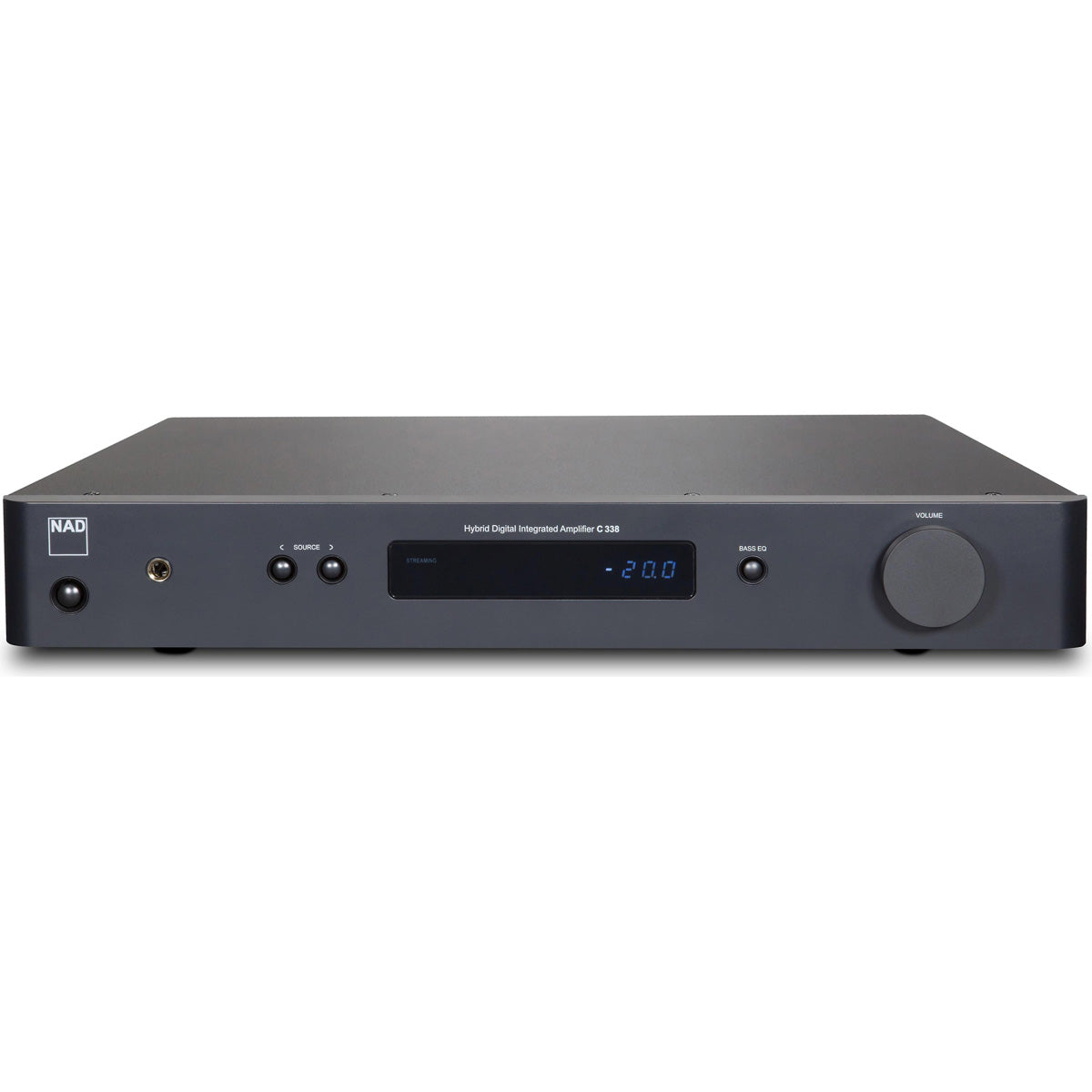

The C 338 adds big sound to your favorite music sources and brings incredible flexibility to any stereo system. With Spotify Connect, Bluetooth, and the first-ever hi-fi amplifier to have built-in Chromecast, the C 338 allows you to stream and cast music directly from any music streaming app, letting you enjoy your music wirelessly. Add a turntable using the phono input and experience the warmth of vinyl collections with the room-filling sound of NAD’s HybridDigital amp technology.

Getting the Basics Right

Built with NAD’s renowned music-first approach to audio architecture and amp design, the C 338 is equipped with the most advanced components commonly found in NAD’s class-leading line of amplifiers. Always starting with the details you can hear and advancing from there, NAD develops low-noise circuitry with the precision and stability to deliver incredible, near-zero distortion sound for the most difficult speakers.

HybridDigital Amp Technology

The search for a high-performance Class D solution led NAD to HybridDigital, an innovative amplifier technology that uses a variable modulation frequency to bring out the life-like qualities of music, while reducing distortion under every operating condition. This highly optimized design gives phenomenal performance to the C 338 amplifier, both measured and subjective.

Efficient Class D Power

NAD has worked tirelessly to create the best performing Class D amplifiers that are energy efficient and produce beautiful sound—not heat—regardless of basic design principles. Using advanced measurements and data, NAD developed the C 338’s highly efficient power supply with a customized Hypex UCD output stage to pump out 50 watts continuously and over 200 watts instantaneously to meet the demands of the most dynamic music. This new design is very linear over a wide bandwidth and provides consistent, noise-free performance for the amplifying stages with near perfect regulation of voltage.

Always Ready for Streaming

The C 338 has Chromecast built-in so you can cast music, tunes, podcasts, and playlists from your favorite apps on your phone, tablet or laptop to your stereo system. Spotify Connect lets you discover millions of songs and stream them directly to your C 338 using the Spotify app for a rich, wireless music experience. With the added flexibility of Bluetooth, your music streaming possibilities are truly limitless with the C 338.

Built-in Phono Stage for Vinyl Listening

Using a MM phono stage and an innovative low-noise circuit path, the C 338 can reproduce the warmth of LPs with accurate RIAA equalization and control the infrasonic noise that is in all recordings, without ever affecting the bass response.

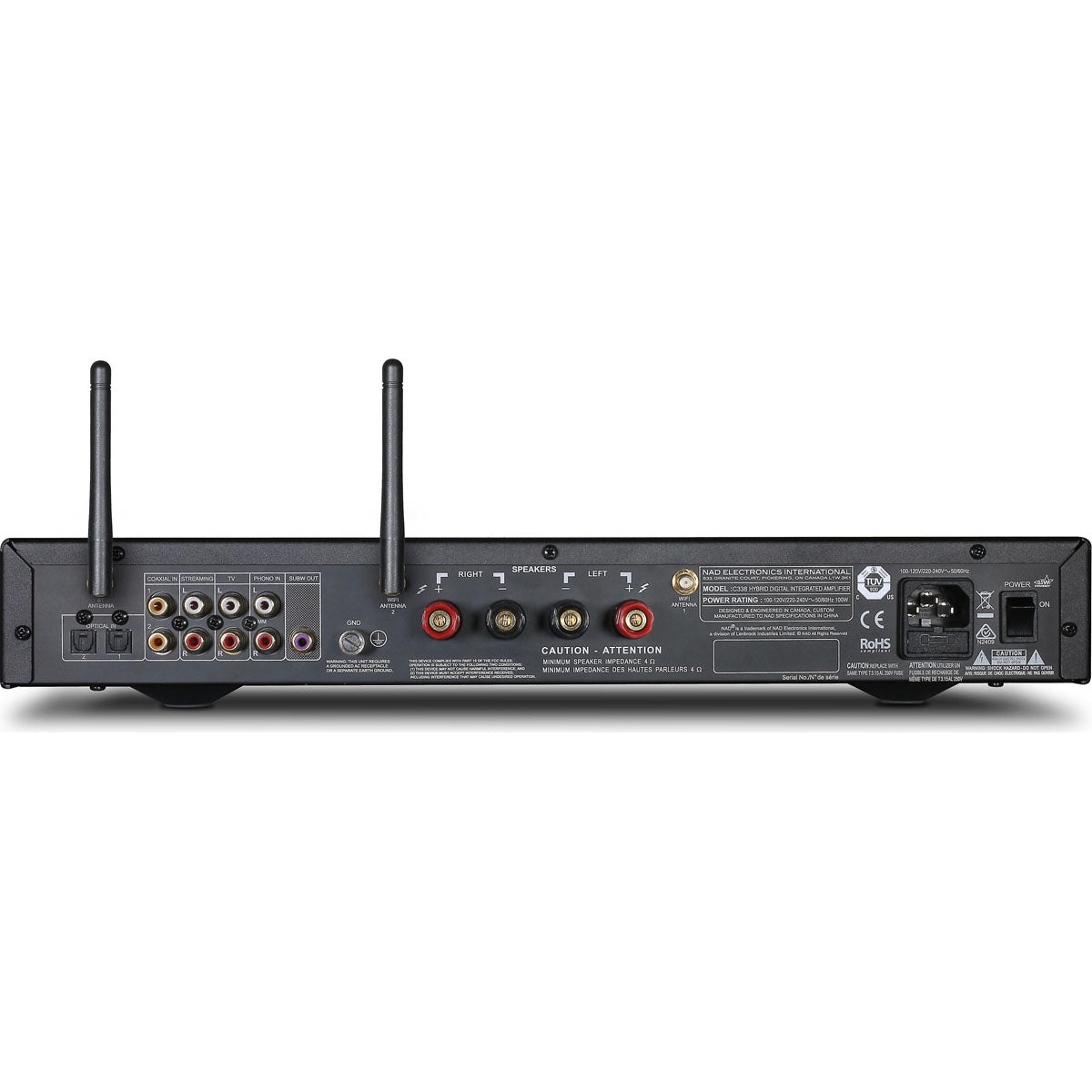

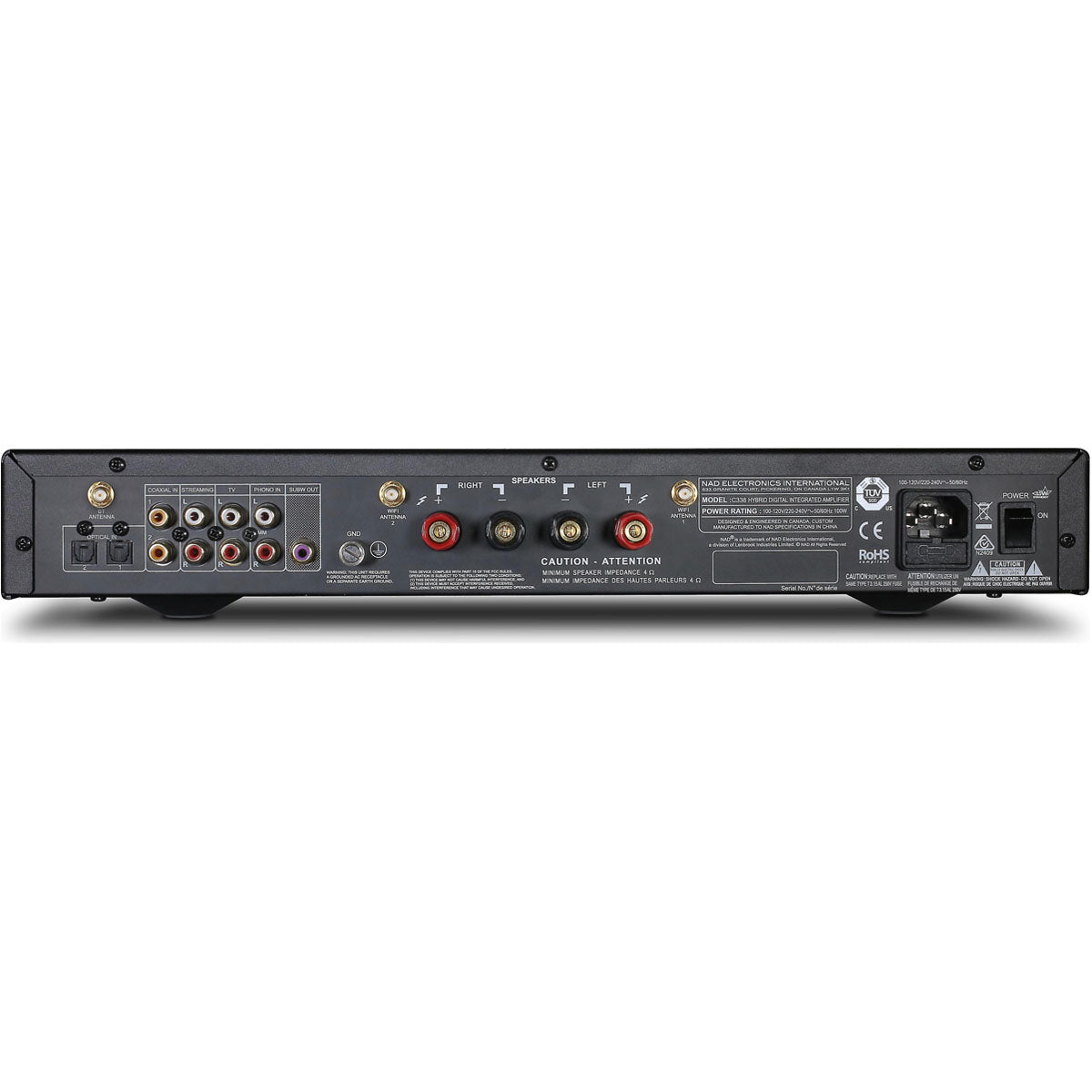

Flexible Connectivity

With a wide array of connections, including a separate headphone amplifier that can drive high-impedance studio monitor headphones, the C 338 is ready for any type of listening. Line inputs can accommodate all kinds of analog source components, offering ideal input impedance with linear ultra-low noise buffer amplifiers to preserve the musicality of recordings. Also connect a subwoofer with low impedance line outputs and extend the versatility of this budget-friendly, do-it-all amplifier.

NAD Remote

The NAD Remote transforms your smartphone or tablet into a powerful controller for the C 338. Reinventing the traditional NAD remote control with an intuitive user interface, and the ability to wirelessly control your amp, the NAD Remote can easily control and adjust functions like power, volume, source selection and device settings with a simple tap. The app is available as a free download from the Apple App Store or Google Play Store.

Key Features

  • 50W x 2 Continuous Power into 8 or 4 Ohms
  • 90W / 150W / 200W IHF Dynamic Power into 8 / 4 / 2 Ohms
  • First Hi-Fi amplifier to feature Chromecast built-in
  • Integrated Bluetooth for added music streaming flexibility
  • Built-in Phono Preamp for Turntables
  • Stereo Line, Optical Digital and Coax Digital inputs
  • NAD Remote App support for tablet and smartphone
  • Dedicated Headphone Amplifier
  • Subwoofer Output

Details & Specs

Model C 338
Preamplifier Section
Line In, Subwoofer Out
THD (20Hz-20kHz) <0.005% at 2V out
Signal/Noise Ratio >106dB (IHF; A-weighted, 500mV out, unity gain)
Input Impedance (R and C) 56 kilohm + 100pF
Maximum Input Signal >4.5Vrms (ref. 0.1% THD)
Output Impedance Source Z + 200 Ohm
Input Sensitivity 50mV (100Hz ref. 500mV out, Volume maximum
Maximum voltage output – IHF load >4.5V (ref. 0.1% THD)
Line In, Headphone Out
THD (20Hz-20kHz) <0.005% at 1V out
Signal/Noise Ratio >105dB (IHF; A-weighted, 32 Ohm loads, ref. 2V out, unity gain)
Frequency Response ±0.3dB (20Hz-20kHz)
Channel Separation >56dB at 1kHz
Output Impedance 0.5 Ohm
General Specifications
Line In, Speaker Out
Continuous Output Power into 4 Ohms and 8 Ohms (Stereo) >50W (at rated THD, 20-20kHz, both channels driven)
IHF Dynamic Power 8 Ohm 80W
4 Ohm 150W
2 Ohm 210W
THD (20Hz-20kHz) <0.03% (250mW to 50W, 8 Ohm and 4 Ohm
Signal/Noise Ratio >98dB (A-weighted, 500mV input ref. 1W out in 8 Ohm)
Clipping power >60W (at 1kHz 0.1% THD)
Peak output current >18A (in 1 Ohm, 1 ms)
Damping Factor >300 (ref. 8 Ohm, 20Hz to 6.5kHz)
Frequency Response ±0.3 dB (20Hz-20kHz)
Channel Separation 1kHz >75dB
10kHz >65dB
Input Sensitivity (For 50W in 8 Ohm) Line In: 380mV
Digital In: 18% FS
Sample Rate Up to 24 bit/192kHz
Phono In, Speaker Out
THD (20Hz-20kHz) (Stereo) <0.3% at 50W out
Signal/Noise Ratio >82dB (200 Ohm source, A-weighted, ref. 500mV out)
>76dB (MM cartridge source, IHF A-weighted, ref. 500mV out)
Input Sensitivity 4.1mV (ref. 50W 1kHz 4 Ohm out, Volume maximum)
Frequency Response ±0.3dB (20Hz-20kHz)
Input Impedance 47 kilohm + 100pF
Maximum Input Signal >80mVrms (ref. 0.1% THD)
Power Consumption
at ECO Standby mode 0.4 Watts
at Control Standby mode 1.8 Watts
OFF mode (Power switched OFF) 0 Watts
Weight & Dimensions
Gross Dimensions (WxHxD) 17-1/8 x 2-13/16 x 11-1/4 in
435 x 70 x 285 mm
Net Weight 10.7 lb
4.85 kg
Shipping Weight 12.9 lb
5.85 kg
