Item #WSS130

Monitor Audio WSS130

Super Slim In-Wall Loudspeaker
Item #WSS130

Monitor Audio WSS130

Super Slim In-Wall Loudspeaker
$435.00
In Stock: Free 2-Day Shipping
Contact Us

Overview

Marking the entry point into the Super Slim in-wall speaker range, the WSS130 is perfectly suited to multi-room audio and home cinema installations. A 25 mm Gold Dome tweeter augments MMP II cone drivers, enabling a smooth overall sonic character.

The WSS line offers a refreshingly simple ‘good, better, best’ menu. The Super Slim WSS speakers offer unique flexibility, performance, and elegant aesthetics to achieve perfect results for the most technical demanding applications.

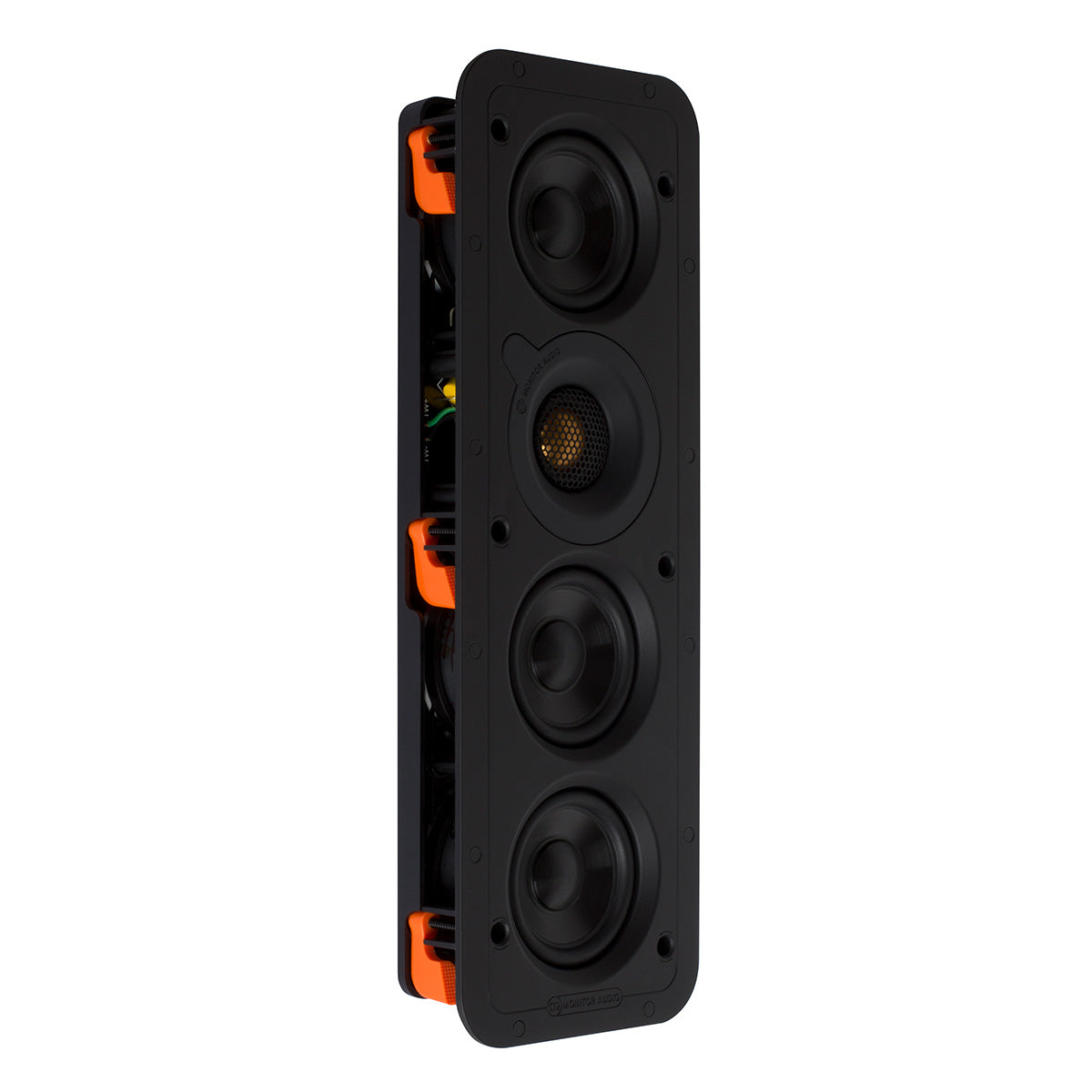

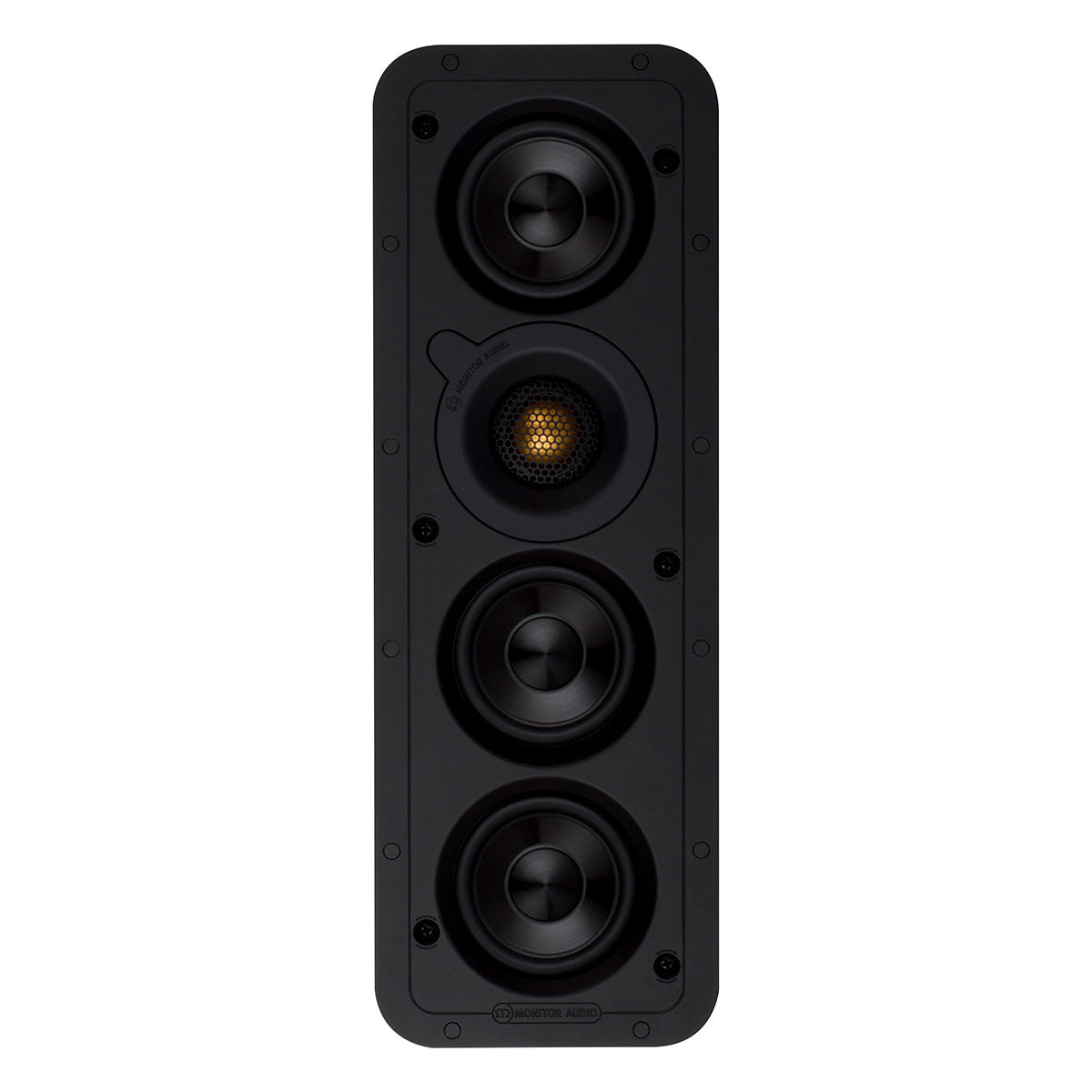

The WSS130 is the entry-point, and is ideal for general home theater and music applications. Featuring three bass/mid-range drivers plus one tweeter, the speakers have been smartly designed to enable the performance of a significantly larger monitor. The three-driver layout is key here, as it helps keep the frontal profile looking slender, as well as deliver a depth of a mere 50 mm. The WSS130 features MMP II cone drivers, augmented by a 25 mm Gold Dome tweeter. This MMP cone technology allows for a simple crossover design and smooth overall sound character.

The WSS130 includes Monitor Audio’s patented ‘tri-grip’ mounting system meaning you get a robust fixing. This system has been proven over the last decade in the CT and WT ranges, so you know it works brilliantly. All three models share the same footprint and pre-construction bracket, providing simplicity as well as the option of specifying a higher-performance model in the range before completion.

Key Features

  • Super-Slim depth 50 mm (2") – designed to fit in 2" stud walls or where space is restricted
  • Designed for portrait or landscape installation – fits between standard 14" stud bays
  • Three, 3" bass/mid-range drivers featuring incremental technology and performance benefits – MMP II, C-CAM, and dished C-CAM cones
  • 25 mm C-CAM Gold Dome tweeter
  • High-quality crossover components – Selected and voiced for amazing sonic performance

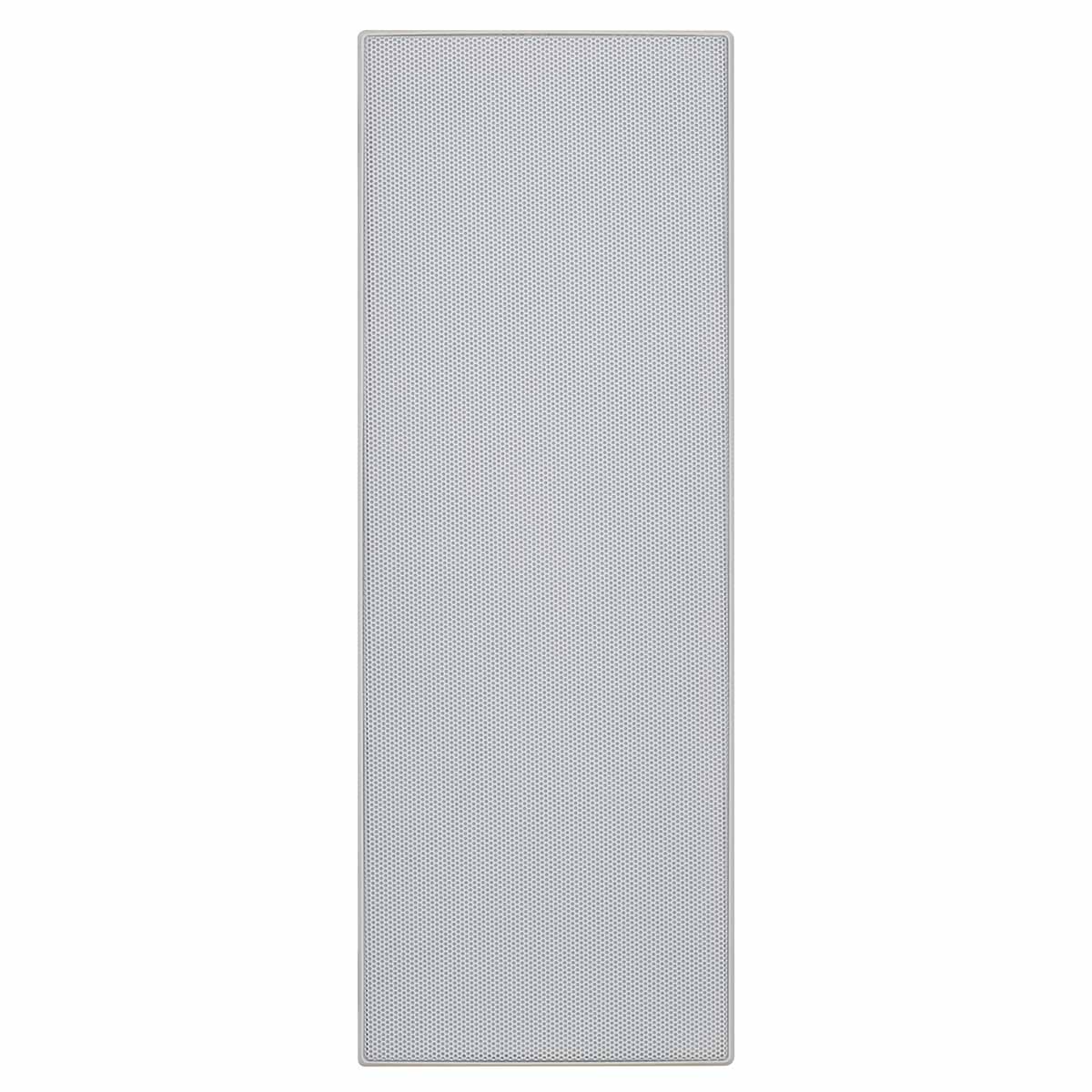

  • Magnetically attached ‘trim-less’ grille – discreet, reliable, and easy servicing

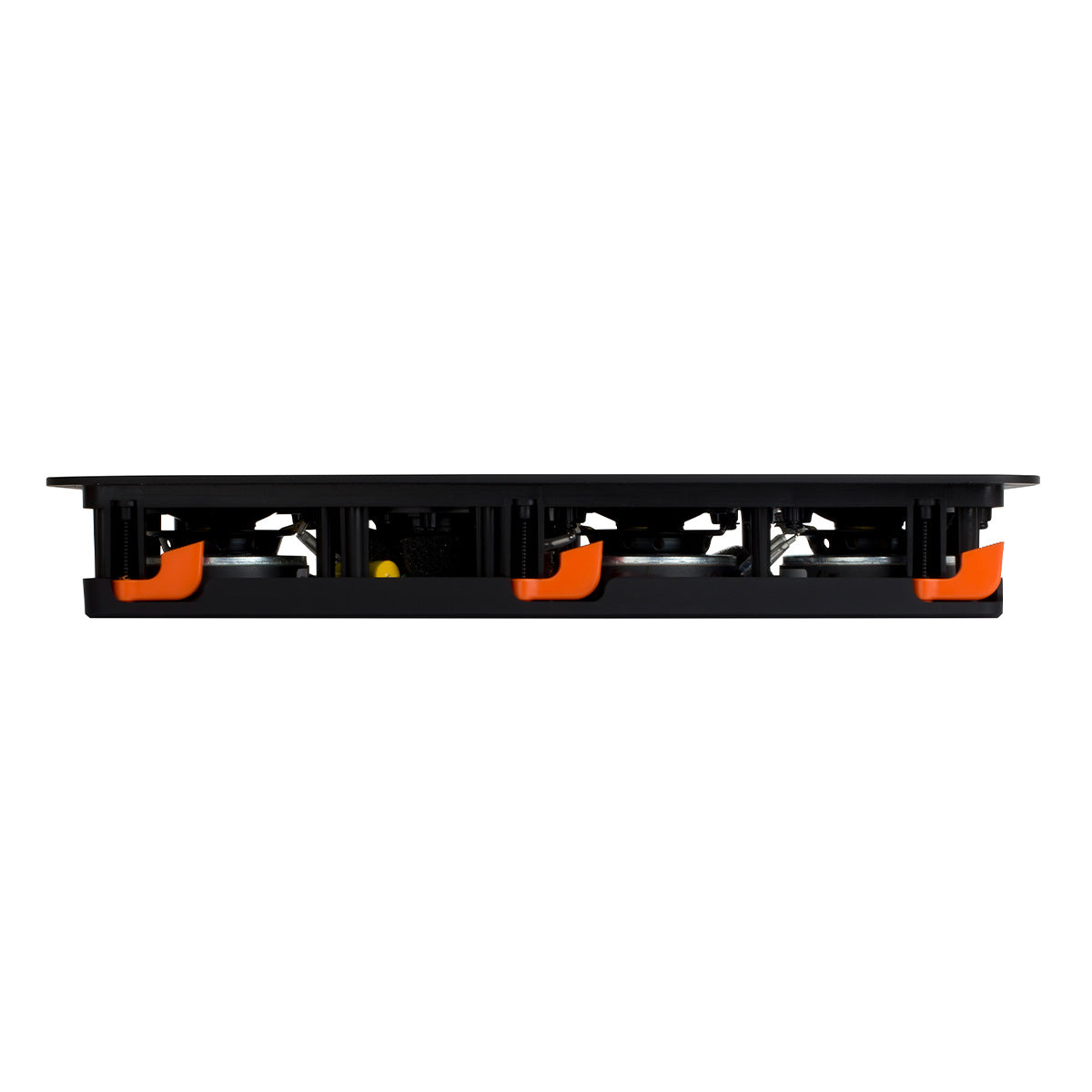

  • Tri-Grip Dog leg fixings – reliable, robust, and quick to install
  • Gold plated sprung push terminals – easy to connect and reliable
  • Paintable grille – to complement and blend with décor
  • WB3 (Dark Blue) pre-construction bracket for easier system design and planning (sold separately)

Details & Specs

Model WSS130
Drive Unit Complement 1 x 25 mm (1") C-CAM Gold Dome tweeter
3 x 3" MMP II cone bass-mid drivers
Frequency Response (-6 dB) 75 Hz – 30 kHz
Sensitivity (1W@1M) 87dB
Nominal Impedance 8 Ω
Maximum SPL 105.6 dBA
Power Handling (RMS) 60 W – Full range (100 W with crossover set to 100 Hz @ 12 dB/Octave)
Recommended Amplifier Requirements 10 – 100 W
Crossover Recommendation using AVR/Processor 100 Hz at a minimum of 12 dB/Octave (24 dB/Octave optimum)
Overall Dimensions 15 x 5-1/2"
Overall Depth (Including Grille) 2-1/8"
Cut-Out Dimensions 13-1/2 x 4"
Mounting Depth 2"
Connection Gold Plated Sprung push terminals – For bare wire connection up to 3 mm
Fixing Type 6 position Tri-Grip dog leg fixings
Construction Material Mineral filled ABS Plastic, RoHS2 Compliant
Painted steel grill
Weight 3 lb 2 oz
Pre-Construction Bracket WB3 Pre-Construction Bracket (Dark Blue)
