Item #CS180R

Monitor Audio Slim 180 - Round Grille

In-Ceiling & In-Wall Speaker with Round Grille
Item #CS180R

Monitor Audio Slim 180 - Round Grille

In-Ceiling & In-Wall Speaker with Round Grille
$350.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

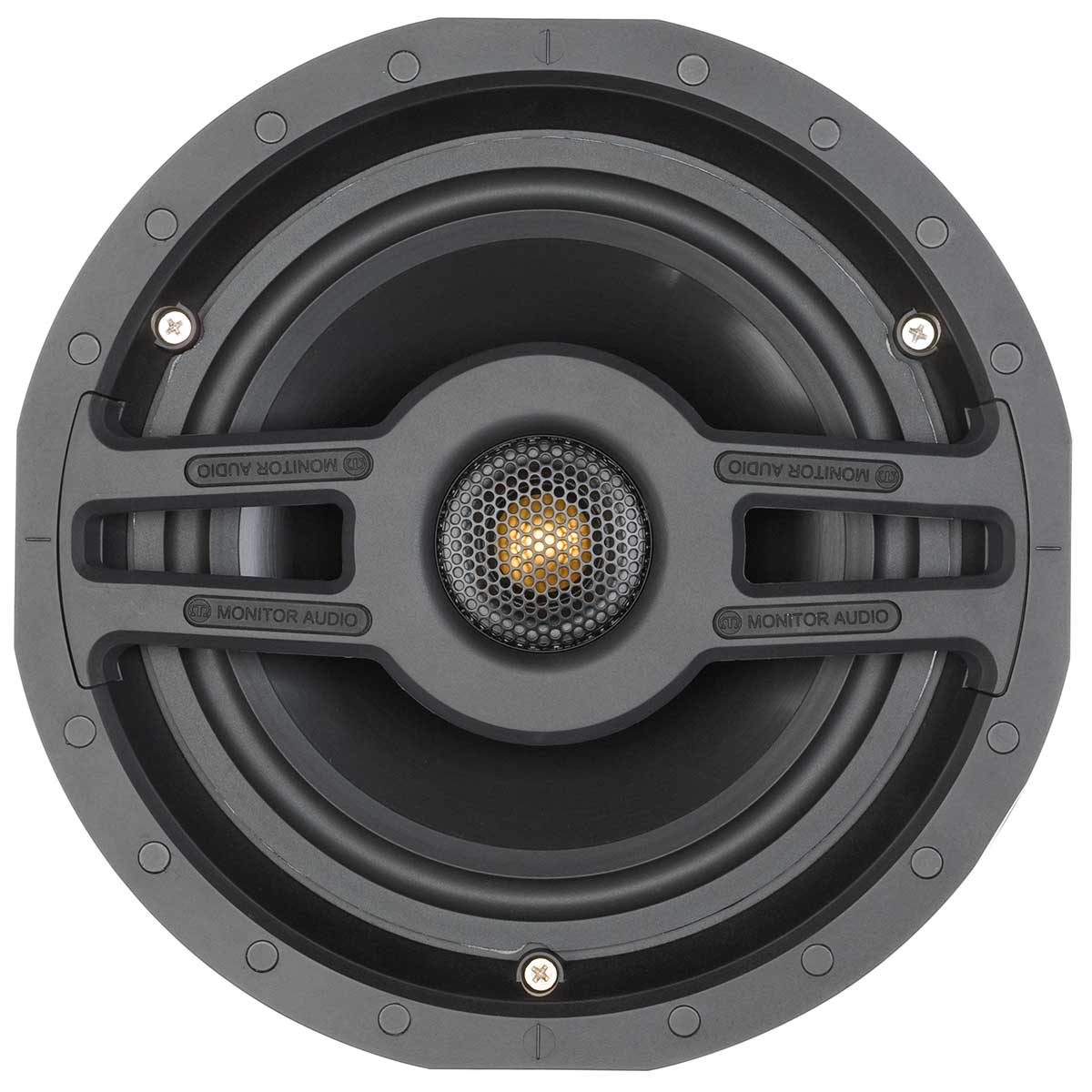

The CS180 in-ceiling model marries Monitor Audio's 8-inch MMP II driver with the CWT family’s pivoting C-CAM Gold Dome tweeter.

Offering superlative dynamic delivery in a super-discreet format, the CS180 will deliver fabulous full-range sound with stealthy versatility.

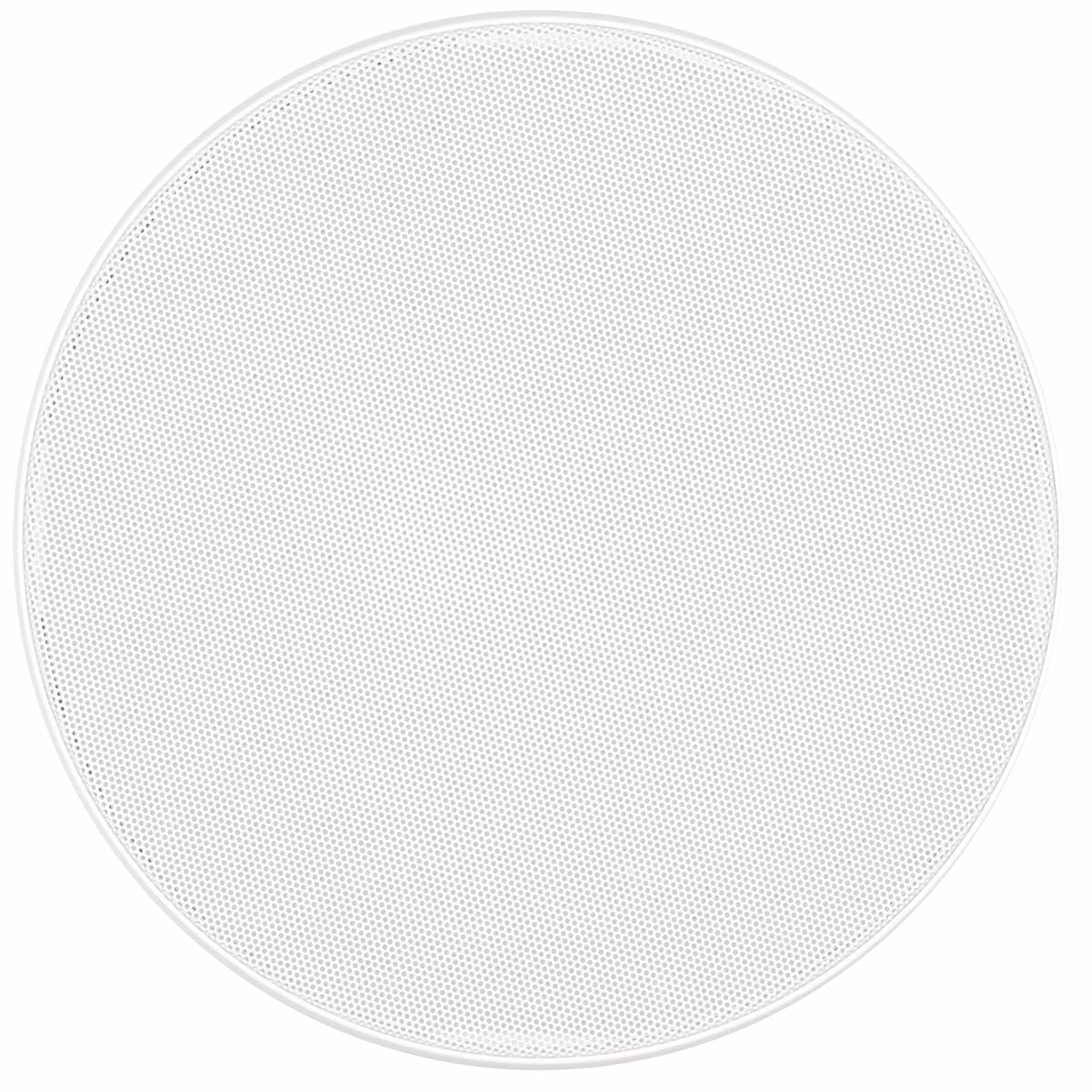

Please specify a round or square grille option when ordering.

Details & Specs

  • Frequency Response - 48 Hz – 30 kHz
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 90 dB
  • Maximum SPL - 110.6 dBA
  • Power Handling (RMS) - 120 W
  • Recommended Amplifier Requirements - 30 – 120 W
  • Drive Unit Complement -
    • 1 x 8" MMP II cone bass driver
    • 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
  • Acoustic Configuration - 2-way
  • Overall Dimensions (Including Grille (H x W)) -
    • Round: 251.7 mm (9 15/16")
    • Square: 246.7 x 246.7 mm (9 11/16 x 9 11/16")
  • Mounting Depth - 99.4 mm (3 15/16”)
  • Cut-Out Hole Diameter - 213 mm (8 3/8”)
  • Fixing Type - 3 position Tri-Grip dog fixings
  • Connection - Gold plated ‘push’ type terminals
  • Grille Attachment - Magnetic Construction
  • Material - Mineral filled ABS, RoHS compliant
  • Weight - 2.72 kg (6 lb)
  • Pre-Construction Bracket - CB6 Pre-Construction Bracket (Purple)
  • Back Box - CCBOX-R | CMBOX-R
