Item #CS160S

Monitor Audio Slim 160 - Square Grille

In-Ceiling & In-Wall Speaker with Square Grille
Item #CS160S

Monitor Audio Slim 160 - Square Grille

In-Ceiling & In-Wall Speaker with Square Grille
$260.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

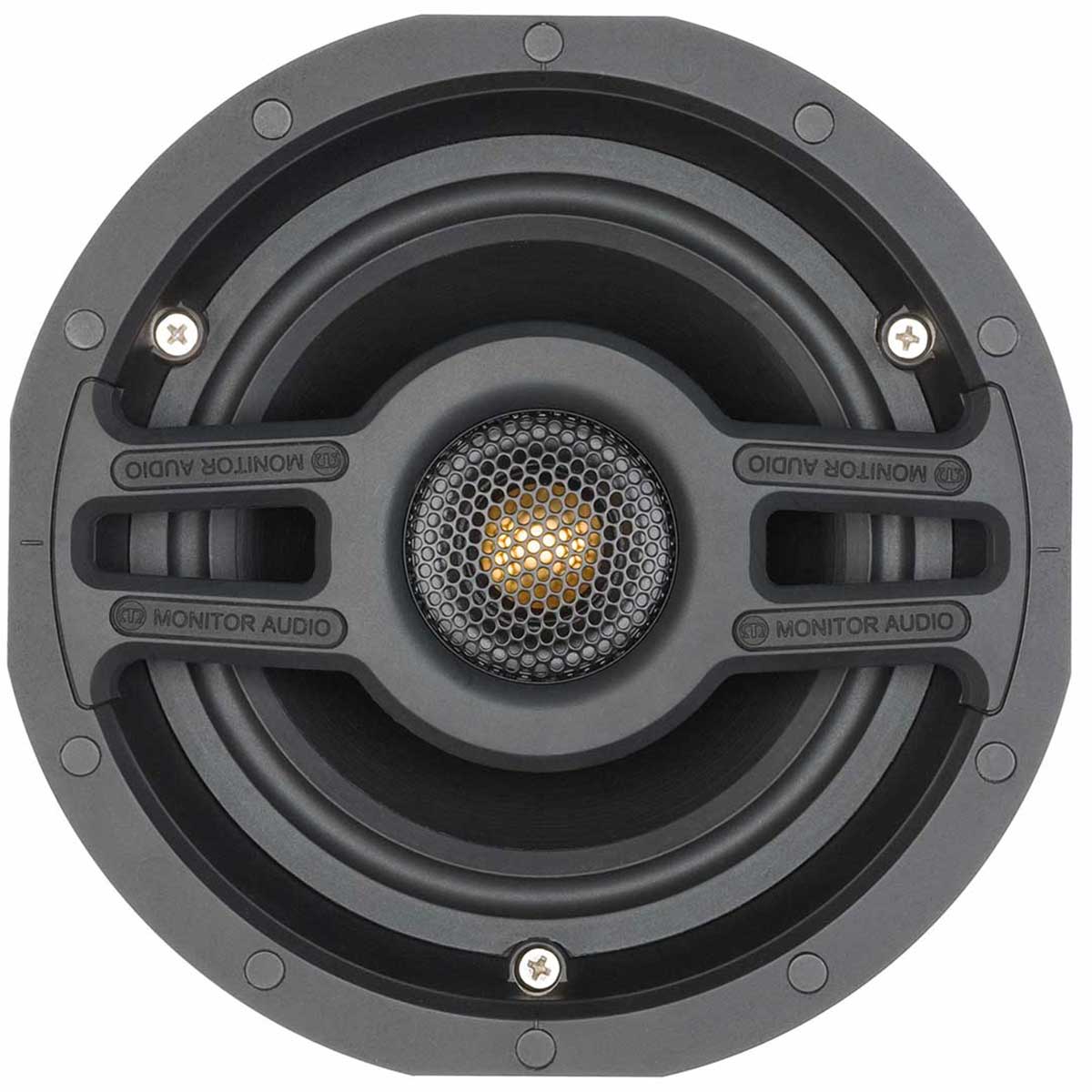

The CS160 in-ceiling model couples a 6-inch MMP II driver with a pivoting C-CAM Gold Dome tweeter.

Delivering great imaging and dynamics from a brilliantly compact design, the CS160 is perfect for high-performance, ultra-discreet custom-installed systems.

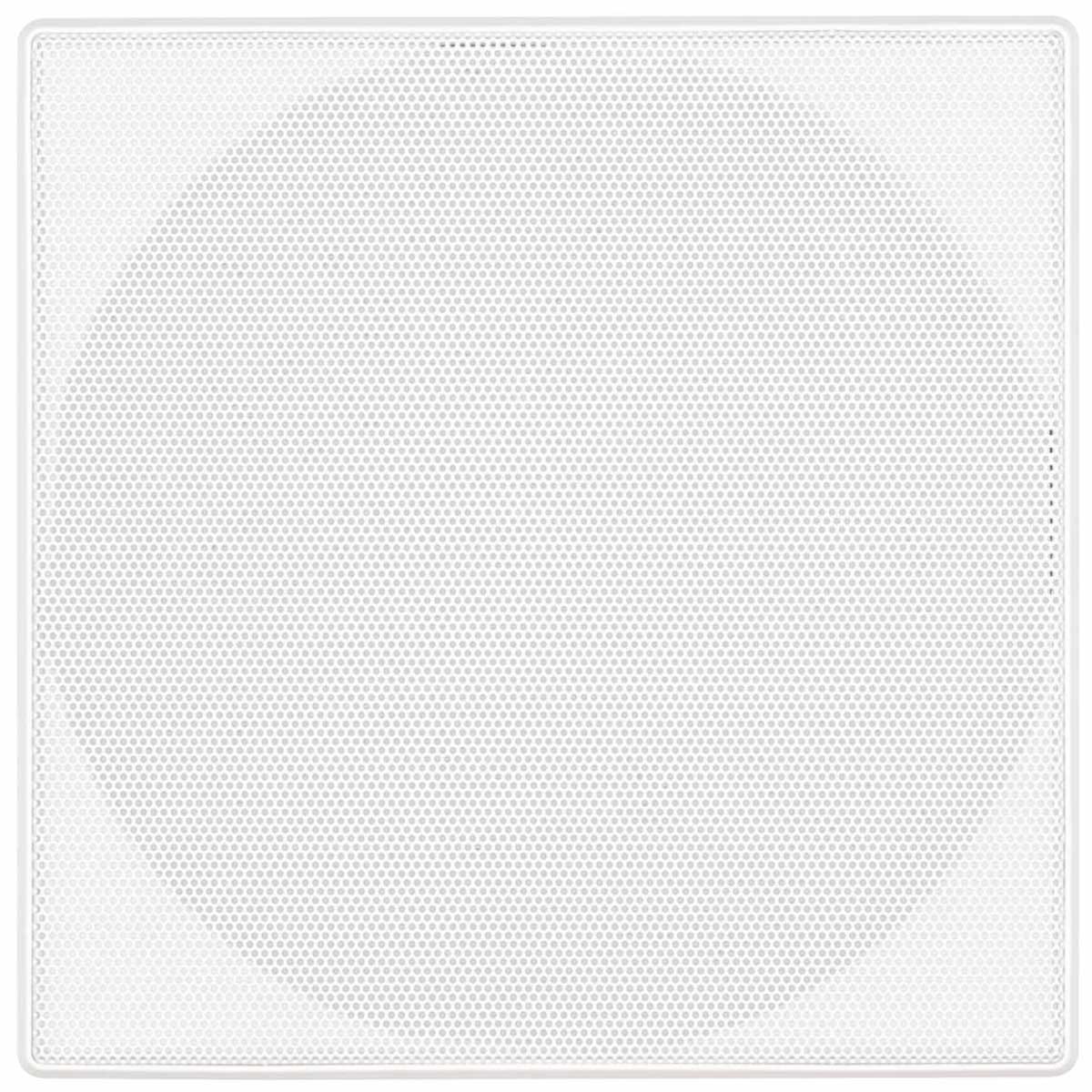

Please specify a round or square grille option when ordering.

Details & Specs

  • Frequency Response - 60 Hz – 30 kHz
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 88 dB
  • Maximum SPL - 107.2 dBA
  • Power Handling (RMS) - 70 W
  • Recommended Amplifier Requirements - 15 – 70 W
  • Drive Unit Complement -
    • 1 x 6" MMP II cone bass driver
    • 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
  • Acoustic Configuration - 2-way
  • Overall Dimensions (Including Grille (H x W)) -
    • Round: 204.2 mm (8 1/16")
    • Square: 199.2 x 199.2 mm (7 13/16 x 7 13/16")
  • Mounting Depth - 99 mm (3 7/8”)
  • Cut-Out Hole Diameter - 170 mm (6 11/16”)
  • Fixing Type - 3 position Tri-Grip dog fixings
  • Connection - Gold plated ‘push’ type terminals
  • Grille Attachment - Magnetic Construction
  • Material - Mineral filled ABS, RoHS compliant
  • Weight - 2.10 kg (4 lb 10 oz)
  • Pre-Construction Bracket - CB5 Pre-Construction Bracket (Blue)
  • Back Box - CCBOX-R | CMBOX-R
