Item #CS140S

Monitor Audio Slim 140 - Square Grille

In-Ceiling & In-Wall Speaker with Square Grille
Item #CS140S

Monitor Audio Slim 140 - Square Grille

In-Ceiling & In-Wall Speaker with Square Grille
$220.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

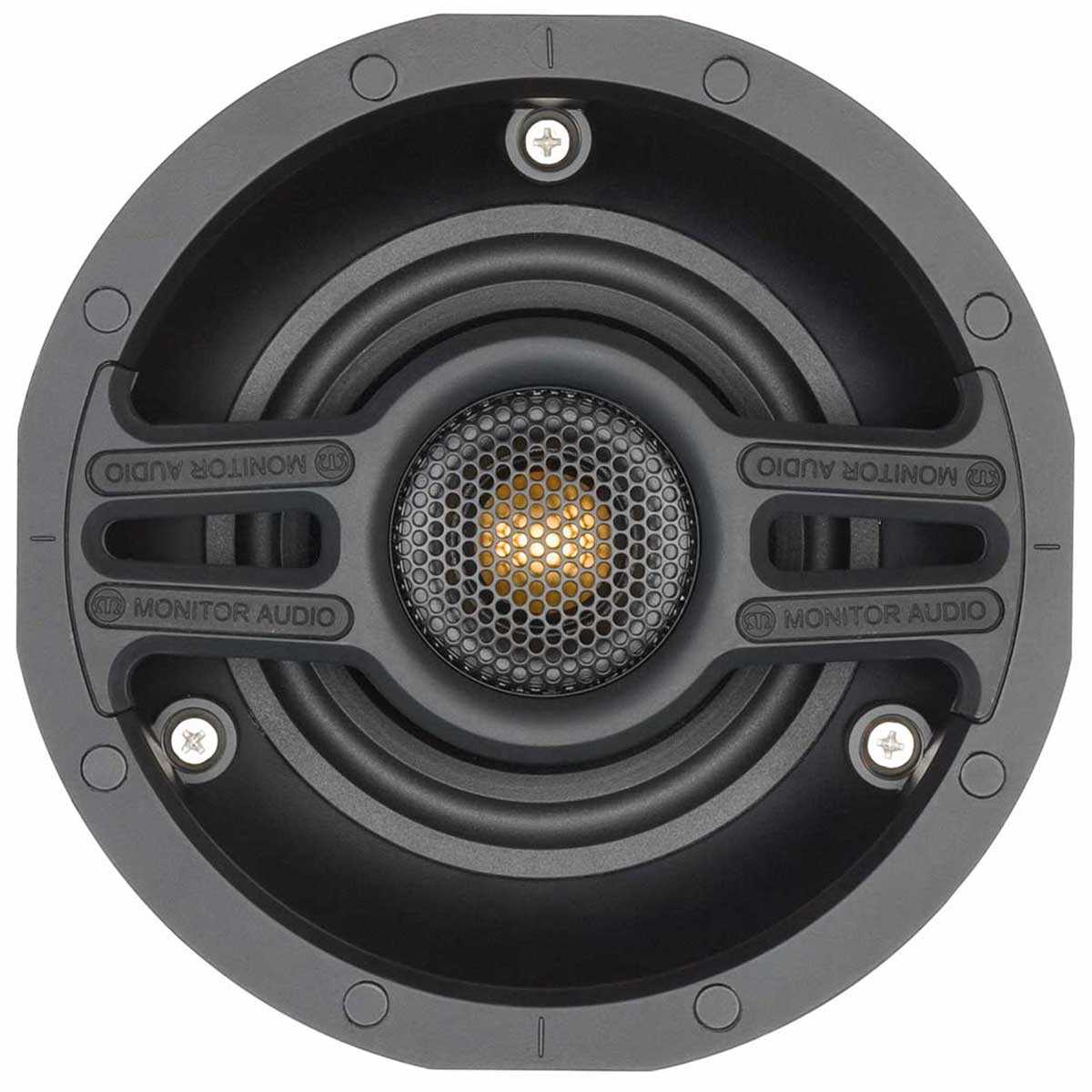

The CS140 in-ceiling model features a proprietary 4-inch MMP II cone and a pivoting version of Monitor Audio's acclaimed C-CAM Gold Dome tweeter.

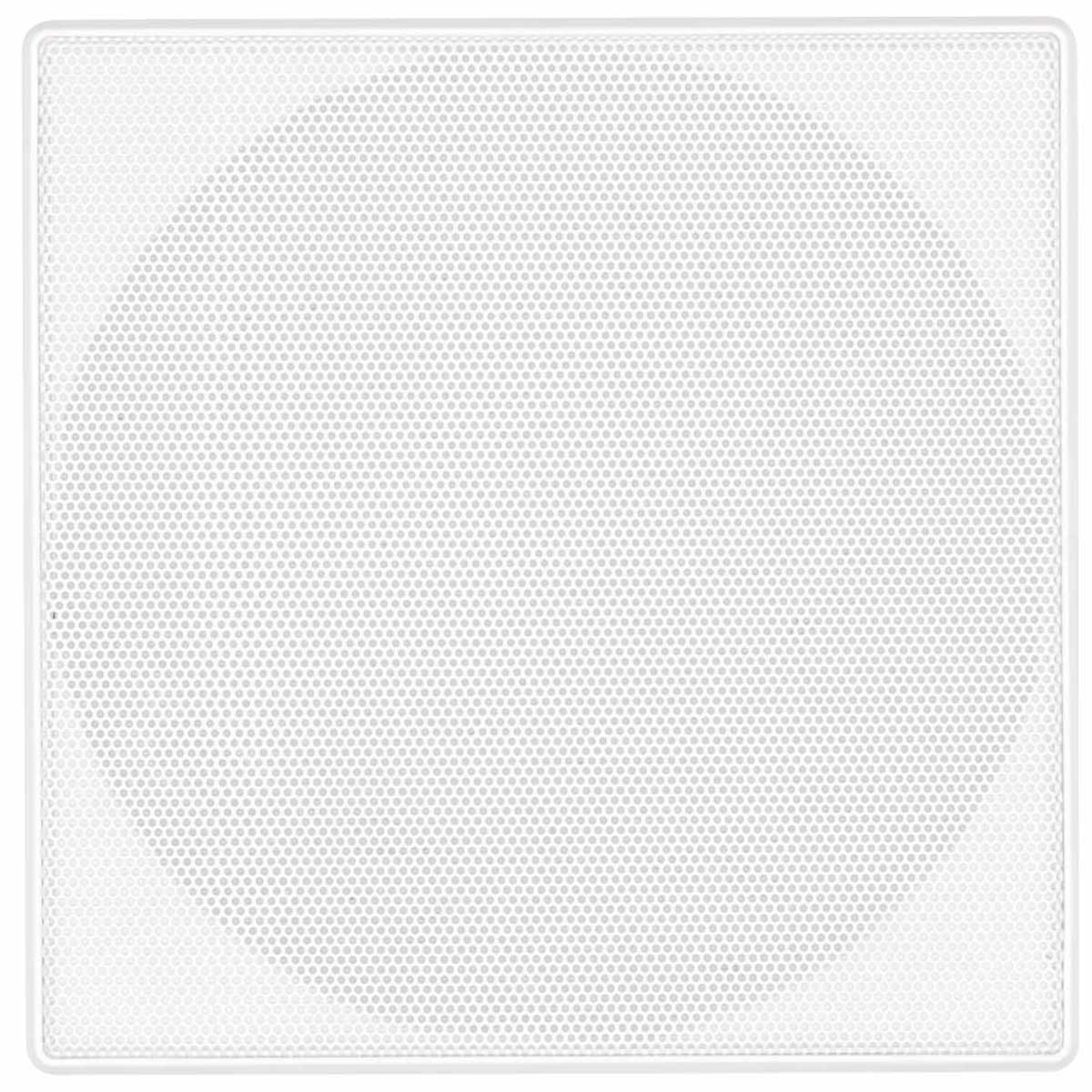

Engineered for excellent detail resolution and complete with either round or square grilles, the CS140 will deliver great sound with super-discreet aesthetics.

Please specify a round or square grille option when ordering.

Details & Specs

  • Frequency Response - 75 Hz – 30 kHz
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 85 dB
  • Maximum SPL - 102.8 dBA
  • Power Handling (RMS) - 50 W
  • Recommended Amplifier Requirements - 10 – 50 W
  • Drive Unit Complement -
    • 1 x 4" MMP II cone bass driver
    • 1 x 1" (25 mm) C-CAM pivoting Gold Dome tweeter
  • Acoustic Configuration - 2-way
  • Overall Dimensions (Including Grille (H x W)) -
    • Round: 180.2 mm (7 1/8")
    • Square: 176.7 x 176.7 mm (6 15/16 x 6 15/16")
  • Mounting Depth - 99 mm (3 7/8")
  • Cut-Out Hole Diameter - 149 mm (5 7/8")
  • Fixing Type - 3 position Tri-Grip dog fixings
  • Connection - Gold plated ‘push’ type terminals
  • Grille Attachment - Magnetic Construction
  • Material - Mineral filled ABS, RoHS compliant
  • Weight - 1.18 kg (2 lb 10 oz)
  • Pre-Construction Bracket - CB4 Pre-Construction Bracket (Pink)
  • Back Box - CCBOX-R
