Monitor Audio Silver AMS 8G

Dolby Atmos-enabled Upward-firing Elevation Speaker - Pair

Monitor Audio Silver AMS 8G

Dolby Atmos-enabled Upward-firing Elevation Speaker - Pair
$1,400.00
Select Color:


Overview

Upward firing elevation speakers deliver precise height audio for Dolby Atmos soundtracks using a 5.25 inch C-CAM mid bass driver and Gold Dome tweeter. Sized to sit on Silver series speakers, this pair enhances your sound system setup without extra mounting.

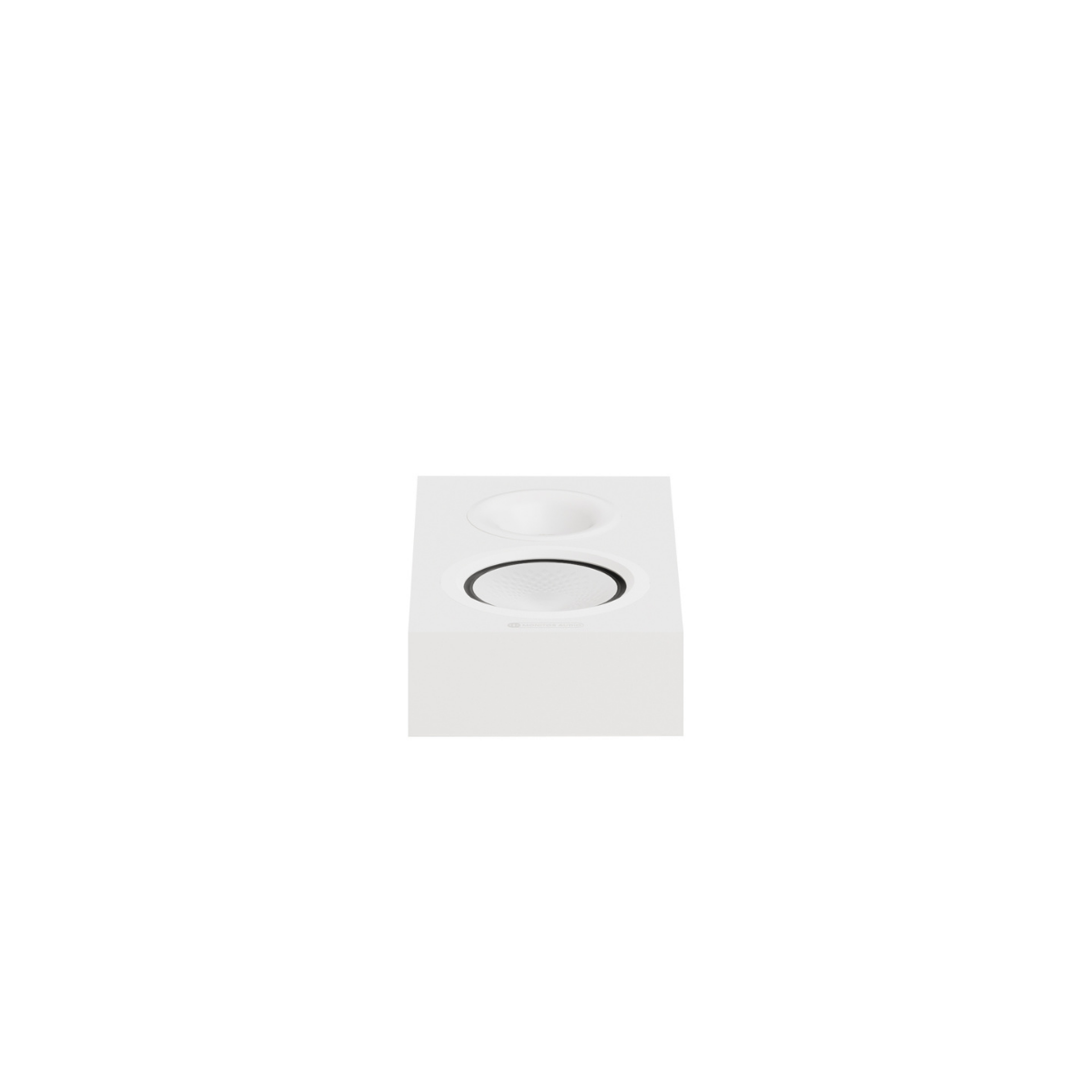

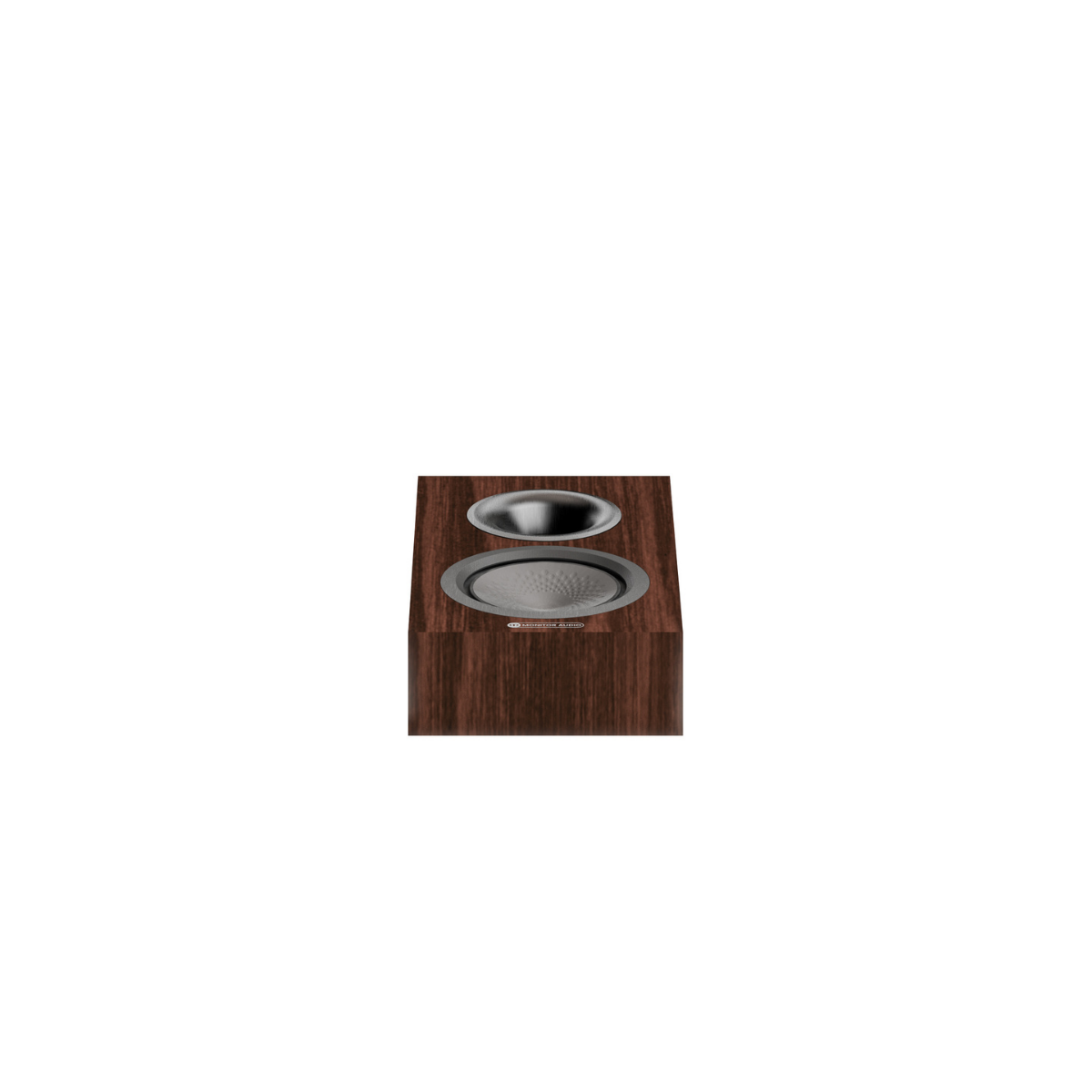

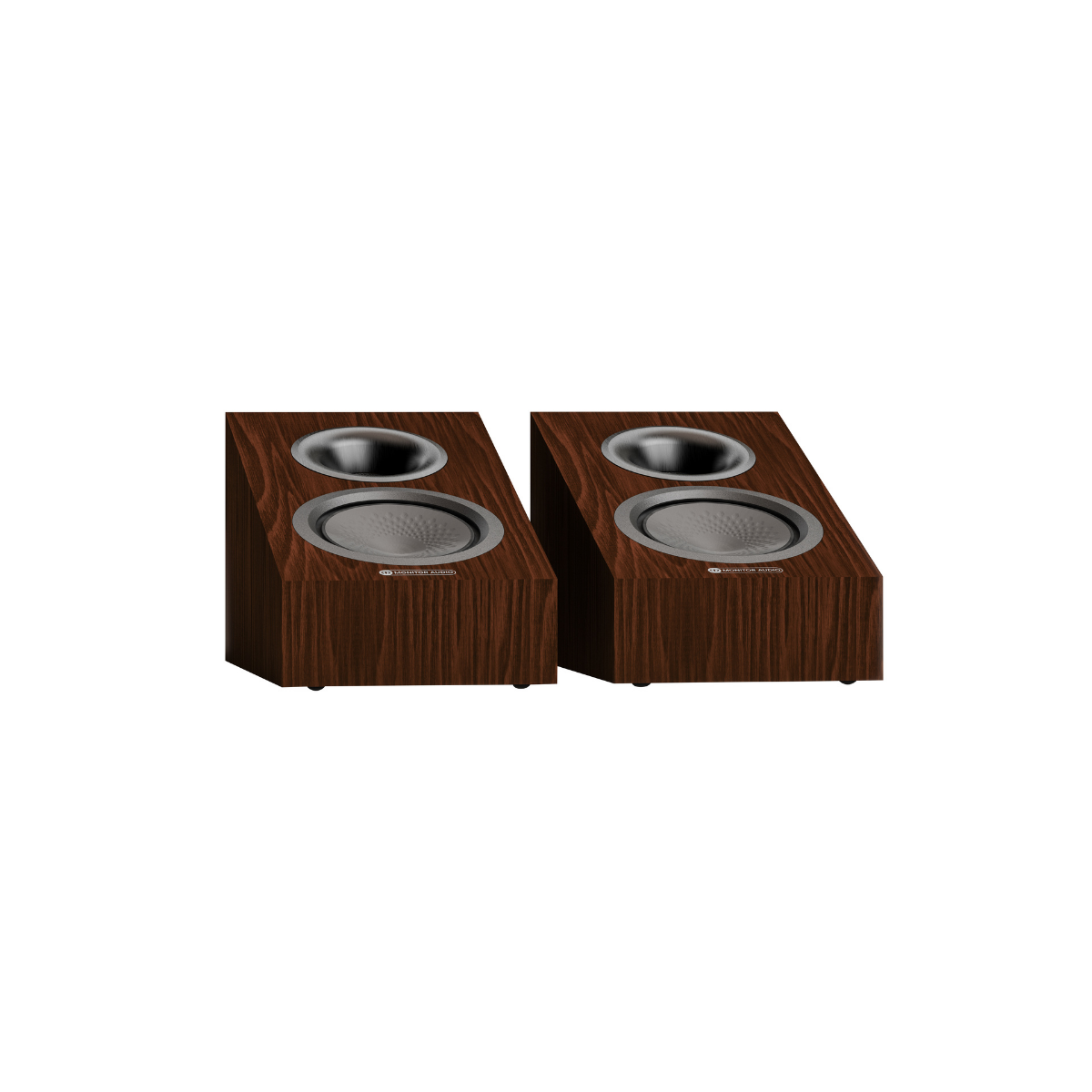

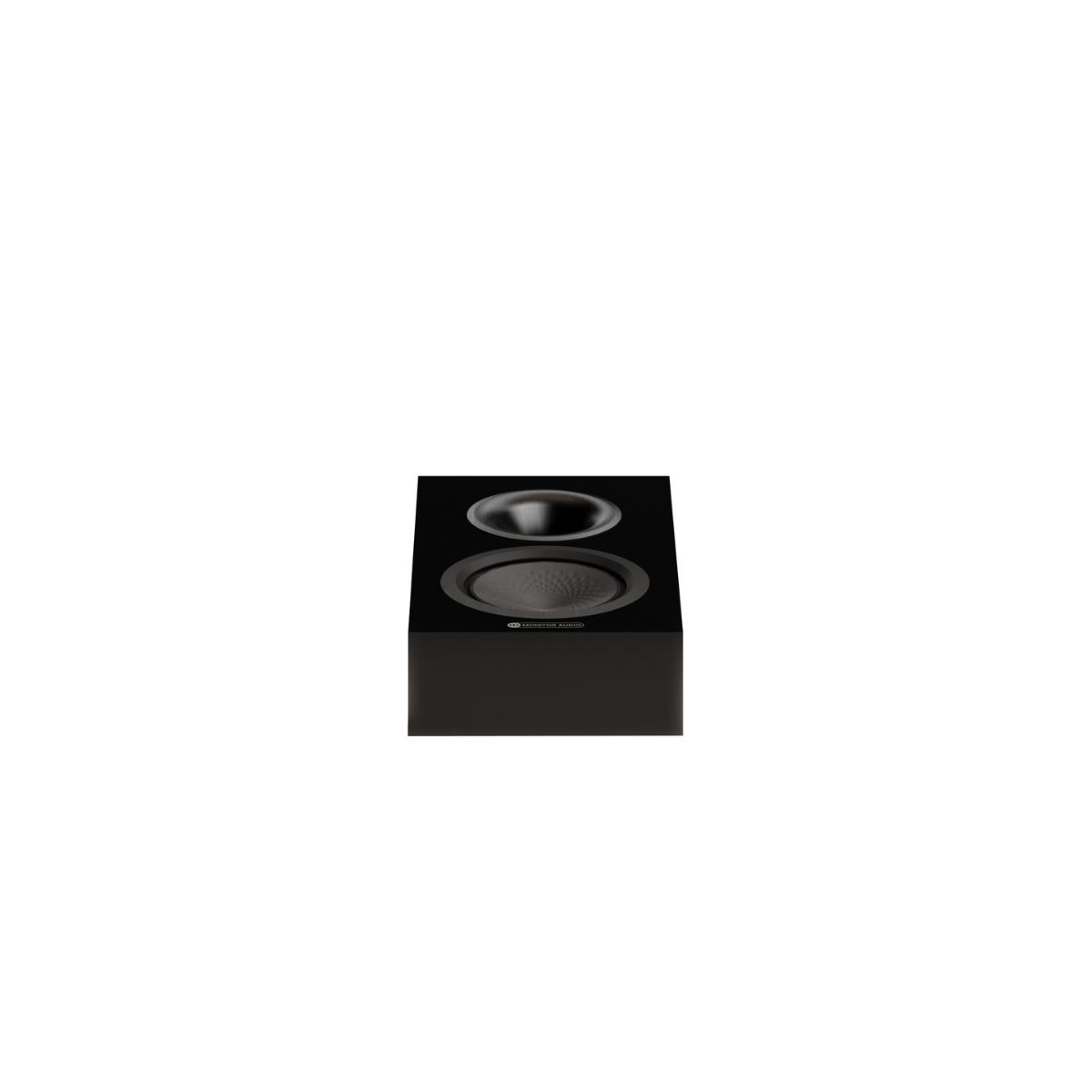

This upward firing elevation speaker pair is built to add height effects for Dolby Atmos soundtracks. Each cabinet uses a 5.25 inch C-CAM mid bass driver with RST III cone geometry, matched with a 25mm C-CAM Gold Dome tweeter and a waveguide designed for clear high frequencies. The driver array covers a range from 82 Hz to 35 kHz. A sealed bass alignment helps keep the response tight and controlled in home theater setups.

The cabinet size matches the top of the Silver 50 8G and Silver 300 8G speakers, so these elevation units can sit directly on top for a tidy installation. Internal bracing with Through Bolt technology secures the drivers from the back. This adds rigidity and helps prevent unwanted resonance during playback. A crossover set at 2.8 kHz directs frequencies to the right driver.

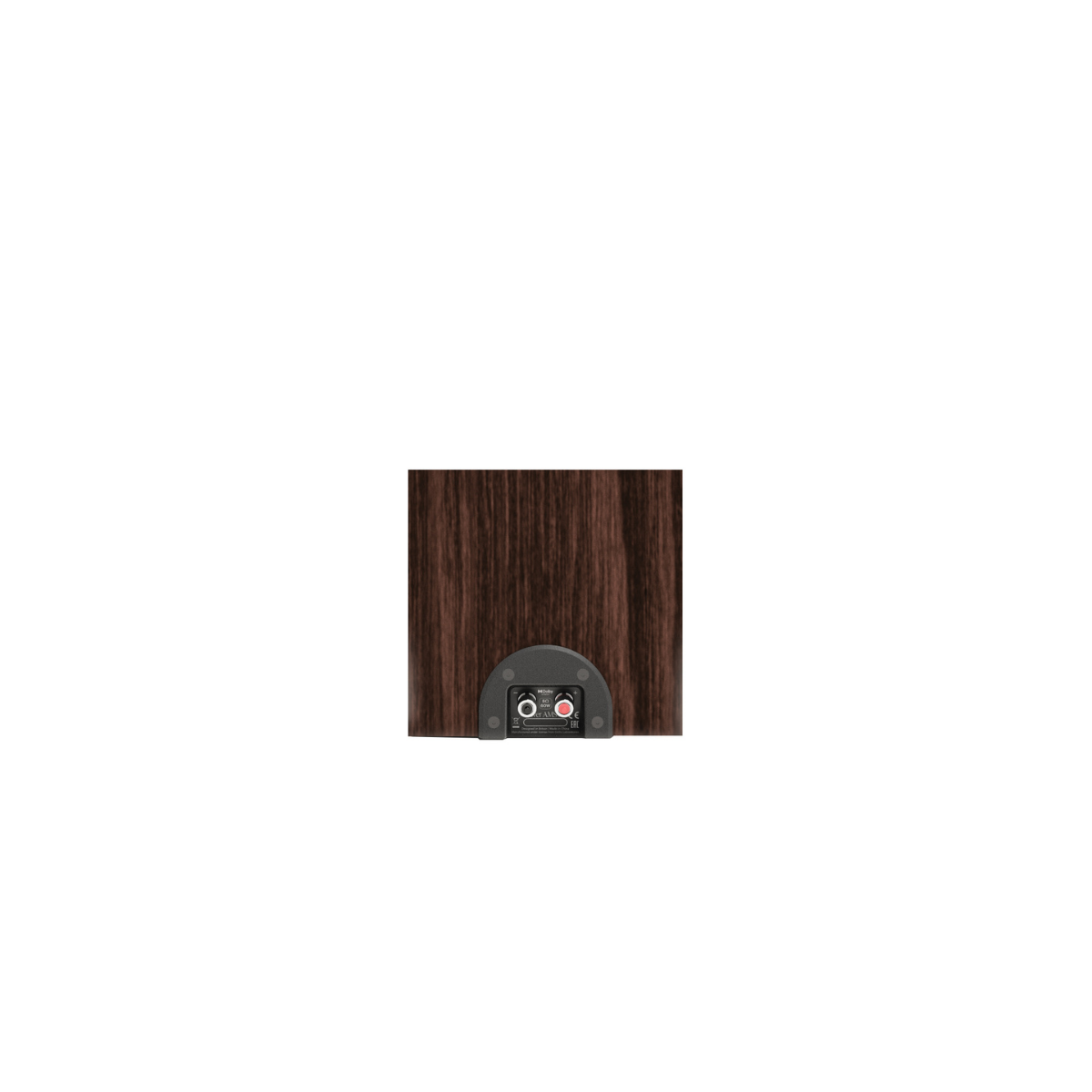

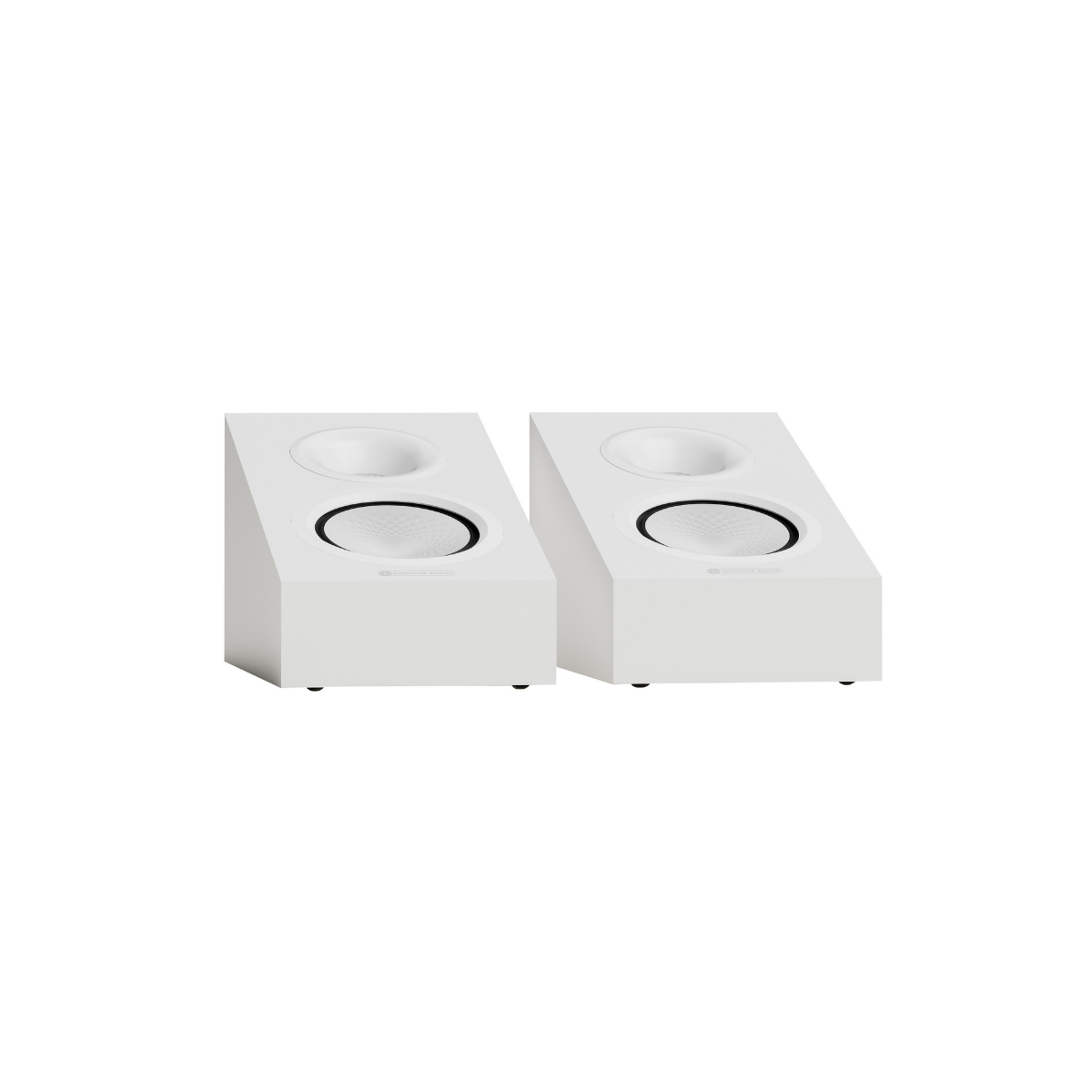

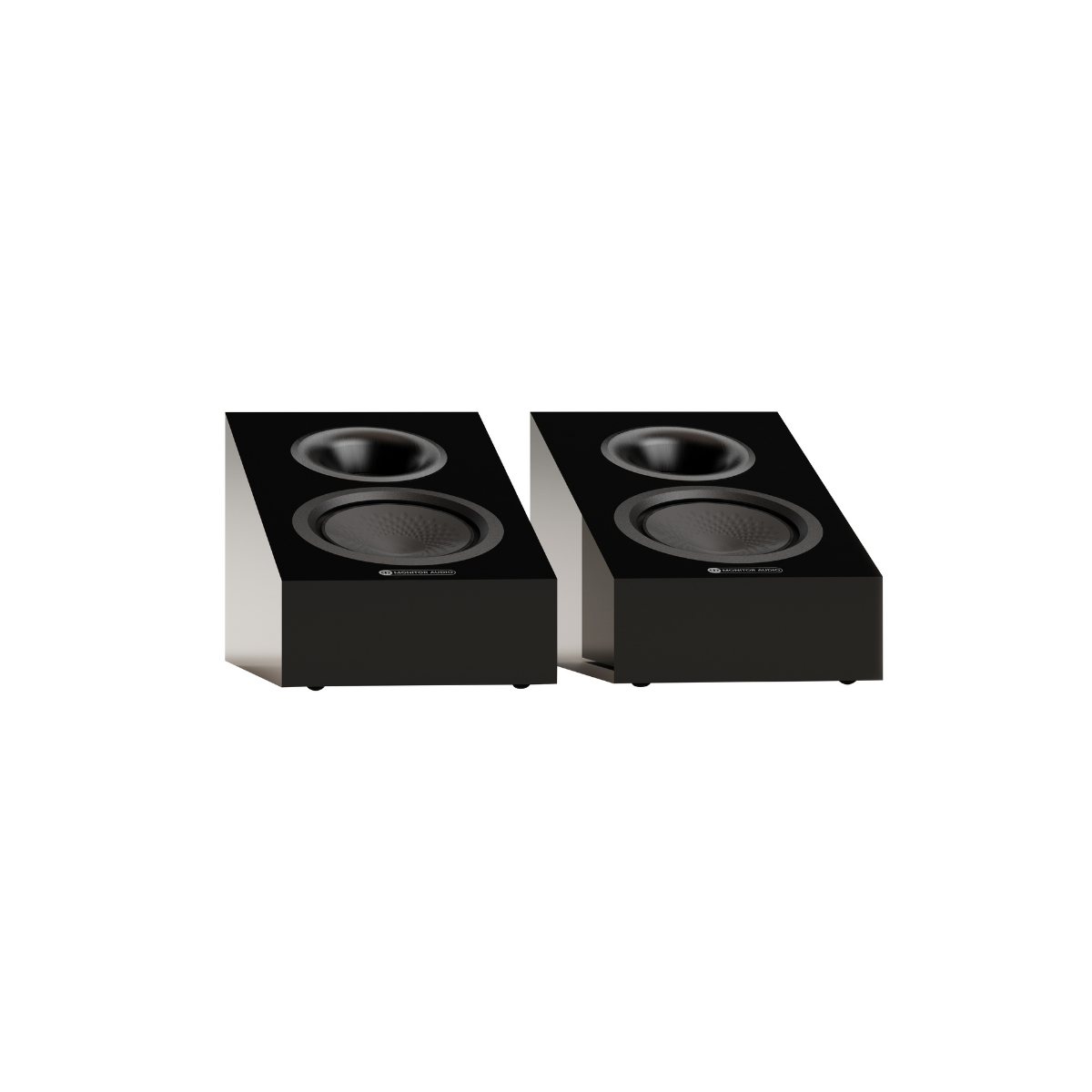

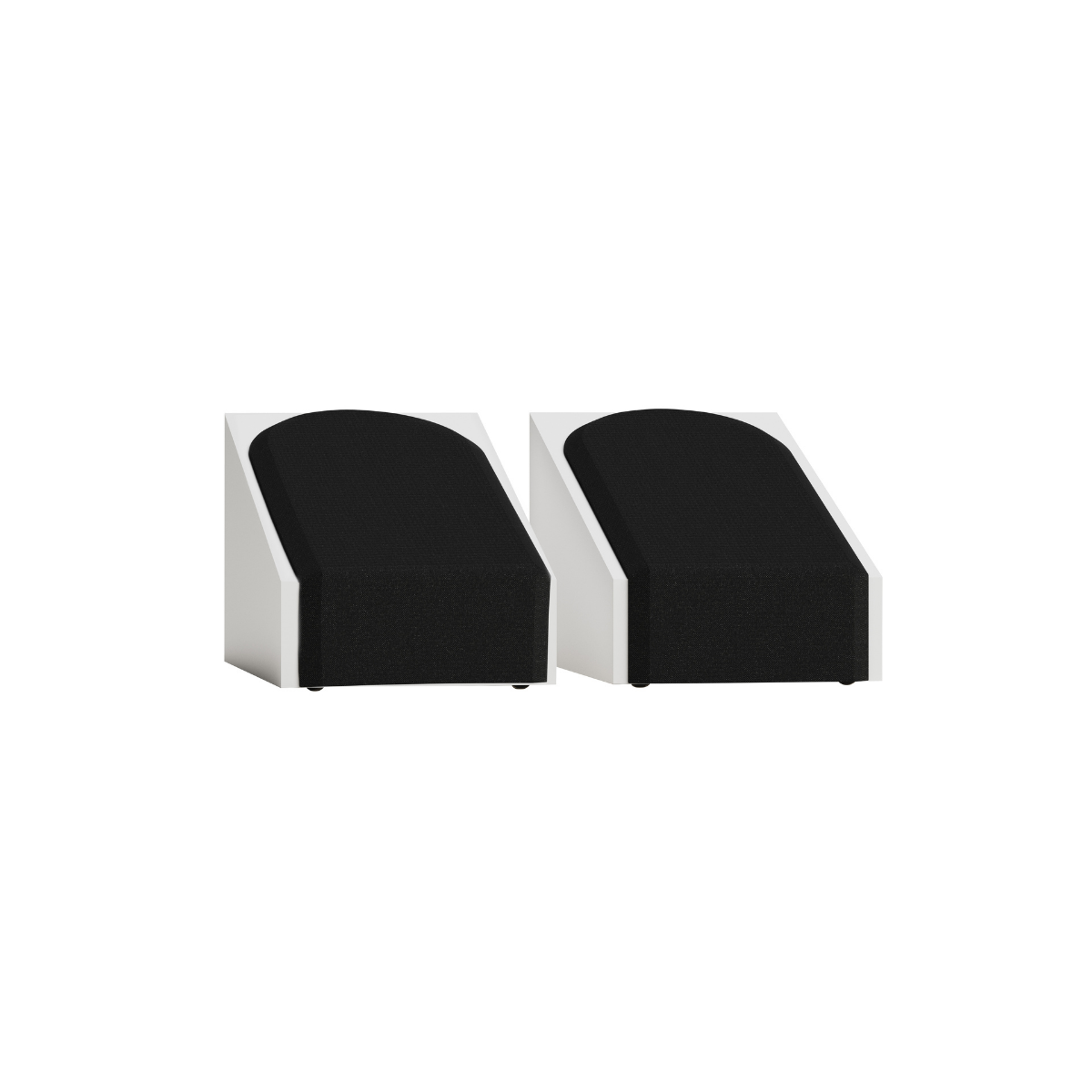

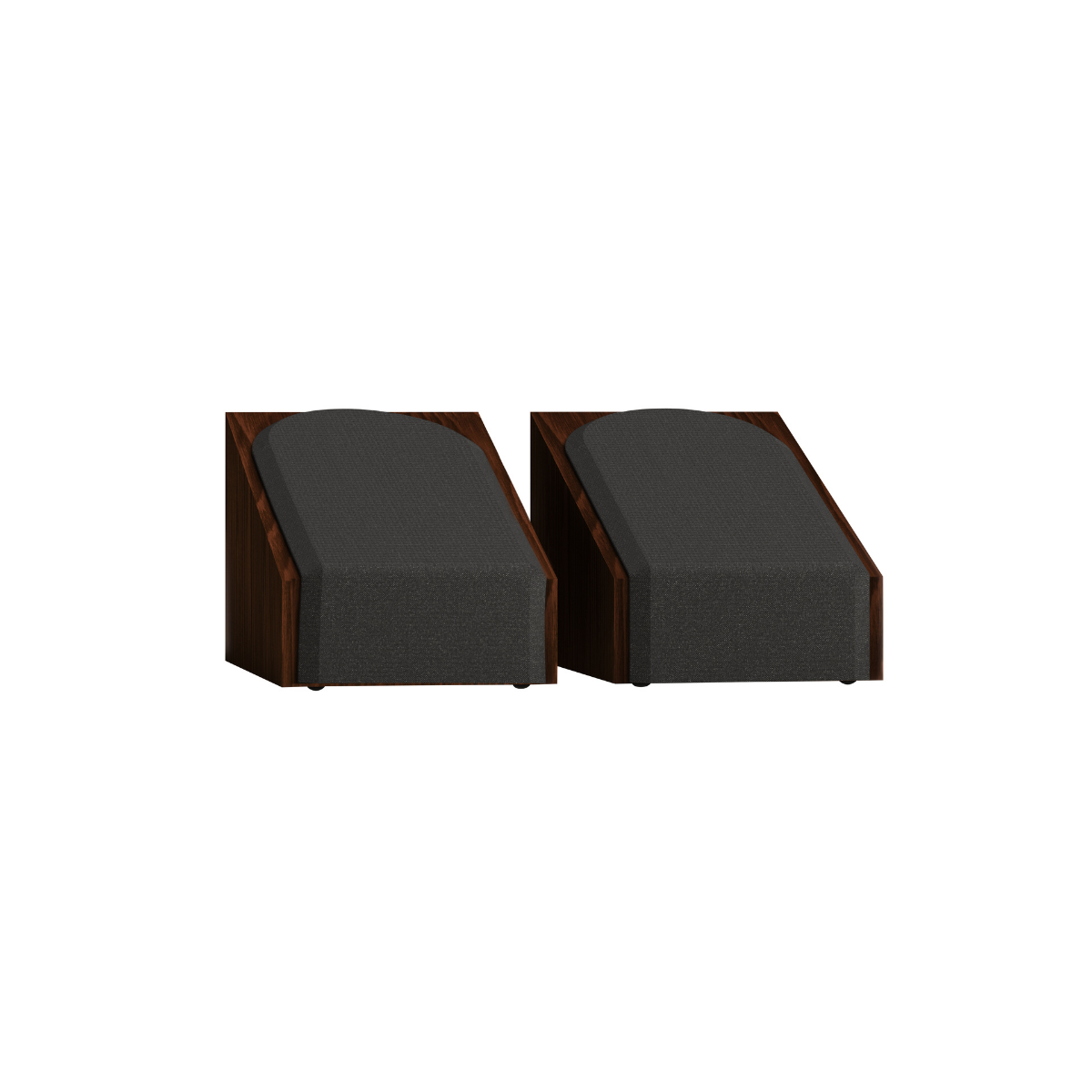

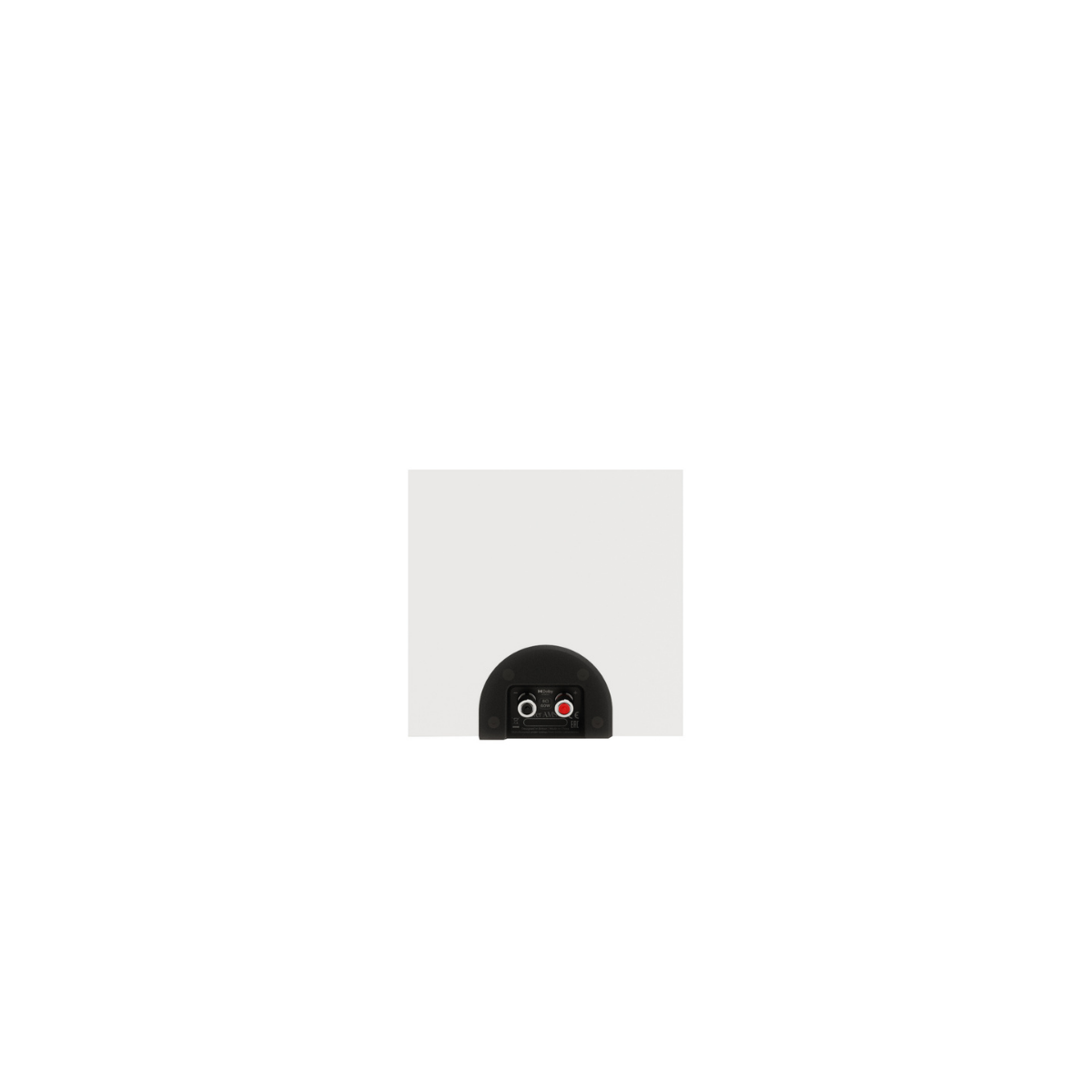

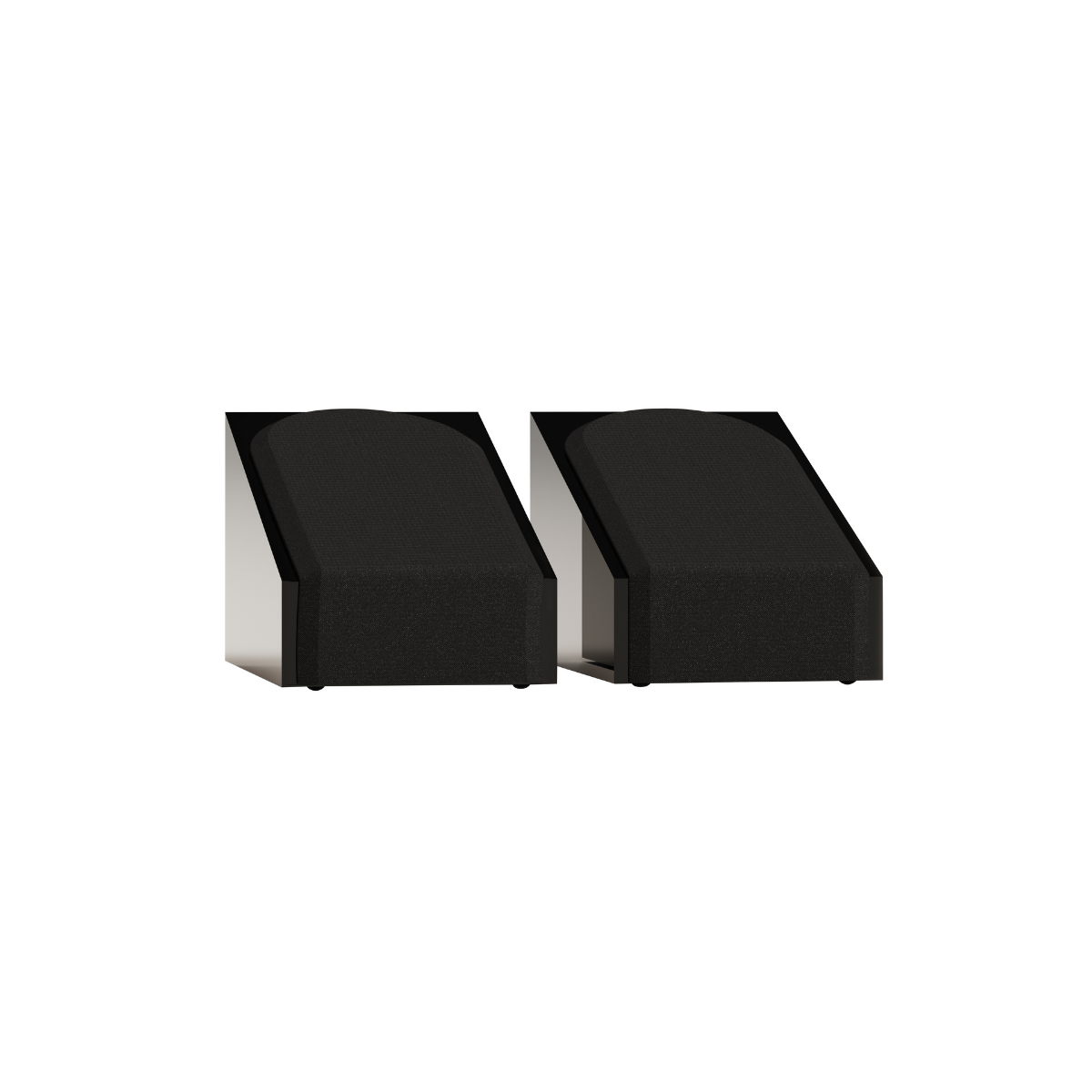

These elevation speakers handle up to 60 watts of continuous power and reach a peak SPL of 111 dB. They work well with amplifiers rated from 15 to 60 watts into 8 Ohms. The design fits into multichannel audio visual systems without using extra floor space. Each pair comes with magnetic speaker grilles and is offered in High Gloss Black, Satin White, or European Walnut finishes.

Details & Specs

Model Silver AMS 8G
System Format 2-Way
Frequency Response, In-Room (-6dB) 82 Hz – 35 kHz
Sensitivity (2.83 Vrms @ 1m, Free-Field) 85.5 dB
Sensitivity (2.83 Vrms @ 1m, Installed) N/A
Nominal Impedance 8 Ohms
Minimum Impedance (20Hz to 20kHz) 3.5 Ohms @ 6.8 kHz
Maximum Peak SPL (AES75, Z-weighted) 111 dB
Continuous Power Handling (CTA 426-B) 60 W
Recommended Amplifier Power (RMS, Music Signal) 30 – 120 W into 4 Ohms
15 – 60 W into 8 Ohms
Bass Alignment Sealed
Port Tuning Frequency N/A
Crossover Frequency LF/HF: 2.8 kHz
Drive Unit Complement 1 x 5 1/4" C-CAM RST III mid-bass driver
1 x 25 mm C-CAM Gold Dome tweeter with optimised waveguide
Finishes High Gloss Black
European Walnut
Satin White
External Dimensions with all accessories fitted (H x W x D) 185 x 185 x 312 mm (75/16 x 75/16 x 125/16")
Weight (each) 4.5 kg (9 lb 15 oz)
Sold As Pair
Warranty 5 years
