Monitor Audio Radius On Wall 4G

2-way LCR Speaker - Each

Monitor Audio Radius On Wall 4G

2-way LCR Speaker - Each
$649.00
Select Color:


Overview

Engineered for seamless television integration, these two way on wall LCR speakers feature twin four and a half inch drivers and a Gold Dome tweeter. Versatile horizontal or vertical mounting options deliver precise audio visual solutions for home media spaces.

The Monitor Audio Radius On Wall 4G speaker is built for television and film setups where space is at a premium, but sound quality still matters. It mounts directly beside or below a display, so it fits easily into most rooms without taking up floor space. Inside, two 4 1/2 inch RST III bass mid drivers work with a 25-millimeter C-CAM Gold Dome tweeter to deliver clear and balanced audio. This setup helps create controlled sound dispersion and a coherent soundstage, making it a practical choice for home theater installations.

The cabinet has a slim profile that makes it easy to place around a display. HiVe II ports and through bolt driver bracing are included to improve airflow and reduce unwanted vibrations. The new crossover design helps keep the sound balanced across the frequency range. With a ported bass alignment tuned to 62 Hertz, the speaker delivers an in room frequency response from 69 Hertz up to 35 kilohertz. It can reach peak levels of 114 decibels and works well with amplifiers rated at 50 to 100 Watts into 8 Ohms or 100 to 200 Watts into 4 Ohms.

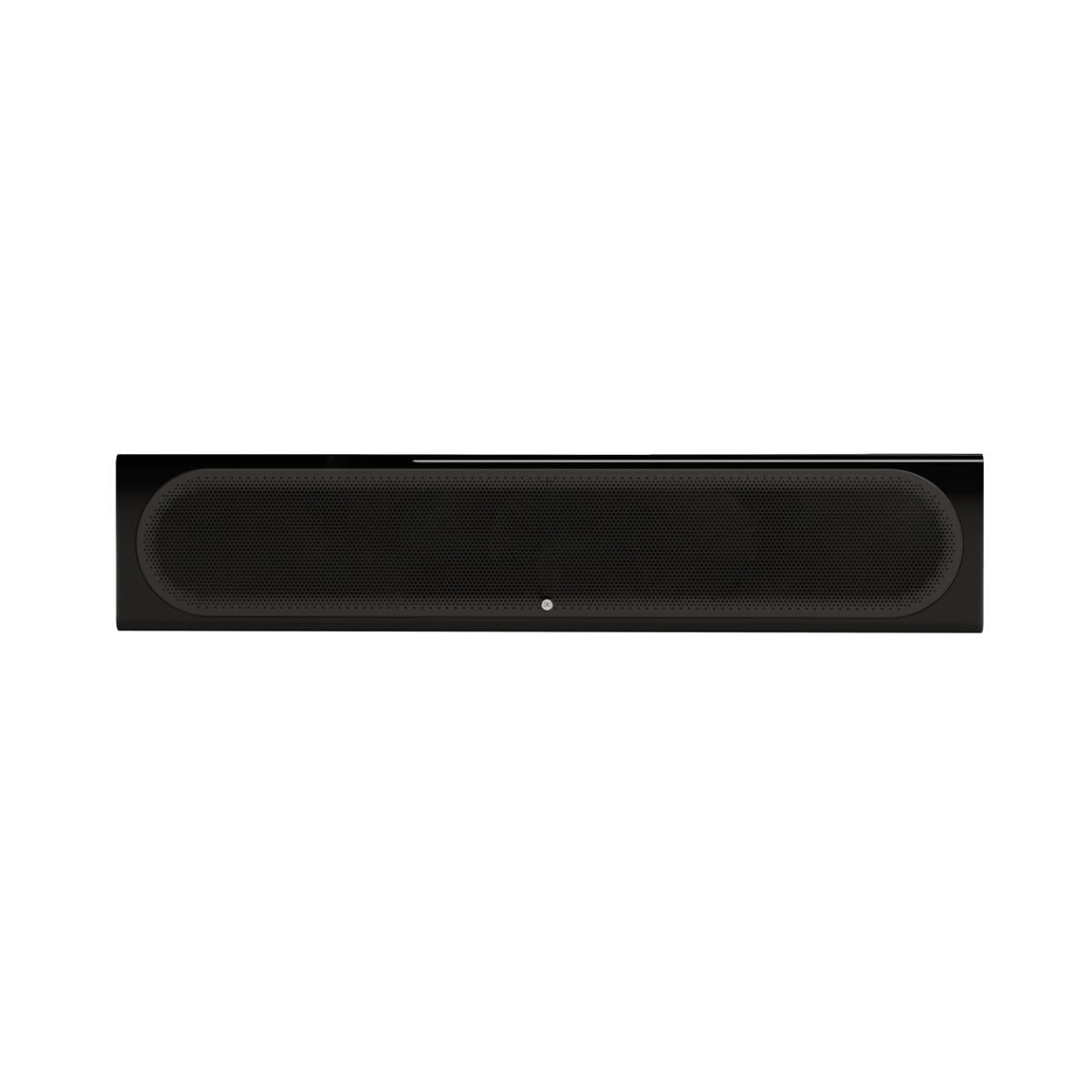

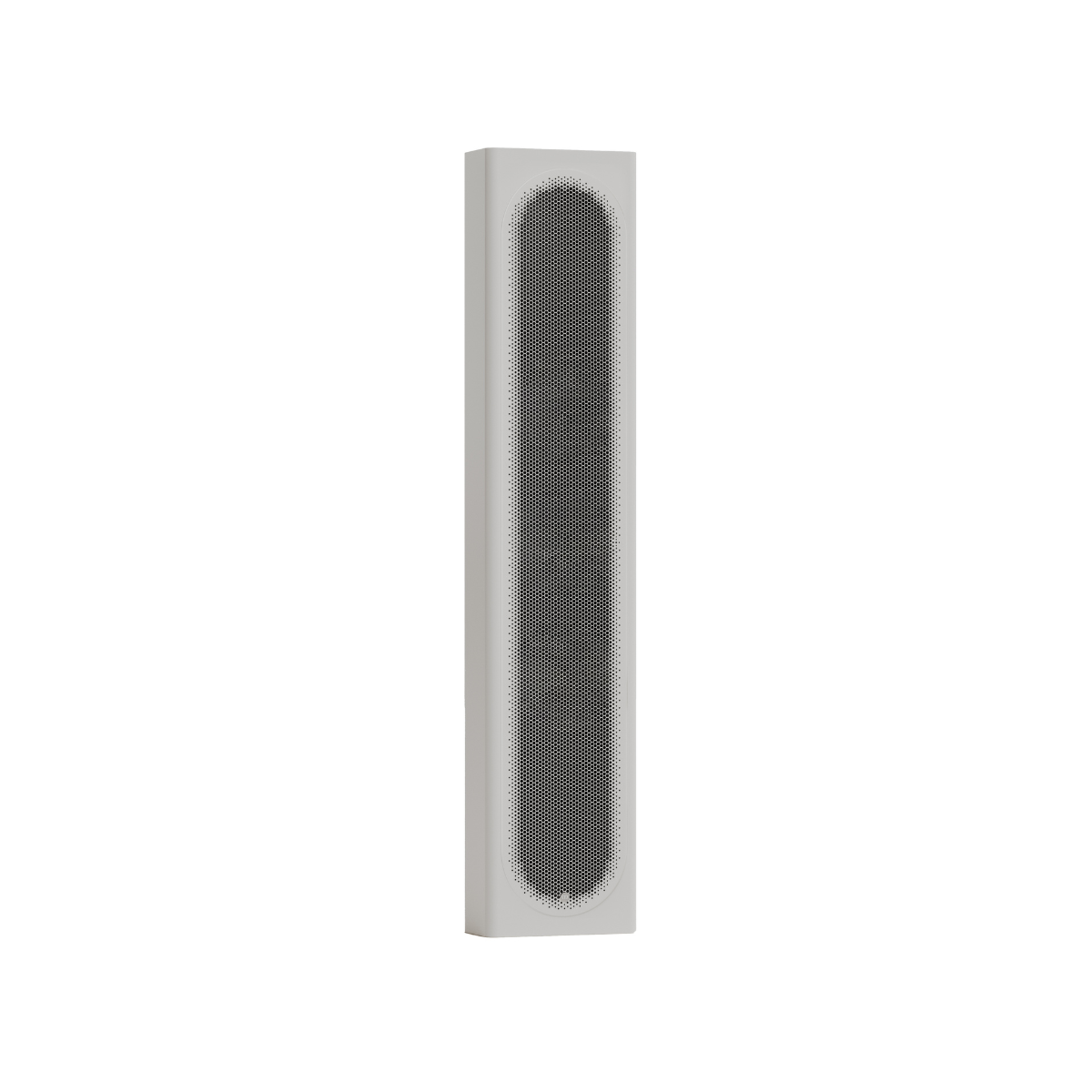

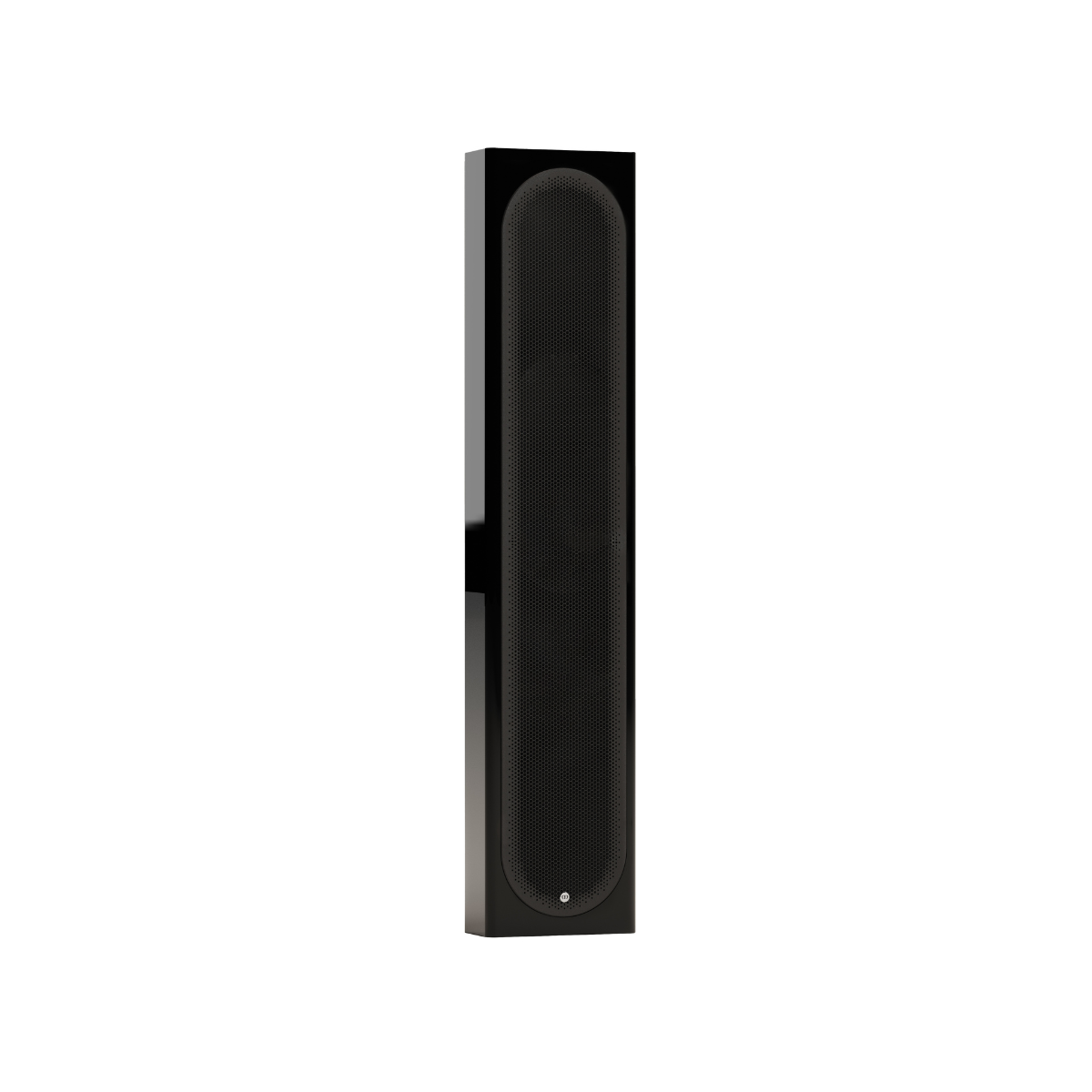

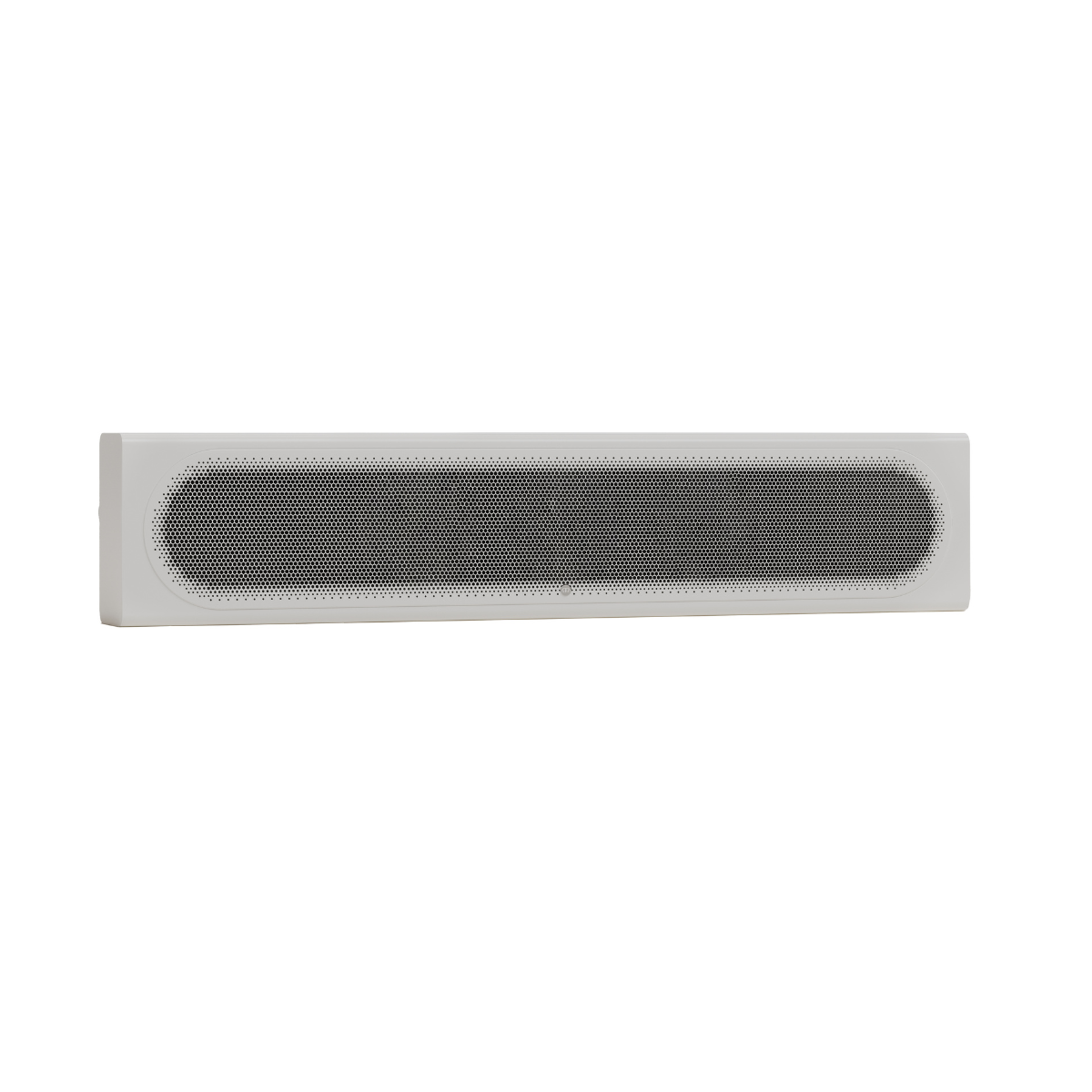

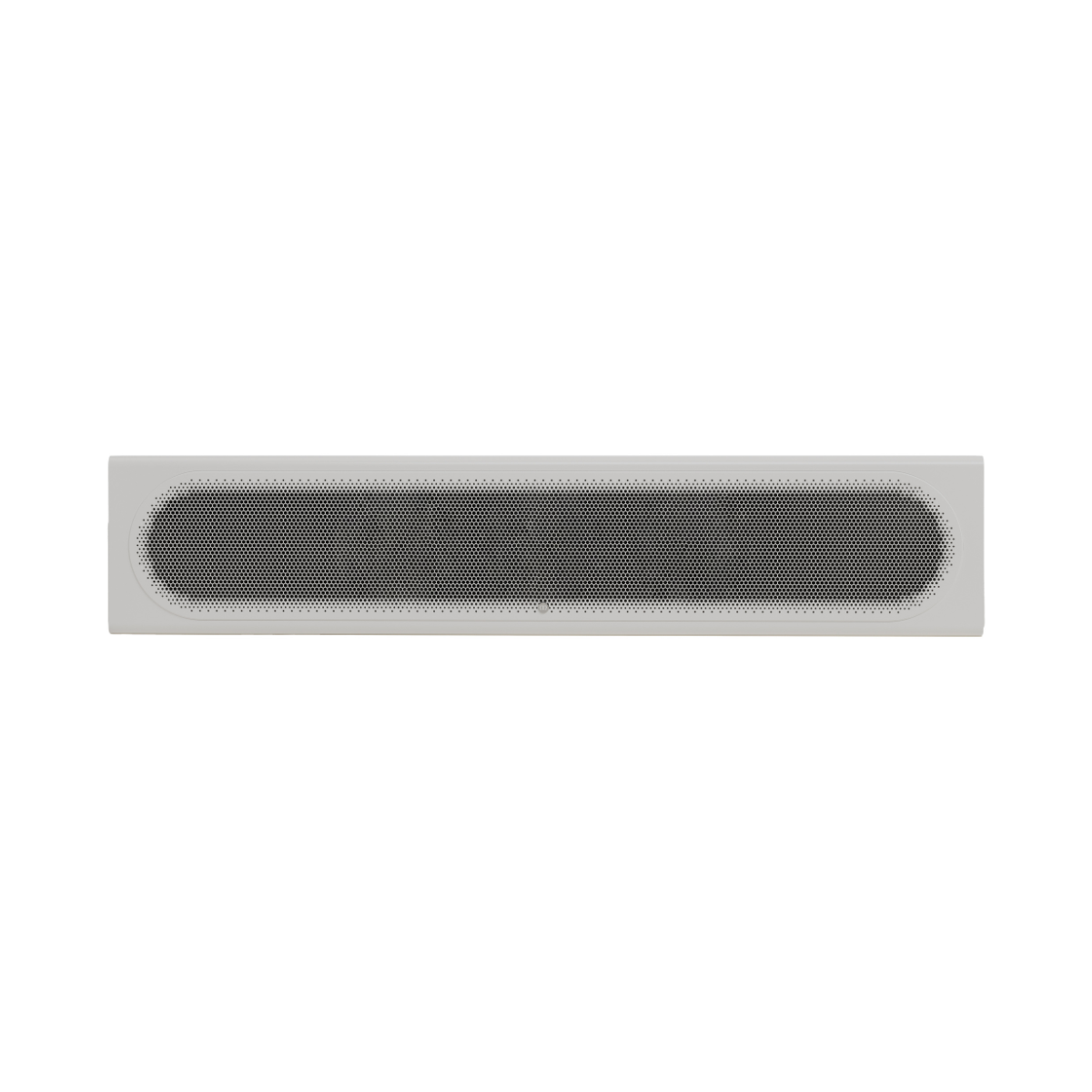

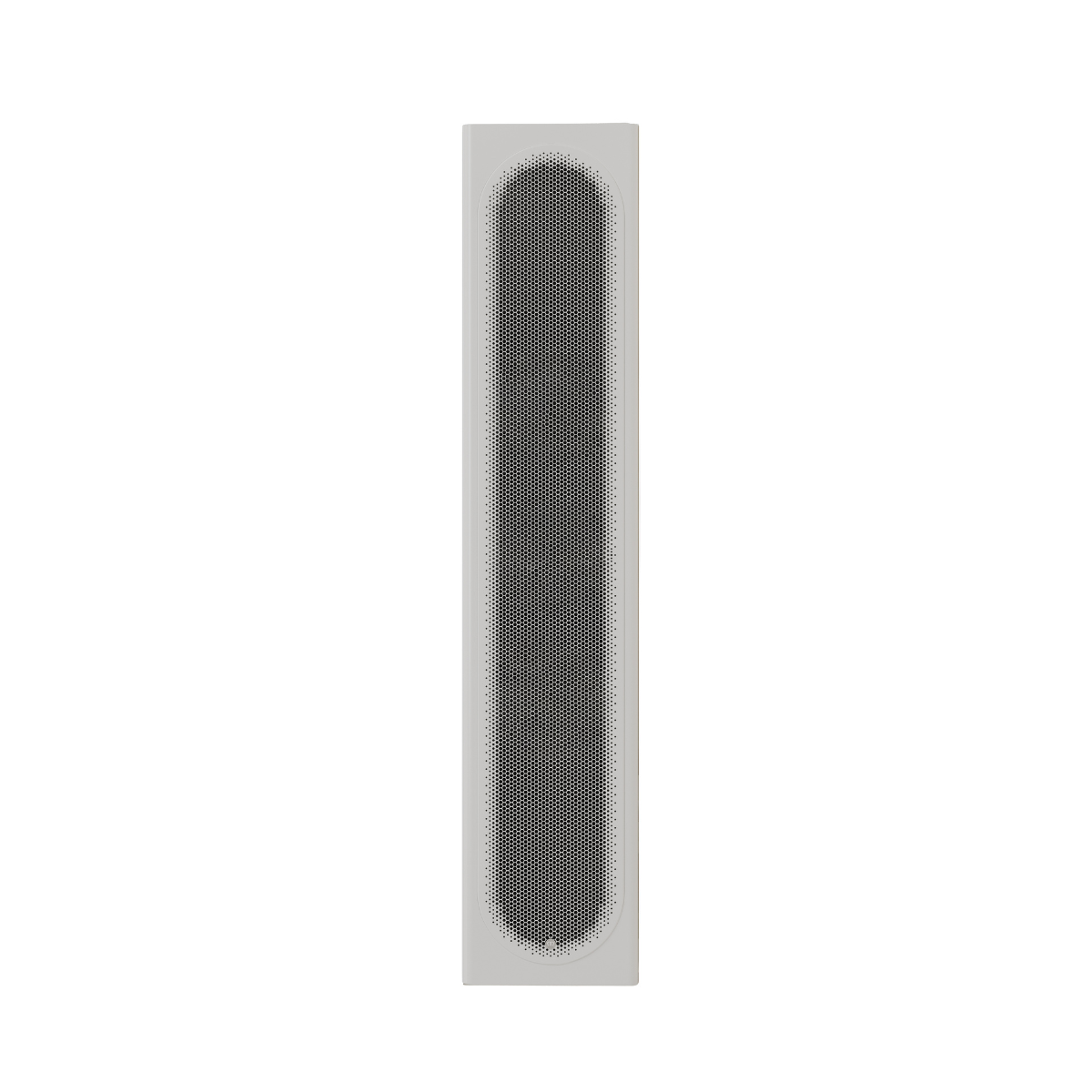

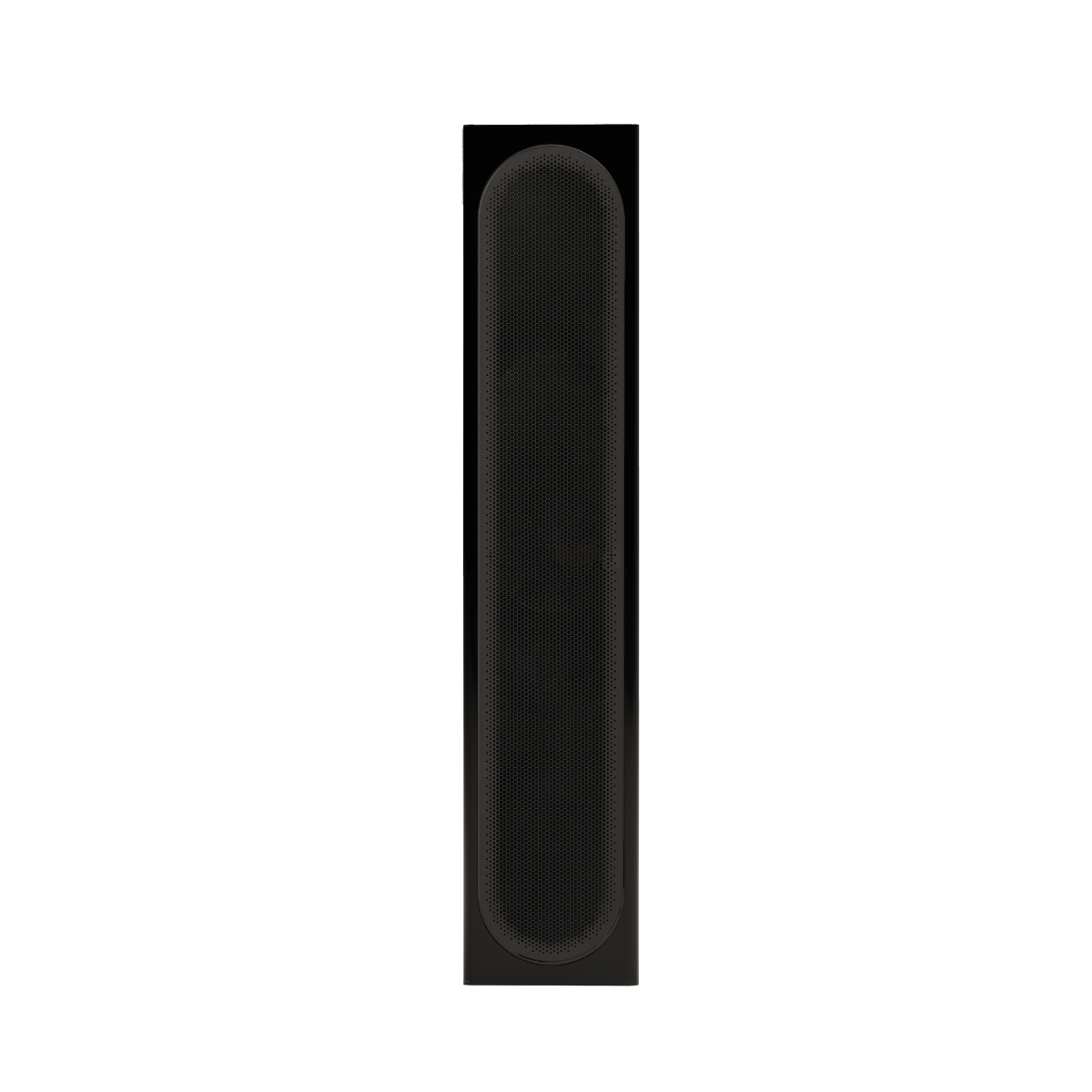

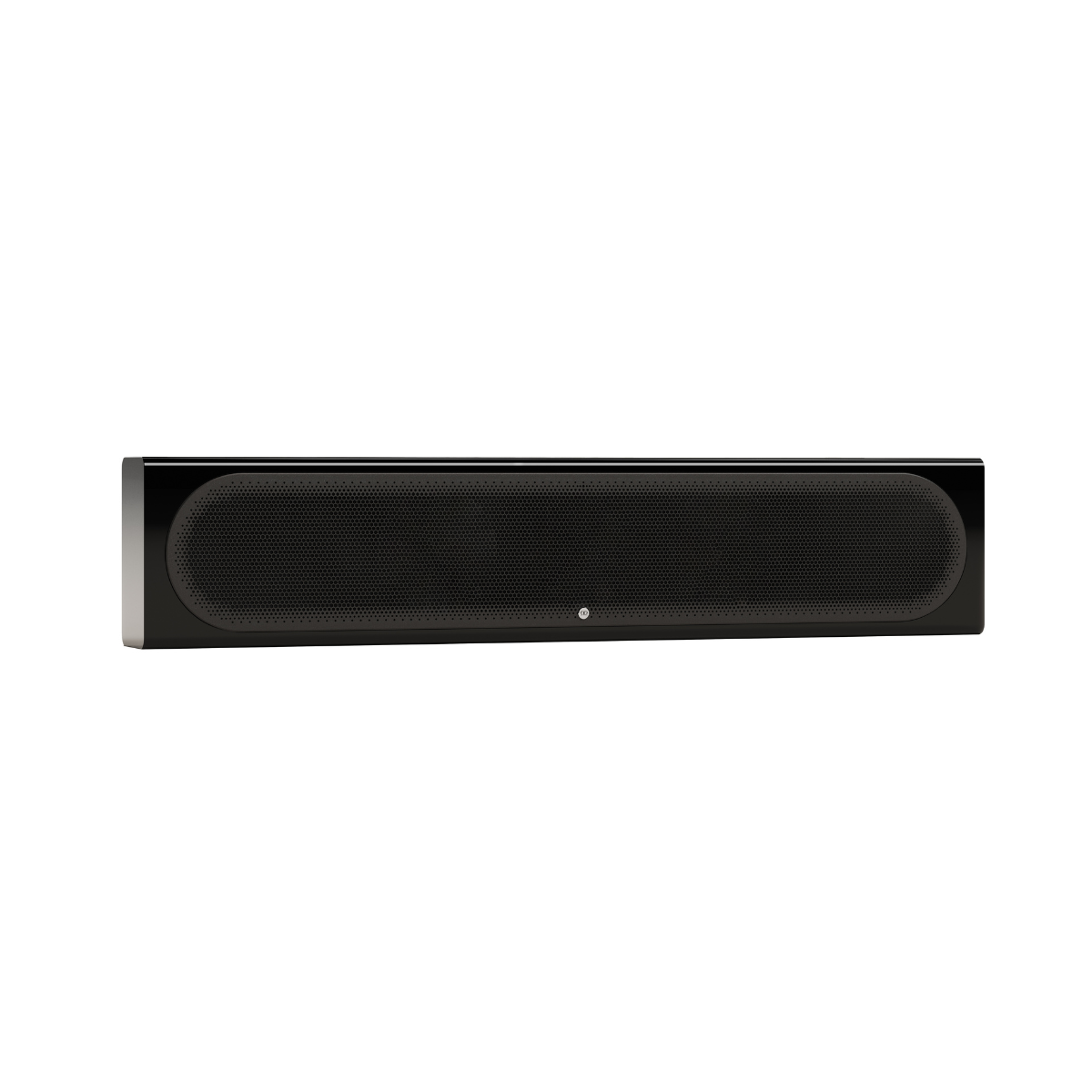

The speaker can be mounted either horizontally or vertically, so it fits around different screen sizes and room layouts. A wall bracket, fixing template, and removable logo are included to make installation straightforward. The finish options are satin white or high gloss black, and each unit weighs 6.4 kilograms. A five year warranty is included. For a full range setup, pairing this speaker with a subwoofer works well in custom audio visual installations.

Details & Specs

Model Radius On Wall 4G
System Format 2-Way
Frequency Response, In-Room (-6dB) 69 Hz — 35 kHz
Sensitivity (2.83 Vrms @ 1m, Free-Field) N/A
Sensitivity (2.83 Vrms @ 1m, Installed) 90 dB
Nominal Impedance 8 Ohms
Minimum Impedance (20 Hz to 20 kHz) 4.4 Ohms @ 700 Hz
Maximum Peak SPL (AES75, Z-weighted) 114 dB
Continuous Power Handling (CTA 426-B) 100 W
Recommended Amplifier Power (RMS, Music Signal) 100 - 200 W into 4 Ohms
50 - 100 W into 8 Ohms
Bass Alignment Ported
Port Tuning Frequency 62 Hz
Crossover Frequency LF/HF: 2.3 kHz
Drive Unit Complement 2 x 4.5" RST III bass-mid driver
1 x 25 mm C-CAM Gold Dome tweeter
Finishes High Gloss Black
Satin White
External Dimensions with all accessories fitted (H x W x D) 750 x 154 x 78 mm (29 1/2 x 6 1/16 x 3 1/16")
Weight (each) 6.4 kg (14 lb 2 oz)
Sold As Single
Warranty 5 years
