Item #CC280IDC

Monitor Audio C280-IDC

Series 200 In-Ceiling Speaker
Item #CC280IDC

Monitor Audio C280-IDC

Series 200 In-Ceiling Speaker
$630.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

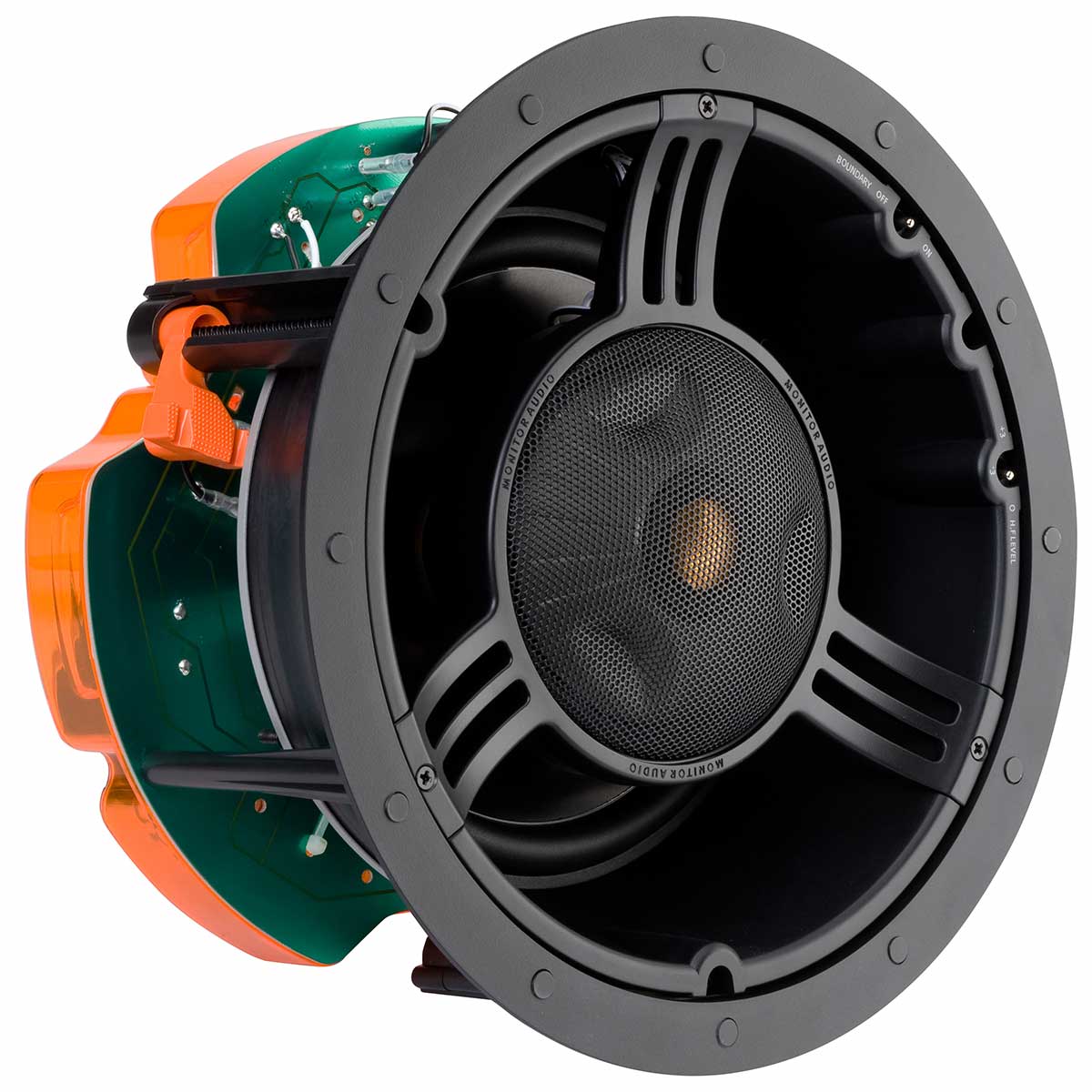

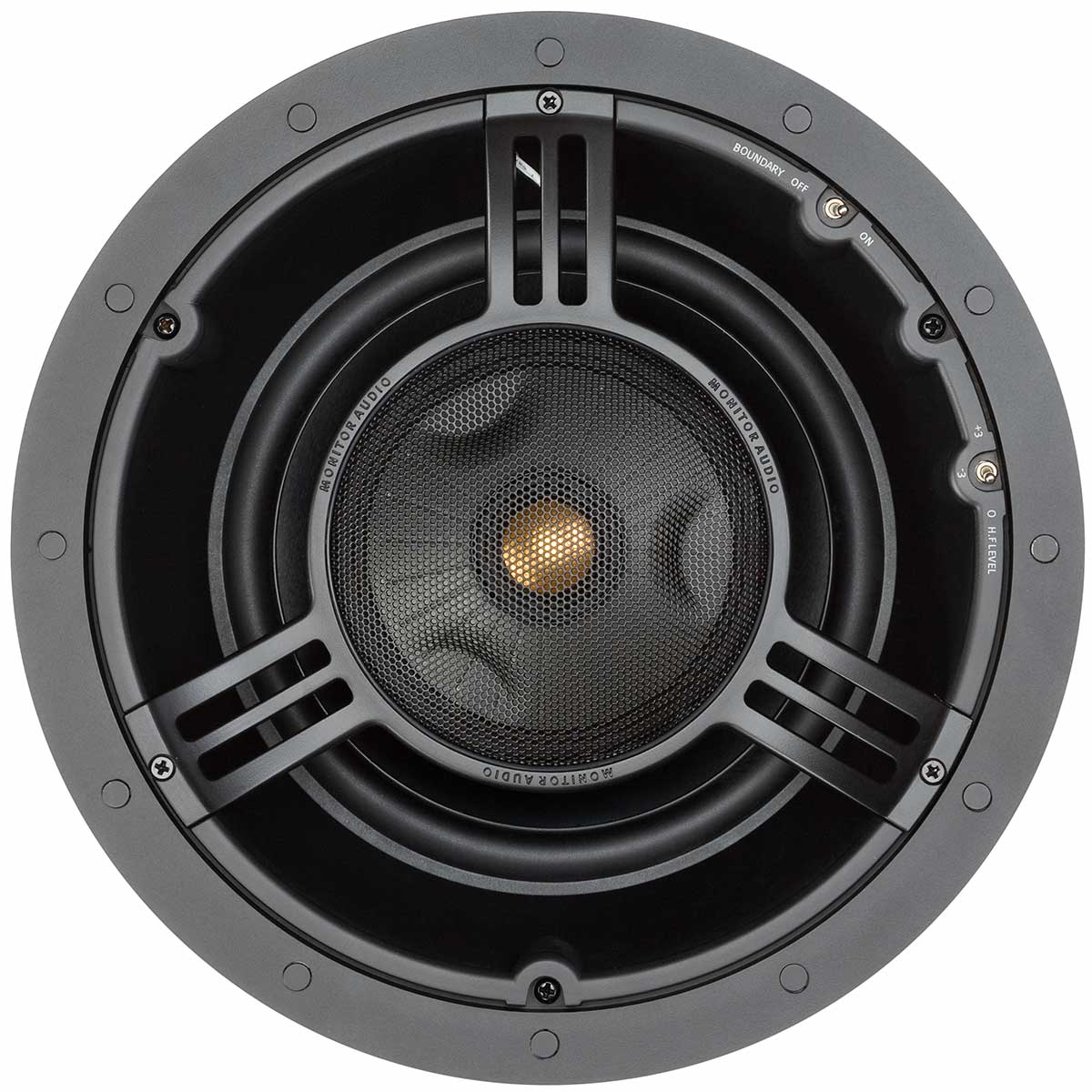

Features an 8-inch C-CAM bass driver and a pivoting IDC module, housing a 4-inch C-CAM RST inverted midrange driver and a 1-inch C-CAM Gold Dome tweeter.

True 3-way design provides rich midrange detail, higher system output, greater power handling, and superior vocal intelligibility and sound localization. Optimum imaging and set-up are established via the pivoting IDC, high frequency (+3 dB /0 dB / -3 dB) level adjustment, and boundary compensation (on / off) controls.

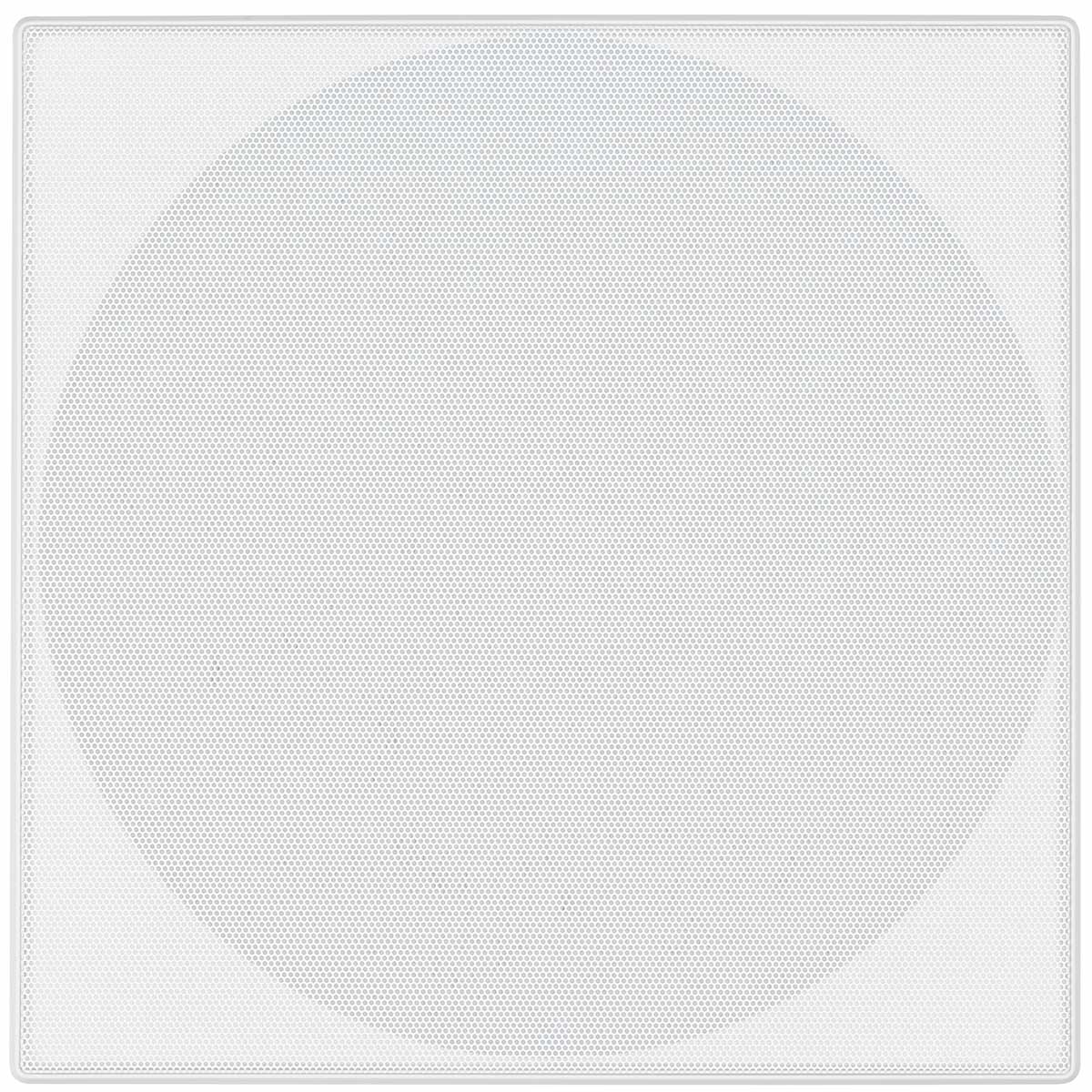

Optional square grille can be used with this model.

Details & Specs

  • Frequency Response - 50 Hz – 30 kHz
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 90 dB
  • Maximum SPL - 111.6 dBA
  • Power Handling (RMS) - 120 W
  • Recommended Amplifier Requirements - 30 – 120 W
  • Drive Unit Complement -
    • 8” C-CAM cone bass driver, pivoting IDC module housing
    • 4” C-CAM RST inverted midrange driver
    • 1” C-CAM Gold Dome tweeter
  • Adjustment Controls -
    • HF Level Switch (+3 dB / 0 dB / -3 dB)
    • Boundary Compensation Switch
  • Overall Diameter (Including Grille) - 285 mm (111/4")
  • Overall Depth (Including Grille) - 161 mm (65/16")
  • Mounting Depth - 157 mm (63/16")
  • Cut-Out Hole Diameter - 247 mm (93/4")
  • Optional Square Grille - Outer Dimensions - 285 x 285 mm (111/4")
  • Fixing Type - 3 position Tri-Grip dog fixings
  • Construction Material - Mineral filled ABS, RoHS compliant
  • Weight - 3.42 kg (7 lb 8 oz)
  • Pre-Construction Bracket - CB8 Pre-Construction Bracket (Green)
  • Back Box - CMBOX-R
