Item #CC180

Monitor Audio C180

Series 100 In-Ceiling Speaker
Item #CC180

Monitor Audio C180

Series 100 In-Ceiling Speaker
$350.00
Special Order: Ships Free From Manufacturer
Contact Us

Overview

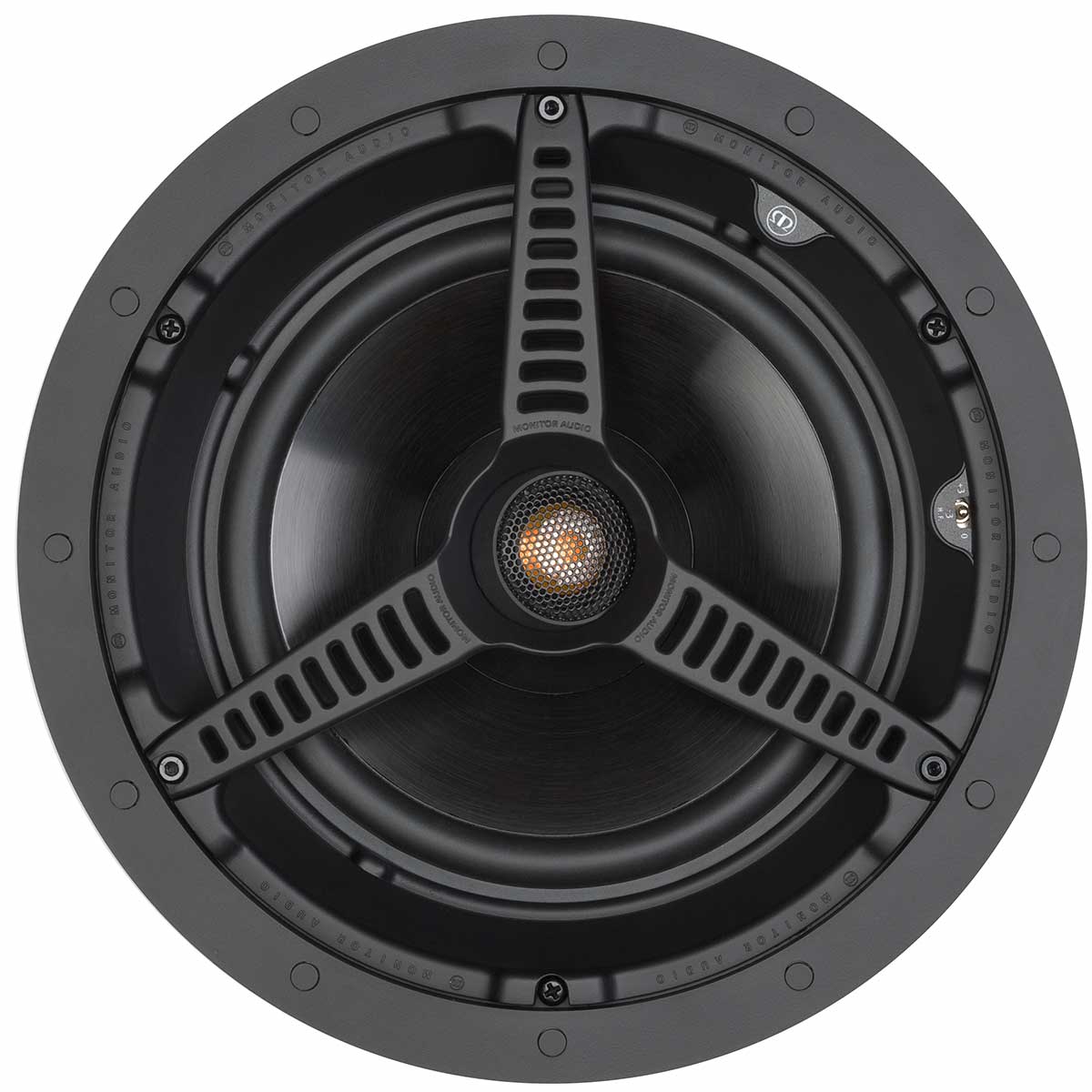

Incorporating an 8-inch MMP II bass driver with Monitor Audio’s signature C-CAM Gold Dome tweeter to provide high performance sound, ease-of-drive, and wide frequency response and dispersion.

Optimum imaging and set-up are established via a pivoting tweeter and high-frequency (+3 dB / 0 dB /-3 dB) level adjustment.

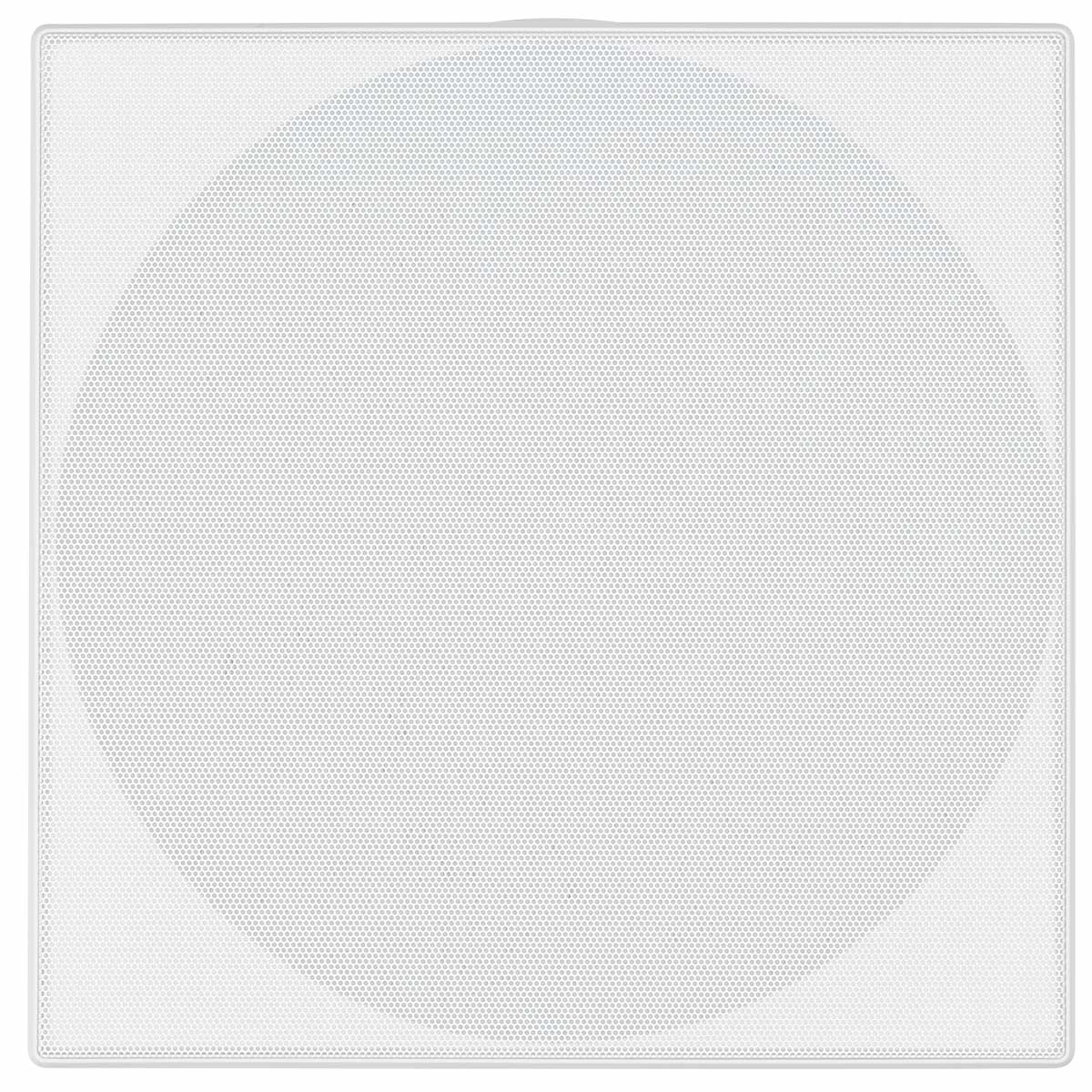

Optional square grille can be used with this model.

Details & Specs

  • Frequency Response - 50 Hz – 25 kHz
  • Nominal Impedance - 6 ohms
  • Sensitivity (1W@1M) - 90 dB
  • Maximum SPL - 111.6 dBA
  • Power Handling (RMS) - 120 W
  • Recommended Amplifier Requirements - 30 – 120 W
  • Drive Unit Complement -
    • 8" MMP II cone bass driver
    • 1" C-CAM pivoting Gold Dome tweeter
  • Adjustment Controls - HF Level Switch (+3 dB / 0 dB / -3 dB)
  • Overall Diameter (Including Grille) - 285 mm (111/4")
  • Overall Depth (Including Grille) - 126 mm (415/16")
  • Mounting Depth - 122 mm (413/16")
  • Cut-Out Hole Diameter - 247 mm (93/4")
  • Fixing Type - 3 position Tri-Grip dog fixings
  • Optional Square Grille - Outer Dimensions 285 x 285 mm (111/4")
  • Construction Material - Mineral filled ABS, RoHS compliant
  • Weight - 2.72 kg (6 lb)
  • Pre-Construction Bracket - CB8 Pre-Construction Bracket (Green)
  • Back Box - CCBOX-R / CMBOX-R
